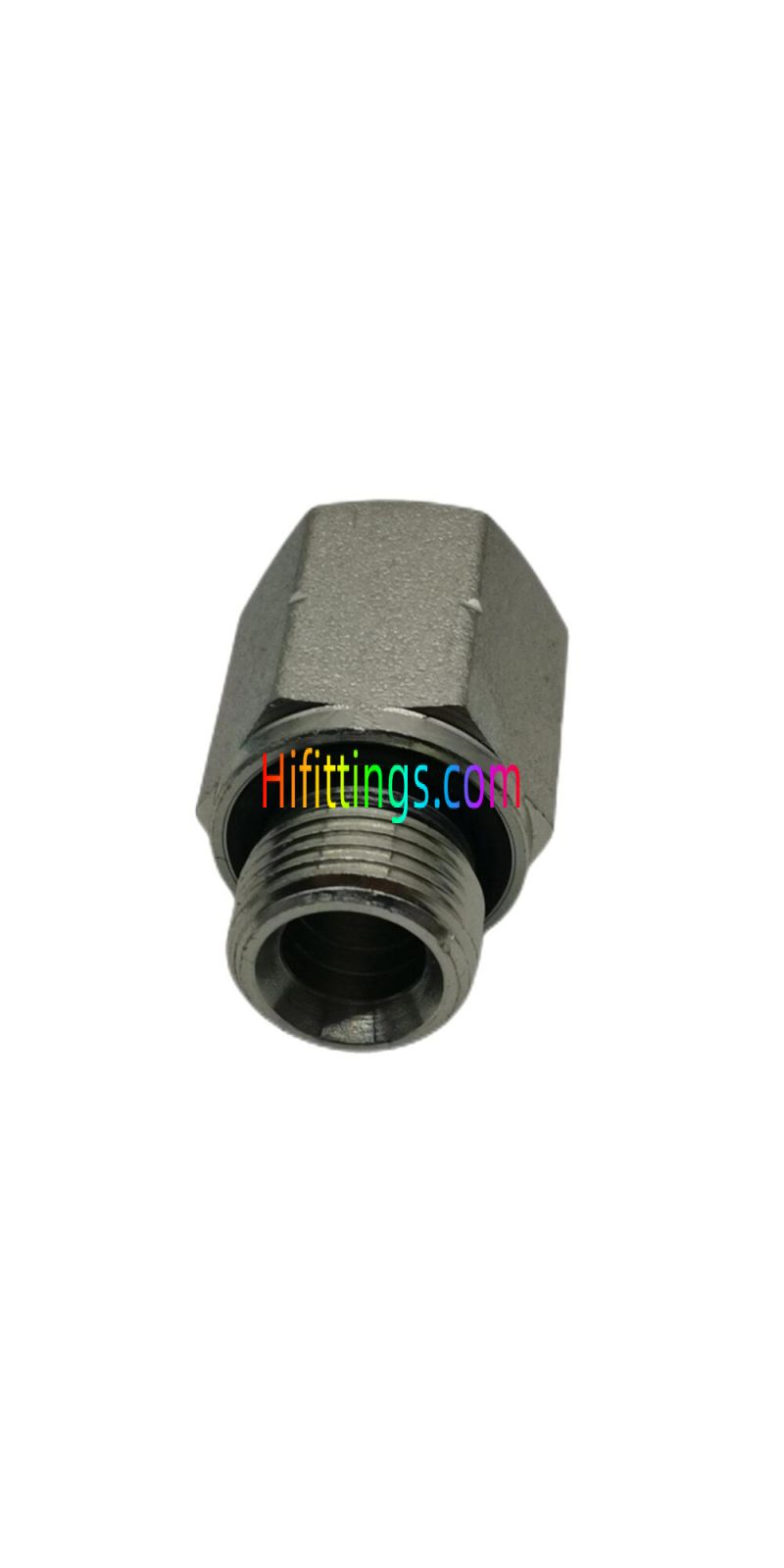

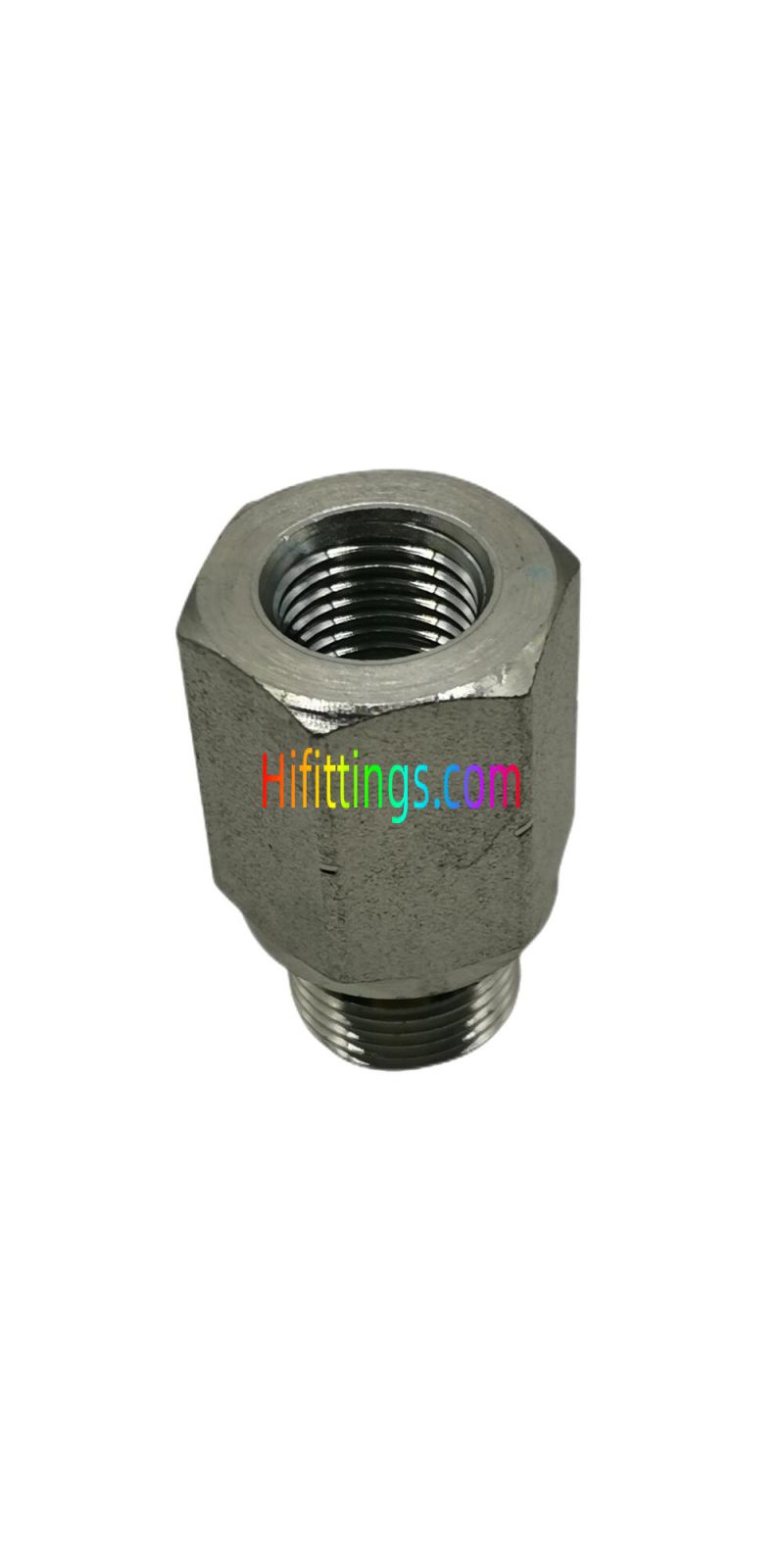

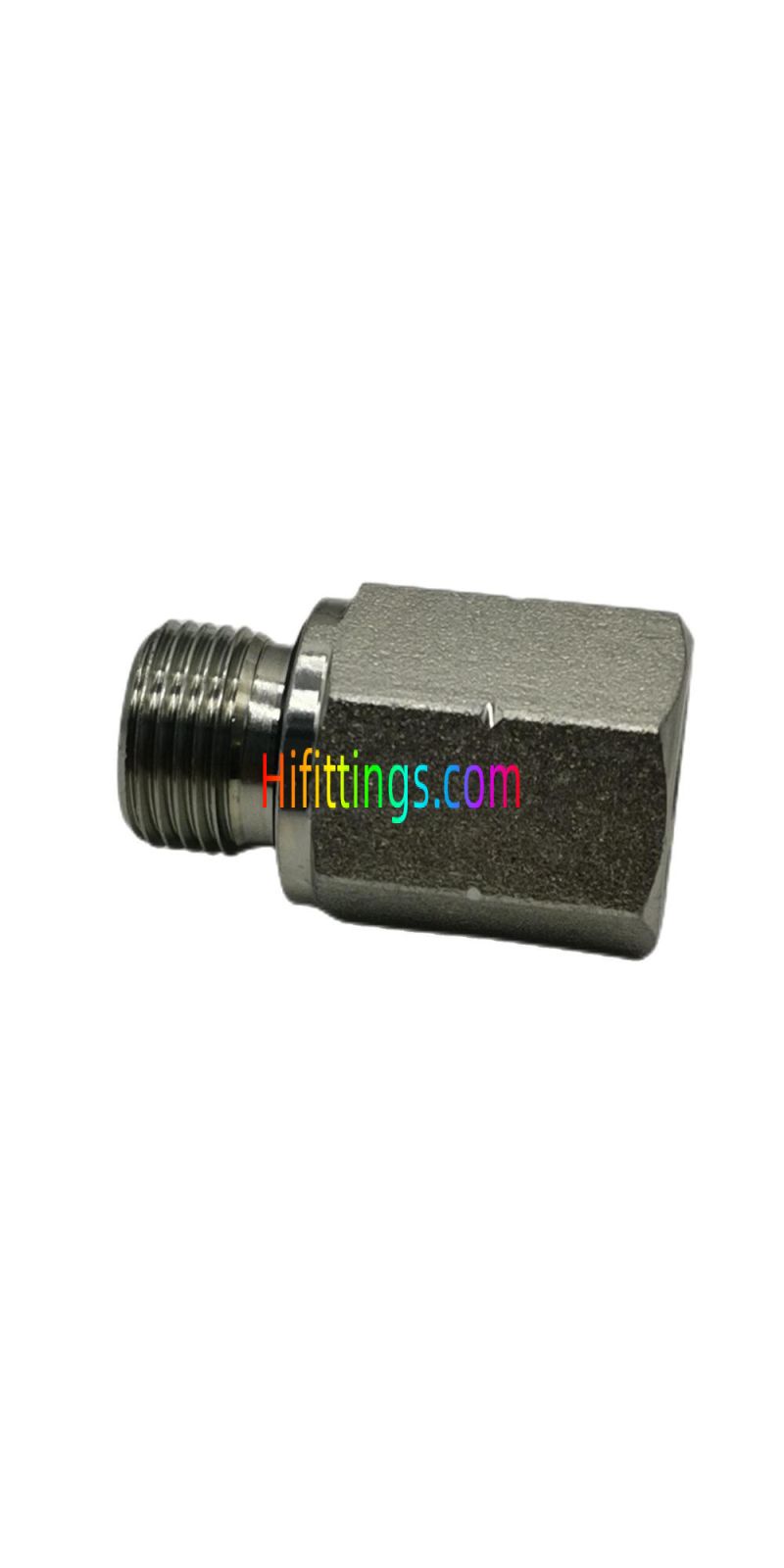

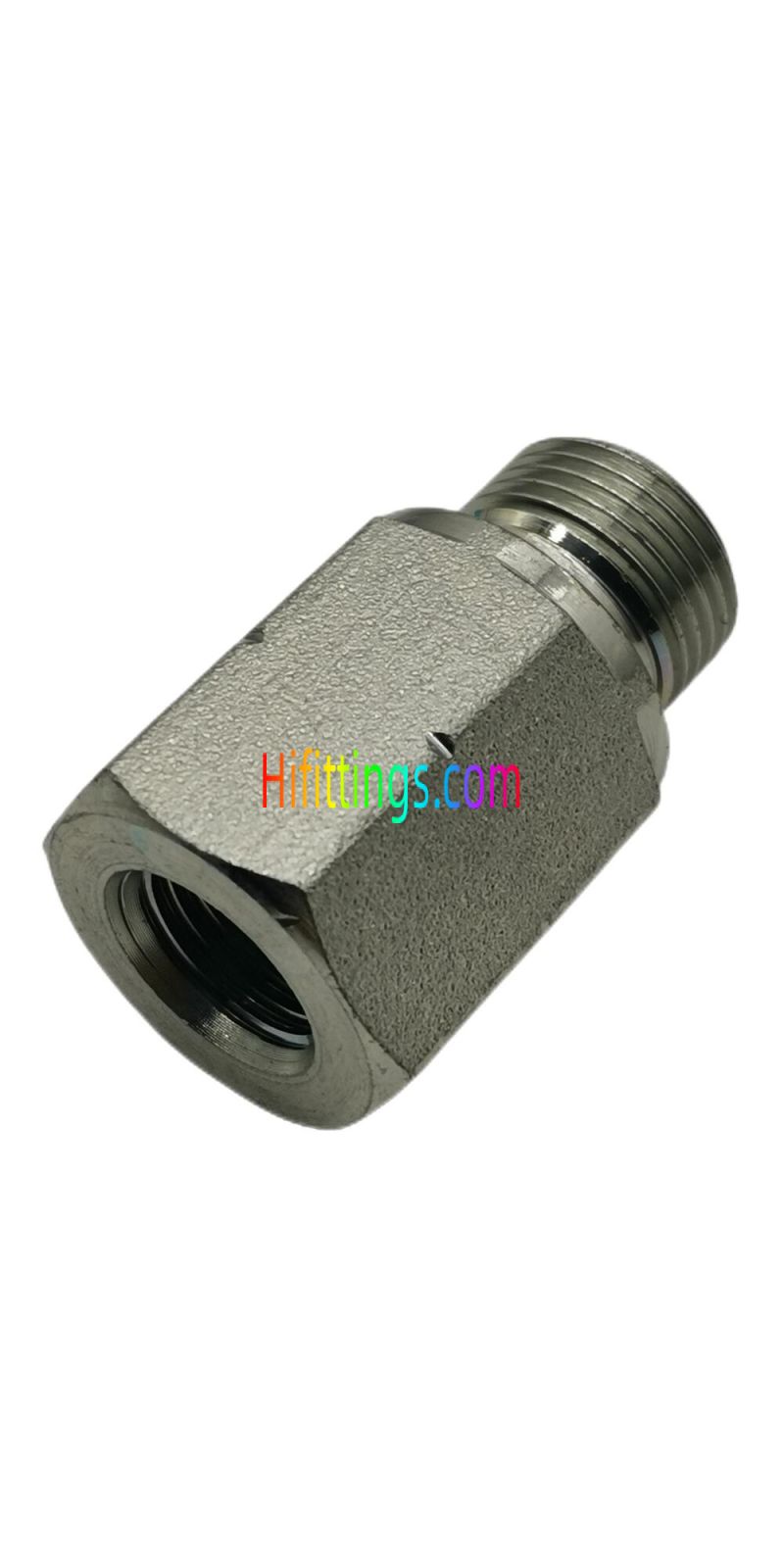

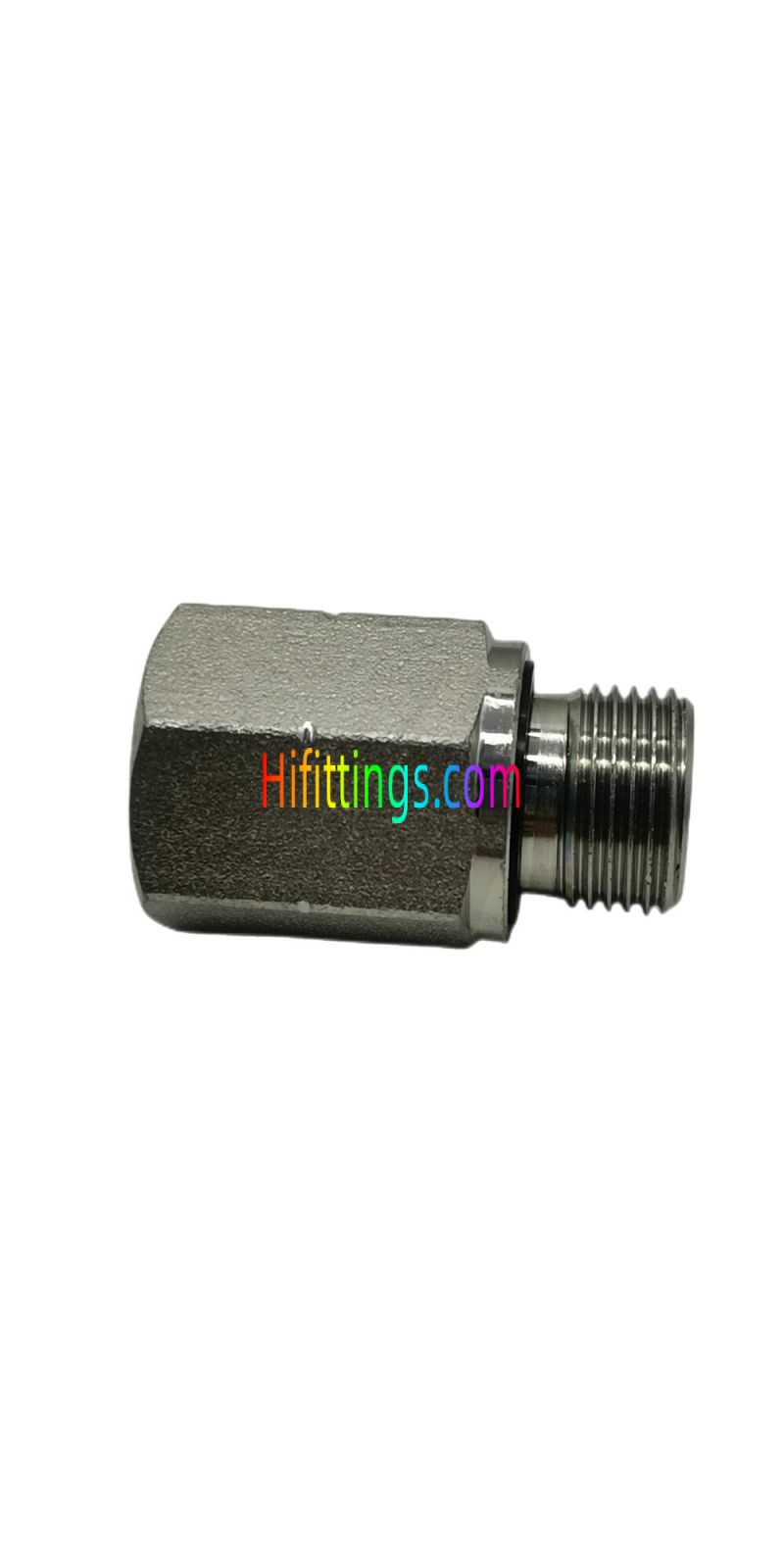

Gerade BSP-Außengewinde mit unverlierbarer Dichtung BSP-Innengewinde-Verschraubung 5B-WD
35
Auf Lager
Nur noch %1 verfügbar
SKU
5B-WD
Guarantee safe & secure checkout
Straight BSP Male Captive Seal /BSP Female Hydraulic Adapter Fittings ISO 1179 5B-WD
|
Part NO. |
E |
F |
E End |
A |
L |
S1 |
Working Pressure bar |
|
5B-02-04WD |
G1/8"X28 |
G1/4"X19 |
WD-B02 |
8 |
30.5 |
19 |
PN345 |
|
5B-02-06WD |
G1/8"X28 |
G3/8"X19 |
WD-B02 |
8 |
33.5 |
22 |
PN345 |
|
5B-04-02WD |
G1/4"X19 |
G 1/8"X28 |
WD-B04 |
12 |
31.5 |
19 |
PN345 |
|
5B-04-06WD |
G1/4"X19 |
G3/8"X19 |
WD-B04 |
12 |
37 |
22 |
PN345 |
|
5B-04-08WD |
G1/4"X19 |
G1/2"X14 |
WD-B04 |
12 |
43 |
27 |
PN345 |
|
5B-06-02WD |
G3/8"X19 |
G1/8"X28 |
WD-B06 |
12 |
35.5 |
22 |
PN345 |
|
5B-06-04WD |
G3/8"X19 |
G1/4"X19 |
WD-B06 |
12 |
37.5 |
22 |
PN345 |
|
5B-06-08WD |
G3/8"X19 |
G1/2"X14 |
WD-B06 |
12 |
43.5 |
27 |
PN345 |
|
5B-08-04WD |
G1/2"X14 |
G1/4"X19 |
WD-B08 |
14 |
38 |
27 |
PN345 |
|
5B-08-06WD |
G1/2"X14 |
G3/8"X19 |
WD-B08 |
14 |
41 |
27 |
PN345 |
|
5B-08-12WD |
G1/2"X14 |
G3/4"X14 |
WD-B08 |
14 |
46 |
36 |
PN345 |
|
5B-12-08WD |
G3/4"X14 |
G1/2"X14 |
WD-B12 |
16 |
47.5 |
32 |
PN275 |
|
5B-12-16WD |
G3/4"X14 |
G1"X11 |
WD-B12 |
16 |
53.5 |
41 |
PN275 |
|
5B-12-20WD |
G3/4"X14 |
G1.1/4"X11 |
WD-B12 |
16 |
54.5 |
50 |
PN275 |
|
5B-16-12WD |
G1"X11 |
G3/4"X14 |
WD-B16 |
18 |
50.5 |
41 |
PN205 |
|
5B-16-20WD |
G1"X11 |
G1.1/4"X11 |
WD-B16 |
18 |
56.5 |
50 |
PN205 |
|
5B-20-16WD |
G1.1/4"X11 |
G1"X11 |
WD-B20 |
20 |
57.5 |
50 |
PN170 |
|
5B-20-24WD |
G1.1/4"X11 |
G1.1/2"X11 |
WD-B20 |
20 |
59.5 |
55 |
PN170 |
|
5B-20-32WD |
G1.1/4"X11 |
G2"X11 |
WD-B20 |
20 |
64 |
70 |
PN170 |
|
5B-24-16WD |
G1.1/2"X11 |
G1"X11 |
WD-B24 |
22 |
59.5 |
55 |
PN105 |
|
5B-24-20WD |
G1.1/2"X11 |
G1.1/4"X11 |
WD-B24 |
22 |
60 |
55 |
PN105 |
|
5B-24-32WD |
G1.1/2"X11 |
G2"X11 |
WD-B24 |
22 |
66 |
70 |
PN105 |
| Form | Straight |
|---|---|
| Fitting Typ | Cone |
| Gewindetyp | Male-Female |
| Connection Type | BSP |
