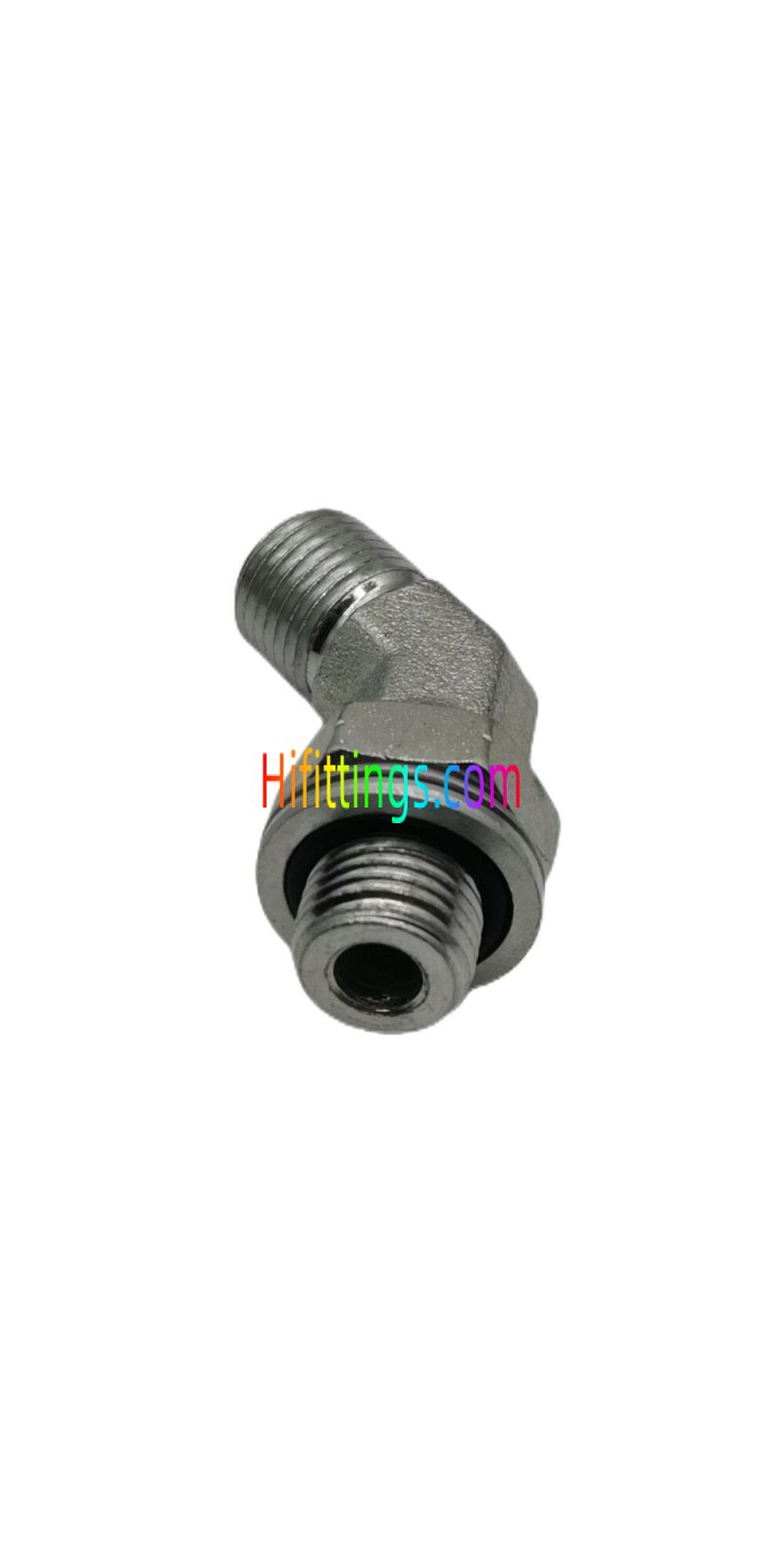

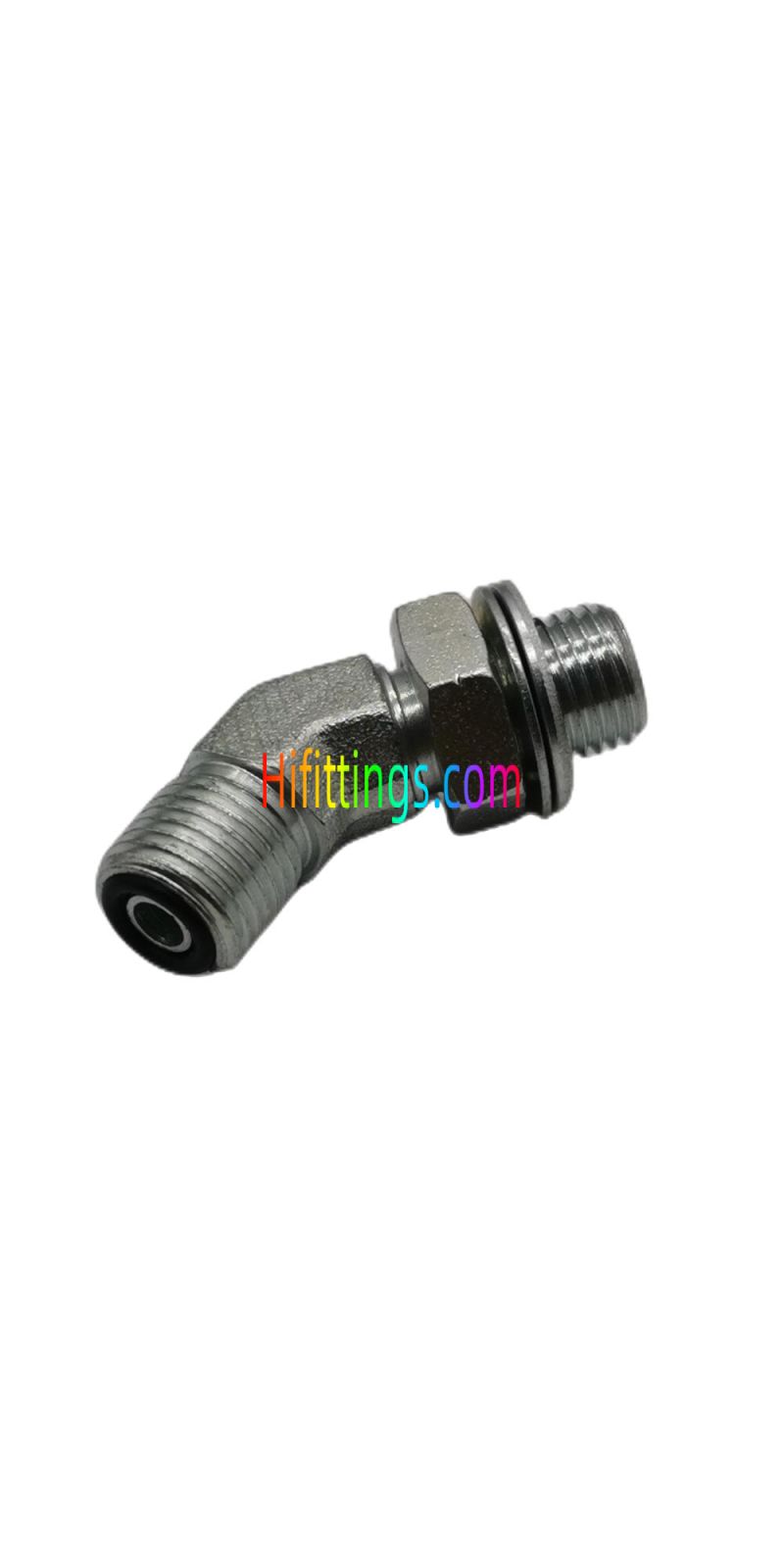

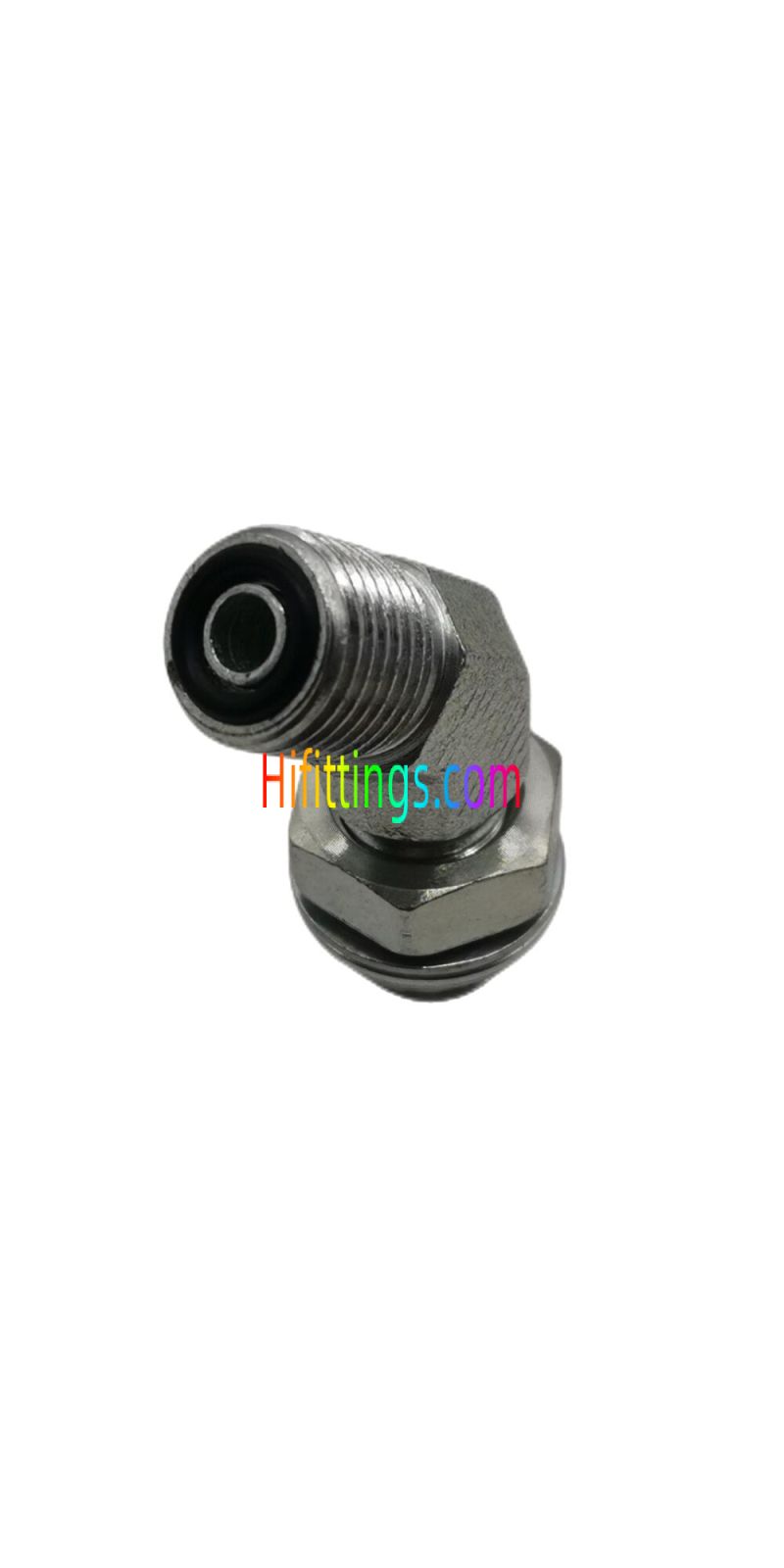

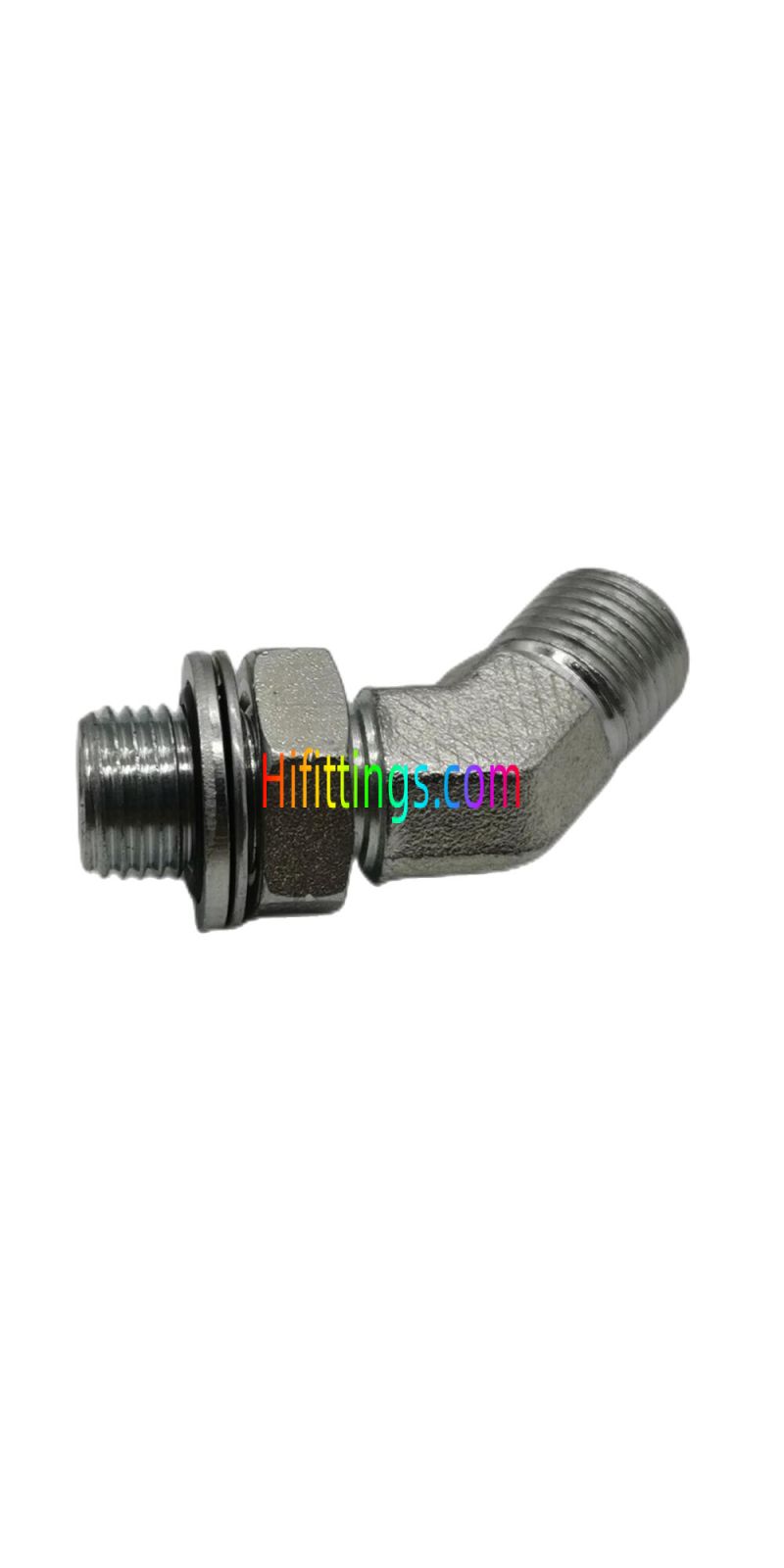

45° Elbow ORFS Male O-Ring / BSP Male O-Ring Fittings 1FG4-OG
|
Part NO. |
E |
F |
E End |
F End |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
1FG4-04OG |
9/16"X18 |
G1/4"X19 |
11 |
111 |
18.3 |
27 |
14 |
19 |
PN400 |
|
1FG4-04-02OG |
9/16"X18 |
G1/8"X28 |
11 |
11 |
18.3 |
24.8 |
14 |
14 |
PN400 |
|
1FG4-04-06OG |
9/16"X18 |
G3/8"X19 |
11 |
113 |
18 |
30 |
16 |
22 |
PN315 |
|
1FG4-06OG |
11/16"X16 |
G3/8"X19 |
12 |
113 |
20.5 |
31 |
19 |
22 |
PN315 |
|
1FG4-06-04OG |
11/16"X16 |
G1/4"X19 |
12 |
111 |
20.5 |
28 |
19 |
19 |
PN400 |
|
1FG4-06-08OG |
11/16"X16 |
G1/2"X14 |
12 |
115 |
22 |
36 |
22 |
27 |
PN315 |
|
1FG4-08OG |
13/16"X16 |
G1/2"X14 |
14 |
115 |
24 |
36 |
22 |
27 |
PN315 |
|
1FG4-08-06OG |
13/16"X16 |
G3/8"X19 |
14 |
113 |
24 |
32 |
22 |
22 |
PN315 |
|
1FG4-10-08OG |
1"X14 |
G1/2"X14 |
16 |
115 |
28 |
37.5 |
27 |
27 |
PN315 |
|
1FG4-10-12OG |
1"X14 |
G3/4"X14 |
16 |
119 |
28 |
42 |
27 |
32 |
PN200 |
|
1FG4-12OG |
1.3/16"X12 |
G3/4"X14 |
18 |
119 |
30.7 |
42.5 |
30 |
32 |
PN200 |
|
1FG4-12-08OG |
1.3/16"X12 |
G1/2"X14 |
18 |
115 |
30.7 |
38.5 |
30 |
27 |
PN200 |
|
1FG4-12-16OG |
1.3/16"X12 |
G1"X11 |
18 |
217 |
31.5 |
44 |
33 |
41 |
PN200 |
|
1FG4-16OG |
1.7/16"X12 |
G1"X11 |
21 |
217 |
33 |
44.5 |
36 |
41 |
PN200 |
|
1FG4-16-12OG |
1.7/16"X12 |
G3/4"X14 |
21 |
119 |
33 |
44.5 |
36 |
32 |
PN200 |
|
1FG4-20OG |
1.11/16"X12 |
G1.1/4"X11 |
25 |
222 |
35.5 |
47.5 |
41 |
50 |
PN200 |
|
Note: 1.F end is connected with DIN 3852 port. 2. PN = Nominal Pressure |
|||||||||
| Forma | Elbow |
|---|---|
| Tipo de montaje | Face Seal |
| Tipo de hilo | Male |
| Connection Type | BSP, ORFS |
