| Specifications | ||||||||
| Body Size(in) | 1/4(02) | 3/8(03) | 1/2(04) | 5/8(06) | 3/4(08) | 1(10) | 1-1/2(12) | 2(16) |
| Rated Pressure(PSI) | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 3000 | 3000 |
| Rated Flow(GPM) | 3 | 6 | 12 | 20 | 28 | 50 | 80 | 100 |
| Spillage(ml | 0. 006 | 0.012 | 0. 02 | 0. 026 | 0. 032 | 0. 035 | 0. 05 | 0.1 |
| Temperature Range(NBR) | -20℃ 〜+120℃ | |||||||

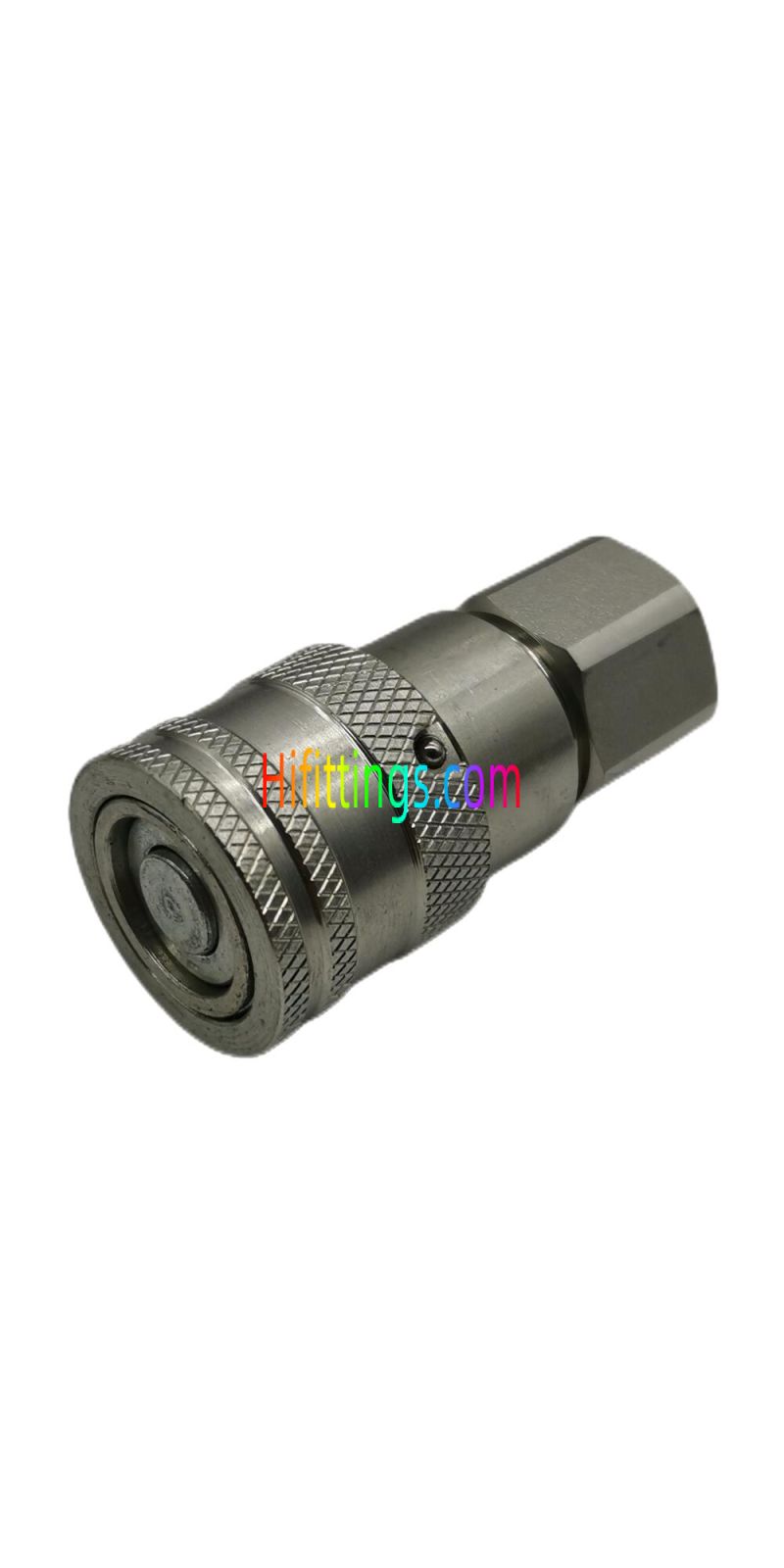

Socket
| Part NO. | ISO | Thread | LS | φD | S1 | A |
| FF-02SF-G02 | 6.3 | Gl/4 | 58.2 | 28 | 20 | 14 |
| FF-03SF-G03 | 10 | G3/8 | 68.2 | 32 | 24 | 14 |
| FF-03SF-G04 | 10 | Gl/2 | 72.2 | 32 | 27 | 18 |
| FF-04SF-G04 | 12.5 | Gl/2 | 75 | 38 | 32 | 18 |
| FF-04SF-G06 | 12.5 | G3/4 | 79 | 38 | 36 | 20 |
| FF-06SF-G06 | 16 | G3/4 | 80 | 42 | 36 | 22 |
| FF-08SF-G06 | 19 | G3/4 | 99.8 | 48 | 41 | 22 |
| FF-08SF-G08 | 19 | G1 | 99.8 | 48 | 41 | 23.5 |
| FF-10SF-G10 | 25 | Gl-l/4 | 111.5 | 56 | 55 | 24 |
| FF-12SF-G12 | - | Gl-1/2 | 150 | 79.5 | 65 | 30 |
| FF-16SF-G16 | - | G2 | 167 | 98.5 | 85 | 31 |

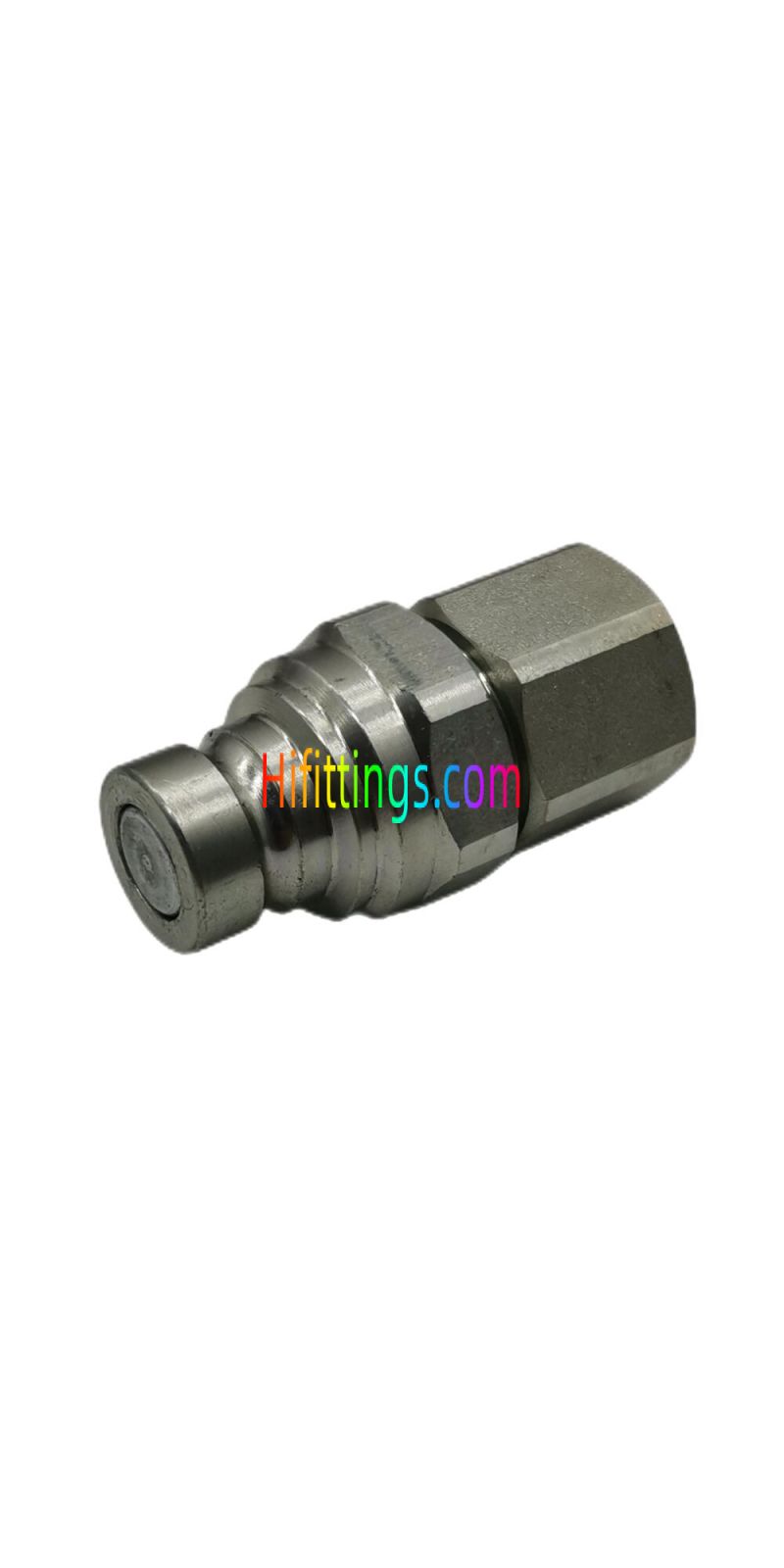

Plug
| Part NO. | ISO | Thread | LP | d | C | S2 |
| FF-02PF-G02 | 6.3 | Gl/4 | 49.2 | 16. 1 | 15.2 | 20 |
| FF-03PF-G03 | 10 | G3/8 | 55.8 | 19.7 | 19.5 | 24 |
| FF-03PF-G04 | 10 | Gl/2 | 59.8 | 19.7 | 19.5 | 27 |
| FF-04PF-G04 | 12.5 | Gl/2 | 72 | 24.5 | 21.6 | 32 |
| FF-04PF-G06 | 12.5 | G3/4 | 76 | 24.5 | 21.6 | 36 |
| FF-06PF-G06 | 16 | G3/4 | 75.5 | 27 | 21.6 | 36 |
| FF-08PF-G06 | 19 | G3/4 | 93.8 | 30 | 29 | 41 |
| FF-08PF-G08 | 19 | G1 | 93.8 | 30 | 29 | 41 |
| FF-10PF-G10 | 25 | Gl-l/4 | 90 | 36 | 34 | 55 |
| FF-12PF-G12 | - | Gl-1/2 | 112 | 57 | 38 | 65 |
| FF-16PF-G16 | - | G2 | 123.9 | 73 | 40.5 | 75 |

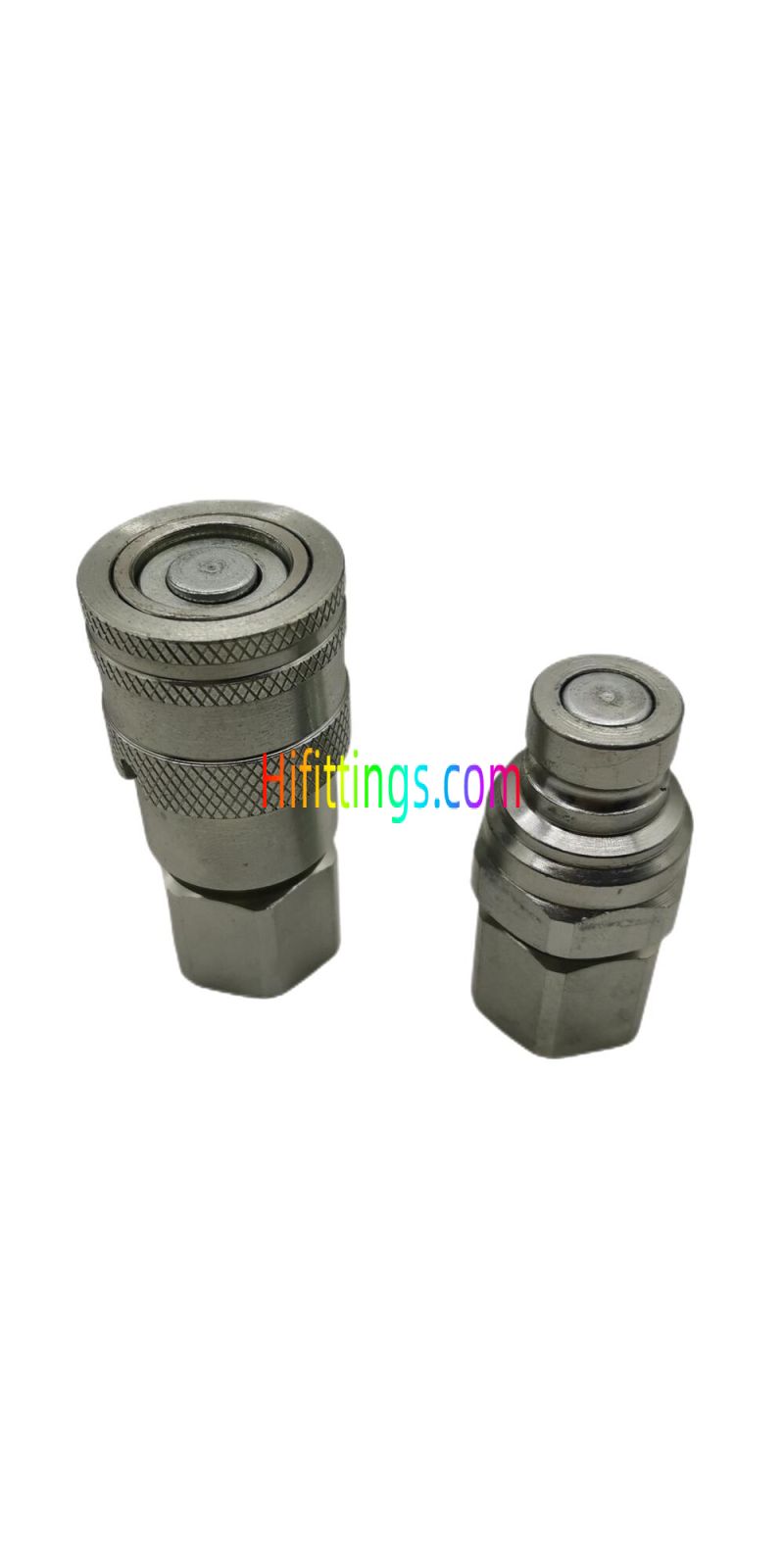

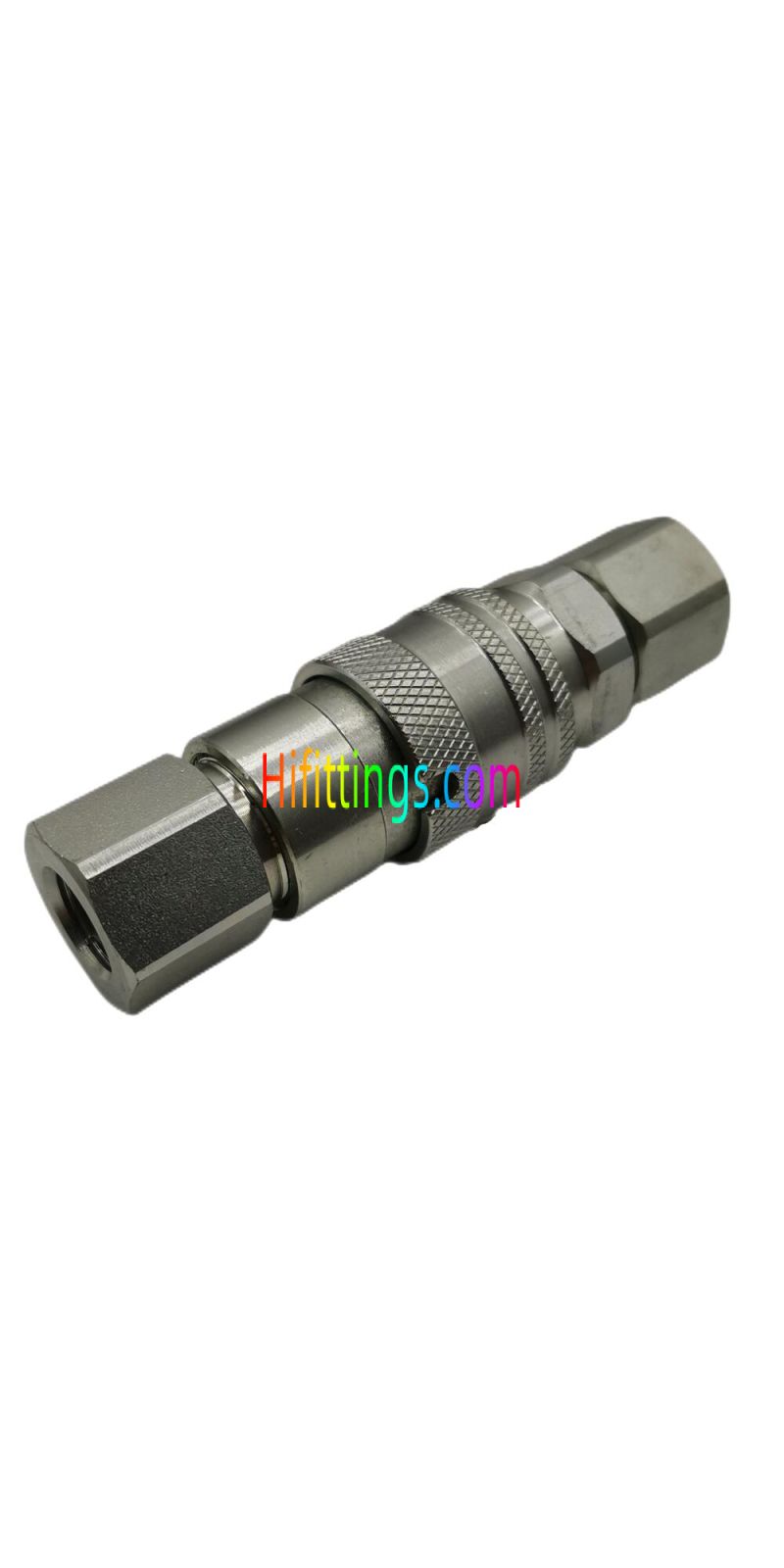

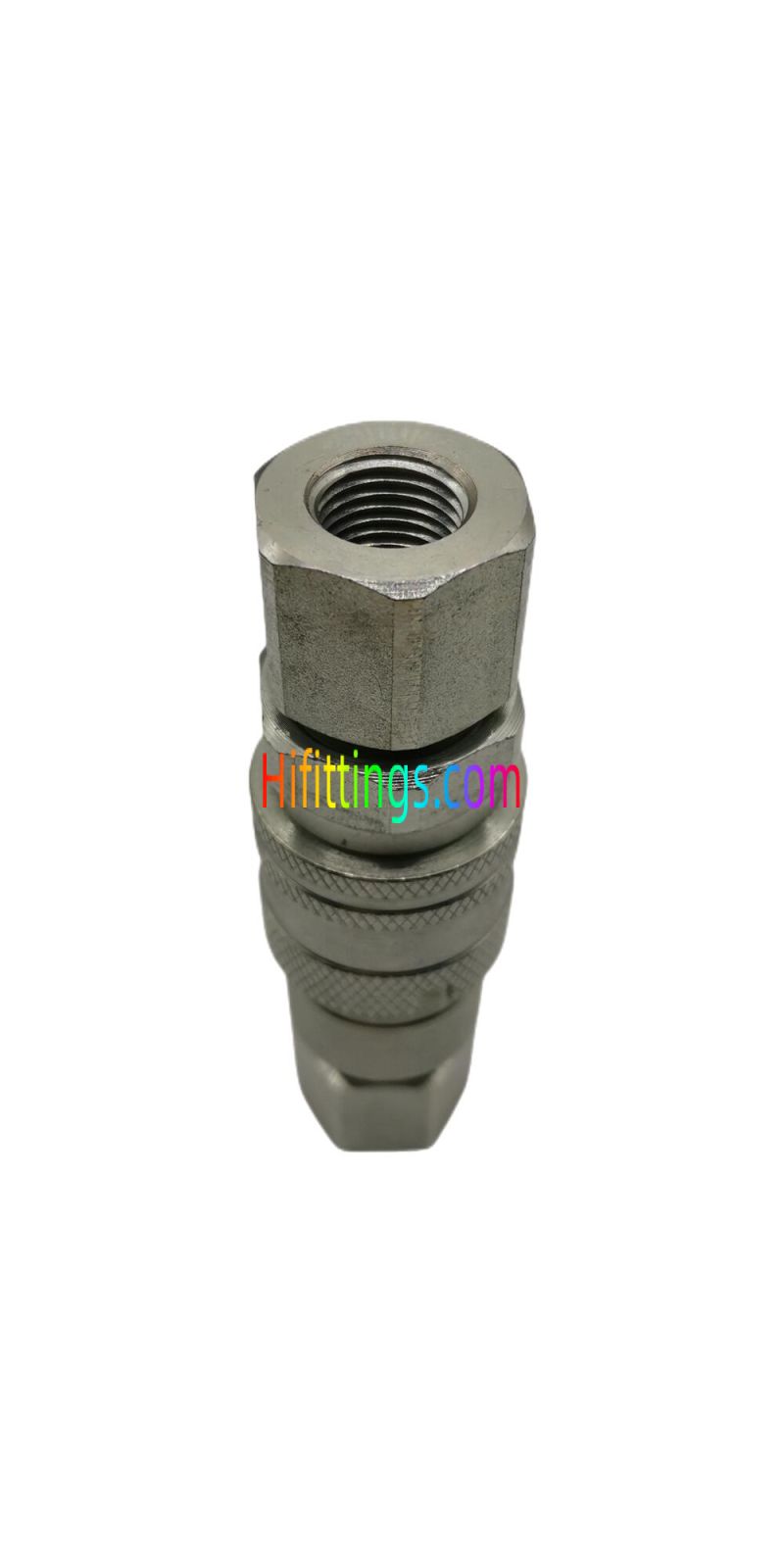

Coupling Fitting
| Part NO. | ISO | Thread | L | φD | S1 | S2 |
| FF-02SP-G02 | 6.3 | Gl/4 | 96.2 | 28 | 20 | 20 |
| FF-03SP-G03 | 10 | G3/8 | 108.4 | 32 | 24 | 24 |
| FF-03SP-G04 | 10 | Gl/2 | 116.4 | 32 | 27 | 27 |
| FF-04SP-G04 | 12.5 | Gl/2 | 129.3 | 38 | 32 | 32 |
| FF-04SP-G06 | 12.5 | G3/4 | 137.3 | 38 | 36 | 36 |
| FF-06SP-G06 | 16 | G3/4 | 138 | 42 | 36 | 36 |
| FF-08SP-G06 | 19 | G3/4 | 172. 1 | 48 | 41 | 41 |
| FF-08SP-G08 | 19 | G1 | 172. 1 | 48 | 41 | 41 |
| FF-10SP-G10 | 25 | Gl-l/4 | 178 | 56 | 55 | 55 |
| FF-12SP-G12 | - | Gl-1/2 | 233.4 | 79.5 | 65 | 65 |
| FF-16SP-G16 | - | G2 | 251.7 | 98.5 | 85 | 75 |
| Tipo di filettatura | Female |
|---|
