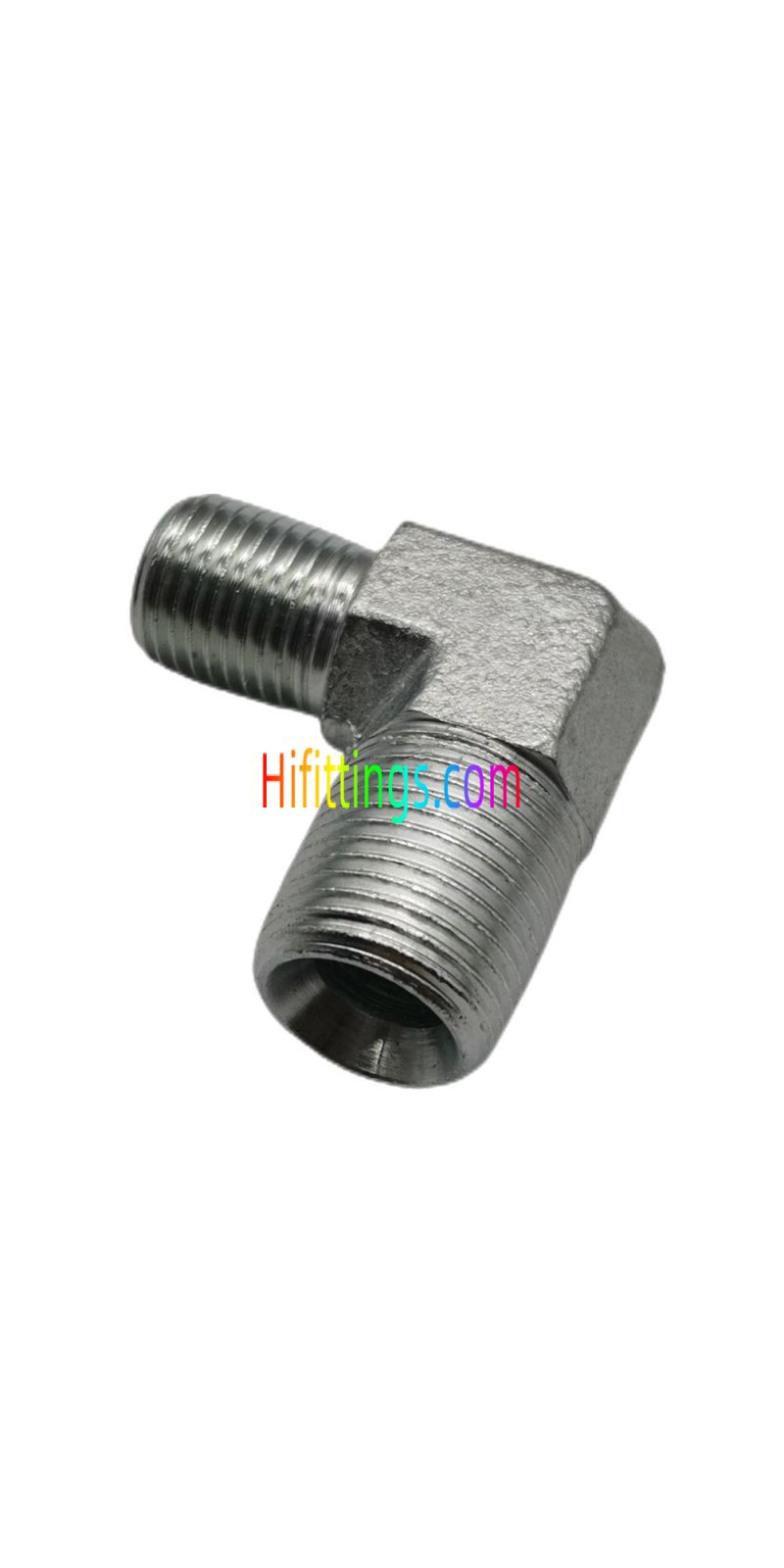

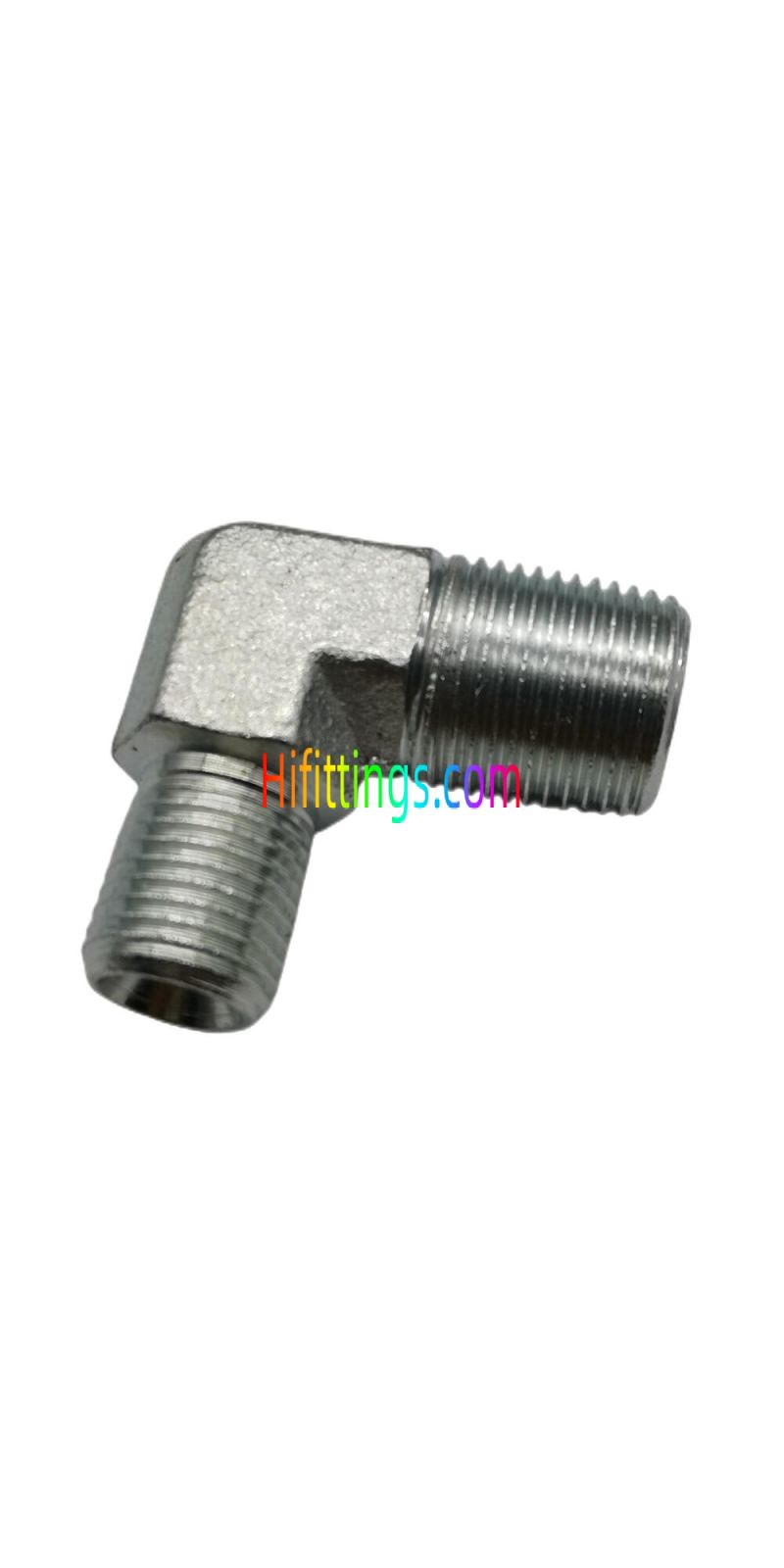

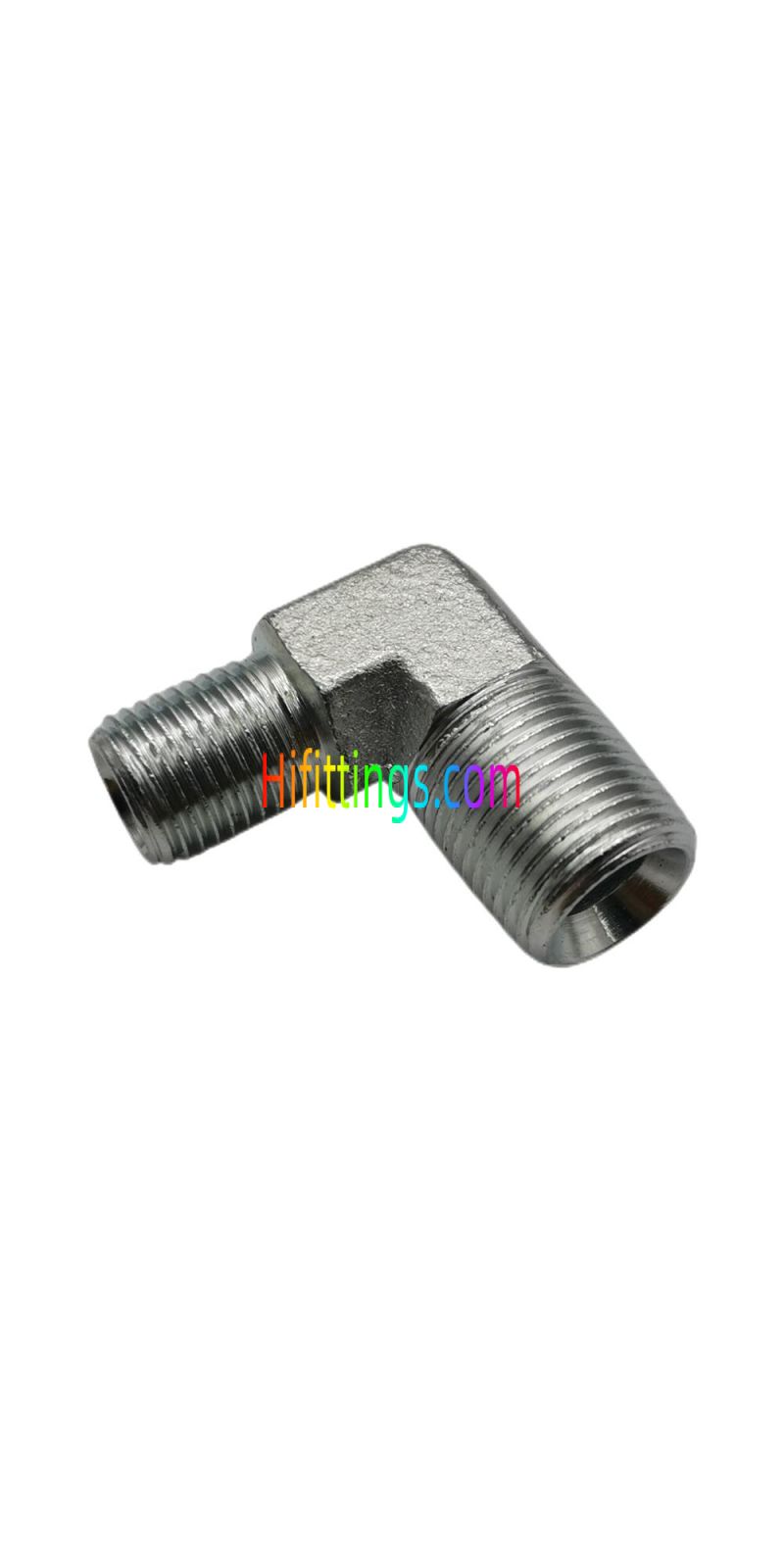

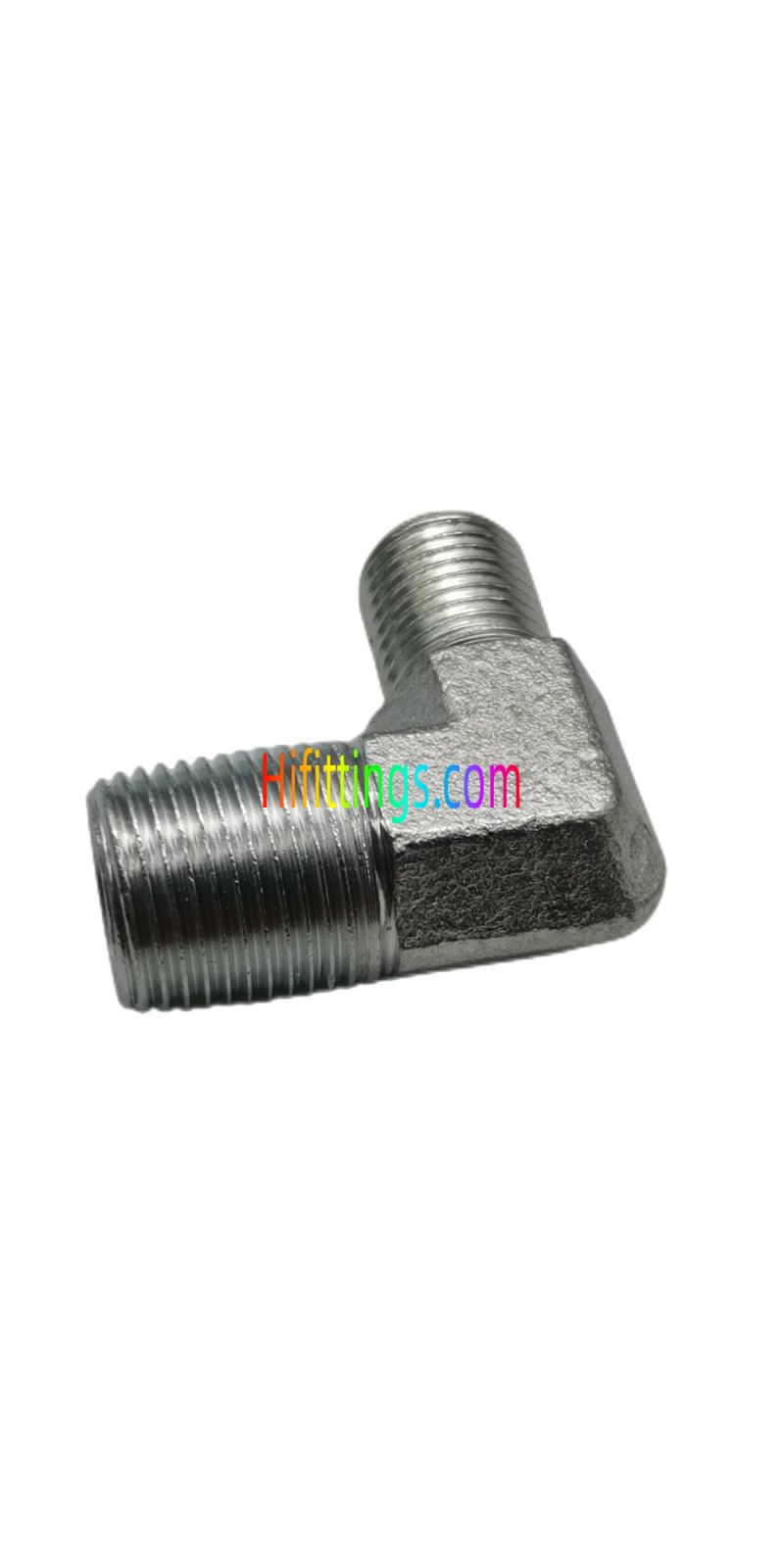

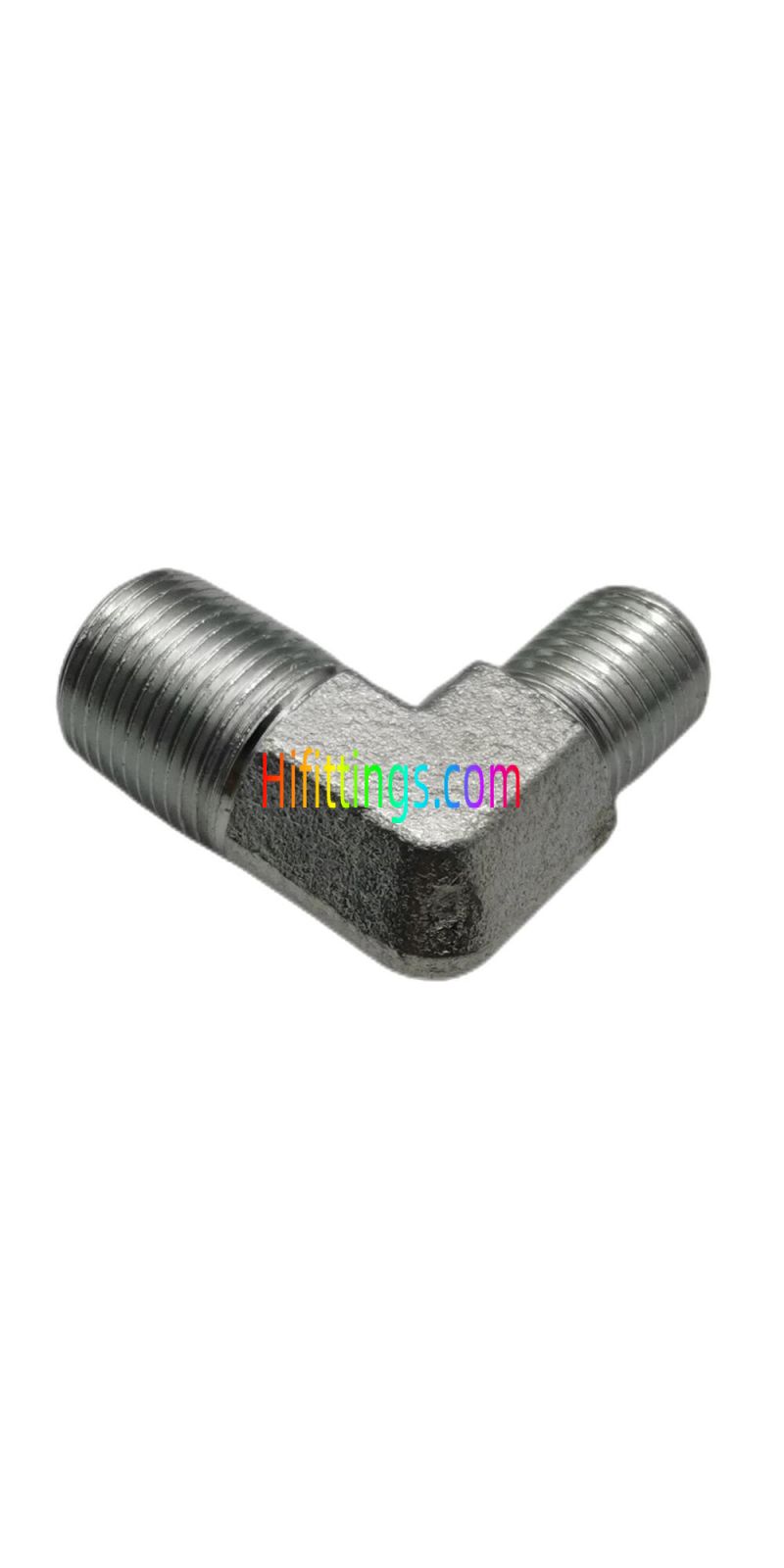

90 Degree Elbow BSP Male 60 Degree Seat / BSPT Male Cone Hydraulic Fittings 1BT9-SP
|
Part NO. |
E |
F |
A |
B |
S1 |
Working Pressure bar |
|
1BT9-02SP |
G1/8"X28 |
R1/8"X28 |
20 |
21 |
11 |
PN345 |
|
1BT9-02-04SP |
G1/8"X28 |
R1/4"X19 |
22.3 |
25.5 |
14 |
PN345 |
|
1BT9-04SP |
G1/4"X19 |
R1/4"X19 |
24.5 |
25.5 |
14 |
PN345 |
|
1BT9-04-02SP |
G1/4"X19 |
R1/8"X28 |
25 |
23.5 |
14 |
PN345 |
|
1BT9-04-06SP |
G1/4"X19 |
R3/8"X19 |
25 |
28.5 |
16 |
PN345 |
|
1BT9-04-08SP |
G1/4"X19 |
R1/2"X14 |
30 |
36 |
22 |
PN345 |
|
1BT9-06SP |
G3/8"X19 |
R3/8"X19 |
27.5 |
28.5 |
16 |
PN345 |
|
1BT9-06-04SP |
G3/8"X19 |
R1/4"X19 |
27.5 |
26.5 |
16 |
PN345 |
|
1BT9-06-08SP |
G3/8"X19 |
R1/2"X14 |
31 |
36 |
22 |
PN345 |
|
1BT9-08SP |
G1/2"X14 |
R1/2"X14 |
34.5 |
36 |
22 |
PN345 |
|
1BT9-08-04SP |
G1/2"X14 |
R1/4"X19 |
34.5 |
30.5 |
22 |
PN345 |
|
1BT9-08-06SP |
G1/2"X14 |
R3/8"X19 |
34.5 |
32.5 |
22 |
PN345 |
|
1BT9-08-12SP |
G1/2"X14 |
R3/4"X14 |
37.5 |
43.5 |
27 |
PN275 |
|
1BT9-08-16SP |
G1/2"X14 |
R1"X11 |
41 |
50 |
33 |
PN205 |
|
1BT9-10-08SP |
G5/8"X14 |
R1/2"X14 |
35 |
36 |
22 |
PN275 |
|
1BT9-10-12SP |
G5/8"X14 |
R3/4"X14 |
39 |
43.5 |
27 |
PN275 |
|
1BT9-12SP |
G3/4"X14 |
R3/4"X14 |
40 |
43 |
27 |
PN275 |
|
1BT9-12-06SP |
G3/4"X14 |
R3/8"X19 |
40 |
36 |
27 |
PN275 |
|
1BT9-12-08SP |
G3/4"X14 |
R1/2"X14 |
40 |
39.5 |
27 |
PN275 |
|
1BT9-12-16SP |
G3/4"X14 |
R1"X11 |
43.5 |
50 |
33 |
PN170 |
|
1BT9-12-20SP |
G3/4"X14 |
R1.1/4"X11 |
48 |
56.5 |
41 |
PN170 |
|
1BT9-16SP |
G1"X11 |
R1"X11 |
46 |
50 |
33 |
PN205 |
|
1BT9-16-08SP |
G1"X11 |
R1/2"X14 |
46 |
43 |
33 |
PN205 |
|
1BT9-16-12SP |
G1"X11 |
R3/4"X14 |
46 |
47.5 |
33 |
PN205 |
|
1BT9-16-20SP |
G1"X11 |
R1.1/4"X11 |
50.5 |
56.5 |
41 |
PN170 |
|
1BT9-20SP |
G1.1/4"X11 |
R1.1/4"X11 |
52 |
59 |
41 |
PN170 |
|
1BT9-20-12SP |
G1.1/4"X11 |
R3/4"X14 |
50.5 |
54 |
41 |
PN170 |
|
1BT9-20-16SP |
G1.1/4"X11 |
R1"X11 |
52 |
56.5 |
41 |
PN170 |
|
1BT9-20-24SP |
G1.1/4"X11 |
R1.1/2"X11 |
54.5 |
62.5 |
48 |
PN105 |
|
1BT9-24SP |
G1.1/2"X11 |
R1.1/2"X11 |
57.5 |
62 |
48 |
PN105 |
|
1BT9-24-20SP |
G1.1/2"X11 |
R1.1/4"X11 |
57.5 |
61 |
48 |
PN105 |
|
1BT9-24-32SP |
G1.1/2"X11 |
R2"X11 |
66 |
75 |
63 |
PN105 |
|
1BT9-32SP |
G2"X11 |
R2"X11 |
67 |
75 |
63 |
PN105 |
|
1BT9-32-24SP |
G2"X11 |
R1.1/2"X11 |
68 |
72 |
63 |
PN105 |
| Форма | Elbow |
|---|---|
| Тип крепления | Cone |
| Тип резьбы | Male |
| Connection Type | BSP, BSPT |
