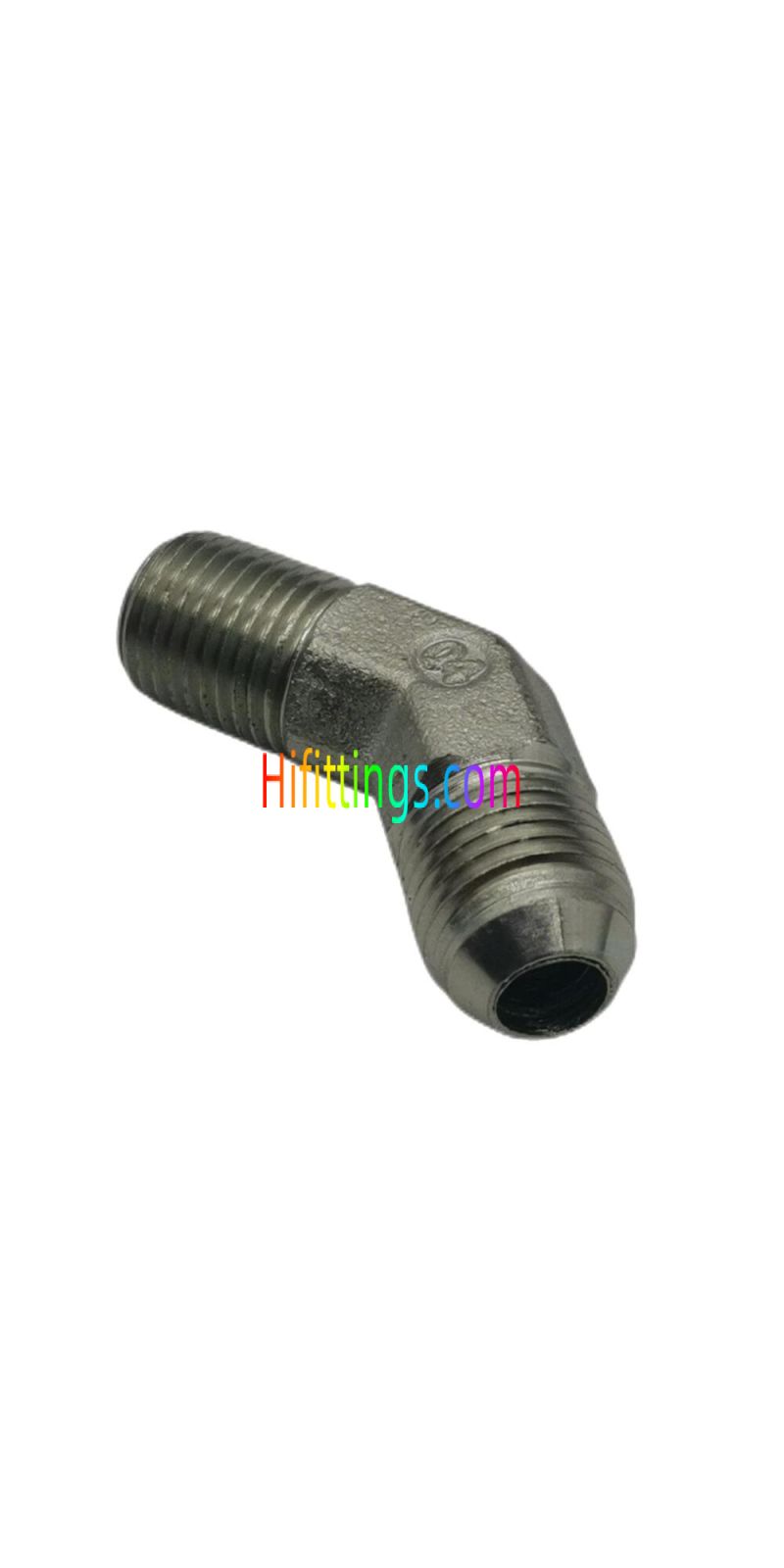

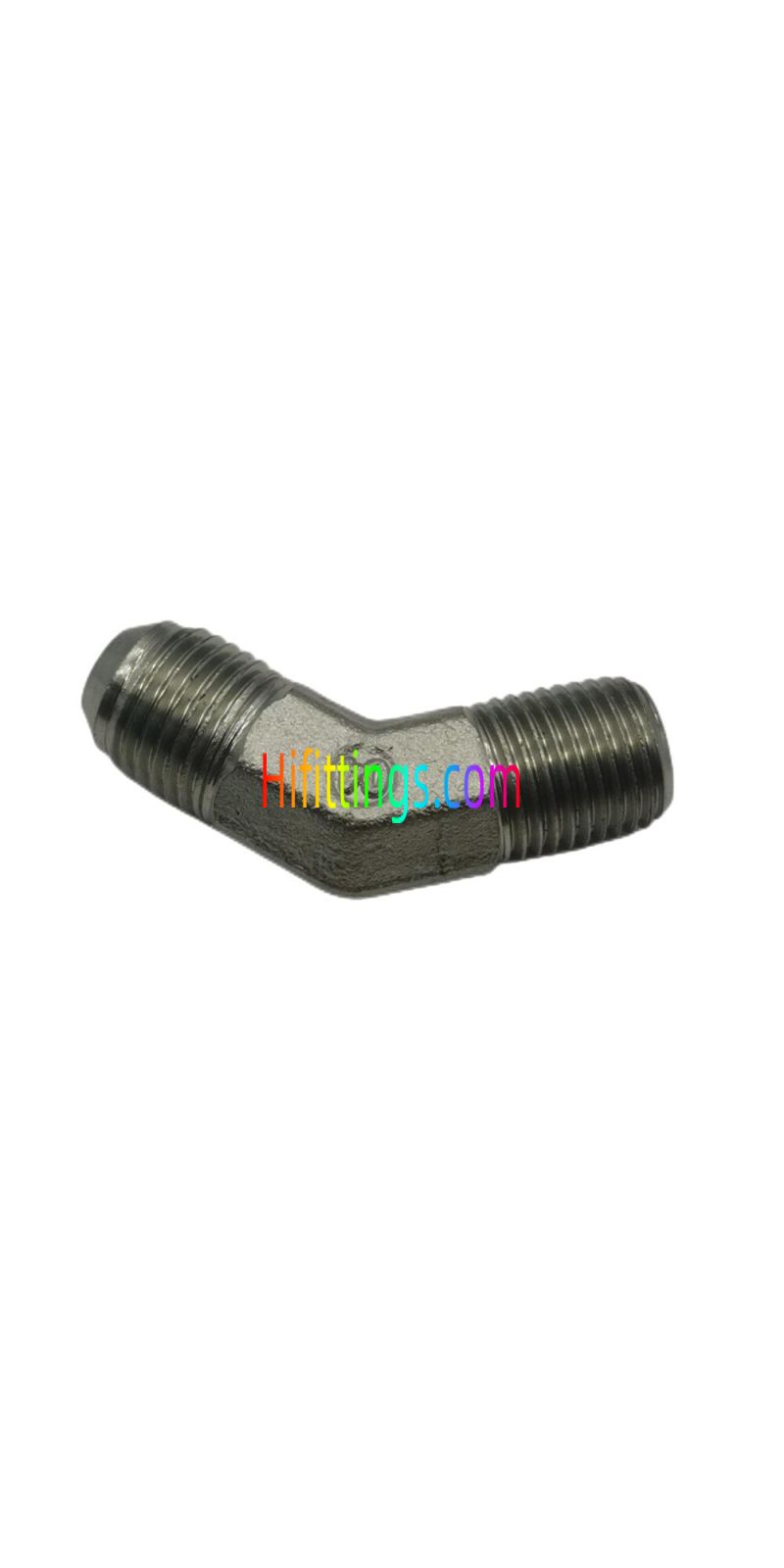

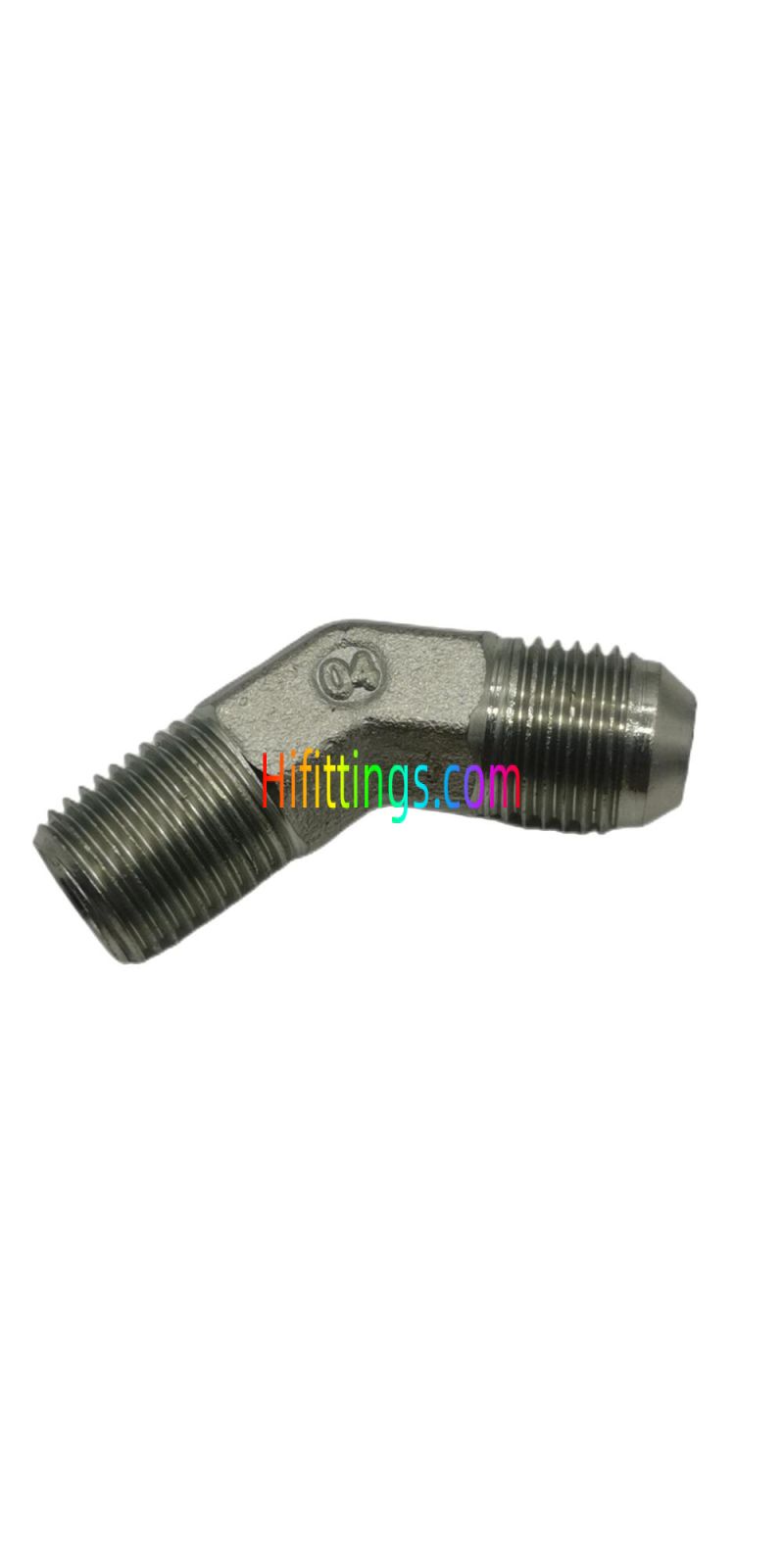

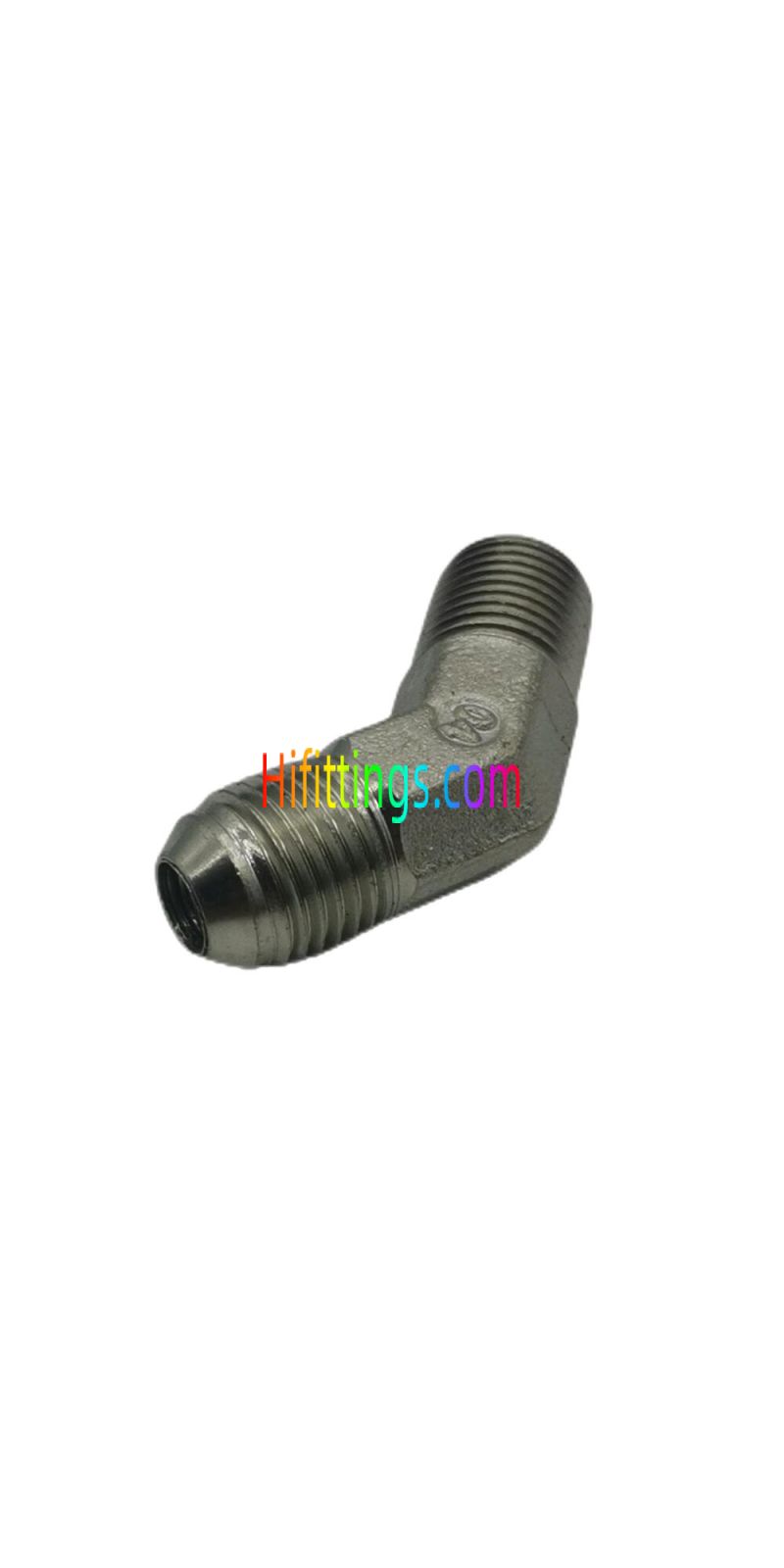

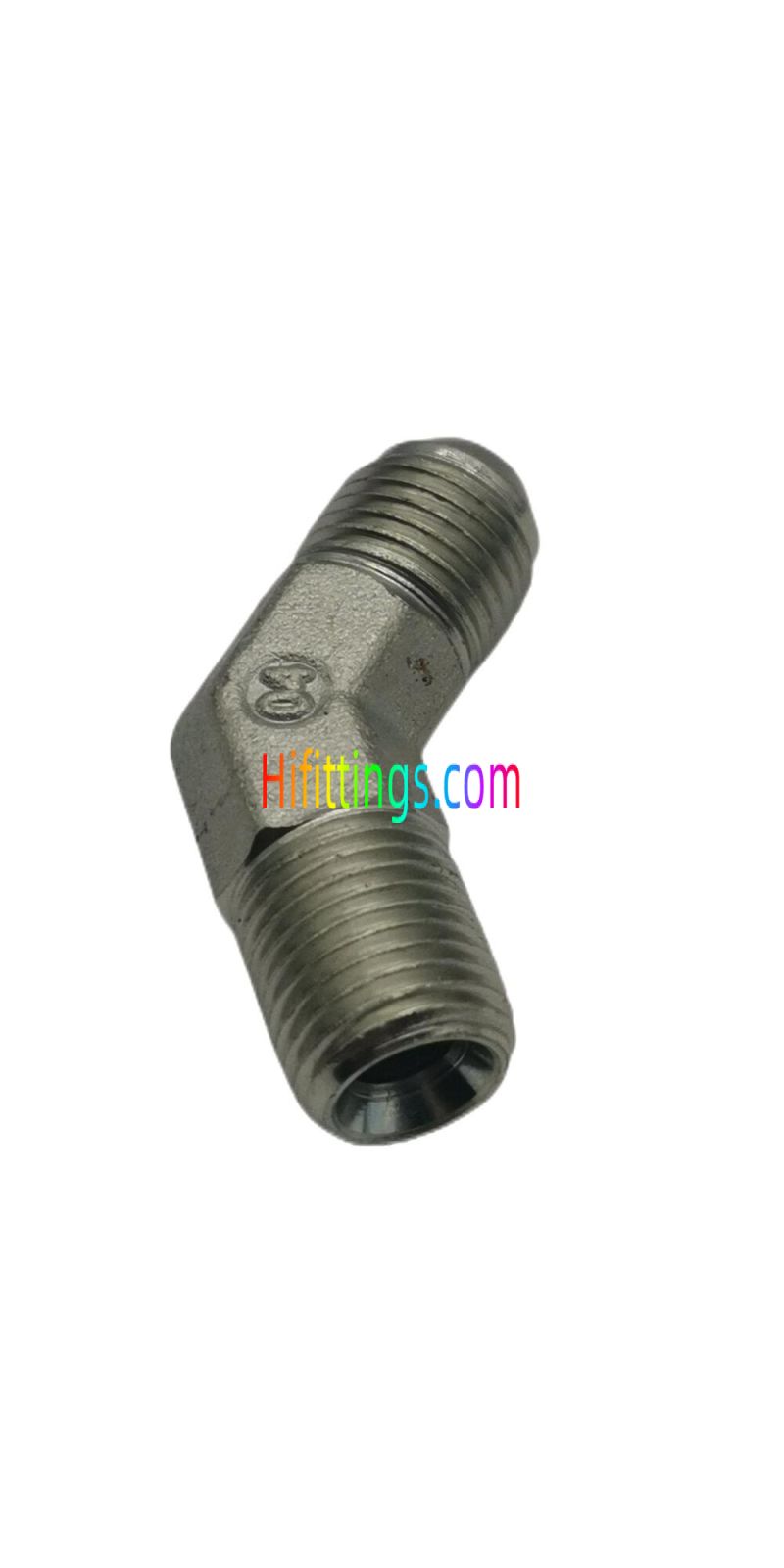

45 Degree Elbow BSPT Male / JIC Male 74 Degree Cone Flared Hydraulic Tube Fittings 1JT4-SP
|
Part NO. |
E |
F |
A |
B |
S1 |
Working Pressure bar |
|
1JT4-04-02SP |
7/16"X20 |
R1/8"X28 |
21.5 |
17 |
11 |
PN345 |
|
1JT4-04SP |
7/16"X20 |
R1/4"X19 |
22.3 |
21 |
14 |
PN345 |
|
1JT4-04-06SP |
7/16"X20 |
R3/8"X19 |
22.5 |
23 |
16 |
PN345 |
|
1JT4-04-08SP |
7/16"X20 |
R1/2"X14 |
24.5 |
29.5 |
22 |
PN345 |
|
1JT4-05-02SP |
1/2"X20 |
R1/8"X28 |
21.5 |
17.5 |
14 |
PN345 |
|
1JT4-05-04SP |
1/2"X20 |
R1/4"X19 |
22.3 |
21 |
14 |
PN345 |
|
1JT4-05-06SP |
1/2"X20 |
R3/8"X19 |
22,8 |
23 |
16 |
PN345 |
|
1JT4-06-02SP |
9/16"X18 |
R1/8"X28 |
22.8 |
18 |
14 |
PN345 |
|
1JT4-06-04SP |
9/16"X18 |
R1/4"X19 |
22.8 |
21 |
14 |
PN345 |
|
1JT4-06SP |
9/16"X18 |
R3/8"X19 |
23 |
23 |
16 |
PN345 |
|
1JT4-06-08SP |
9/16"X18 |
R1/2"X14 |
25 |
29.5 |
22 |
PN345 |
|
1JT4-08-04SP |
3/4"X16 |
R1/4"X19 |
26.8 |
22 |
19 |
PN310 |
|
1JT4-08-06SP |
3/4"X16 |
R3/8"X19 |
26.8 |
24 |
19 |
PN310 |
|
1JT4-08SP |
3/4"X16 |
R1/2"X14 |
28 |
29.5 |
22 |
PN310 |
|
1JT4-08-12SP |
3/4"X16 |
R3/4"X14 |
29 |
30.5 |
27 |
PN275 |
|
1JT4-10-06SP |
7/8"X14 |
R3/8"X19 |
31 |
25 |
22 |
PN240 |
|
1JT4-10-08SP |
7/8"X14 |
R1/2"X14 |
31 |
29.5 |
22 |
PN240 |
|
1JT4-10-12SP |
7/8"X14 |
R3/4"X14 |
33 |
31.5 |
27 |
PN240 |
|
1JT4-12-08SP |
1.1/16"X12 |
R1/2"X14 |
35.5 |
30 |
27 |
PN240 |
|
1JT4-12SP |
1.1/16"X12 |
R3/4"X14 |
35.5 |
30.5 |
27 |
PN240 |
|
1JT4-12-16SP |
1.1/16"X12 |
R1"X11 |
37.5 |
38 |
33 |
PN205 |
|
1JT4-16-12SP |
1.5/16"X12 |
R3/4"X14 |
38.5 |
32.5 |
33 |
PN210 |
|
1JT4-16SP |
1.5/16"X12 |
R1"X11 |
38.5 |
38 |
33 |
PN205 |
|
1JT4-16-20SP |
1.5/16"X12 |
R1.1/4"X11 |
42 |
43 |
41 |
PN170 |
|
1JT4-20-16SP |
1.5/8"X12 |
R1"X11 |
43 |
42 |
41 |
PN170 |
|
1JT4-20SP |
1.5/8"X12 |
R1.1/4"X11 |
43 |
43 |
41 |
PN170 |
|
1JT4-20-24SP |
1.5/8"X12 |
R1.1/2"X11 |
46 |
47.5 |
48 |
PN105 |
|
1JT4-24-20SP |
1.7/8"X12 |
R1.1/4"X11 |
49 |
45.5 |
48 |
PN140 |
|
1JT4-24SP |
1.7/8"X12 |
R1.1/2"X11 |
49 |
47.5 |
48 |
PN105 |
|
1JT4-32SP |
2.1/2"X12 |
R2"X11 |
58 |
50 |
63 |
PN105 |
|
Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.PN = Nominal Pressure |
||||||
| شكل . | Elbow |
|---|---|
| أنواع الاكسسوارات | Cone Flared |
| نوع الخيط | Male |
| Connection Type | BSPT, JIC |
