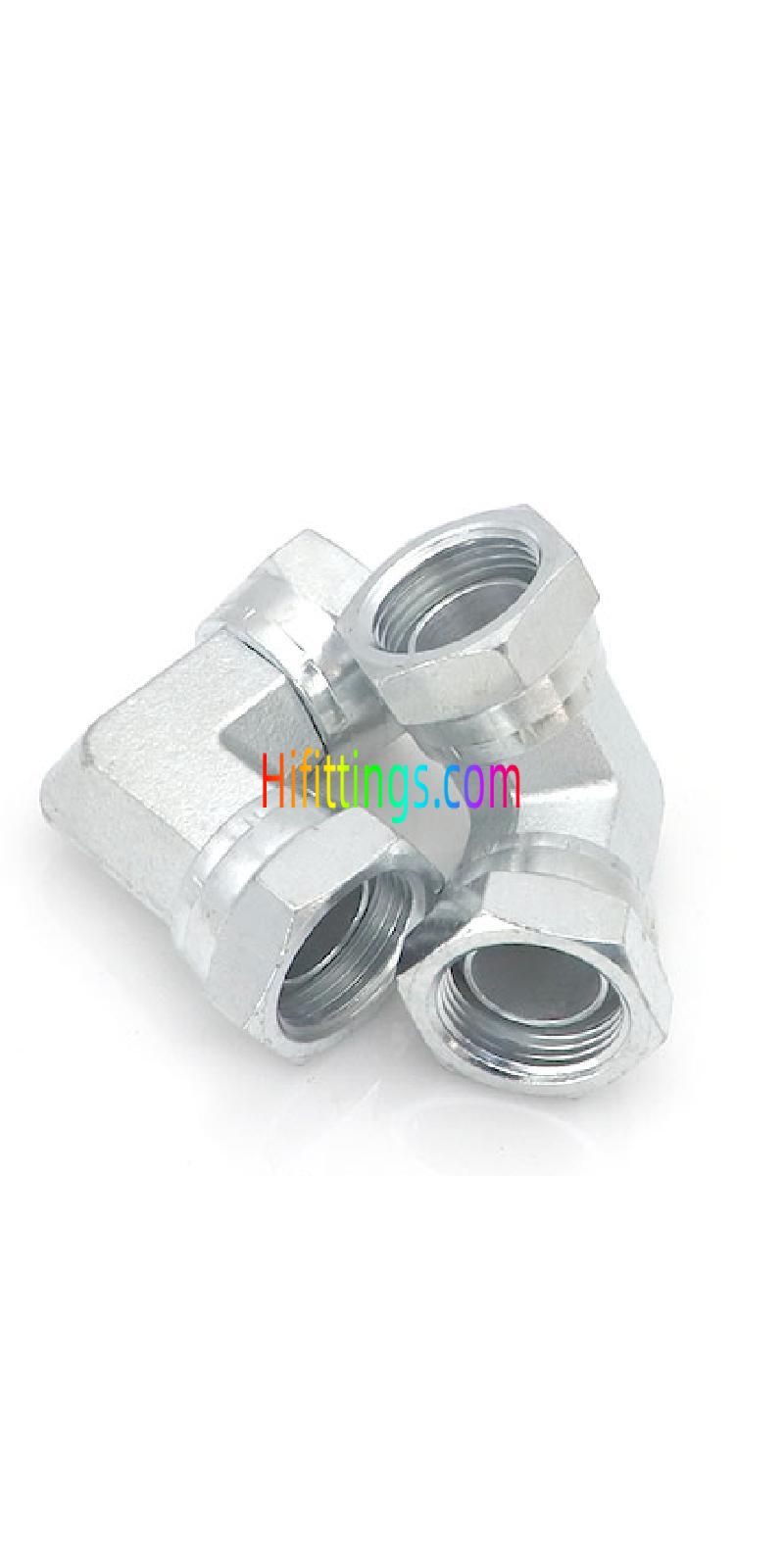

90° Elbow BSP Female 60° Cone Swivel Fitting 3B9
|
Part NO. |
E |
F |
A |
B |
S1 |
S2 |
S3 |
Working Pressure bar |
|
3B9-02 |
G1/8"X28 |
G1/8"X28 |
5.5 |
5.5 |
11 |
14 |
14 |
PN345 |
|
3B9-04 |
G1/4"X19 |
G1/4"X19 |
5.5 |
5.5 |
11 |
19 |
19 |
PN345 |
|
3B9-06 |
G3/8"X19 |
G3/8"X19 |
6.3 |
6.3 |
14 |
22 |
22 |
PN345 |
|
3B9-08 |
G1/2"X14 |
G1/2"X14 |
7.5 |
7.5 |
19 |
27 |
27 |
PN345 |
|
3B9-10 |
G5/8"X14 |
G5/8"X14 |
9.5 |
9.5 |
19 |
30 |
30 |
PN275 |
|
3B9-12 |
G3/4"X14 |
G3/4"X14 |
10.9 |
10.9 |
24 |
32 |
32 |
PN275 |
|
3B9-16 |
G1"X11 |
G1"X11 |
11.7 |
11.7 |
30 |
41 |
41 |
PN205 |
|
3B9-20 |
G1.1/4"X11 |
G1.1/4"X11 |
11 |
11 |
41 |
50 |
50 |
PN170 |
|
3B9-24 |
G1.1/2"X11 |
G1.1/2"X11 |
13 |
13 |
48 |
55 |
55 |
PN105 |
|
3B9-32 |
G2"X11 |
G2"X11 |
16 |
16 |
63 |
70 |
70 |
PN105 |
| شكل . | Elbow |
|---|---|
| أنواع الاكسسوارات | Cone |
| نوع الخيط | Female |
| Connection Type | BSP |
