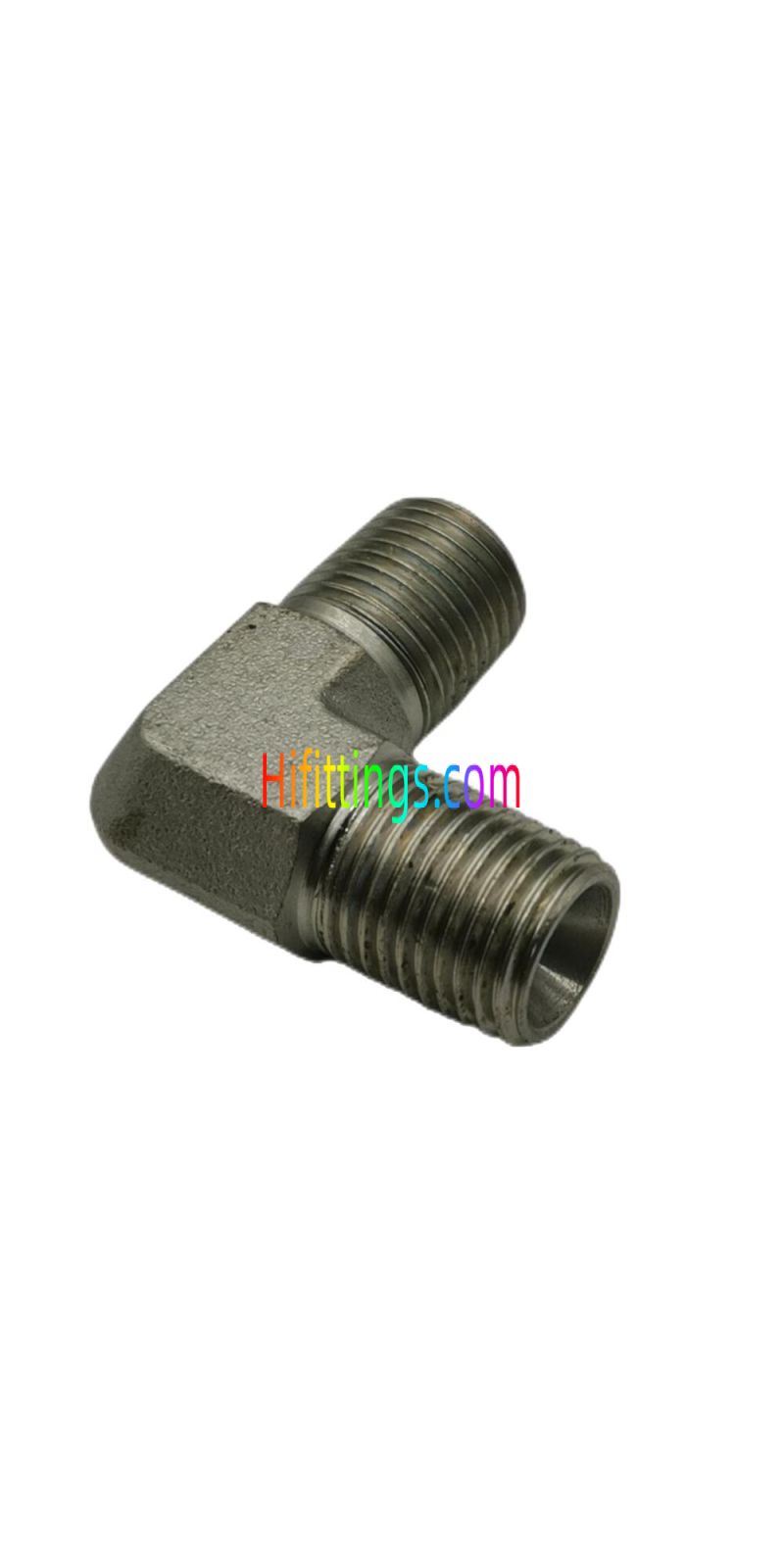

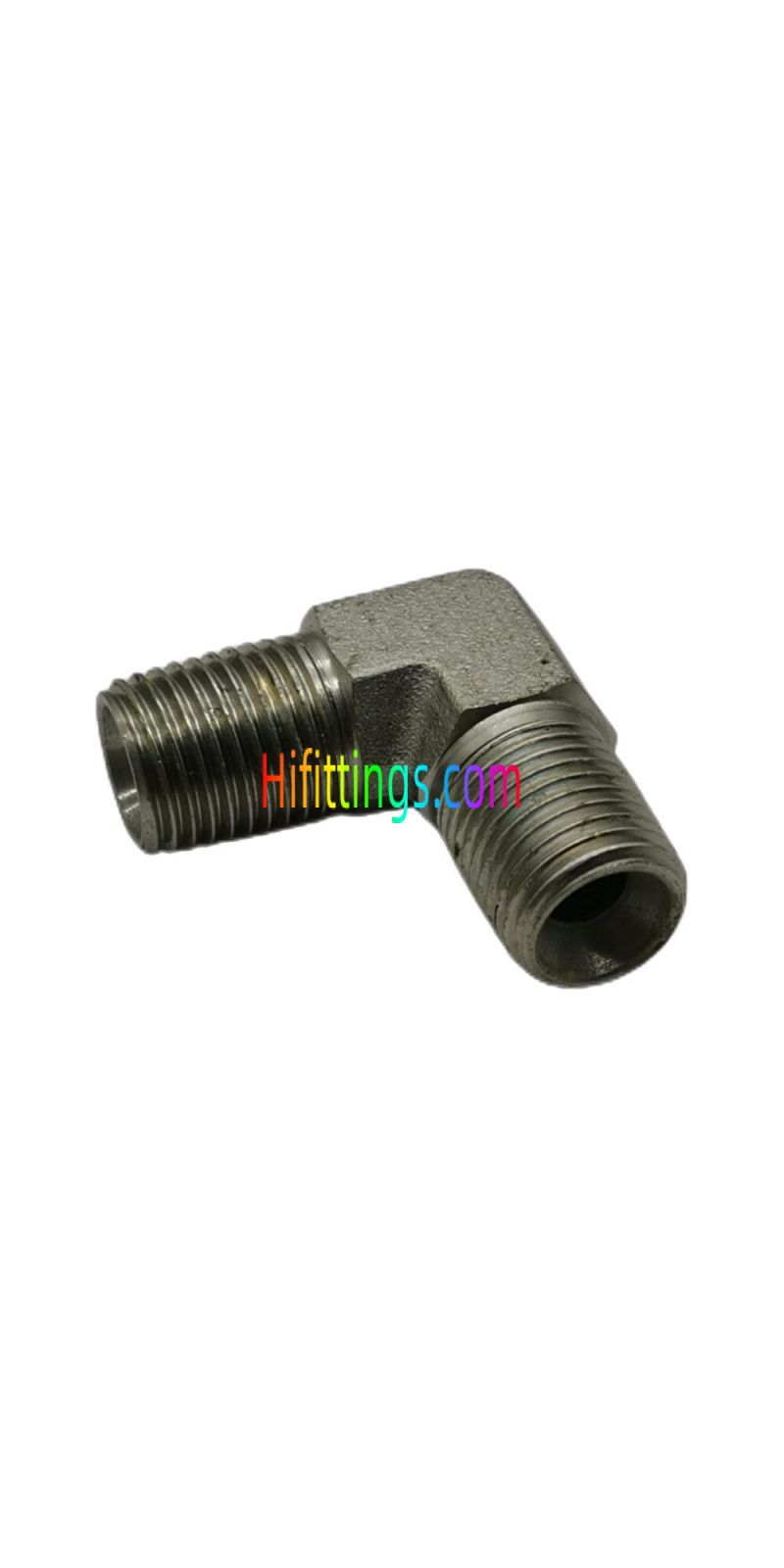

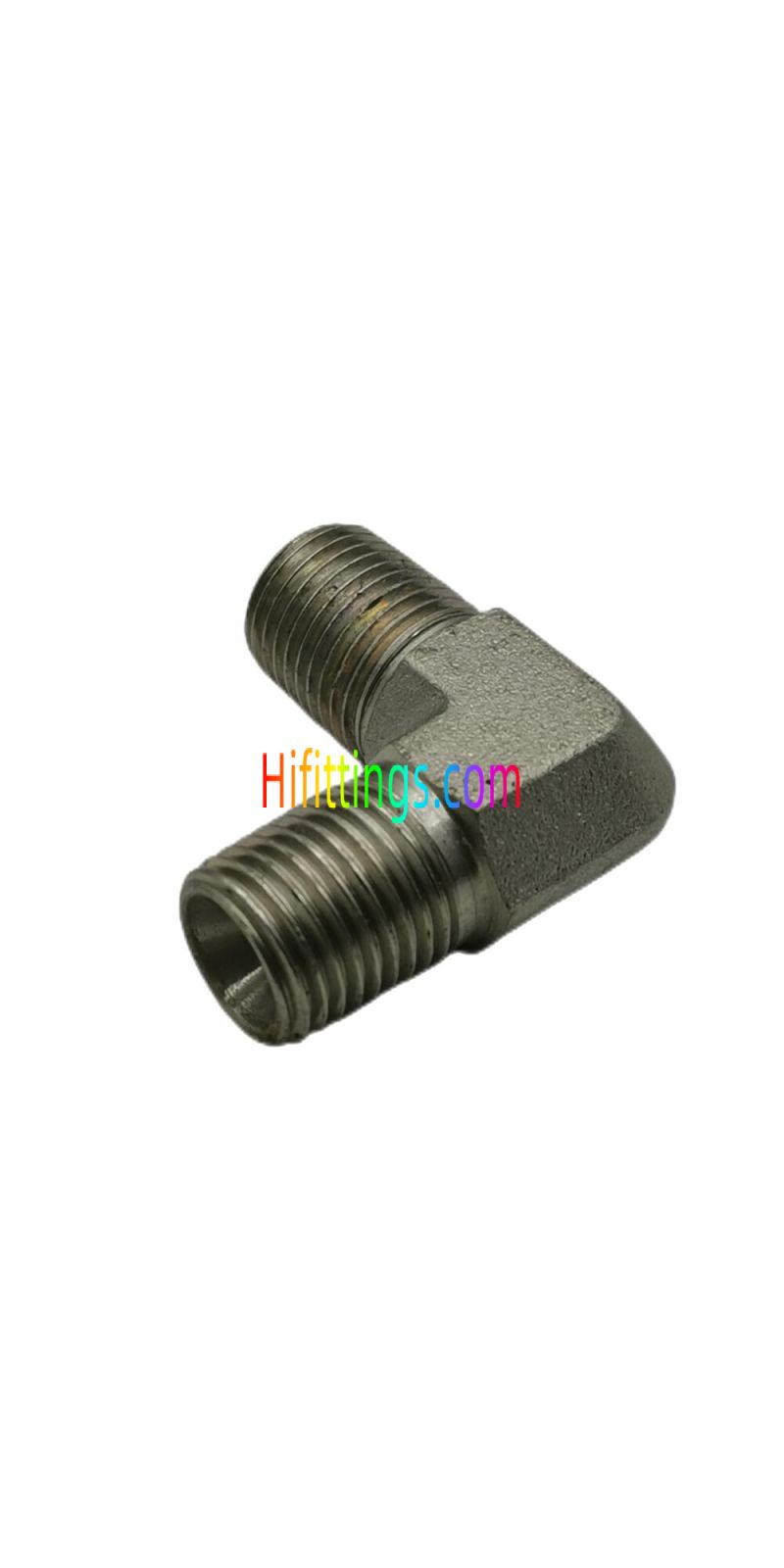

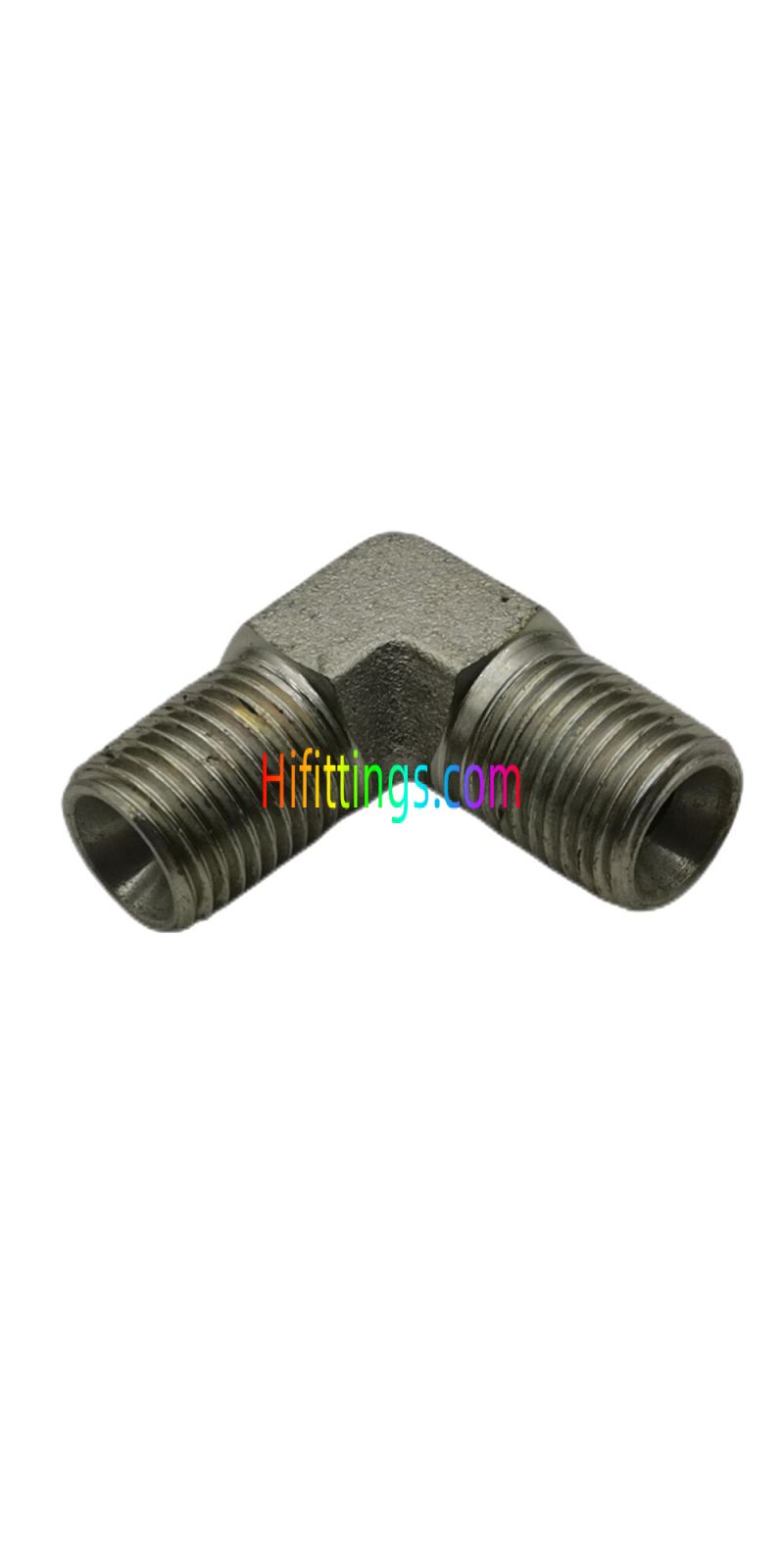

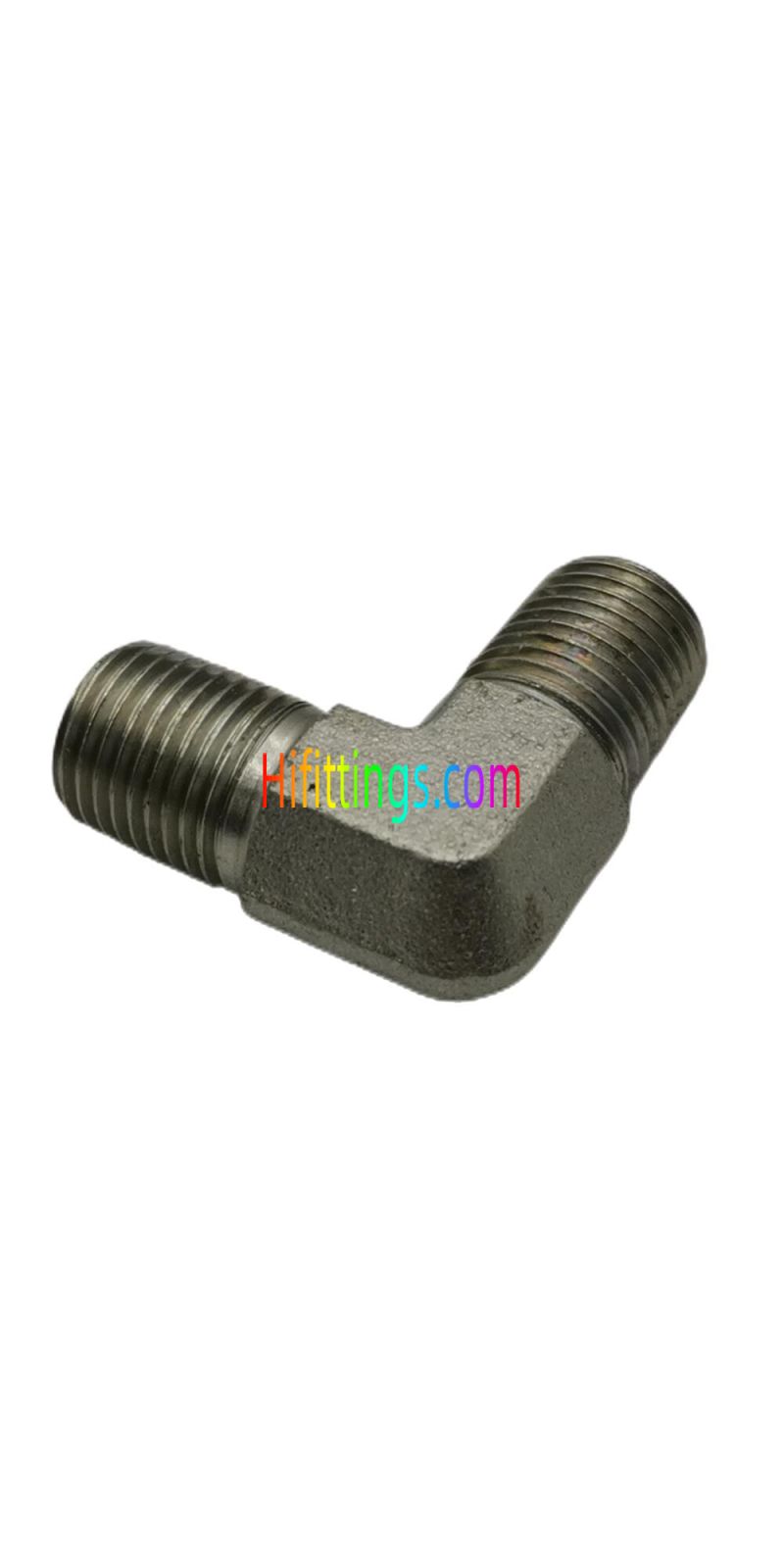

90 Degree Elbow BSPT Male Hydraulic Adapter Pipe Fittings 1T9-SP
|
Part NO. |
E |
F |
A |
B |
S1 |
Working Pressure bar |
|
1T9-02SP |
R1/8"X28 |
R1/8"X28 |
21 |
21 |
11 |
PN345 |
|
1T9-02-04SP |
R1/8"X28 |
R1/4"X19 |
23.5 |
25.5 |
14 |
PN345 |
|
1T9-04SP |
R1/4"X19 |
R1/4"X19 |
25.5 |
25.5 |
14 |
PN345 |
|
1T9-04-06SP |
R1/4"X19 |
R3/8"X19 |
26.5 |
28.5 |
16 |
PN345 |
|
1T9-04-08SP |
R1/4"X19 |
R1/2"X14 |
30.5 |
36 |
22 |
PN345 |
|
1T9-06SP |
R3/8"X19 |
R3/8"X19 |
28.5 |
28.5 |
16 |
PN345 |
|
1T9-06-08SP |
R3/8"X19 |
R1/2"X14 |
32.5 |
36 |
22 |
PN345 |
|
1T9-08SP |
R1/2"X14 |
R1/2"X14 |
36 |
36 |
22 |
PN345 |
|
1T9-08-12SP |
R1/2"X14 |
R3/4"X14 |
39.5 |
43.5 |
27 |
PN275 |
|
1T9-12SP |
R3/4"X14 |
R3/4"X14 |
43.5 |
43.5 |
27 |
PN275 |
|
1T9-12-16SP |
R3/4"X14 |
R1"X11 |
48 |
50 |
33 |
PN205 |
|
1T9-16SP |
R1"X11 |
R1"X11 |
50 |
50 |
33 |
PN205 |
|
1T9-16-20SP |
R1"X11 |
R1.1/4"X11 |
56.5 |
57.5 |
41 |
PN170 |
|
1T9-20SP |
R1.1/4"X11 |
R1.1/4"X11 |
57.5 |
57.5 |
41 |
PN170 |
|
1T9-24SP |
R1.1/2"X11 |
R1.1/2"X11 |
62.5 |
62.5 |
48 |
PN105 |
|
1T9-32SP |
R2"X11 |
R2"X11 |
68 |
75 |
63 |
PN105 |
|
Note:1.PN = Nominal Pressure |
||||||
| شكل . | Elbow |
|---|---|
| Connection Type | BSPT |
| نوع الخيط | Male |
| أنواع الاكسسوارات | Pipe Thread |
