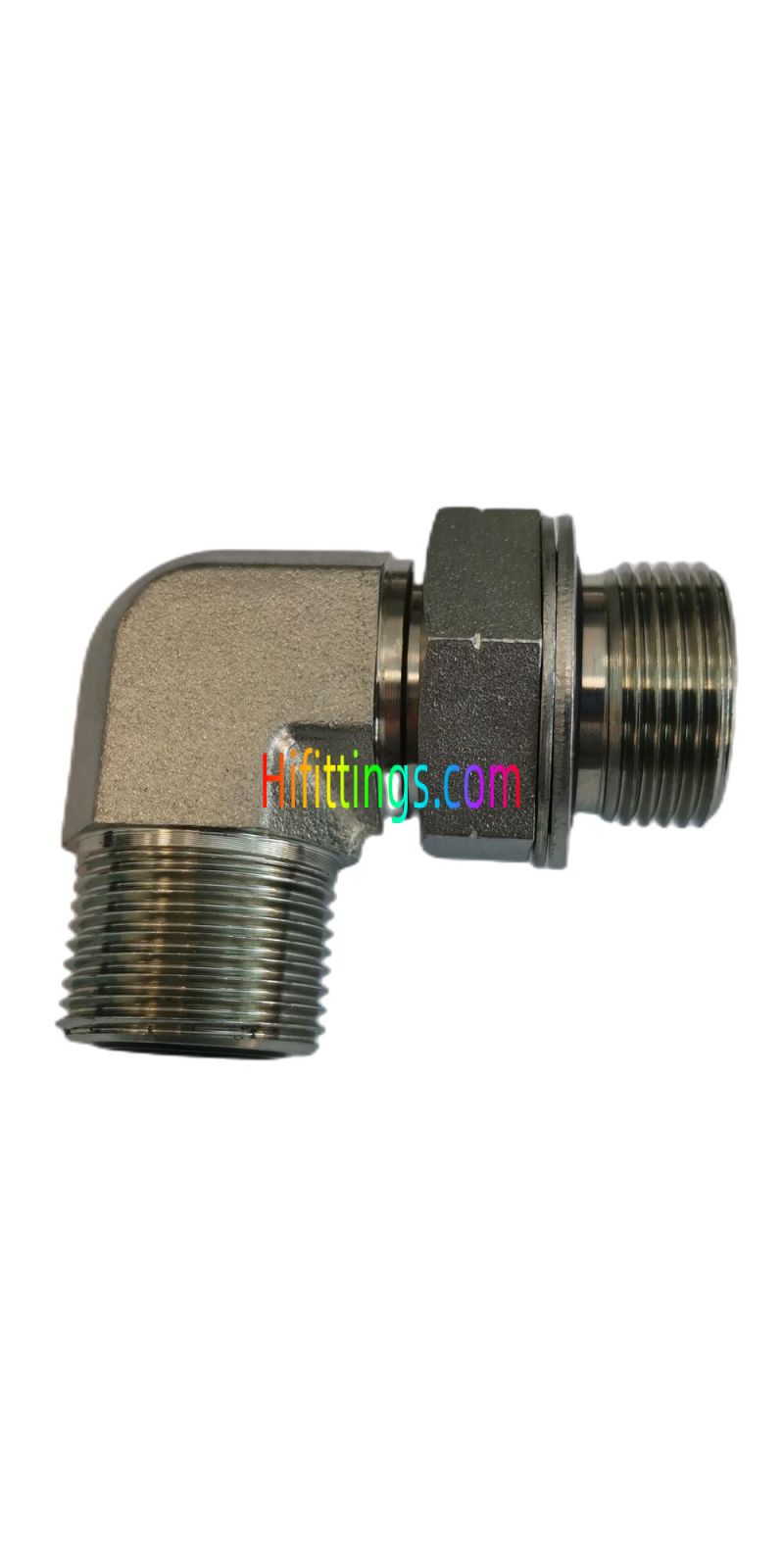

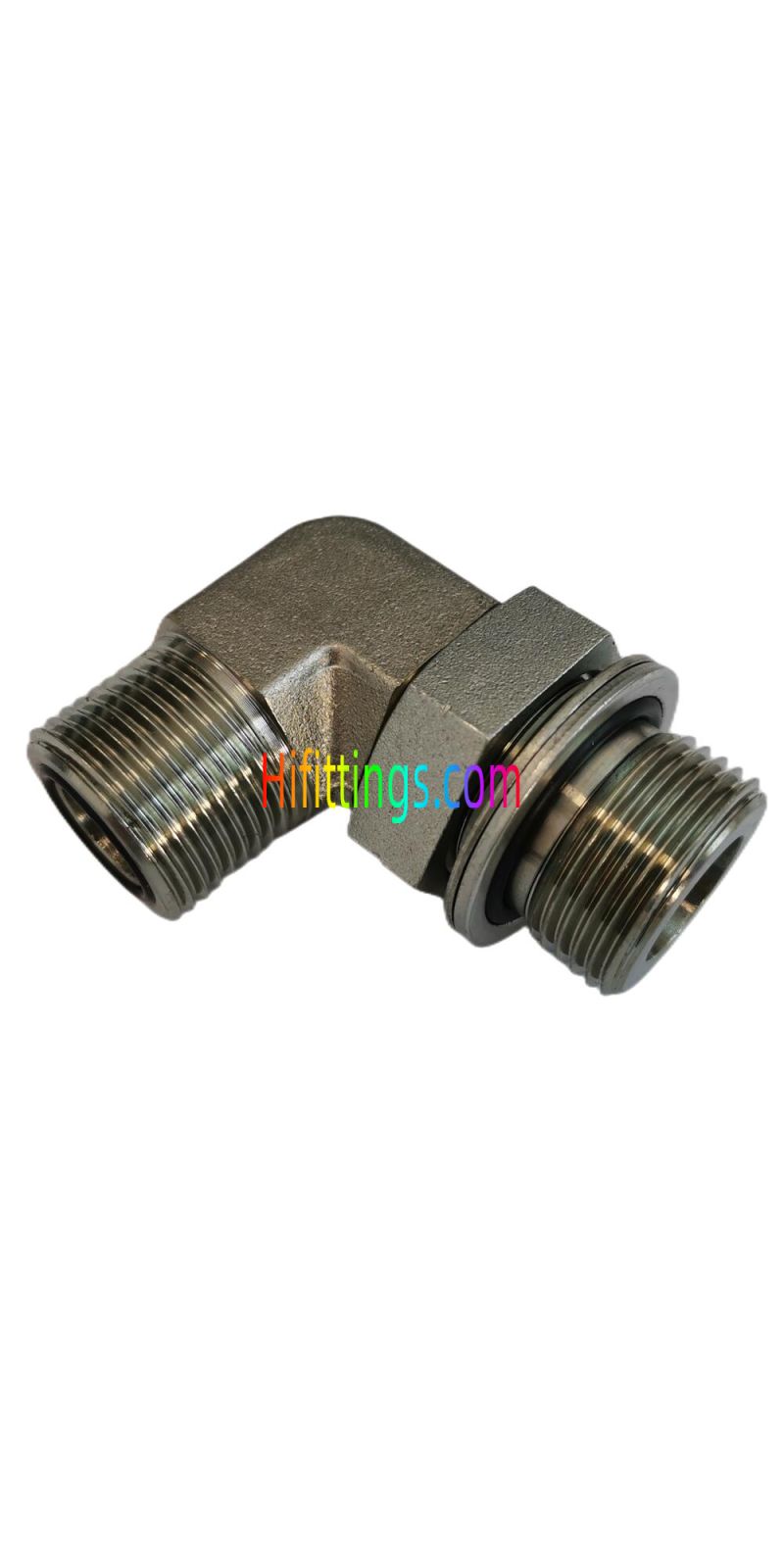

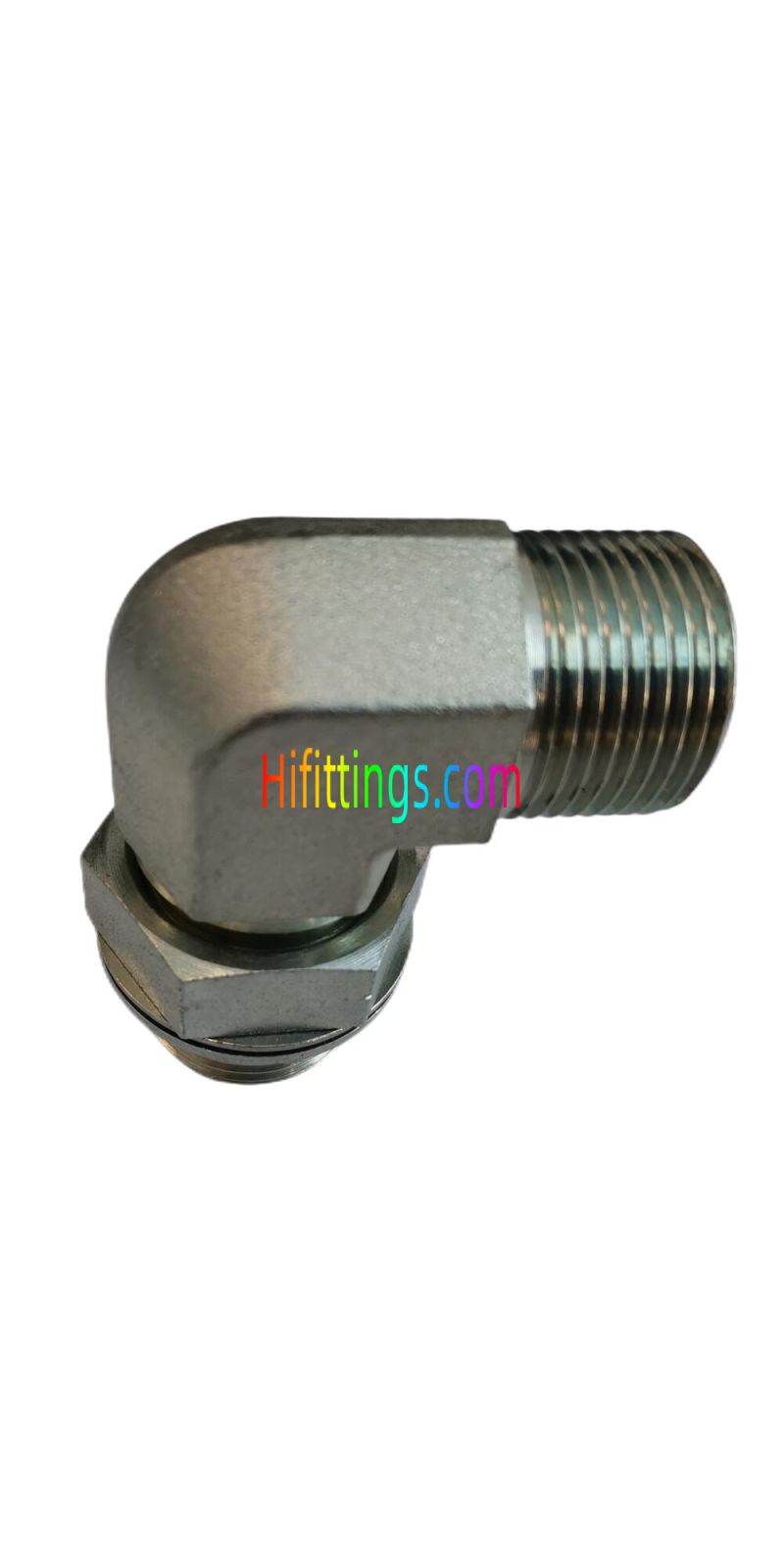

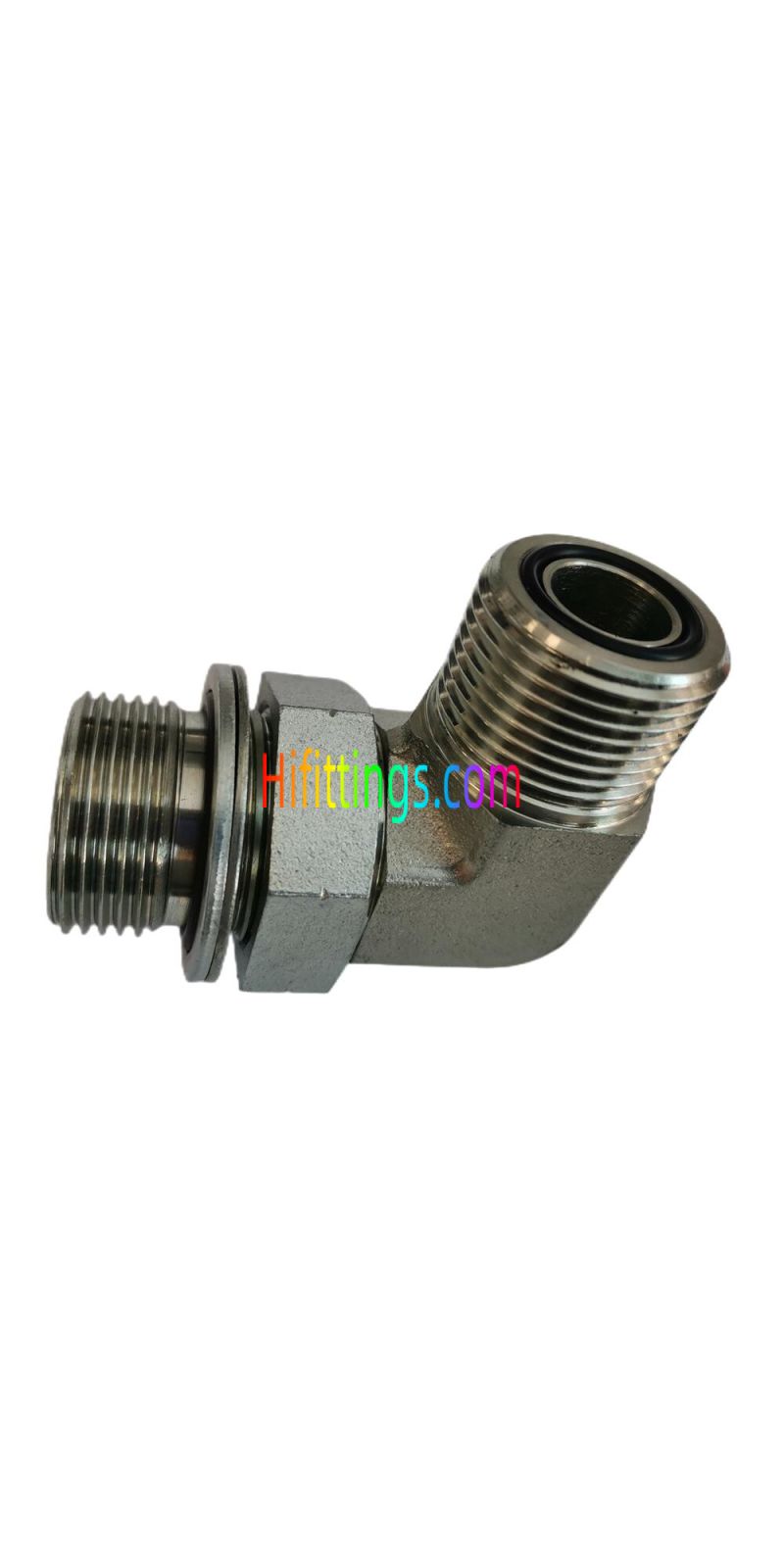

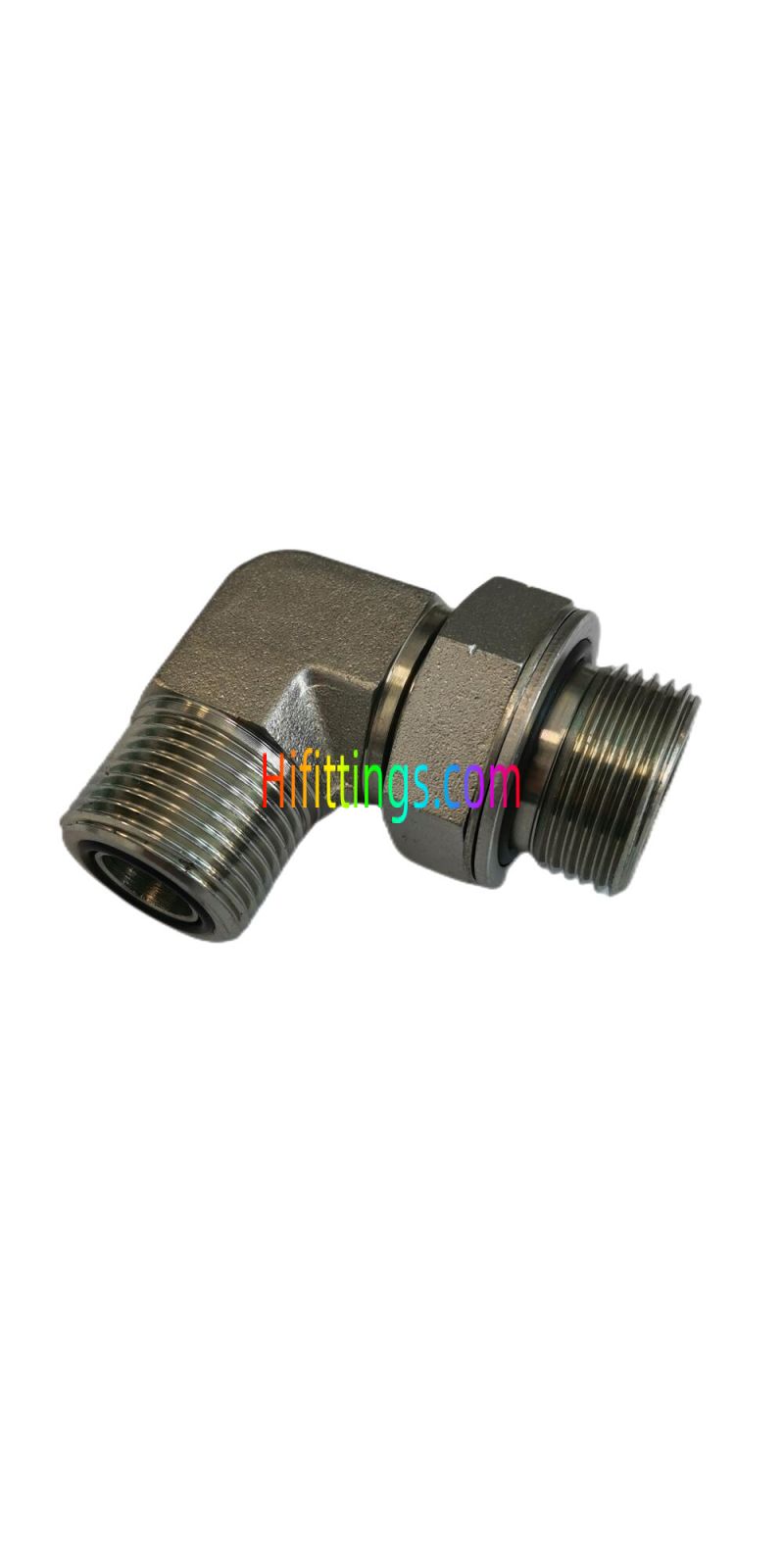

90° Elbow ORFS Male O-Ring / Metric Male Adjustable Stud End S-Series ISO 6149-2 Hydraulic Adapter Pipe Fittings 1FH9-OG
|
Part NO. |
E |
F |
E End |
F End |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
1FH9-04-12OG |
9/16"X18 |
M12X1.5 |
11 |
009.3X2.4 |
23 |
32 |
14 |
17 |
PN315 |
|
1FH9-06-14OG |
11/16X16 |
M14X1.5 |
12 |
011.3X2.4 |
27 |
35.5 |
19 |
19 |
PN315 |
|
1FH9-06-16OG |
11/16"X16 |
M16X1.5 |
12 |
013.3X2.4 |
27 |
38 |
19 |
22 |
PN250 |
|
1FH9-08-16OG |
13/16"X16 |
M16X1.5 |
14 |
013.3X2.4 |
31 |
40.5 |
22 |
22 |
PN250 |
|
1FH9-08-18OG |
13/16"X16 |
M18X1.5 |
14 |
015.3X2.4 |
31 |
43 |
22 |
24 |
PN250 |
|
1FH9-08-22OG |
13/16"X16 |
M22X1.5 |
14 |
019.3X2.4 |
31 |
44.5 |
22 |
27 |
PN250 |
|
1FH9-10-22OG |
1"X14 |
M22X1.5 |
16 |
019.3X2.4 |
36.5 |
48 |
27 |
27 |
PN250 |
|
1FH9-12-27OG |
1.3/16"X12 |
M27X2 |
18 |
023.5X3.0 |
40.5 |
50 |
30 |
32 |
PN160 |
|
1FH9-12-33OG |
1.3/16"X12 |
M33X2 |
18 |
029.5X3.0 |
42.5 |
56 |
33 |
41 |
PN160 |
|
1FH9-16-33OG |
1.7/16"X12 |
M33X2 |
21 |
029.5X3.0 |
44.5 |
58.5 |
36 |
41 |
PN160 |
|
Note: 1.: F end is fit for ISO 6149-1 port 2. PN = Nominal Pressure |
|||||||||
| شكل . | Elbow |
|---|---|
| أنواع الاكسسوارات | Face Seal |
| نوع الخيط | Male |
| Connection Type | Metric, ORFS |
