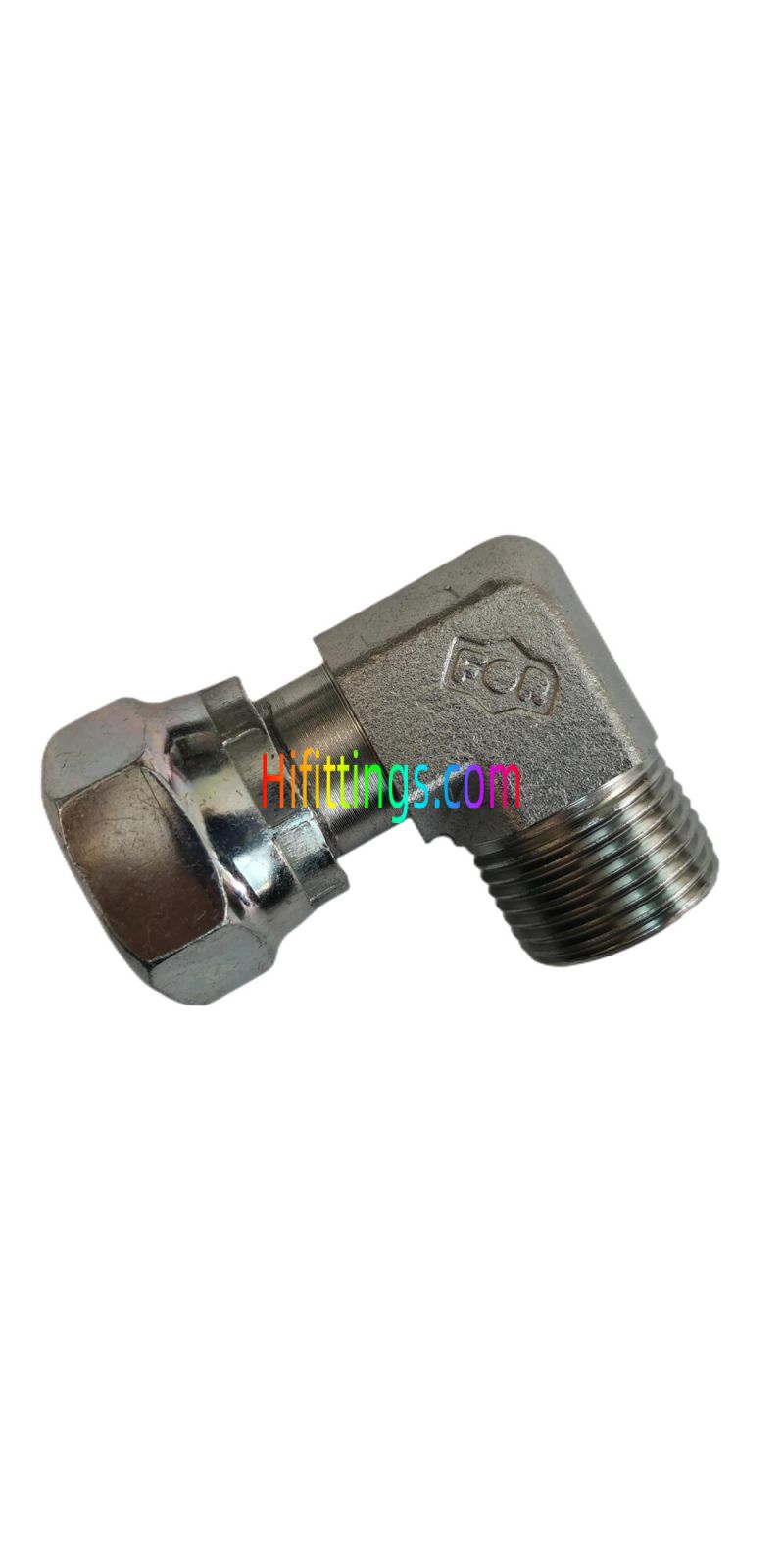

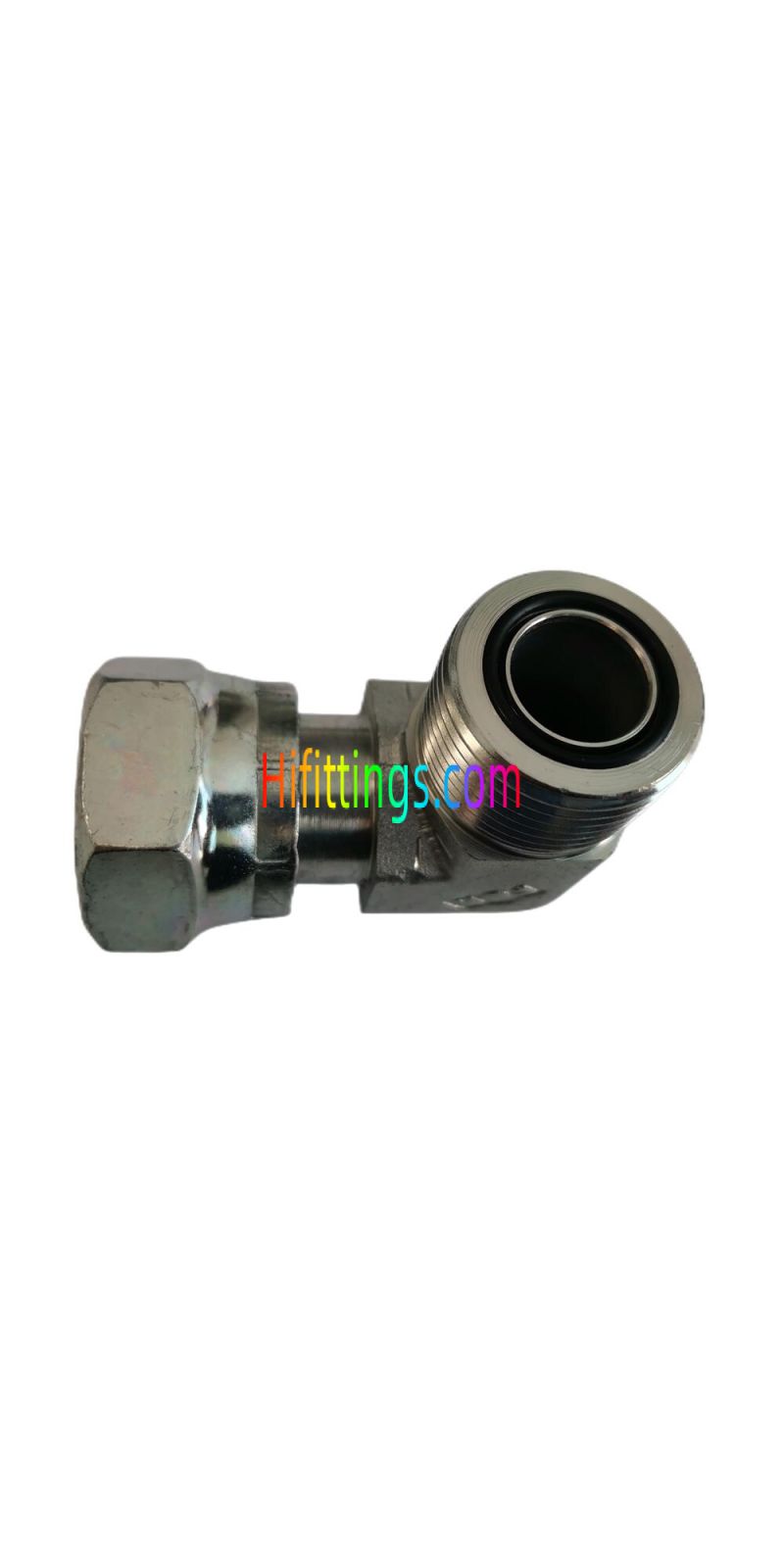

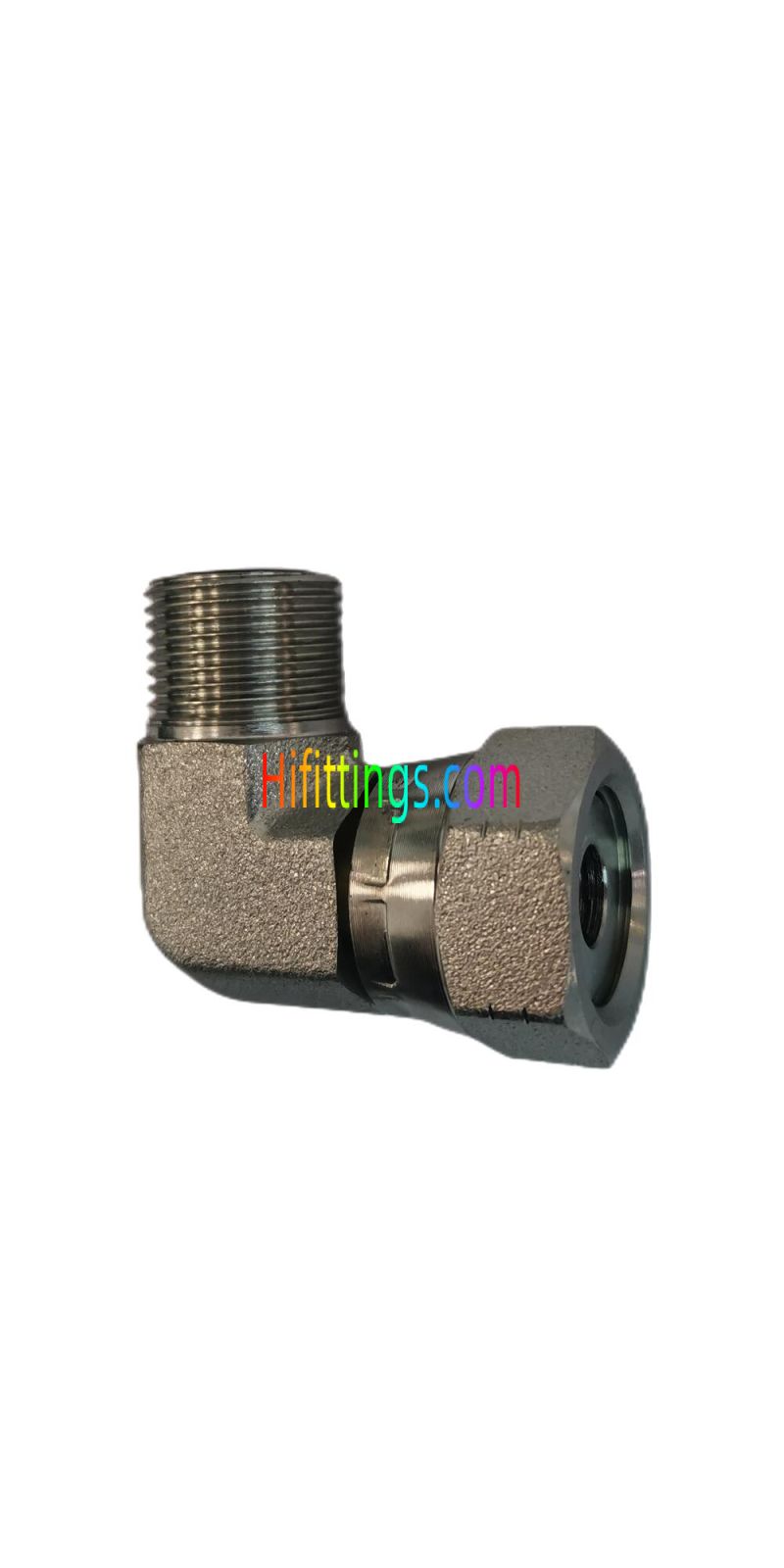

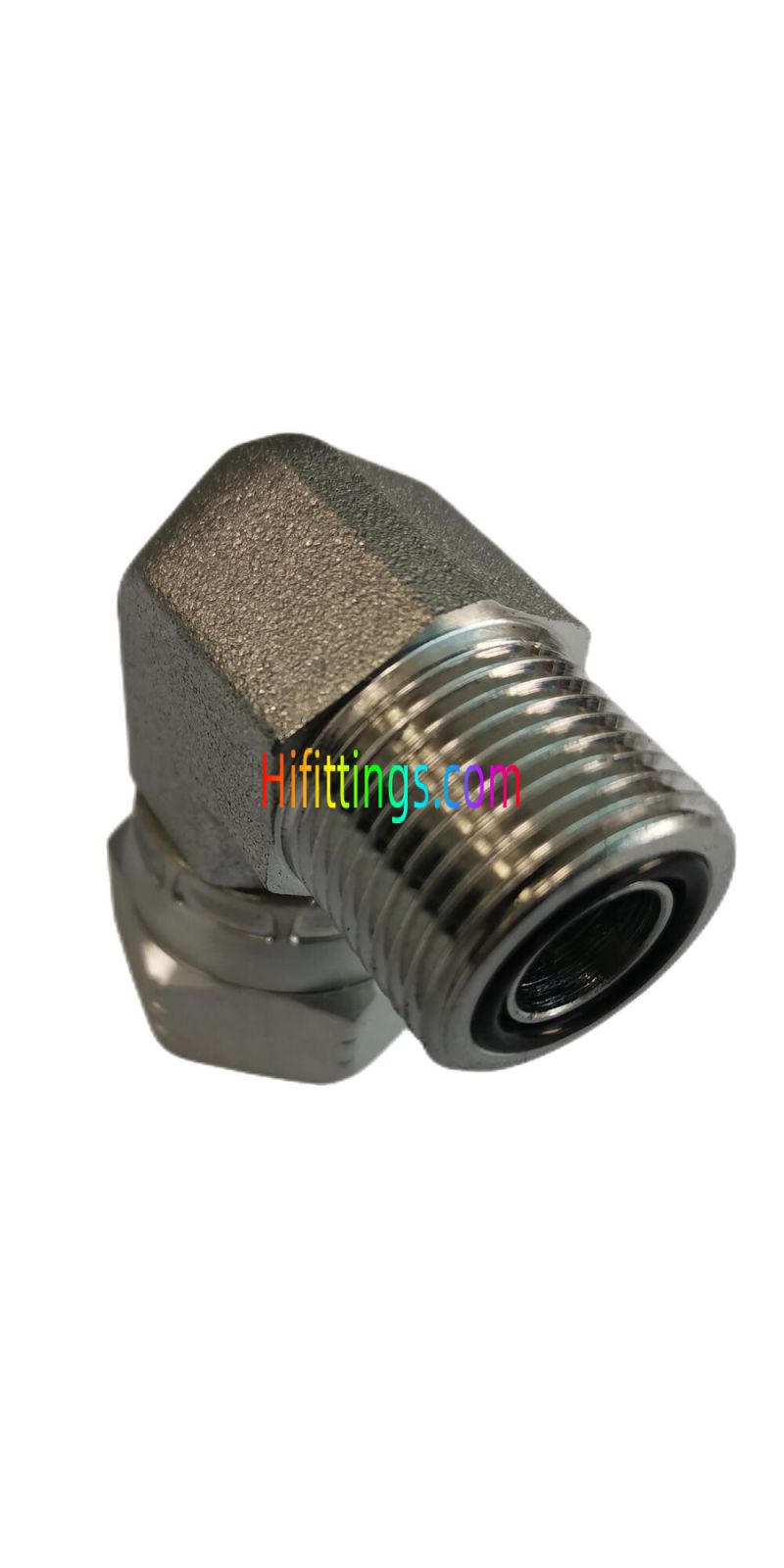

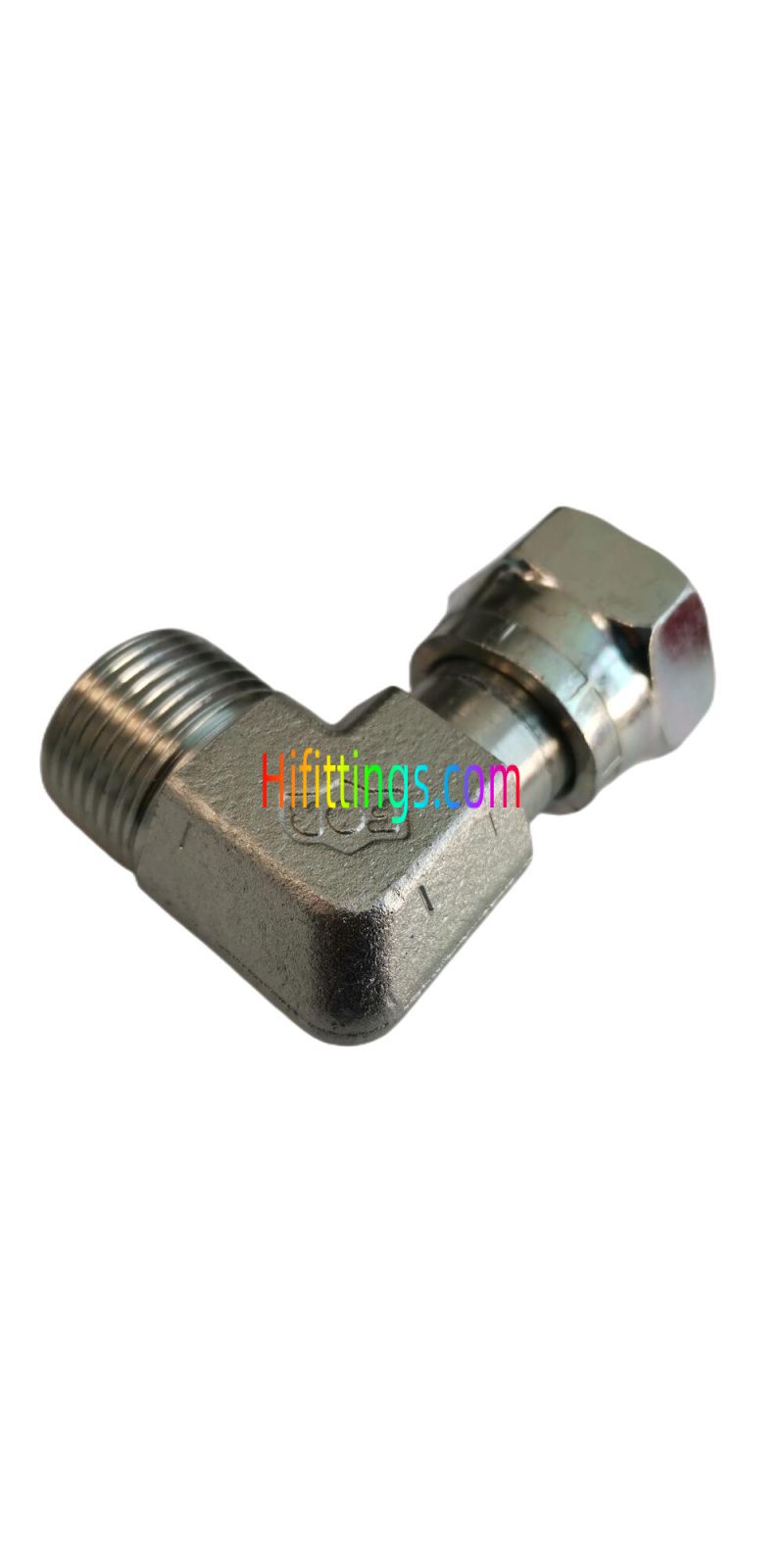

90 Degree Elbow ORFS Male O-Ring / ORFS Female Hydraulic Adapter Swivel Pipe Fitting 2F9
|
Part NO. |
E |
F |
E End |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
2F9-04 |
9/16"X18 |
9/16"X18 |
11 |
23 |
8.5 |
14 |
19 |
PN630 |
|
2F9-04-06 |
9/16"X18 |
11/16"X16 |
11 |
23 |
10 |
14 |
22 |
PN630 |
|
2F9-06-04 |
11/16"X16 |
9/16"X18 |
12 |
27.5 |
8.5 |
19 |
19 |
PN630 |
|
2F9-06 |
11/16"X16 |
11/16"X16 |
12 |
27.5 |
10 |
19 |
22 |
PN630 |
|
2F9-06-08 |
11/16"X16 |
13/16"X16 |
12 |
27 |
11 |
19 |
27 |
PN630 |
|
2F9-08-06 |
13/16"X16 |
11/16"X16 |
14 |
31 |
10 |
22 |
22 |
PN630 |
|
2F9-08 |
13/16"X16 |
13/16"X16 |
14 |
31 |
11 |
22 |
27 |
PN630 |
|
2F9-10-08 |
1"X14 |
13/16"X16 |
16 |
36.5 |
11 |
27 |
27 |
PN400 |
|
2F9-10 |
1"X14 |
1"X14 |
16 |
36.5 |
15 |
27 |
30 |
PN400 |
|
2F9-10-12 |
1"X14 |
1.3/16"X12 |
16 |
36.5 |
15 |
27 |
36 |
PN400 |
|
2F9-12 |
1.3/16"X12 |
1.3/16"X12 |
18 |
41 |
15 |
30 |
36 |
PN400 |
|
2F9-12-16 |
1.3/16"X12 |
1.7/16"X12 |
18 |
42.5 |
15 |
33 |
41 |
PN400 |
|
2F9-16-12 |
1.7/16"X12 |
1.3/16"X12 |
21 |
44.5 |
15 |
36 |
36 |
PN400 |
|
2F9-16 |
1.7/16"X12 |
1.7/16"X12 |
21 |
44.5 |
15 |
36 |
41 |
PN400 |
|
2F9-20 |
1.11/16"X12 |
1.11/16"X12 |
25 |
44.5 |
15 |
41 |
50 |
PN250 |
|
2F9-24 |
2"X12 |
2"X12 |
29 |
53.5 |
15 |
50 |
60 |
PN250 |
| شكل . | Elbow |
|---|---|
| أنواع الاكسسوارات | Face Seal |
| نوع الخيط | Male-Female |
| Connection Type | ORFS |
