Part NO. |
Flange Size |
Hose Bore - DN |
Hose Bore - Dash |
A |
C |
D |
H |
L |
|
87691-08-08 |
1/2" |
12 |
8 |
41 |
31.7 |
24 |
48 |
7.75 |
|
87691-12-10 |
3/4" |
16 |
10 |
56 |
41.3 |
32 |
56.5 |
8.76 |
|
87691-12-12 |
3/4" |
20 |
12 |
65.5 |
41.3 |
32 |
66 |
8.76 |
|
87691-16-12 |
1" |
20 |
12 |
65.5 |
47.6 |
38 |
69 |
9.53 |
|
87691-16-16 |
1" |
25 |
16 |
76.7 |
47.6 |
38 |
74.5 |
9.53 |
|
87691-16-20 |
1" |
32 |
20 |
91.5 |
47.6 |
38 |
85.5 |
9.53 |
|
87691-20-16 |
1.1/4" |
25 |
16 |
76.7 |
54 |
44 |
78.5 |
10.29 |
|
87691-20-20 |
1.1/4" |
32 |
20 |
91.5 |
54 |
44 |
89.5 |
10.29 |
|
87691-24-20 |
1.1/2" |
32 |
20 |
91.5 |
63.5 |
51 |
94.5 |
12.57 |
|
87691-24-24 |
1.1/2" |
40 |
24 |
109.4 |
63.5 |
51 |
108 |
12.57 |
|
87691-32-24 |
2" |
40 |
24 |
109.4 |
79.4 |
67 |
116 |
12.57 |
|
87691-32-32 |
2" |
50 |
32 |
131.8 |
79.4 |
67 |
136.3 |
12.57 |
|
Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is87692-xx-xx |
||||||||

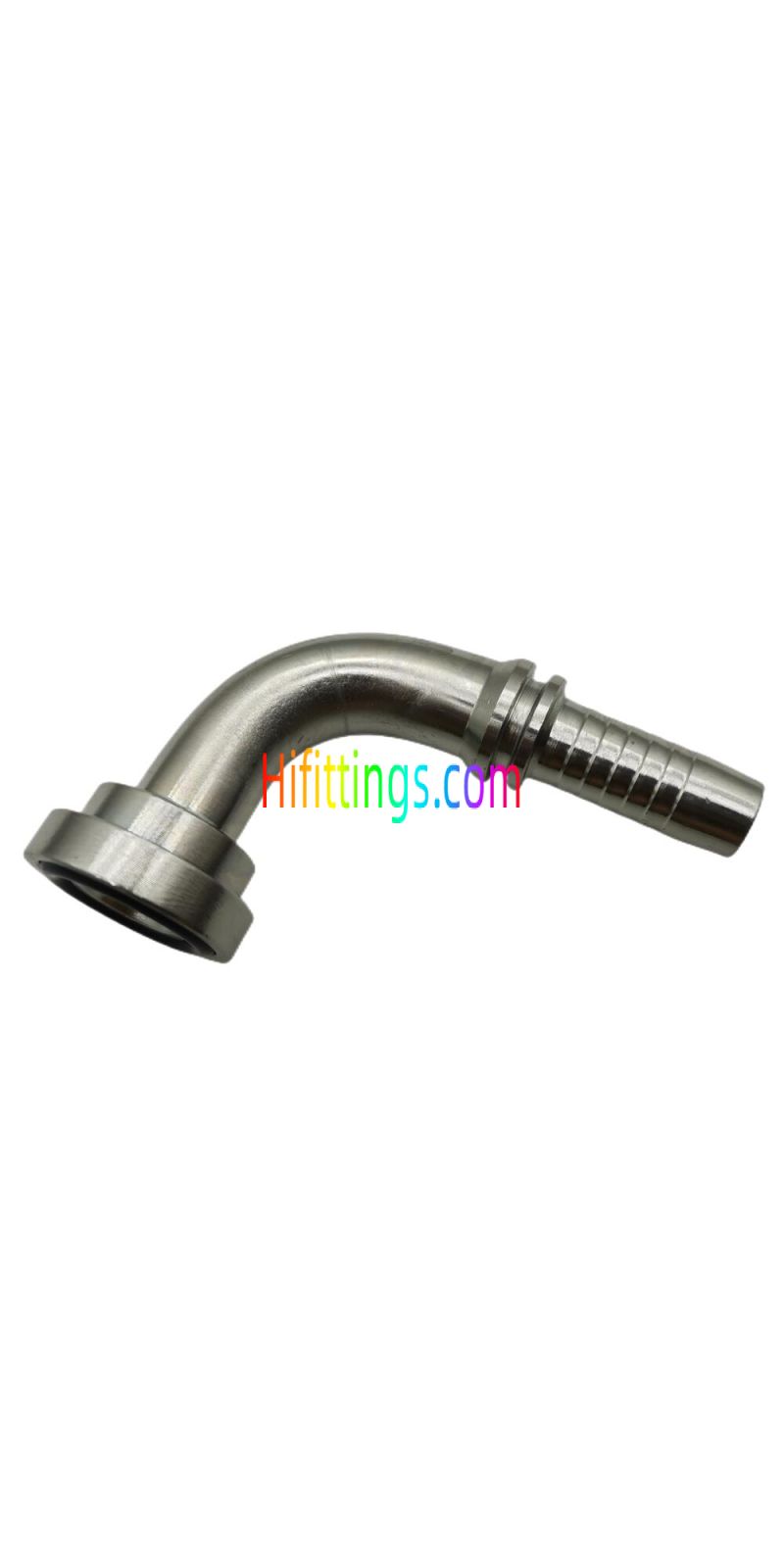

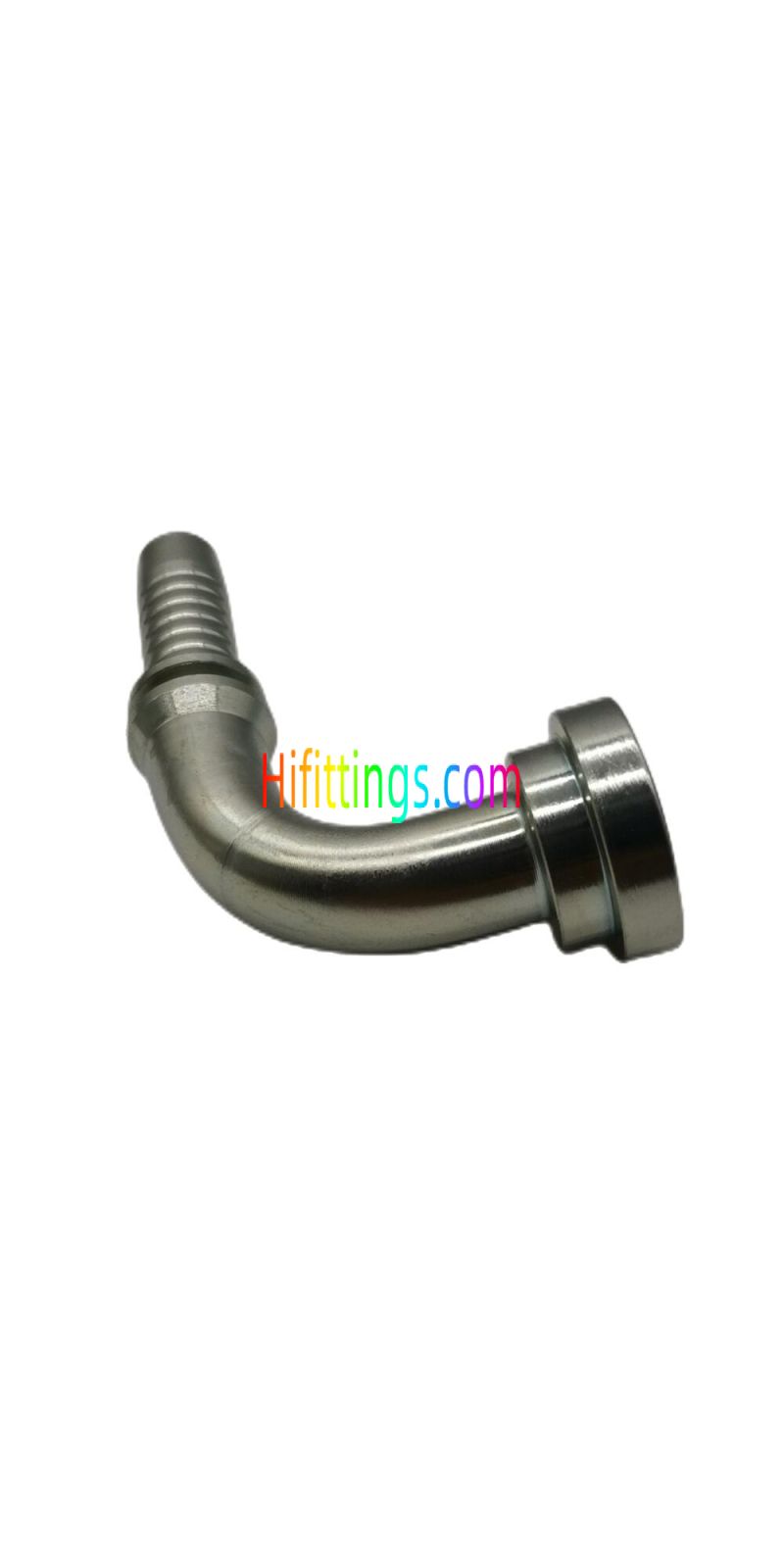

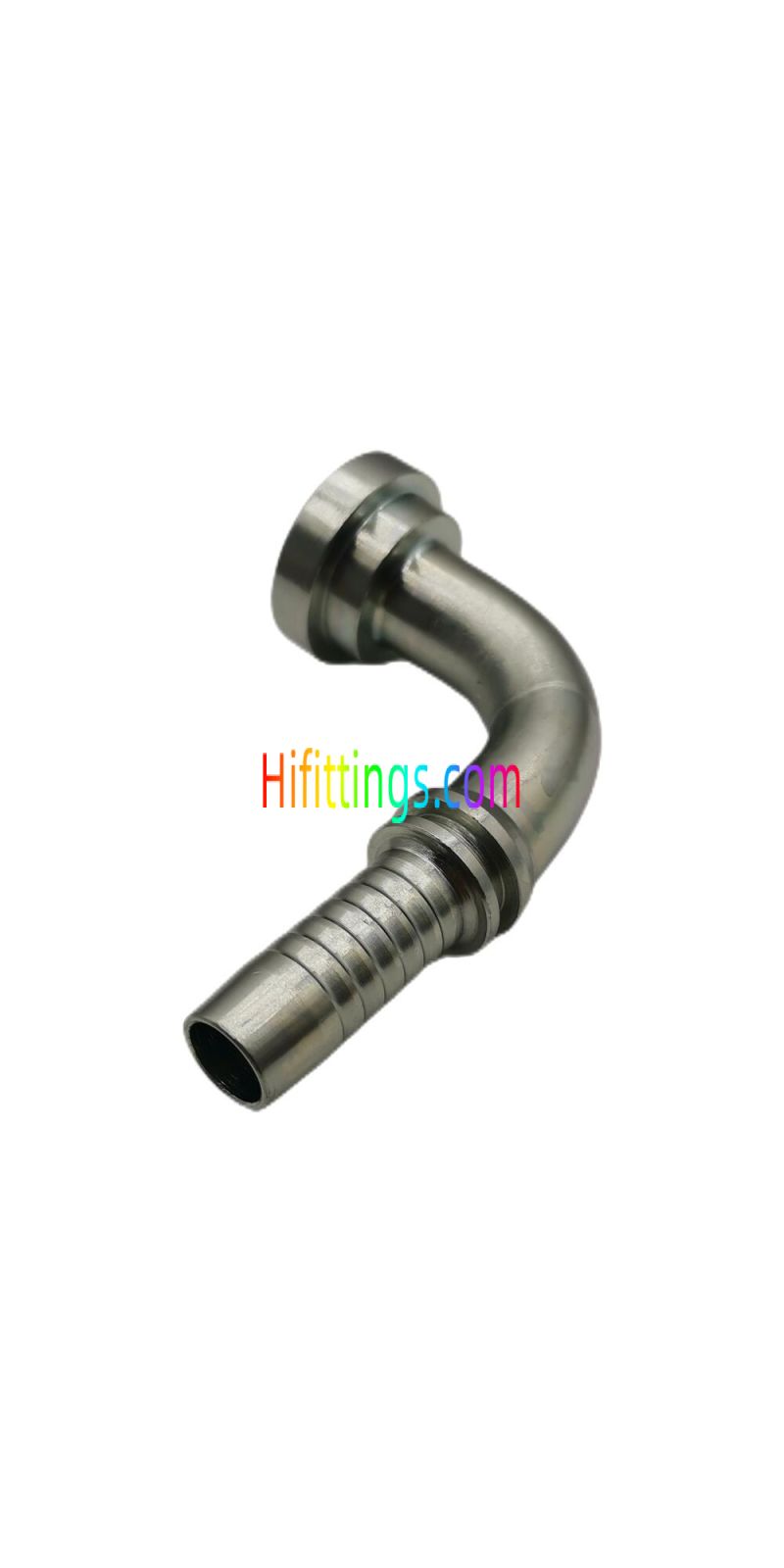

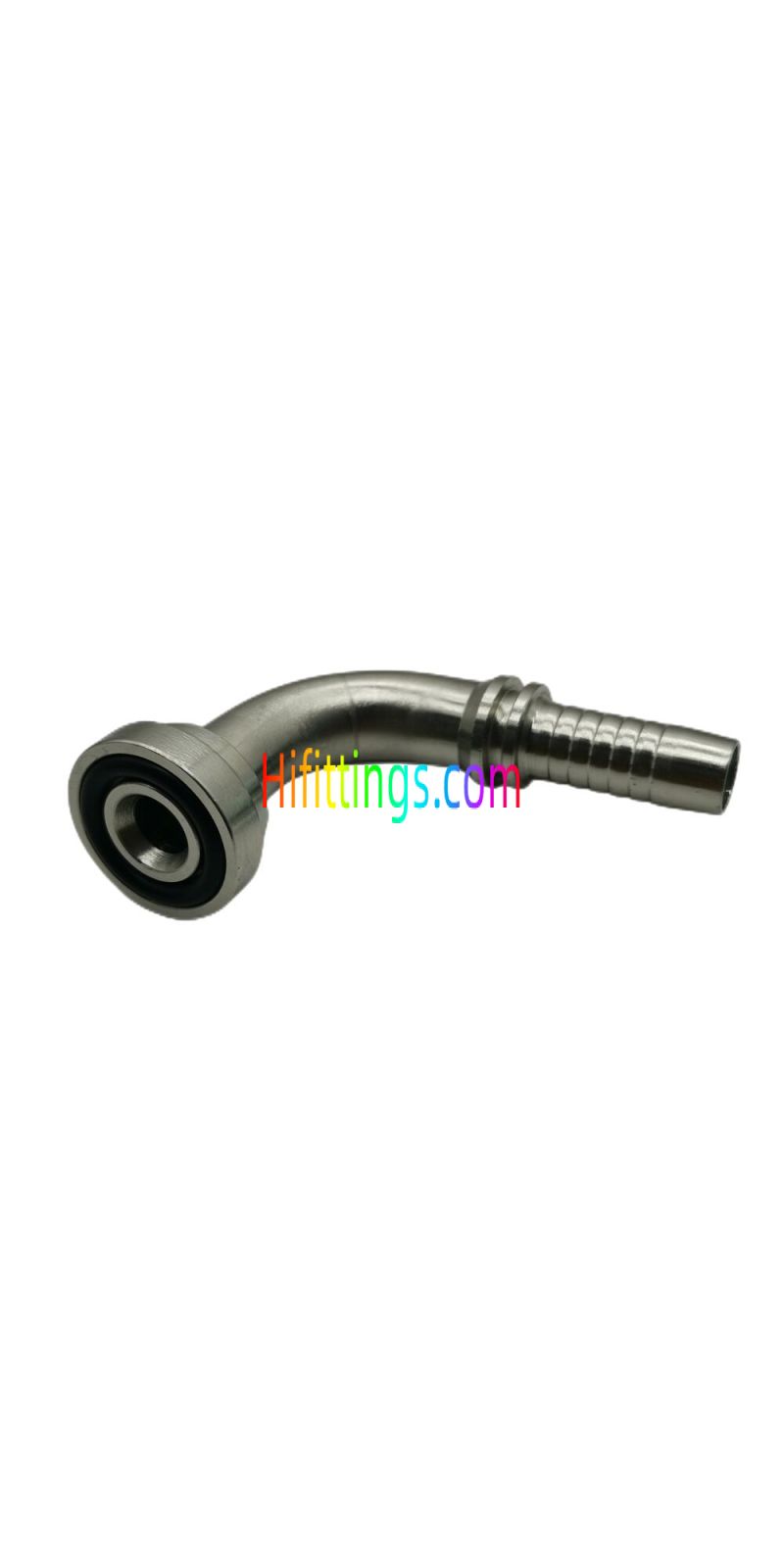

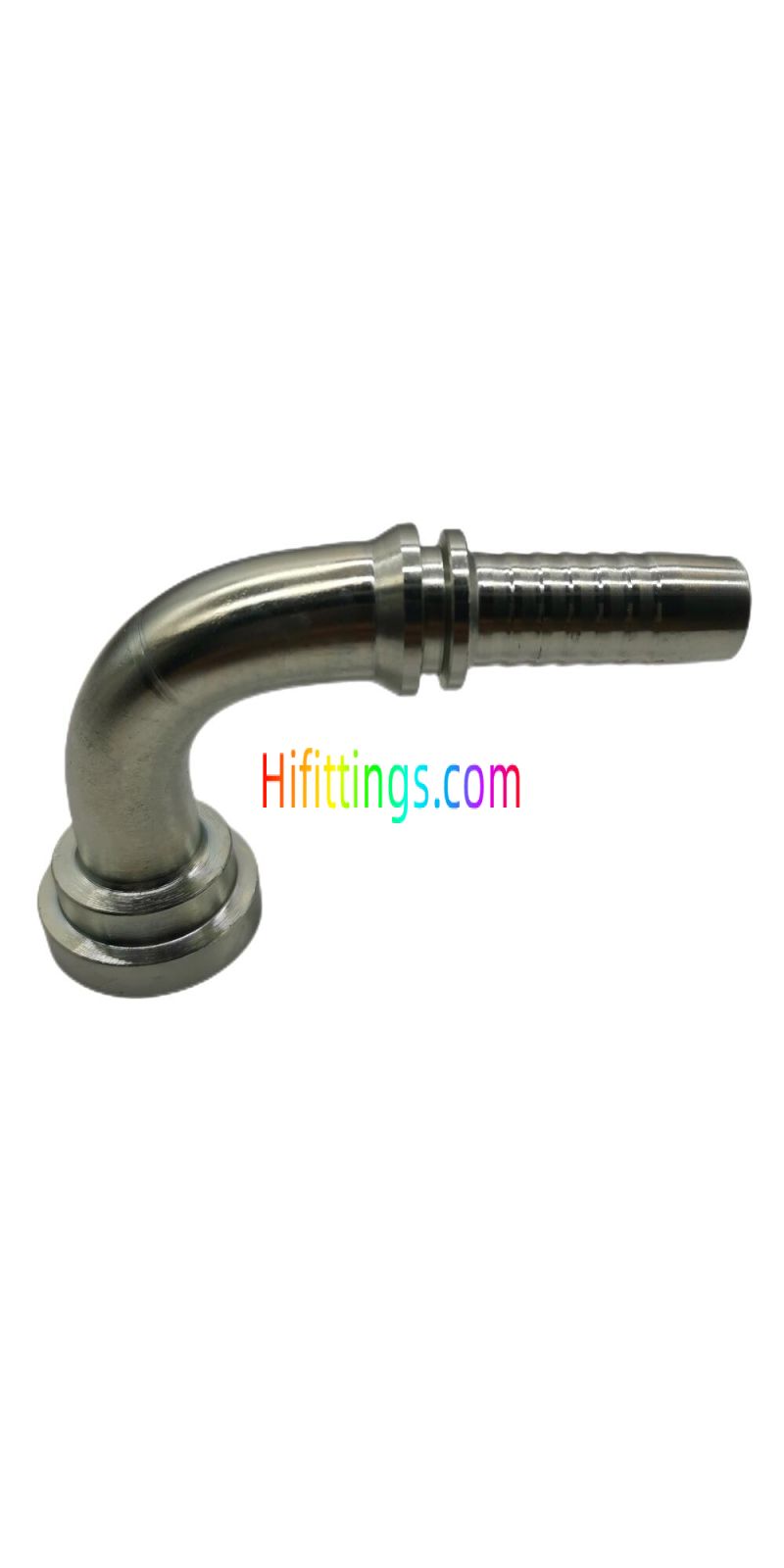

| شكل . | Elbow |
|---|---|
| أنواع الاكسسوارات | Flange |
| نوع الخيط | - |
| Connection Type | Flange |
