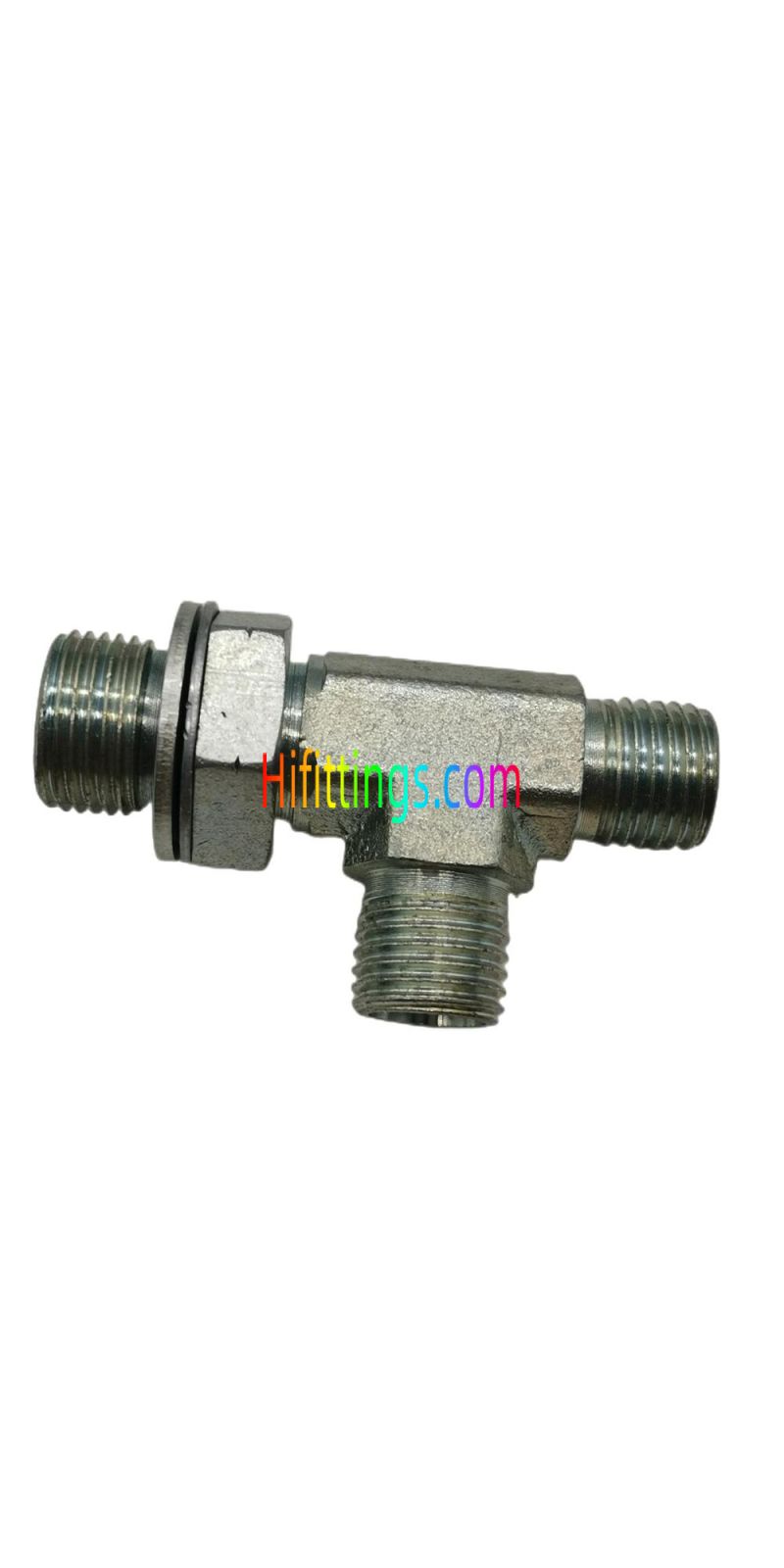

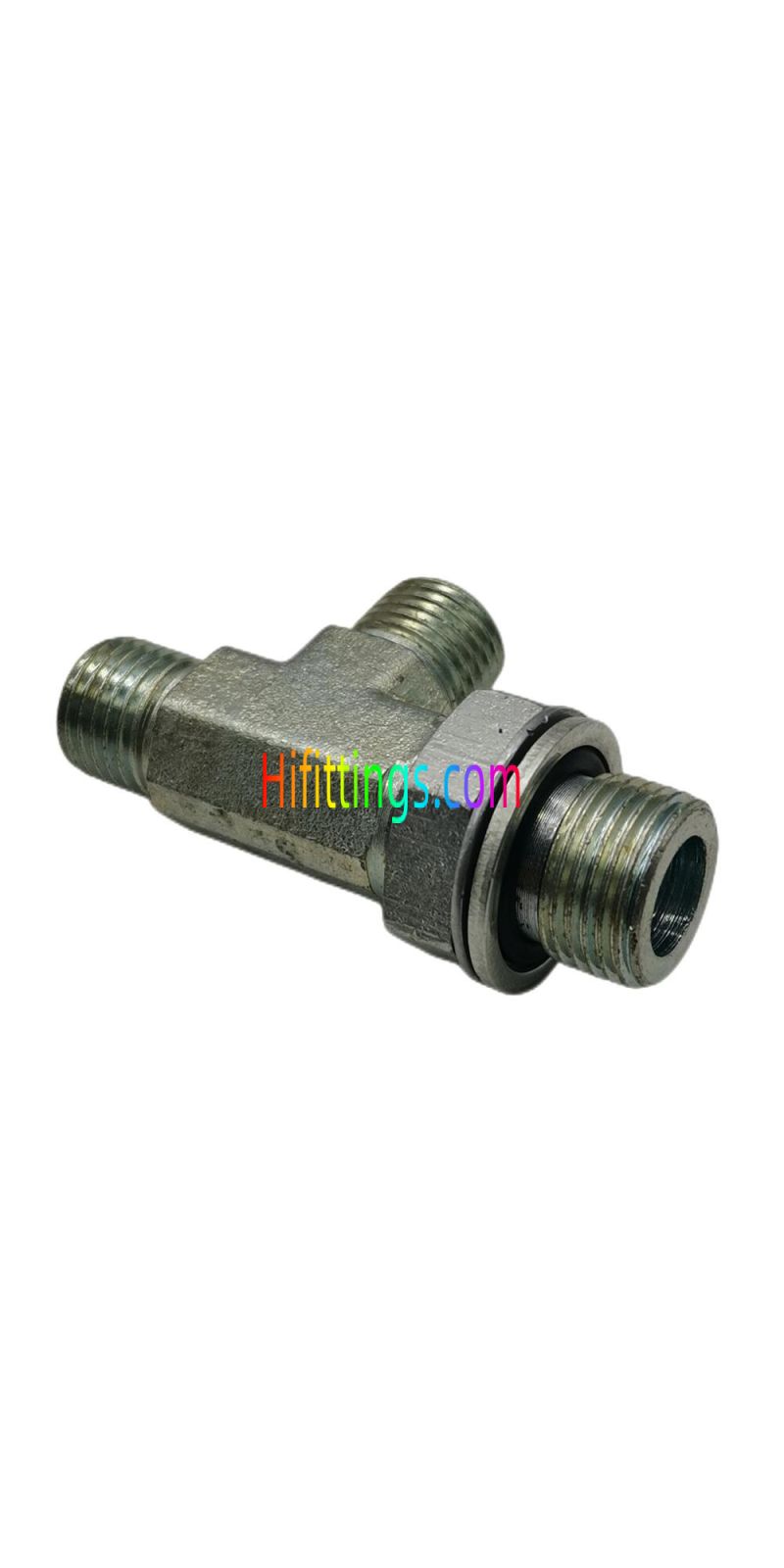

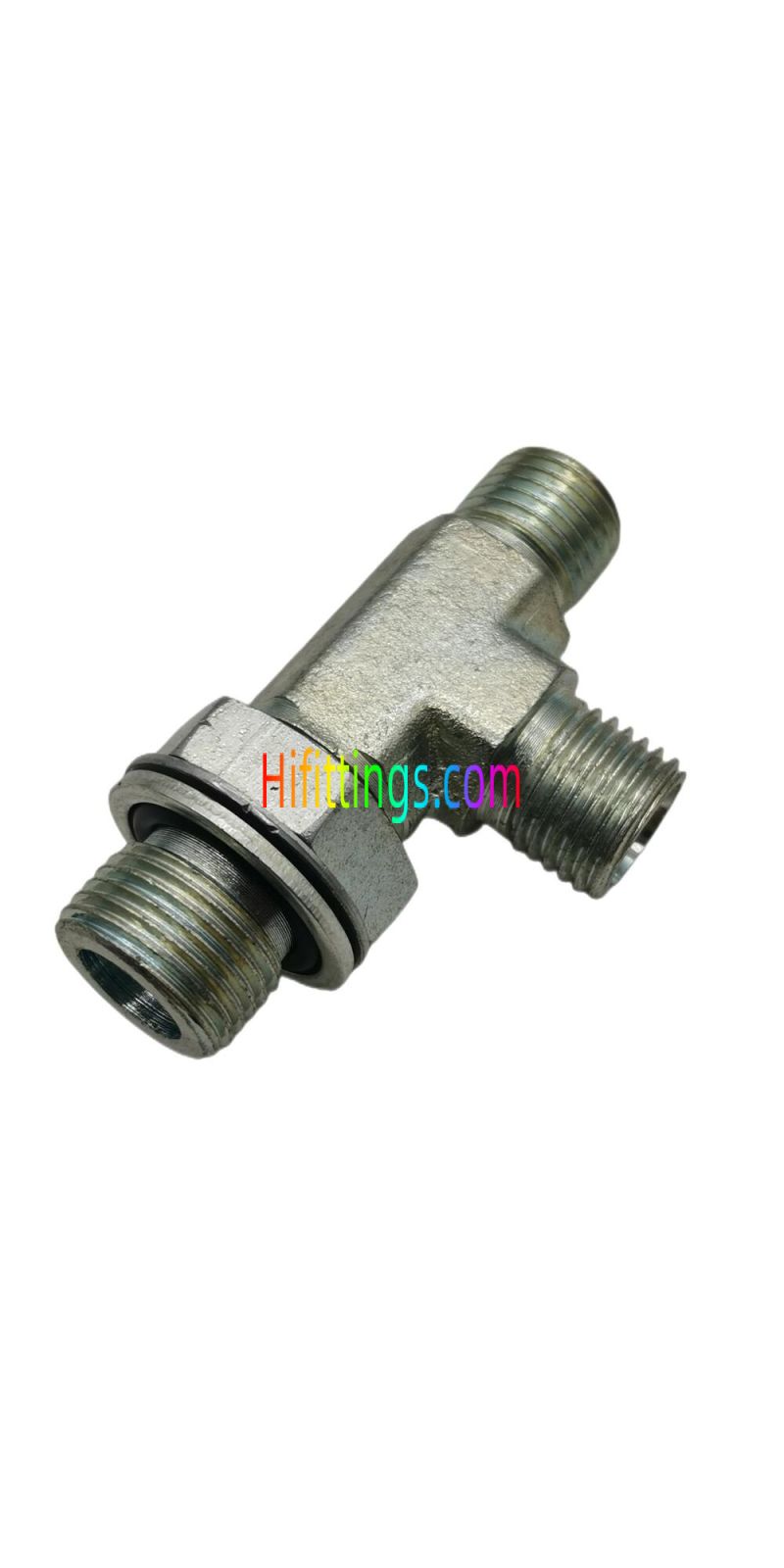

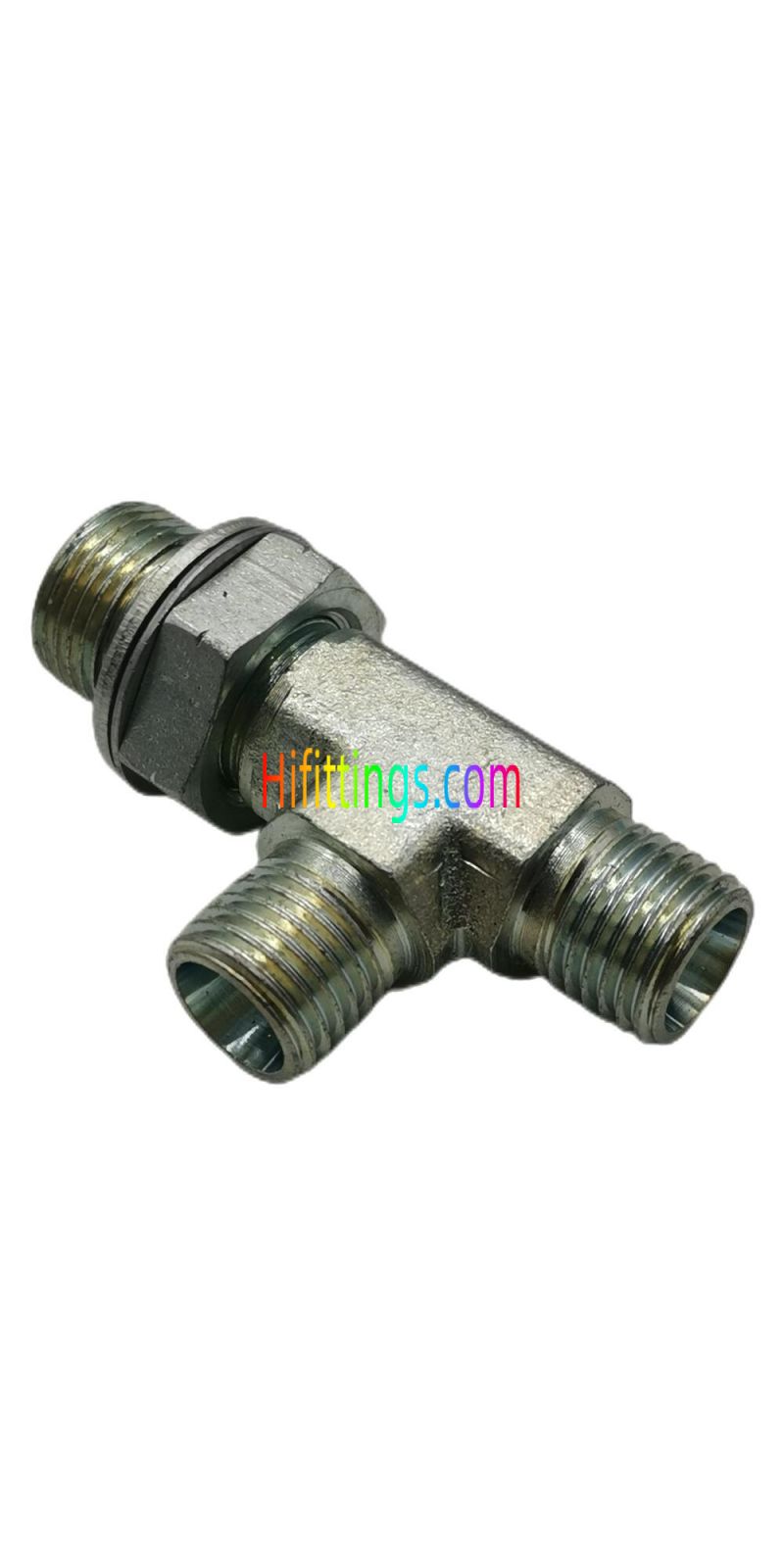

BSP Thread Adjustable Stud Ends With O-Ring Sealing Run Tee ACCG-OG/ADDG-OG
|
Part NO. |
E,F |
G |
D1,D2 |
11,12 |
L1,L2 |
L3 |
S1 |
S2,S3 |
S4 |
Working Pressure bar |
|
ACCG-12-12-02OG |
M12X1.5 |
G1/8"X28 |
6 |
13 |
28 |
26.2 |
11 |
14 |
14 |
PN315 |
|
ACCG-14-14-04OG |
M14X1.5 |
G1/4"X19 |
8 |
15.5 |
30.5 |
31.3 |
14 |
17 |
19 |
PN315 |
|
ACCG-16-16-04OG |
M16X1.5 |
G1/4"X19 |
10 |
17.5 |
32.5 |
32.5 |
16 |
19 |
19 |
PN315 |
|
ACCG-18-18-06OG |
M18X1.5 |
G3/8"X19 |
12 |
19 |
34 |
36.8 |
19 |
22 |
22 |
PN315 |
|
ACCG-22-22-08OG |
M22X1.5 |
G1/2"X14 |
15 |
22 |
37 |
43.2 |
22 |
27 |
27 |
PN315 |
|
ACCG-26-26-08OG |
M26X1.5 |
G1/2"X14 |
18 |
25.5 |
42 |
46.5 |
27 |
32 |
27 |
PN315 |
|
ACCG-30-30-120G |
M30X2 |
G3/4"X14 |
22 |
29.3 |
45.8 |
52 |
30 |
36 |
32 |
PN160 |
|
ACCG-36-36-16OG |
M36X2 |
G1"X11 |
28 |
33.3 |
49.8 |
56 |
36 |
41 |
41 |
PN160 |
|
ACCG-45-45-20OG |
M45X2 |
G1.1/4"X11 |
35 |
39.2 |
60.7 |
63 |
48 |
50 |
50 |
PN160 |
|
ADDG-14-14-04OG |
M14X1.5 |
G1/4"X19 |
6 |
17.5 |
32.5 |
31.3 |
14 |
17 |
19 |
PN630 |
|
ADDG-16-16-04OG |
M16X1.5 |
G1/4"X19 |
8 |
18.7 |
33.7 |
32.5 |
16 |
19 |
19 |
PN630 |
|
ADDG-18-18-06OG |
M18X1.5 |
G3/8"X19 |
10 |
19.5 |
36 |
36.8 |
19 |
22 |
22 |
PN630 |
|
ADDG-20-20-060G |
M20X1.5 |
G3/8"X19 |
12 |
19.5 |
36 |
36.8 |
19 |
24 |
22 |
PN630 |
|
ADDG-22-22-08OG |
M22X1.5 |
G1/2"X14 |
14 |
23 |
41 |
43.2 |
22 |
27 |
27 |
PN630 |
|
ADDG-24-24-08OG |
M24X1.5 |
G1/2"X14 |
16 |
24 |
42.5 |
44 |
24 |
30 |
27 |
PN400 |
|
ADDG-30-30-120G |
M30X2 |
G3/4"X14 |
20 |
28.3 |
49.8 |
52 |
30 |
36 |
32 |
PN400 |
|
ADDG-36-36-16OG |
M36X2 |
G1"X11 |
25 |
32.8 |
56.8 |
56 |
36 |
46 |
41 |
PN400 |
|
ADDG-42-42-20OG |
M42X2 |
G1.1/4"X11 |
30 |
36.2 |
62.7 |
58 |
41 |
50 |
50 |
PN400 |
|
Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example ACCG-18-18-06OG/RN. 2. PN = Nominal Pressure |
||||||||||
| شكل . | Tee |
|---|---|
| نوع الخيط | Male |
| Connection Type | BSP, Metric |
| أنواع الاكسسوارات | Bite Type |
