| KZE-B Specifications | ||
| Body Size(in) | 1/4 | 3/8 |
| Rated Pressure(PSI) | 10000 | 10000 |
| Rated Flow(GPM) | 3 | 6 |
| Temperature Range(NBR) | -20 ℃ 〜+120C | |

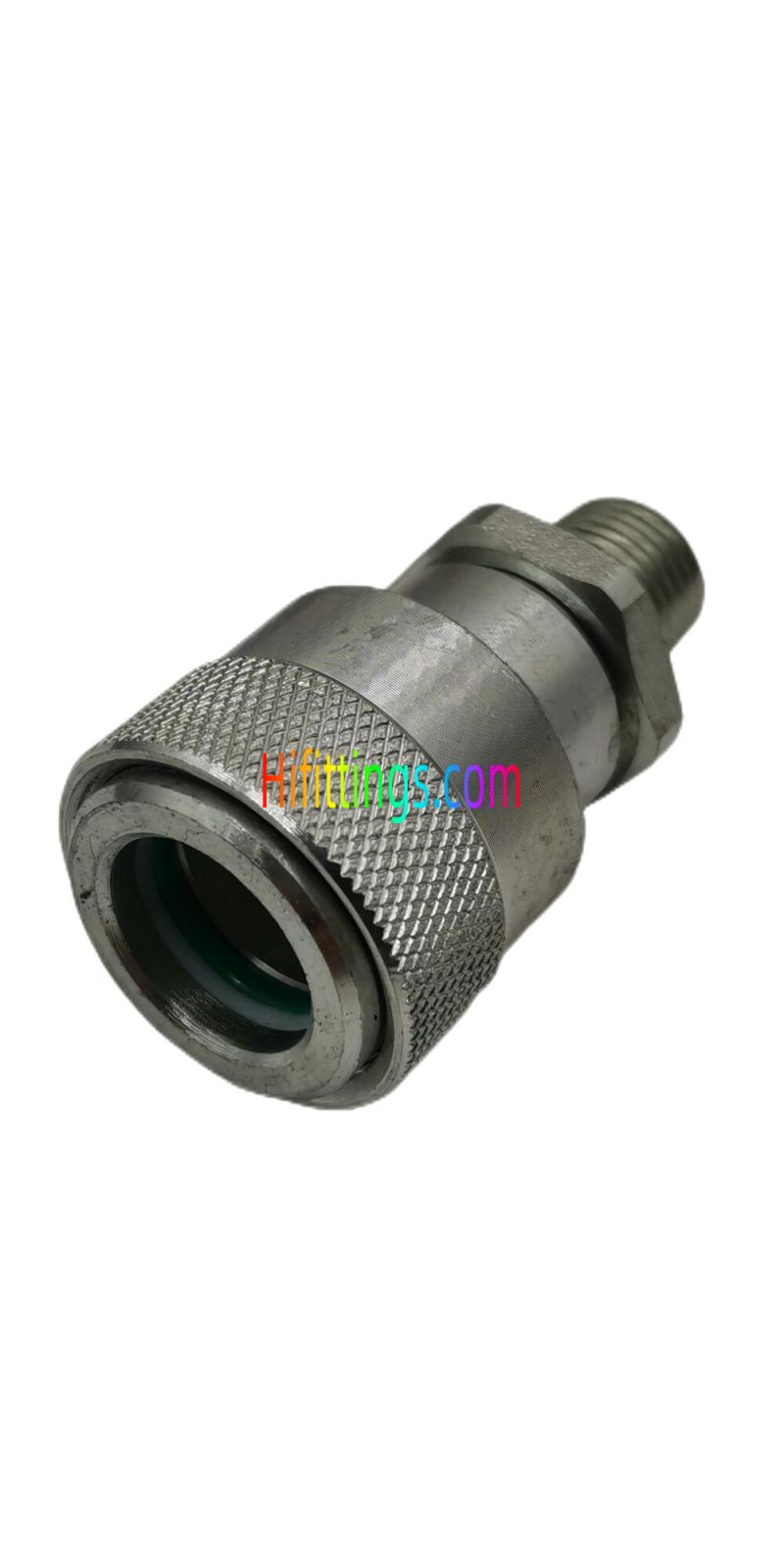

Socket
| Part NO. | Thread | LS | φD | S1 | A |
| KZE-B-N02SM | NPT1/4 | 60.8 | 28.5 | 22 | 13.5 |
| KZE-B-N03SM | NPT3/8 | 73.5 | 35 | 25 | 14.4 |

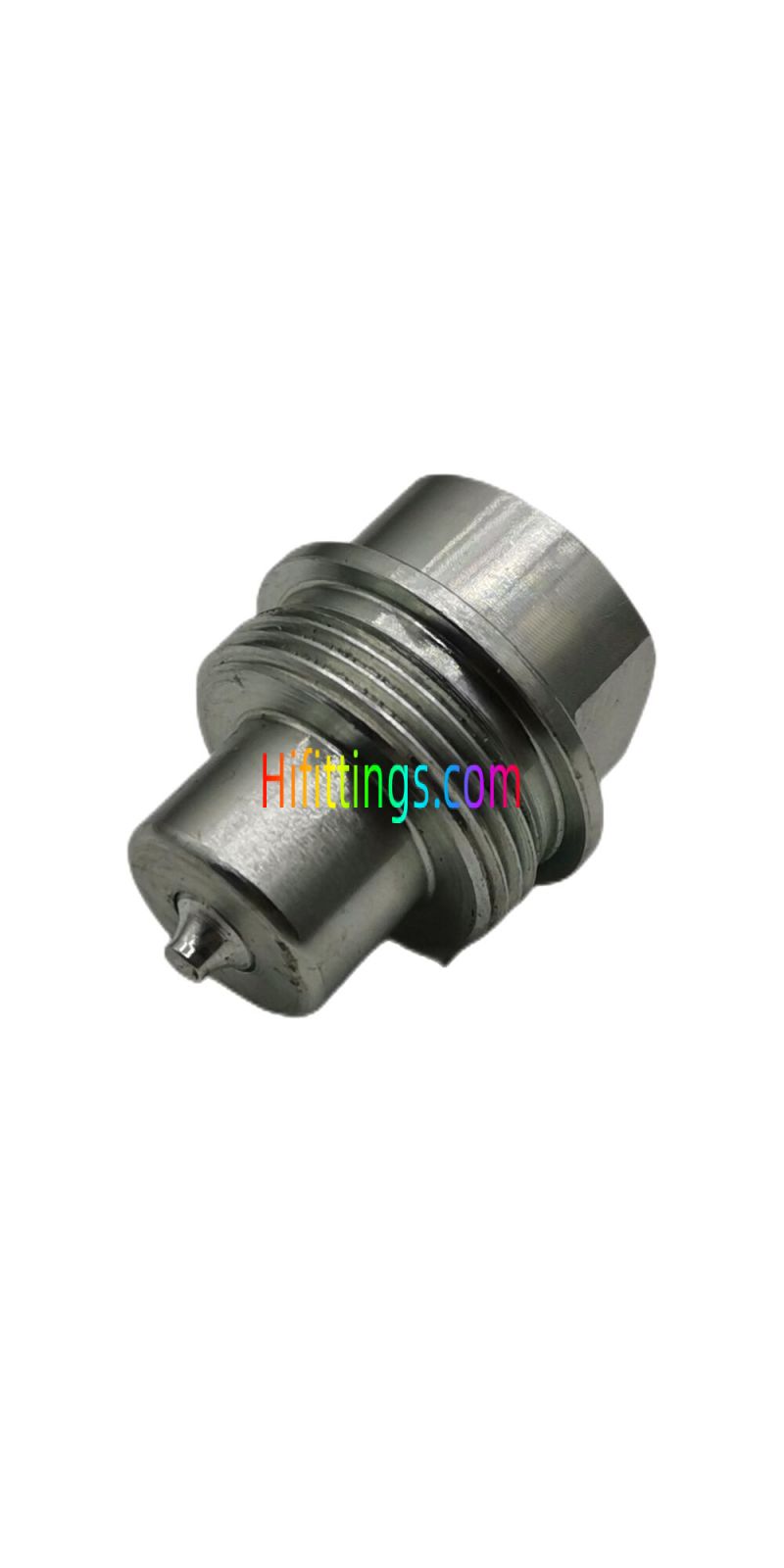

Plug
| Part NO. | Thread | LP | C | S2 | A |
| KZE-B-N02PF | NPT1/4 | 32.5 | 11.2 | 19 | 13 |
| KZE-B-N03PF | NPT3/8 | 35 | 16 | 32 | 13.5 |

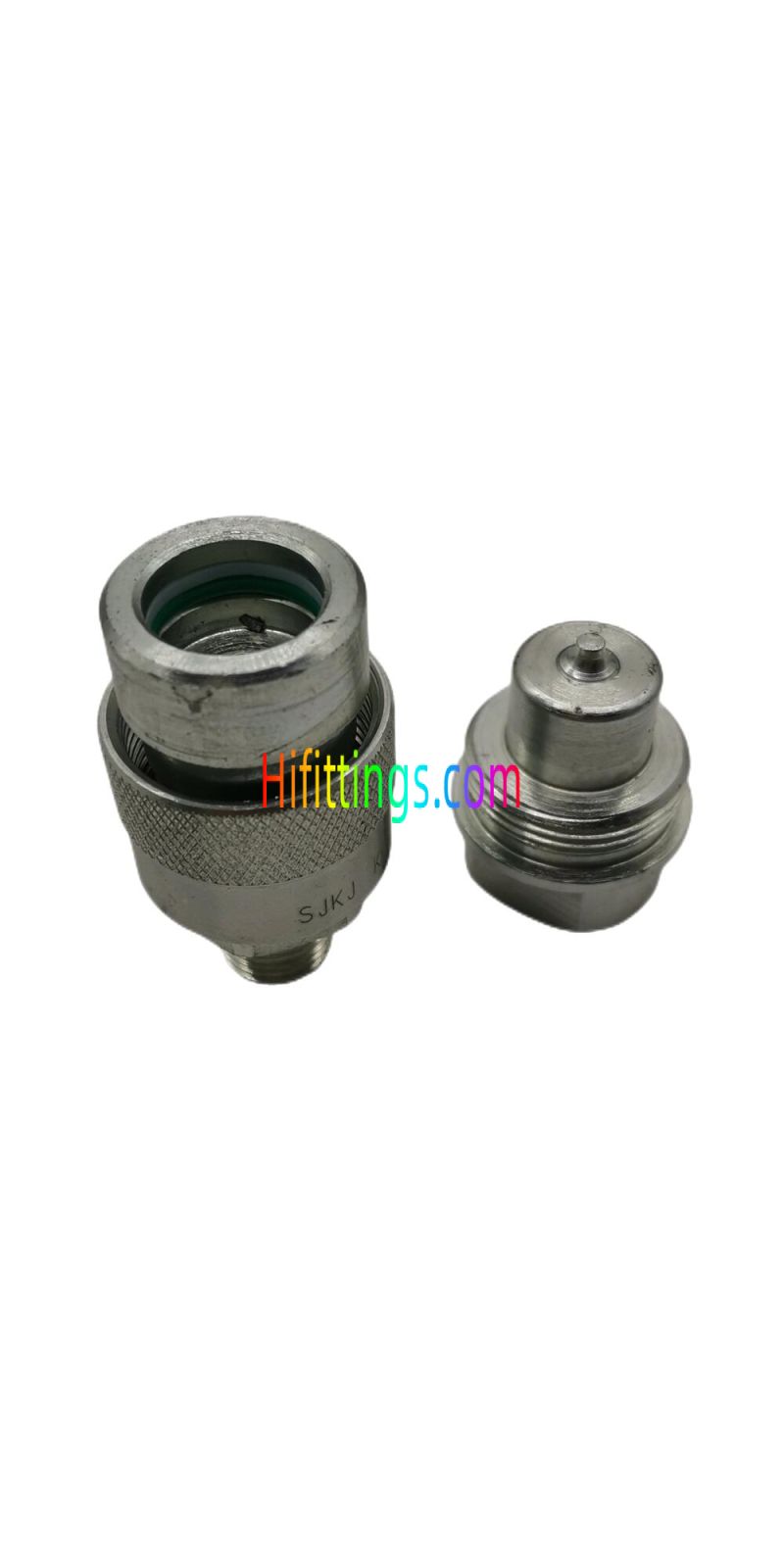

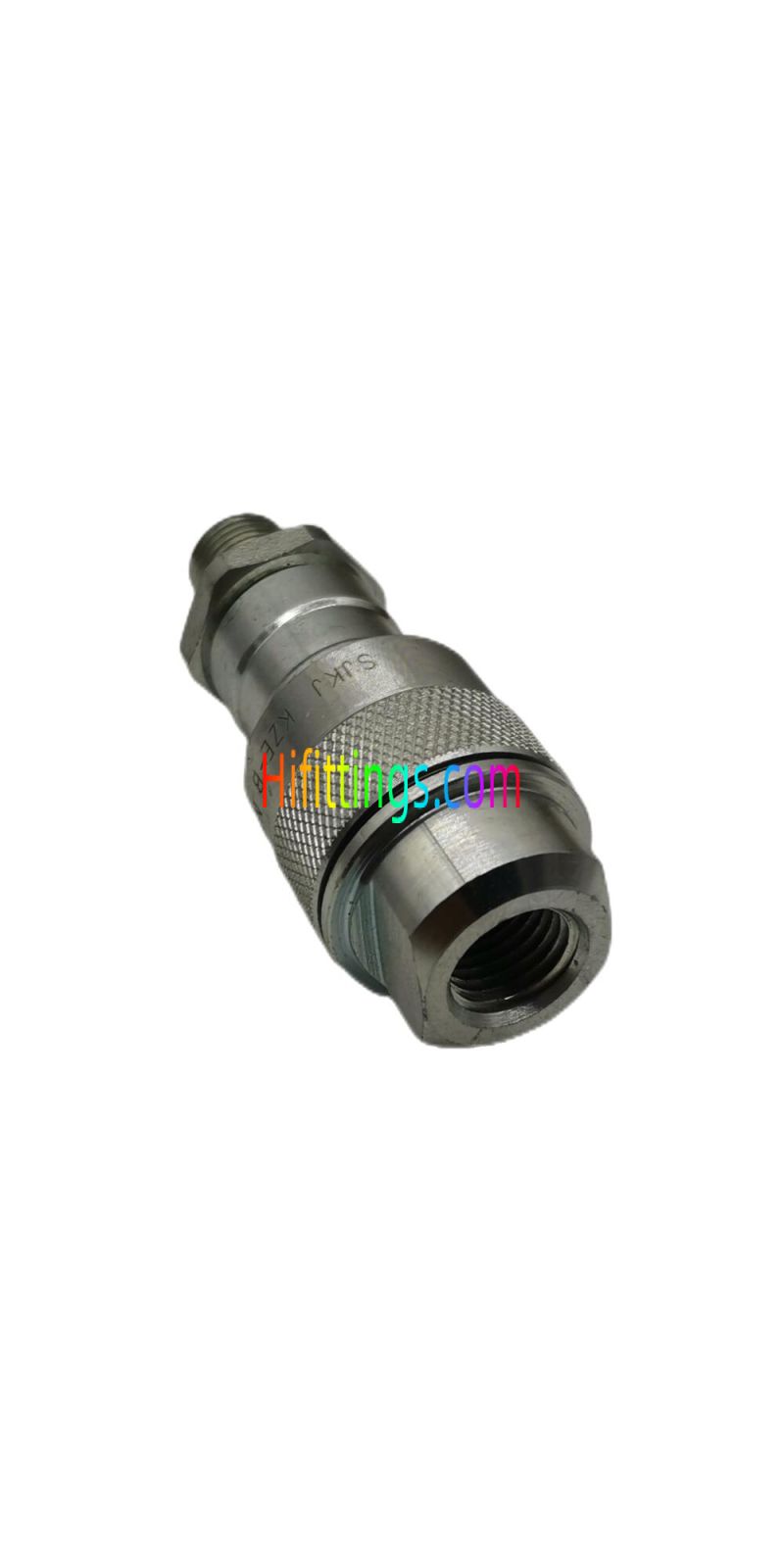

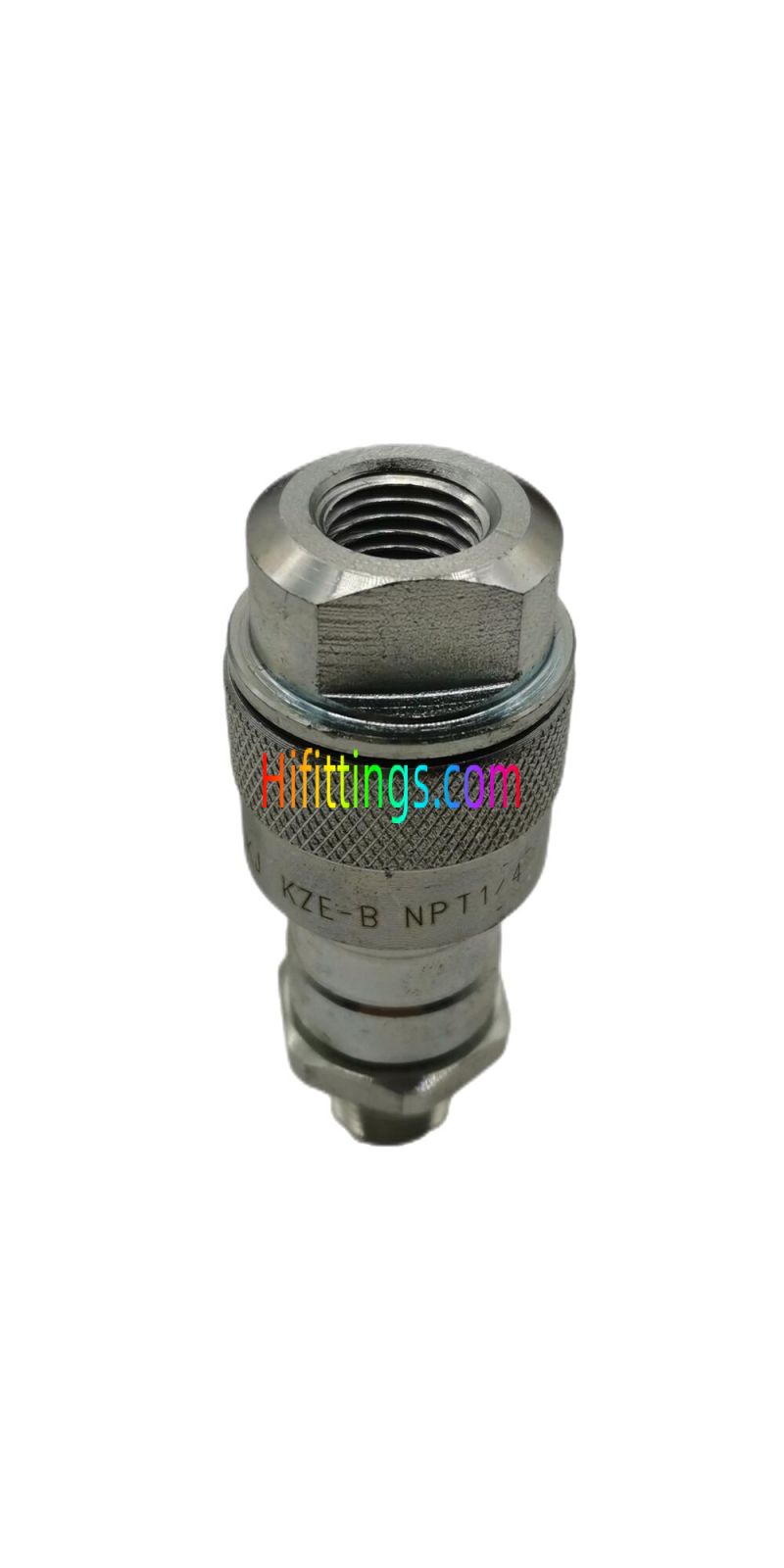

Coupling Fitting
| Part NO. | Thread | L | φD | S1 | S2 |
| KZE-B-N02SP | NPT1/4 | 74 | 28.5 | 22 | 19 |
| KZE-B-N03SP | NPT3/8 | 83 | 35 | 25 | 32 |
| نوع الخيط | Male-Female |
|---|
