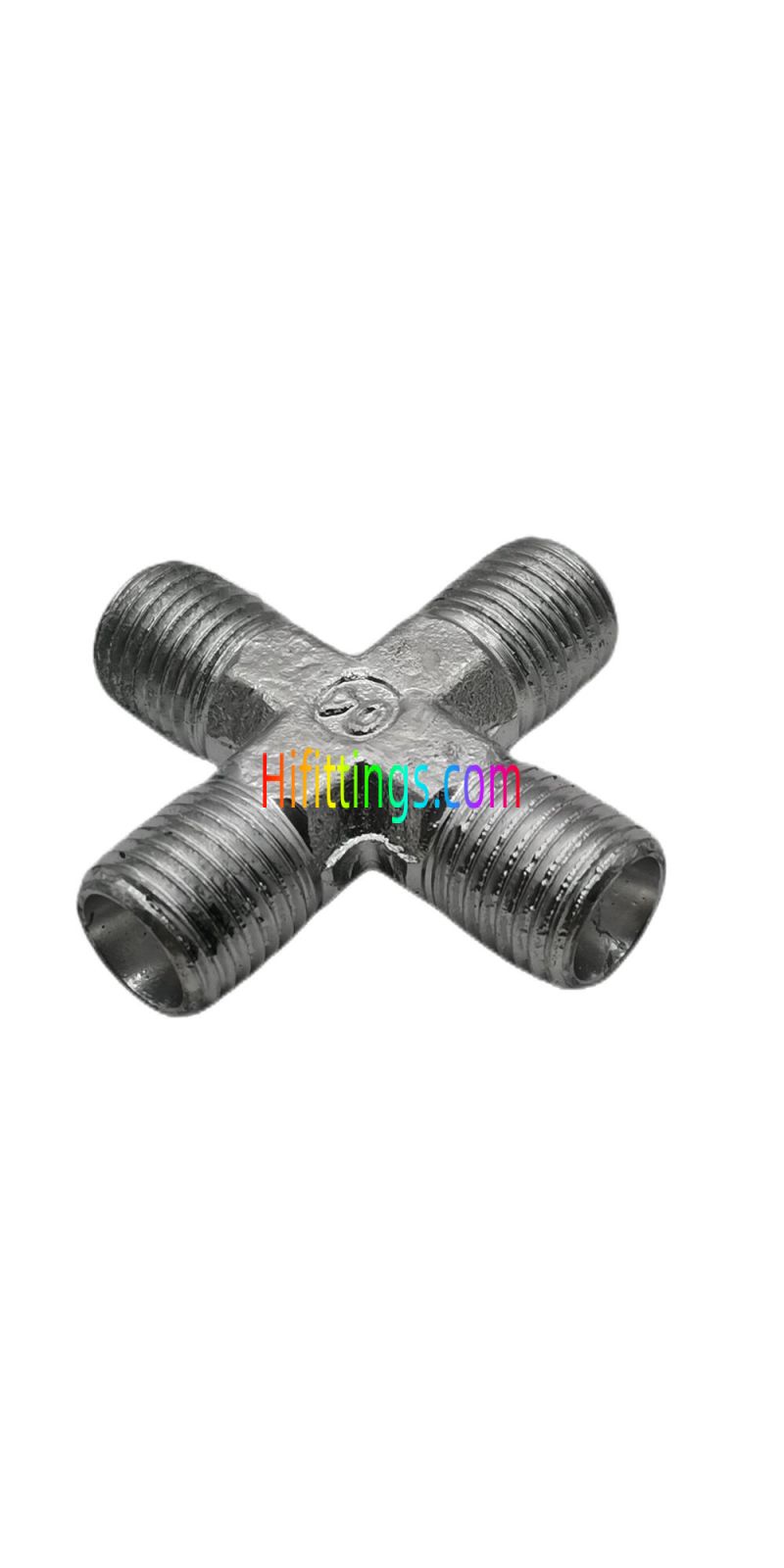

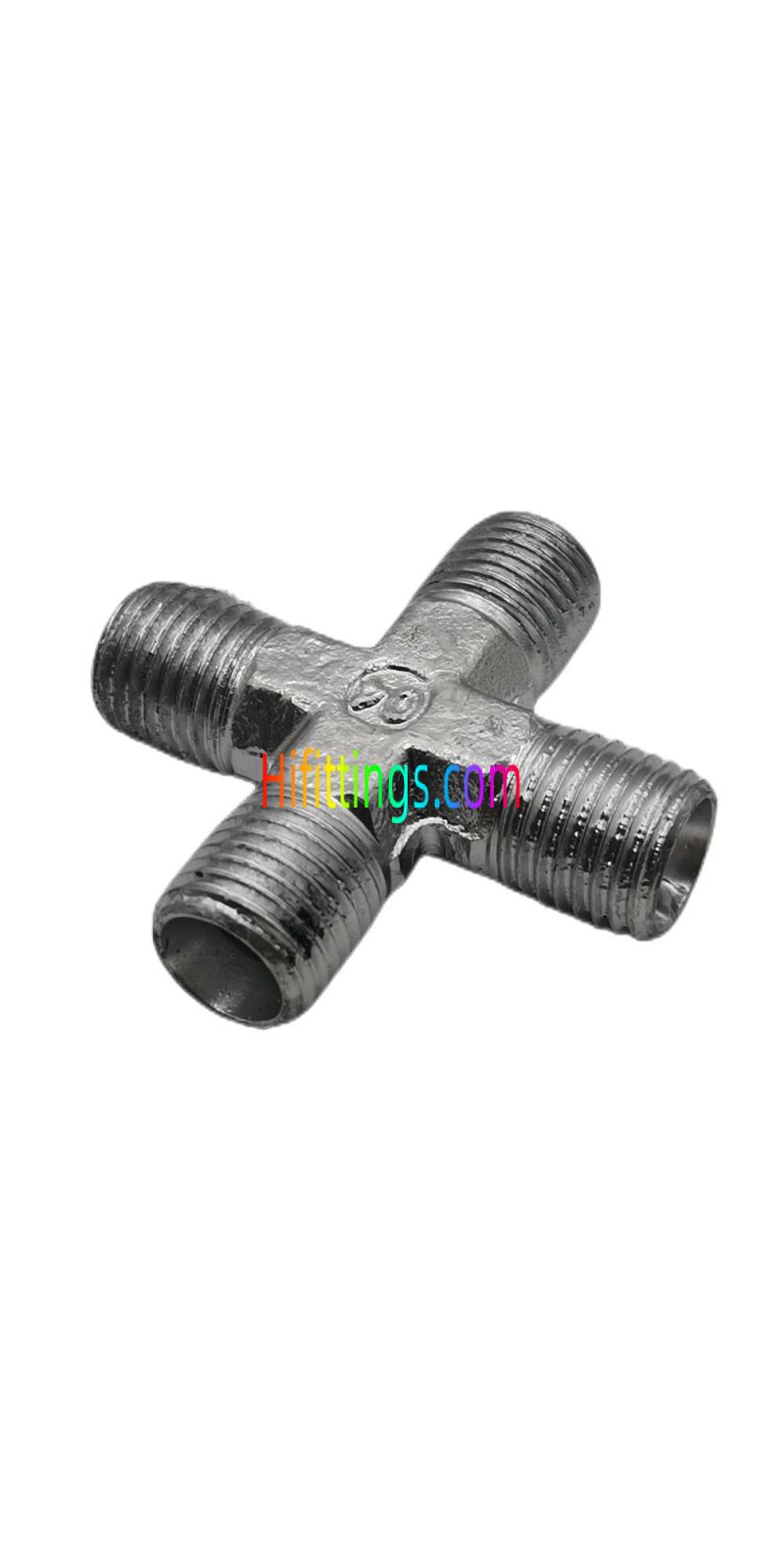

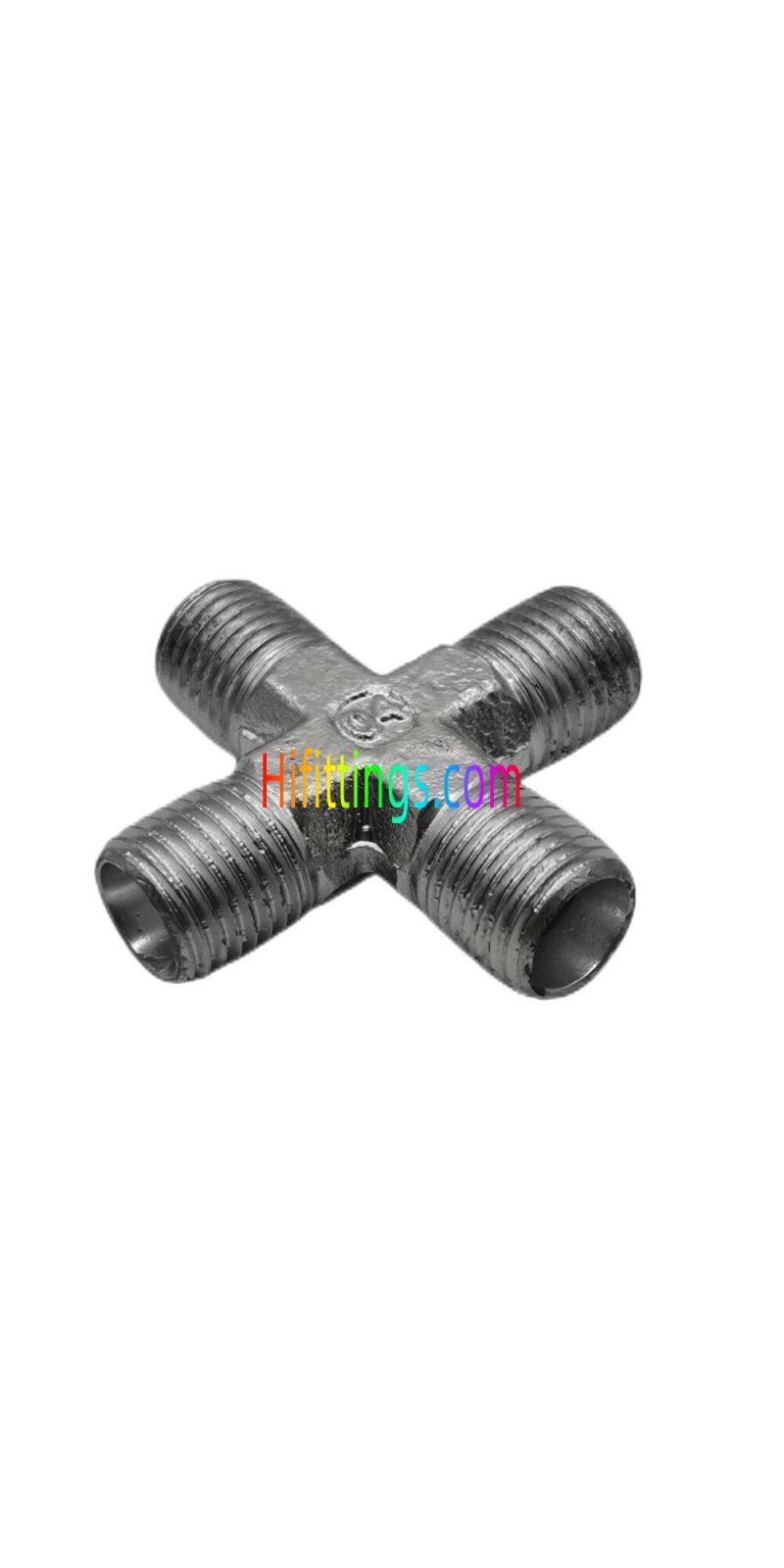

Metric Male Bite Type Cross Hydraulic Adapter Pipe Fittings XC/XD
|
Part NO. |
E,F,G,H |
D1,D2,D3,D4 |
l1 |
L1 |
S1 |
S2 |
Working Pressure bar |
|
XC-12 |
M12X1.5 |
6 |
12 |
27 |
12 |
14 |
PN315 |
|
XC-14 |
M14X1.5 |
8 |
14 |
29 |
12 |
17 |
PN315 |
|
XC-16 |
M16X1.5 |
10 |
15 |
30 |
14 |
19 |
PN315 |
|
XC-18 |
M18X1.5 |
12 |
17 |
32 |
17 |
22 |
PN315 |
|
XC-22 |
M22X1.5 |
15 |
21 |
36 |
19 |
27 |
PN315 |
|
XC-26 |
M26X1.5 |
18 |
23.5 |
40 |
24 |
32 |
PN315 |
|
XC-30 |
M30X2 |
22 |
27.5 |
44 |
27 |
36 |
PN160 |
|
XC-36 |
M36X2 |
28 |
30.5 |
47 |
36 |
41 |
PN160 |
|
XC-45 |
M45X2 |
35 |
34.5 |
56 |
41 |
50 |
PN160 |
|
XC-52 |
M52X2 |
42 |
40 |
63 |
50 |
60 |
PN160 |
|
XD-14 |
M14X1.5 |
6 |
16 |
31 |
12 |
17 |
PN630 |
|
XD-16 |
M16X1.5 |
8 |
17 |
32 |
14 |
19 |
PN630 |
|
XD-18 |
M18X1.5 |
10 |
17.5 |
34 |
17 |
22 |
PN630 |
|
XD-20 |
M20X1.5 |
12 |
21.5 |
38 |
17 |
24 |
PN630 |
|
XD-22 |
M22X1.5 |
14 |
22 |
40 |
19 |
27 |
PN630 |
|
XD-24 |
M24X1.5 |
16 |
24.5 |
43 |
24 |
30 |
PN400 |
|
XD-30 |
M30X2 |
20 |
26.5 |
48 . |
27 |
36 |
PN400 |
|
XD-36 |
M36X2 |
25 |
30 |
54 |
36 |
46 |
PN400 |
|
XD-42 |
M42X2 |
30 |
35.5 |
62 |
41 |
50 |
PN400 |
|
XD-52 |
M52X2 |
38 |
41 |
72 |
50 |
60 |
PN315 |
|

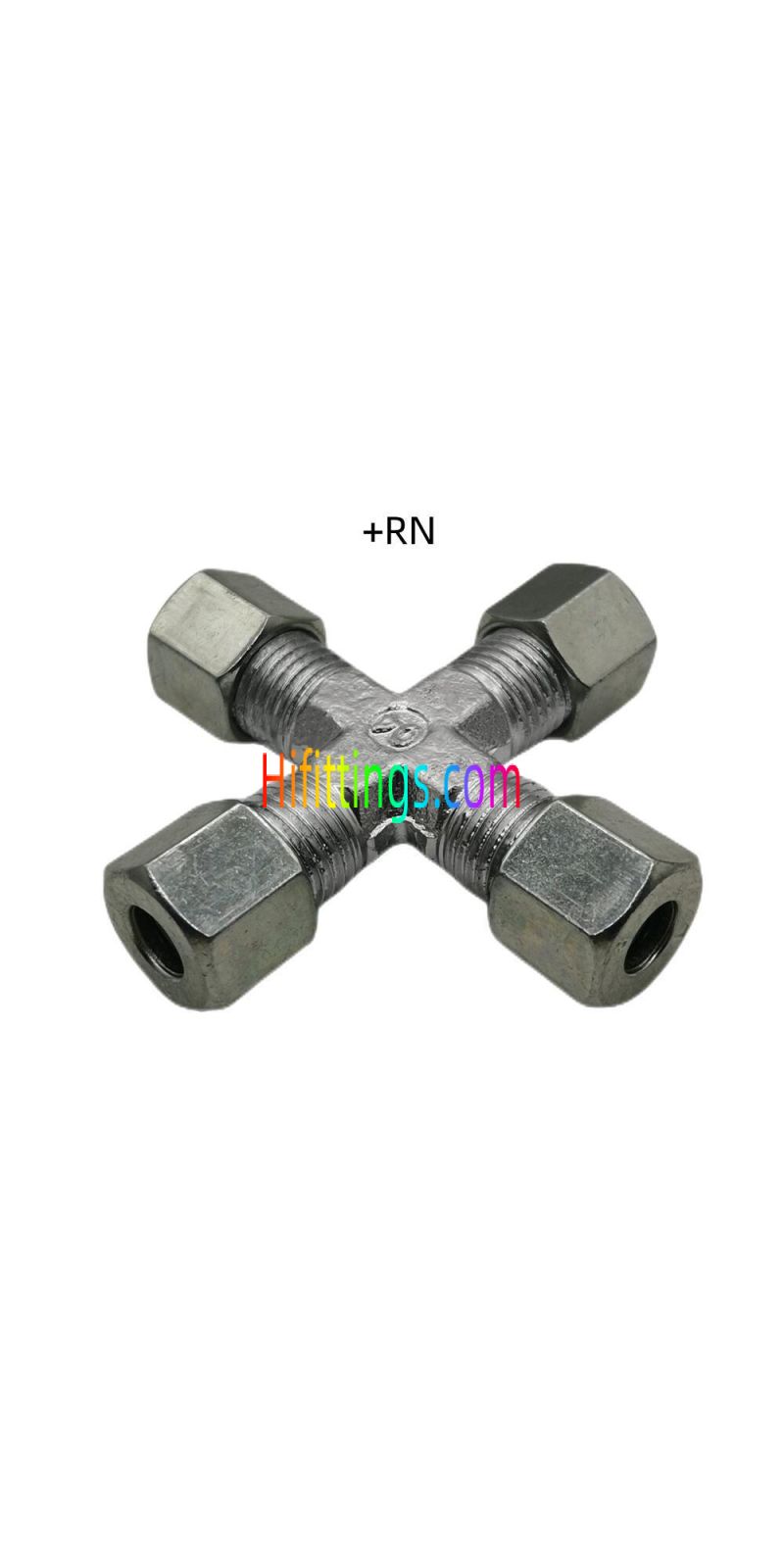

Note: 1.In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO., for example XC-30RN. 2. PN = Nominal Pressure |
|||||||
| شكل . | Cross |
|---|---|
| نوع الخيط | Male |
| Connection Type | Metric |
| أنواع الاكسسوارات | Bite Type |
