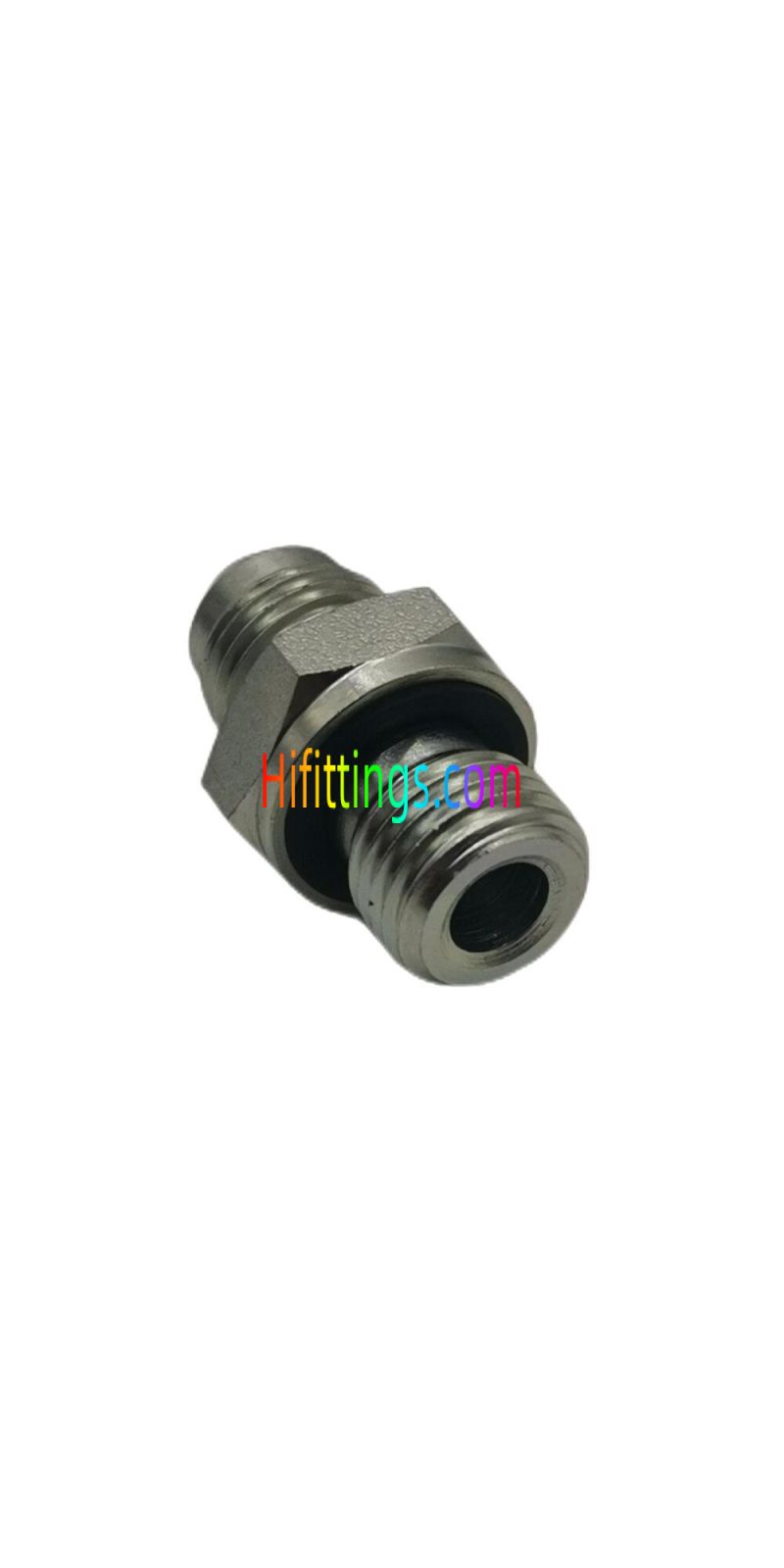

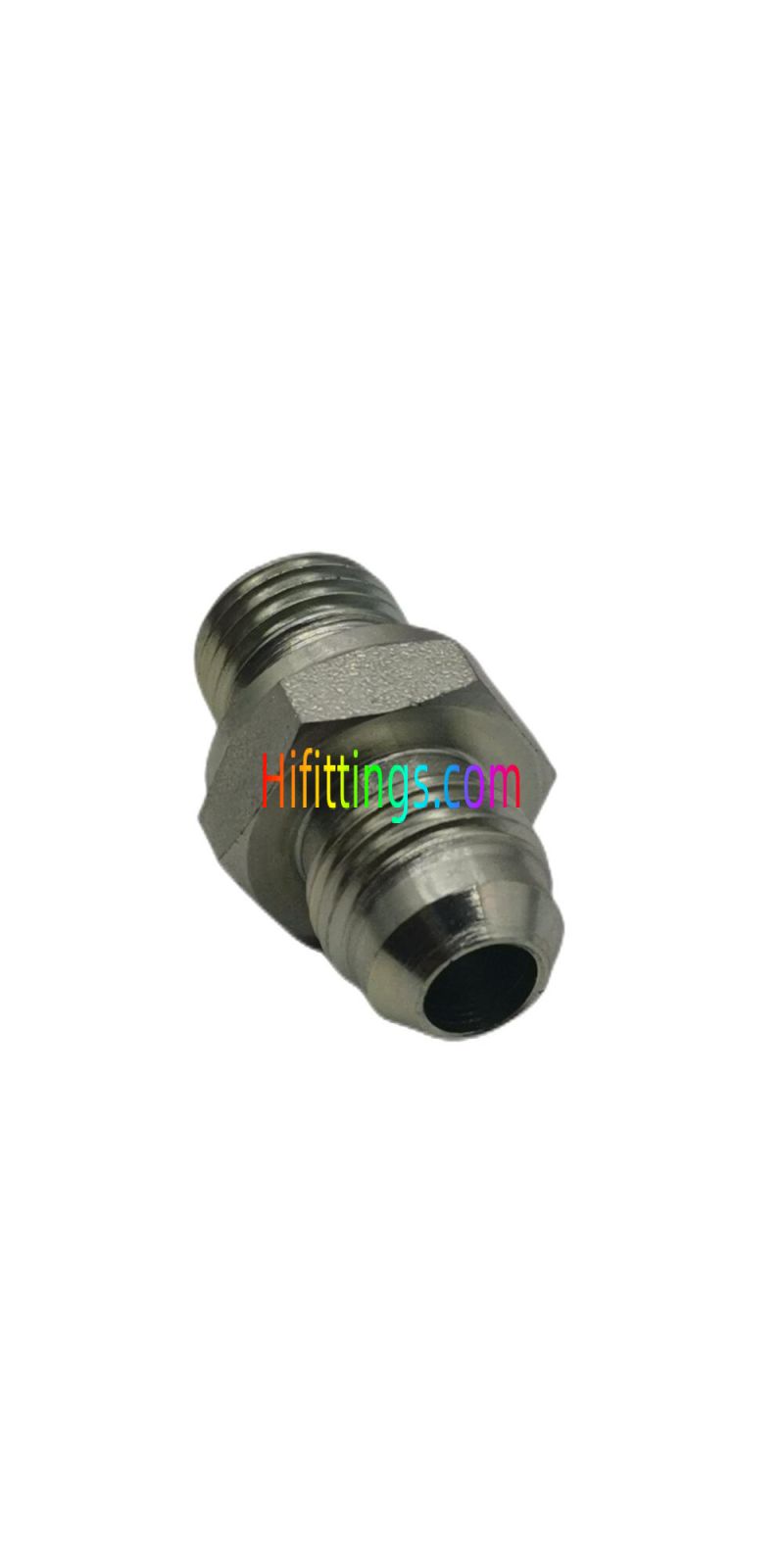

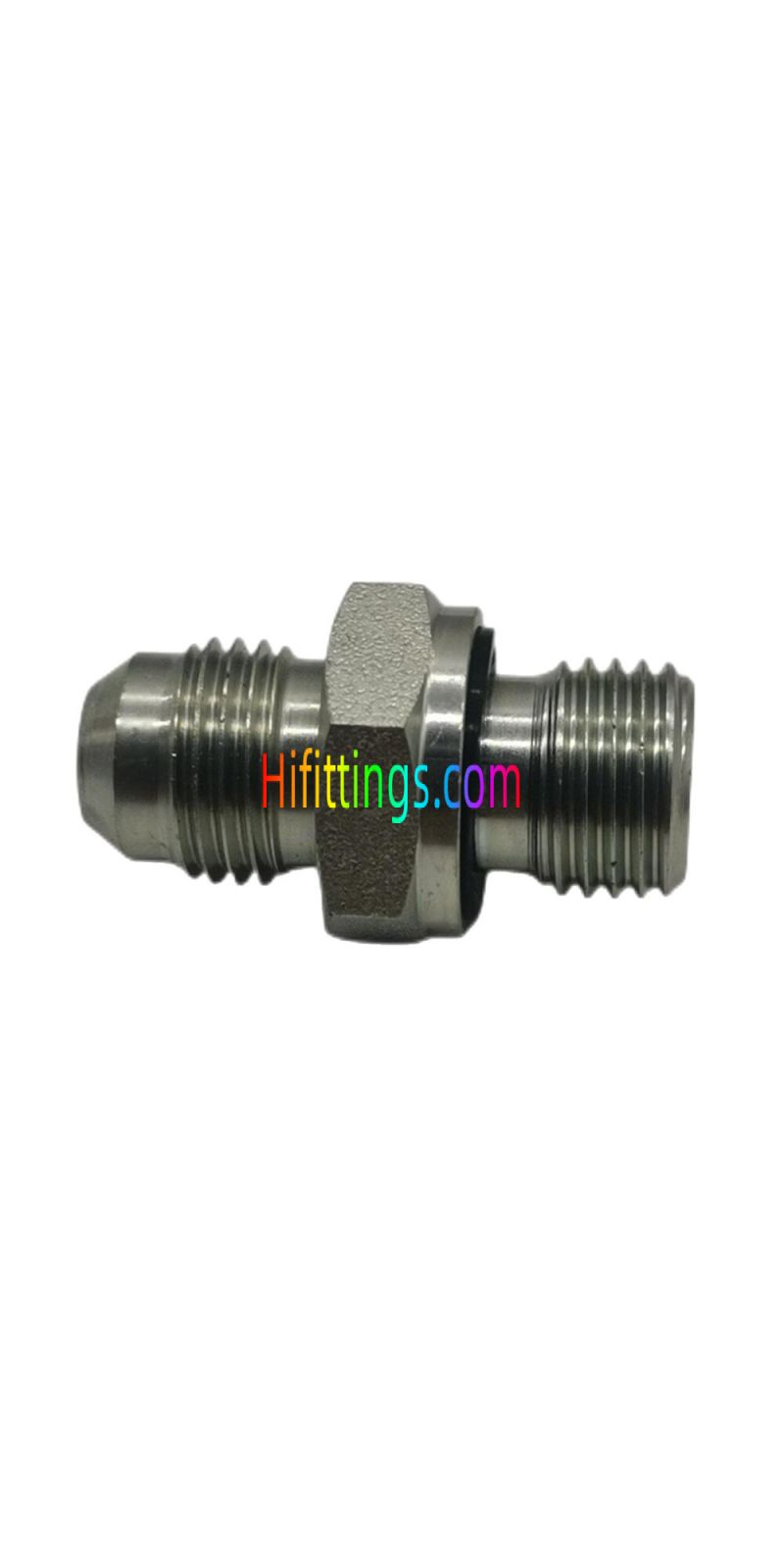

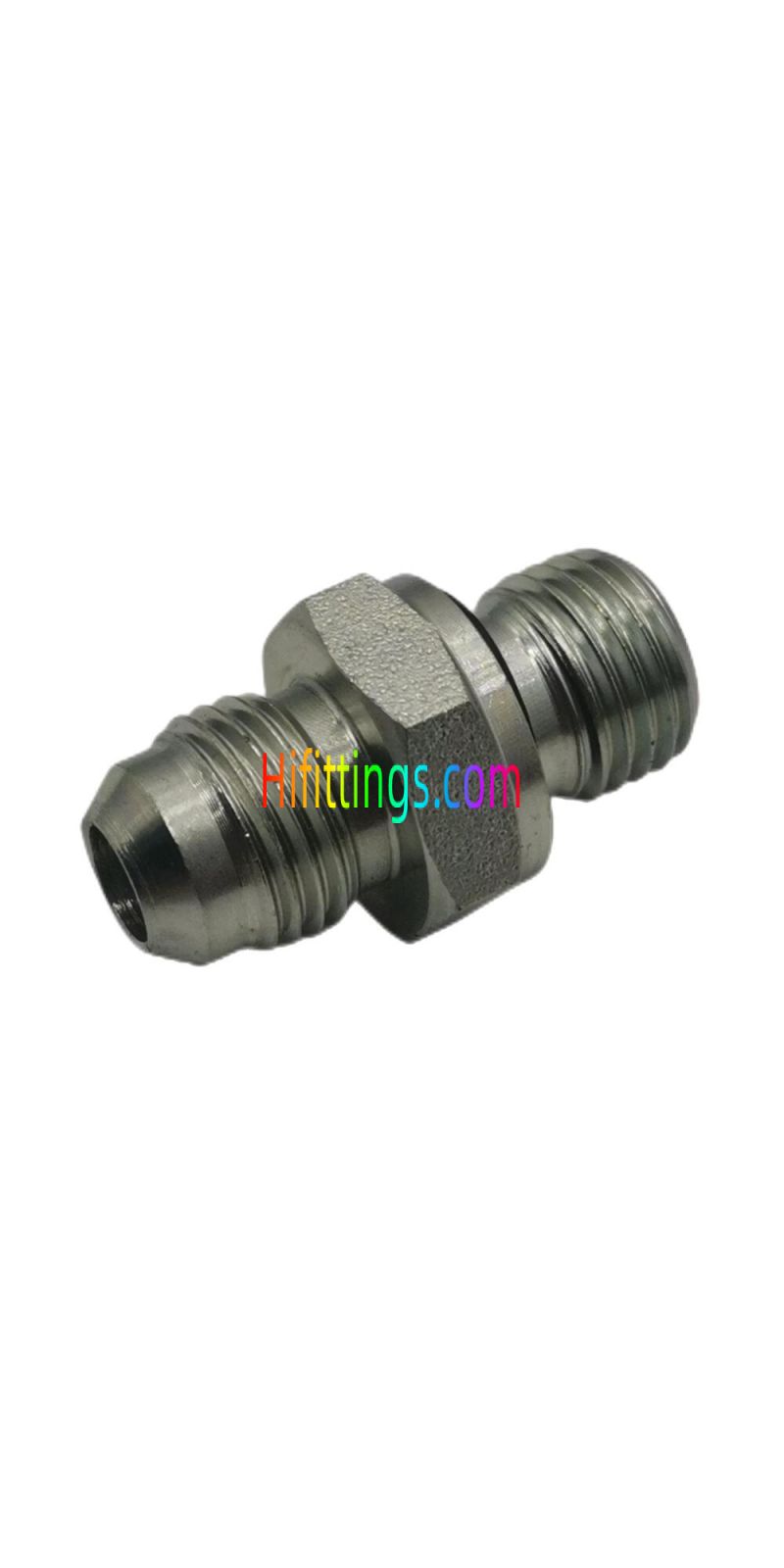

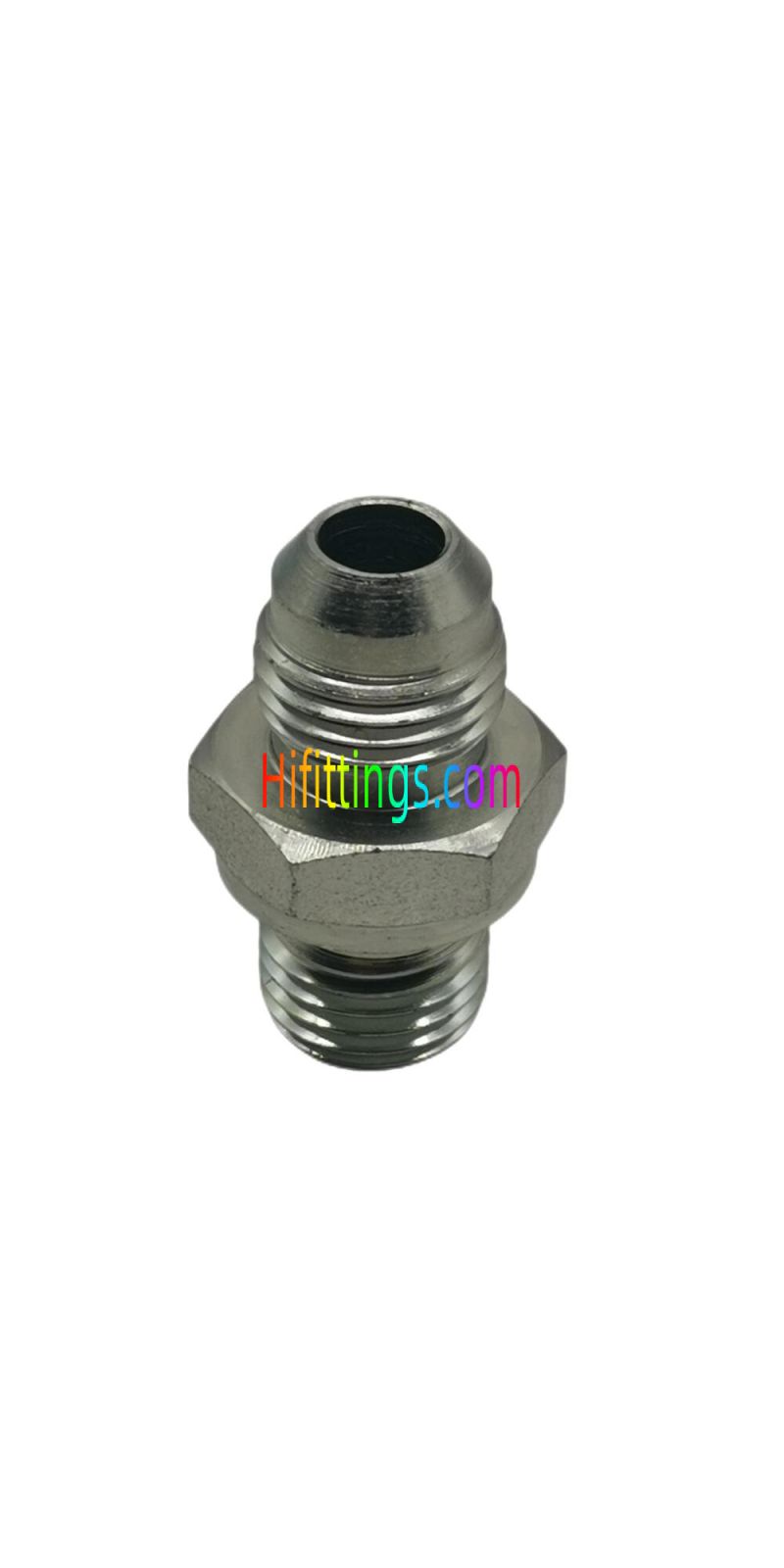

JIC Male 74° Cone / Metric Male Captive Seal Cone Flared Tube Fittings 1JM-WD
|
Part NO. |
E |
F |
F End |
A |
B |
L |
S1 |
Working Pressure bar |
|
1JM-04-10WD |
7/16"X20 |
M10X1 |
WD-B02 |
14 |
8 |
29.5 |
17 |
PN345 |
|
1JM-04-12WD |
7/16"X20 |
M12X1.5 |
WD-M12 |
14 |
12 |
34 |
17 |
PN345 |
|
1JM-05-14WD |
1/2"X20 |
M14X1.5 |
WD-B04 |
14 |
12 |
34 |
19 |
PN345 |
|
1JM-06-14WD |
9/16"X18 |
M14X1.5 |
WD-B04 |
14.1 |
12 |
34 |
19 |
PN345 |
|
1JM-06-18WD |
9/16"X18 |
M18X1.5 |
WD-M18 |
14.1 |
12 |
36.5 |
24 |
PN345 |
|
1JM-06-20WD |
9/16"X18 |
M20X1.5 |
WD-M20 |
14.1 |
14 |
40.5 |
27 |
PN345 |
|
1JM-08-18WD |
3/4"X16 |
M18X1.5 |
WD-M18 |
16.7 |
12 |
39 |
24 |
PN310 |
|
1JM-08-20WD |
3/4"X16 |
M20X1.5 |
WD-M20 |
16.7 |
14 |
43 |
27 |
PN310 |
|
1JM-08-22WD |
3/4"X16 |
M22X1.5 |
WD-M22 |
16.7 |
14 |
43.5 |
27 |
PN310 |
|
1JM-10-18WD |
7/8"X14 |
M18X1.5 |
WD-M18 |
19.3 |
12 |
41.5 |
24 |
PN240 |
|
1JM-10-20WD |
7/8"X14 |
M20X1.5 |
WD-M20 |
19.3 |
14 |
45.5 |
27 |
PN240 |
|
1JM-10-22WD |
7/8"X14 |
M22X1.5 |
WD-M22 |
19.3 |
14 |
46 |
27 |
PN240 |
|
1JM-12-20WD |
1.1/16"X12 |
M20X1.5 |
WD-M20 |
21.9 |
14 |
48.5 |
30 |
PN240 |
|
1JM-12-22WD |
1.1/16"X12 |
M22X1.5 |
WD-M22 |
21.9 |
14 |
49 |
30 |
PN240 |
|
1JM-12-26WD |
1.1/16"X12 |
M26X1.5 |
WD-B12 |
21.9 |
16 |
52 |
32 |
PN240 |
|
1JM-12-27WD |
1.1/16"X12 |
M27X2 |
WD-B12 |
21.9 |
16 |
52 |
32 |
PN240 |
|
1JM-16-26WD |
1.5/16"X12 |
M26X1.5 |
WD-B12 |
23.1 |
16 |
53 |
36 |
PN210 |
|
1JM-16-33WD |
1.5/16"X12 |
M33X2 |
WD-B16 |
23.1 |
18 |
57 |
41 |
PN210 |
|
1JM-20-42WD |
1.5/8"X12 |
M42X2 |
WD-B20 |
24.3 |
20 |
62 |
50 |
PN170 |
|
1JM-20-48WD |
1.5/8"X12 |
M48X2 |
WD-B24 |
24.3 |
22 |
64 |
55 |
PN170 |
|
1JM-24-48WD |
1.7/8"X12 |
M48X2 |
WD-B24 |
27.5 |
22 |
67.5 |
55 |
PN140 |
|
Note：1Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2. PN = Nominal Pressure |
||||||||
| شكل . | Straight |
|---|---|
| أنواع الاكسسوارات | Cone Flared |
| نوع الخيط | Male |
| Connection Type | JIC, Metric |
