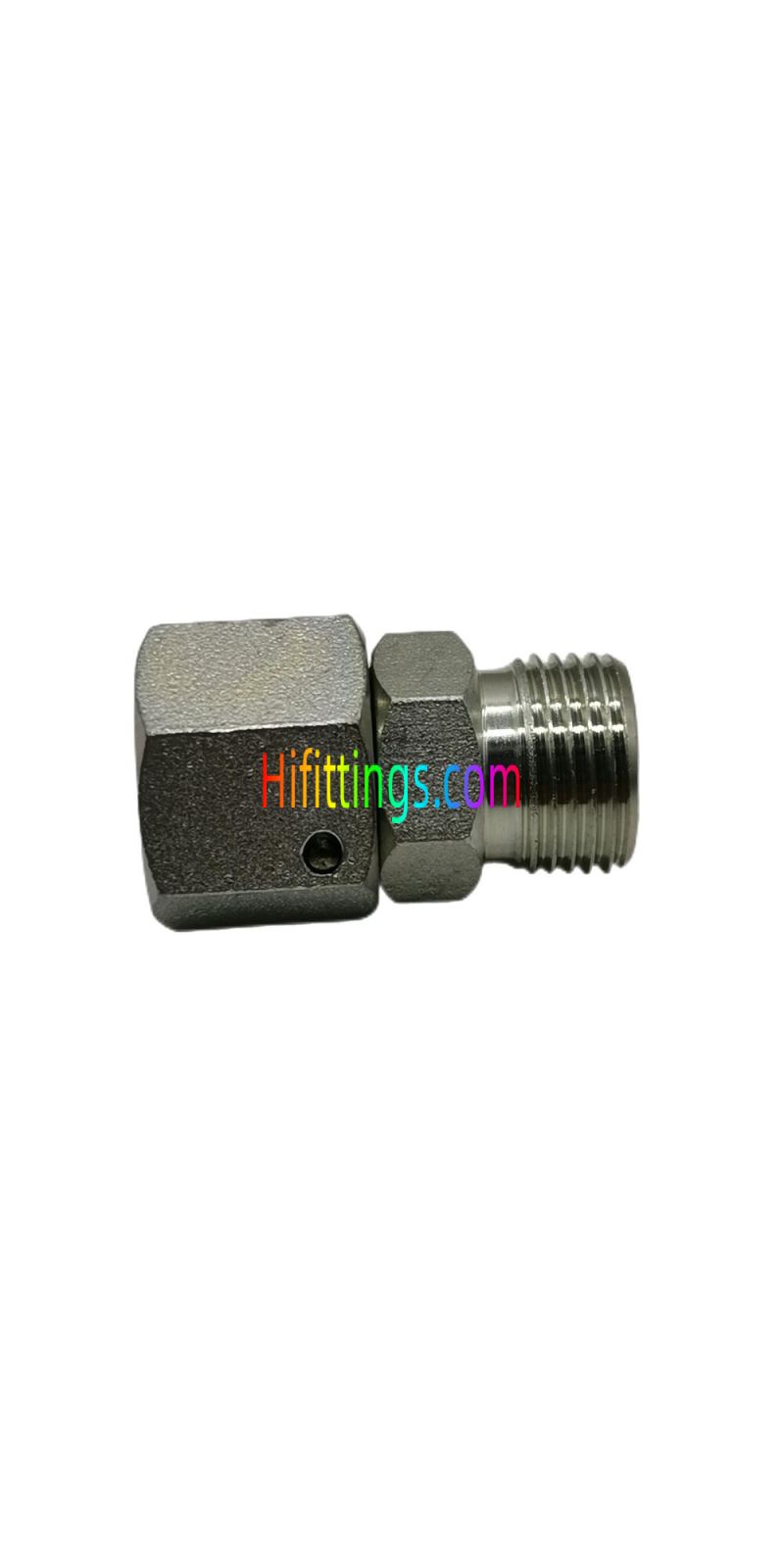

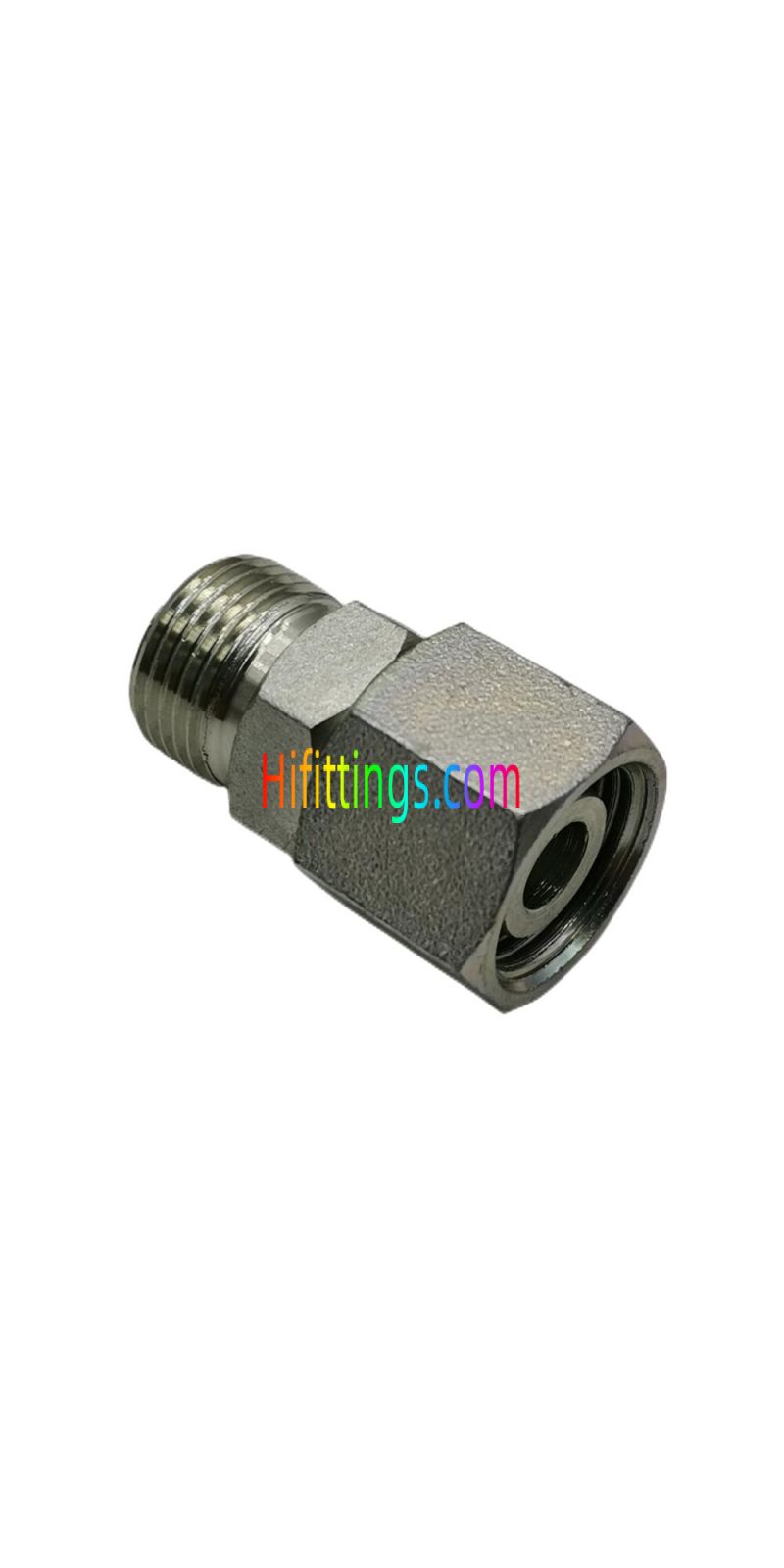

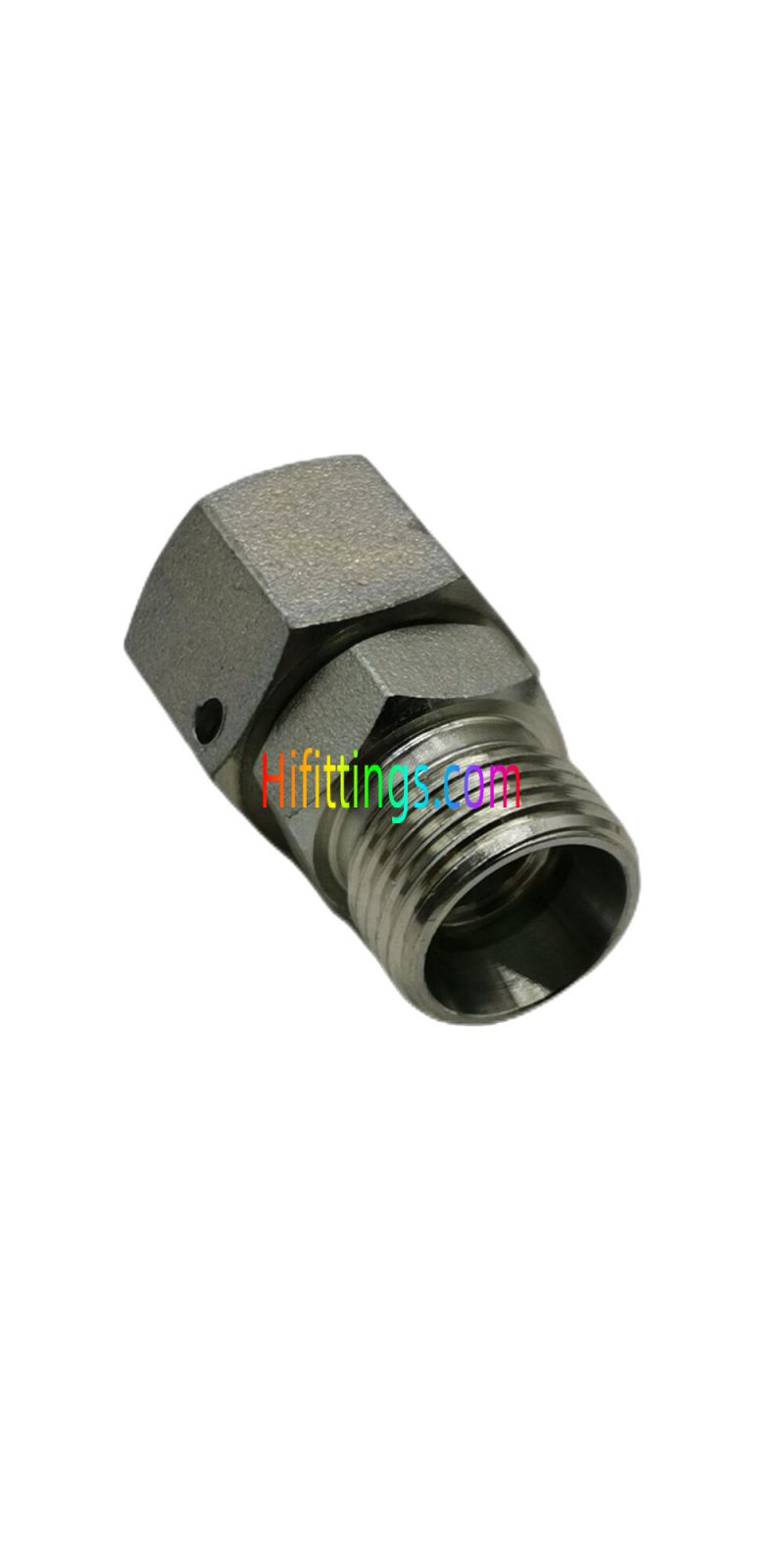

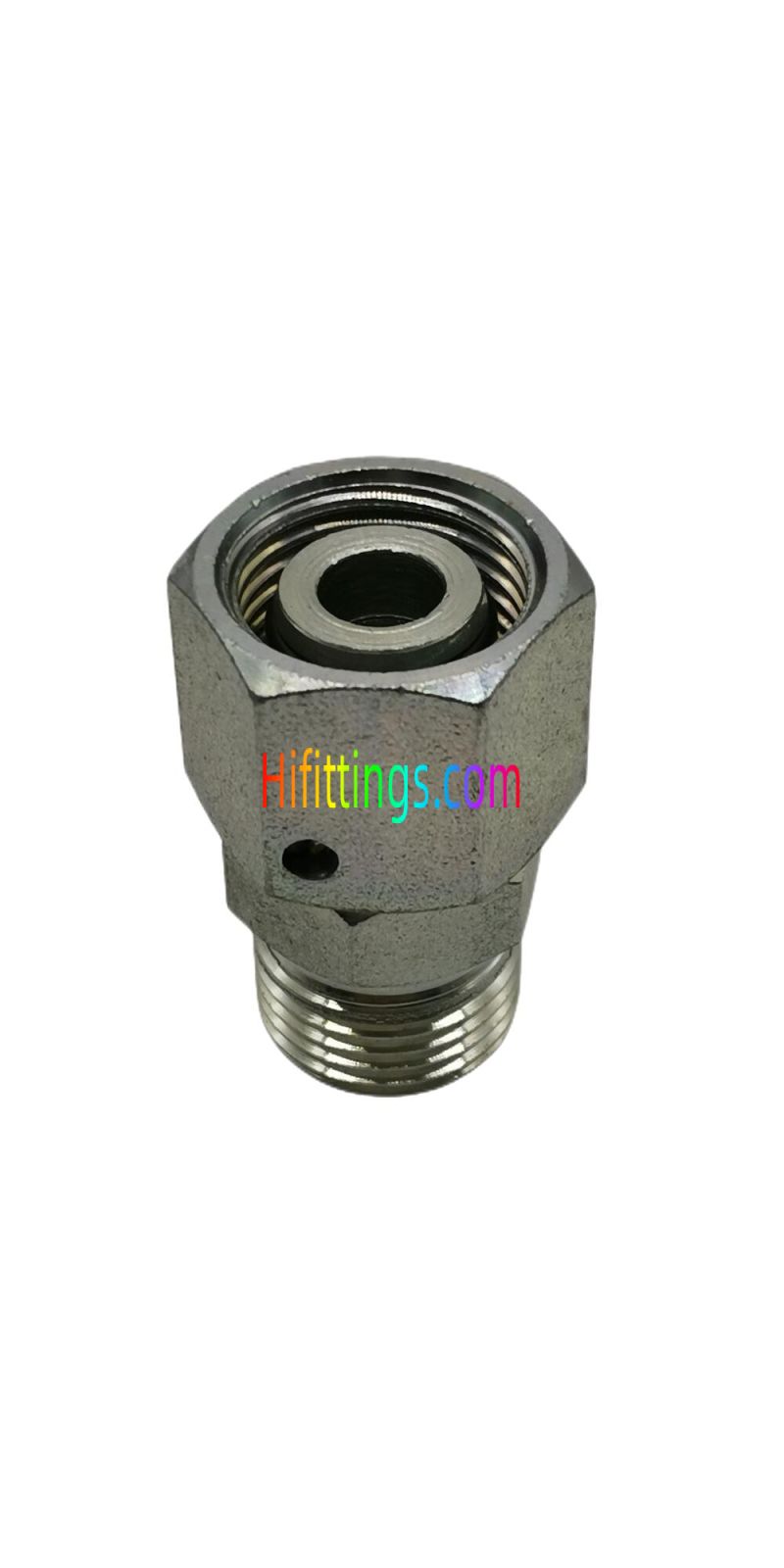

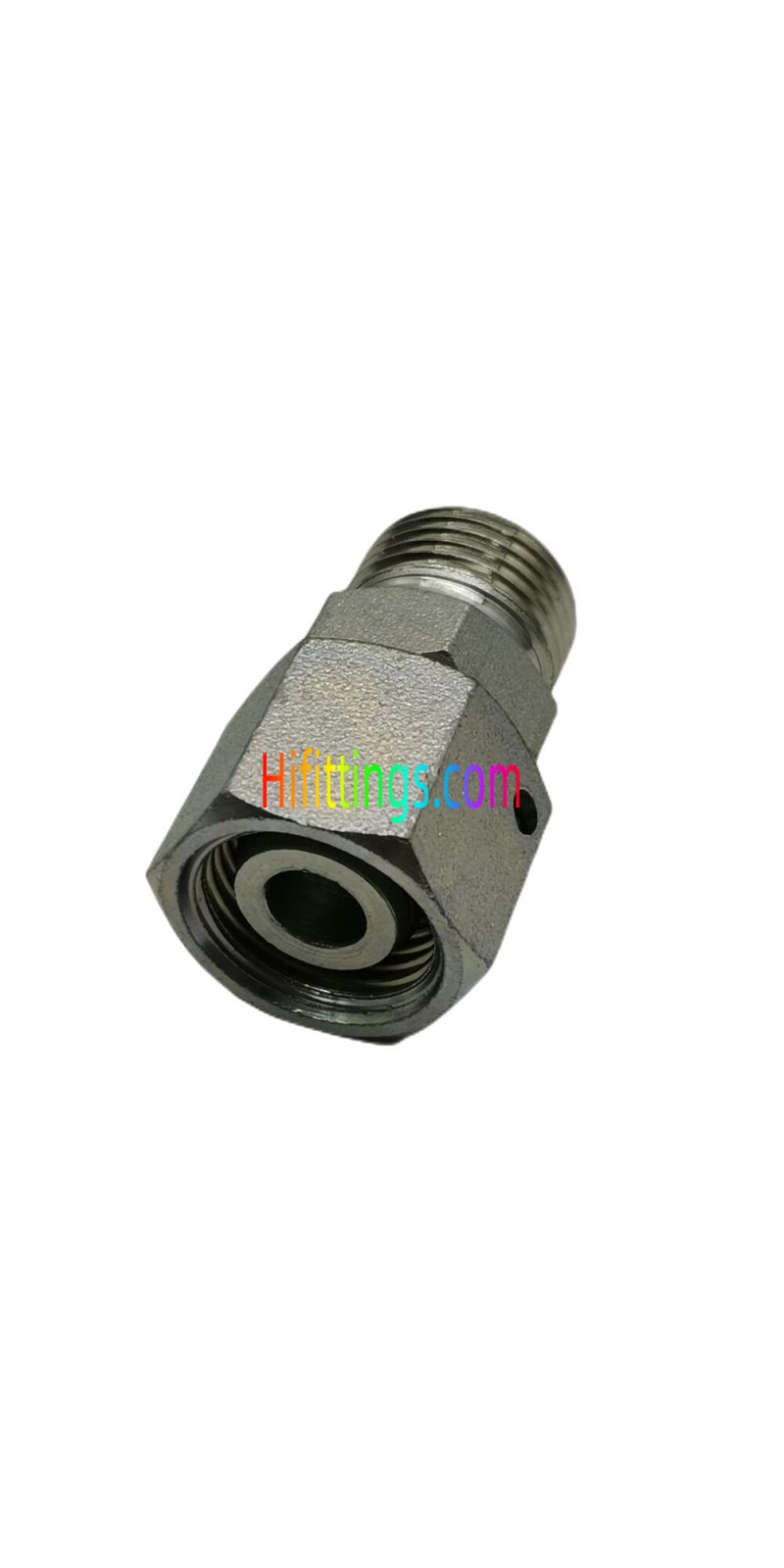

Metric Male Metric Female Reducer Hydraulic Adapter Pipe Fittings 2C
|
Part NO. |
E |
F |
D1 |
D2 |
11 |
L1 |
S1 |
S2 |
S3 |
Working Pressure bar |
|
2C-12-14 |
M12X1.5 |
M14X1.5 |
6 |
8 |
23.5 |
38 |
12 |
14 |
17 |
PN315 |
|
2C-12-16 |
M12X1.5 |
M16X1.5 |
6 |
10 |
25 |
40 |
14 |
14 |
19 |
PN315 |
|
2C-14-16 |
M14X1.5 |
M16X1.5 |
8 |
10 |
25 |
40 |
14 |
17 |
19 |
PN315 |
|
2C-12-18 |
M12X1.5 |
M18X1.5 |
6 |
12 |
25 |
40 |
17 |
14 |
22 |
PN315 |
|
2C-14-18 |
M14X1.5 |
M18X1.5 |
8 |
12 |
25 |
40 |
17 |
17 |
22 |
PN315 |
|
2C-16-18 |
M16X1.5 |
M18X1.5 |
10 |
12 |
26 |
41 |
17 |
19 |
22 |
PN315 |
|
2C-12-22 |
M12X1.5 |
M22X1.5 |
6 |
15 |
28.5 |
43 |
19 |
14 |
27 |
PN315 |
|
2C-14-22 |
M14X1.5 |
M22X1.5 |
8 |
15 |
28.5 |
43 |
19 |
17 |
27 |
PN315 |
|
2C-16-22 |
M16X1.5 |
M22X1.5 |
10 |
15 |
29.5 |
44 |
19 |
19 |
27 |
PN315 |
|
2C-18-22 |
M18X1.5 |
M22X1.5 |
12 |
15 |
29.5 |
44 |
19 |
22 |
27 |
PN315 |
|
2C-12-26 |
M12X1.5 |
M26X1.5 |
6 |
18 |
28 |
43 |
24 |
14 |
32 |
PN315 |
|
2C-14-26 |
M14X1.5 |
M26X1.5 |
8 |
18 |
28 |
43 |
24 |
17 |
32 |
PN315 |
|
2C-16-26 |
M16X1.5 |
M26X1.5 |
10 |
18 |
29 |
44 |
24 |
19 |
32 |
PN315 |
|
2C-18-26 |
M18X1.5 |
M26X1.5 |
12 |
18 |
29 |
44 |
24 |
22 |
32 |
PN315 |
|
2c-22-26 |
M22X1.5 |
M26X1.5 |
15 |
18 |
30 |
45 |
24 |
27 |
32 |
PN315 |
|
2C-12-30 |
M12X1.5 |
M30X2 |
6 |
22 |
32 |
47 |
27 |
14 |
36 |
PN160 |
|
2C-14-30 |
M14X1.5 |
M30X2 |
8 |
22 |
32 |
47 |
27 |
17 |
36 |
PN160 |
|
2C-16-30 |
M16X1.5 |
M30X2 |
10 |
22 |
33 |
48 |
27 |
19 |
36 |
PN160 |
|
2C-18-30 |
M18X1.5 |
M30X2 |
12 |
22 |
33 |
48 |
27 |
22 |
36 |
PN160 |
|
2C-22-30 |
M22X1.5 |
M30X2 |
15 |
22 |
34 |
49 |
27 |
27 |
36 |
PN160 |
|
2C-26-30 |
M26X1.5 |
M30X2 |
18 |
22 |
33.5 |
50 |
27 |
32 |
36 |
PN160 |
|
2C-12-36 |
M12X1.5 |
M36X2 |
6 |
28 |
34 |
49 |
36 |
14 |
41 |
PN160 |
|
2C-14-36 |
M14X1.5 |
M36X2 |
8 |
28 |
34 |
49 |
36 |
17 |
41 |
PN160 |
|
2C-16-36 |
M16X1.5 |
M36X2 |
10 |
28 |
35 |
50 |
36 |
19 |
41 |
PN160 |
|
2C-18-36 |
M18X1.5 |
M36X2 . |
12 |
28 |
35 |
50 |
36、 |
22 |
41 |
PN160 |
|
2C-22-36 |
M22X1.5 |
M36X2 |
15 |
28 |
36 |
51 |
36 |
27 |
41 |
PN160 |
|
2C-26-36 |
M26X1.5 |
M36X2 |
18 |
28 |
35.5 |
52 |
36 |
32 |
41 |
PN160 |
|
2C-30-36 |
M30X2 |
M36X2 |
22 |
28 |
37.5 |
54 |
36 |
36 |
41 |
PN160 |
|
2C-12-45 |
M12X1.5 |
M45X2 |
6 |
35 |
37 |
52 |
41 |
14 |
50 |
PN160 |
|
2C-14-45 |
M14X1.5 |
M45X2 |
8 |
35 |
37 |
52 |
41 |
17 |
50 |
PN160 |
|
2C-16-45 |
M16X1.5 |
M45X2 |
10 |
35 |
38 |
53 |
41 |
19 |
50 |
PN160 |
|
2C-18-45 |
M18X1.5 |
M45X2 |
12 |
35 |
38 |
53 |
41 |
22 |
50 |
PN160 |
|
2C-22-45 |
M22X1.5 |
M45X2 |
15 |
35 |
39 |
54 |
41 |
27 |
50 |
PN160 |
|
2C-26-45 |
M26X1.5 |
M45X2 |
18 |
35 |
38.5 |
55 |
41 |
32 |
50 |
PN160 |
|
2C-30-45 |
M30X2 |
M45X2 |
22 |
35 |
40.5 |
57 |
41 |
36 |
50 |
PN160 |
|
2C-36-45 |
M36X2 |
M45X2 |
28 |
35 |
40.5 |
57 |
41 |
41 |
50 |
PN160 |
|
2C-12-52 |
M12X1.5 |
M52X2 |
6 |
42 |
40.5 |
55 |
50 |
14 |
60 |
PN160 |
|
2C-14-52 |
M14X1.5 |
M52X2 |
8 |
42 |
40.5 |
55 |
50 |
17 |
60 |
PN160 |
|
2C-16-52 |
M16X1.5 |
M52X2 |
10 |
42 |
41.5 |
56 |
50 |
19 |
60 |
PN160 |
|
2C-18-52 |
M18X1.5 |
M52X2 |
12 |
42 |
41.5 |
56 |
50 |
22 |
60 |
PN160 |
|
2C-22-52 |
M22X1.5 |
M52X2 |
15 |
42 |
42.5 |
58 |
50 |
27 |
60 |
PN160 |
|
2C-26-52 |
M26X1.5 |
M52X2 |
18 |
42 |
42 |
58 |
50 |
32 |
60 |
PN160 |
|
2C-30-52 |
M30X2 |
M52X2 |
22 |
42 |
44 |
60 |
50 |
36 |
60 |
PN160 |
|
2C-36-52 |
M36X2 |
M52X2 |
28 |
42 |
44 |
61 |
50 |
41 |
60 |
PN160 |
|
2C-45-52 |
M45X2 |
M52X2 |
35 |
42 |
43 |
65 |
50 |
50 |
60 |
PN160 |
|
Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example 2C-30-52RN. 2. PN = Nominal Pressure |
||||||||||
| شكل . | Straight |
|---|---|
| نوع الخيط | Male-Female |
| Connection Type | Metric |
| أنواع الاكسسوارات | Bite Type |
