| RD Specifications | ||||
| Body Size(in) | 1/8 | 1/4 | 3/8 | 1/2 |
| Brass Rated Pressure (PSI） | 1000 | 1000 | 1000 | 1000 |
| Rated Pressure(PSI) | 2000 | 2000 | 1500 | 1500 |
| Rated Flow(GPM) | 3 | 6 | 12 | 12 |
| Temperature Range(NBR) | -20 ℃ ~+120℃ | |||

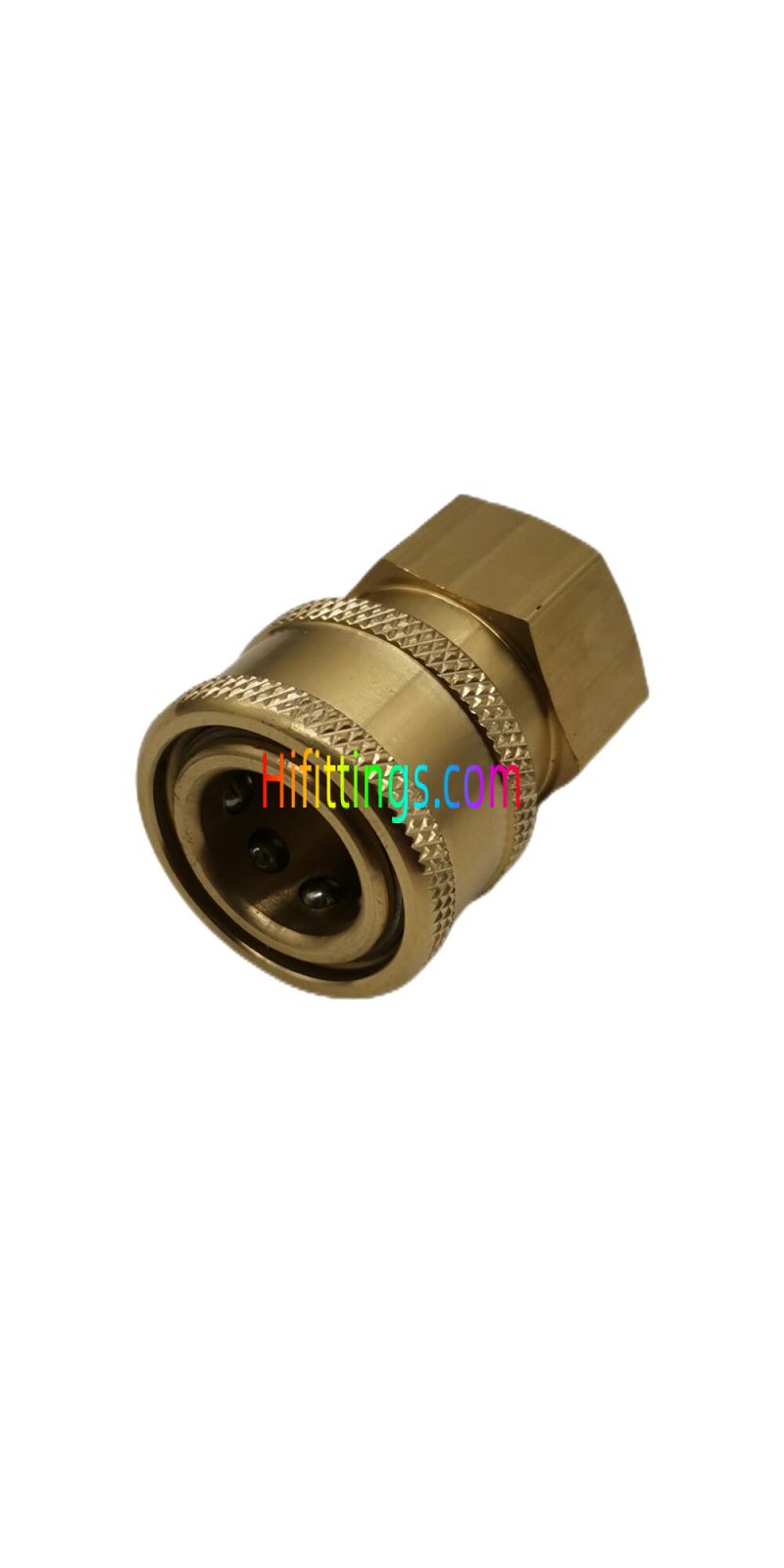

Socket
| Part NO. | Thread | LS | φD | S1 | A |
| RD-R01SF | ZG1/8 | 27 | 17.5 | 14 | 9 |
| RD-R02SF | ZG1/4 | 32 | 24 | 19 | 13 |
| RD-R03SF | ZG3/8 | 35.8 | 28.3 | 23 | 13 |
| RD-R04SF | ZG1/2 | 42.6 | 35 | 29 | 17 |
| RD-R06SF | ZG3/4 | 49.5 | 41 | 36 | 18 |
| RD-R08SF | ZG1 | 59.3 | 57.8 | 50 | 22 |
Socket
| Part NO. | Thread | LS | φD | S1 | A |
| RD-R01SM | ZG1/8 | 30 | 17.5 | 14 | 9 |
| RD-R02SM | ZG1/4 | 42 | 24 | 19 | 13 |
| RD-R03SM | ZG3/8 | 46.3 | 28.3 | 23 | 13 |
| RD-R04SM | ZG1/2 | 56. 1 | 35 | 29 | 17 |
| RD-R06SM | ZG3/4 | 61 | 41 | 36 | 18 |
| RD-R08SM | ZG1 | 67.3 | 57.8 | 50 | 22 |

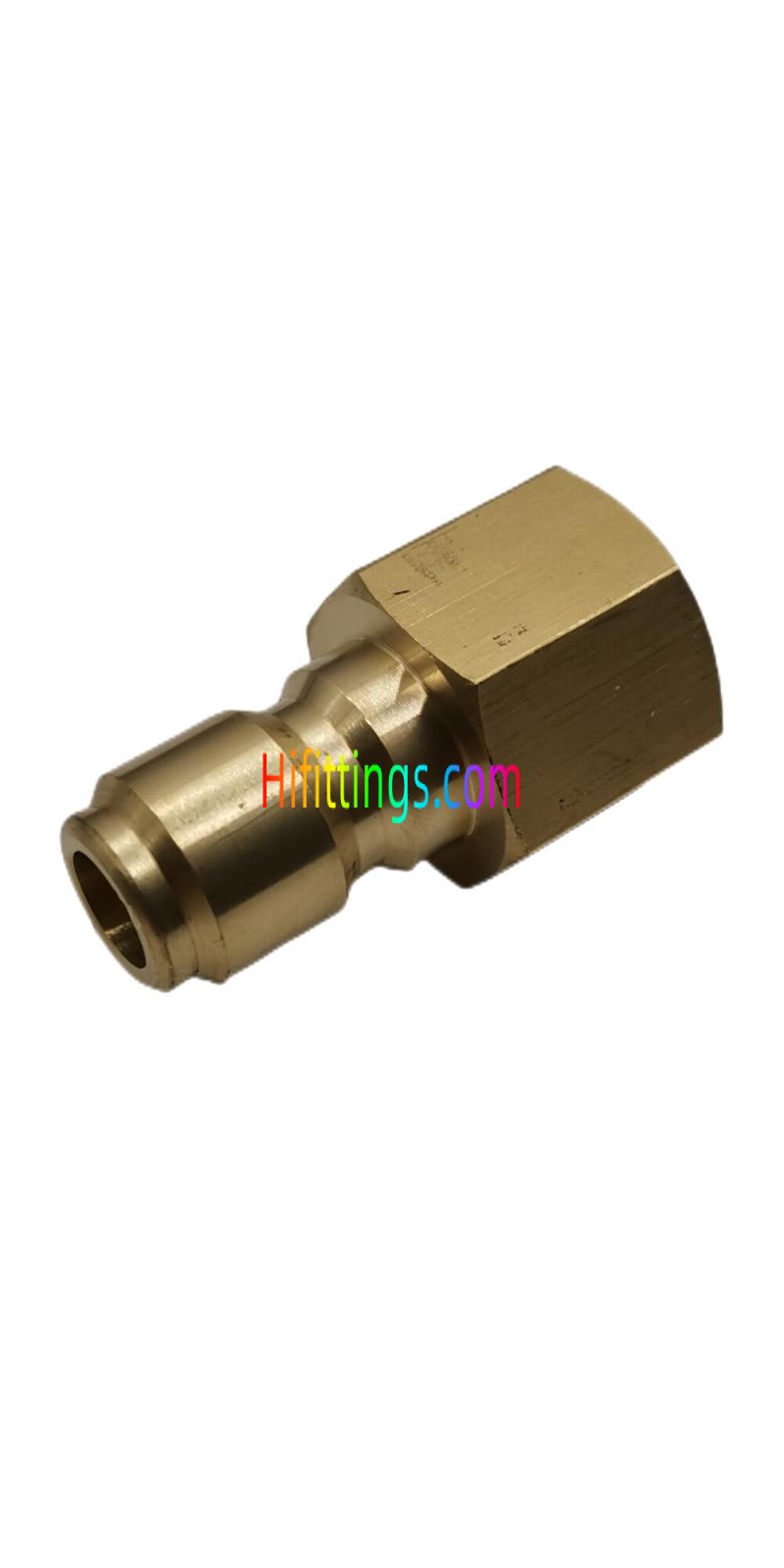

Plug
| Part NO. | Thread | LP | C | S2 | A |
| RD-R01PF | ZG1/8 | 26 | 15.5 | 14 | 9 |
| RD-R02PF | ZG1/4 | 35 | 18 | 19 | 13 |
| RD-R03PF | ZG3/8 | 38 | 21.2 | 23 | 13 |
| RD-R04PF | ZG1/2 | 45 | 24.5 | 29 | 17 |
| RD-R06PF | ZG3/4 | 50 | 28 | 36 | 18 |
| RD-R08PF | ZG1 | 61 | 36 | 50 | 22 |
Plug
| Part NO. | Thread | LP | C | S2 | A |
| RD-R01PM | ZG1/8 | 26 | 15.5 | 14 | 9 |
| RD-R02PM | ZG1/4 | 35 | 18 | 19 | 13 |
| RD-R03PM | ZG3/8 | 38 | 21.2 | 23 | 13 |
| RD-R04PM | ZG1/2 | 45 | 24.5 | 29 | 17 |
| RD-R06PM | ZG3/4 | 50 | 28 | 36 | 18 |
| RD-R08PM | ZG1 | 61 | 36 | 50 | 22 |
| نوع الخيط | Male |
|---|
