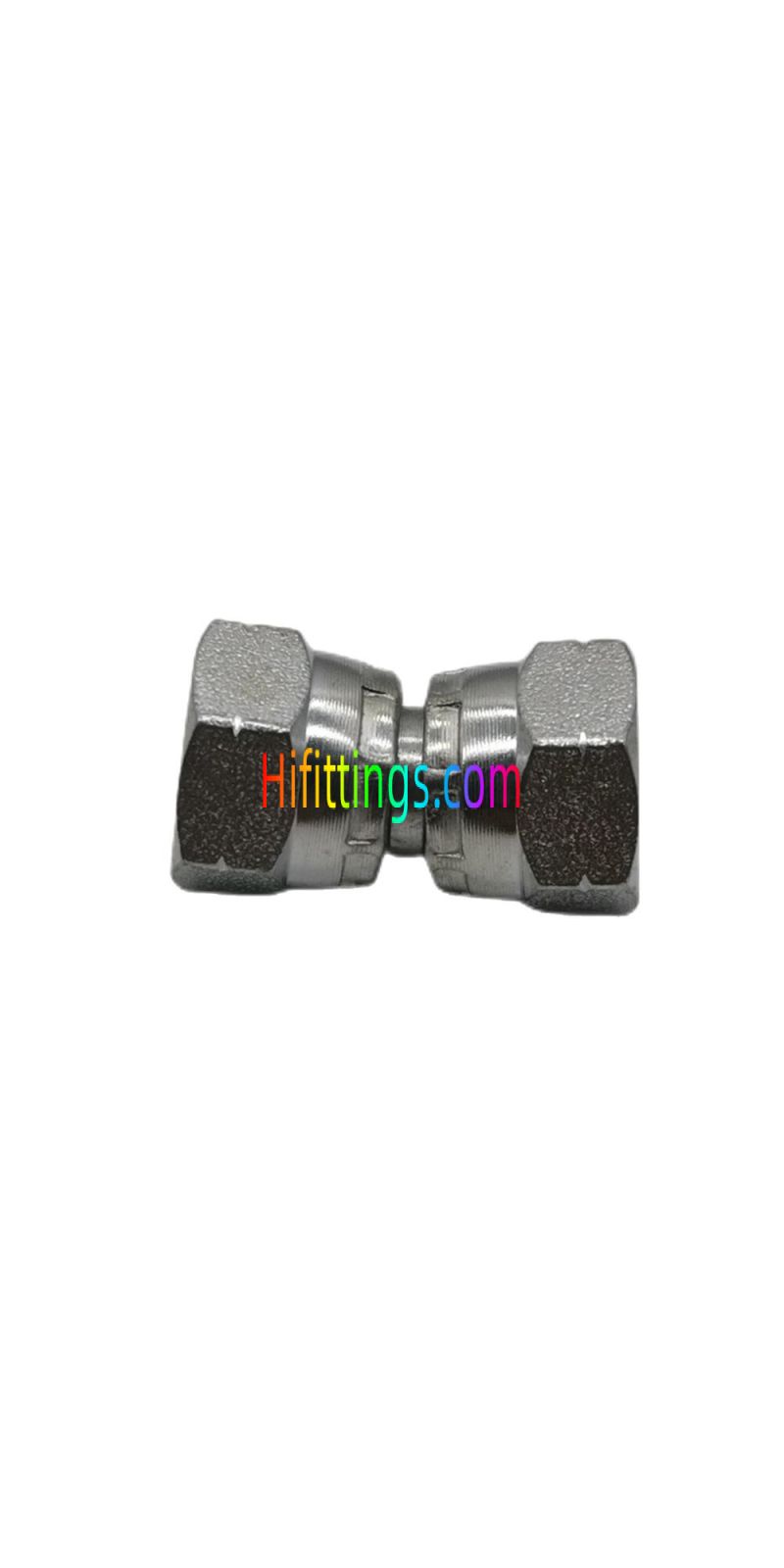

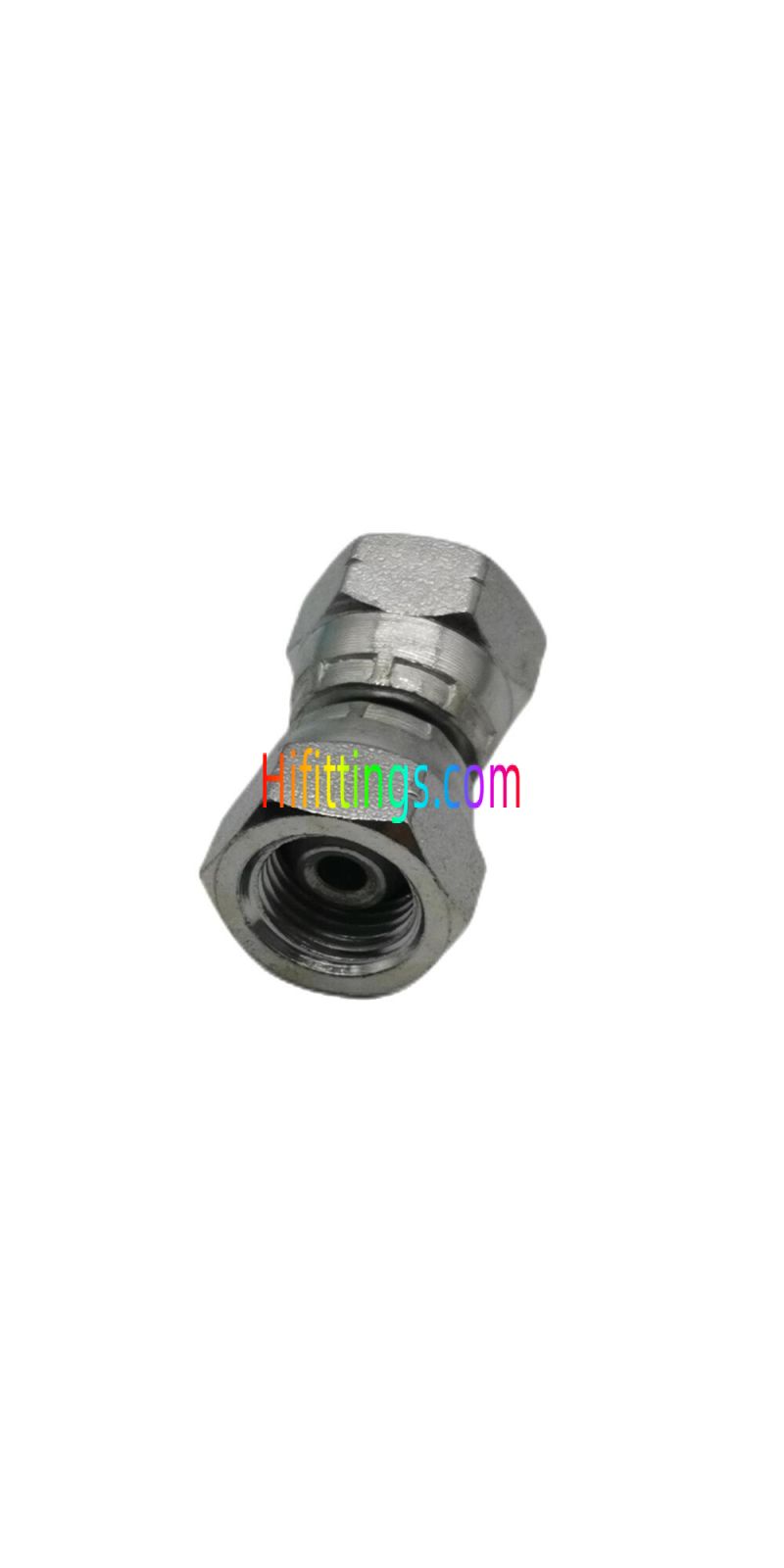

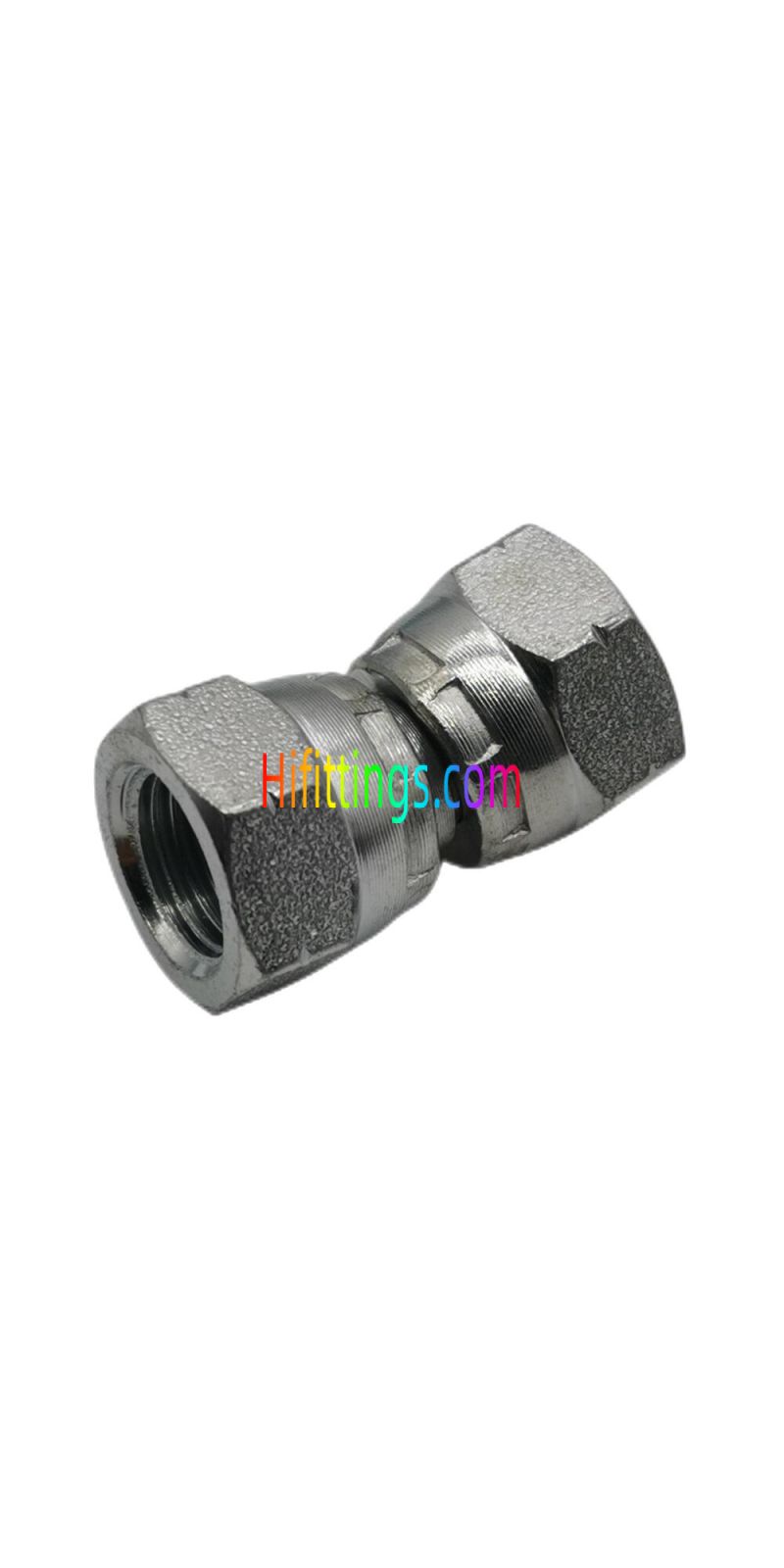

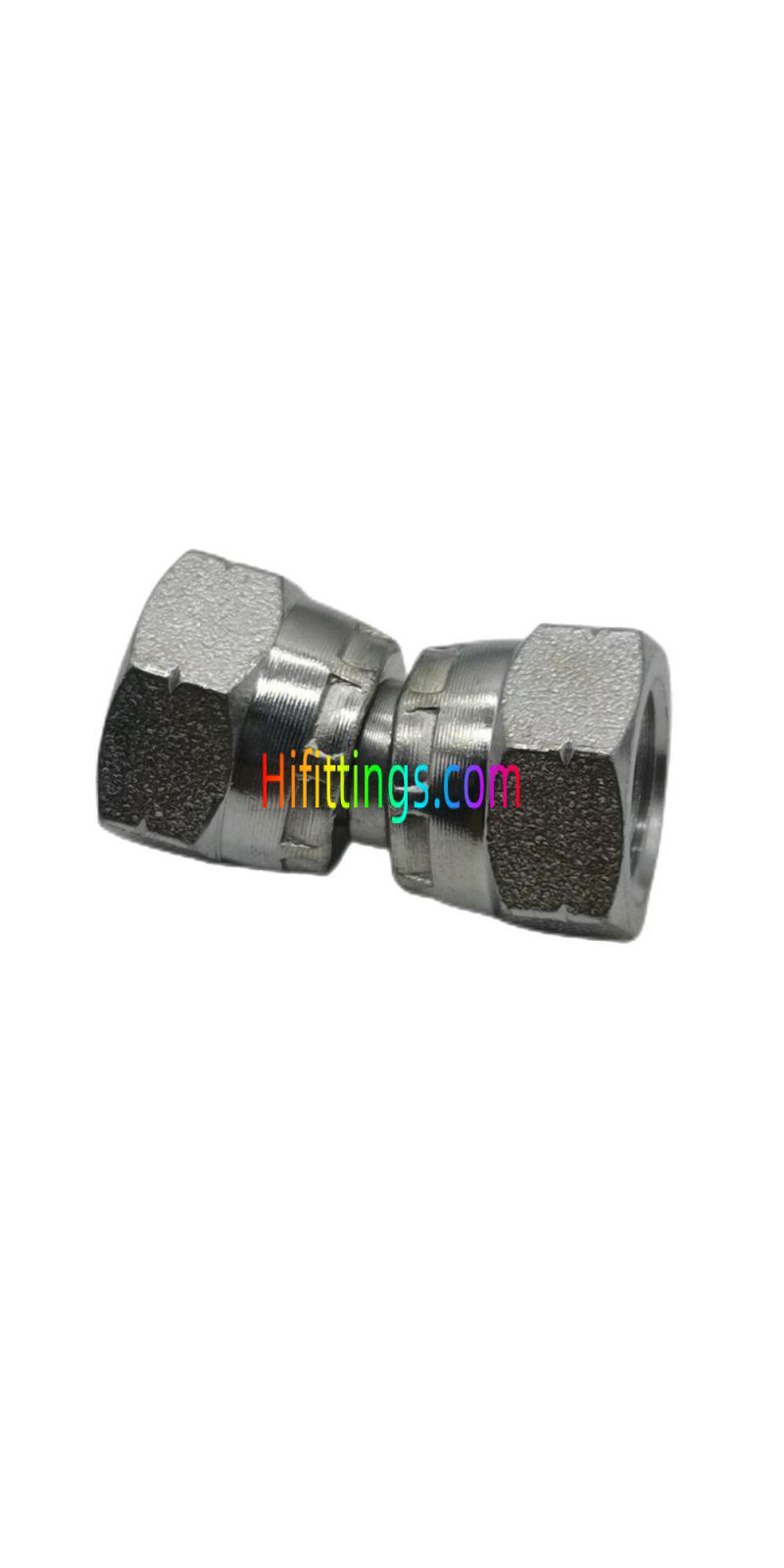

Straight BSP Female 60 Degree Cone Swivel Hydraulic Fittings 3B
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
S2 |
Working Pressure bar |
|
3B-02 |
G1/8"X28 |
G1/8"X28 |
5.5 |
5.5 |
21 |
14 |
14 |
PN345 |
|
3B-02-04 |
G1/8"X28 |
G1/4"X19 |
5.5 |
5.5 |
23 |
14 |
19 |
PN345 |
|
3B-04 |
G1/4"X19 |
G1/4"X19 |
5.5 |
5.5 |
25 |
19 |
19 |
PN345 |
|
3B-04-06 |
G1/4"X19 |
G3/8"X19 |
5.5 |
6.3 |
26.5 |
19 |
22 |
PN345 |
|
3B-04-08 |
G1/4"X19 |
G1/2"X14 |
5.5 |
7.5 |
28.5 |
19 |
27 |
PN345 |
|
3B-06 |
G3/8"X19 |
G3/8"X19 |
6.3 |
6.3 |
27 |
22 |
22 |
PN345 |
|
3B-06-08 |
G3/8"X19 |
G1/2"X14 |
6.3 |
7.5 |
29.5 |
22 |
27 |
PN345 |
|
3B-08 |
G1/2"X14 |
G1/2"X14 |
7.5 |
7.5 |
31 |
27 |
27 |
PN345 |
|
3B-08-10 |
G1/2"X14 |
G5/8"X14 |
7.5 |
9.5 |
31.5 |
27 |
30 |
PN275 |
|
3B-08-12 |
G1/2"X14 |
G3/4"X14 |
7.5 |
10.9 |
32.5 |
27 |
32 |
PN275 |
|
3B-10 |
G5/8"X14 |
G5/8"X14 |
9.5 |
9.5 |
31.5 |
30 |
30 |
PN275 |
|
3B-10-12 |
G5/8"X14 |
G3/4"X14 |
9.5 |
10.9 |
33 |
30 |
32 |
PN275 |
|
3B-12 |
G3/4"X14 |
G3/4"X14 |
10.9 |
10.9 |
33.5 |
32 |
32 |
PN275 |
|
3B-12-16 |
G3/4"X14 |
G1"X11 |
10.9 |
11.7 |
35 |
32 |
41 |
PN205 |
|
3B-16 |
G1"X11 |
G1"X11 |
11.7 |
11.7 |
36.5 |
41 |
41 |
PN205 |
|
3B-16-20 |
G1"X11 |
G1.1/4"X11 |
11.7 |
11 |
37.5 |
41 |
50 |
PN170 |
|
3B-20 |
G1.1/4"X11 |
G1.1/4"X11 |
11 |
11 |
40 |
50 |
50 |
PN170 |
|
3B-24 |
G1.1/2"X11 |
G1.1/2"X11 |
13 |
13 |
42 |
55 |
55 |
PN105 |
|
3B-32 |
G2"X11 |
G2"X11 |
16 |
16 |
47 |
70 |
70 |
PN105 |
| شكل . | Straight |
|---|---|
| أنواع الاكسسوارات | Cone |
| نوع الخيط | Female |
| Connection Type | BSP |
