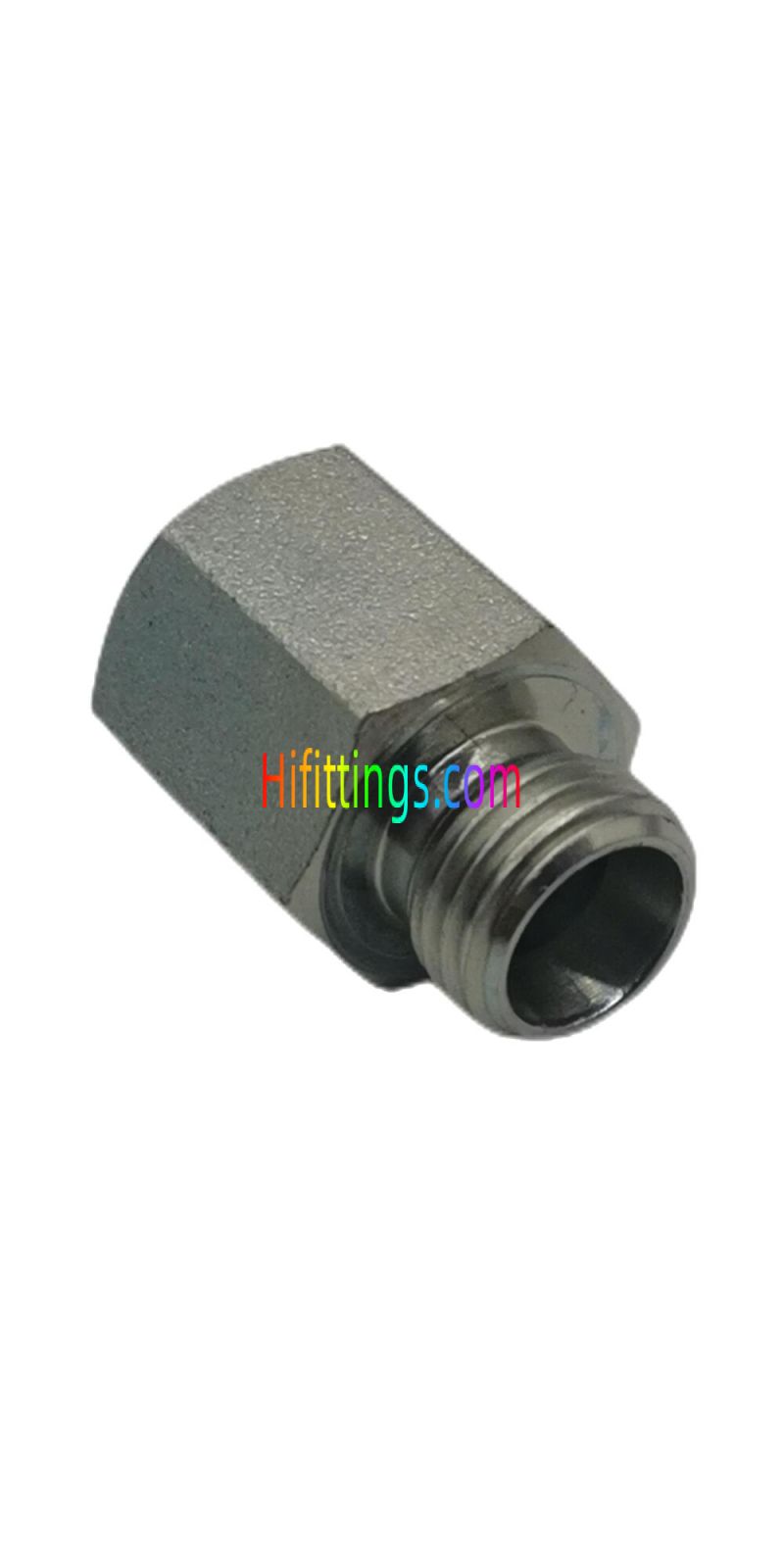

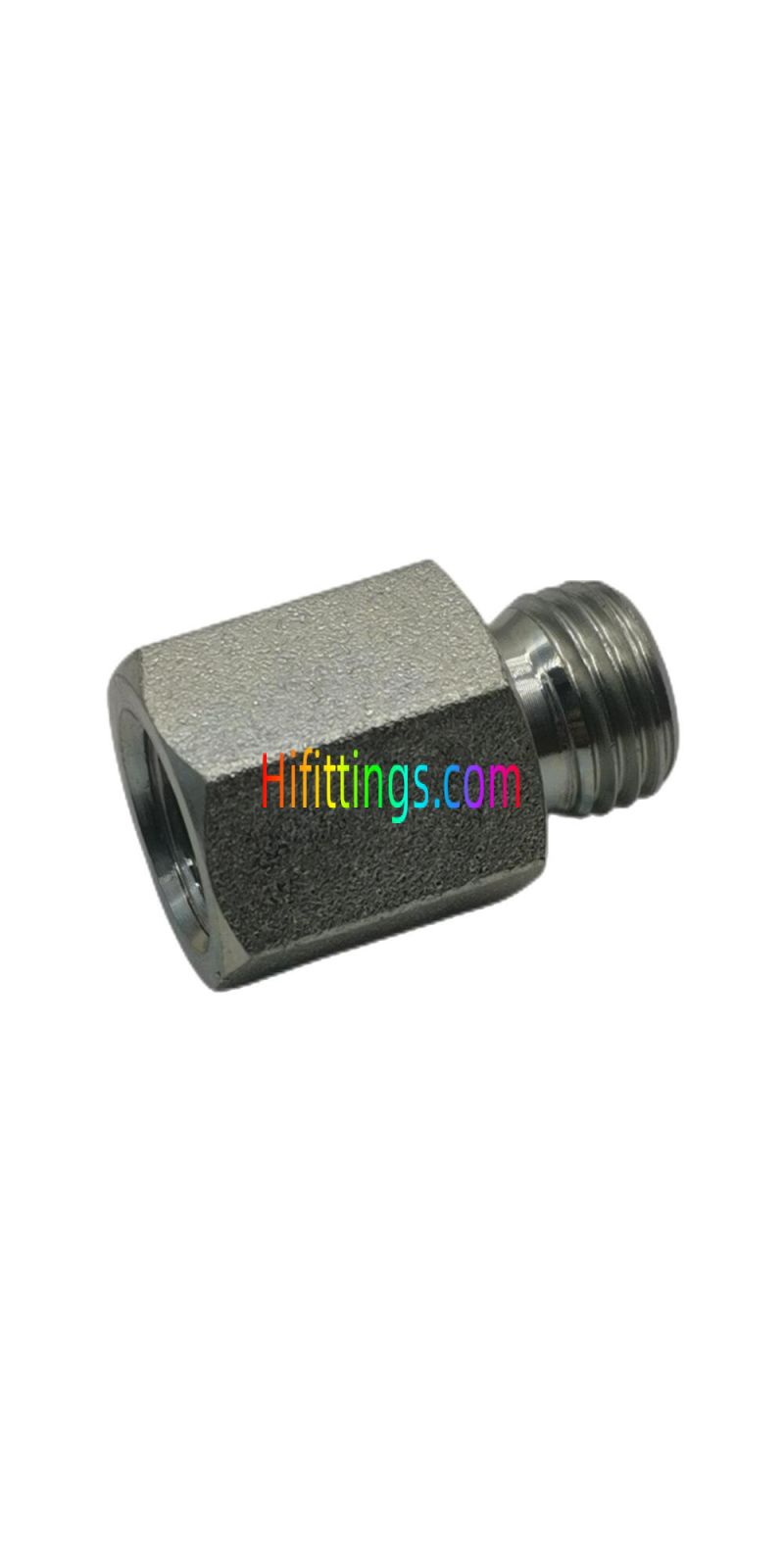

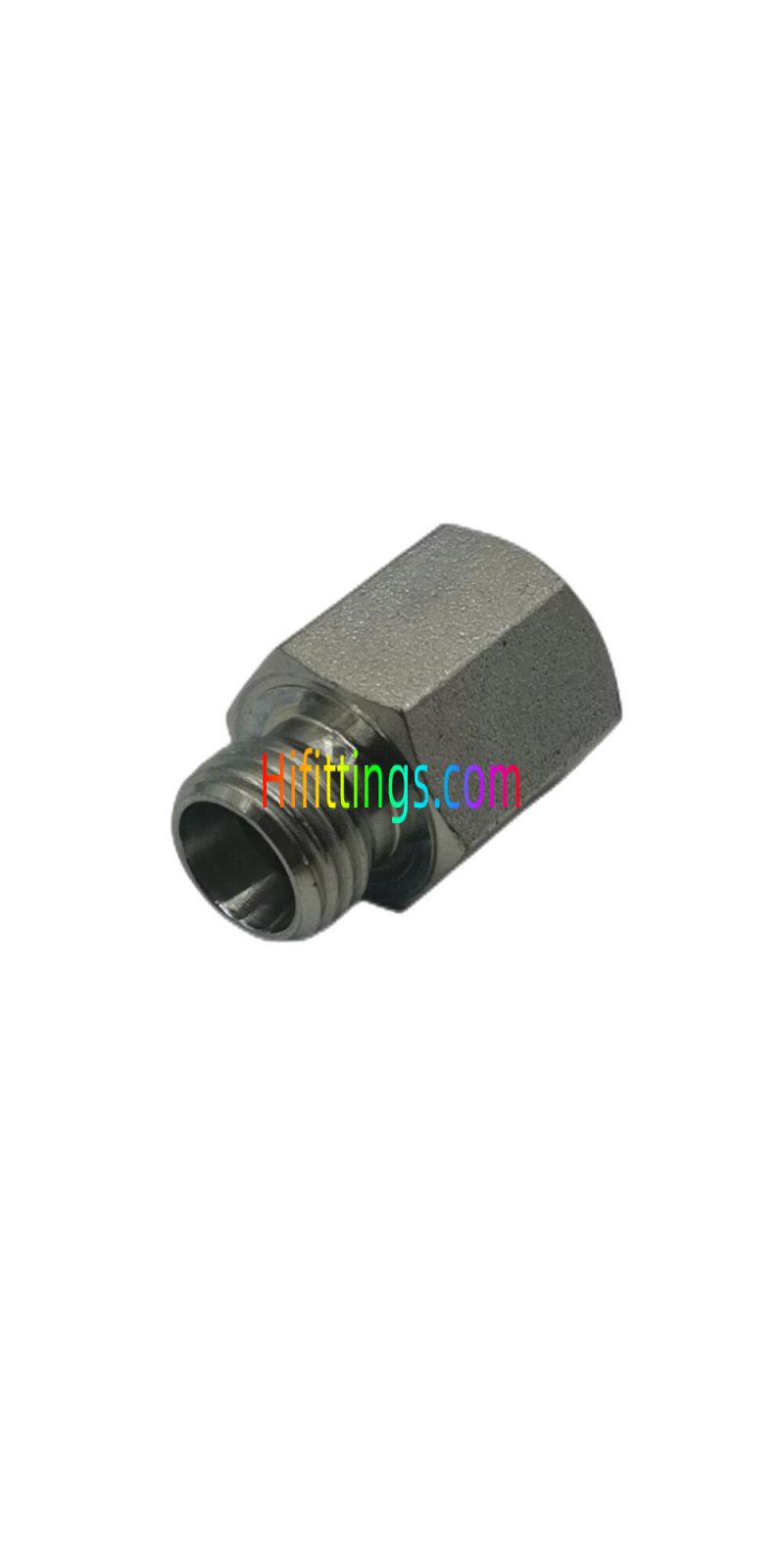

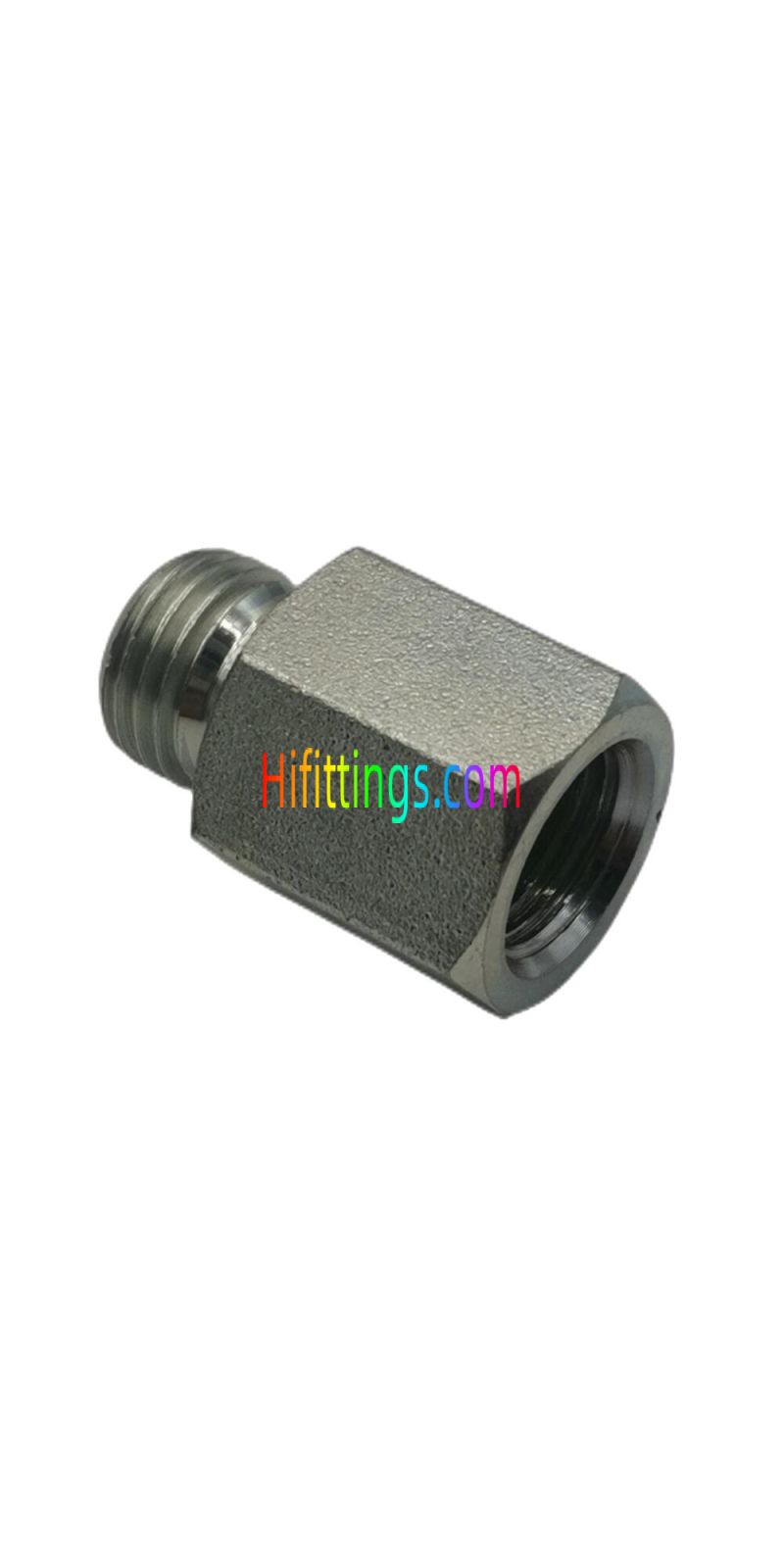

Straight BSP Female Metric Male Bite Type Tube Fittings 5CB/5DB
|
Part NO. |
E |
F |
D1 |
B |
11 |
L1 |
S1 |
S2 |
Working Pressure bar |
|
5CB-12-02 |
M12X1.5 |
G1/8"X28 |
6 |
12 |
19 |
34 |
14 |
14 |
PN315 |
|
5CB-12-04 |
M12X1.5 |
G1/4"X19 |
6 |
16 |
23 |
36 |
19 |
17 |
PN315 |
|
5CB-14-04 |
M14X1.5 |
G1/4"X19 |
8 |
17 |
24 |
39 |
19 |
17 |
PN315 |
|
5CB-14-06 |
M14X1.5 |
G3/8"X19 |
8 |
17 |
25 |
40 |
24 |
17 |
PN315 |
|
5CB-14-08 |
M14X1.5 |
G1/2"X14 |
8 |
20 |
29 |
44 |
27 |
17 |
PN315 |
|
5CB-16-04 |
M16X1.5 |
G1/4"X19 |
10 |
17 |
25 |
40 |
19 |
19 |
PN315 |
|
5CB-16-06 |
M16X1.5 |
G3/8"X19 |
10 |
17 |
26 |
41 |
24 |
19 |
PN315 |
|
5CB-16-08 |
M16X1.5 |
G1/2"X14 |
10 |
20 |
30 |
45 |
27 |
19 |
PN315 |
|
5CB-18-04 |
M18X1.5 |
G1/4"X19 |
12 |
17 |
23 |
38 |
19 |
22 |
PN315 |
|
5CB-18-06 |
M18X1.5 |
G3/8"X19 |
12 |
17 |
26 |
41 |
24 |
22 |
PN315 |
|
5CB-18-08 |
M18X1.5 |
G1/2"X14 |
12 |
20 |
30 |
45 |
27 |
22 |
PN315 |
|
5CB-22-06 |
M22X1.5 |
G3/8"X19 |
15 |
17 |
28 |
43 |
24 |
27 |
PN315 |
|
5CB-22-08 |
M22X1.5 |
G1/2"X14 |
15 |
20 |
31 |
46 |
27 |
27 |
PN315 |
|
5CB-26-08 |
M26X1.5 |
G1/2"X14 |
18 |
20 |
30.5 |
47 |
27 |
32 |
PN315 |
|
5CB-30-12 |
M30X2 |
G3/4"X14 |
22 |
22 |
35.5 |
52 |
36 |
36 |
PN160 |
|
5CB-36-16 |
M36X2 |
G1"X11 |
28 |
24.5 |
38 |
55 |
41 |
41 |
PN160 |
|
5CB-45-20 |
M45X2 |
G1.1/4"X11 |
35 |
26.5 |
41 |
63 |
55 |
50 |
PN160 |
|
5CB-52-24 |
M52X2 |
G1.1/2"X11 |
42 |
28.5 |
42.5 |
65 |
60 |
60 |
PN160 |
|
5DB-14-04 |
M14X1.5 |
G1/4"X19 |
6 |
17 |
26 |
41 |
19 |
17 |
PN630 |
|
5DB-16-04 |
M16X1.5 |
G1/4"X19 |
8 |
17 |
26 |
41 |
19 |
19 |
PN630 |
|
5DB-18-06 |
M18X1.5 |
G3/8"X19 |
10 |
17 |
26.5 |
43 |
24 |
22 |
PN630 |
|
5DB-20-06 |
M20X1.5 |
G3/8"X19 |
12 |
17 |
27.5 |
28 |
24 |
24 |
PN630 |
|
5DB-20-08 |
M20X1.5 |
G1/2"X14 |
12 |
20 |
30.5 |
31 |
24 |
24 |
PN630 |
|
5DB-22-08 |
M22X1.5 |
G1/2"X14 |
14 |
20 |
32 |
50 |
30 |
27 |
PN630 |
|
5DB-24-08 |
M24X1.5 |
G1/2"X14 |
16 |
20 |
31.5 |
50 |
30 |
30 |
PN400 |
|
5DB-30-12 |
M30X2 |
G3/4"X14 |
20 |
22 |
34.5 |
56 |
36 |
36 |
PN400 |
|
5DB-36-16 |
M36X2 |
G1"X11 |
25 |
24.5 |
37.5 |
62 |
41 |
46 |
PN400 |
|
5DB-42-20 |
M42X2 |
G1.1/4"X11 |
30 |
26.5 |
42 |
69 |
55 |
50 |
PN400 |
|
5DB-52-24 |
M52X2 |
G1.1/2"X11 |
38 |
28.5 |
43.5 |
74 |
60 |
60 |
PN315 |
|

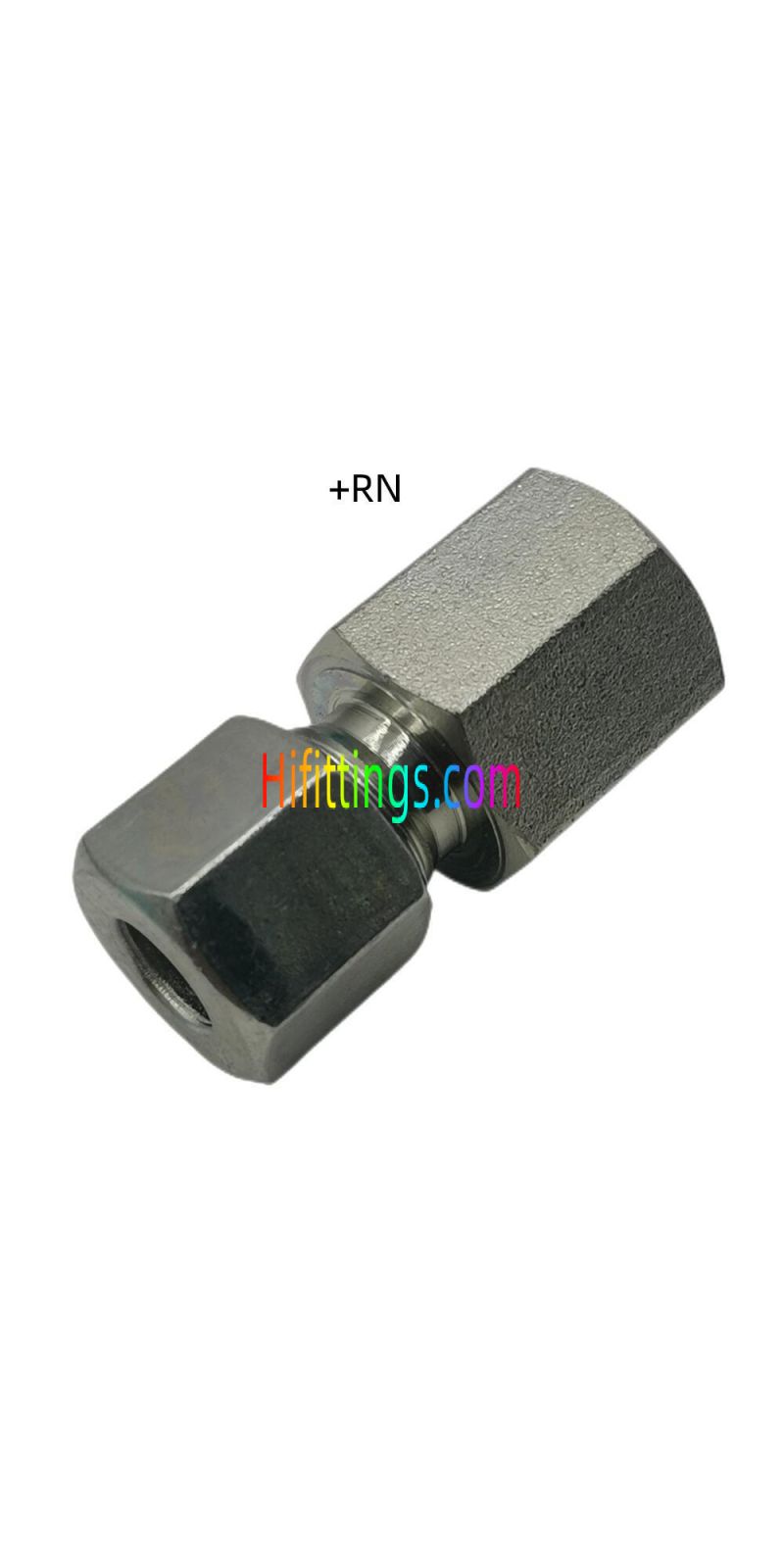

Note: 1.In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO., for example 5CB-45-20RN。 2. PN = Nominal Pressure |
|||||||||
| شكل . | Straight |
|---|---|
| نوع الخيط | Male-Female |
| Connection Type | BSP, Metric |
| أنواع الاكسسوارات | Bite Type |
