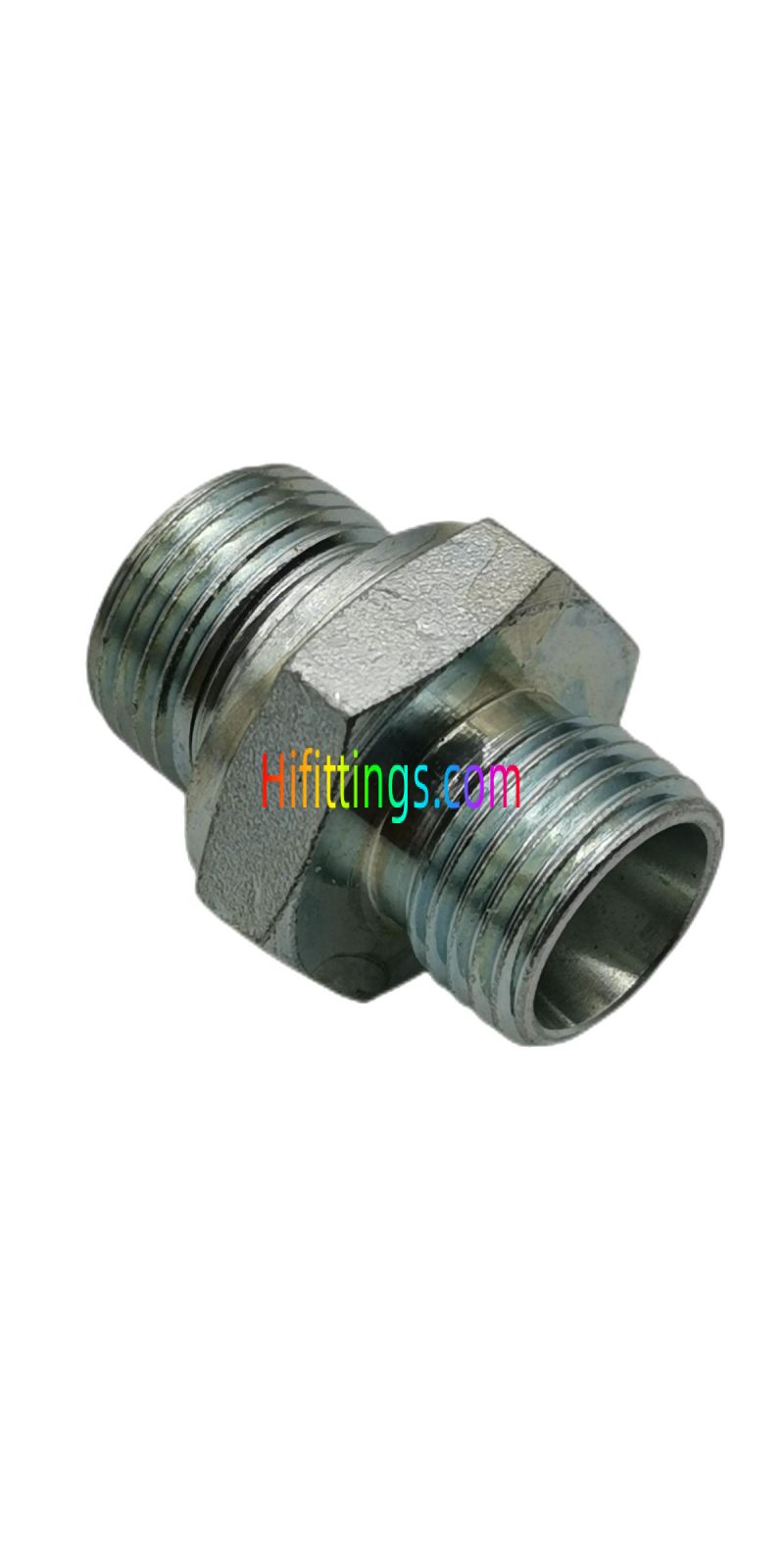

1cb-wd / 1db-wd مباشرة باهوجان ساماج الخيوط الخارجية متري مع ختم ثابت

Part NO.

E

F

D1

SEAL

B

11

L1

S1

S2

Working Pressure bar

1CB-12-02WD

M12X1.5

G1/8"X28

6

WD-B02

8

8.5

23.5

14

14

PN315

1CB-12-04WD

M12X1.5

G1/4"X19

6

WD-B04

12

10

25

19

14

PN315

1CB-12-06WD

M12X1.5

G3/8"X19

6

WD-B06

12

11.5

26.5

22

14

PN315

1CB-14-02WD

M14X1.5

G1/8"X28

8

WD-B02

8

9

24

14

17

PN315

1CB-14-04WD

M14X1.5

G1/4"X19

8

WD-B04

12

10

24

19

17

PN315

1CB-14-06WD

M14X1.5

G3/8"X19

8

WD-B06

12

11

26

22

17

PN315

1CB-16-04WD

M16X1.5

G1/4"X19

10

WD-B04

12

11

24.5

19

19

PN315

1CB-16-06WD

M16X1.5

G3/8"X19

10

WD-B06

12

12.5

26

22

19

PN315

1CB-16-08WD

M16X1.5

G1/2"X14

10

WD-B08

14

13

28

27

19

PN315

1CB-18-04WD

M18X1.5

G1/4"X19

12

WD-B04

12

12

27

19

22

PN315

1CB-18-06WD

M18X1.5

G3/8"X19

12

WD-B06

12

12.5

26

22

22

PN315

1CB-18-08WD

M18X1.5

G1/2"X14

12

WD-B08

14

14

28

27

22

PN315

1CB-22-04WD

M22X1.5

G1/4"X19

15

WD-B04

12

13

28

24

27

PN315

1CB-22-06WD

M22X1.5

G3/8"X19

15

WD-B06

12

13.5

28

24

27

PN315

1CB-22-08WD

M22X1.5

G1/2"X14

15

WD-B08

14

14

29

27

27

PN315

1CB-22-12WD

M22X1.5

G3/4"X14

15

WD-B12

16

15

29

32

27

PN315

1CB-26-08WD

M26X1.5

G1/2"X14

18

WD-B08

14

14.5

31

27

32

PN315

1CB-26-12WD

M26X1.5

G3/4"X14

18

WD-B12

16

14.5

31

32

32

PN315

1CB-30-12WD

M30X2

G3/4"X14

22

WD-B12

16

16.5

33

32

36

PN160

1CB-36-16WD

M36X2

G1"X11

28

WD-B16

18

17.5

34

41

41

PN160

1CB-45-20WD

M45X2

G1.1/4"X11

35

WD-B20

20

17.5

39

50

50

PN160

1CB-52-24WD

M52X2

G1.1/2"X11

42

WD-B24

22

19

42

55

60

PN160

1DB-14-04WD

M14X1.5

G1/4"X19

6

WD-B04

12

15

30

19

17

PN630

1DB-16-04WD

M16X1.5

G1/4"X19

8

WD-B04

12

15

30

19

19

PN630

1DB-16-06WD

M16X1.5

G3/8"X19

8

WD-B06

12

15.5

30

22

19

PN630

1DB-18-04WD

M18X1.5

G1/4"X19

10

WD-B04

12

14.5

31

19

22

PN630

1DB-18-06WD

M18X1.5

G3/8"X19

10

WD-B06

12

14.5

31

22

22

PN630

1DB-18-08WD

M18X1.5

G1/2"X14

10

WD-B08

14

17.5

34

27

22

PN630

1DB-20-04WD

M20X1.5

G1/4"X19

12

WD-B04

12

16.5

33

22

24

PN630

1DB-20-06WD

M20X1.5

G3/8"X19

12

WD-B06

12

15

33

22

24

PN630

1DB-20-08WD

M20X1.5

G1/2"X14

12

WD-B08

14

17.5

34

27

24

PN630

1DB-22-08WD

M22X1.5

G1/2"X14

14

WD-B08

14

19

37

27

27

PN630

1DB-24-06WD

M24X1.5

G3/8"X19

16

WD-B06

12

18

36.5

27

30

PN400

1DB-24-08WD

M24X1.5

G1/2"X14

16

WD-B08

14

18.5

37

27

30

PN400

1DB-24-12WD

M24X1.5

G3/4"X14

16

WD-B12

16

20.5

39

32

30

PN400

1DB-30-12WD

M30X2

G3/4"X14

20

WD-B12

16

20.5

42

32

36

PN400

1DB-36-08WD

M36X2

G1/2"X14

25

WD-B08

14

23

47

41

46

PN400

1DB-36-12WD

M36X2

G3/4"X14

25

WD-B12

16

23

47

41

46

PN400

1DB-36-16WD

M36X2

G1"X11

25

WD-B16

18

23

47

41

46

PN400

1DB-42-20WD

M42X2

G1.1/4"X11

30

WD-B20

20

23.5

50

50

50

PN400

1DB-52-24WD

M52X2

G1.1/2"X11

38

WD-B24

22

26

57

55

60

PN315

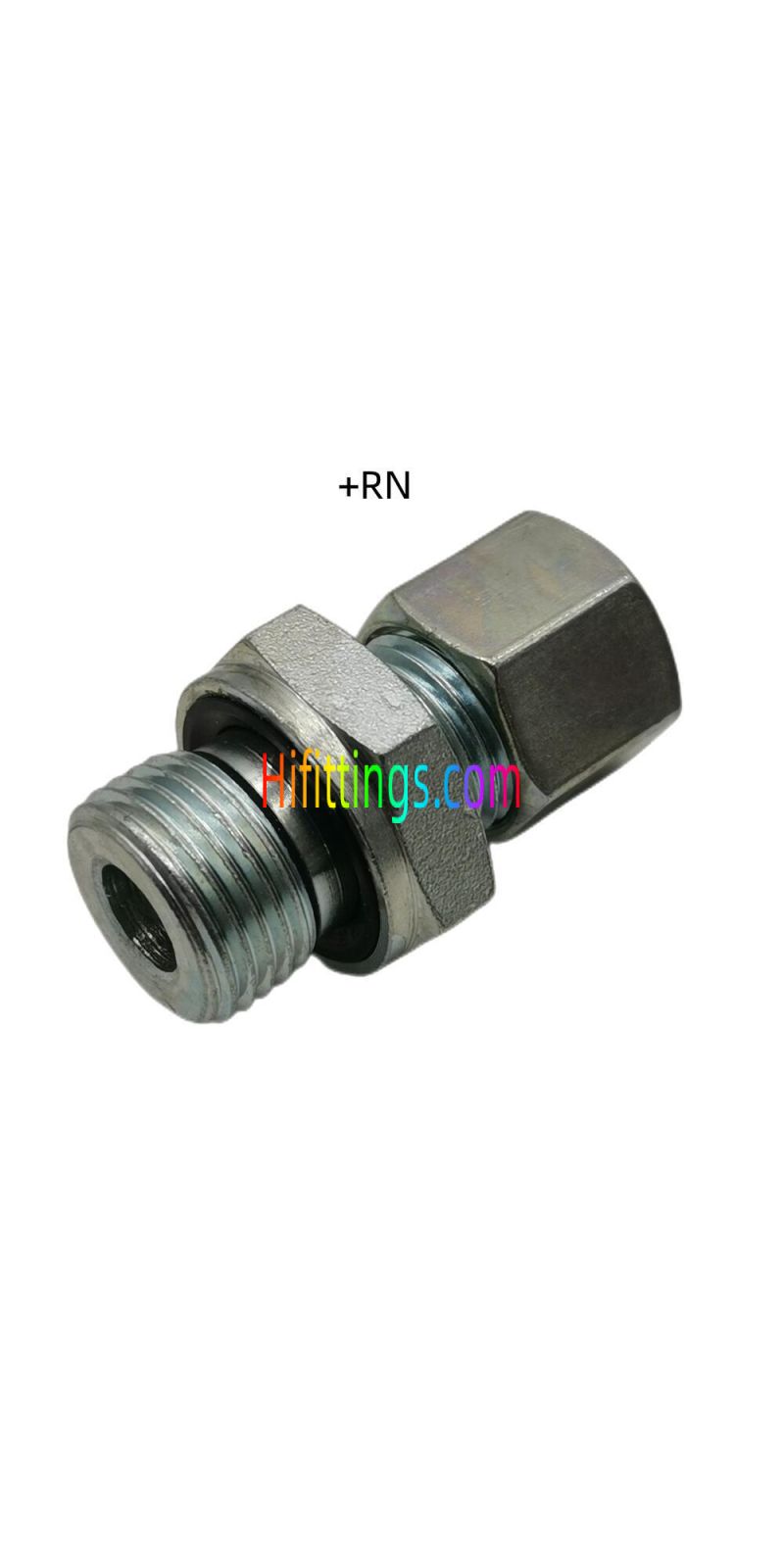

Note: 1.In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO., for example 1DB-20-08WD/RN.   2. PN = Nominal Pressure
