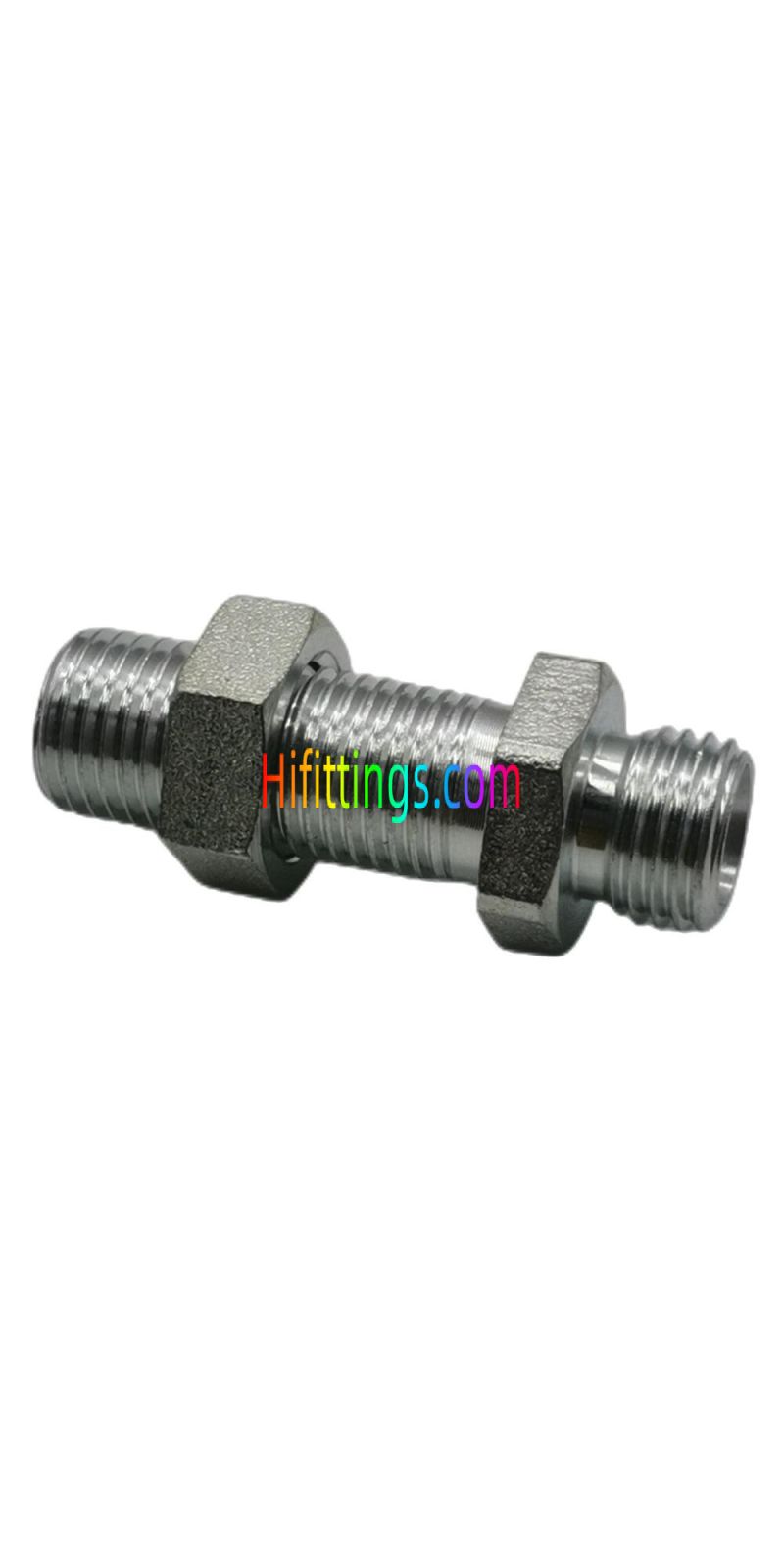

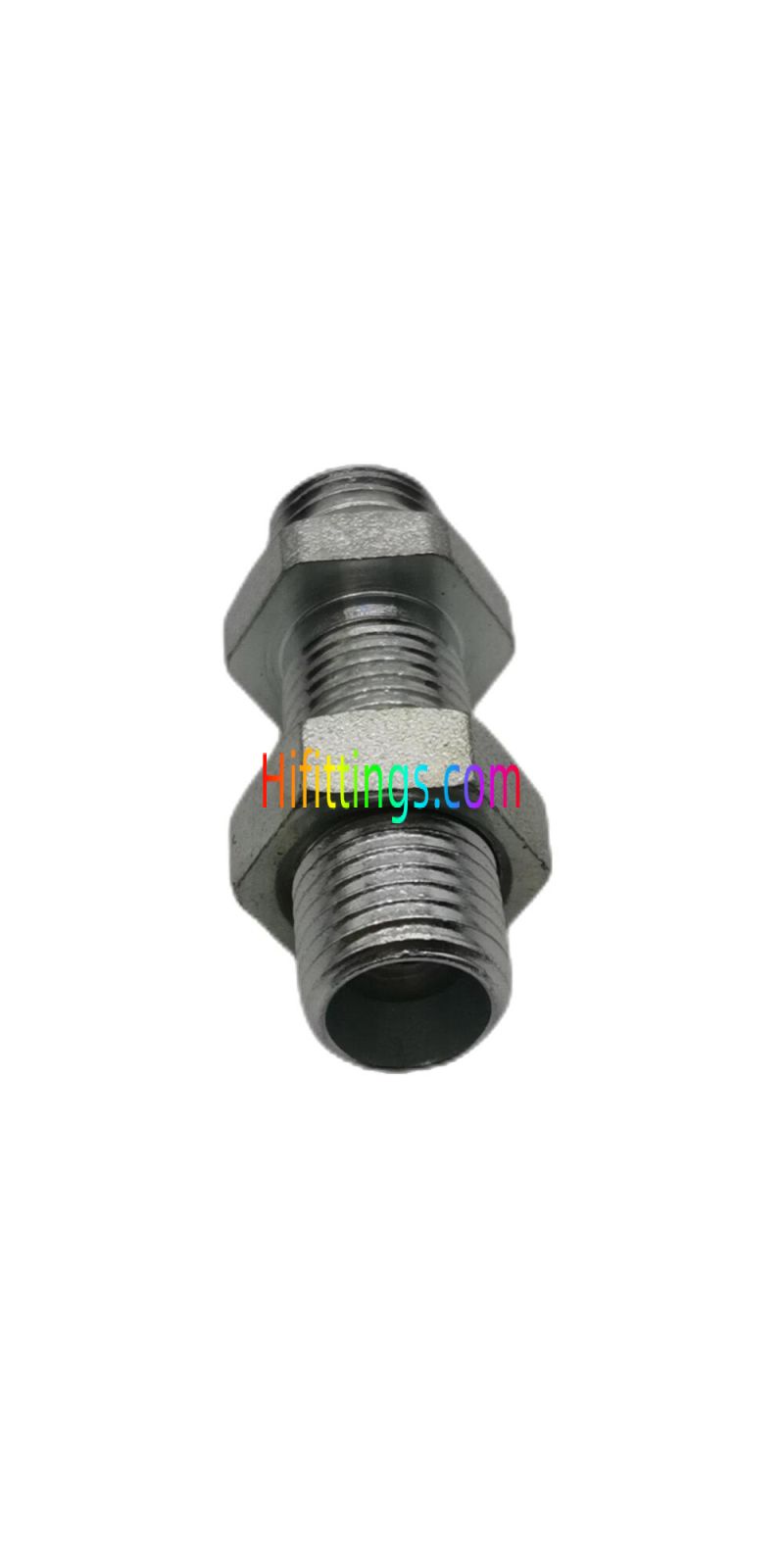

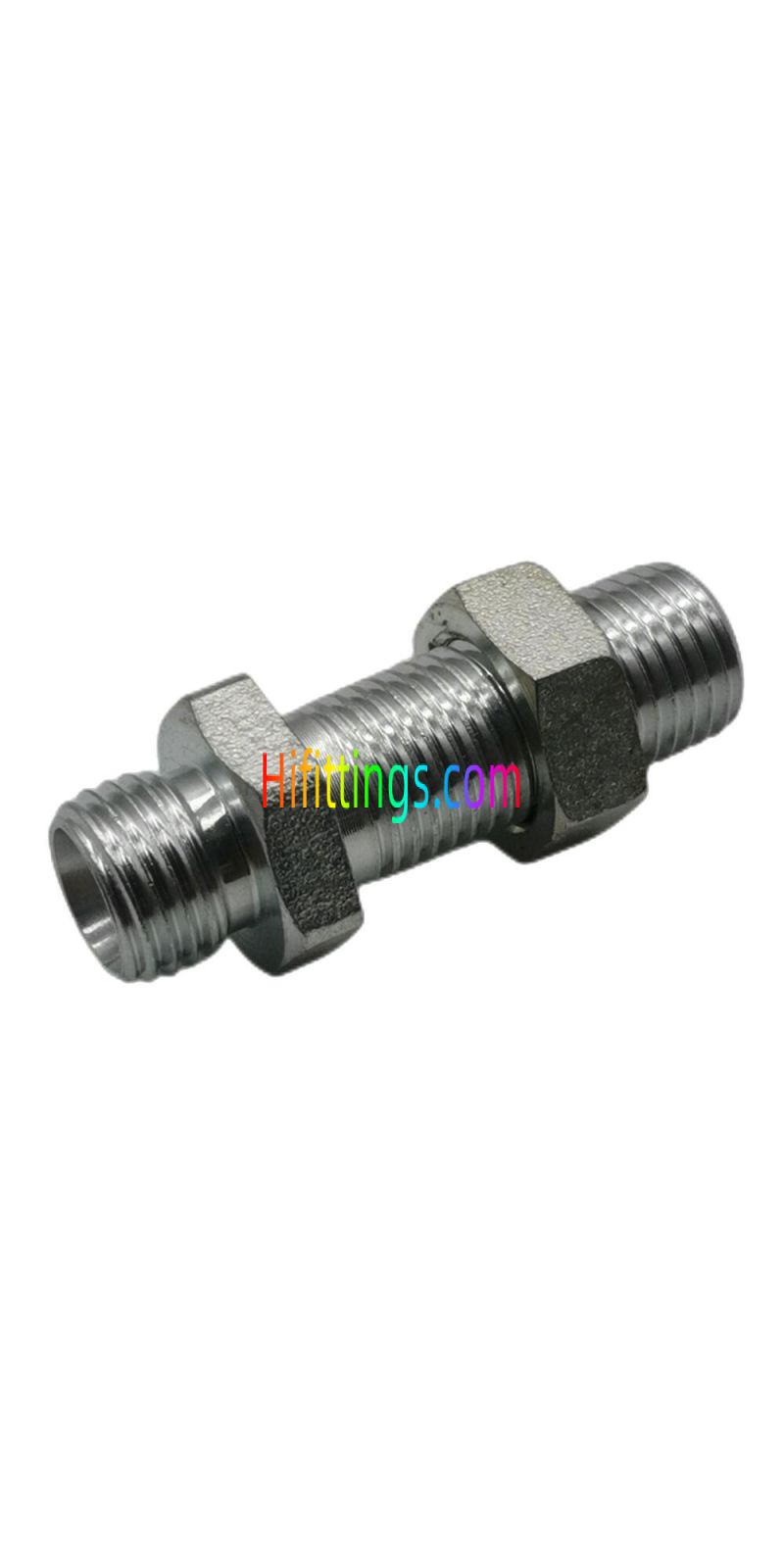

Straight Metric Male Bite Type Bulkhead Tube Fittings 6C/6D
|
Part NO. |
E |
F |
D1 |
D2 |
11 |
I2 |
L1 |
L2 |
S1 |
S2.S3 |
S4 |
Working Pressure bar |
|
6C-12 |
M12X1.5 |
M12X1.5 |
6 |
6 |
7 |
27 |
22 |
42 |
17 |
14 |
17 |
PN315 |
|
6C-14 |
M14X1.5 |
M14X1.5 |
8 |
8 |
8 |
27 |
23 |
42 |
19 |
17 |
19 |
PN315 |
|
6C-16 |
M16X1.5 |
M16X1.5 |
10 |
10 |
10 |
28 |
25 |
43 |
22 |
19 |
22 |
PN315 |
|
6C-18 |
M18X1.5 |
M18X1.5 |
12 |
12 |
10 |
29 |
25 |
44 |
24 |
22 |
24 |
PN315 |
|
6C-22 |
M22X1.5 |
M22X1.5 |
15 |
15 |
12 |
31 |
27 |
46 |
27 |
27 |
30 |
PN315 |
|
6C-26 |
M26X1.5 |
M26X1.5 |
18 |
18 |
13.5 |
32.5 |
30 |
49 |
32 |
32 |
36 |
PN315 |
|
6C-30 |
M30X2 |
M30X2 |
22 |
22 |
16.5 |
34.5 |
33 |
51 |
36 |
36 |
41 |
PN160 |
|
6C-36 |
M36X2 |
M36X2 |
28 |
28 |
18.5 |
35.5 |
35 |
52 |
41 |
41 |
46 |
PN160 |
|
6C-45 |
M45X2 |
M45X2 |
35 |
35 |
18.5 |
36.5 |
40 |
58 |
50 |
50 |
55 |
PN160 |
|
6C-52 |
M52X2 |
M52X2 |
42 |
42 |
19 |
36 |
42 |
59 |
60 |
60 |
65 |
PN160 |
|
6D-14 |
M14X1.5 |
M14X1.5 |
6 |
6 |
12 |
29 |
27 |
44 |
19 |
17 |
19 |
PN630 |
|
6D-16 |
M16X1.5 |
M16X1.5 |
8 |
8 |
13 |
29 |
28 |
44 |
22 |
19 |
22 |
PN630 |
|
6D-18 |
M18X1.5 |
M18X1.5 |
10 |
10 |
14.5 |
29.5 |
31 |
46 |
24 |
22 |
24 |
PN630 |
|
6D-20 |
M20X1.5 |
M20X1.5 |
12 |
12 |
14.5 |
30.5 |
31 |
47 |
27 |
24 |
27 |
PN630 |
|
6D-22 |
M22X1.5 |
M22X1.5 |
14 |
14 |
17 |
32 |
35 |
50 |
30 |
27 |
30 |
PN630 |
|
6D-24 |
M24X1.5 |
M24X1.5 |
16 |
16 |
16.5 |
31.5 |
35 |
50 |
32 |
30 |
32 |
PN400 |
|
6D-30 |
M30X2 |
M30X2 |
20 |
20 |
17.5 |
33.5 |
39 |
55 |
41 |
36 |
41 |
PN400 |
|
6D-36 |
M36X2 |
M36X2 |
25 |
25 |
20 |
35 |
44 |
59 |
46 |
46 |
46 |
PN400 |
|
6D-42 |
M42X2 |
M42X2 |
30 |
30 |
21.5 |
37.5 |
48 |
64 |
50 |
50 |
50 |
PN400 |
|
6D-52 |
M52X2 |
M52X2 |
38 |
38 |
22 |
37 |
53 |
68 |
65 |
60 |
65 |
PN315 |
|

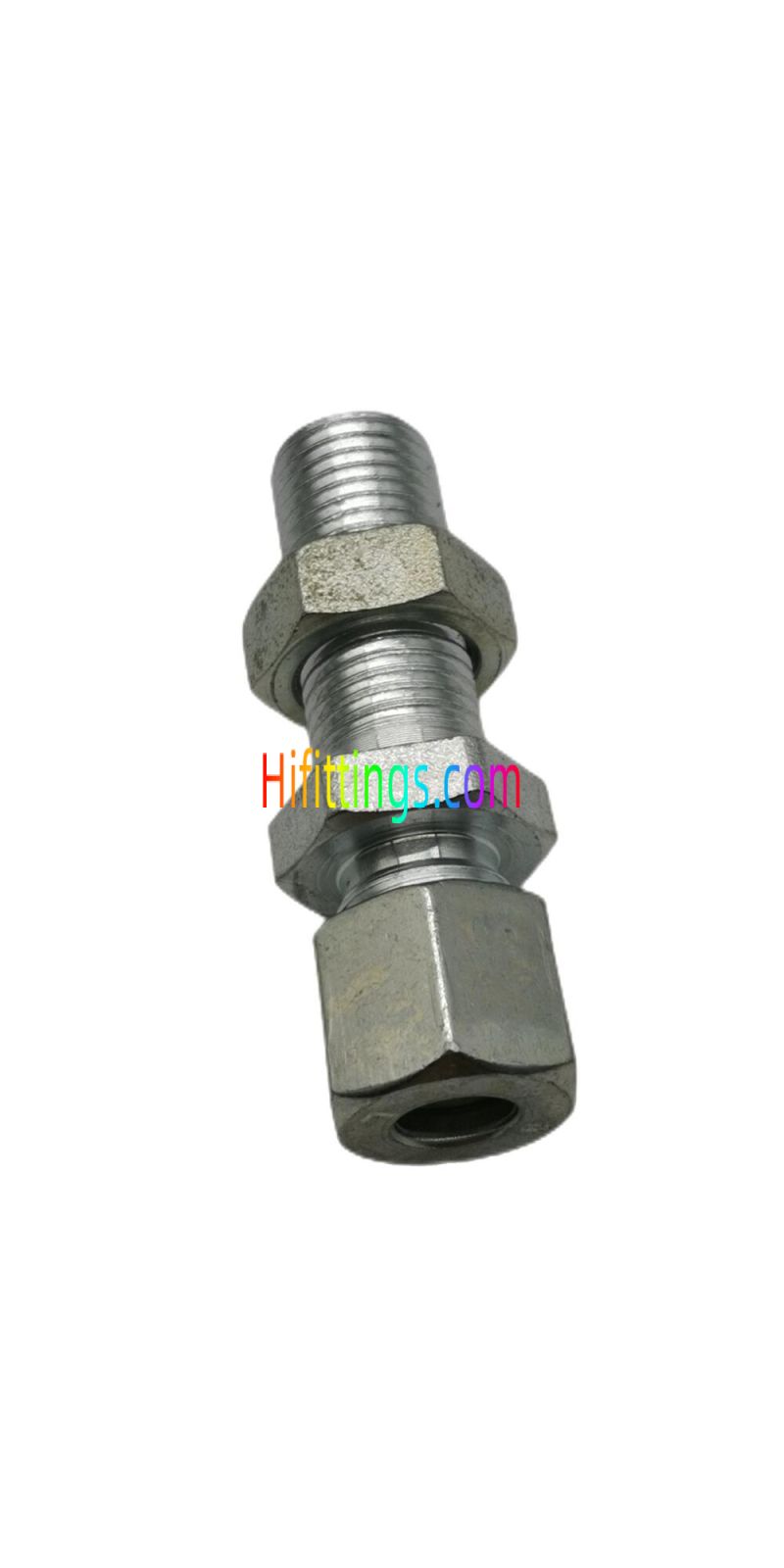

Note: 1. In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part NO., for example 6C-30LN,order the adapter with cutting ring and nut,insert suffix "RN" after part NO.,for example 6C-30RN. 2. PN = Nominal Pressure |
||||||||||||
| شكل . | Straight |
|---|---|
| نوع الخيط | Male |
| Connection Type | Metric |
| أنواع الاكسسوارات | Bite Type |
