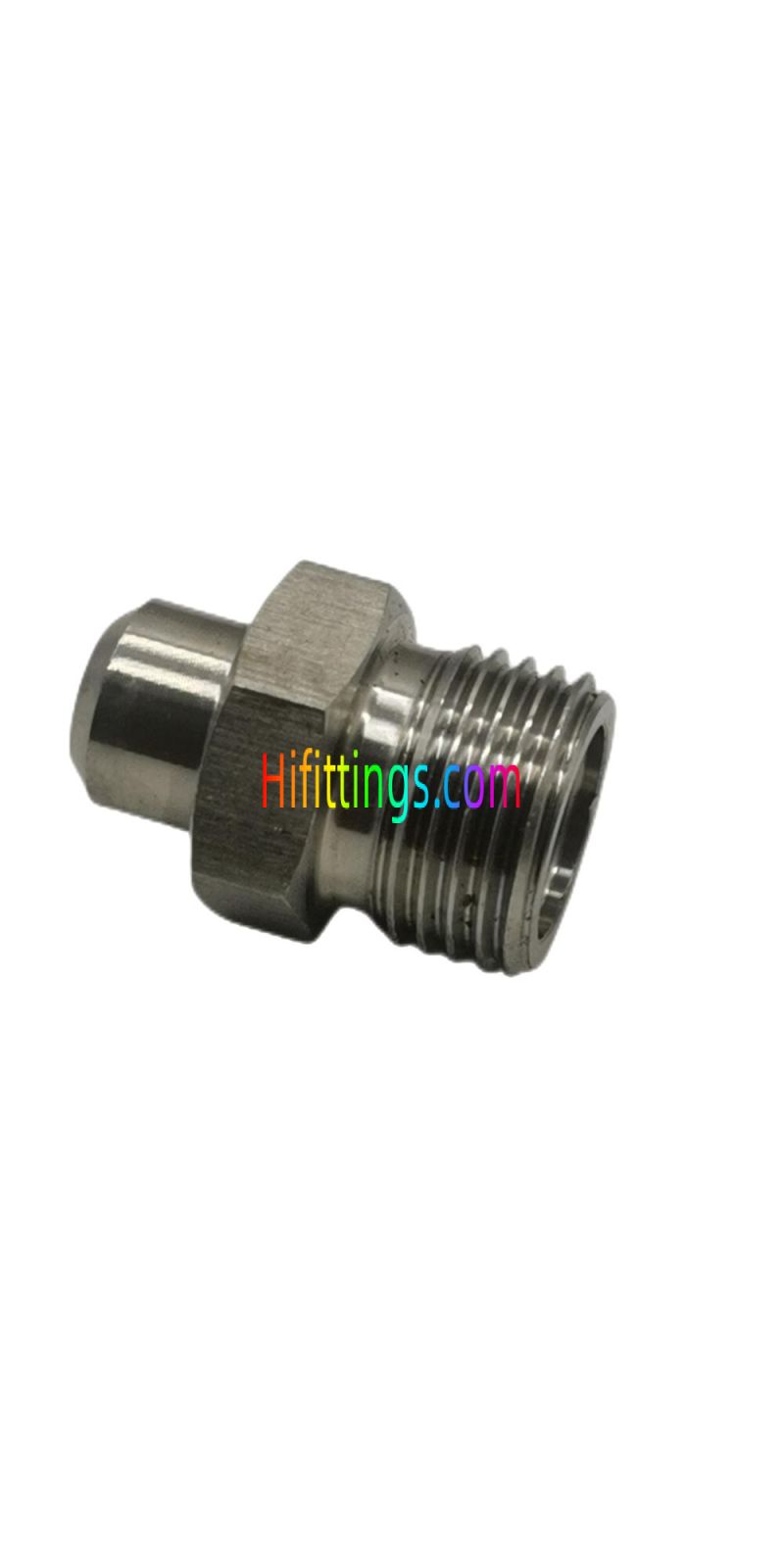

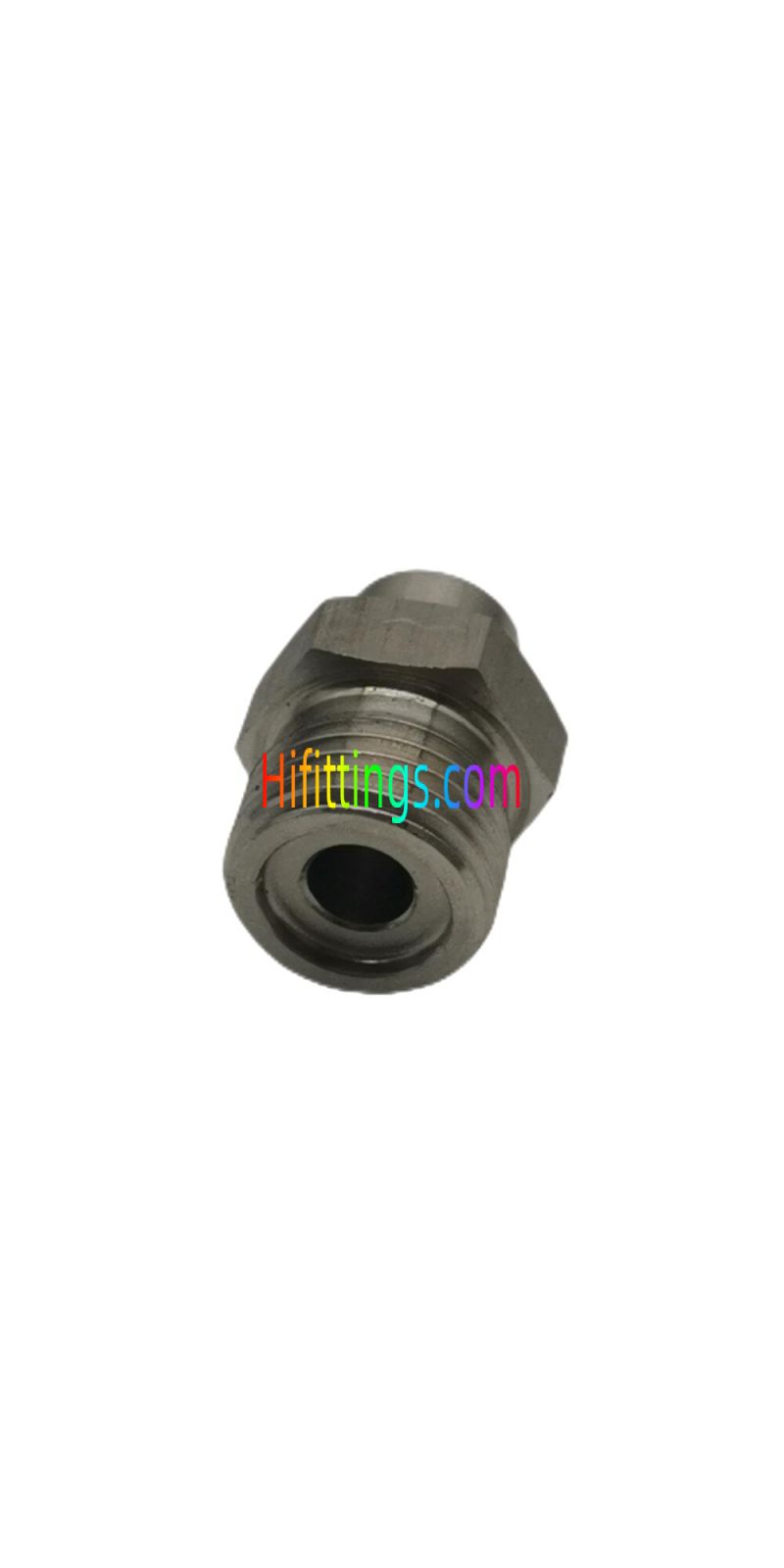

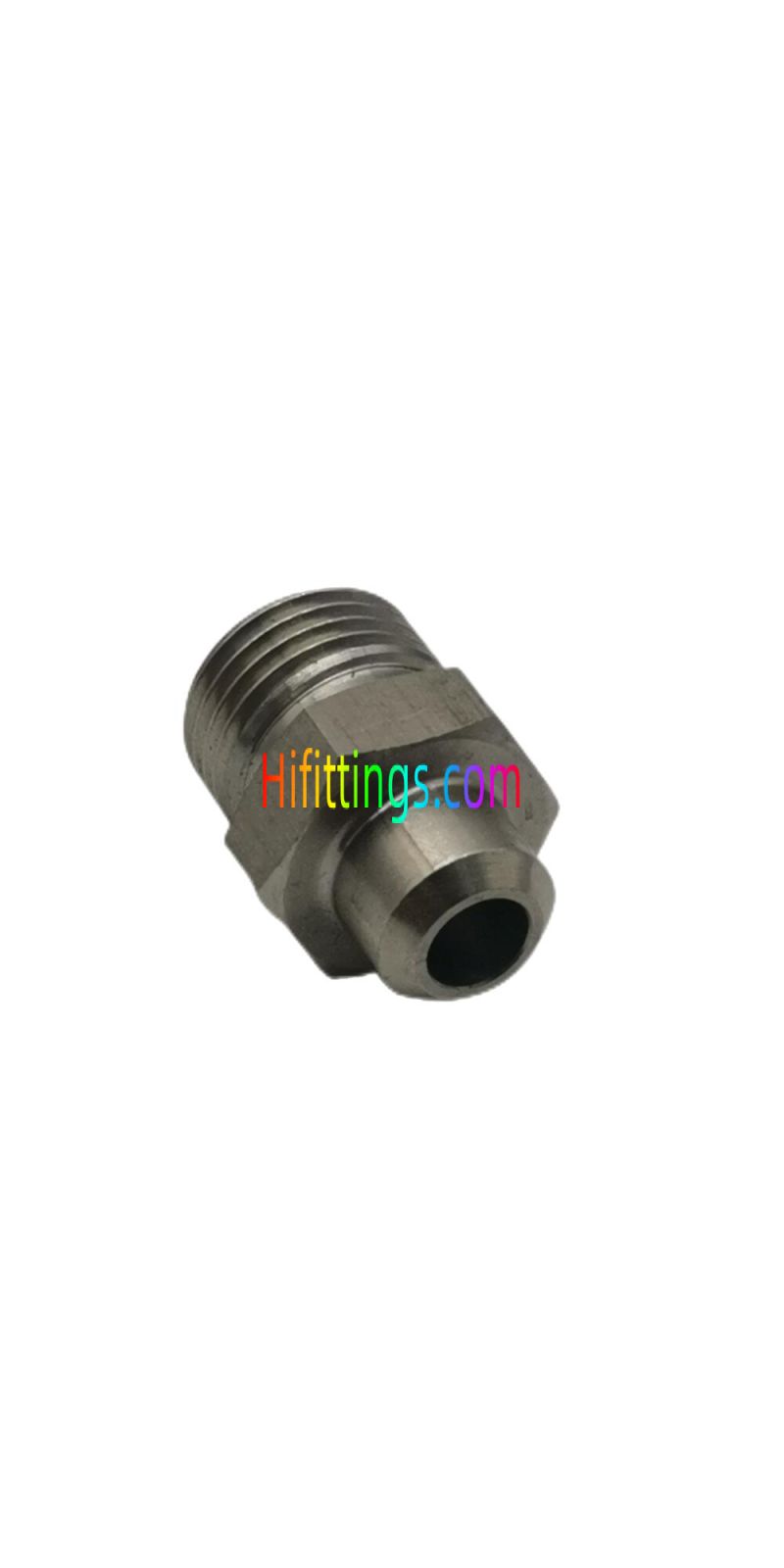

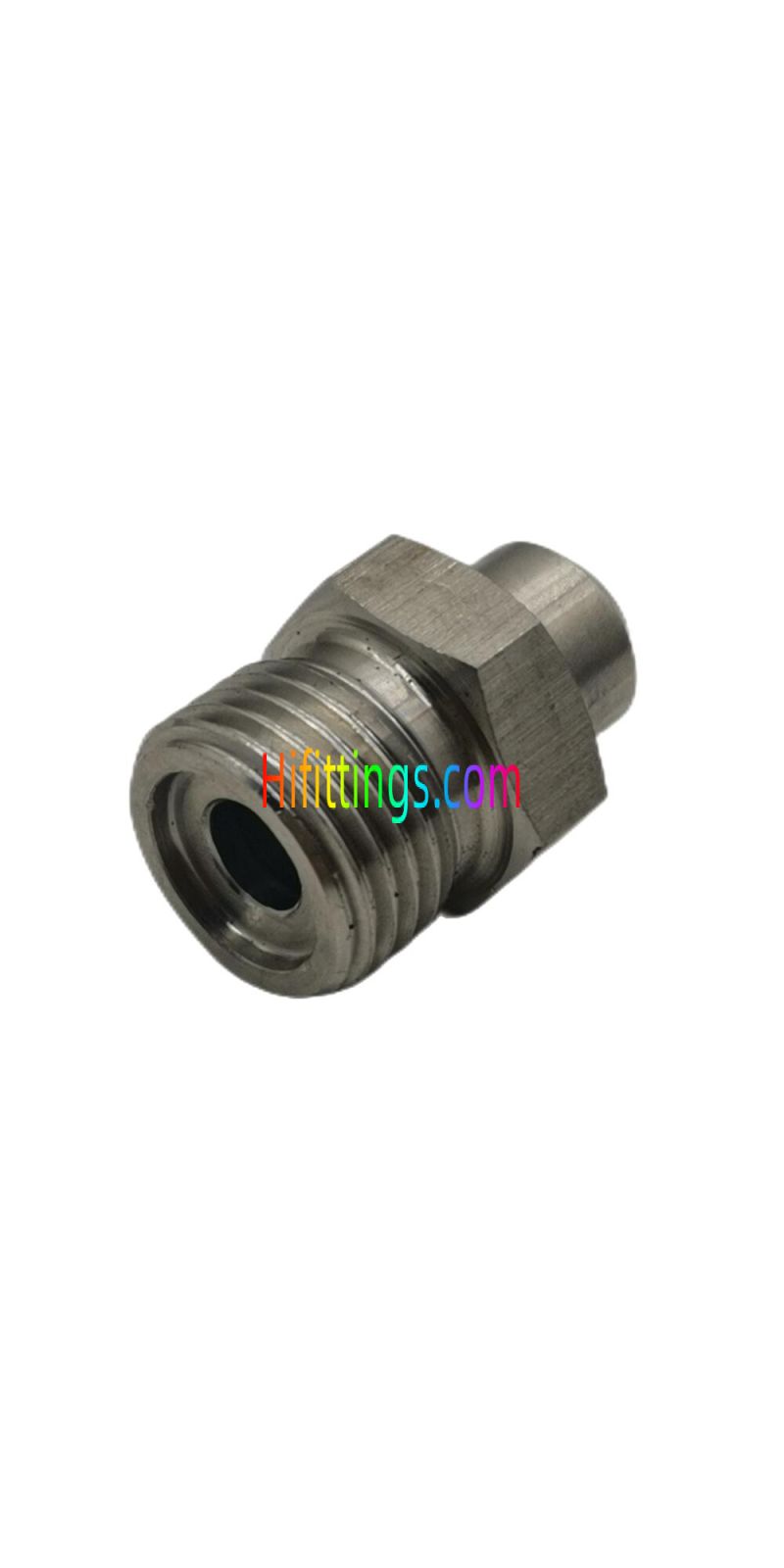

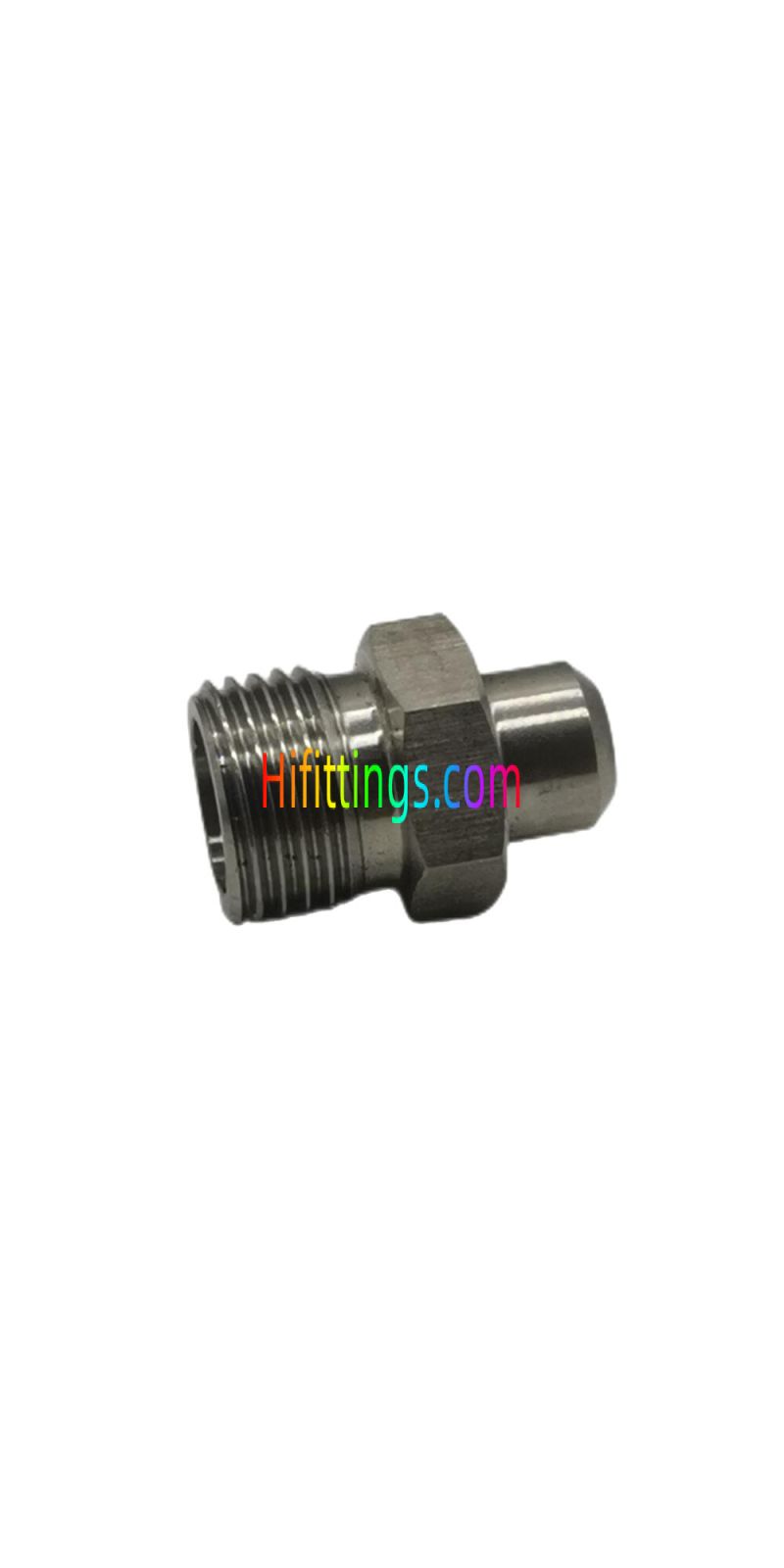

Metric Male O-Ring / Butt-Weld Tube Hydraulic Adapter Pipe Fittings 1EW
|
Part NO. |
E |
Tube O.D. |
O-Ring - E End |
A |
B |
D |
L |
S1 |
Working Pressure bar |
|
1EW-12-06 |
M12X1.25 |
6 |
8X1.9 |
11 |
8 |
6 |
24 |
14 |
PN630 |
|
1EW-14-08 |
M14X1.5 |
8 |
10X1.9 |
11 |
8 |
8 |
25 |
17 |
PN630 |
|
1EW-16-10 |
M16X1.5 |
10 |
11X1.9 |
11 |
8 |
10 |
25 |
17 |
PN630 |
|
1EW-18-12 |
M18X1.5 |
12 |
13X1.9 |
11 |
12 |
12 |
29 |
19 |
PN630 |
|
1EW-22-14 |
M22X1.5 |
14 |
16X2.4 |
12 |
12 |
14 |
32.5 |
24 |
PN630 |
|
1EW-27-18 |
M27X1.5 |
18 |
20X2.4 |
13 |
12 |
18 |
35 |
30 |
PN400 |
|
1EW-30-22 |
M30X1.5 |
22 |
24X2.4 |
14 |
14 |
22 |
39 |
32 |
PN400 |
|
1EW-36-28 |
M36X2 |
28 |
30X3.1 |
16 |
16 |
28 |
43 |
38 |
PN400 |
|
1EW-39-30 |
M39X2 |
30 |
32X3.1 |
18 |
16 |
30 |
47 |
41 |
PN250 |
|
1EW-42-34 |
M42X2 |
34 |
35X3.1 |
20 |
16 |
34 |
49 |
46 |
PN250 |
|
1EW-45-38 |
M45X2 |
38 |
38X3.1 |
21 |
18 |
38 |
51 |
46 |
PN250 |
|
1EW-52-42 |
M52X2 |
42 |
40X3.1 |
22 |
18 |
42 |
55 |
55 |
PN250 |
|
Note: 1. The parameter of E end O-ring is ring outside diameter and ring width. 2. PN = Nominal Pressure |
|||||||||
| شكل . | Straight |
|---|---|
| نوع الخيط | Male |
| Connection Type | Metric, Weld |
| أنواع الاكسسوارات | Face Seal, Weld |
