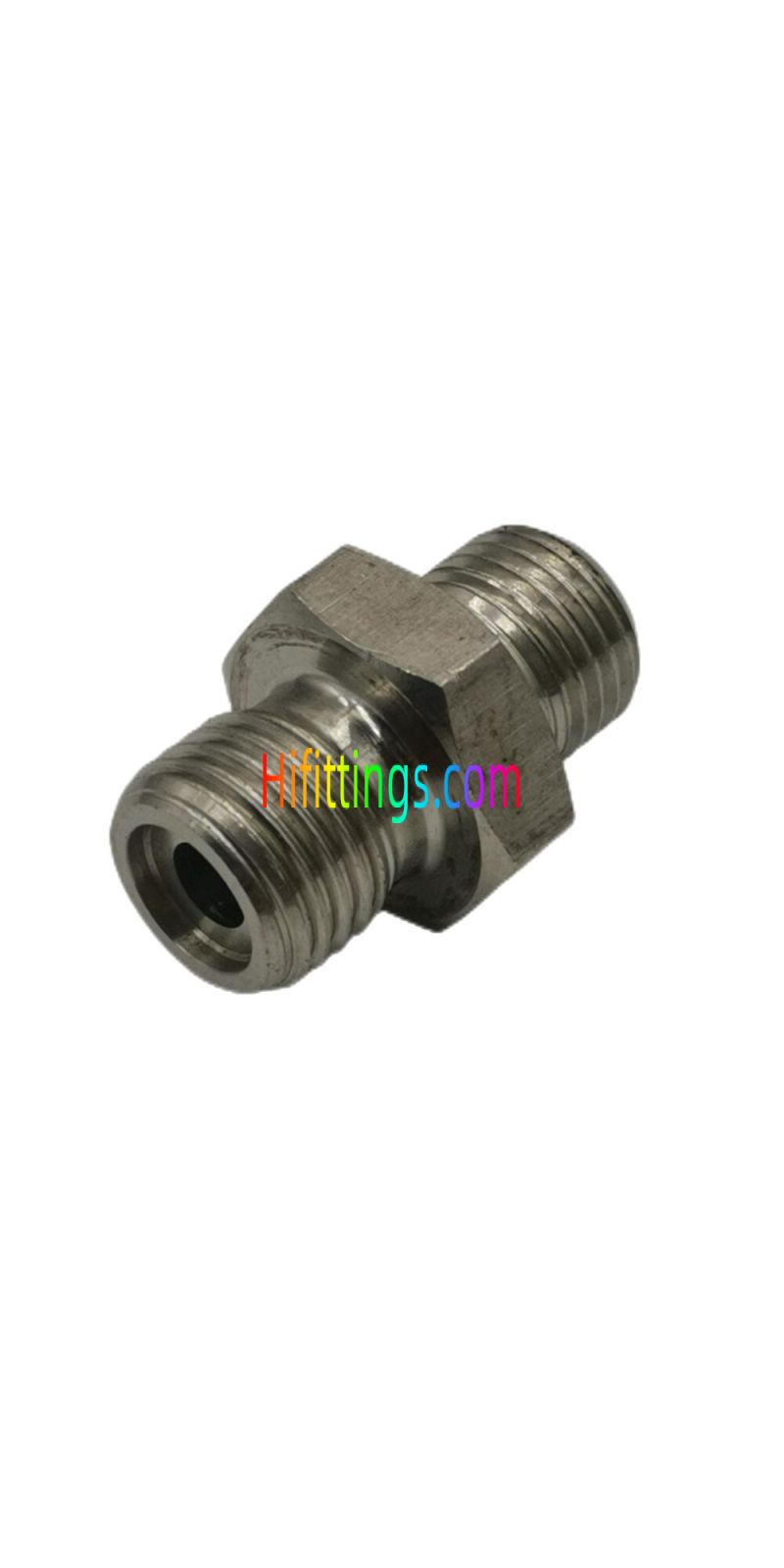

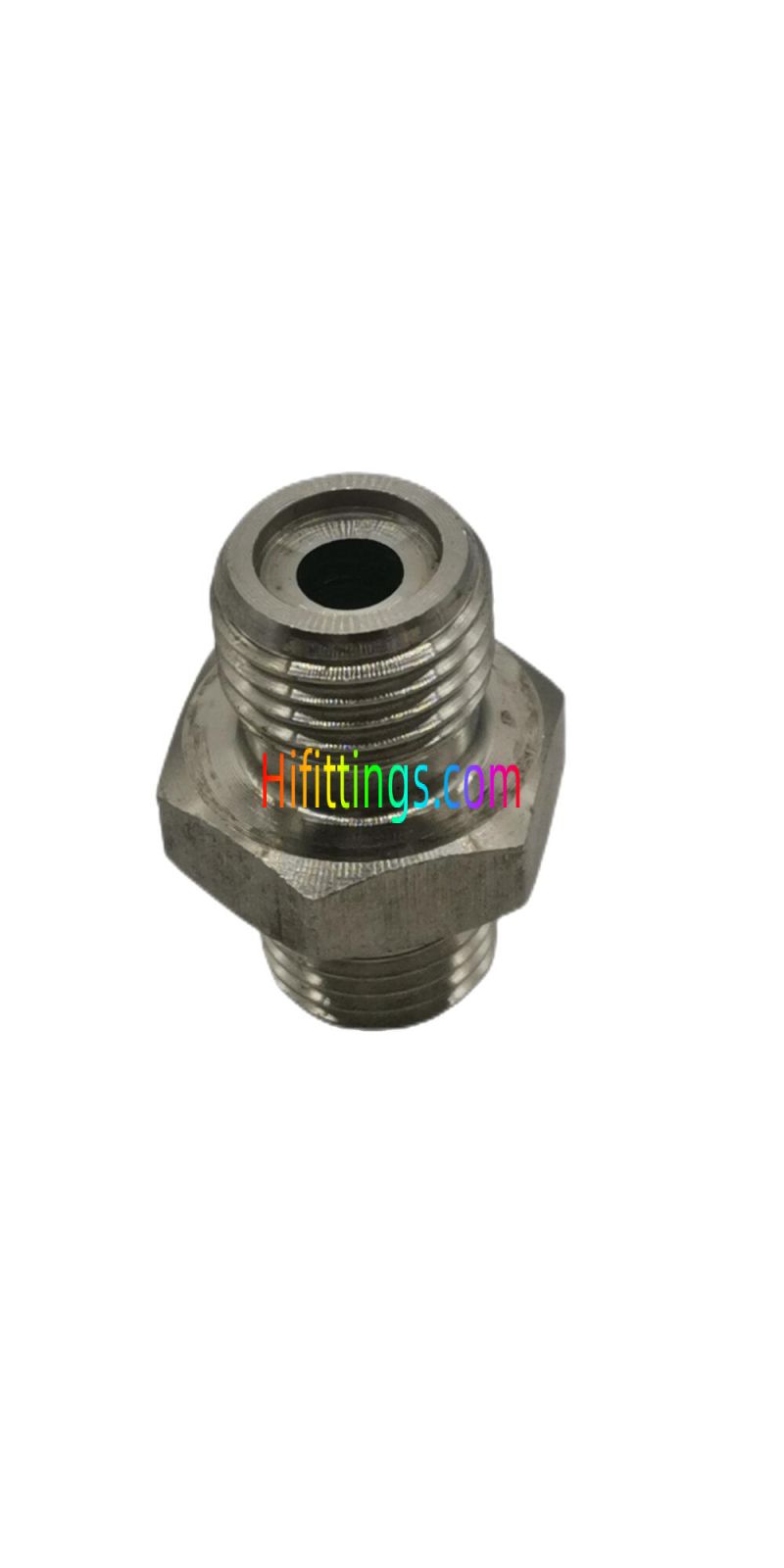

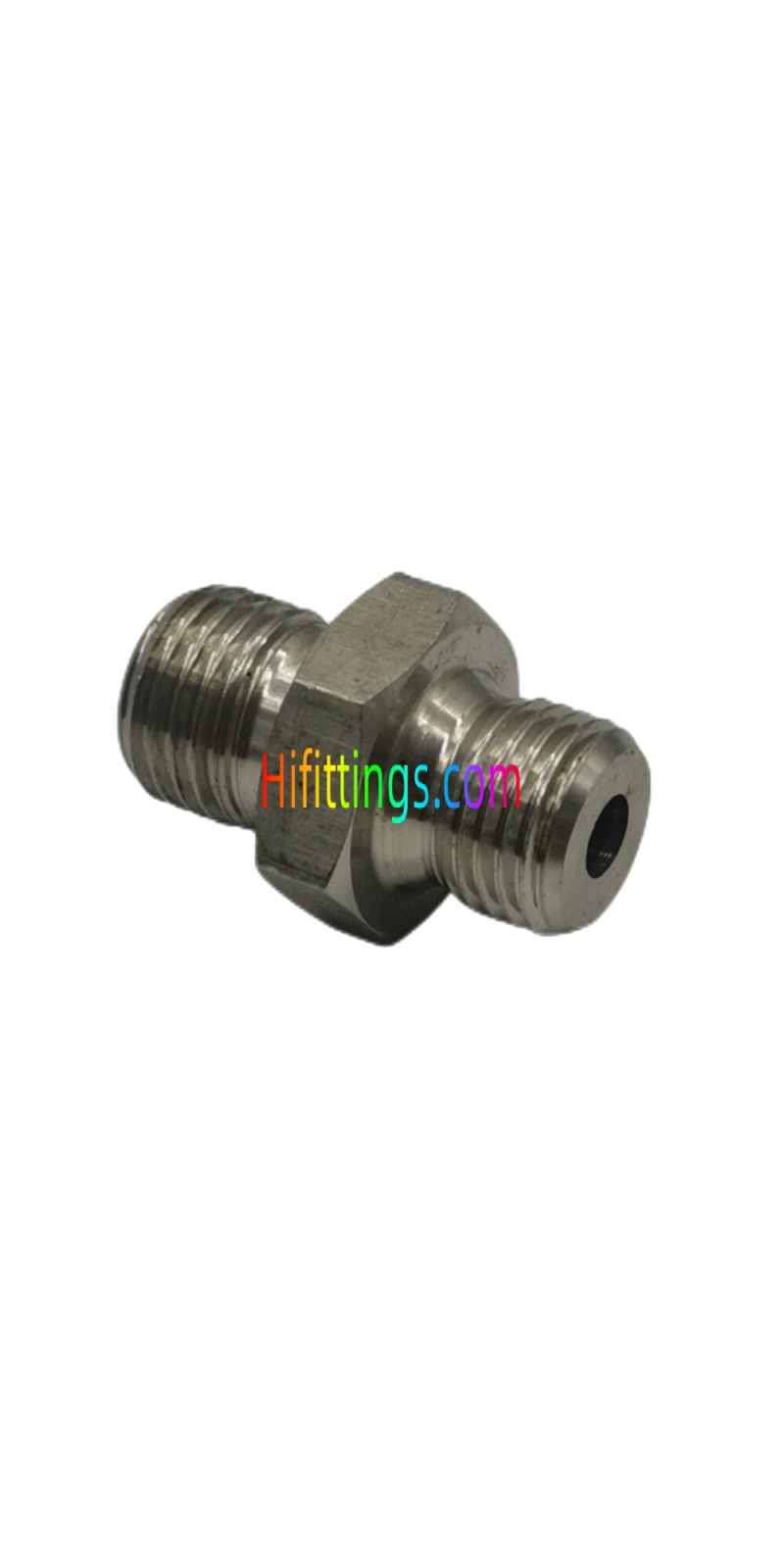

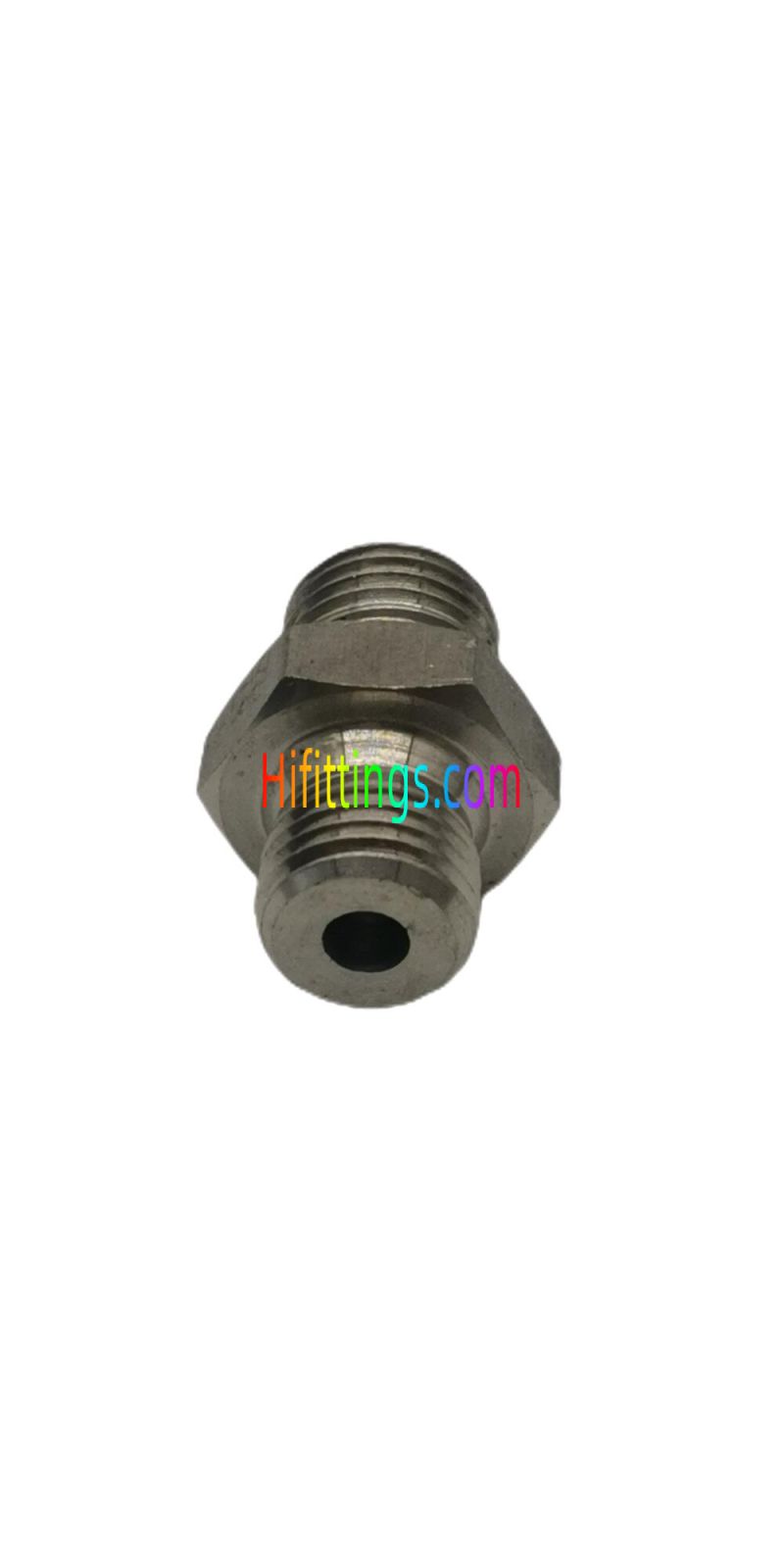

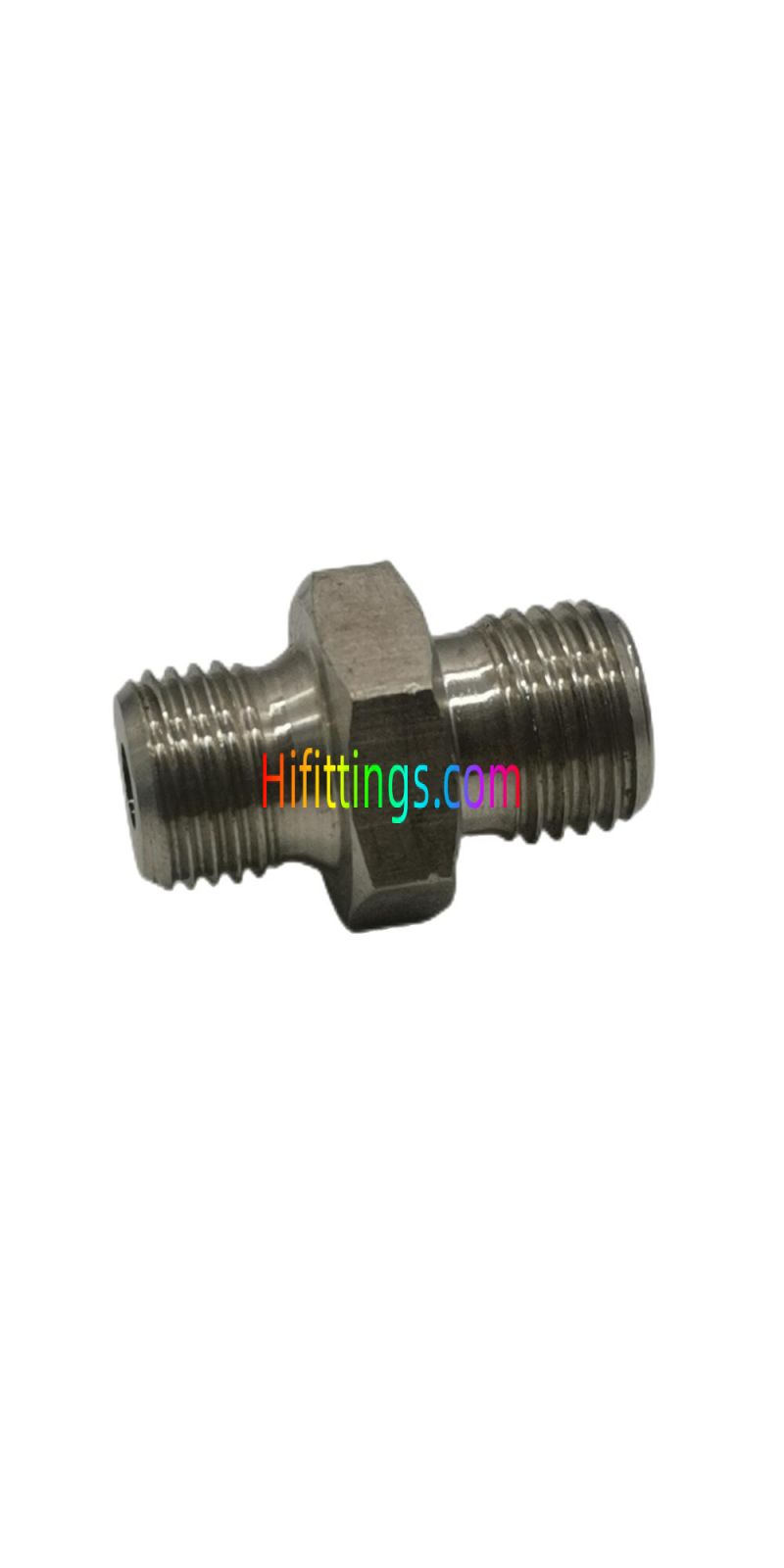

Metric Male O-Ring / Metric Male With Bonded Seal Hydraulic Adapter Pipe Fittings 1EL
|
Part NO. |
E |
F |
Seal - E End |
Seal -F End |
A |
B |
L |
S1 |
Working Pressure bar |
|
1 EL-14 |
M14X1.5 |
M14X1.5 |
10X1.9 |
ZHD-14 |
11 |
12 |
30.5 |
19 |
PN400 |
|
1 EL-14-16 |
M14X1.5 |
M16X1.5 |
10X1.9 |
ZHD-16 |
11 |
12 |
31 |
22 |
PN400 |
|
1 EL-14-18 |
M14X1.5 |
M18X1.5 |
10X1.9 |
ZHD-18 |
11 |
12 |
32.5 |
24 |
PN400 |
|
1 EL-14-22 |
M14X1.5 |
M22X1.5 |
10X1.9 |
ZHD-22 |
11 |
14 |
36.5 |
27 |
PN400 |
|
1 EL-16-14 |
M16X1.5 |
M14X1.5 |
11X1.9 |
ZHD-14 |
11 |
12 |
29 |
19 |
PN400 |
|
1 EL-16-18 |
M16X1.5 |
M18X1.5 |
11X1.9 |
ZHD-16 |
11 |
12 |
31 |
24 |
PN400 |
|
1 EL-22-18 |
M22X1.5 |
M18X1.5 |
16X2.4 |
ZHD-18 |
12 |
12 |
33.5 |
24 |
PN400 |
|
1 EL-27-22 |
M27X1.5 |
M22X1.5 |
18X2.4 |
ZHD-22 |
13 |
14 |
38.5 |
30 |
PN400 |
|
1 EL-27-33 |
M27X1.5 |
M33X2 |
18X2.4 |
ZHD-33 |
13 |
18 |
44 |
41 |
PN400 |
|
1 EL-30-18 |
M30X1.5 |
M18X1.5 |
24X2.4 |
ZHD-18 |
14 |
12 |
38.5 |
32 |
PN400 |
|
1 EL-30-27 |
M30X1.5 |
M27X2 |
24X2.4 |
ZHD-27 |
14 |
16 |
41 |
34 |
PN400 |
|
1 EL-36-33 |
M36X2 |
M33X2 |
30X3.1 |
ZHD-33 |
16 |
18 |
49 |
41 |
PN250 |
|
1 EL-36-48 |
M36X2 |
M48X2 |
30X3.1 |
ZHD-48 |
16 |
22 |
53 |
60 |
PN250 |
|
1 EL-45-42 |
M45X2 |
M42X2 |
38X3.1 |
ZHD-42 |
21 |
20 |
56 |
50 |
PN250 |
|
1 EL-52-48 |
M52X2 |
M48X2 |
40X3.1 |
ZHD-48 |
22 |
22 |
61 |
60 |
PN250 |
|
Note: 1. The parameter of O-ring is ring outside diameter and ring width. 2. PN = Nominal Pressure. |
|||||||||
| شكل . | Straight |
|---|---|
| نوع الخيط | Male |
| Connection Type | Metric |
| أنواع الاكسسوارات | Face Seal |
