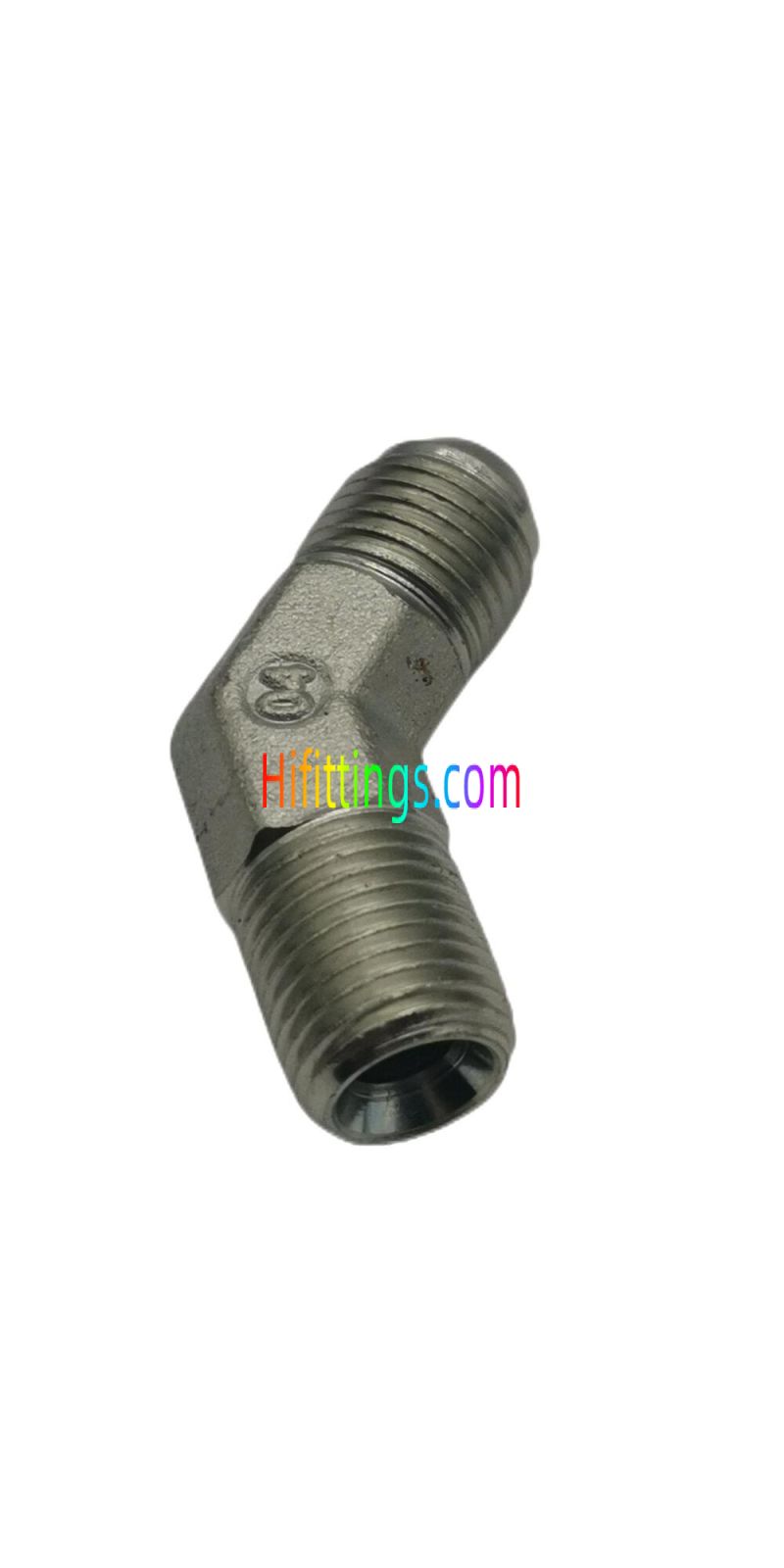

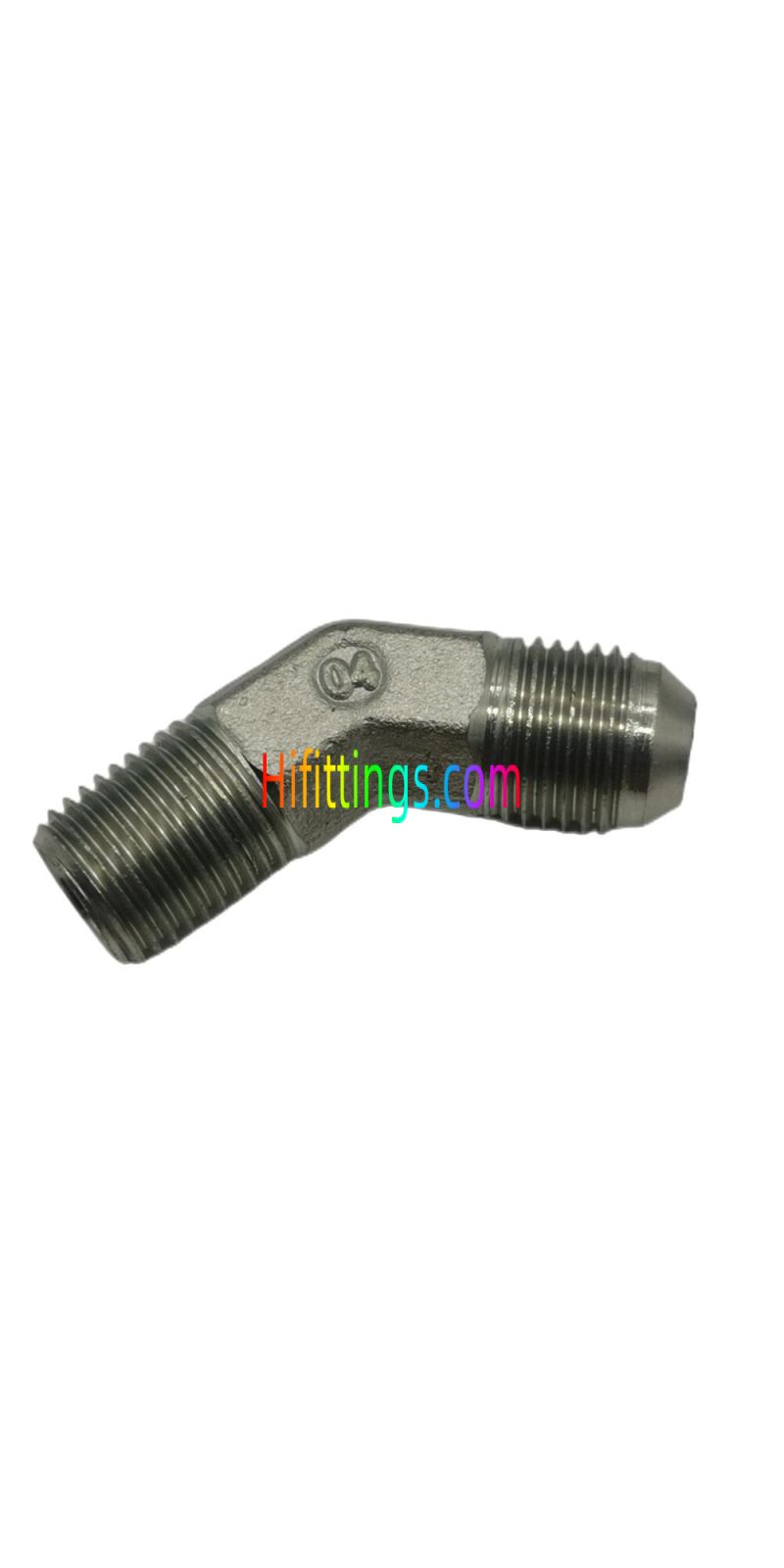

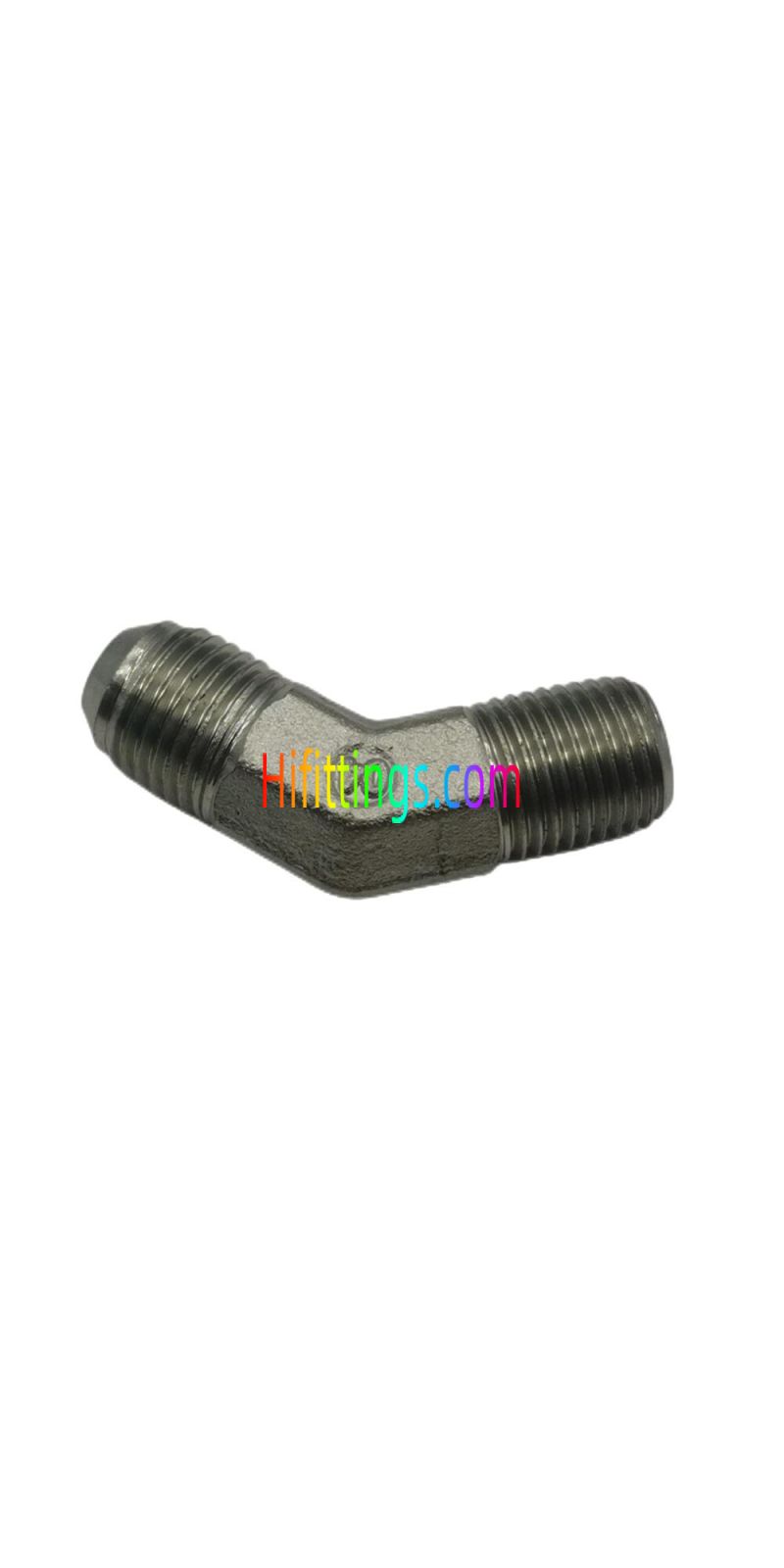

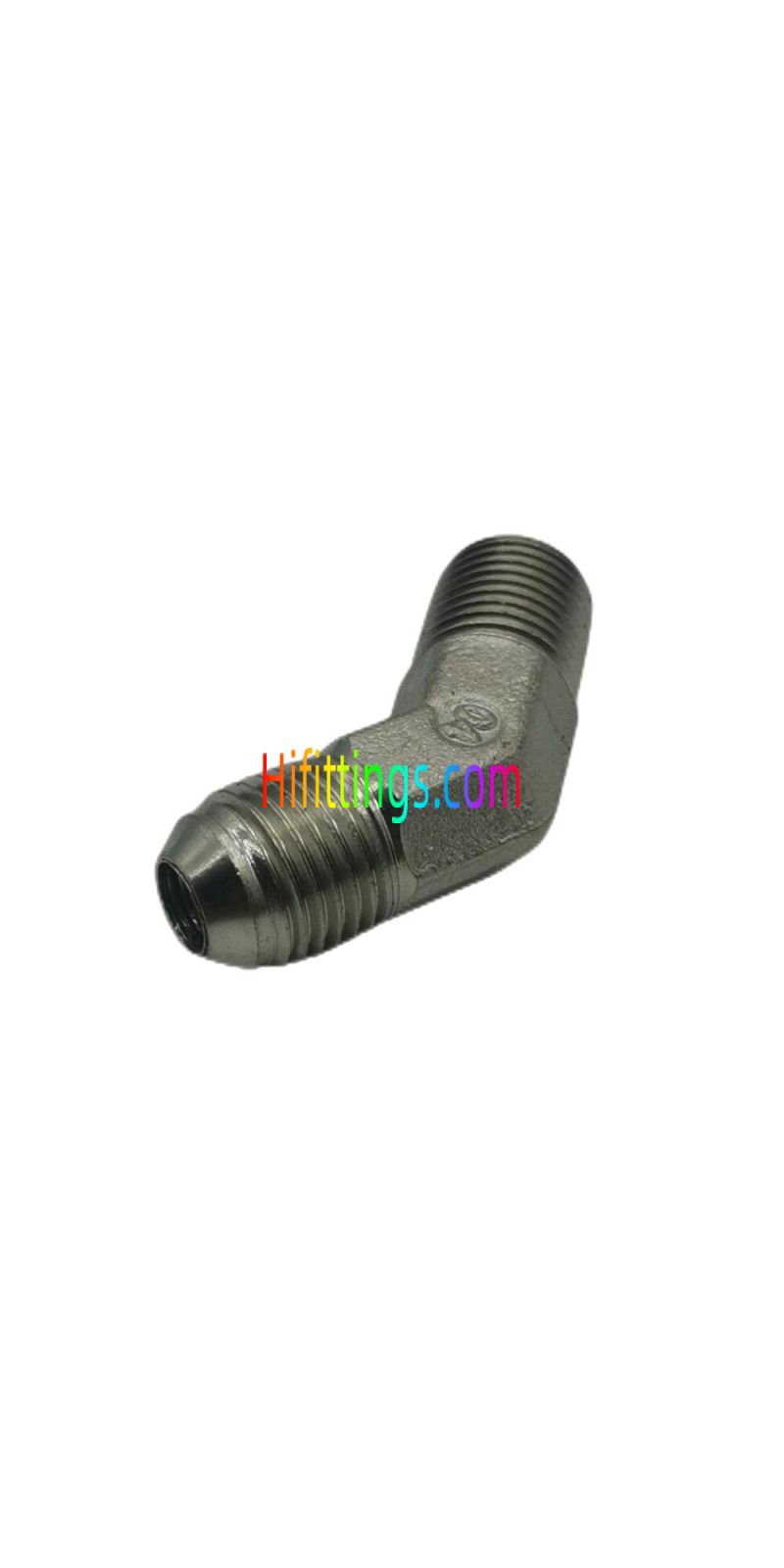

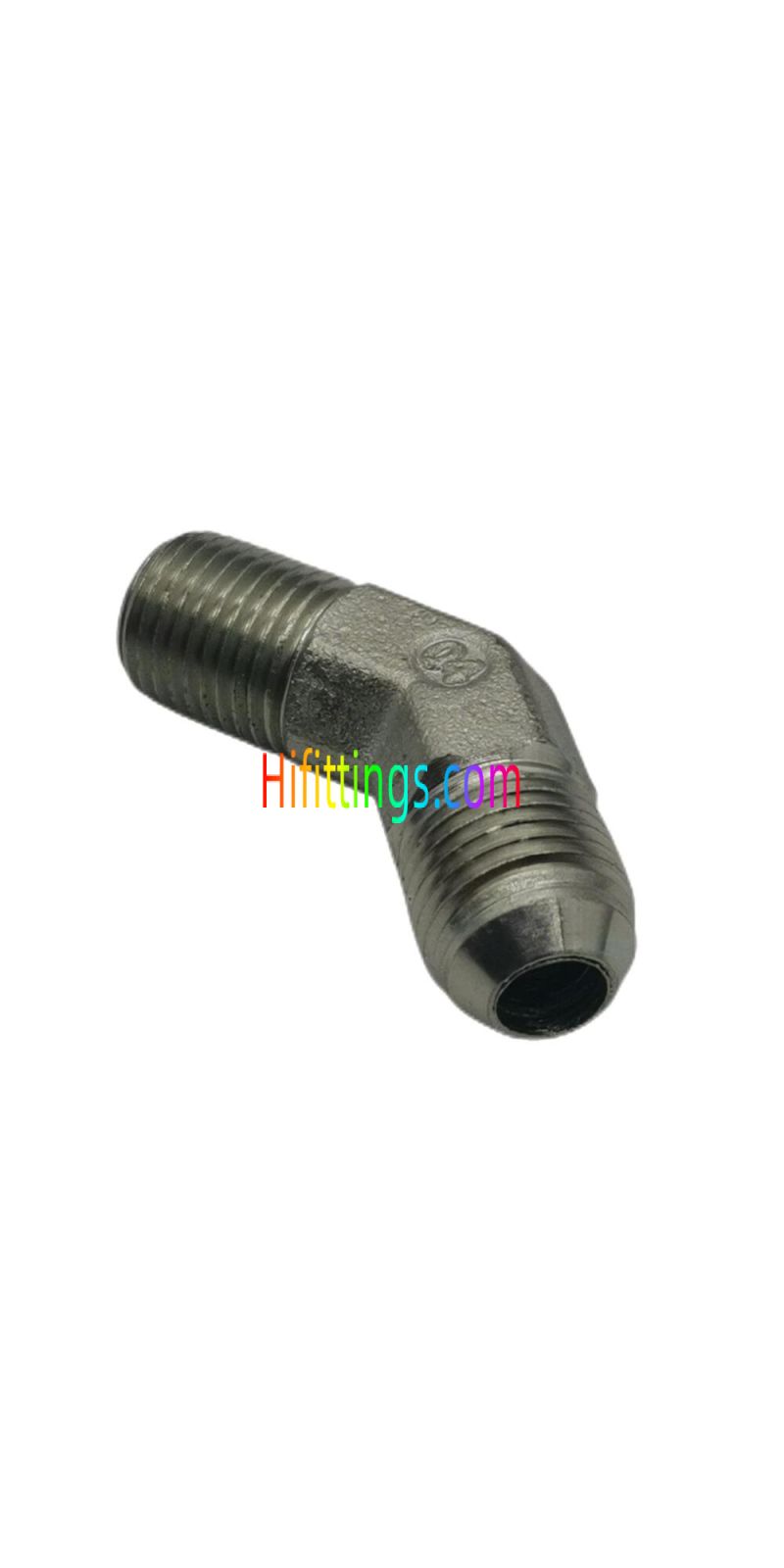

45°-Bogen BSPT-Außengewinde / JIC-Außengewinde mit 74°-Konus Bördelung Rohrverschraubung 1JT4-SP
22
Auf Lager
Nur noch %1 verfügbar
SKU
1JT4-SP
Guarantee safe & secure checkout
45 Degree Elbow BSPT Male / JIC Male 74 Degree Cone Flared Hydraulic Tube Fittings 1JT4-SP
|
Part NO. |
E |
F |
A |
B |
S1 |
Working Pressure bar |
|
1JT4-04-02SP |
7/16"X20 |
R1/8"X28 |
21.5 |
17 |
11 |
PN345 |
|
1JT4-04SP |
7/16"X20 |
R1/4"X19 |
22.3 |
21 |
14 |
PN345 |
|
1JT4-04-06SP |
7/16"X20 |
R3/8"X19 |
22.5 |
23 |
16 |
PN345 |
|
1JT4-04-08SP |
7/16"X20 |
R1/2"X14 |
24.5 |
29.5 |
22 |
PN345 |
|
1JT4-05-02SP |
1/2"X20 |
R1/8"X28 |
21.5 |
17.5 |
14 |
PN345 |
|
1JT4-05-04SP |
1/2"X20 |
R1/4"X19 |
22.3 |
21 |
14 |
PN345 |
|
1JT4-05-06SP |
1/2"X20 |
R3/8"X19 |
22,8 |
23 |
16 |
PN345 |
|
1JT4-06-02SP |
9/16"X18 |
R1/8"X28 |
22.8 |
18 |
14 |
PN345 |
|
1JT4-06-04SP |
9/16"X18 |
R1/4"X19 |
22.8 |
21 |
14 |
PN345 |
|
1JT4-06SP |
9/16"X18 |
R3/8"X19 |
23 |
23 |
16 |
PN345 |
|
1JT4-06-08SP |
9/16"X18 |
R1/2"X14 |
25 |
29.5 |
22 |
PN345 |
|
1JT4-08-04SP |
3/4"X16 |
R1/4"X19 |
26.8 |
22 |
19 |
PN310 |
|
1JT4-08-06SP |
3/4"X16 |
R3/8"X19 |
26.8 |
24 |
19 |
PN310 |
|
1JT4-08SP |
3/4"X16 |
R1/2"X14 |
28 |
29.5 |
22 |
PN310 |
|
1JT4-08-12SP |
3/4"X16 |
R3/4"X14 |
29 |
30.5 |
27 |
PN275 |
|
1JT4-10-06SP |
7/8"X14 |
R3/8"X19 |
31 |
25 |
22 |
PN240 |
|
1JT4-10-08SP |
7/8"X14 |
R1/2"X14 |
31 |
29.5 |
22 |
PN240 |
|
1JT4-10-12SP |
7/8"X14 |
R3/4"X14 |
33 |
31.5 |
27 |
PN240 |
|
1JT4-12-08SP |
1.1/16"X12 |
R1/2"X14 |
35.5 |
30 |
27 |
PN240 |
|
1JT4-12SP |
1.1/16"X12 |
R3/4"X14 |
35.5 |
30.5 |
27 |
PN240 |
|
1JT4-12-16SP |
1.1/16"X12 |
R1"X11 |
37.5 |
38 |
33 |
PN205 |
|
1JT4-16-12SP |
1.5/16"X12 |
R3/4"X14 |
38.5 |
32.5 |
33 |
PN210 |
|
1JT4-16SP |
1.5/16"X12 |
R1"X11 |
38.5 |
38 |
33 |
PN205 |
|
1JT4-16-20SP |
1.5/16"X12 |
R1.1/4"X11 |
42 |
43 |
41 |
PN170 |
|
1JT4-20-16SP |
1.5/8"X12 |
R1"X11 |
43 |
42 |
41 |
PN170 |
|
1JT4-20SP |
1.5/8"X12 |
R1.1/4"X11 |
43 |
43 |
41 |
PN170 |
|
1JT4-20-24SP |
1.5/8"X12 |
R1.1/2"X11 |
46 |
47.5 |
48 |
PN105 |
|
1JT4-24-20SP |
1.7/8"X12 |
R1.1/4"X11 |
49 |
45.5 |
48 |
PN140 |
|
1JT4-24SP |
1.7/8"X12 |
R1.1/2"X11 |
49 |
47.5 |
48 |
PN105 |
|
1JT4-32SP |
2.1/2"X12 |
R2"X11 |
58 |
50 |
63 |
PN105 |
|
Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.PN = Nominal Pressure |
||||||
| Form | Elbow |
|---|---|
| Fitting Typ | Cone Flared |
| Gewindetyp | Male |
| Connection Type | BSPT, JIC |
Schreiben Sie eine Bewertung
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price. We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
