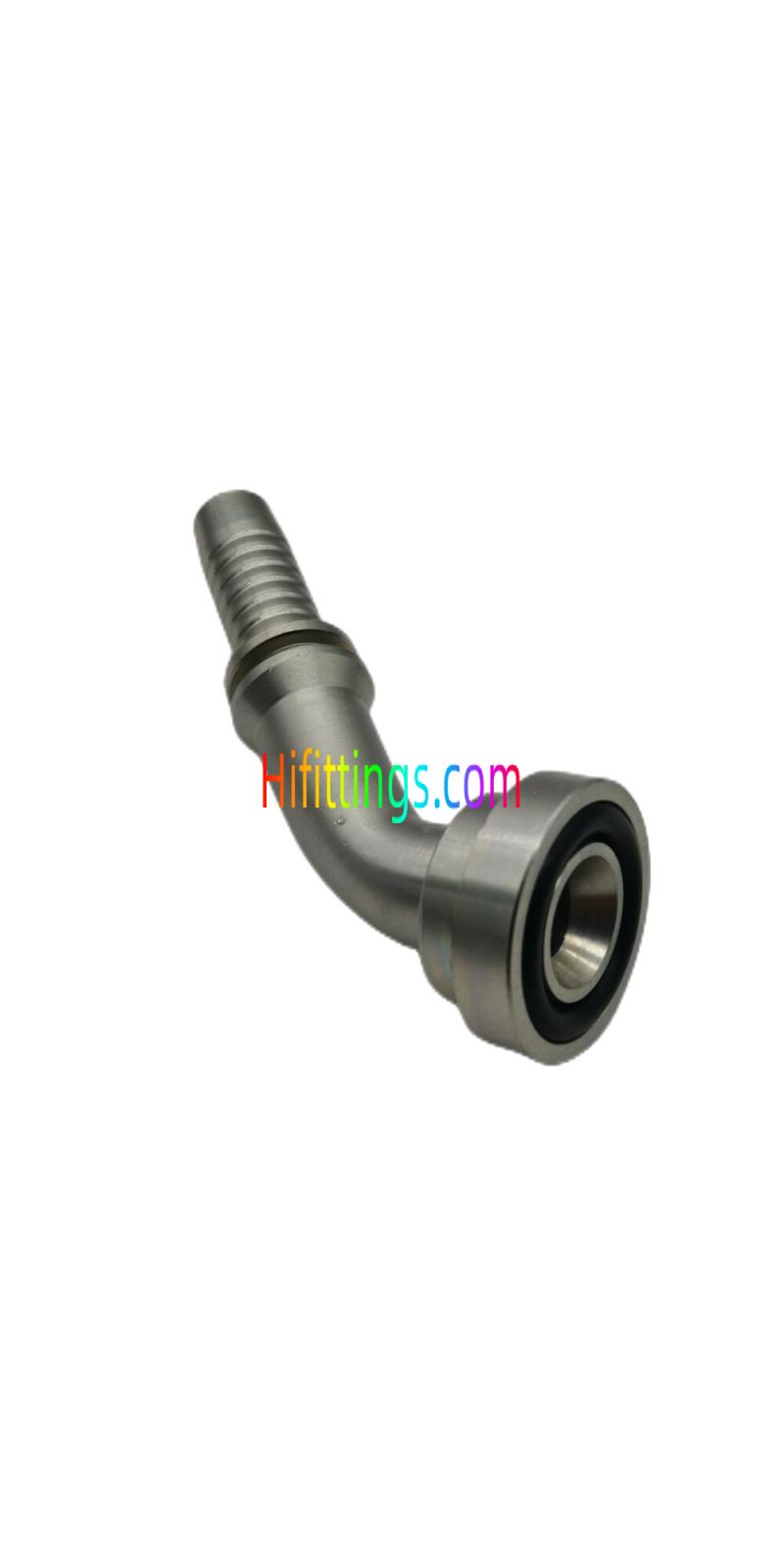

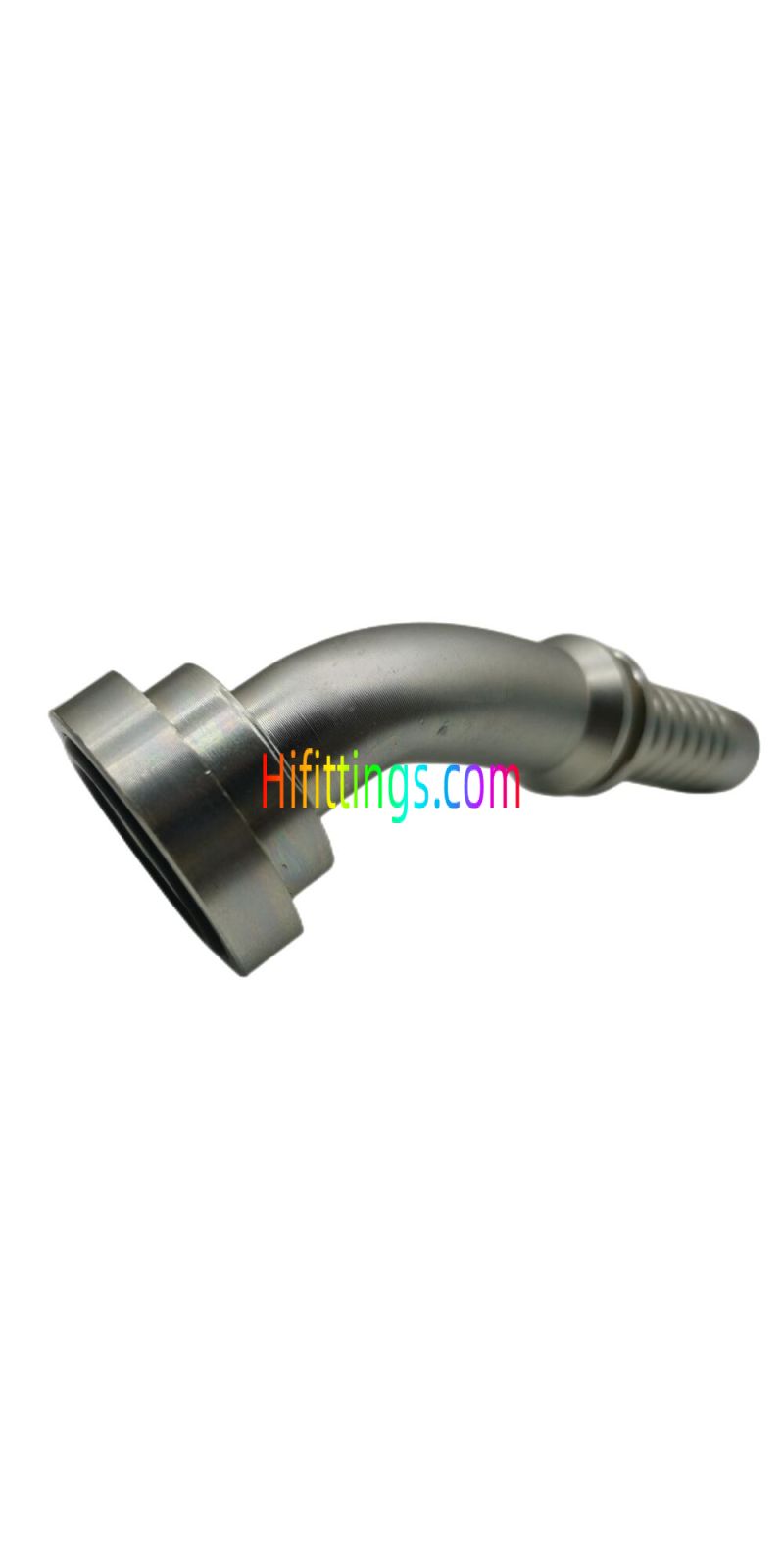

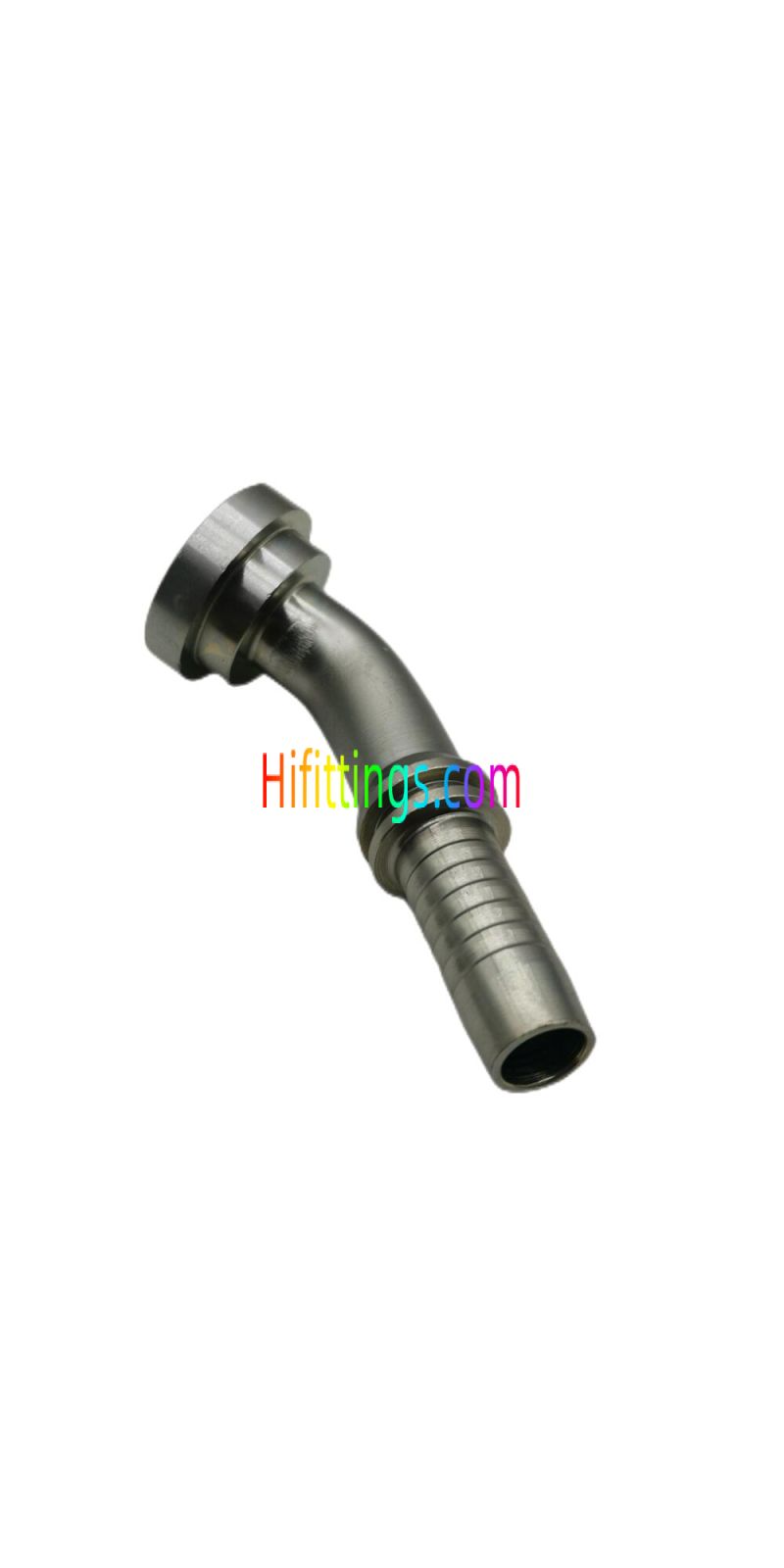

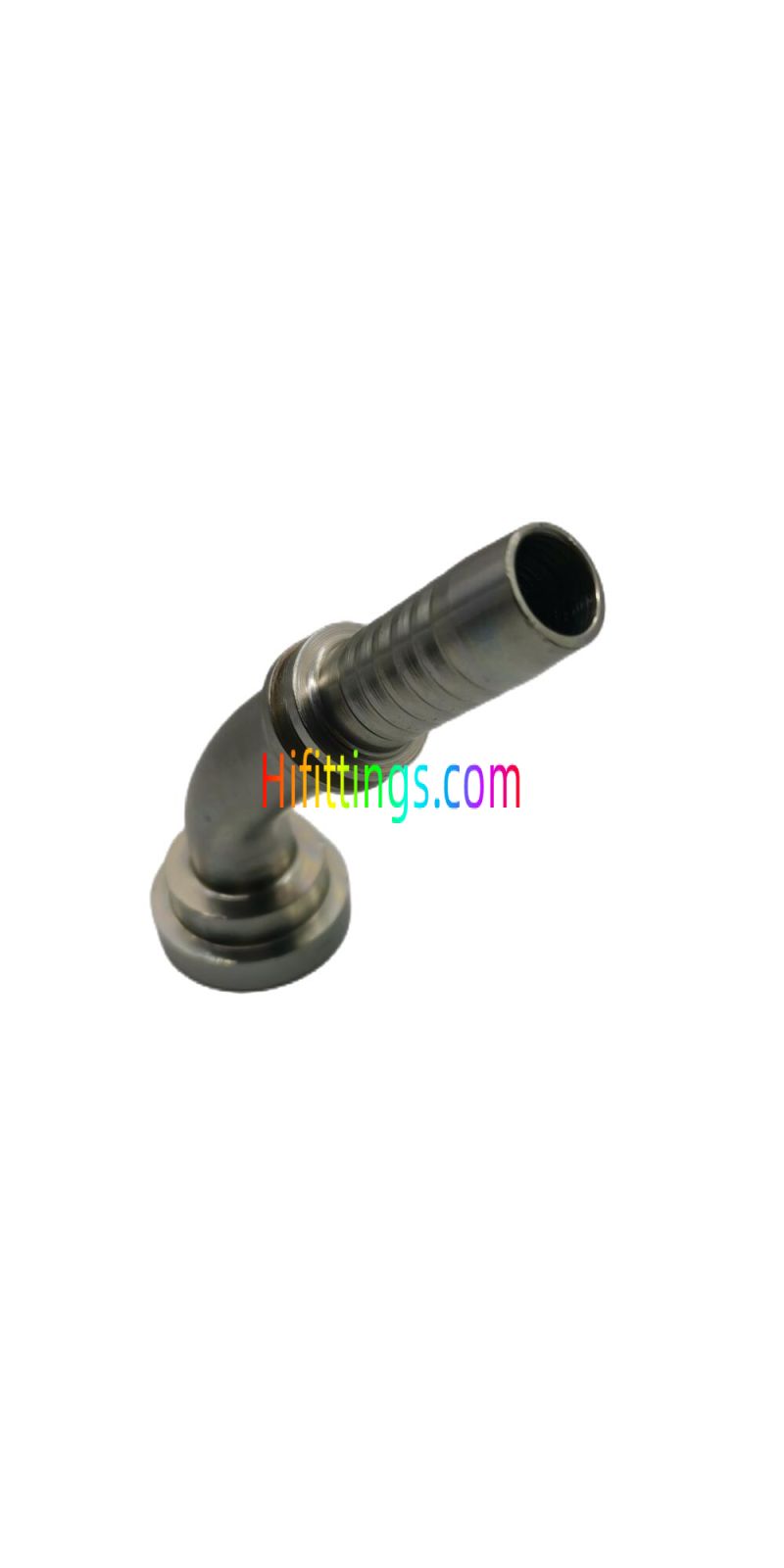

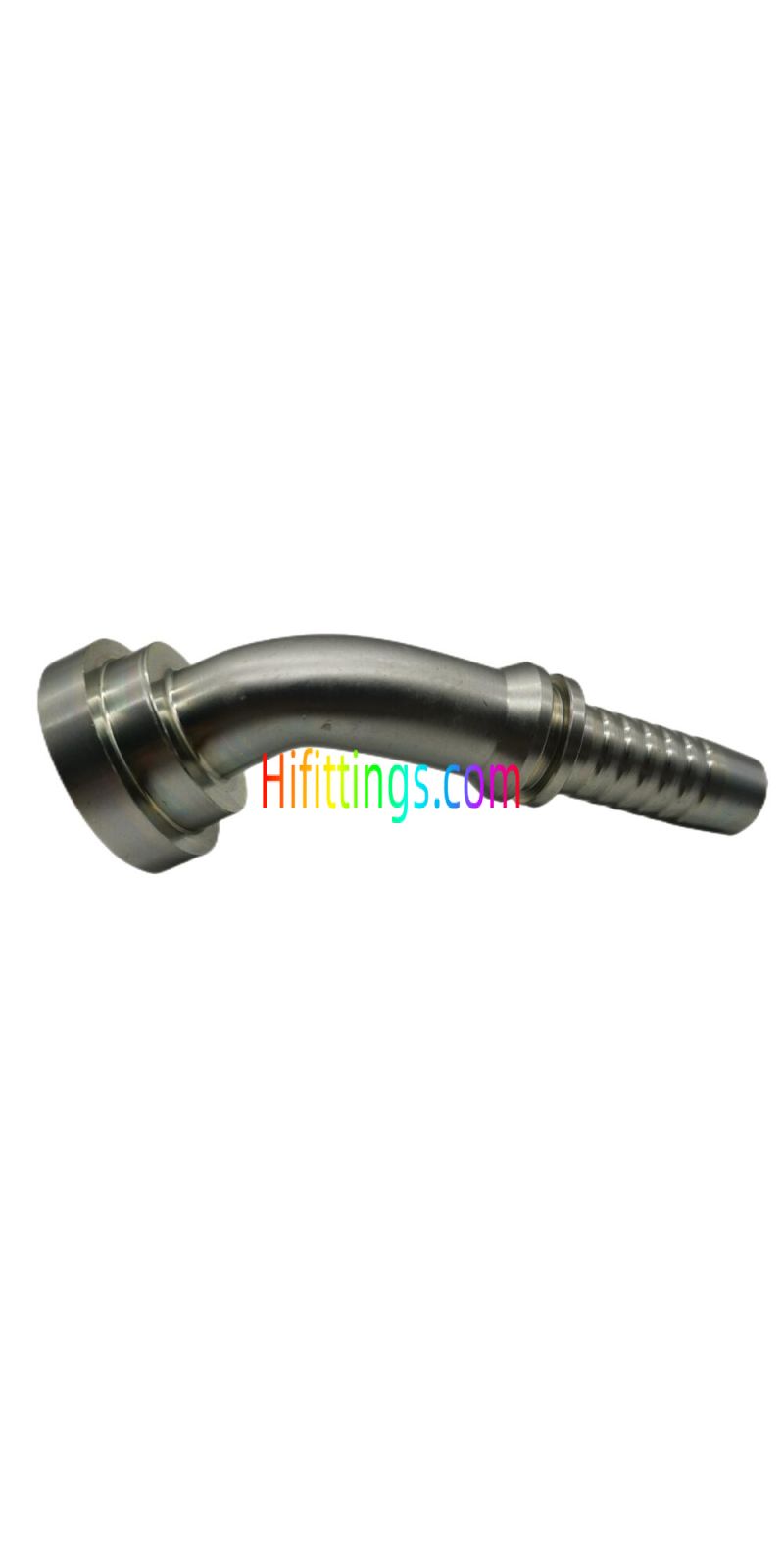

45° Elbow SAE Flange Head 3000 PSI Code 61 Swaged Hose Fitting 87341
39
Auf Lager
Nur noch %1 verfügbar
SKU
87341
Guarantee safe & secure checkout
|
Part NO. |
Flange Size |
Hose Bore - DN |
Hose Bore - Dash |
A |
C |
D |
H |
L |
|
87341-08-08 |
1/2" |
12 |
8 |
58.2 |
30.2 |
24 |
23.3 |
6.73 |
|
87341-12-08 |
3/4" |
12 |
8 |
58.9 |
38.1 |
31.7 |
24 |
6.73 |
|
87341-12-10 |
3/4" |
16 |
10 |
69.6 |
38.1 |
31.7 |
25.3 |
6.73 |
|
87341-12-12 |
3/4" |
20 |
12 |
76.3 |
38.1 |
31.7 |
28.9 |
6.73 |
|
87341-16-12 |
1" |
20 |
12 |
76.3 |
44.4 |
38 |
28.9 |
8 |
|
87341-16-16 |
1" |
25 |
16 |
83.9 |
44.4 |
38 |
29.7 |
8 |
|
87341-16-20 |
1" |
32 |
20 |
94.5 |
44.4 |
38 |
33.8 |
8 |
|
87341-20-16 |
1.1/4" |
25 |
16 |
85.2 |
50.8 |
43 |
29.7 |
8 |
|
87341-20-20 |
1.1/4" |
32 |
20 |
94.5 |
50.8 |
43 |
33.8 |
8 |
|
87341-24-20 |
1.1/2" |
32 |
20 |
95.9 |
60.3 |
50 |
35.2 |
8 |
|
87341-24-24 |
1.1/2" |
40 |
24 |
109.9 |
60.3 |
50 |
39.1 |
8 |
|
87341-32-24 |
2" |
40 |
24 |
109.9 |
71.4 |
62 |
39.1 |
9.53 |
|
87341-32-32 |
2" |
50 |
32 |
129.3 |
71.4 |
62 |
46.3 |
9.53 |
|
Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 87342-xx-xx |
||||||||
