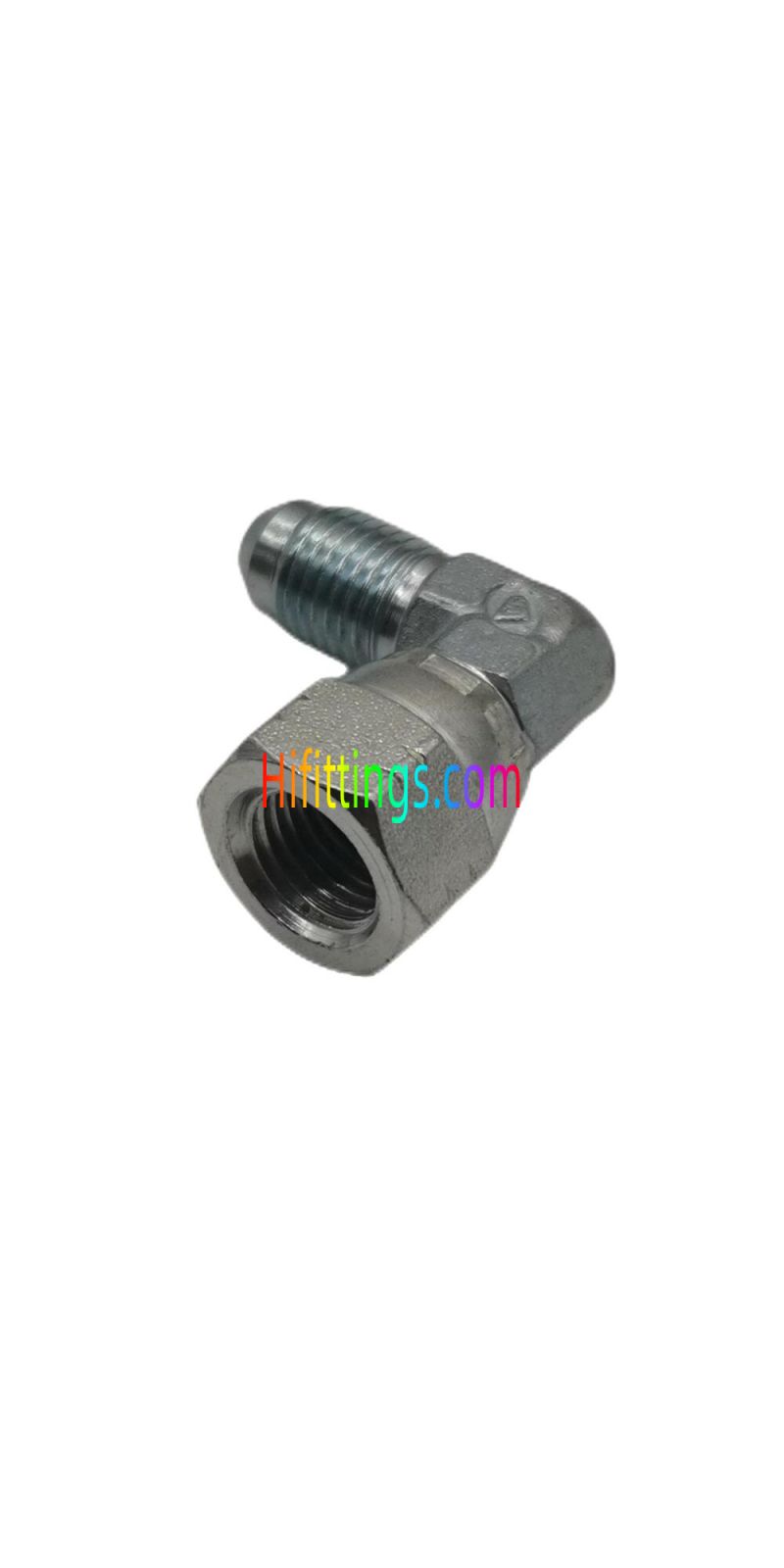

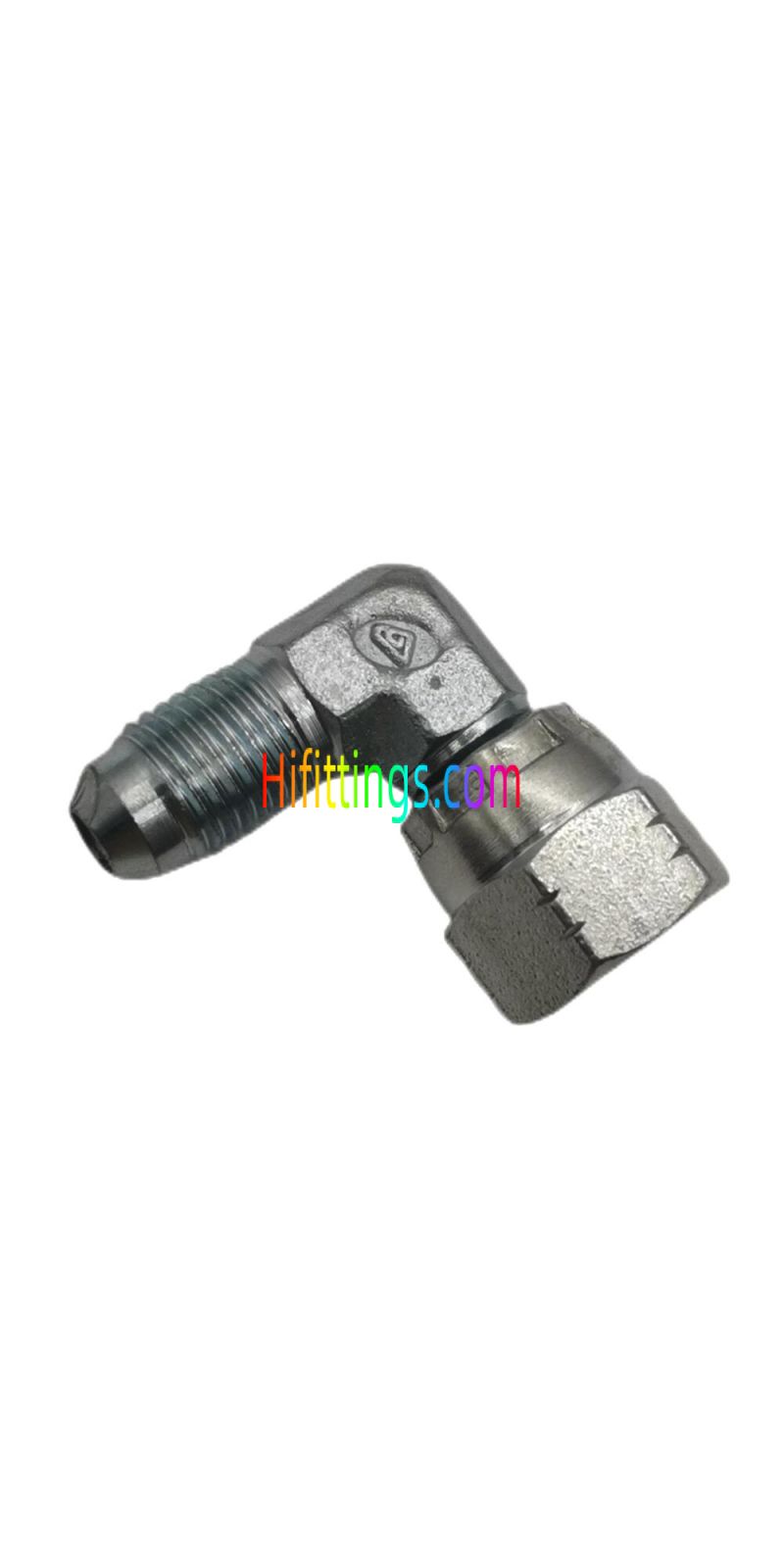

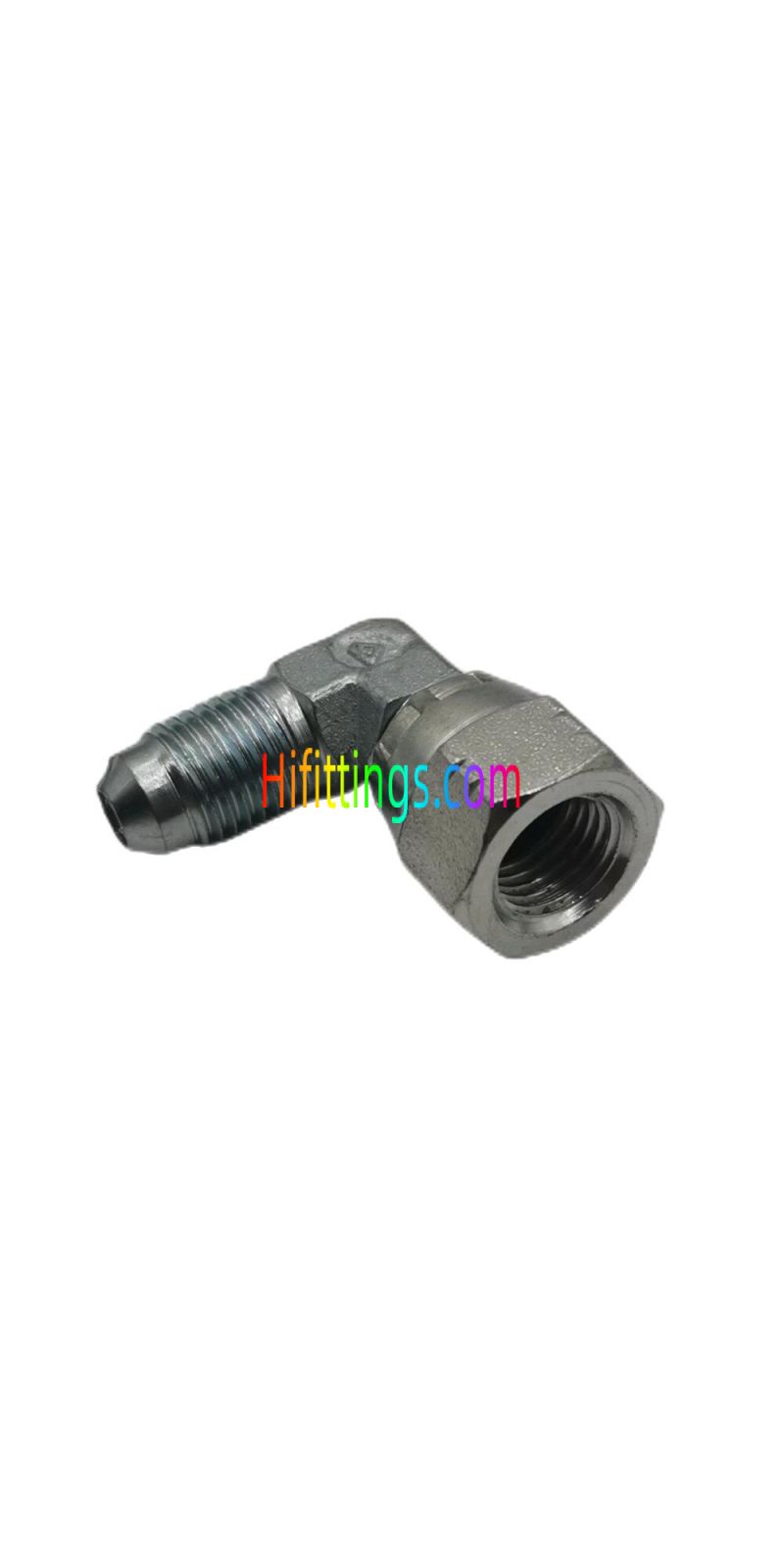

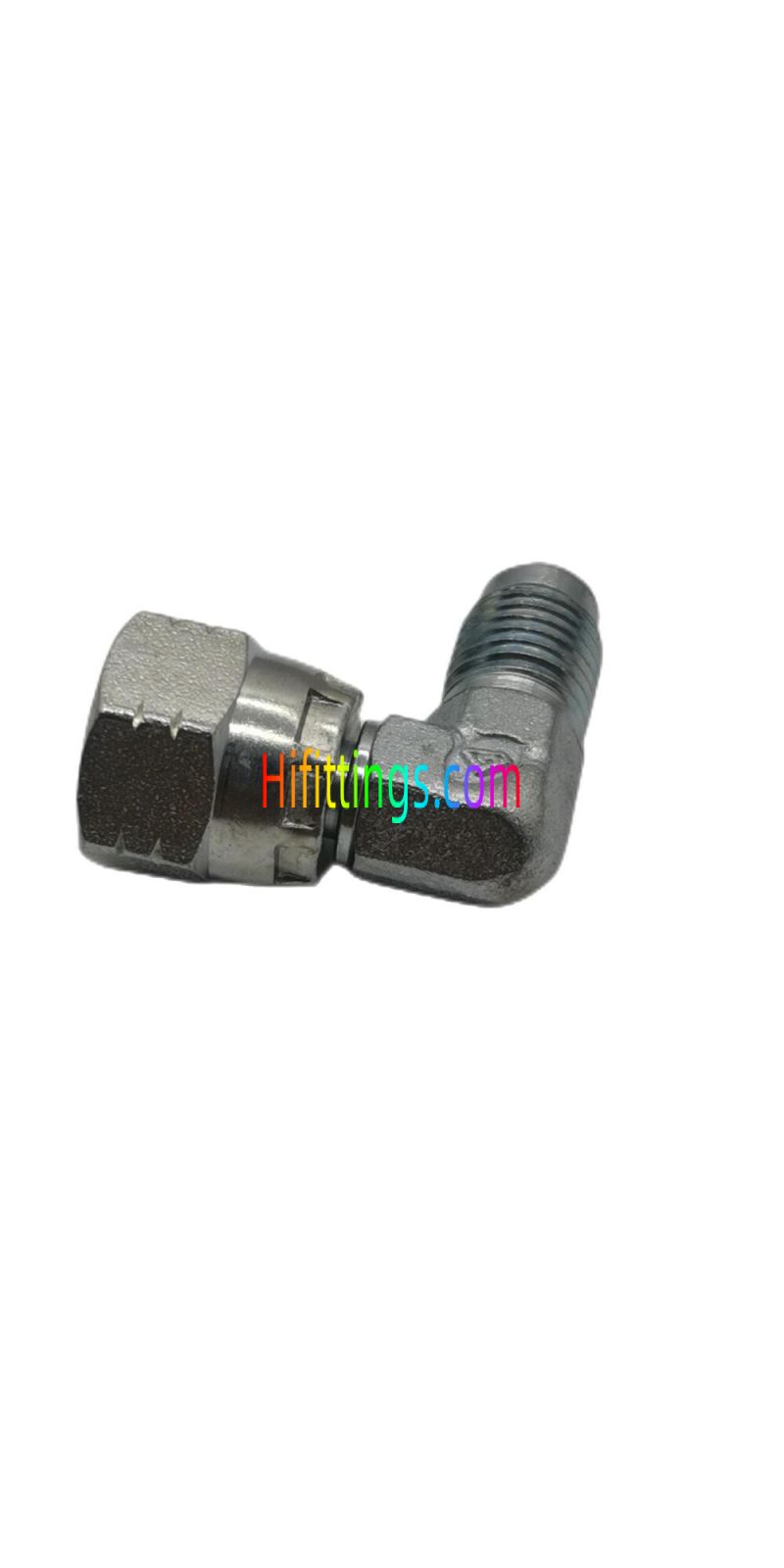

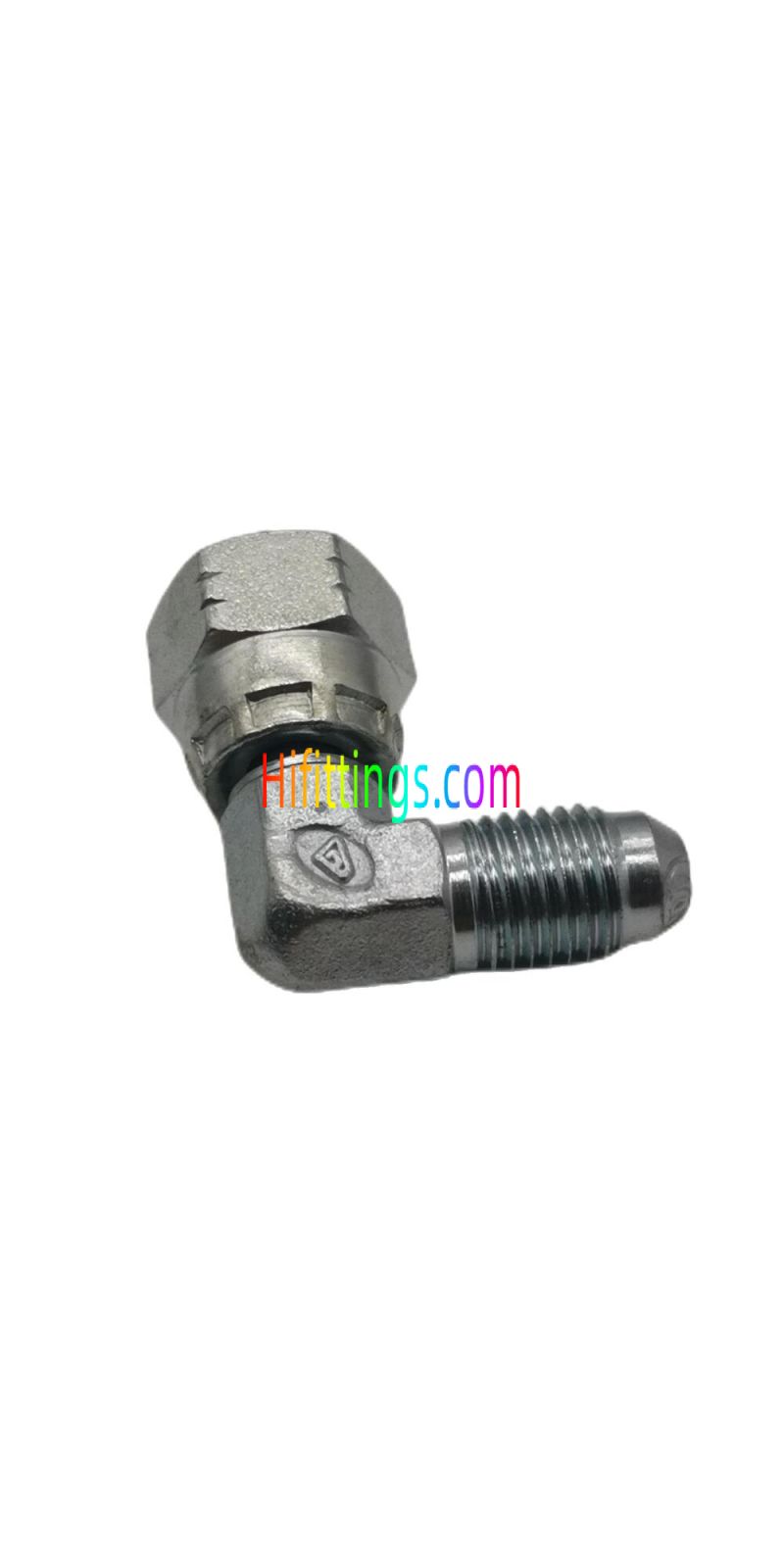

90° Elbow JIC Male 74° Cone / JIC Female 74° Seat Flared Tube Fittings 2J9
|
Part NO. |
E |
F |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
2J9-02 |
5/16"X24 |
5/16"X24 |
21 |
5.6 |
11 |
12 |
PN345 |
|
2J9-03 |
3/8"X24 |
3/8"X24 |
22 |
5 |
11 |
14 |
PN345 |
|
2J9-04 |
7/16"X20 |
7/16"X20 |
24.5 |
9 |
11 |
15 |
PN345 |
|
2J9-05 |
12X20 |
12X20 |
26.5 |
9.5 |
14 |
17 |
PN345 |
|
2J9-06 |
9/16"X18 |
9/16"X18 |
26.9 |
10.5 |
14 |
19 |
PN345 |
|
2J9-06-08 |
9/16"X18 |
3/4"X16 |
28.5 |
11 |
16 |
24 |
PN310 |
|
2J9-08-06 |
3/4"X16 |
9/16"X18 |
32 |
10.5 |
19 |
19 |
PN310 |
|
2J9-08 |
3/4"X16 |
3/4"X16 |
32 |
11 |
19 |
24 |
PN310 |
|
2J9-08-10 |
3/4"X16 |
7/8"X14 |
32 |
13 |
19 |
27 |
PN240 |
|
2J9-10 |
7/8"X14 |
7/8"X14 |
37.8 |
13 |
22 |
27 |
PN240 |
|
2J9-10-08 |
7/8"X14 |
3/4"X16 |
37.8 |
11 |
22 |
24 |
PN240 |
|
2J9-10-12 |
7/8"X14 |
1.1/16"X12 |
39.5 |
15 |
24 |
32 |
PN240 |
|
2J9-12 |
1.1/16"X12 |
1.1/16"X12 |
44.2 |
15 |
27 |
32 |
PN240 |
|
2J9-12-10 |
1.1/16"X12 |
7/8"X14 |
44.2 |
13 |
27 |
27 |
PN240 |
|
2J9-12-16 |
1.1/16"X12 |
1.5/16"X12 |
46 |
16 |
30 |
41 |
PN210 |
|
2J9-14 |
1.3/16"X12 |
1.3/16"X12 |
47.5 |
15 |
30 |
36 |
PN210 |
|
2J9-16 |
1.5/16"X12 |
1.5/16"X12 |
48.8 |
16 |
33 |
41 |
PN210 |
|
2J9-16-20 |
1.5/16"X12 |
1.5/8"X12 |
54 |
17 |
41 |
50 |
PN170 |
|
2J9-20-16 |
1.5/8"X12 |
1.5/16"X12 |
55.5 |
16 |
41 |
41 |
PN170 |
|
2J9-20 |
1.5/8"X12 |
1.5/8"X12 |
55.5 |
17 |
41 |
50 |
PN170 |
|
2J9-20-24 |
1.5/8"X12 |
1.7/8"X12 |
59.5 |
20 |
48 |
55 |
PN140 |
|
2J9-24-20 |
1.7/8"X12 |
1.5/8"X12 |
62.5 |
17 |
48 |
50 |
PN140 |
|
2J9-24 |
1.7/8"X12 |
1.7/8"X12 |
62.5 |
20 |
48 |
55 |
PN140 |
|
2J9-32 |
2.1/2"X12 |
2.1/2"X12 |
75.5 |
24.5 |
63 |
75 |
PN105 |
|
Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.PN = Nominal Pressure |
|||||||
| Form | Elbow |
|---|---|
| Fitting Typ | Cone Flared |
| Gewindetyp | Male-Female |
| Connection Type | JIC |
