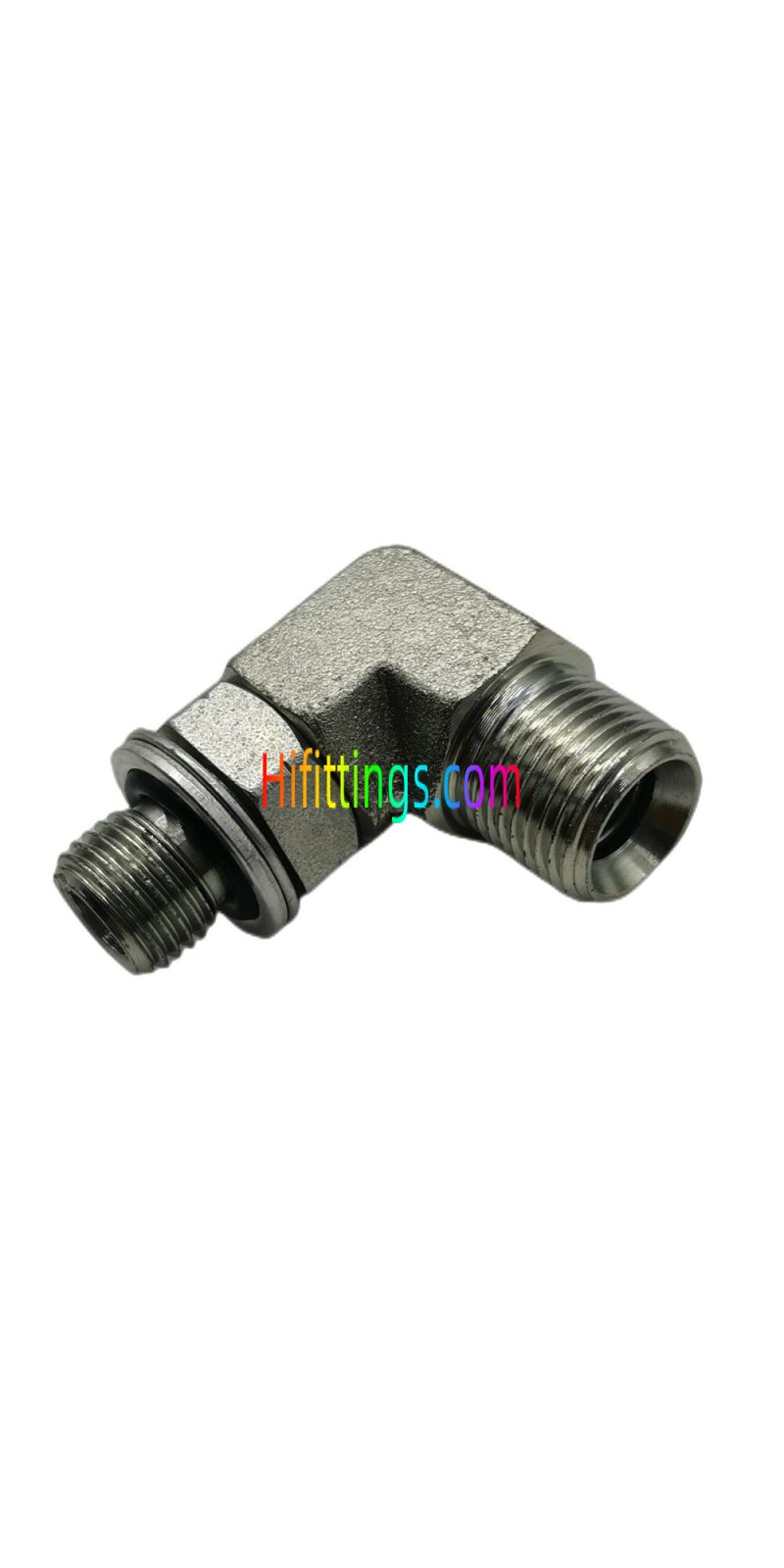

90°-Winkelstück mit metrischem BSP-Außengewinde und 60°-Konusverschraubung
46
Auf Lager
Nur noch %1 verfügbar
SKU
1BH9-OG
Guarantee safe & secure checkout
90° Elbow BSP Male 60° Seat / Metric Male L-Series ISO6149-3 Adapter Fittings
|
Part NO. |
E |
F |
F End |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
1BH9-02-10OG |
G1/8"X28 |
M10X1 |
O08.1X1.6 |
20 |
26.5 |
11 |
14 |
PN345 |
|
1BH9-02-12OG |
G1/8"X28 |
M12X1.5 |
O09.3X2.4 |
20 |
30.5 |
11 |
17 |
PN345 |
|
1BH9-04-12OG |
G1/4"X19 |
M12X1.5 |
O09.3X2.4 |
24.5 |
32 |
14 |
17 |
PN345 |
|
1BH9-04-14OG |
G1/4"X19 |
M14X1.5 |
O11.3X2.4 |
24.5 |
32.5 |
14 |
19 |
PN345 |
|
1BH9-04-16OG |
G1/4"X19 |
M16X1.5 |
O13.3X2.4 |
26.5 |
34.8 |
16 |
22 |
PN345 |
|
1BH9-06-14OG |
G3/8"X19 |
M14X1.5 |
O11.3X2.4 |
27.5 |
34 |
16 |
19 |
PN345 |
|
1BH9-06-16OG |
G3/8"X19 |
M16X1.5 |
O13.3X2.4 |
27.5 |
34.8 |
16 |
22 |
PN345 |
|
1BH9-06-18OG |
G3/8"X19 |
M18X1.5 |
O15.3X2.4 |
28.5 |
37 |
19 |
24 |
PN345 |
|
1BH9-08-18OG |
G1/2"X14 |
M18X1.5 |
O15.3X2.4 |
34.5 |
39.5 |
22 |
24 |
PN345 |
|
1BH9-08-22OG |
G1/2"X14 |
M22X1.5 |
O19.3X2.4 |
34.5 |
40.2 |
22 |
27 |
PN345 |
|
1BH9-10-22OG |
G5/8"X14 |
M22X1.5 |
O19.3X2.4 |
35 |
40.2 |
22 |
27 |
PN275 |
|
1BH9-12-22OG |
G3/4"X14 |
M22X1.5 |
O19.3X2.4 |
40 |
43.5 |
27 |
27 |
PN275 |
|
1BH9-12-27OG |
G3/4"X14 |
M27X2 |
O23.5X3.0 |
40 |
48.5 |
27 |
32 |
PN275 |
|
1BH9-16-27OG |
G1"X11 |
M27X2 |
O23.5X3.0 |
46 |
52 |
33 |
32 |
PN205 |
|
1BH9-16-33OG |
G1"X11 |
M33X2 |
O29.5X3.0 |
46 |
52.5 |
33 |
41 |
PN205 |
|
1BH9-20-42OG |
G1.1/4"X11 |
M42X2 |
O38.5X3.0 |
50.5 |
57.2 |
41 |
50 |
PN170 |
|
1BH9-24-48OG |
G1.1/2"X11 |
M48X2 |
O44.5X3.0 |
57.5 |
62.5 |
48 |
55 |
PN105 |
|
Note 1. fit for ISO 9974-1 port or ISO 6149-1 port when useless of retaining ring. 2. PN = Nominal Pressure |
||||||||
| Form | Elbow |
|---|---|
| Fitting Typ | Cone |
| Gewindetyp | Male |
| Connection Type | BSP, Metric |
