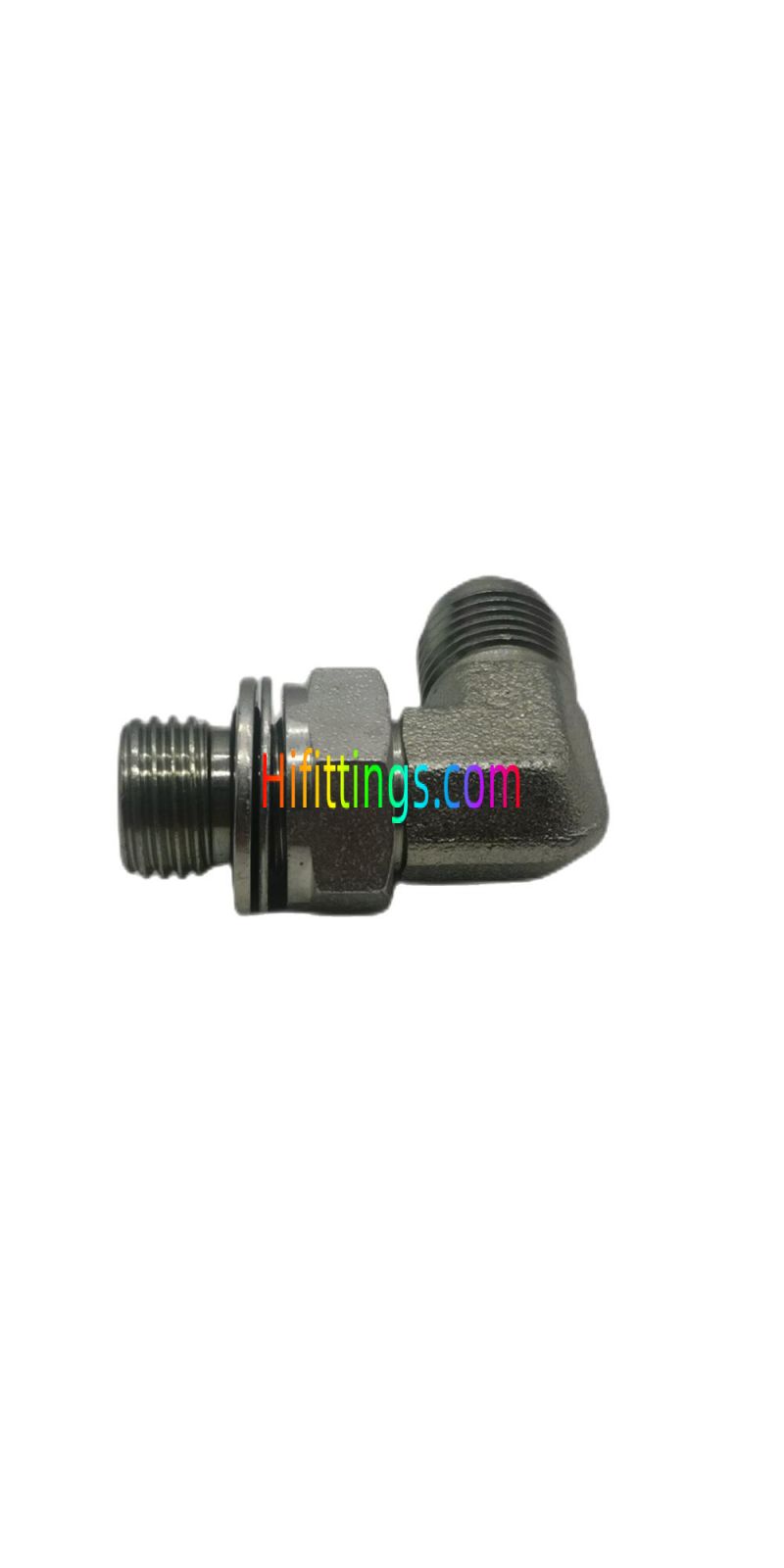

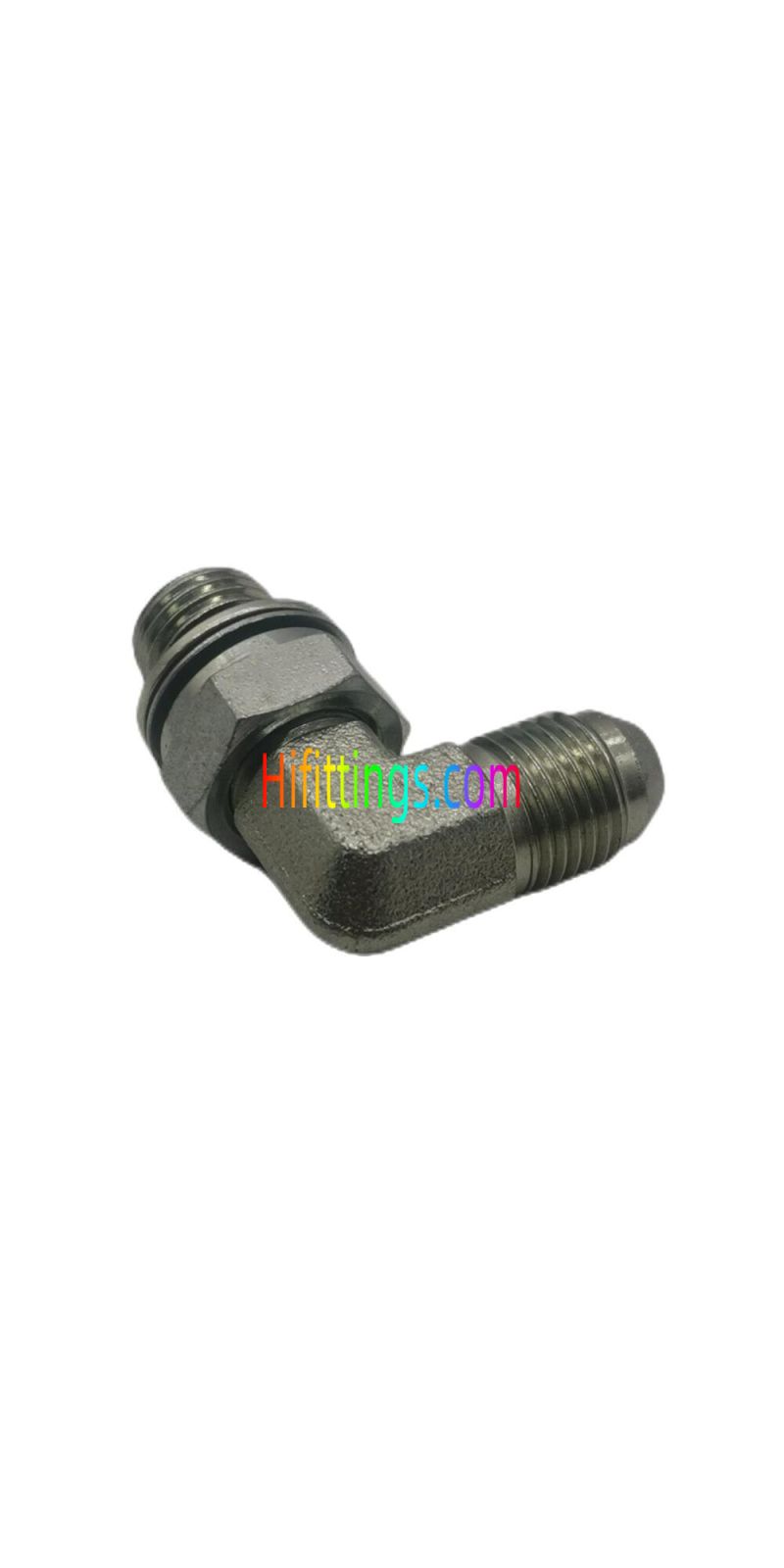

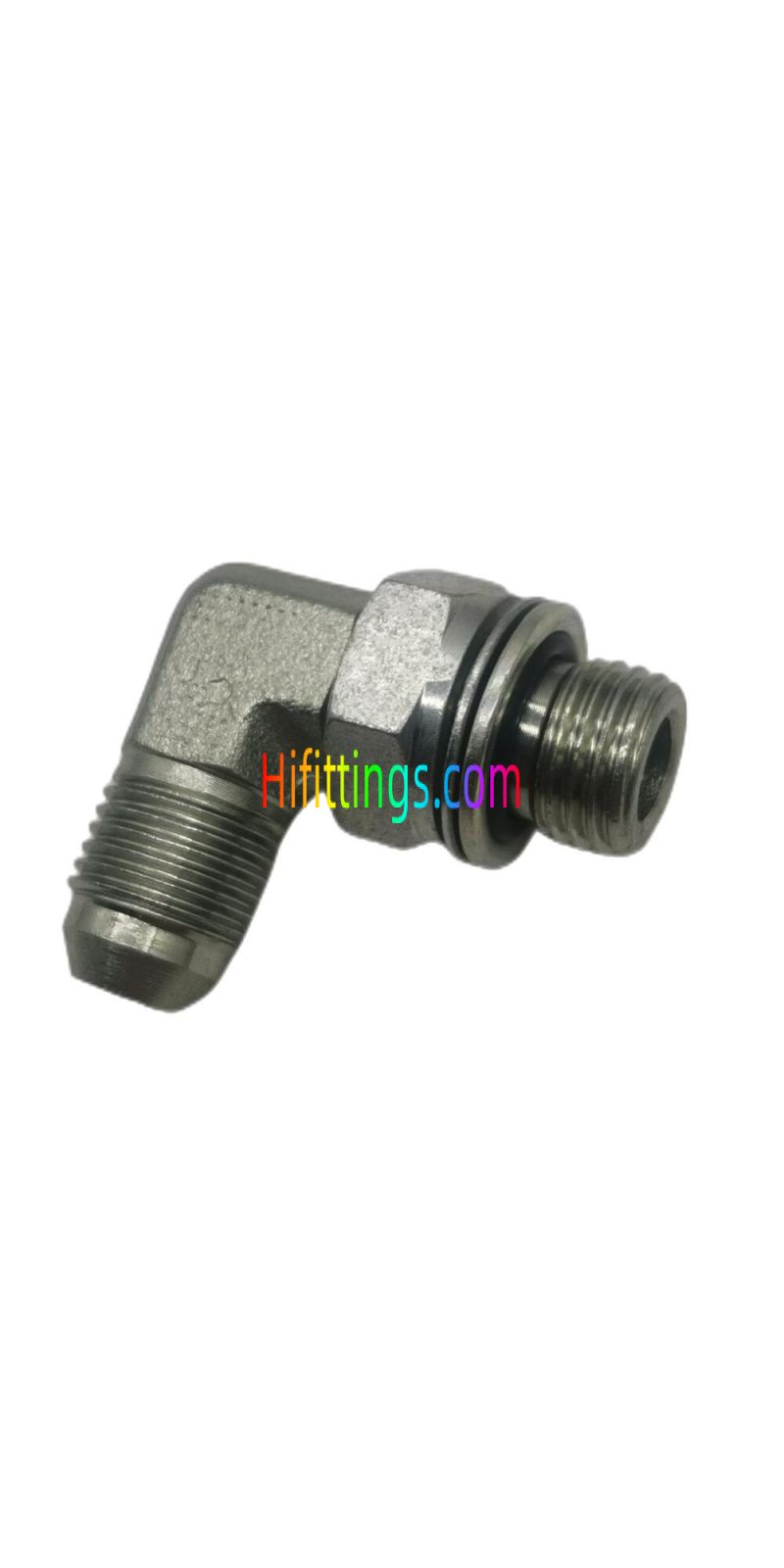

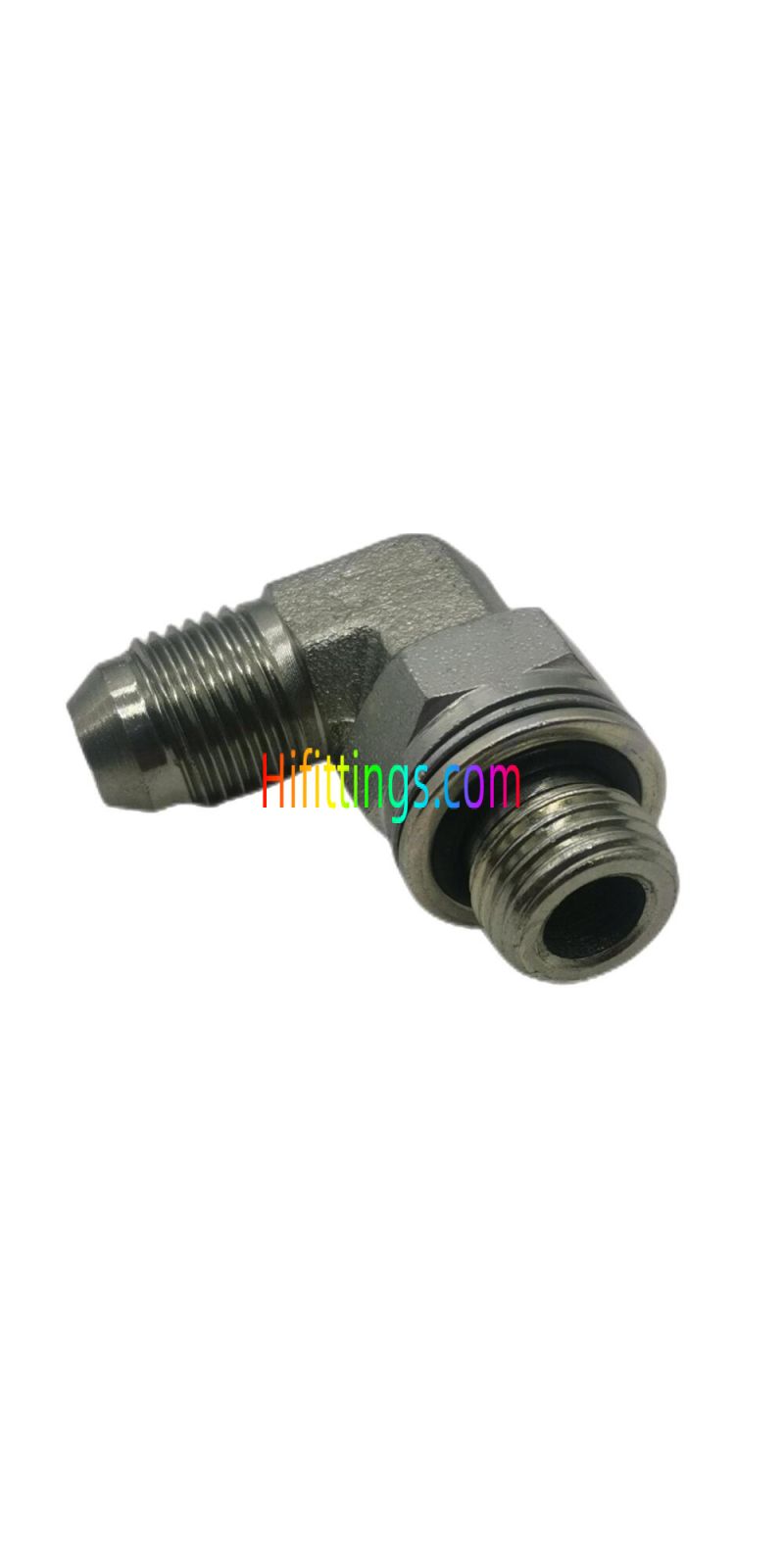

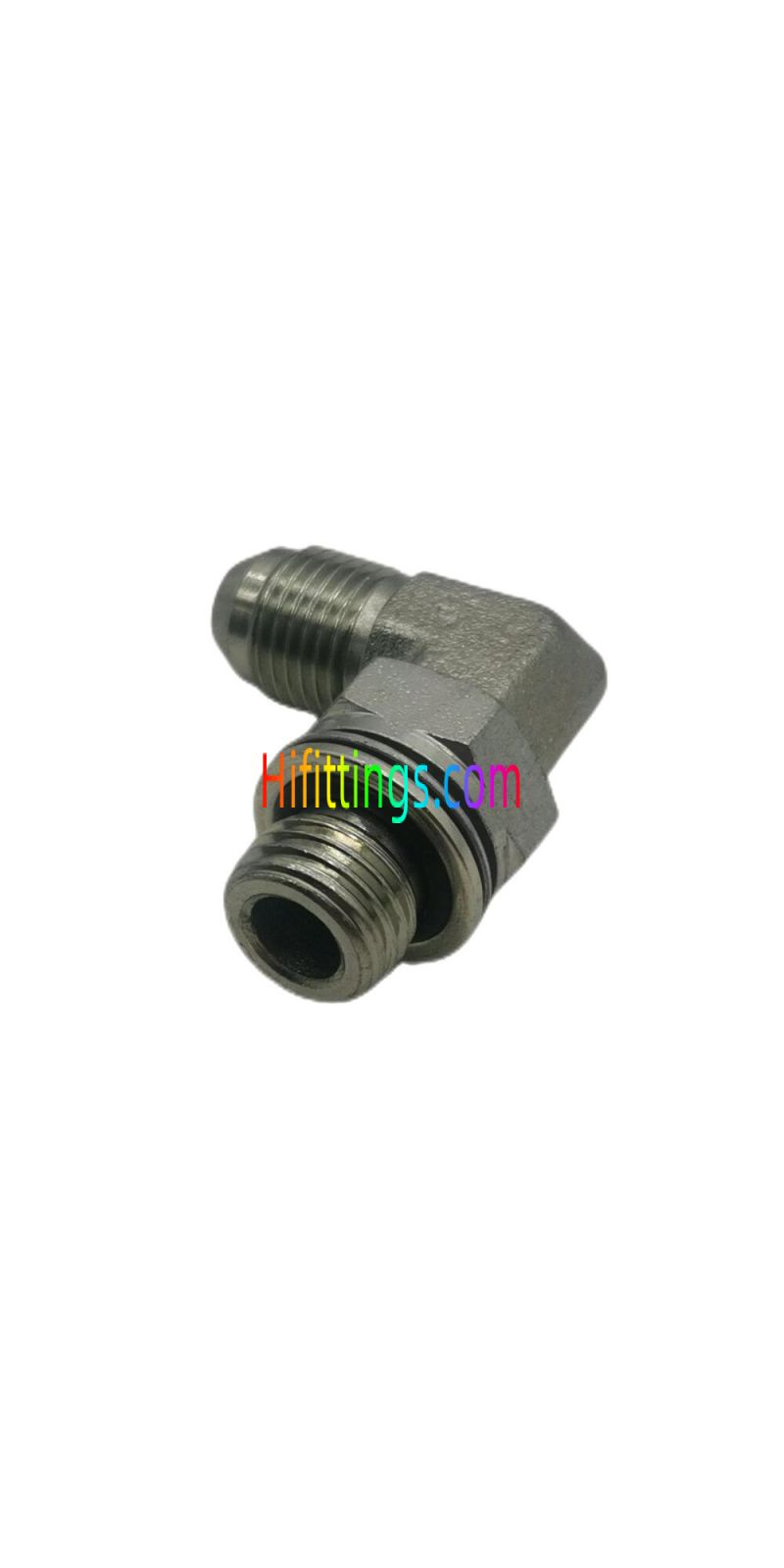

90° Elbow Adjustable Metric Male Stud End L-Series ISO 6149-3 / JIC Male 74° Cone Flared Hydraulic Adapter Tube Fittings 1JH9-OG
|
Part NO. |
E |
F |
F End |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
1JH9-04-10OG |
7/16"X20 |
M10X1 |
008.1X1.6 |
24.5 |
27.5 |
11 |
14 |
PN345 |
|
1JH9-04-12OG |
7/16"X20 |
M12X1.5 |
009.3X2:4 |
24.5 |
30.3 |
11 |
17 |
PN345 |
|
1JH9-04-14OG |
7/16"X20 |
M14X1.5 |
011.3X2.4 |
26.6 |
32 |
14 |
19 |
PN345 |
|
1JH9-05-10OG |
1/2"X20 |
M10X1 |
008.1X1.6 |
26.5 |
28.5 |
14 |
14 |
PN345 |
|
1JH9-05-12OG |
1/2"X20 |
M12X1.5 |
009.3X2.4 |
26.5 |
32 |
14 |
17 |
PN345 |
|
1JH9-05-14OG |
1/2"X20 |
M14X1.5 |
011.3X2.4 |
26.5 |
32 |
14 |
19 |
PN345 |
|
1JH9-06-14OG |
9/16"X18 |
M14X1.5 |
011.3X2.4 |
26.9 |
32 |
14 |
19 |
PN345 |
|
1JH9-06-16OG |
9/16"X18 |
M16X1.5 |
013.3X2.4 |
28 |
34.8 |
16 |
22 |
PN345 |
|
1JH9-06-18OG |
9/16"X18 |
M18X1.5 |
015.3X2.4 |
30 |
37 |
19 |
24 |
PN345 |
|
1JH9-08-16OG |
3/4"X16 |
M16X1.5 |
013.3X2.4 |
32 |
38 |
19 |
22 |
PN310 |
|
1JH9-08-18OG |
3/4"X16 |
M18X1.5 |
015.3X2.4 |
33 |
38 |
19 |
24 |
PN310 |
|
1JH9-08-22OG |
3/4"X16 |
M22X1.5 |
019.3X2.4 |
34.8 |
40.2 |
22 |
27 |
PN310 |
|
1JH9-10-16OG |
7/8"X14 |
M16X1.5 |
013.3X2.4 |
38 |
38 |
22 |
22 |
PN240 |
|
1JH9-10-18OG |
7/8"X14 |
M18X1.5 |
015.3X2.4 |
38 |
39.5 |
22 |
24 |
PN240 |
|
1JH9-10-22OG |
7/8"X14 |
M22X1.5 |
019.3X2.4 |
38 |
42.5 |
22 |
27 |
PN240 |
|
1JH9-12-22OG |
1.1/16"X12 |
M22X1.5 |
019.3X2.4 |
45 |
44 |
27 |
27 |
PN240 |
|
1JH9-12-27OG |
1.1/16"X12 |
M27X2 |
023.5X3.0 |
44.2 |
48.5 |
27 |
32 |
PN240 |
|
1JH9-16-27OG |
1.5/16"X12 |
M27X2 |
023.5X3.0 |
49 |
52 |
33 |
32 |
PN210 |
|
1JH9-16-33OG |
1.5/16"X12 |
M33X2 |
029.5X3.0 |
49 |
52.5 |
33 |
41 |
PN210 |
|
1JH9-20-42OG |
1.5/8"X12 |
M42X2 |
038.5X3.0 |
55.5 |
57.2 |
41 |
50 |
PN170 |
|
1JH9-24-48OG |
1.7/8"X12 |
M48X2 |
044.5X3.0 |
62.5 |
62.5 |
48 |
55 |
PN140 |
|
Note：1Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.F end is fit for ISO 9974-1 port or ISO 6149-1 port when useless of retaining ring. 3.PN = Nominal Pressure |
||||||||
| Form | Elbow |
|---|---|
| Fitting Typ | Cone Flared |
| Gewindetyp | Male |
| Connection Type | JIC, Metric |
