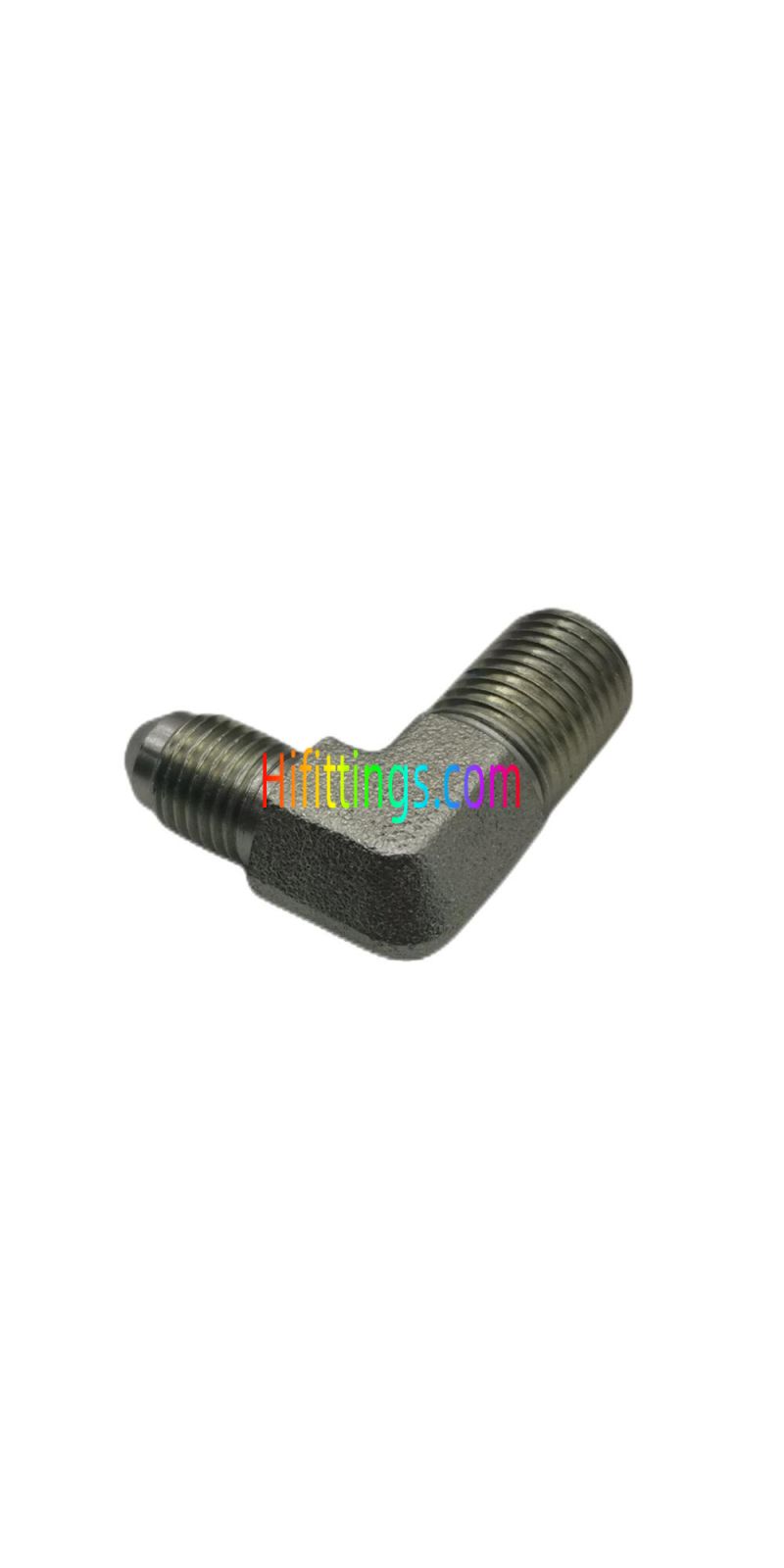

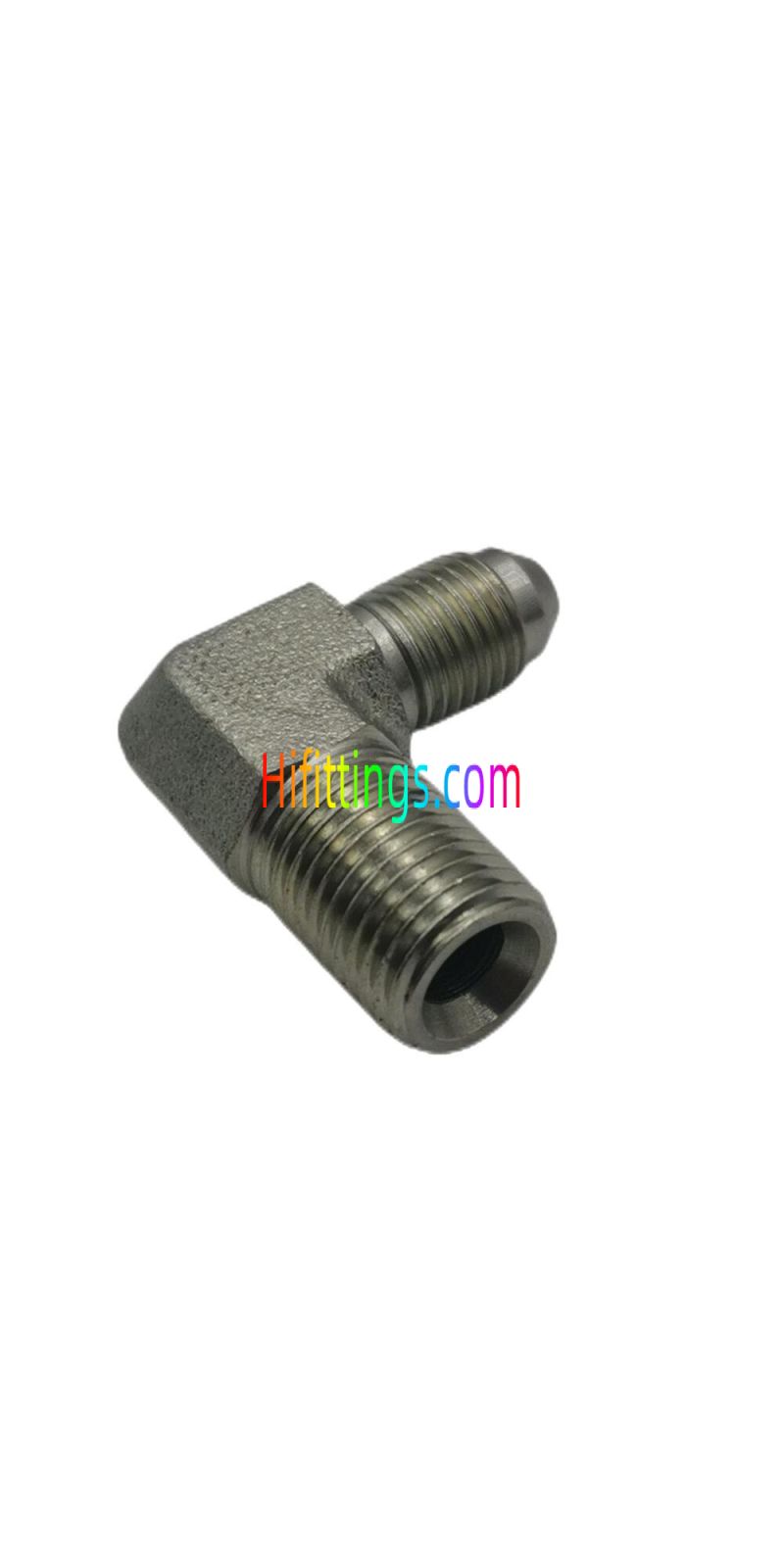

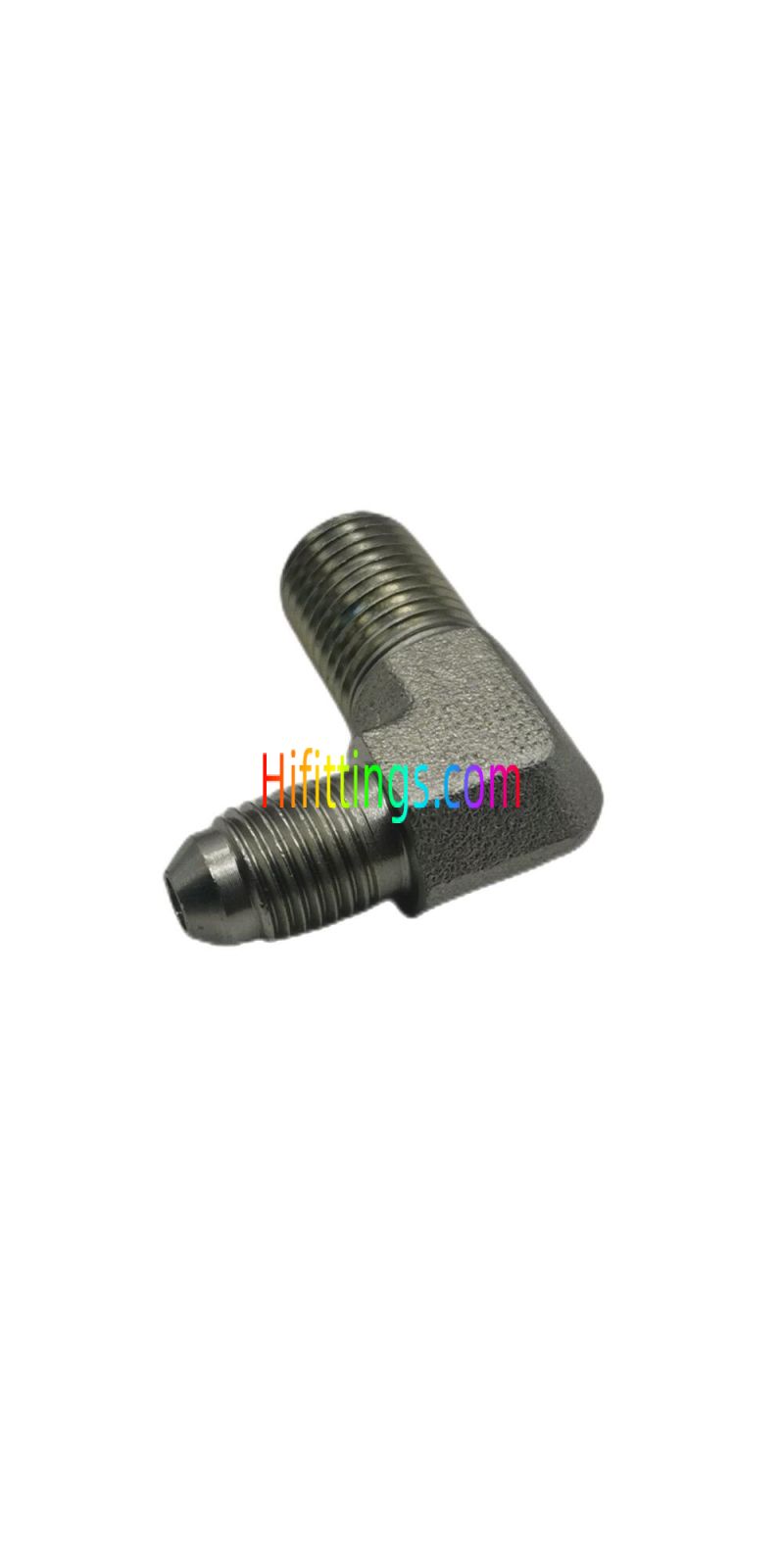

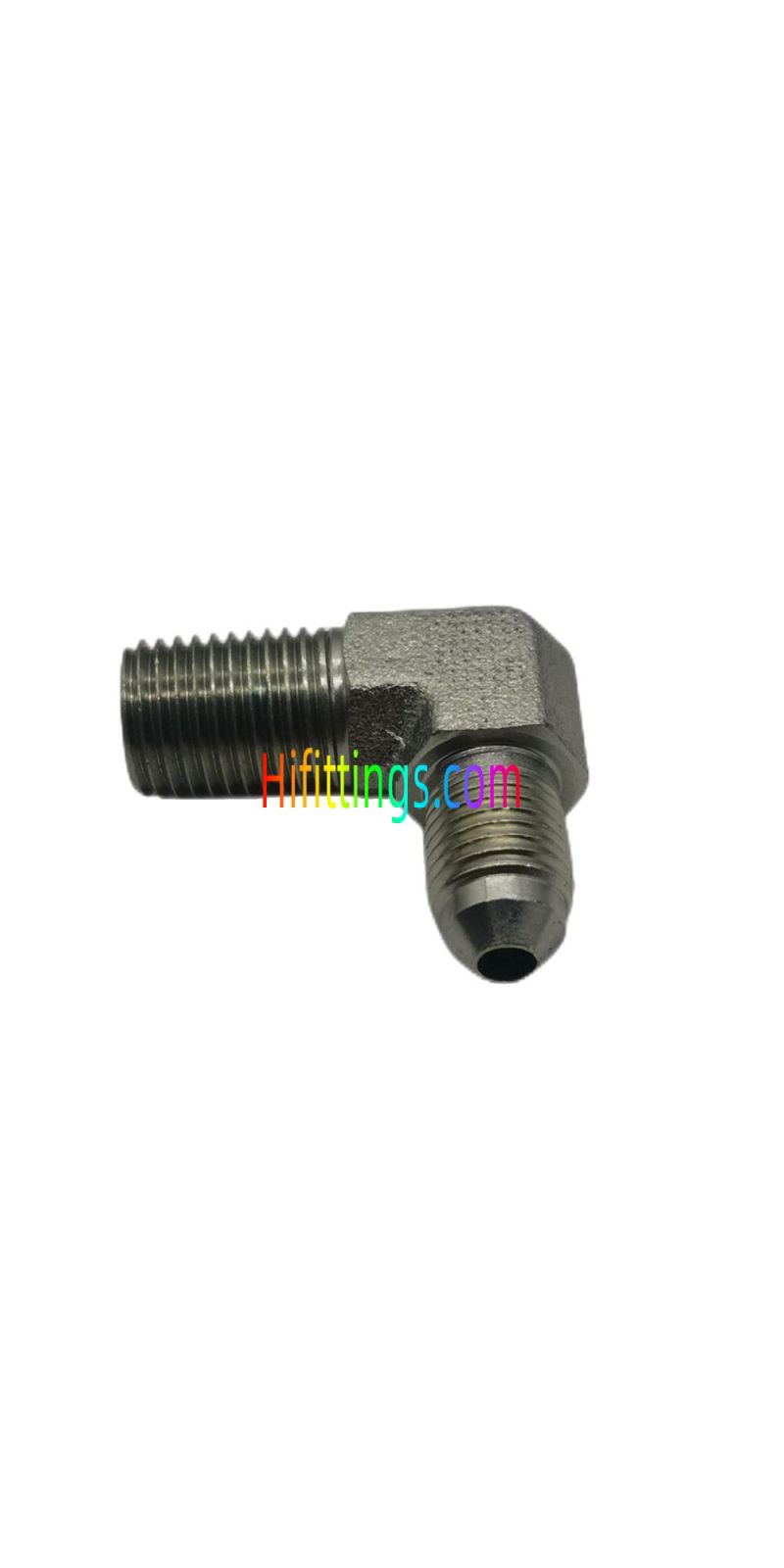

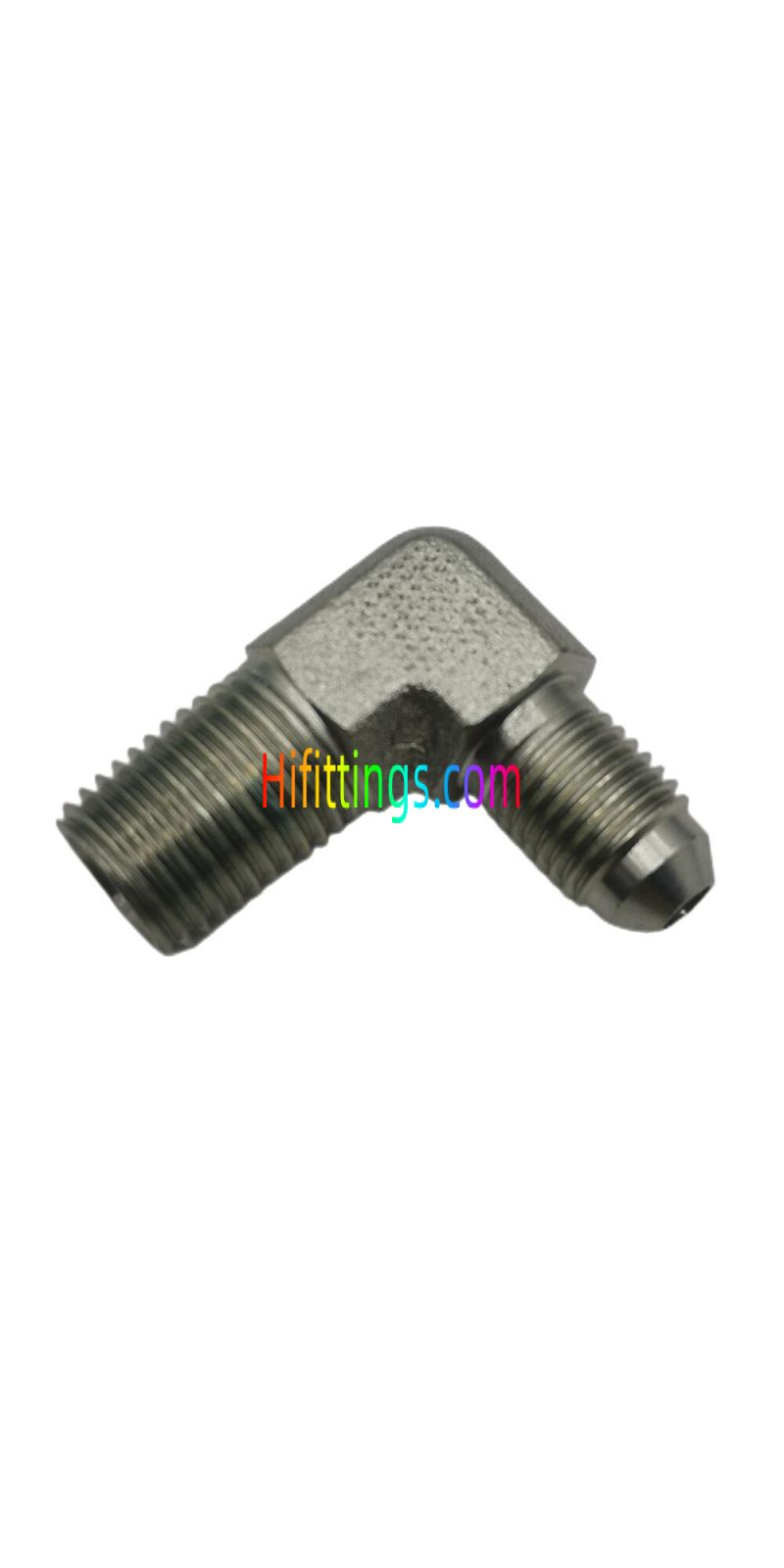

90 Degree Elbow NPT Male /JIC Male 74 Degree Cone Flared Hydraulic Tube Fittings 1JN9
|
Part NO. |
E |
F |
A |
B |
S1 |
Working Pressure bar |
|
1JN9-02 |
5/16"X24 |
Z1/8"X27 |
21 |
21 |
11 |
PN345 |
|
1JN9-03-02 |
3/8"X24 |
Z1/8"X27 |
22 |
21 |
11 |
PN345 |
|
1JN9-04 |
7/16"X20 |
Z1/4"X18 |
26.6 |
25.5 |
14 |
PN275 |
|
1JN9-04-02 |
7/16"X20 |
Z1/8"X27 |
24.5 |
21 |
11 |
PN345 |
|
1JN9-04-06 |
7/16"X20 |
Z3/8"X18 |
29.5 |
31 |
19 |
PN210 |
|
1JN9-05-02 |
1/2"X20 |
Z1/8"X27 |
26.6 |
23.5 |
14 |
PN345 |
|
1JN9-05-04 |
1/2"X20 |
Z1/4"X18 |
26.6 |
25.5 |
14 |
PN275 |
|
1JN9-05-06 |
1/2"X20 |
Z3/8"X18 |
29.5 |
31 |
19 |
PN210 |
|
1JN9-06 |
9/16"X18 |
Z3/8"X18 |
30 |
31 |
19 |
PN210 |
|
1JN9-06-04 |
9/16"X18 |
Z1/4"X18 |
26.9 |
25.5 |
14 |
PN275 |
|
1JN9-06-08 |
9/16"X18 |
Z1/2"X14 |
32 |
36.7 |
22 |
PN210 |
|
1JN9-08 |
3/4"X16 |
Z1/2"X14 |
34.8 |
37.3 |
22 |
PN210 |
|
1JN9-08-04 |
3/4"X16 |
Z1/4"X18 |
32 |
28.5 |
19 |
PN275 |
|
1JN9-08-06 |
3/4"X16 |
Z3/8"X18 |
32 |
31 |
19 |
PN210 |
|
1JN9-08-12 |
3/4"X16 |
Z3/4"X14 |
37.9 |
44 |
27 |
PN170 |
|
1JN9-10-06 |
7/8"X14 |
Z3/8"X18 |
37.8 |
32.5 |
22 |
PN210 |
|
1JN9-10-08 |
7/8"X14 |
Z1/2"X14 |
37.8 |
37.3 |
22 |
PN210 |
|
1JN9-10-12 |
7/8"X14 |
Z3/4"X14 |
41 |
44 |
27 |
PN170 |
|
1JN9-10-16 |
7/8"X14 |
Z1"X11.5 |
44.5 |
50 |
33 |
PN140 |
|
1JN9-12 |
1.1/16"X12 |
Z3/4"X14 |
44.2 |
44 |
27 |
PN170 |
|
1JN9-12-08 |
1.1/16"X12 |
Z1/2"X14 |
44.2 |
40 |
27 |
PN210 |
|
1JN9-12-16 |
1.1/16"X12 |
Z1"X11.5 |
49 |
50 |
33 |
PN140 |
|
1JN9-12-20 |
1.1/16"X12 |
Z1.1/4"X11.5 |
52.5 |
54.5 |
41 |
PN170 |
|
1JN9-14-12 |
1.3/16"X12 |
Z3/4"X14 |
47.5 |
45 |
30 |
PN170 |
|
1JN9-14-16 |
1.3/16"X12 |
Z1"X11.5 |
48.7 |
50 |
33 |
PN140 |
|
1JN9-16 |
1.5/16"X12 |
Z1"X11.5 |
49 |
50 |
33 |
PN140 |
|
1JN9-16-12 |
1.5/16"X12 |
Z3/4"X14 |
49 |
45.2 |
33 |
PN170 |
|
1JN9-16-20 |
1.5/16X12 |
Z1.1/4"X11.5 |
54 |
60.5 |
41 |
PN170 |
|
1JN9-16-24 |
1.5/16"X12 |
Z1.1/2"X11.5 |
59.4 |
59.5 |
48 |
PN70 |
|
1JN9-20 |
1.5/8"X12 |
Z1.1/4"X11.5 |
55.5 |
54.5 |
41 |
PN170 |
|
1JN9-20-16 |
1.5/8"X12 |
Z1"X11.5 |
55.5 |
54.5 |
41 |
PN140 |
|
1JN9-20-24 |
1.5/8"X12 |
Z1.1/2"X11.5 |
59.4 |
63 |
48 |
PN70 |
|
1JN9-24 |
1.7/8"X12 |
Z1.1/2"X11.5 |
62.5 |
63 |
48 |
PN70 |
|
1JN9-24-20 |
1.7/8"X12 |
Z1.1/4"X11.5 |
62.5 |
63 |
48 |
PN170 |
|
1JN9-32-24 |
2.1/2"X12 |
Z1.1/2"X11,5 |
75.4 |
70 |
63 |
PN70 |
|
1JN9-32 |
2.1/2"X12 |
Z2"X11.5 |
75.4 |
67.5 |
63 |
PN70 |
|
Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.PN = Nominal Pressure |
||||||
| Form | Elbow |
|---|---|
| Fitting Typ | Cone Flared |
| Gewindetyp | Male |
| Connection Type | JIC, NPT |
