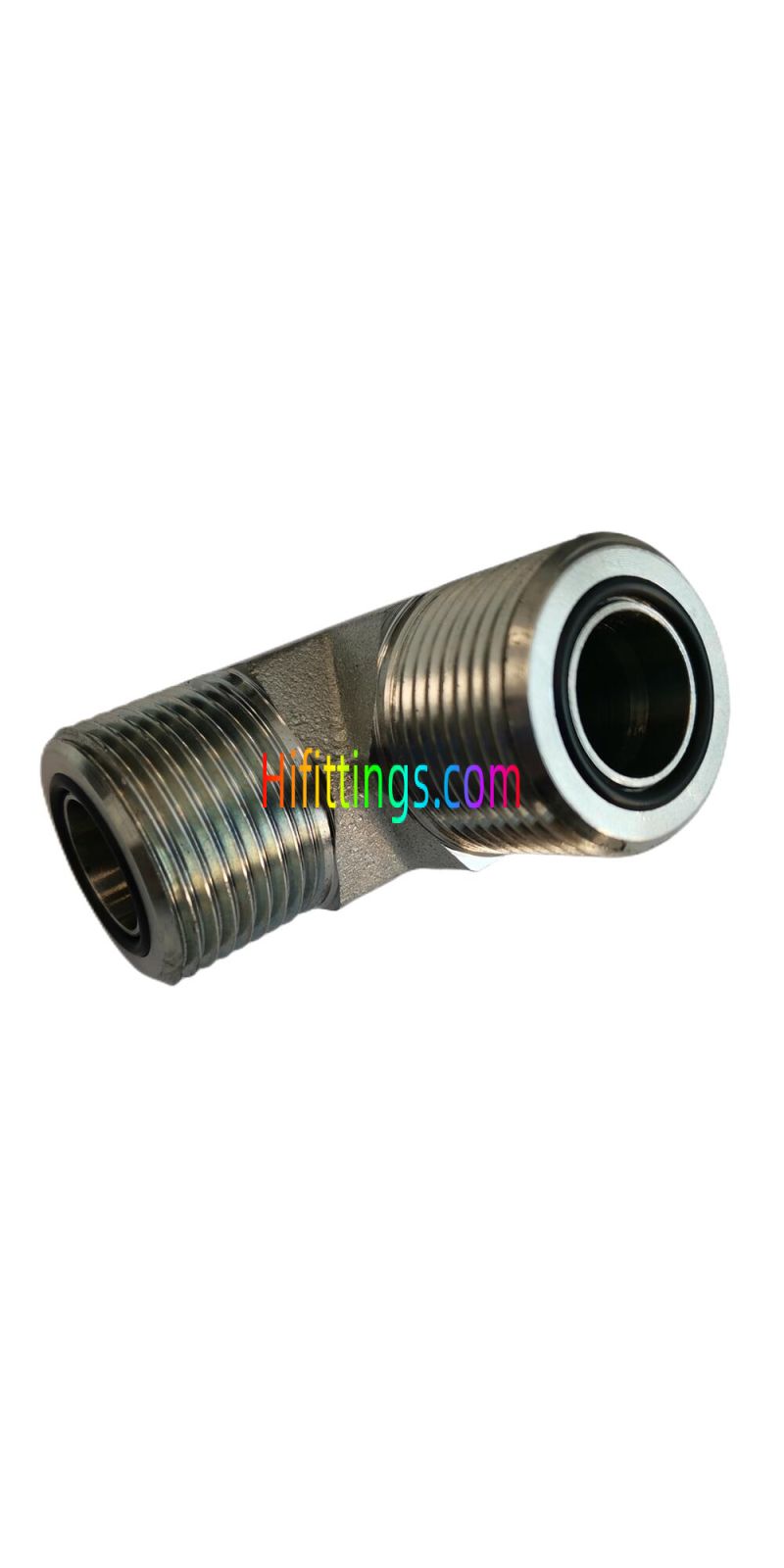

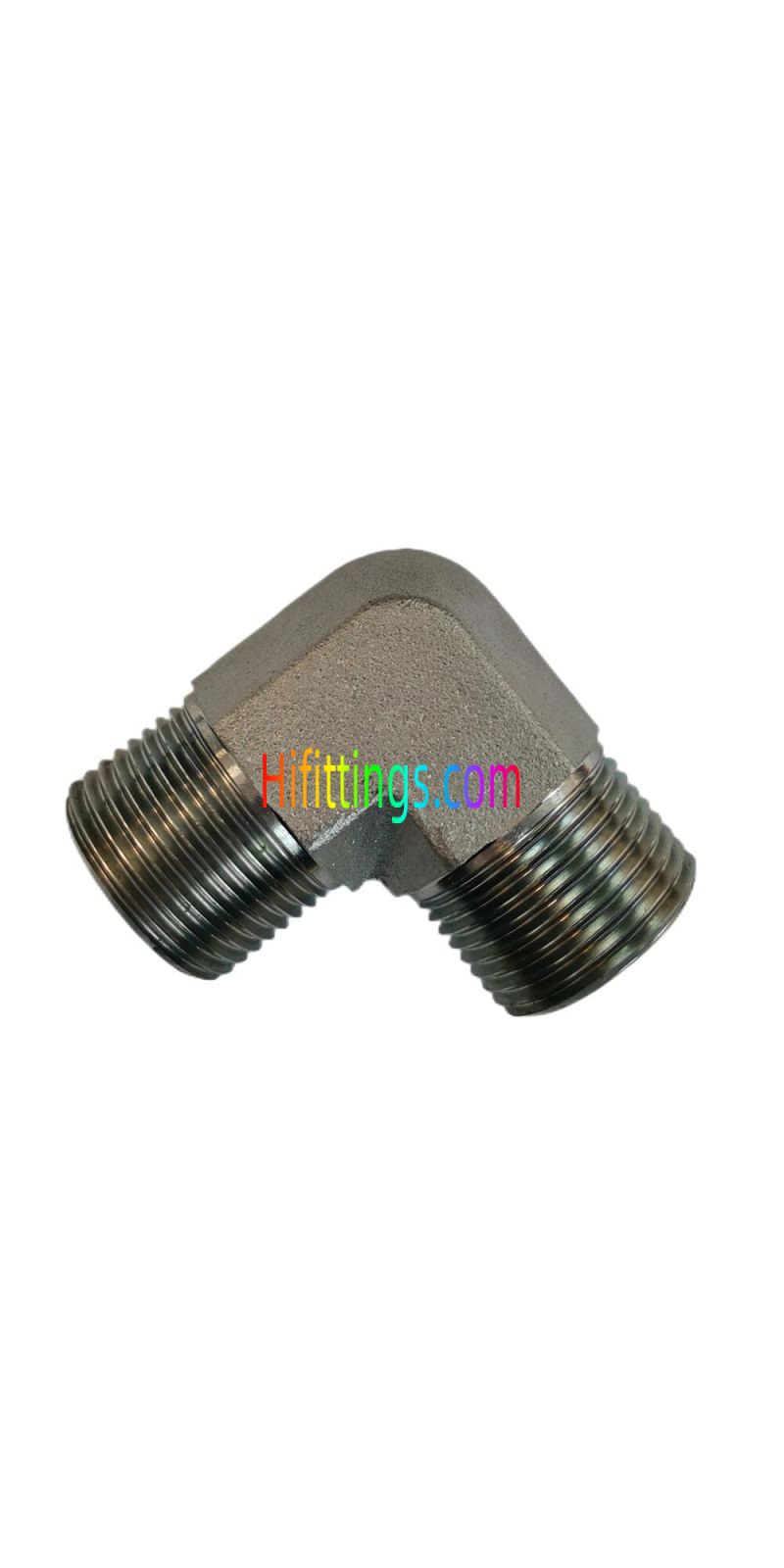

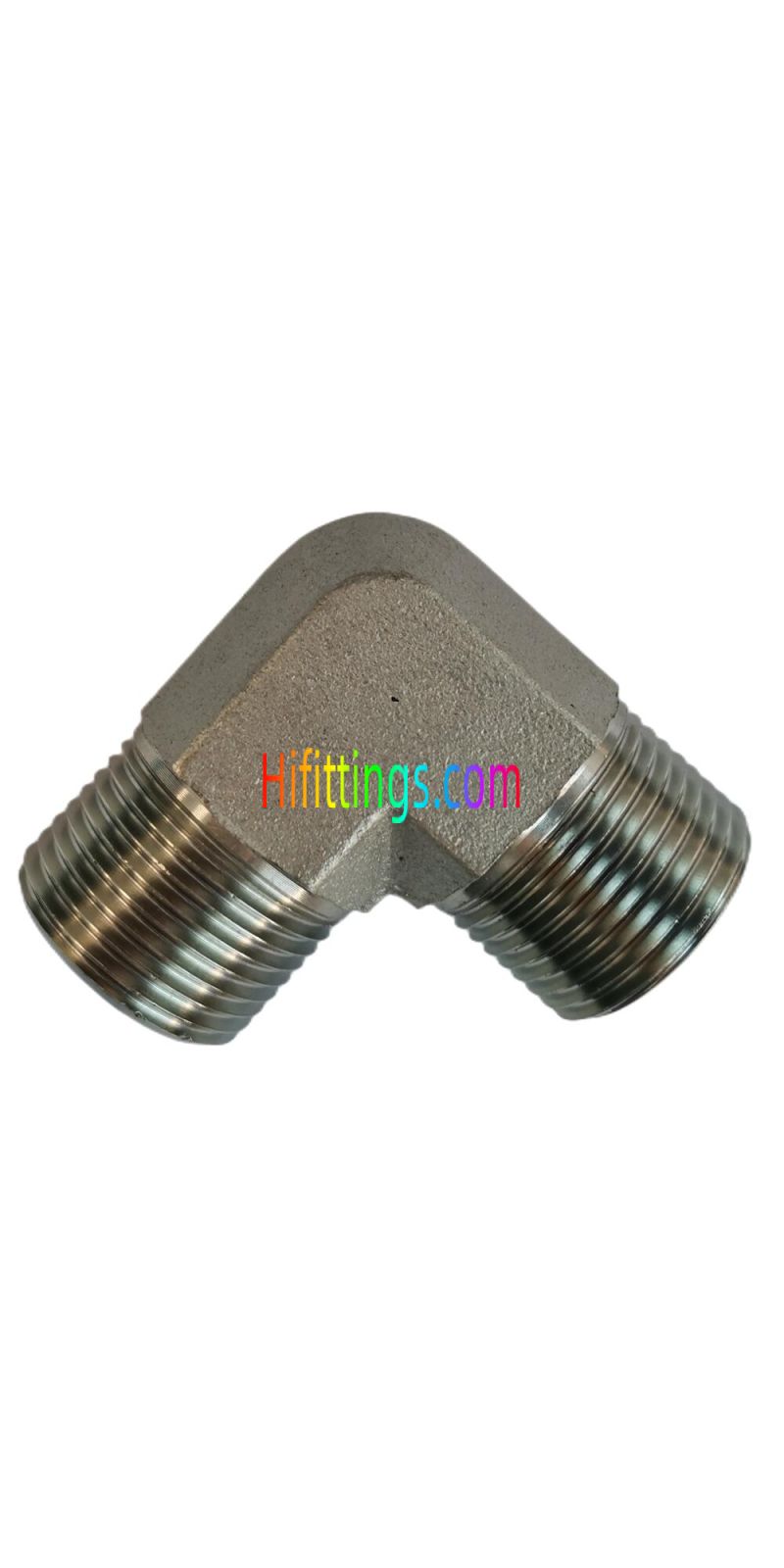

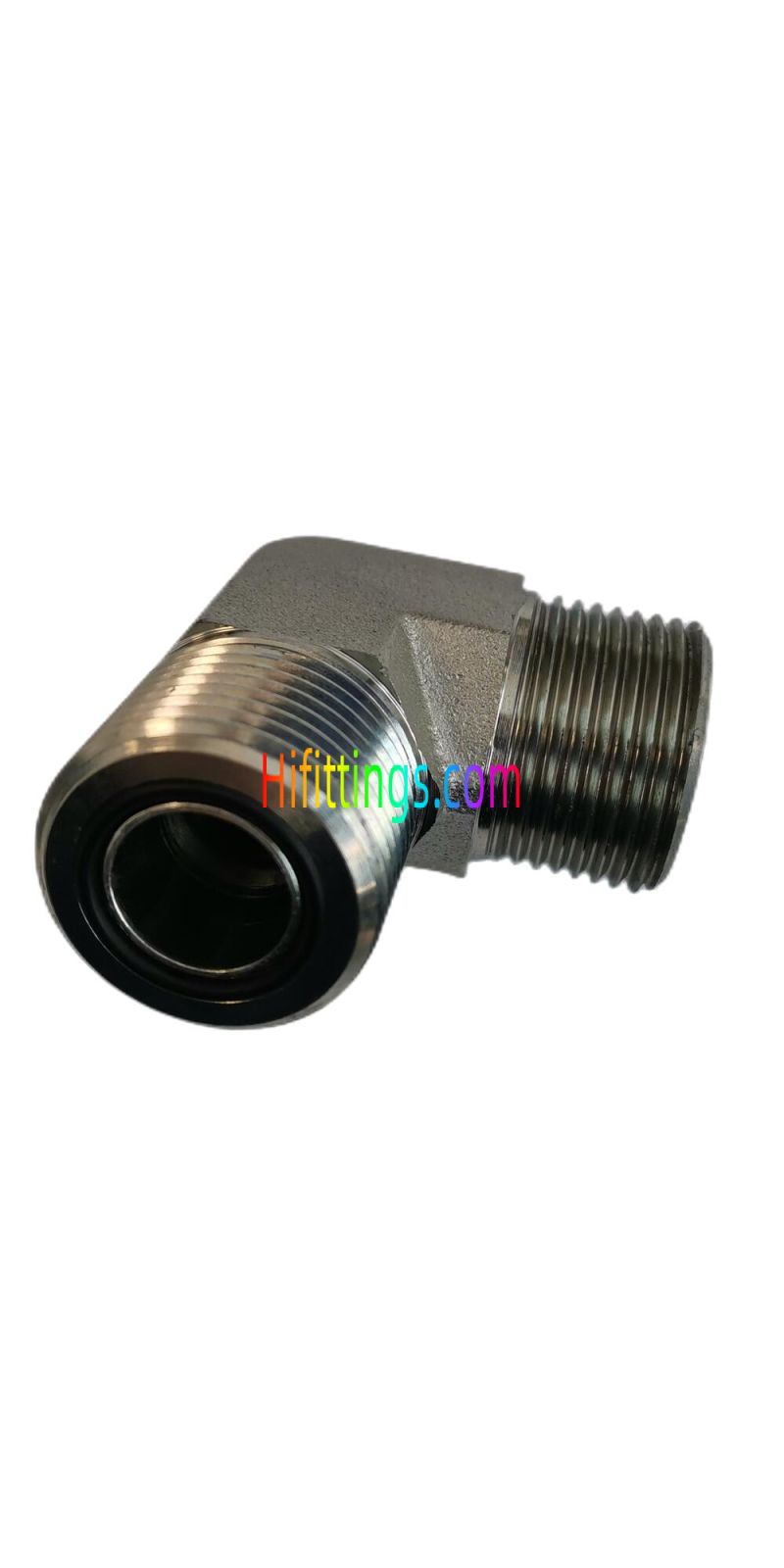

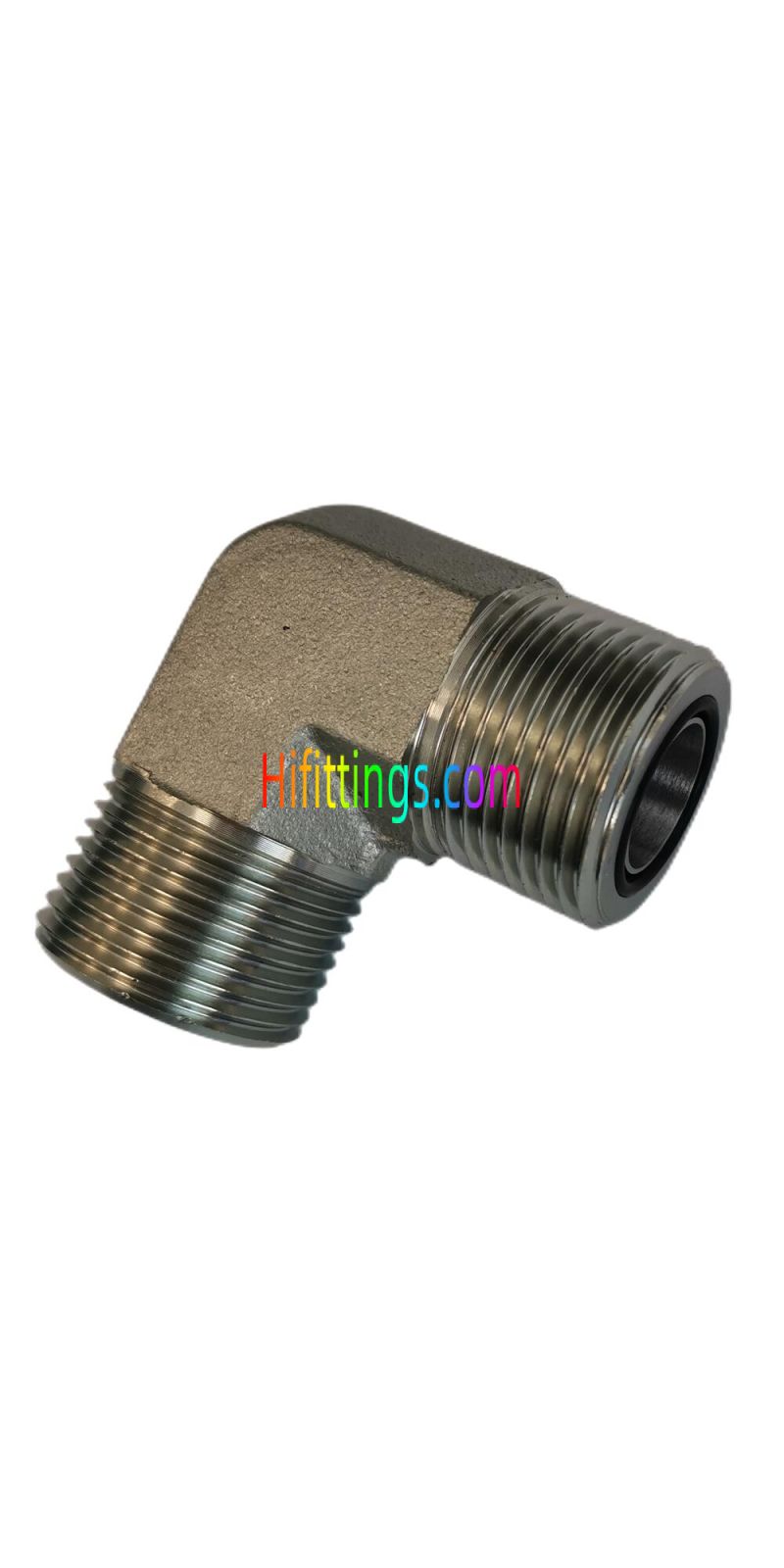

90°-Bogen ORFS-Verschraubungen mit O-Ring-Außengewinde1F9
27
Auf Lager
Nur noch %1 verfügbar
SKU
1F9
Guarantee safe & secure checkout
90 Degree Elbow ORFS Male O-Ring Hydraulic Pipe Fittings 1F9
|
Part NO. |
E |
F |
E End |
F End |
A |
B |
S1 |
Working Pressure bar |
|
1F9-04 |
9/16"X18 |
9/16"X18 |
11 |
11 |
23 |
23 |
14 |
PN630 |
|
1F9-04-06 |
9/16"X18 |
11/16"X16 |
11 |
12 |
25.5 |
27 |
19 |
PN630 |
|
1F9-06 |
11/16"X16 |
11/16"X16 |
12 |
12 |
27.5 |
27.5 |
19 |
PN630 |
|
1F9-06-08 |
11/16"X16 |
13/16"X16 |
12 |
14 |
29 |
31 |
22 |
PN630 |
|
1F9-08 |
13/16"X16 |
13/16"X16 |
14 |
14 |
31 |
31 |
22 |
PN630 |
|
1F9-08-12 |
13/16"X16 |
1.3/16"X12 |
14 |
18 |
35.5 |
40.3 |
30 |
PN400 |
|
1F9-10 |
1"X14 |
1"X14 |
16 |
16 |
36.5 |
36.5 |
27 |
PN400 |
|
1F9-12 |
1.3/16"X12 |
1.3/16"X12 |
18 |
18 |
41 |
41 |
30 |
PN400 |
|
1F9-16 |
1.7/16"X12 |
1.7/16"X12 |
21 |
21 |
44.5 |
44.5 |
36 |
PN400 |
|
1F9-20 |
1.11/16"X12 |
1.11/16"X12 |
25 |
25 |
47.5 |
47.5 |
41 |
PN250 |
|
1F9-24 |
2"X12 |
2"X12 |
29 |
29 |
53.5 |
53.5 |
50 |
PN250 |
| Form | Elbow |
|---|---|
| Fitting Typ | Face Seal |
| Gewindetyp | Male |
| Connection Type | ORFS |
