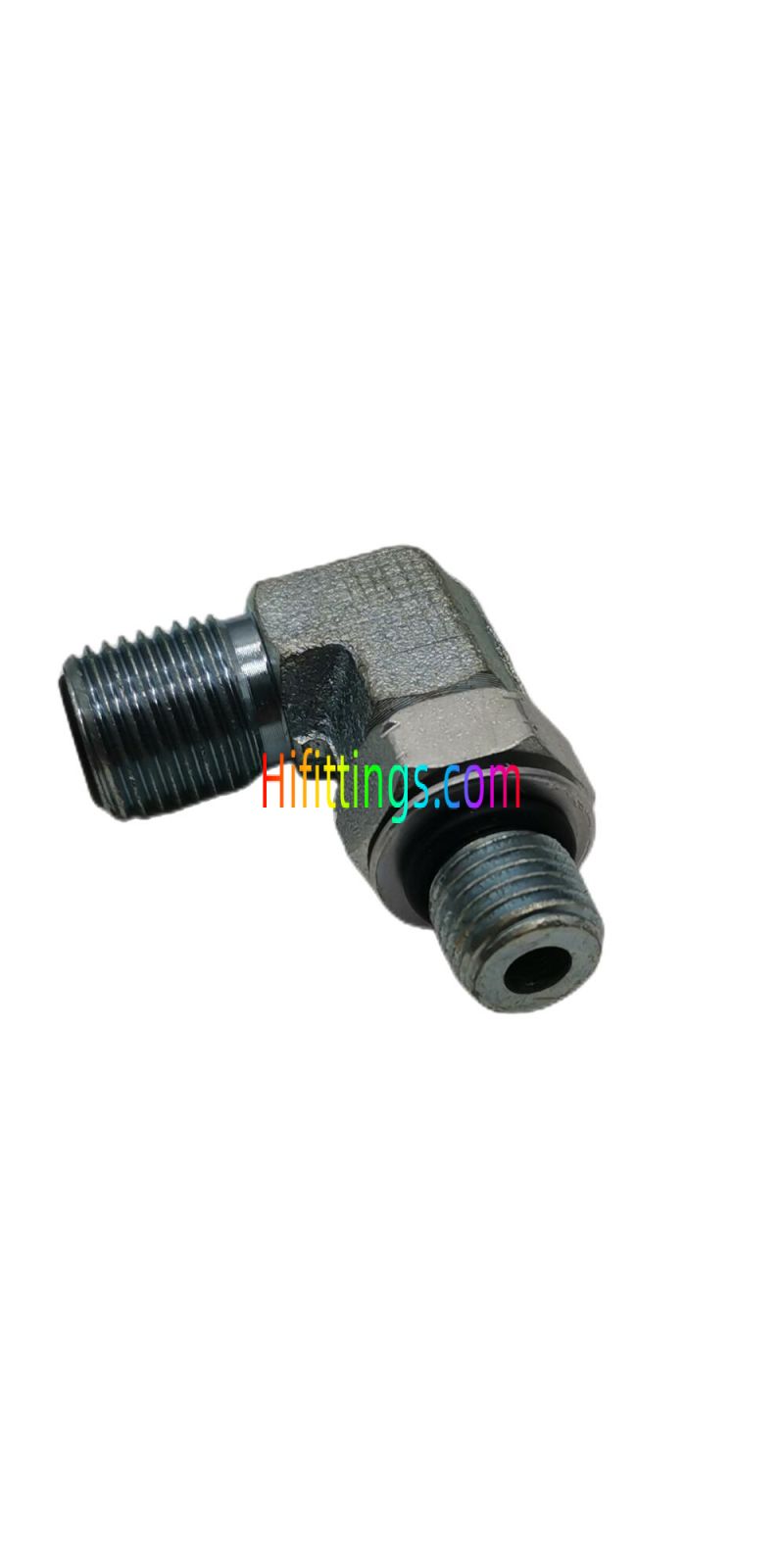

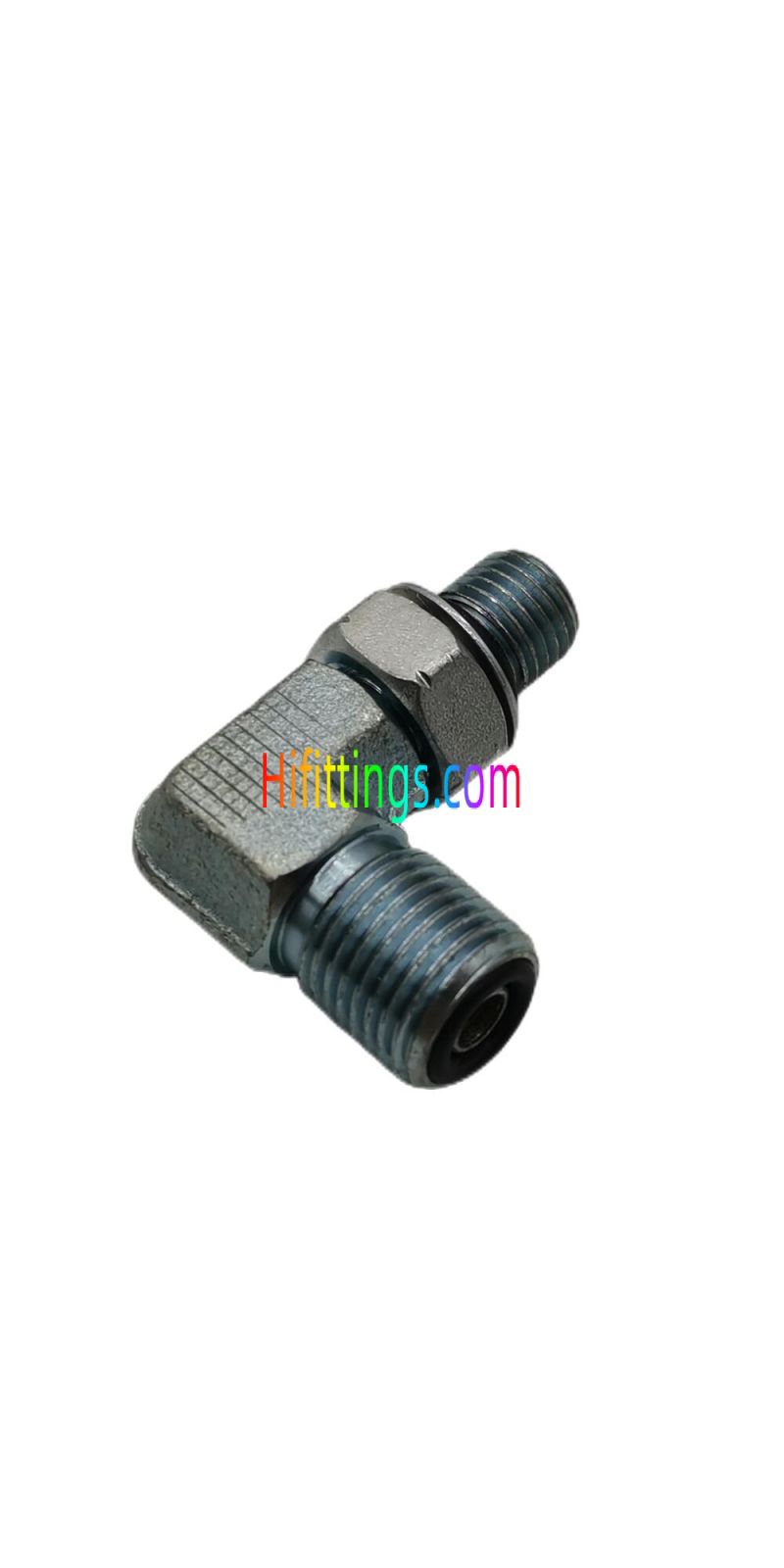

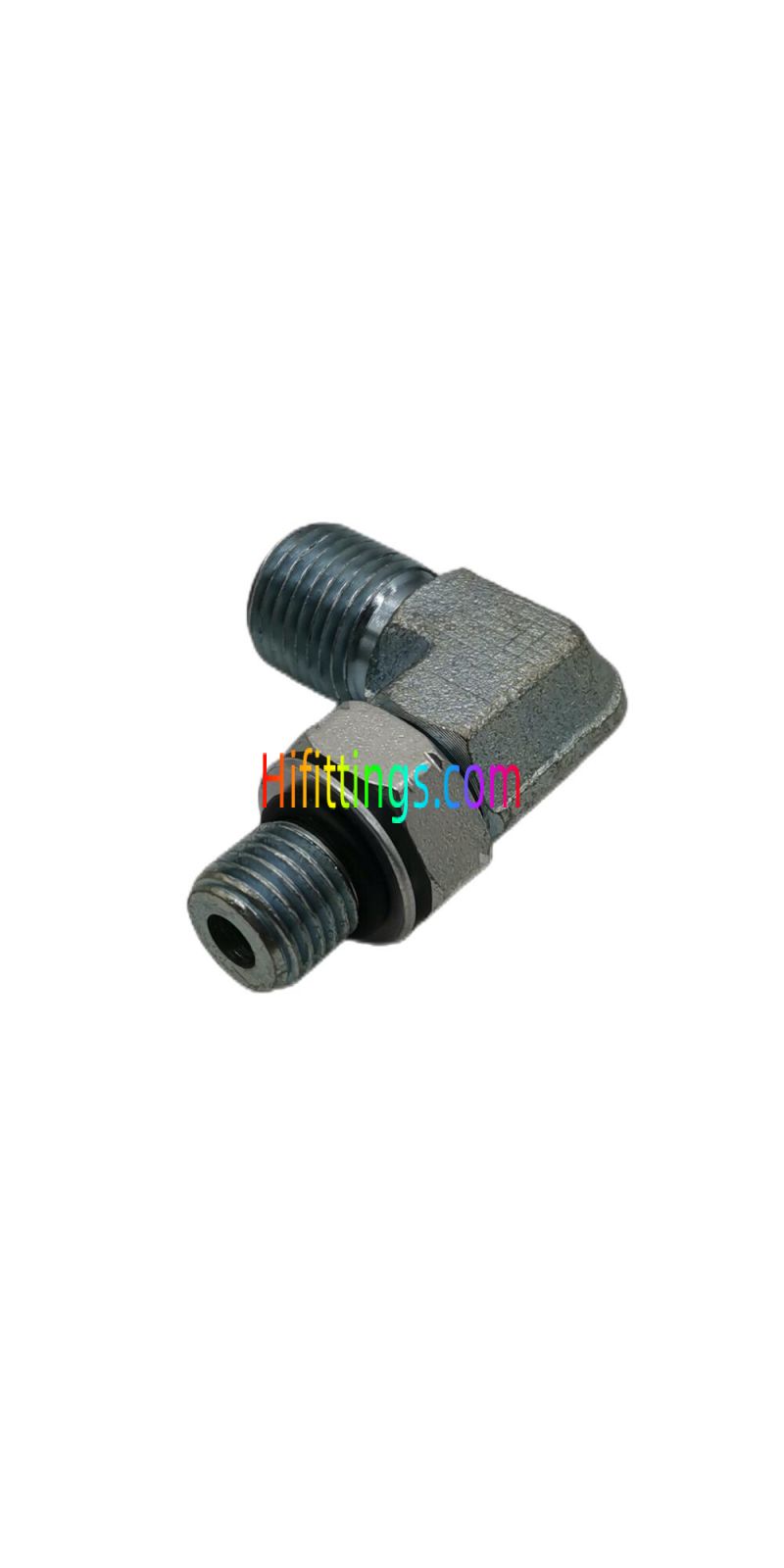

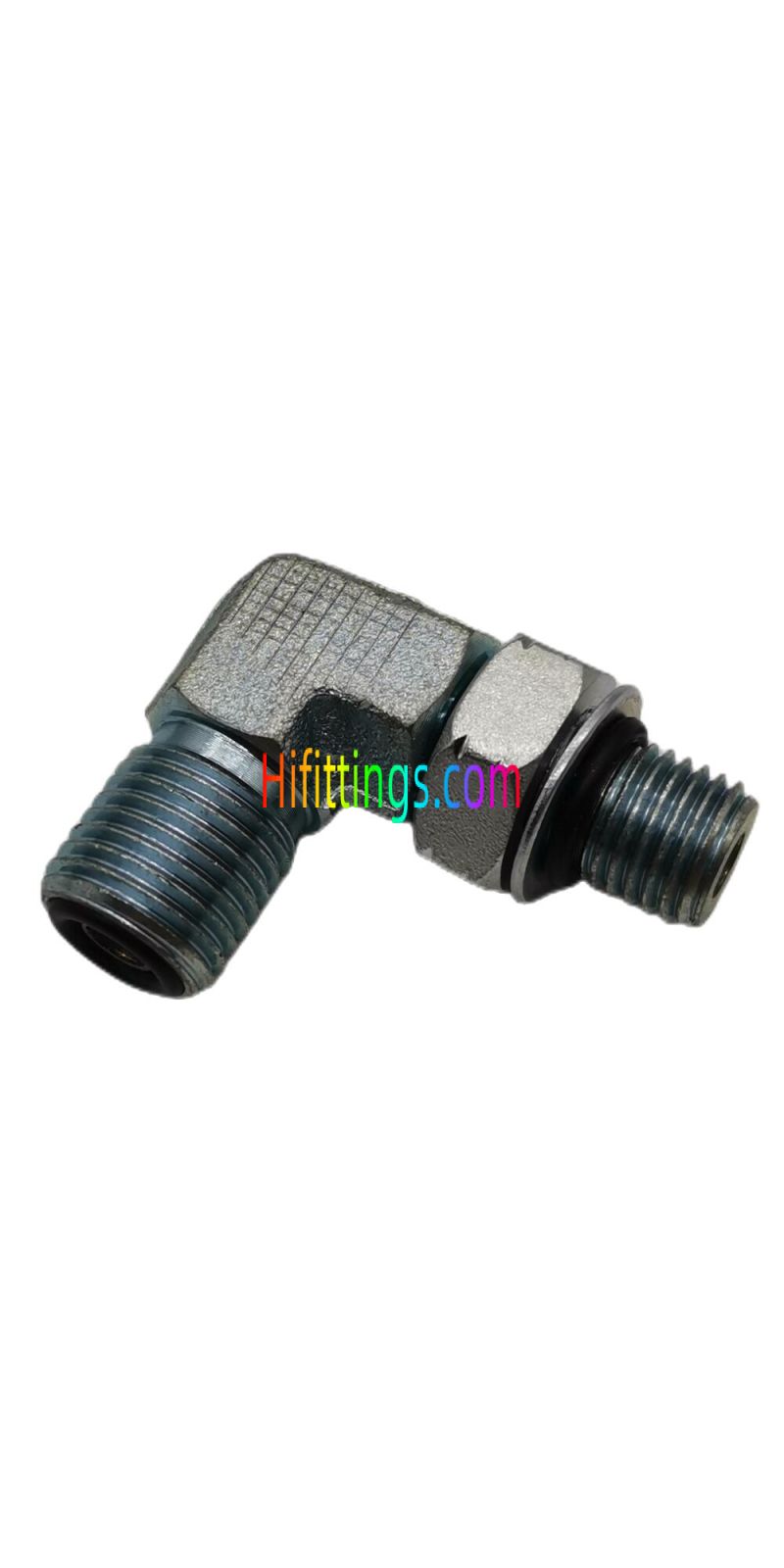

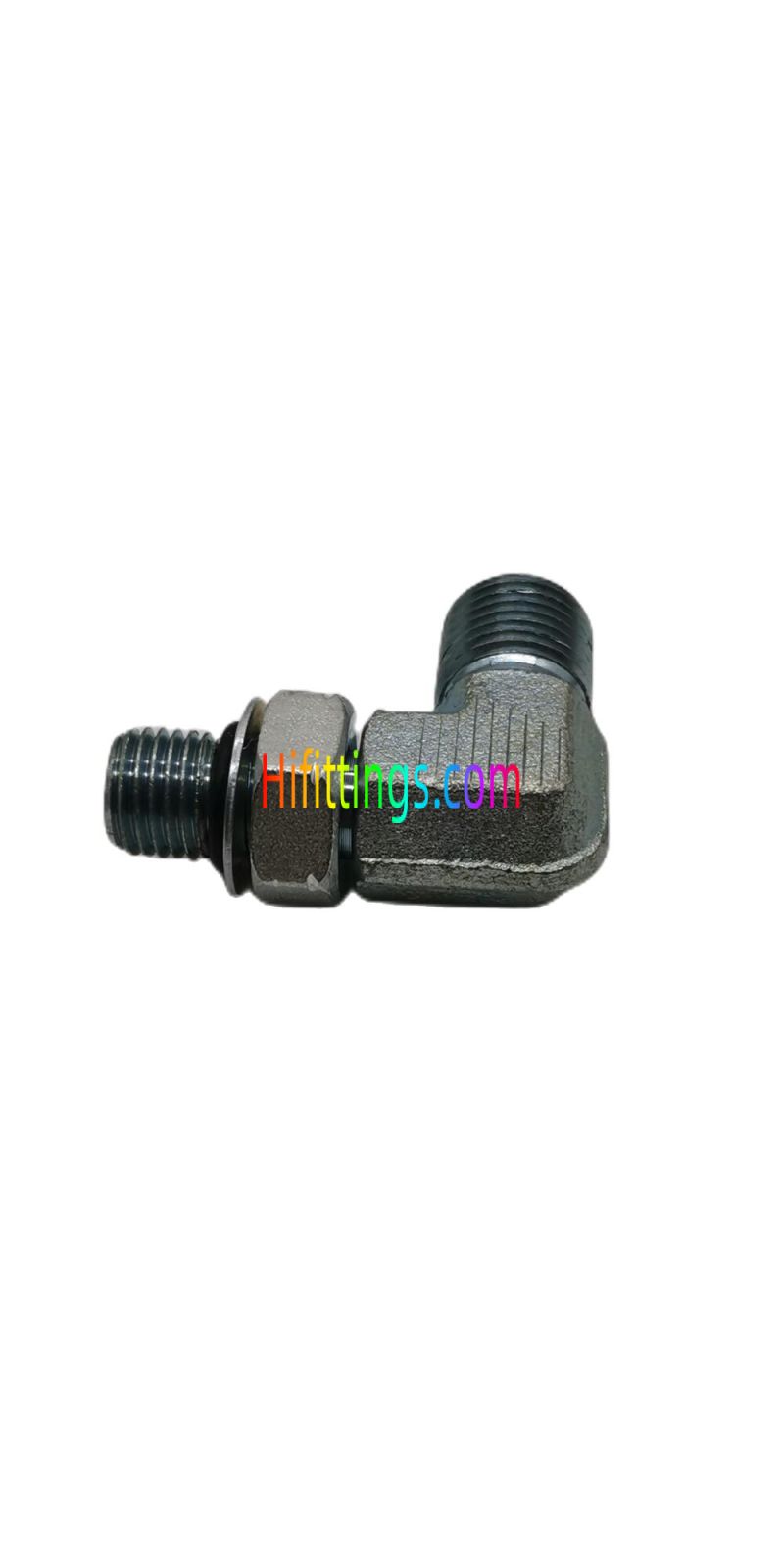

90 Degree Elbow ORFS Male O-Ring / SAE O-Ring Boss S-Series ISO 11926-2 Hydraulic Pipe Fittings 1FO9-OG
|
Part NO. |
E |
F |
E End |
F End |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
1FO9-04OG |
9/16"X18 |
7/16"X20 |
11 |
904 |
23 |
30.3 |
14 |
17 |
PN400 |
|
1FO9-04-06OG |
9/16"X18 |
9/16"X18 |
11 |
906 |
23 |
32 |
14 |
19 |
PN400 |
|
1FO9-06-04OG |
11/16"X16 |
7/16"X20 |
12 |
904 |
27.5 |
33.5 |
19 |
17 |
PN400 |
|
1FO9-06OG |
11/16"X16 |
9/16"X18 |
12 |
906 |
27.5 |
34.5 |
19 |
19 |
PN400 |
|
1FO9-06-08OG |
11/16"X16 |
3/4"X16 |
12 |
908 |
27.5 |
38 |
19 |
24 |
PN400 |
|
1FO9-06-10OG |
11/16"X16 |
7/8"X14 |
12 |
910 |
29 |
47 |
22 |
27 |
PN400 |
|
1FO9-08-06OG |
13/16"X16 |
9/16"X18 |
14 |
906 |
31 |
37 |
22 |
19 |
PN400 |
|
1FO9-08OG |
13/16"X16 |
3/4"X16 |
14 |
908 |
31 |
40.5 |
22 |
24 |
PN400 |
|
1FO9-08-10OG |
13/16"X16 |
7/8"X14 |
14 |
910 |
31 |
45.3 |
22 |
27 |
PN400 |
|
1FO9-08-12OG |
13/16"X16 |
1.1/16"X12 |
14 |
912 |
34.5 |
52 |
27 |
32 |
PN400 |
|
1FO9-10-08OG |
1"X14 |
3/4"X16 |
16 |
908 |
36.5 |
45 |
27 |
24 |
PN400 |
|
1FO9-10OG |
1"X14 |
7/8"X14 |
16 |
910 |
36.5 |
50.8 |
27 |
27 |
PN400 |
|
1FO9-10-12OG |
1"X14 |
1.1/16"X12 |
16 |
912 |
36.5 |
52 |
27 |
32 |
PN400 |
|
1FO9-12-10OG |
1.3/16"X12 |
7/8"X14 |
18 |
910 |
41 |
52.8 |
30 |
27 |
PN400 |
|
1FO9-12OG |
1.3/16"X12 |
1.1/16"X12 |
18 |
912 |
41 |
54 |
30 |
32 |
PN400 |
|
1FO9-12-16OG |
1.3/16"X12 |
1.5/16"X12 |
18 |
916 |
43 |
55.5 |
33 |
41 |
PN315 |
|
1FO9-16-12OG |
1.7/16"X12 |
1.1/16"X12 |
21 |
912 |
44.5 |
59 |
36 |
32 |
PN315 |
|
1FO9-16OG |
1.7/16"X12 |
1.5/16"X12 |
21 |
916 |
44.5 |
59 |
36 |
41 |
PN250 |
|
1FO9-20OG |
1.11/16"X12 |
1.5/8"X12 |
25 |
920 |
47.5 |
60.5 |
41 |
50 |
PN250 |
|
1FO9-20-24OG |
1.11/16"X12 |
1.7/8"X12 |
25 |
924 |
51.5 |
66.5 |
48 |
55 |
PN200 |
|
1FO9-24-20OG |
2"X12 |
1.5/8"X12 |
29 |
920 |
53.5 |
67.5 |
50 |
50 |
PN250 |
|
1FO9-24OG |
2"X12 |
1.7/8"X12 |
29 |
924 |
53.5 |
67.5 |
50 |
55 |
PN200 |
|
Note: 1.: F end is connected with ISO 11926-1port. 2. PN = Nominal Pressure |
|||||||||
| Form | Elbow |
|---|---|
| Fitting Typ | Face Seal |
| Gewindetyp | Male |
| Connection Type | ORFS, UNF |
