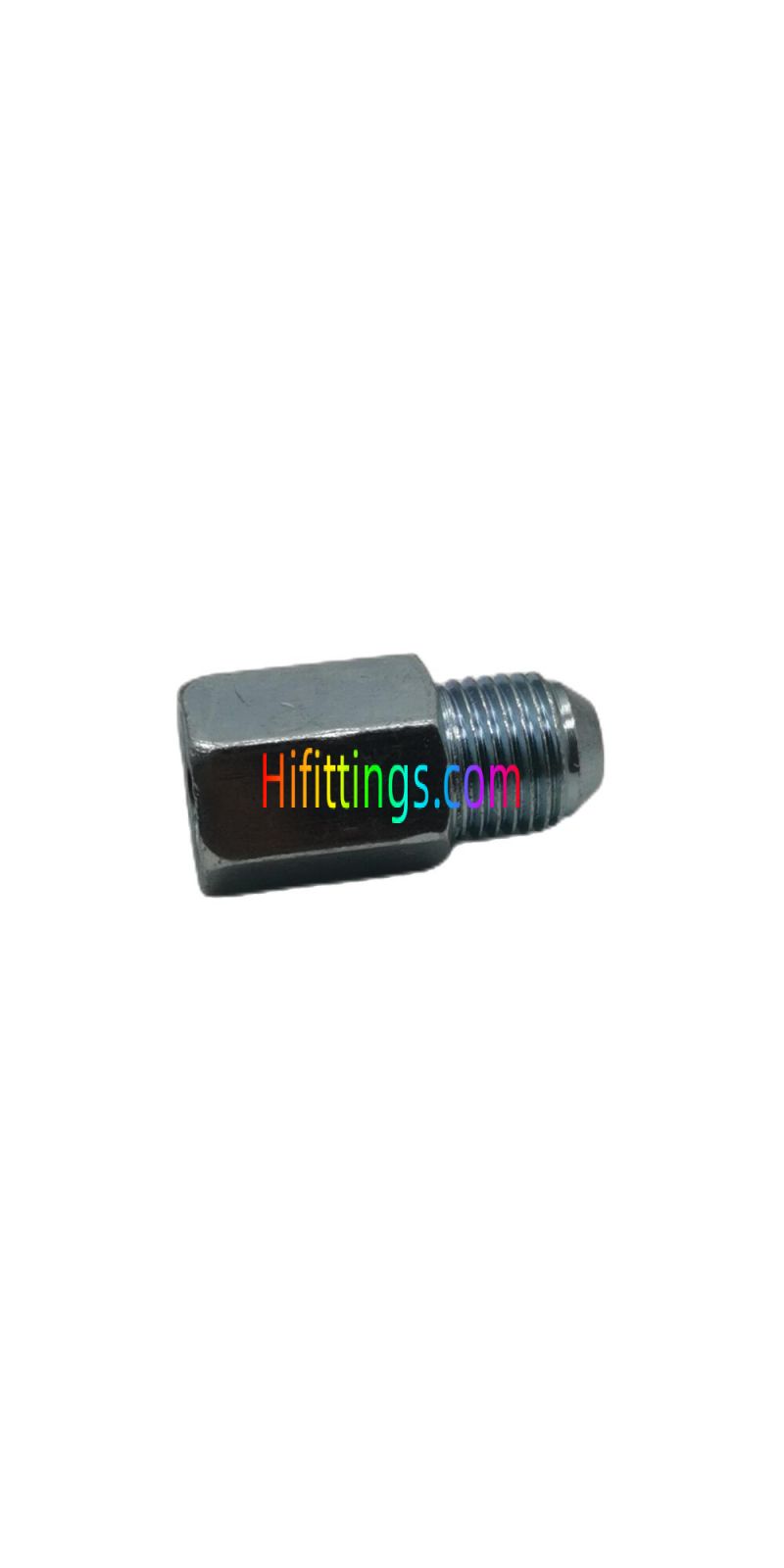

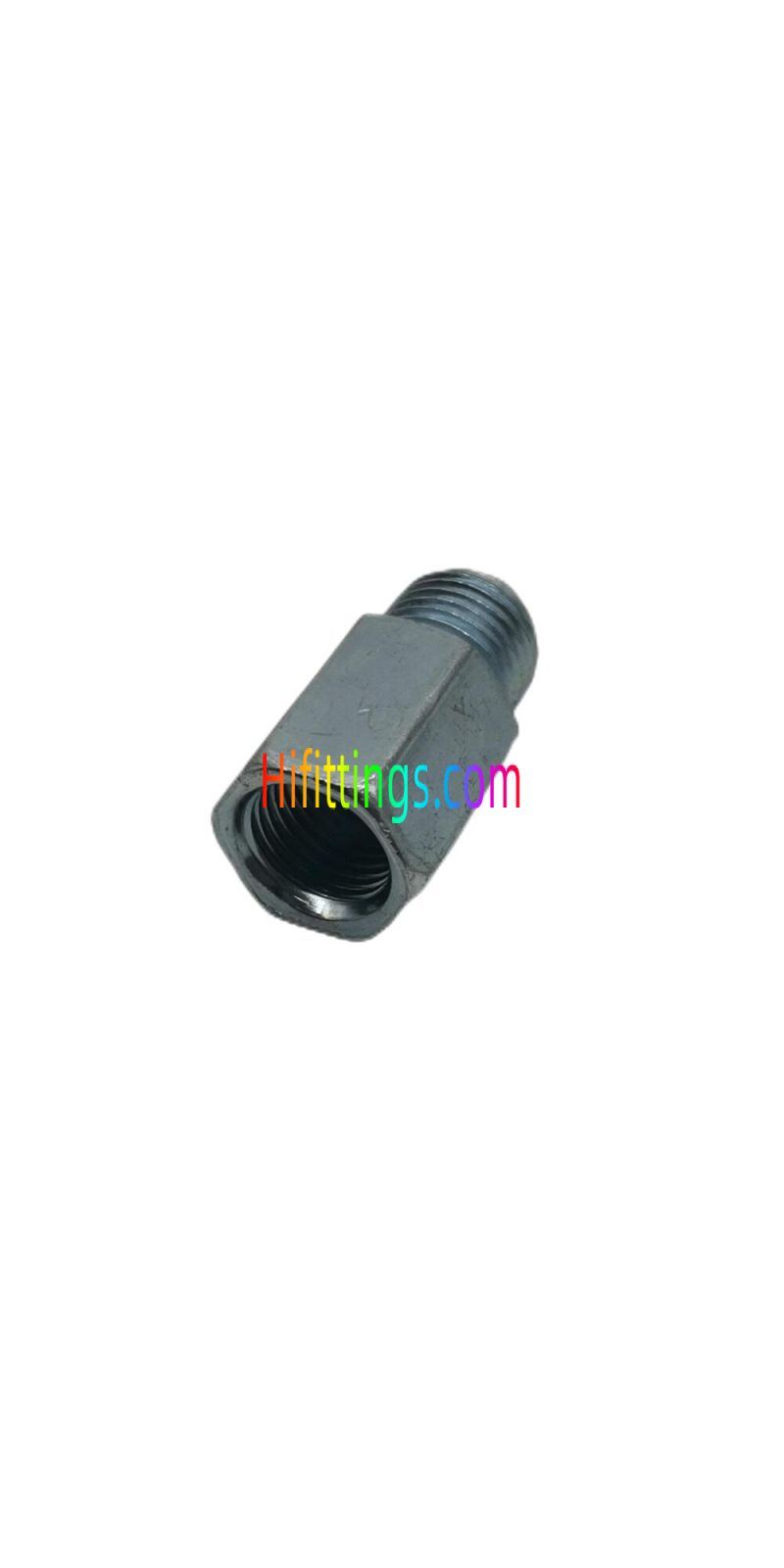

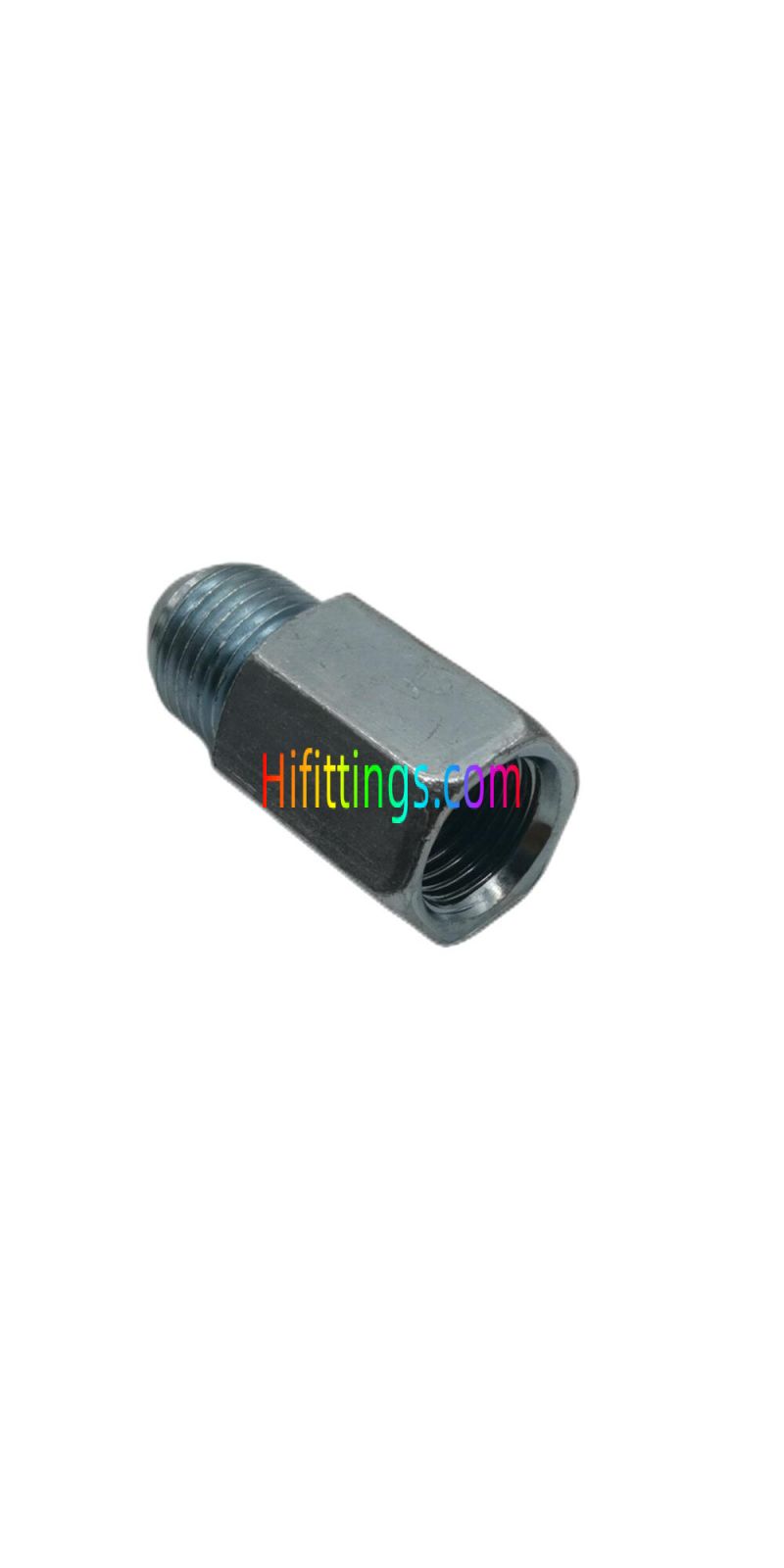

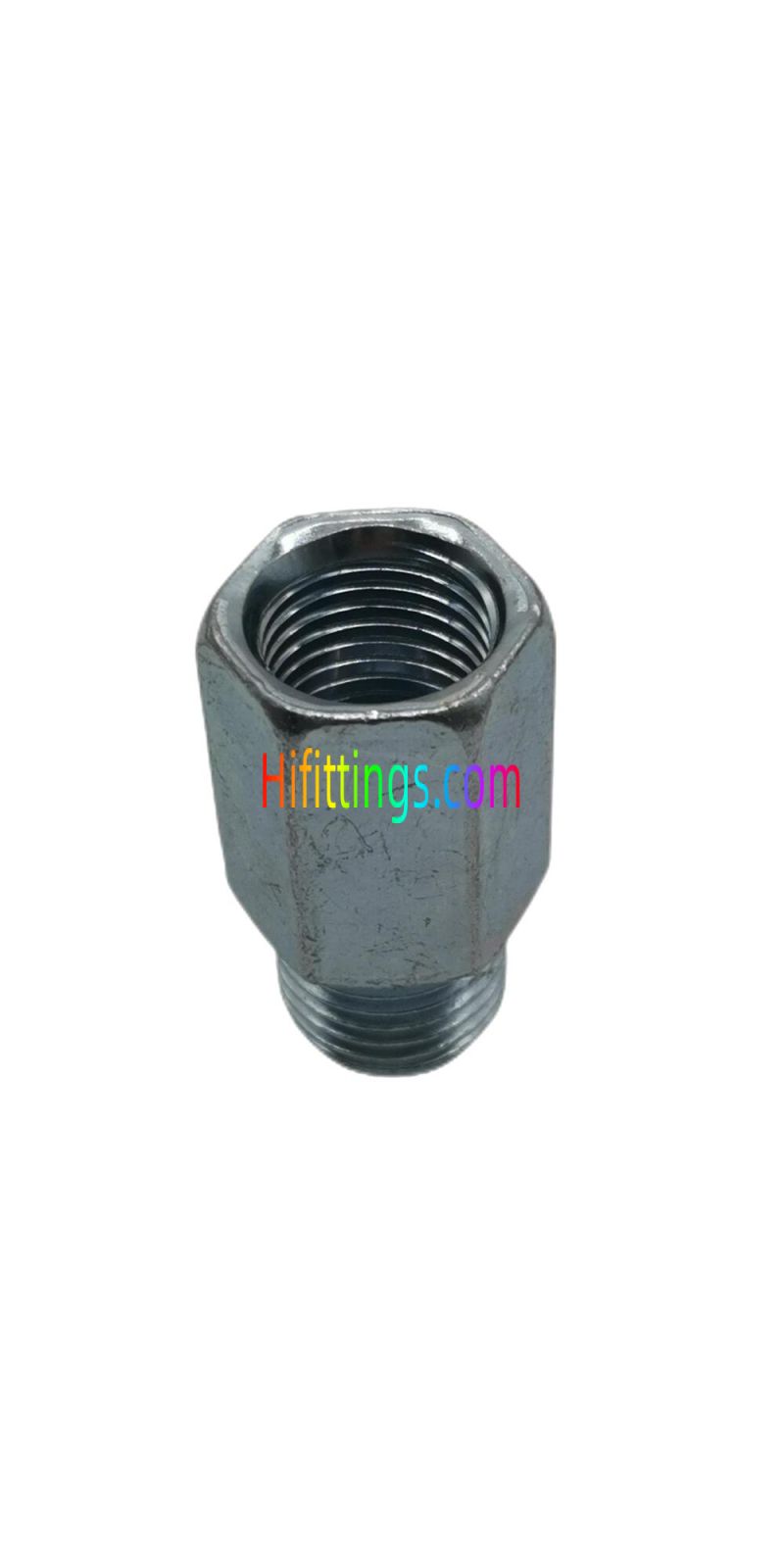

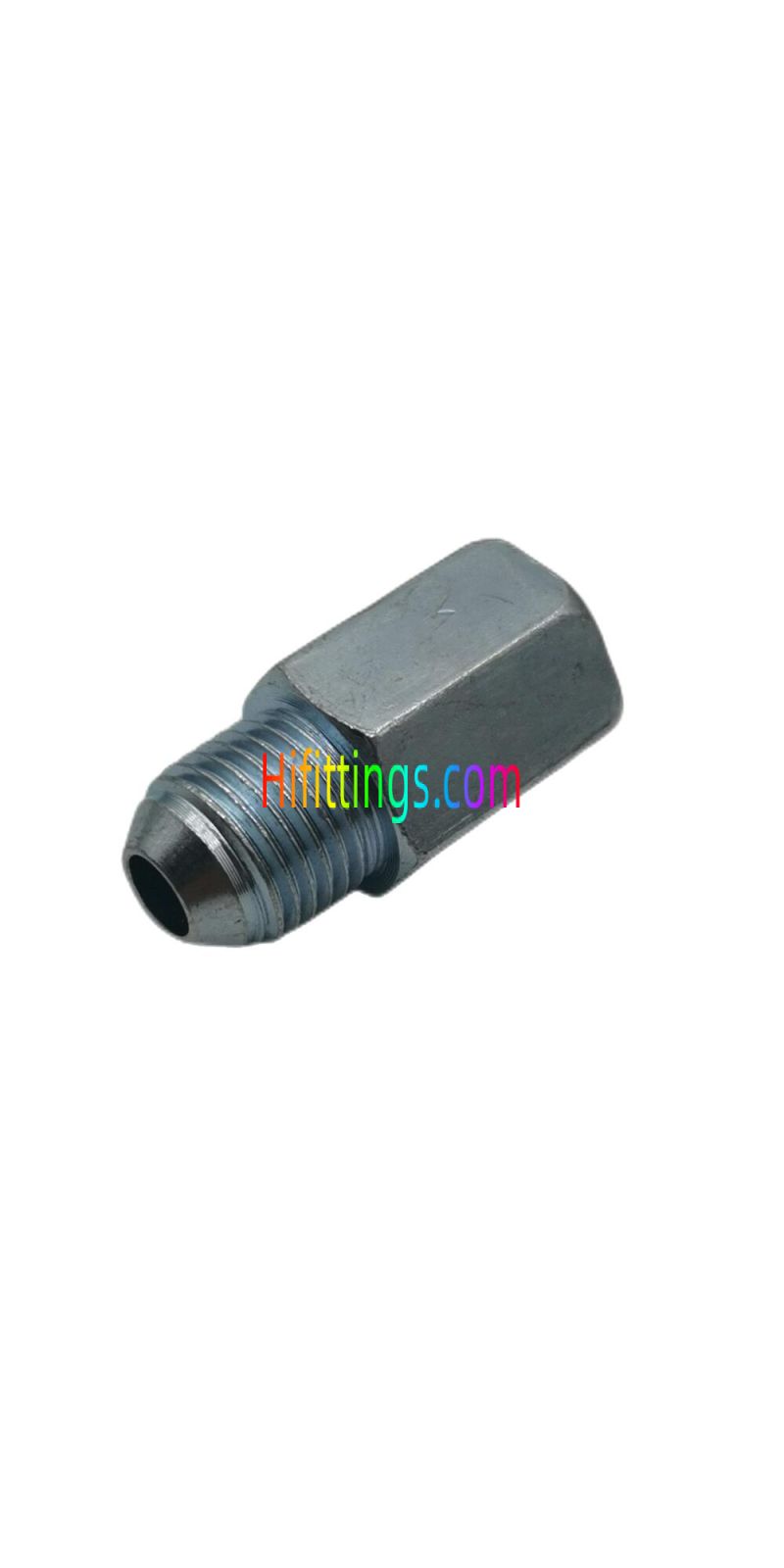

BSP-Innengewinde JIC-Außengewinde mit 74° Konus und Bördelung Rohrverschraubung 5JB
26
Auf Lager
Nur noch %1 verfügbar
SKU
5JB
Guarantee safe & secure checkout
JIC Male 74° Cone / BSP Female ISO 1179 Cone Flared Hydraulic Adapter Tube Fittings 5JB
|
Part NO. |
E |
F |
A |
L |
S1 |
Working Pressure bar |
|
5JB-04 |
7/16"X20 |
G1/4"X19 |
14 |
33 |
19 |
PN345 |
|
5JB-04-02 |
7/16"X20 |
G1/8"X28 |
14 |
31 |
14 |
PN345 |
|
5JB-04-06 |
7/16"X20 |
G3/8"X19 |
14 |
35.5 |
22 |
PN315 |
|
5JB-06 |
9/16"X18 |
G3/8"X19 |
14.1 |
35 |
22 |
PN315 |
|
5JB-06-08 |
9/16"X18 |
G1/2"X14 |
14.4 |
39.5 |
27 |
PN315 |
|
5JB-08 |
3/4"X16 |
G1/2"X14 |
16.7 |
44 |
27 |
PN275 |
|
5JB-08-10 |
3/4"X16 |
G5/8"X14 |
16.7 |
46 |
30 |
PN275 |
|
5JB-10-12 |
7/8"X14 |
G3/4"X14 |
19.3 |
48 |
32 |
PN200 |
|
5JB-12 |
1.1/16"X12 |
G3/4"X14 |
21.9 |
50 |
36 |
PN200 |
|
5JB-12-16 |
1.1/16"X12 |
G1"X11 |
21.9 |
53 |
41 |
PN200 |
|
5JB-16 |
1.5/16"X12 |
G1"X11 |
23.1 |
52.5 |
41 |
PN200 |
|
5JB-16-20 |
1.5/16"X12 |
G1.1/4"X11 |
23.1 |
57 |
50 |
PN200 |
|
5JB-20 |
1.5/8"X12 |
G1.1/4"X11 |
24.3 |
57 |
50 |
PN170 |
|
5JB-24 |
1.7/8"X12 |
G1.1/2"X11 |
27.5 |
62 |
55 |
PN140 |
|
5JB-32 |
2.1/2"X12 |
G2"X11 |
33.9 |
67 |
70 |
PN105 |
|
Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.PN = Nominal Pressure |
||||||
| Form | Straight |
|---|---|
| Fitting Typ | Cone Flared |
| Gewindetyp | Male-Female |
| Connection Type | BSP, JIC |
