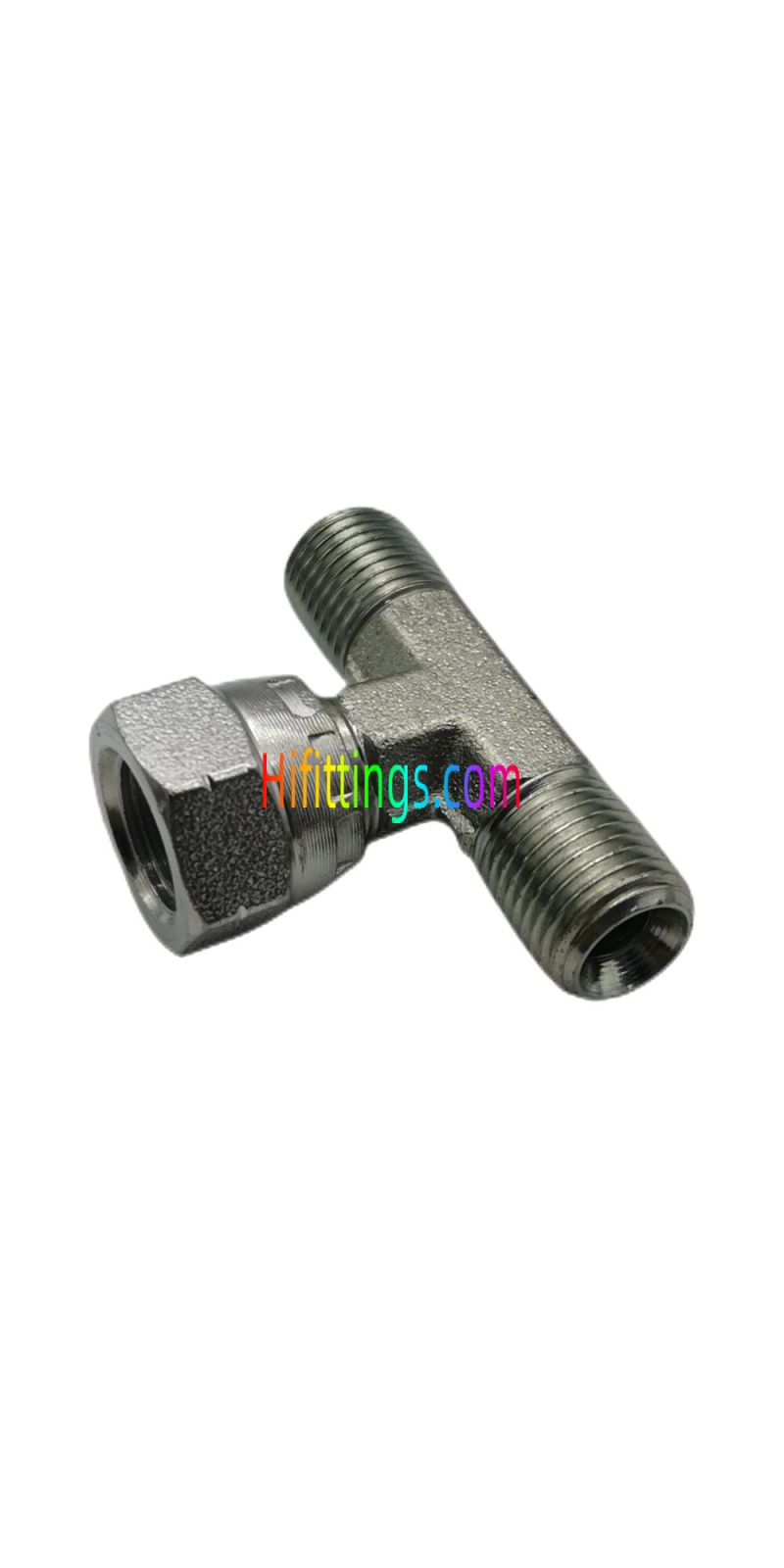

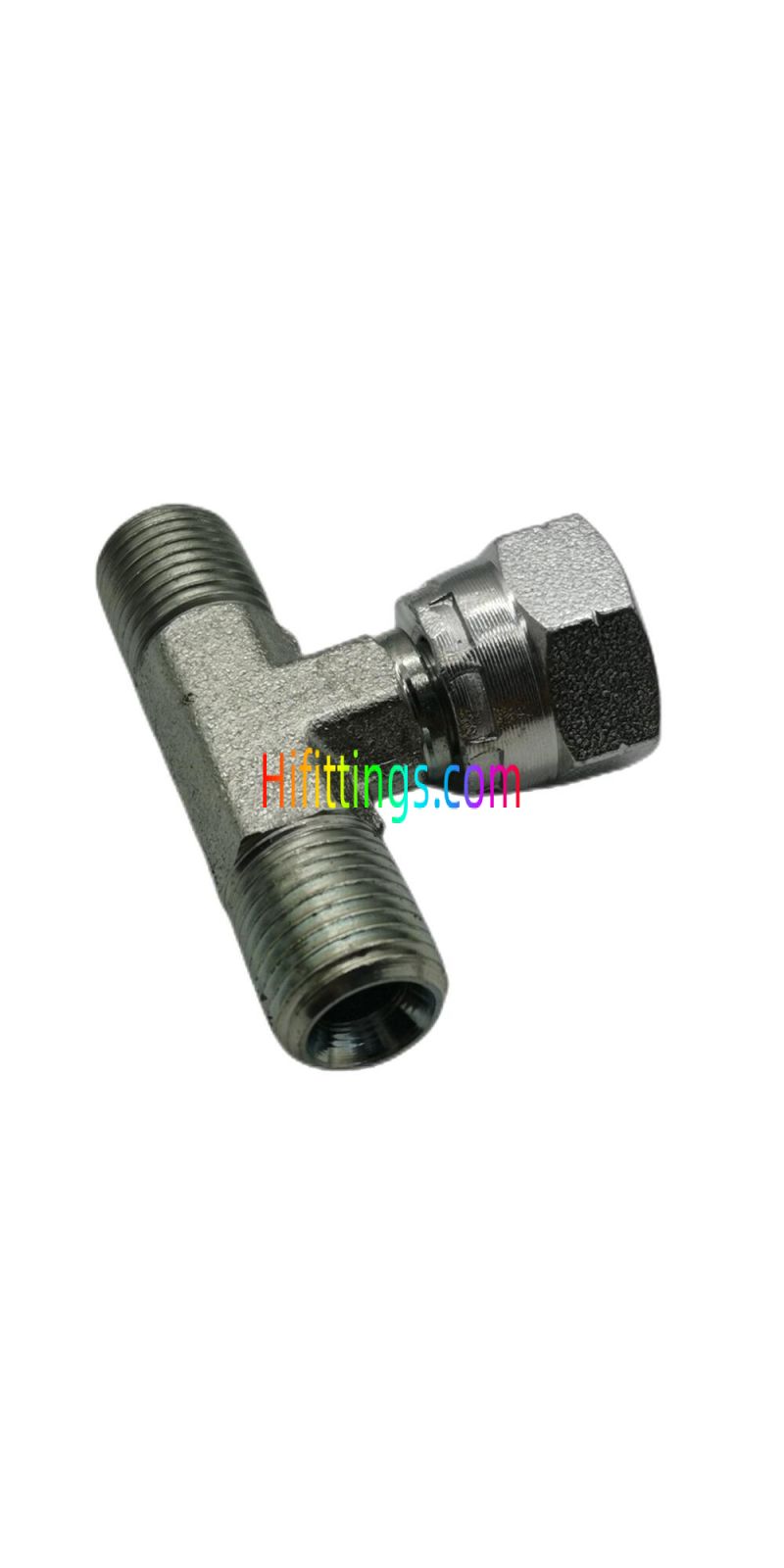

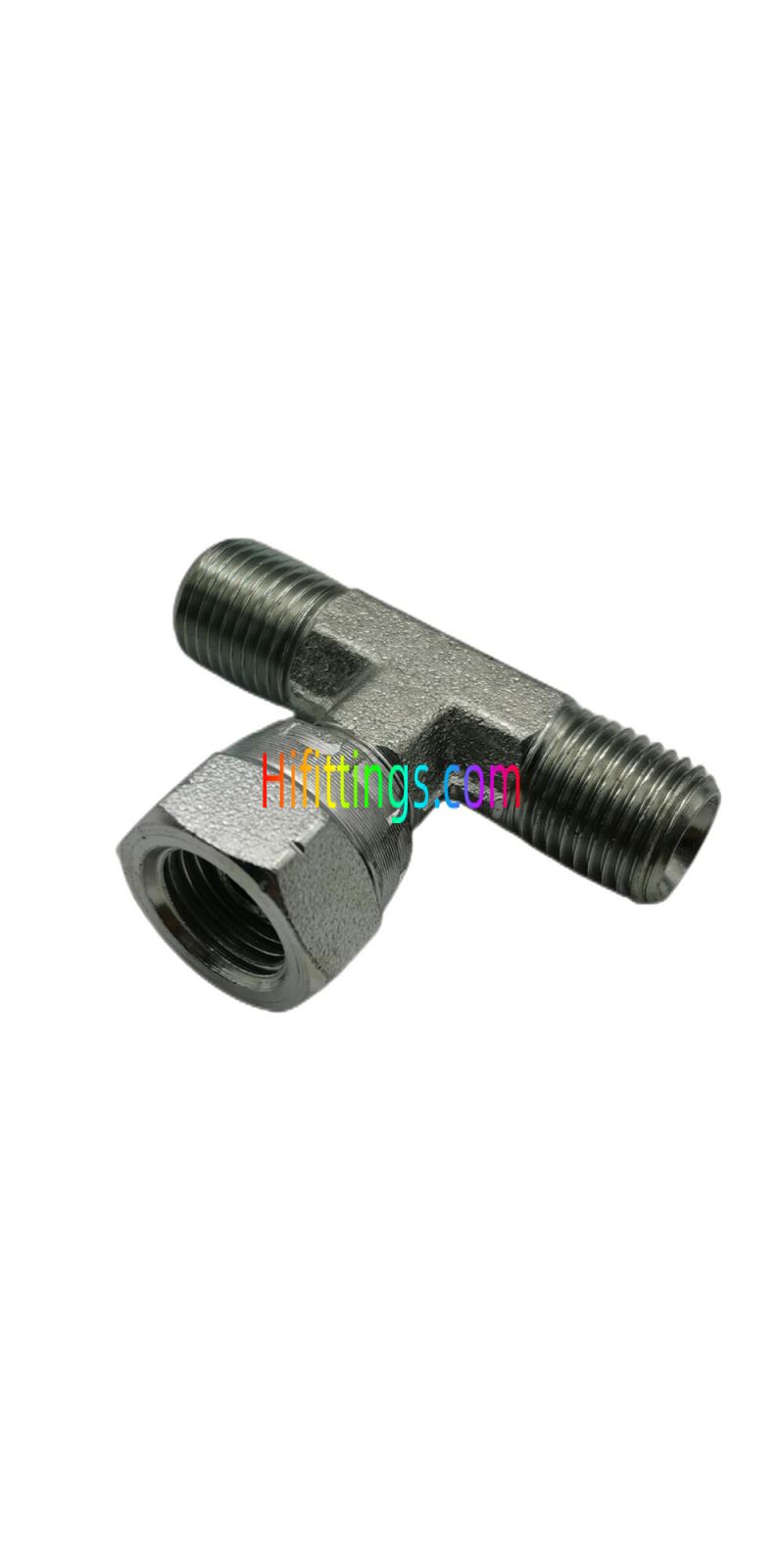

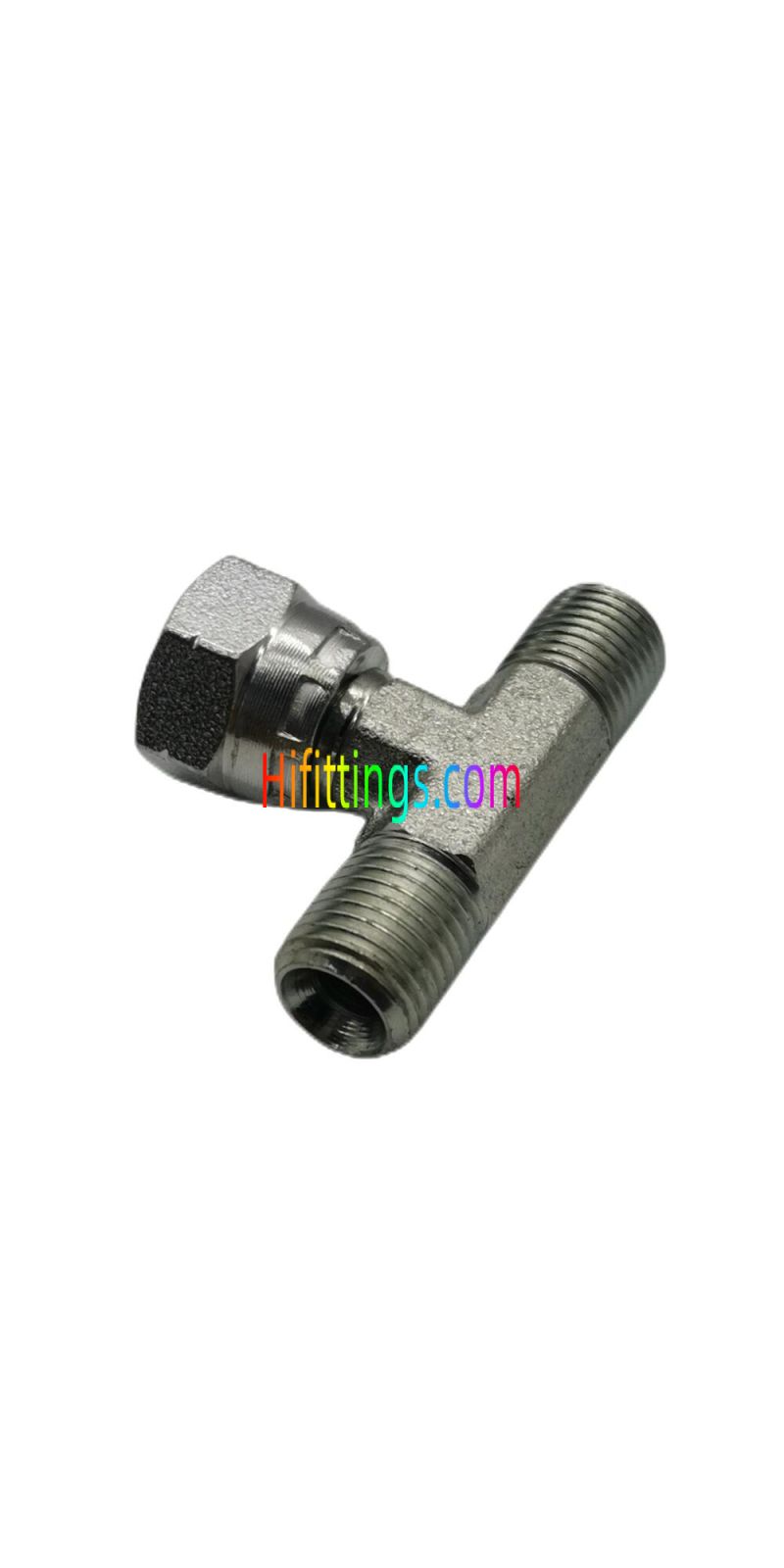

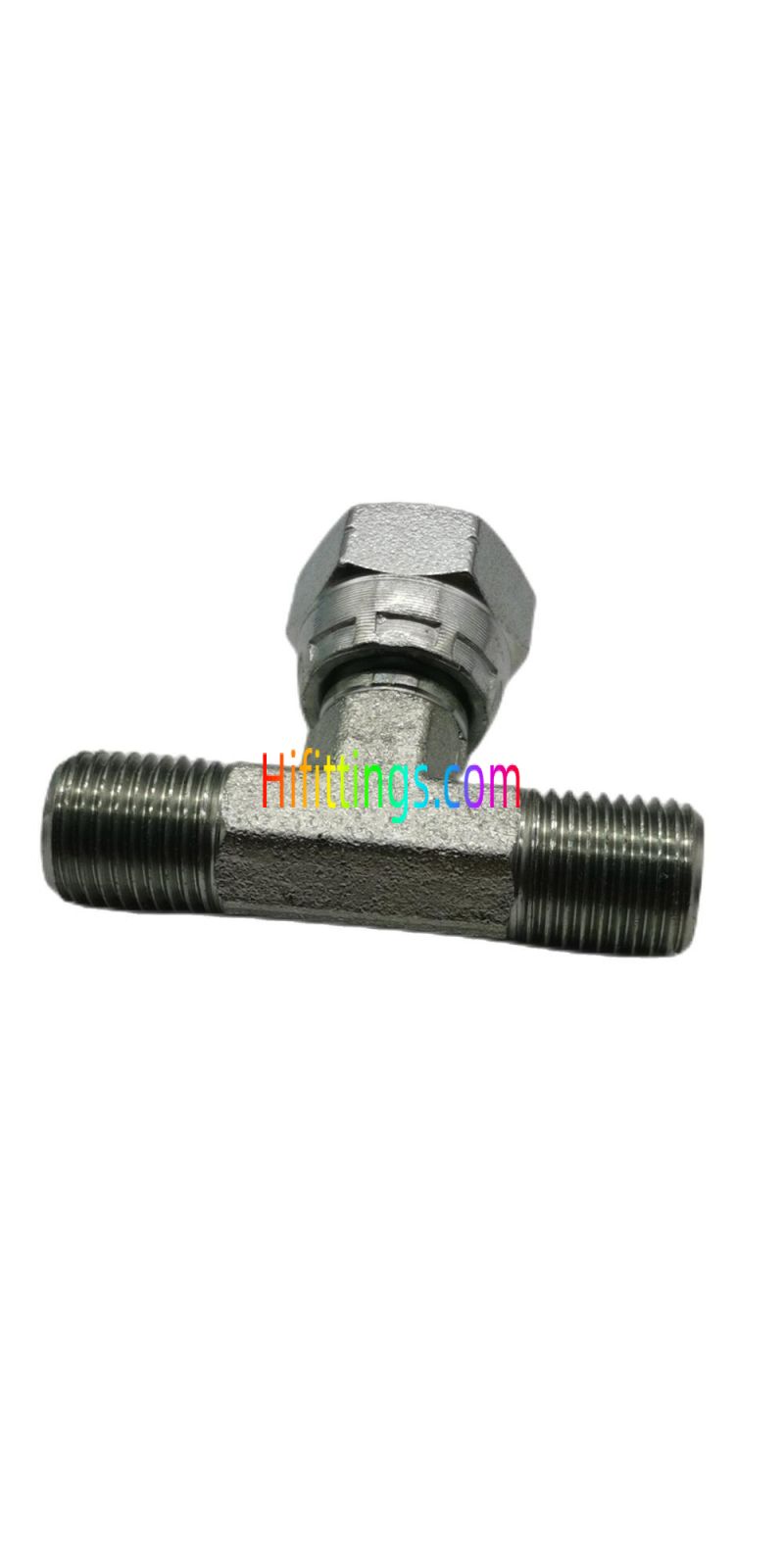

BSP-Außengewinde mit 60°-Sitz BSP-Innengewinde mit 60°-Konus Abzweigmuffe
23
Auf Lager
Nur noch %1 verfügbar
SKU
BB
Guarantee safe & secure checkout
BSP Male 60 Degree Seat / BSP Female 60 Degree Cone Branch Tee Hydraulic Fittings BB
|
Part NO. |
E |
F |
G |
A |
B |
C |
S1 |
S2 |
Working Pressure bar |
|
BB-02 |
G1/8"X28 |
G1/8"X28 |
G1/8"X28 |
19.8 |
5.5 |
19.8 |
11 |
14 |
PN345 |
|
BB-04 |
G1/4"X19 |
G1/4"X19 |
G1/4"X19 |
24.5 |
5.5 |
24.5 |
14 |
19 |
PN345 |
|
BB-06 |
G3/8"X19 |
G3/8"X19 |
G3/8"X19 |
27.5 |
6.3 |
27.5 |
16 |
22 |
PN345 |
|
BB-08 |
G1/2"X14 |
G1/2"X14 |
G1/2"X14 |
34.5 |
7.5 |
34.5 |
22 |
27 |
PN345 |
|
BB-12 |
G3/4"X14 |
G3/4"X14 |
G3/4"X14 |
40 |
10.9 |
40 |
27 |
32 |
PN275 |
|
BB-16 |
G1"X11 |
G1"X11 |
G1"X11 |
46 |
11.7 |
46 |
33 |
41 |
PN205 |
|
BB-20 |
G1.1/4"X11 |
G1.1/4"X11 |
G1.1/4"X11 |
50.5 |
11 |
50.5 |
41 |
50 |
PN170 |
|
BB-24 |
G1.1/2"X11 |
G1.1/2"X11 |
G1.1/2"X11 |
57.5 |
13 |
57.5 |
48 |
55 |
PN105 |
|
BB-32 |
G2"X11 |
G2"X11 |
G2"X11 |
72.5 |
16 |
72.5 |
63 |
70 |
PN105 |
| Form | Tee |
|---|---|
| Fitting Typ | Cone |
| Gewindetyp | Male-Female |
| Connection Type | BSP |
