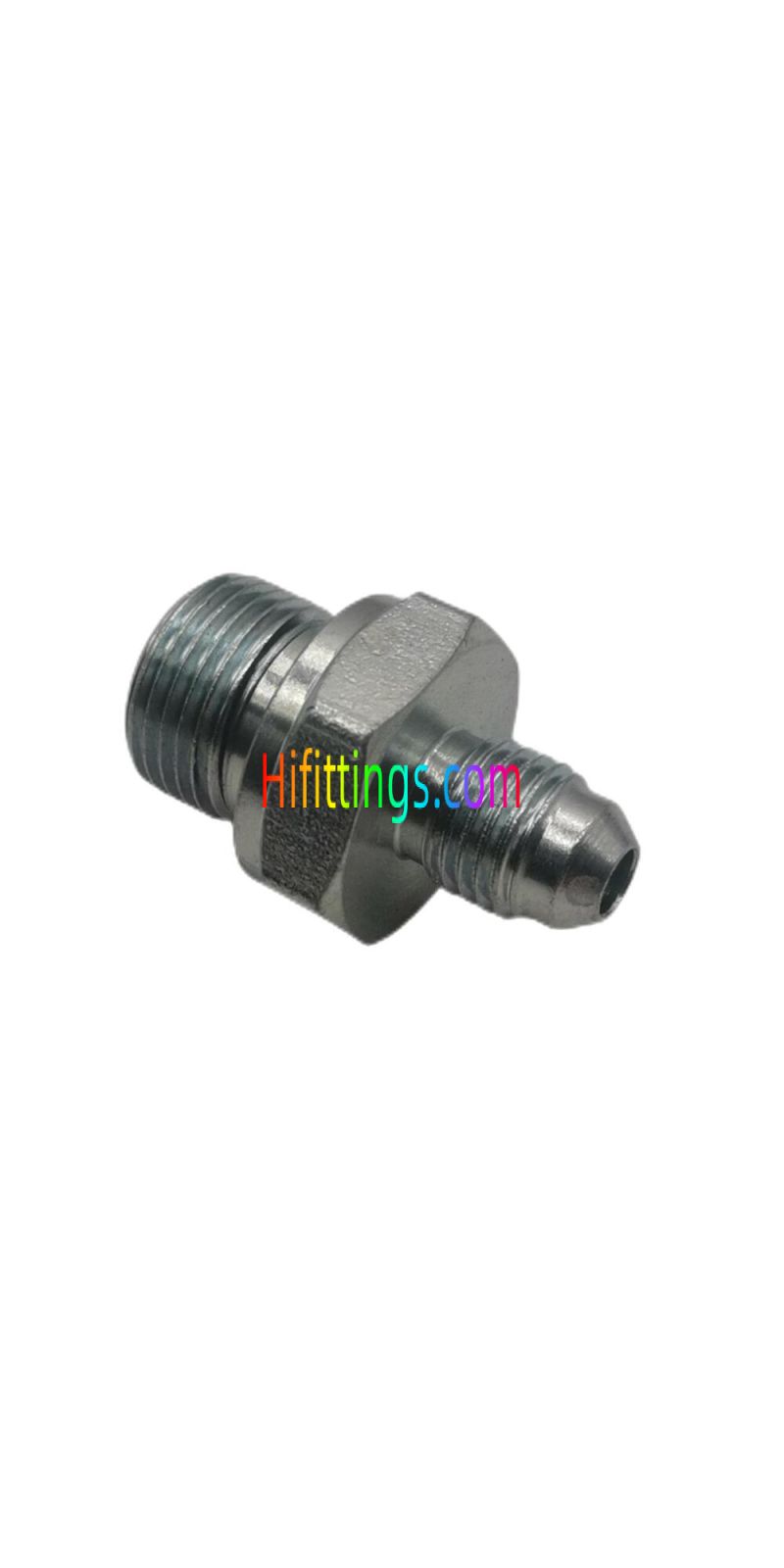

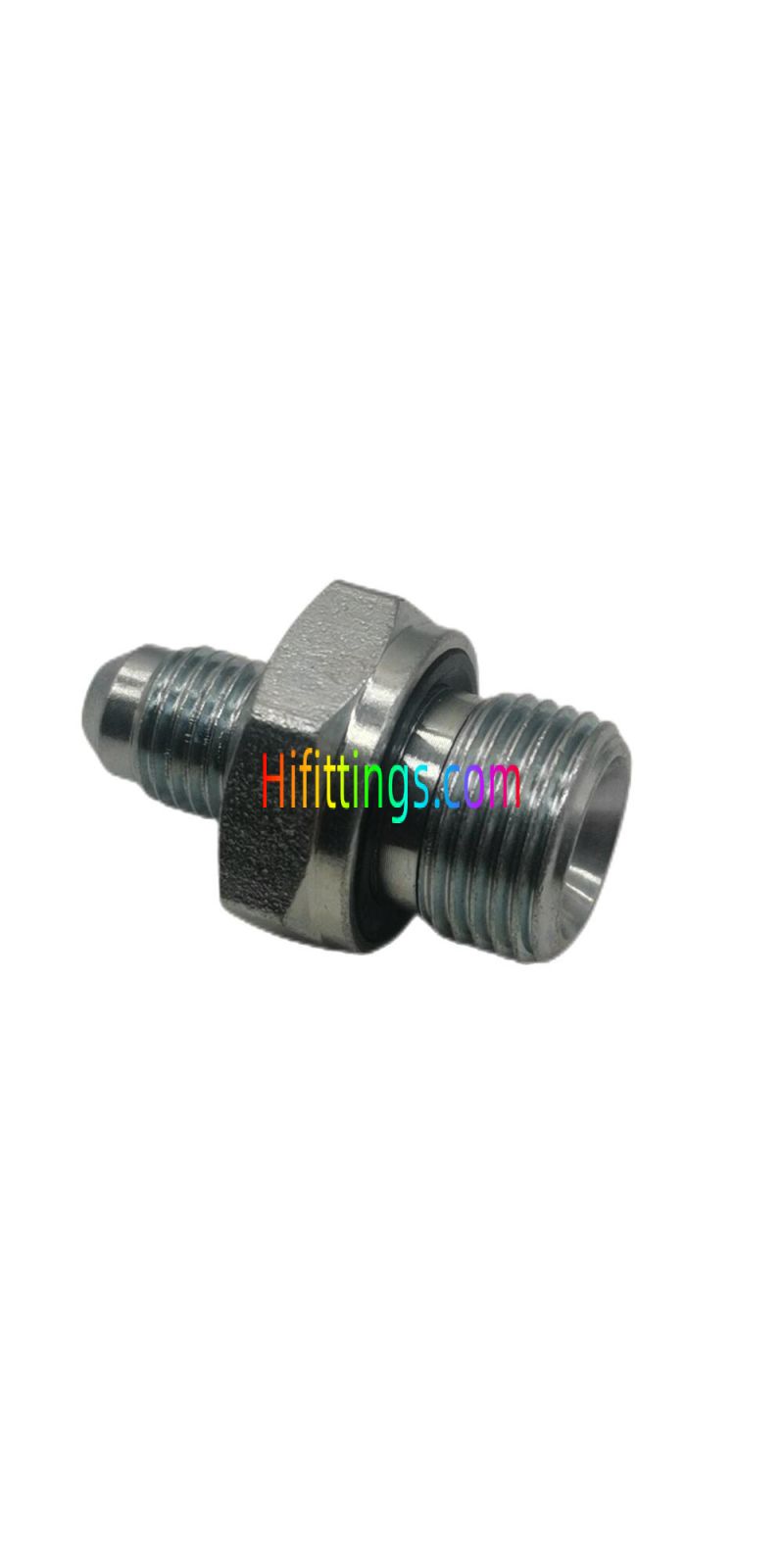

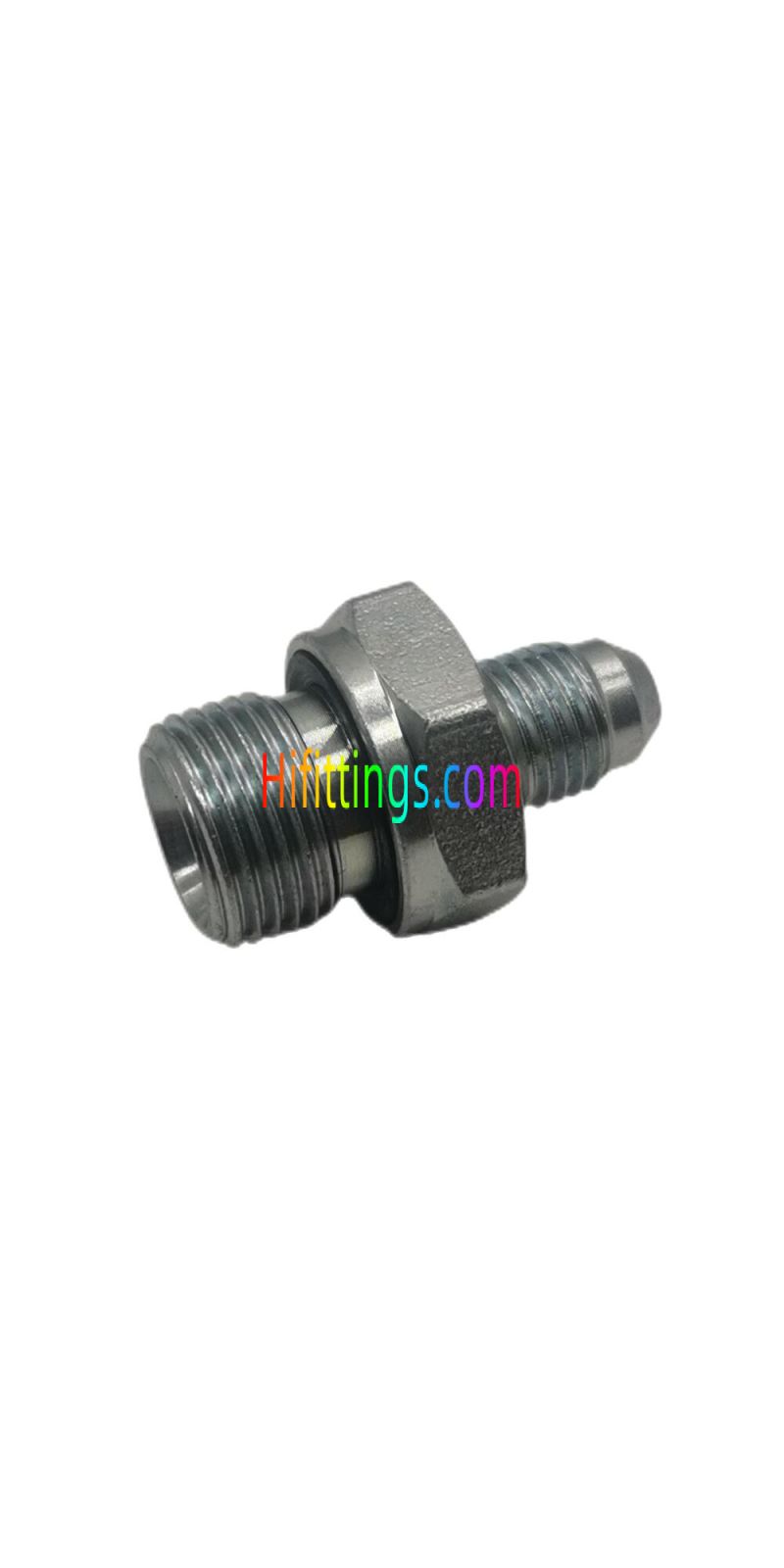

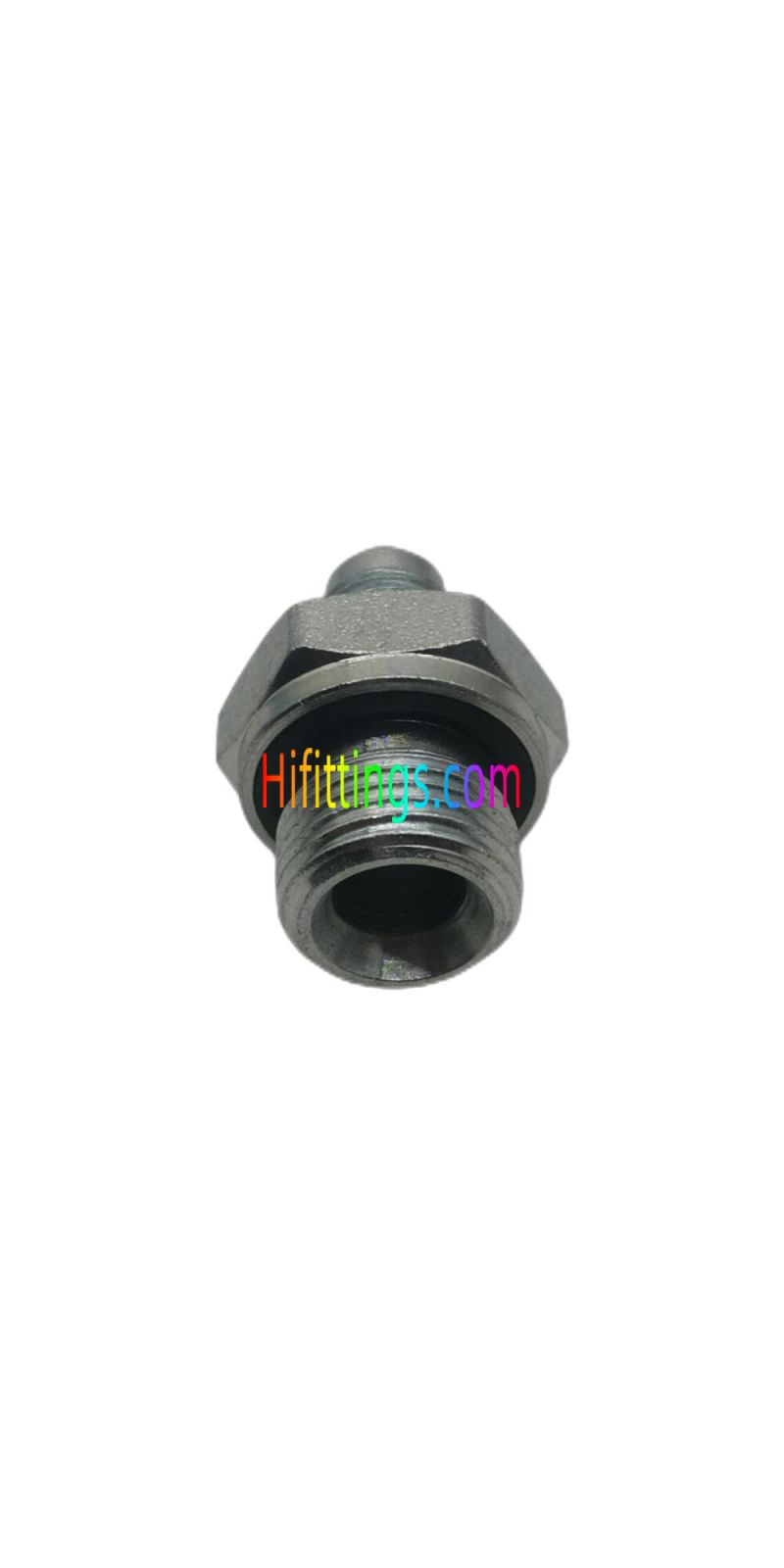

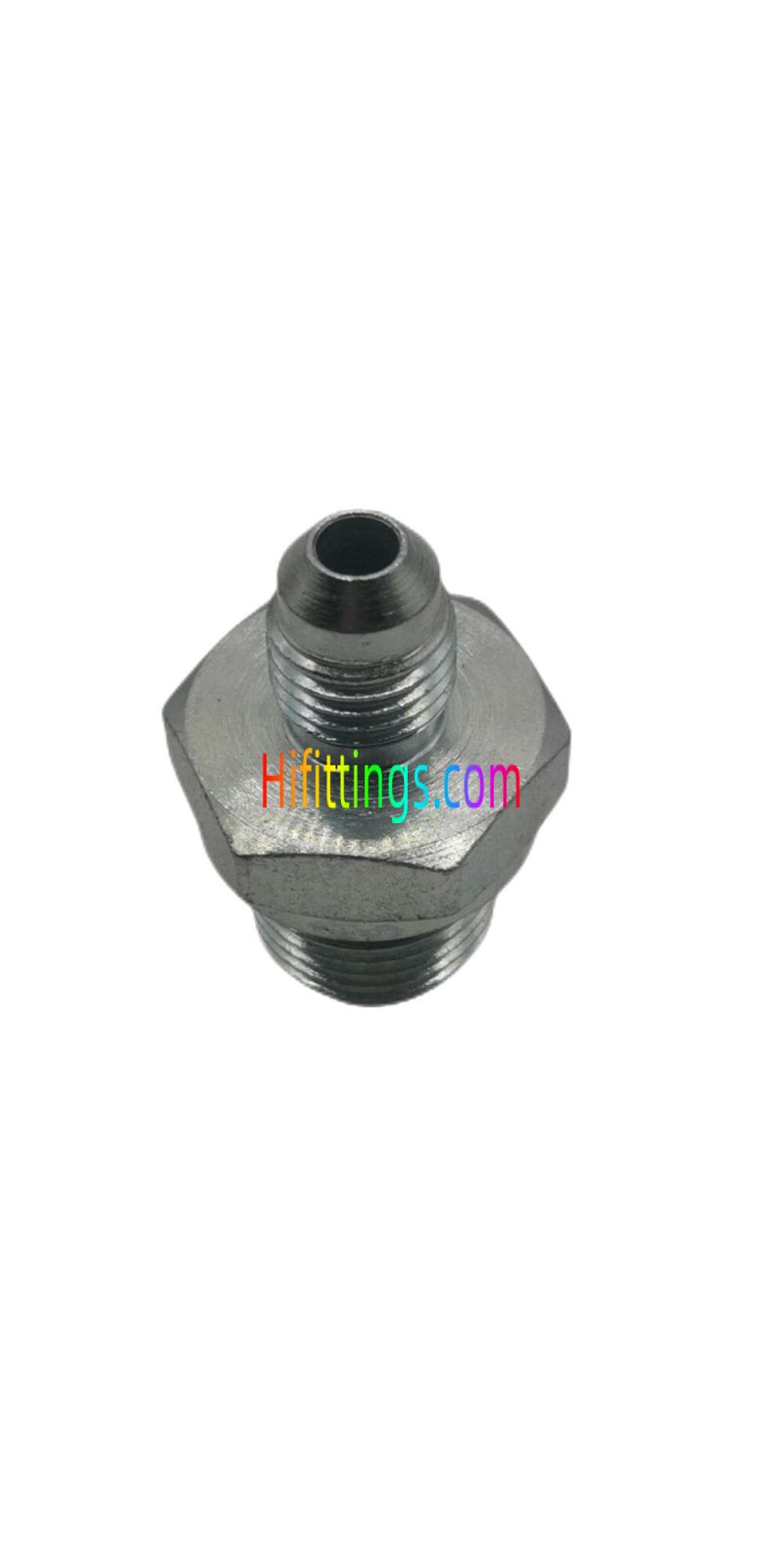

BSP-Außengewinde mit O-Ring JIC-Außengewinde mit 74°-Konus und Bördelung 1JG
28
Auf Lager
Nur noch %1 verfügbar
SKU
1JG
![](https://hifittings.com/media/wysiwyg/product-trust-badge.png)
![](https://hifittings.com/media/wysiwyg/product-trust-badge.png)
Guarantee safe & secure checkout
Guarantee safe & secure checkout
Part NO. |
E |
F |
F End |
A |
B |
L |
S1 |
Working Pressure bar |
1JG-04-02 |
7/16"X20 |
G1/8"X28 |
11 |
14 |
9.5 |
31 |
14 |
PN345 |
1JG-04 |
7/16"X20 |
G1/4"X19 |
111 |
14 |
10 |
32.5 |
19 |
PN345 |
1JG-04-06 |
7/16"X20 |
G3/8"X19 |
113 |
14 |
11.5 |
34 |
22 |
PN345 |
1JG-04-08 |
7/16"X20 |
G1/2"X14 |
115 |
14 |
14 |
39 |
27 |
PN345 |
1JG-05-04 |
1/2"X20 |
G1/4"X19 |
111 |
14 |
10 |
33 |
19 |
PN345 |
1JG-05-06 |
1/2"X20 |
G3/8"X19 |
113 |
14 |
11.5 |
36 |
22 |
PN345 |
1JG-05-08 |
1/2"X20 |
G12X14 |
115 |
14 |
14 |
39 |
27 |
PN345 |
1JG-06-04 |
9/16"X18 |
G1/4"X19 |
111 |
14.1 |
11 |
31.5 |
19 |
PN345 |
1JG-06 |
9/16"X18 |
G3/8"X19 |
113 |
14.1 |
11.5 |
34 |
22 |
PN345 |
1JG-06-08 |
9/16"X18 |
G1/2"X14 |
115 |
14.1 |
14 |
39 |
27 |
PN345 |
1JG-08-04 |
3/4"X16 |
G1/4"X19 |
111 |
16.7 |
10 |
36 |
22 |
PN310 |
1JG-08-06 |
3/4"X16 |
G3/8"X19 |
113 |
16.7 |
11.5 |
37 |
22 |
PN310 |
1JG-08 |
3/4"X16 |
G1/2"X14 |
115 |
16.7 |
14 |
42 |
27 |
PN310 |
1JG-08-12 |
3/4"X16 |
G3/4"X14 |
119 |
16.7 |
15.5 |
44 |
32 |
PN310 |
1JG-10-06 |
7/8"X14 |
G3/8"X19 |
113 |
19.3 |
11.5 |
39.5 |
24 |
PN240 |
1JG-10-08 |
7/8"X14 |
G1/2"X14 |
115 |
19.3 |
14 |
44.5 |
27 |
PN240 |
1JG-10-12 |
7/8"X14 |
G3/4"X14 |
119 |
19.3 |
15.5 |
48.5 |
32 |
PN240 |
1JG-12-08 |
1.1/16"X12 |
G1/2"X14 |
115 |
22 |
14 |
49 |
30 |
PN240 |
1JG-12 |
1.1/16"X12 |
G3/4"X14 |
119 |
22 |
15.5 |
49.5 |
32 |
PN240 |
1JG-12-16 |
1.1/16"X12 |
G1"X11 |
217 |
22 |
18 |
54 |
41 |
PN240 |
1JG-12-20 |
1.1/16"X12 |
G1.1/4"X11 |
222 |
22 |
20 |
57 |
50 |
PN240 |
1JG-16-12 |
1.5/16"X12 |
G3/4"X14 |
119 |
23 |
15.5 |
52.5 |
36 |
PN210 |
1JG-16 |
1.5/16"X12 |
G1"X11 |
217 |
23 |
18 |
55 |
41 |
PN210 |
1JG-16-20 |
1.5/16"X12 |
G1.1/4"X11 |
222 |
23 |
20 |
58 |
50 |
PN210 |
1JG-20-16 |
1.5/8"X12 |
G1"X11 |
217 |
24.3 |
18 |
58 |
46 |
PN170 |
1JG-20 |
1.5/8"X12 |
G1.1/4"X11 |
222 |
24.3 |
20 |
59.5 |
50 |
PN170 |
1JG-24-16 |
1.7/8"X12 |
G1"X11 |
217 |
27.5 |
18 |
63.5 |
50 |
PN140 |
1JG-24-20 |
1.7/8"X12 |
G1.1/4"X11 |
222 |
27.5 |
20 |
65.5 |
50 |
PN140 |
1JG-24 |
1.7/8"X12 |
G1.1/2"X11 |
224 |
27.5 |
21.5 |
64 |
55 |
PN140 |
Note:1Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.F end is fit for ISO 9974-1 port or ISO 6149-1 port when useless of retaining ring. 3.PN = Nominal Pressure |
Form | Straight |
---|---|
Fitting Typ | Cone Flared |
Gewindetyp | Male |
Connection Type | BSP, JIC |
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price. We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
