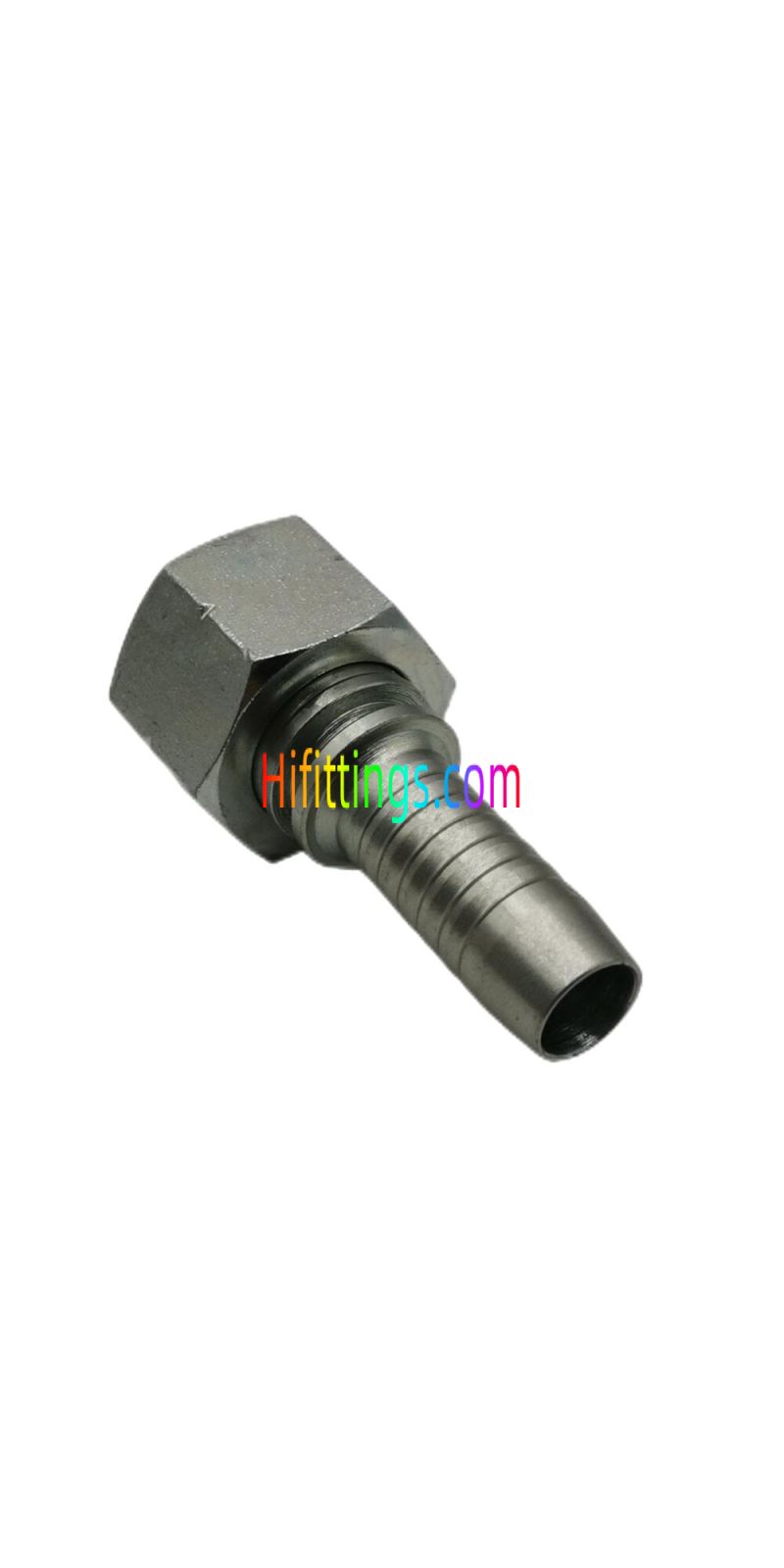

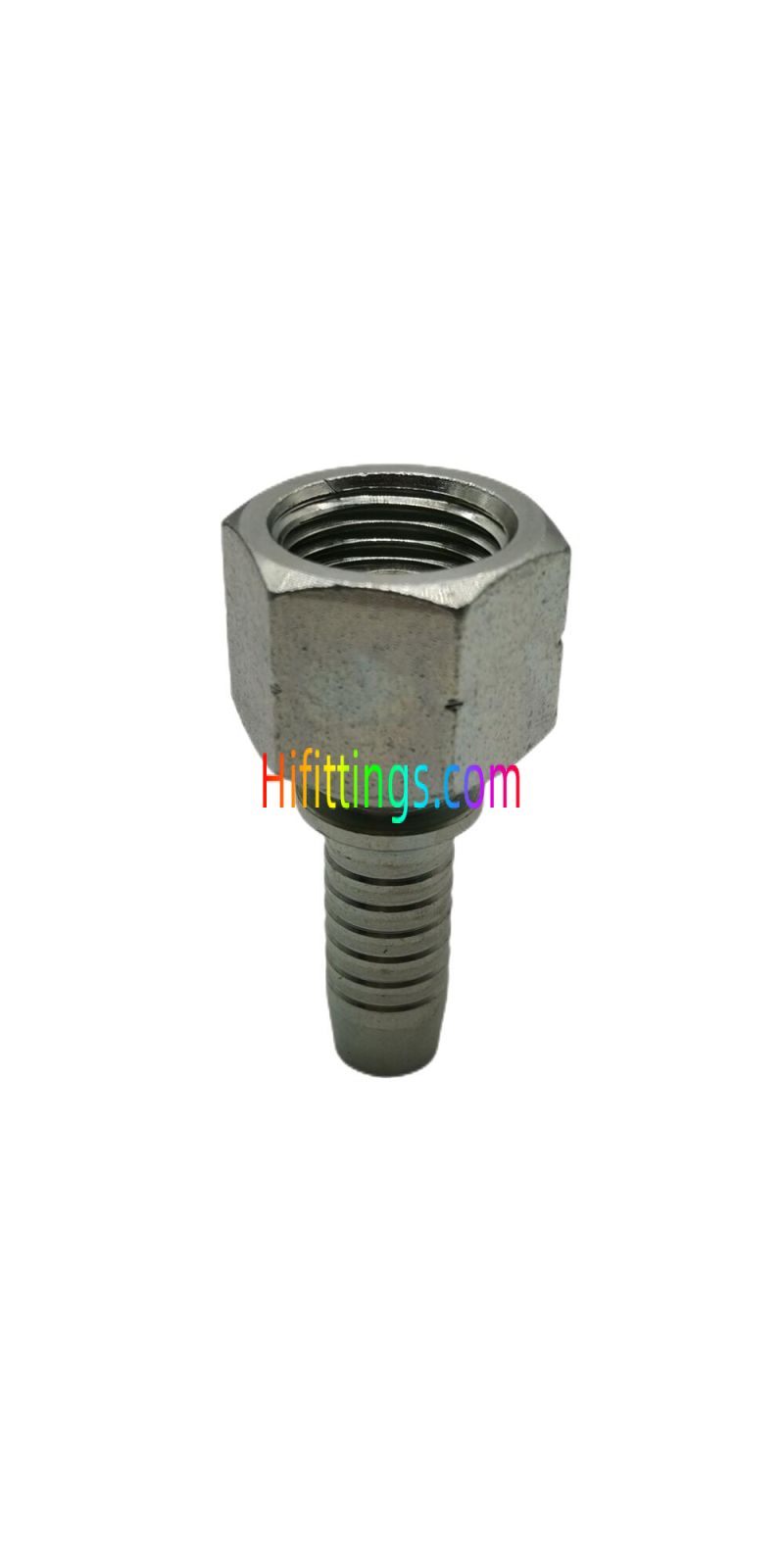

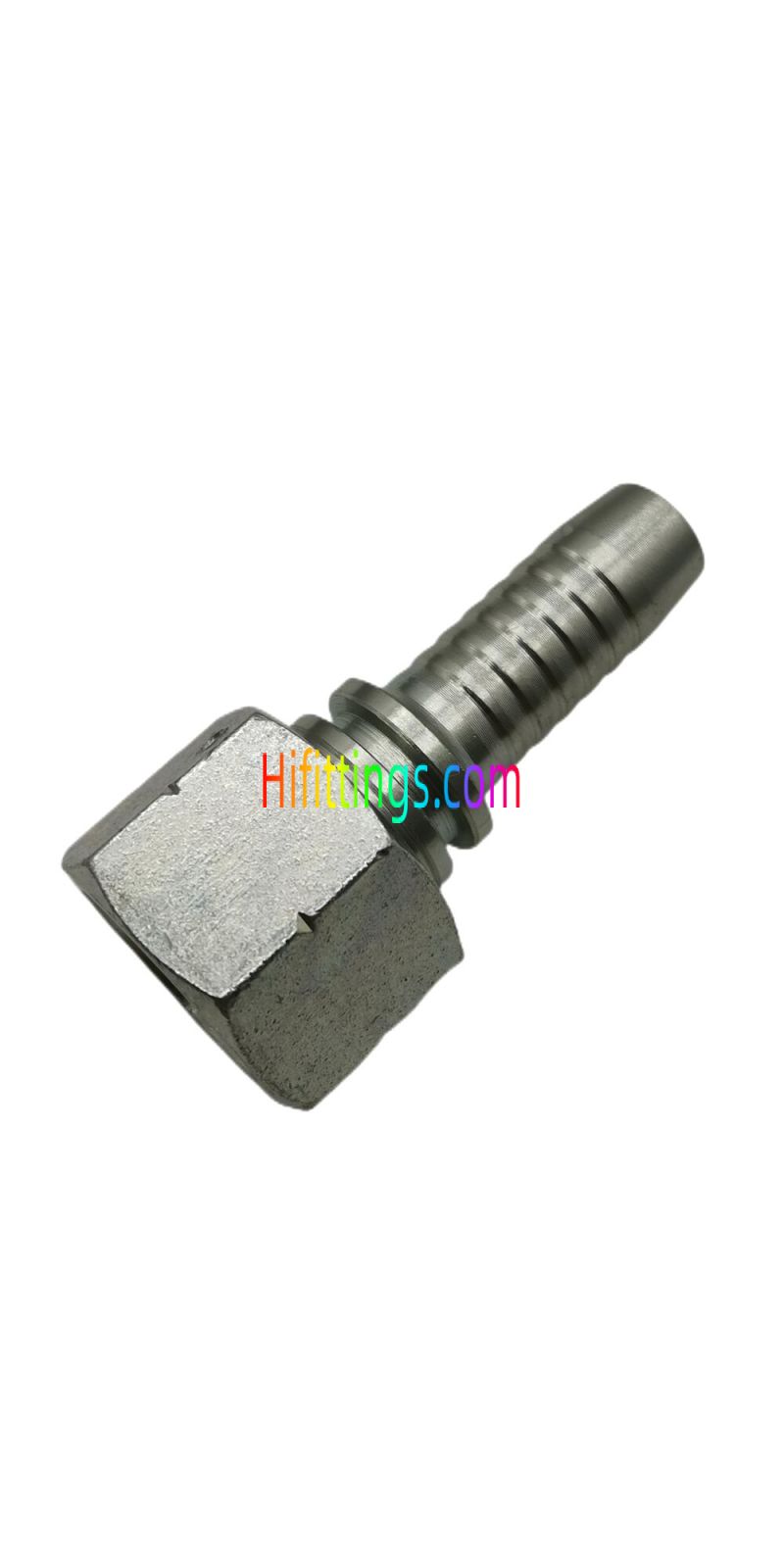

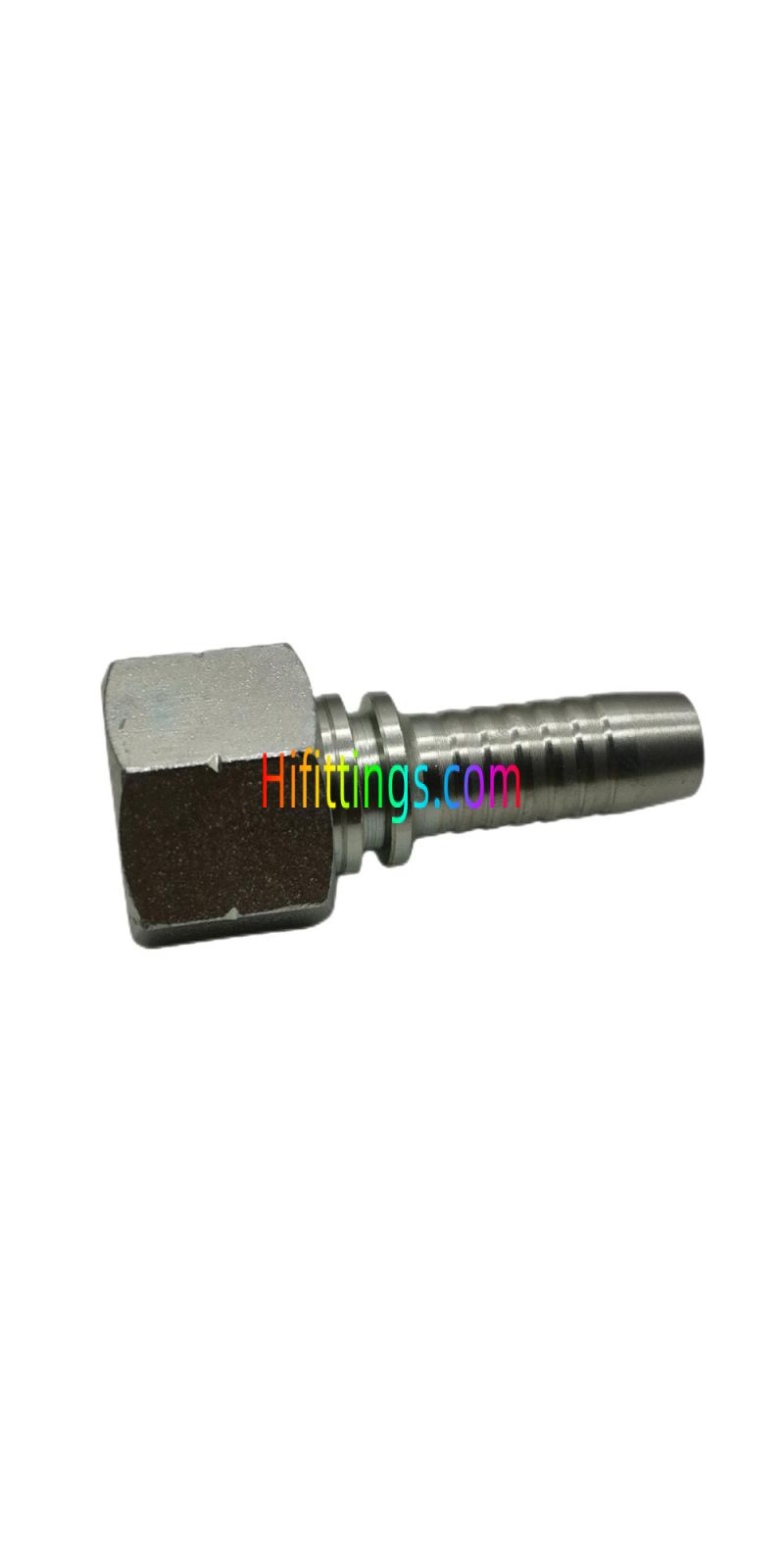

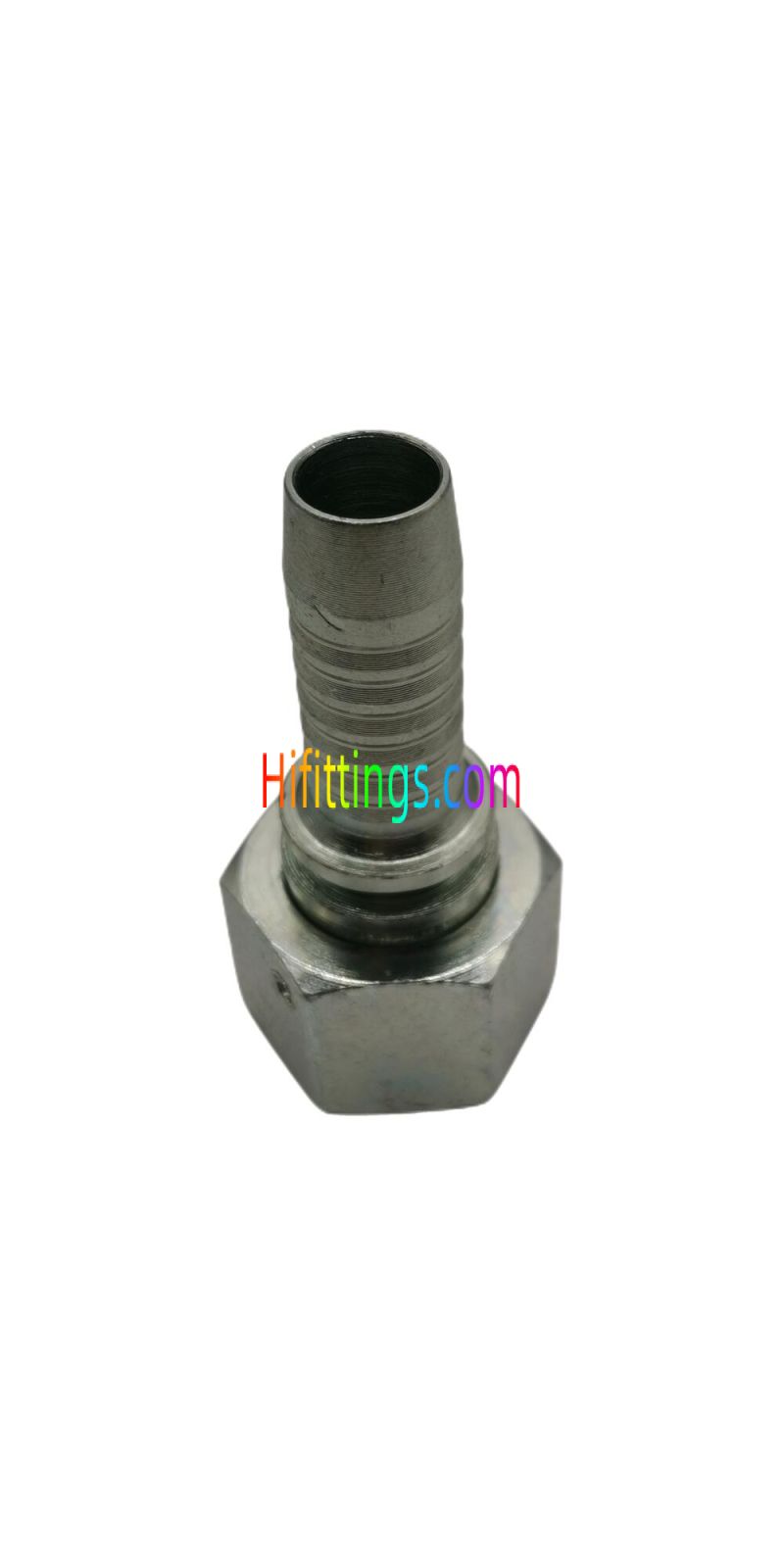

BSP-Drehgelenk mit Innengewinde 60° und Konusverpressung Schlauchverschraubung 22611
45
Auf Lager
Nur noch %1 verfügbar
SKU
22611
Guarantee safe & secure checkout
|
Part NO. |
Thread E |
Hose Bore - DN |
Hose Bore - Dash |
A |
C |
S2 |
|
22611-02-03 |
G1/8"X28 |
5 |
3 |
15 |
5.5 |
14 |
|
22611-02-04 |
G1/8"X28 |
6 |
4 |
15 |
5.5 |
14 |
|
22611-04-03 |
G1/4"X19 |
5 |
3 |
17 |
5.5 |
19 |
|
22611-04-04 |
G1/4"X19 |
6 |
4 |
18 |
5.5 |
19 |
|
22611-04-05 |
G1/4"X19 |
8 |
5 |
18 |
5.5 |
19 |
|
22611-04-06 |
G1/4"X19 |
10 |
6 |
18 |
5.5 |
19 |
|
22611-06-04 |
G3/8"X19 |
6 |
4 |
19 |
6.3 |
22 |
|
22611-06-05 |
G3/8"X19 |
8 |
5 |
19 |
6.3 |
22 |
|
22611-06-06 |
G3/8"X19 |
10 |
6 |
19.5 |
6.3 |
22 |
|
22611-06-08 |
G3/8"X19 |
12 |
8 |
19.5 |
6.3 |
22 |
|
22611-08-06T |
G1/2"X14 |
10 |
6 |
21 |
7.5 |
27 |
|
22611-08-08 |
G1/2"X14 |
12 |
8 |
21.5 |
7.5 |
27 |
|
22611-10-08 |
G5/8"X14 |
12 |
8 |
22 |
9.5 |
30 |
|
22611-10-10 |
G5/8"X14 |
16 |
10 |
23 |
9.5 |
30 |
|
22611-12-08T |
G3/4"X14 |
12 |
8 |
22 |
10.9 |
32 |
|
22611-12-10 |
G3/4"X14 |
16 |
10 |
23.5 |
10.9 |
32 |
|
22611-12-12 |
G3/4"X14 |
20 |
12 |
24 |
10.9 |
32 |
|
22611-16-12T |
G1"X11 |
20 |
12 |
24 |
11.7 |
41 |
|
22611-16-14 |
G1"X11 |
22 |
14 |
26 |
11.7 |
41 |
|
22611-16-16 |
G1"X11 |
25 |
16 |
27 |
11.7 |
41 |
|
22611-20-16T |
G1.1/4"X11 |
25 |
16 |
27.5 |
11 |
50 |
|
22611-20-20W |
G1.1/4"X11 |
32 |
20 |
30.5 |
11 |
50 |
|
22611-24-20T |
G1.1/2"X11 |
32 |
20 |
32 |
13 |
55 |
|
22611-24-24W |
G1.1/2"X11 |
40 |
24 |
32 |
13 |
55 |
|
22611-32-24T |
G2"X11 |
40 |
24 |
30 |
16 |
70 |
|
22611-32-32W |
G2"X11 |
50 |
32 |
31.9 |
16 |
70 |
|
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 22612-XX-XX |
||||||
| Form | Straight |
|---|---|
| Fitting Typ | Cone |
| Gewindetyp | Female |
| Connection Type | BSP |
