| KZE-BA Specifications | |||||
| Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) | 10000 | 10000 | 10000 | 8500 | 6000 |
| Rated Flow (GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range(NBR) | -20℃ 〜+120℃ | ||||

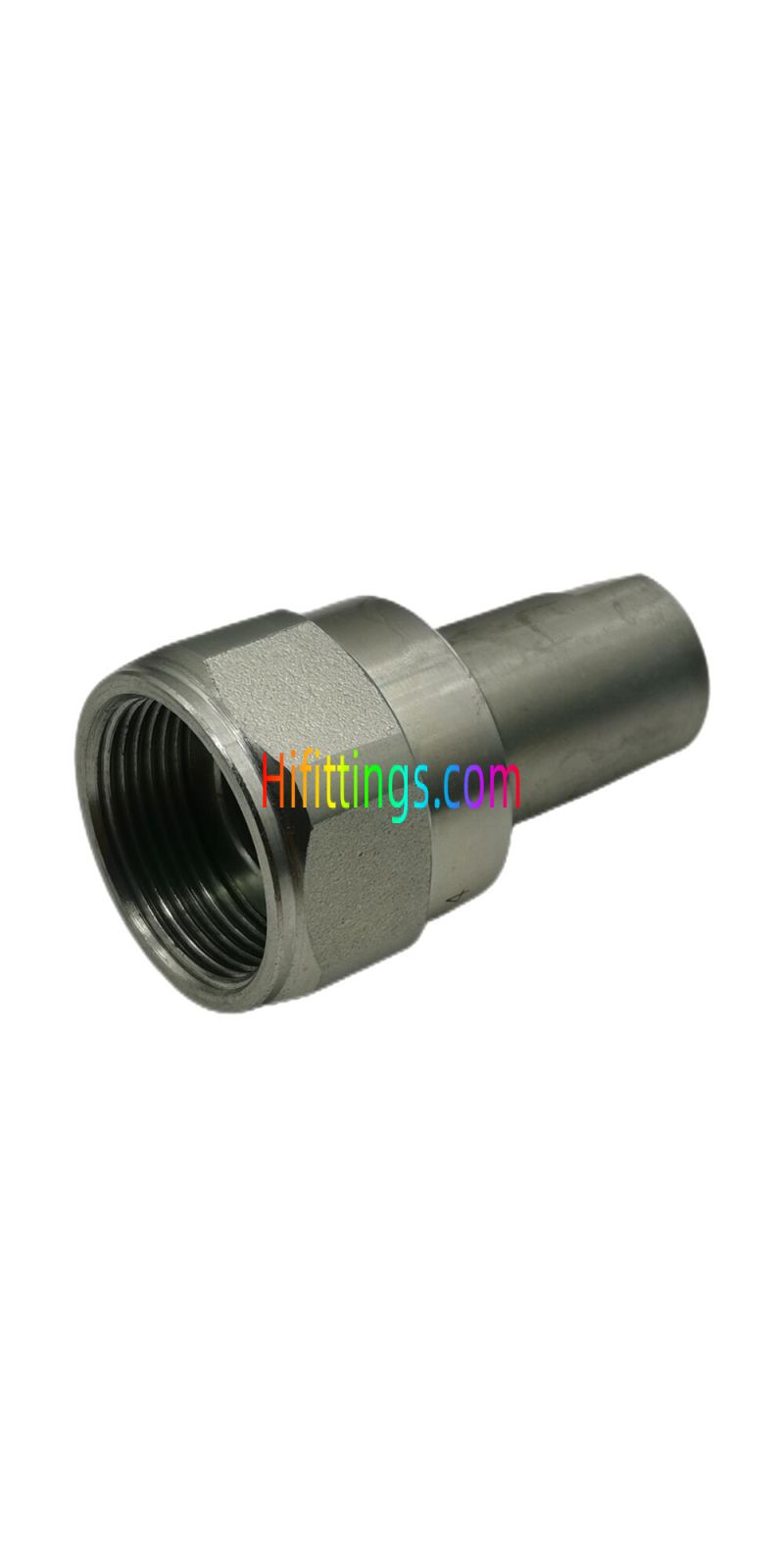

Socket
| Part NO. | Thread | LS | D | S1 | A |
| KZE-BA-G02SF | Gl/4 | 58.9 | 32 | 19 | 13 |
| KZE-BA-G03SF | G3/8 | 66.5 | 36 | 22 | 16 |
| KZE-BA-G04SF | Gl/2 | 76.5 | 41 | 27 | 18 |
| KZE-BA-G06SF | G3/4 | 89.5 | 50 | 35 | 20.5 |
| KZE-BA-G08SF | G1 | 105.5 | 65 | 41 | 20.5 |

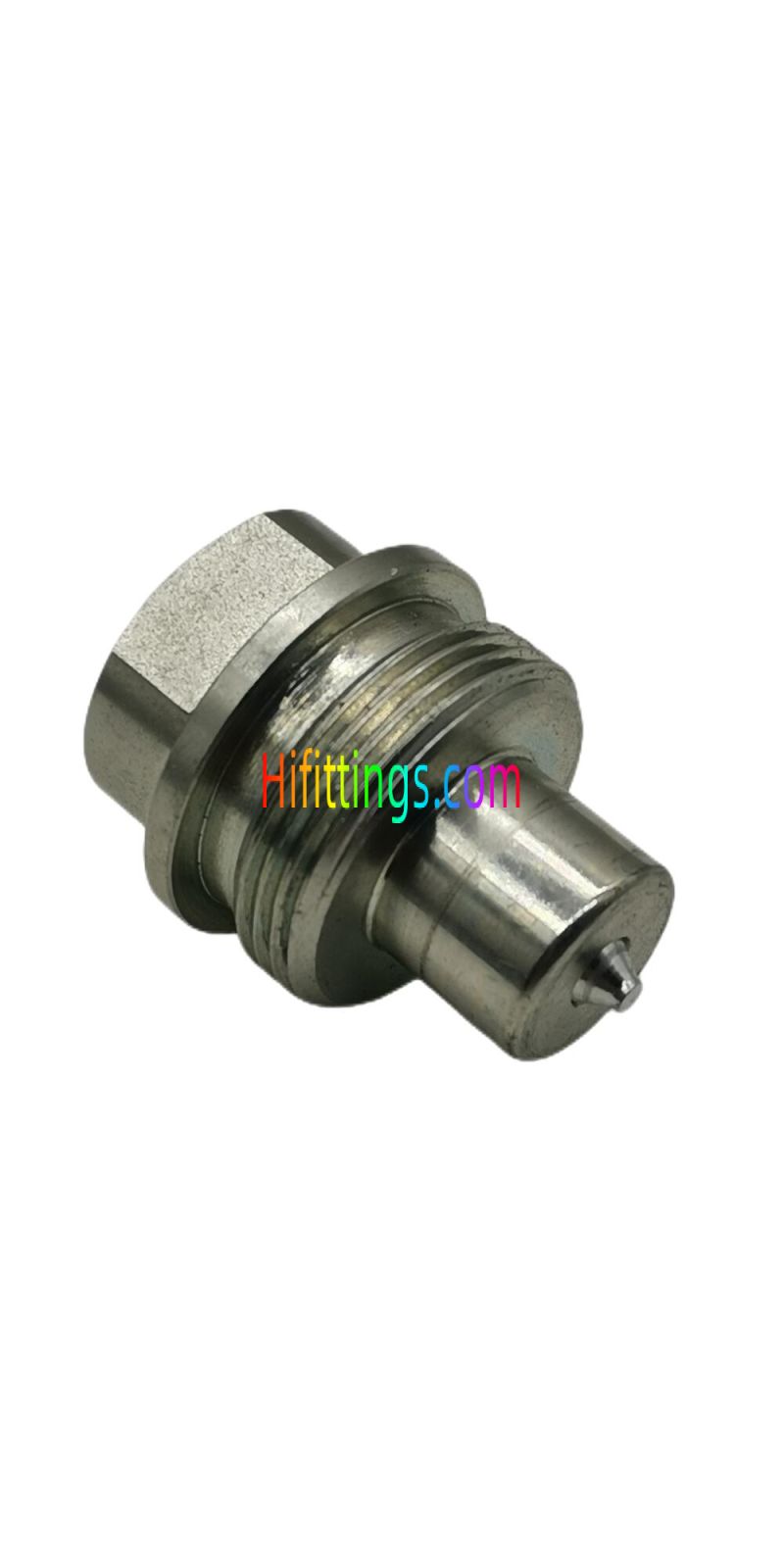

Plug
| Part NO. | Thread | LP | C | S2 | A |
| KZE-BA-G02PF | Gl/4 | 36 | 12.5 | 19 | 13 |
| KZE-BA-G03PF | G3/8 | 40.5 | 16 | 22 | 16 |
| KZE-BA-G04PF | Gl/2 | 49 | 17 | 27 | 18 |
| KZE-BA-G06PF | G3/4 | 56 | 19 | 35 | 20.5 |
| KZE-BA-G08PF | G1 | 66 | 22 | 41 | 20.5 |

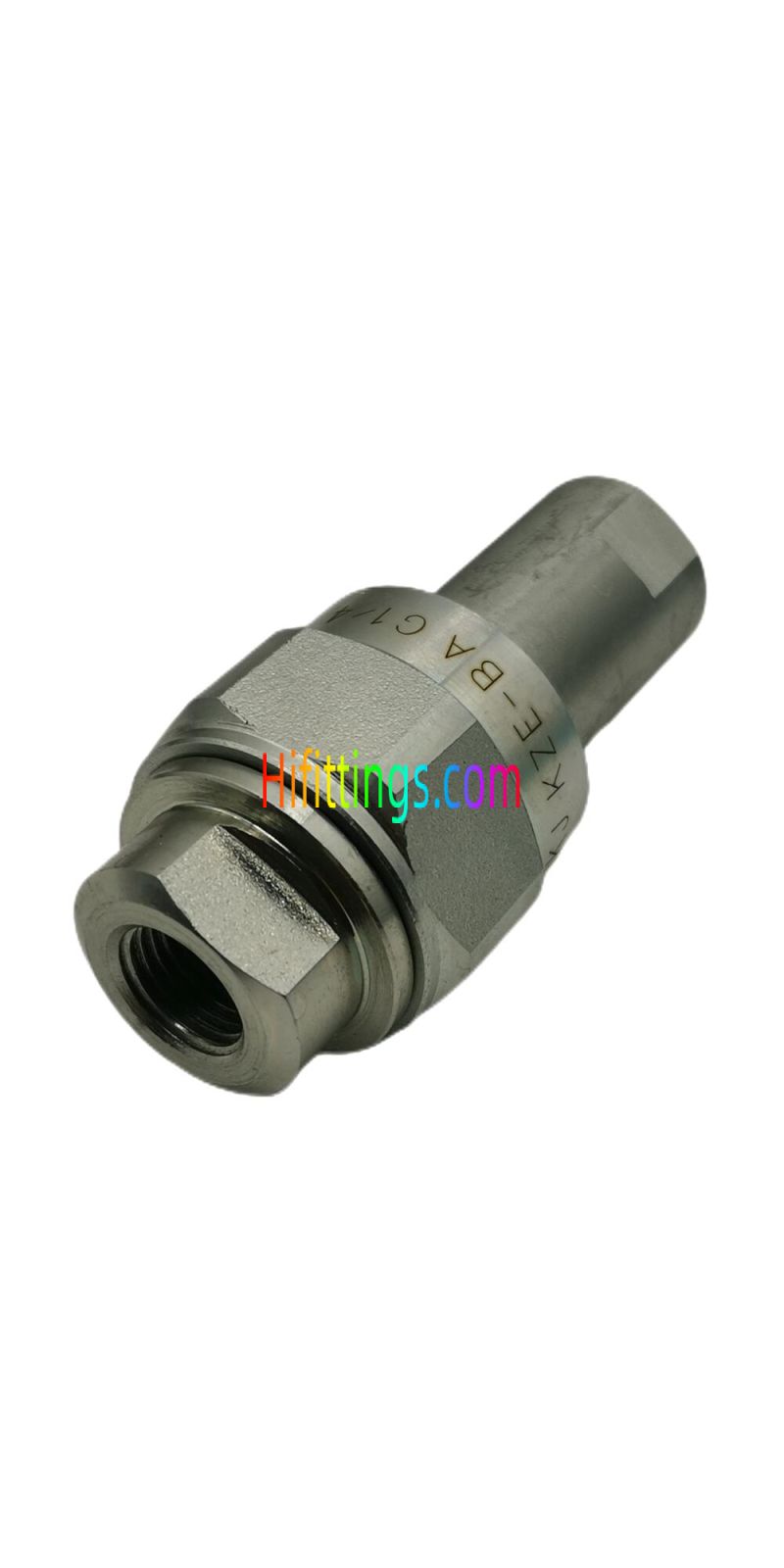

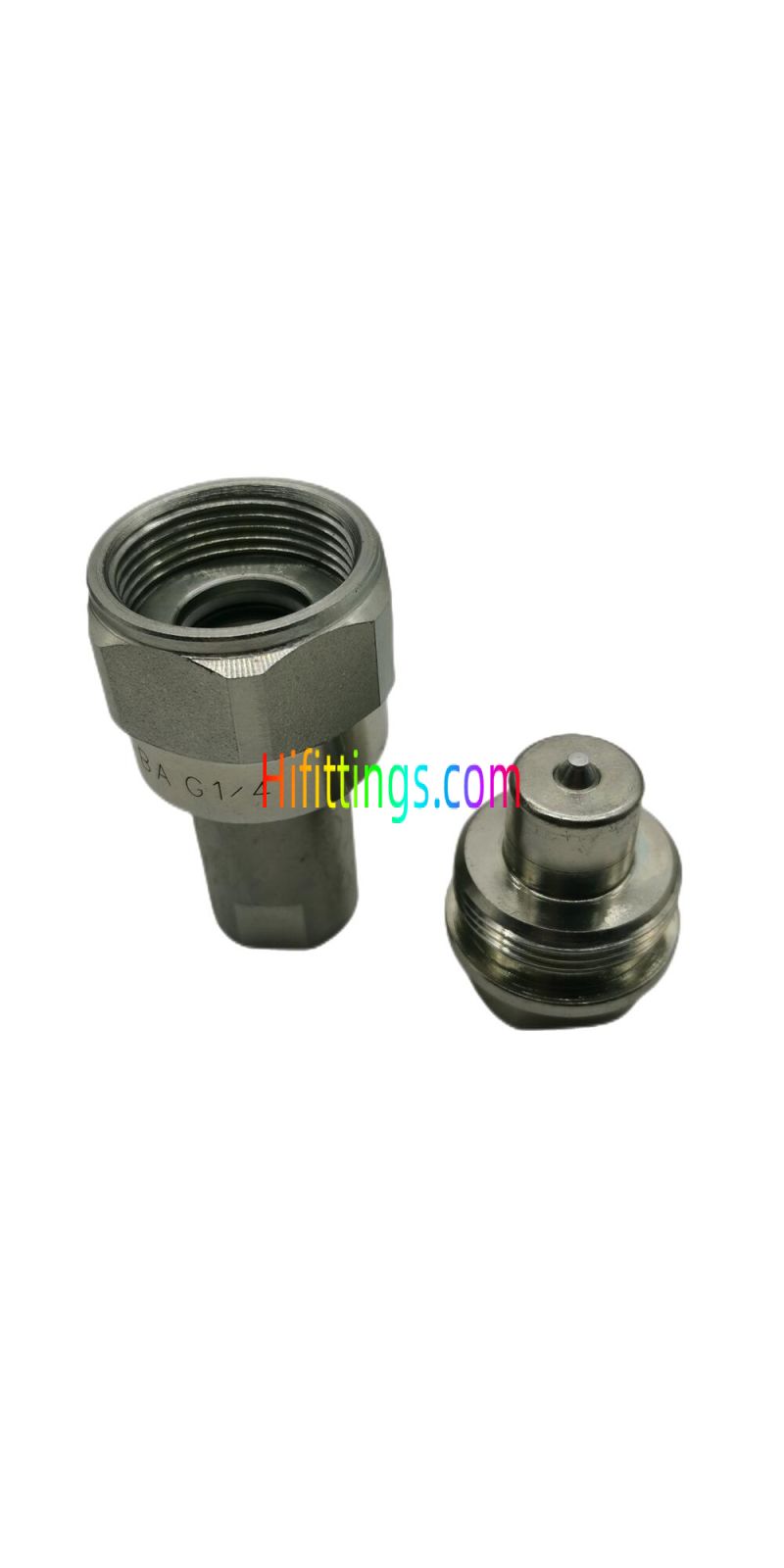

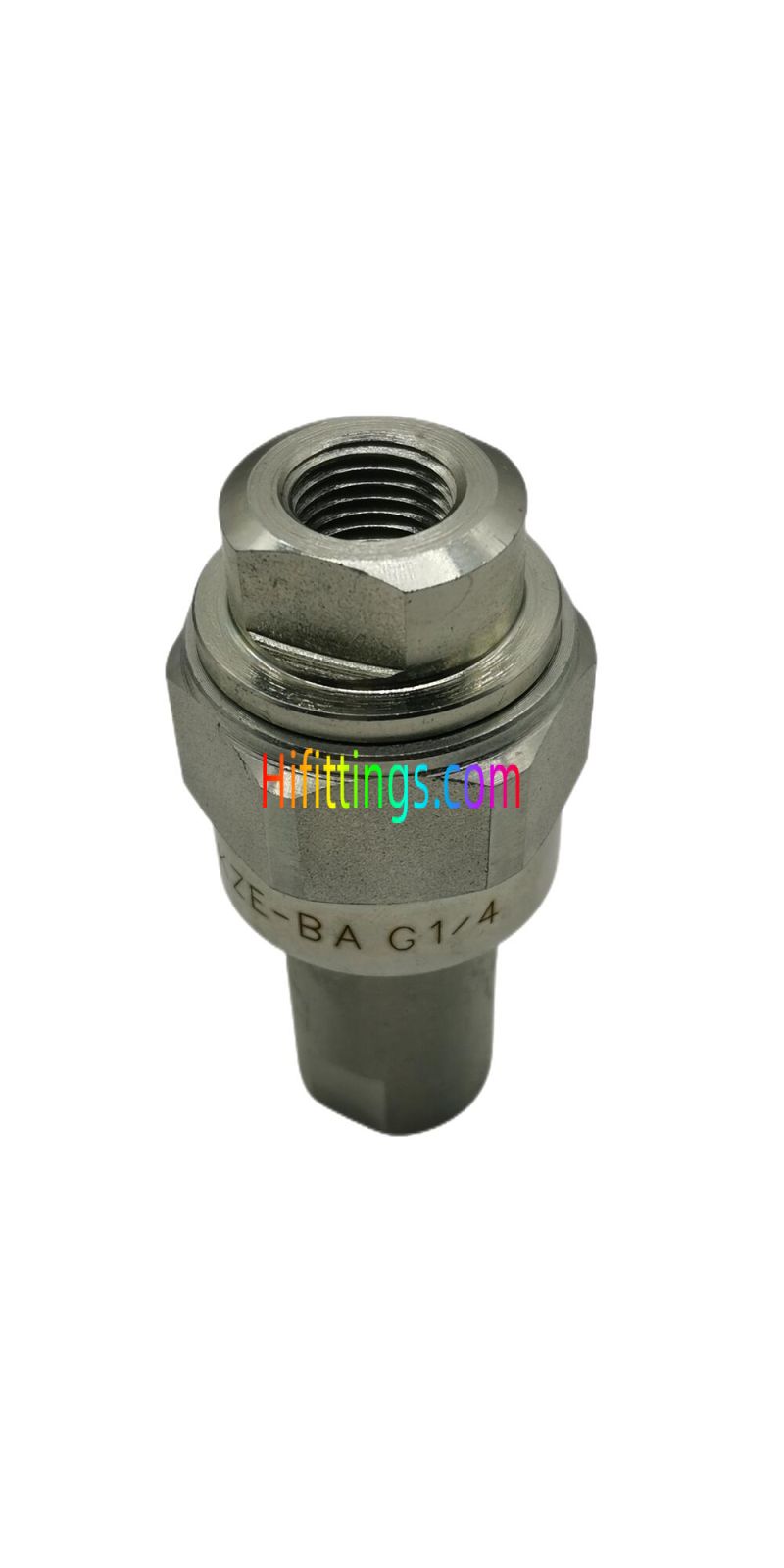

Coupling Fitting
| Part NO. | Thread | L | D | S1 | S2 |
| KZE-BA-G02SP | Gl/4 | 72.3 | 32 | 19 | 19 |
| KZE-BA-G03SP | G3/8 | 81.5 | 36 | 22 | 22 |
| KZE-BA-G04SP | Gl/2 | 98.3 | 41 | 27 | 27 |
| KZE-BA-G06SP | G3/4 | 112.4 | 50 | 35 | 35 |
| KZE-BA-G08SP | G1 | 132.9 | 65 | 41 | 41 |
| Gewindetyp | Female |
|---|
