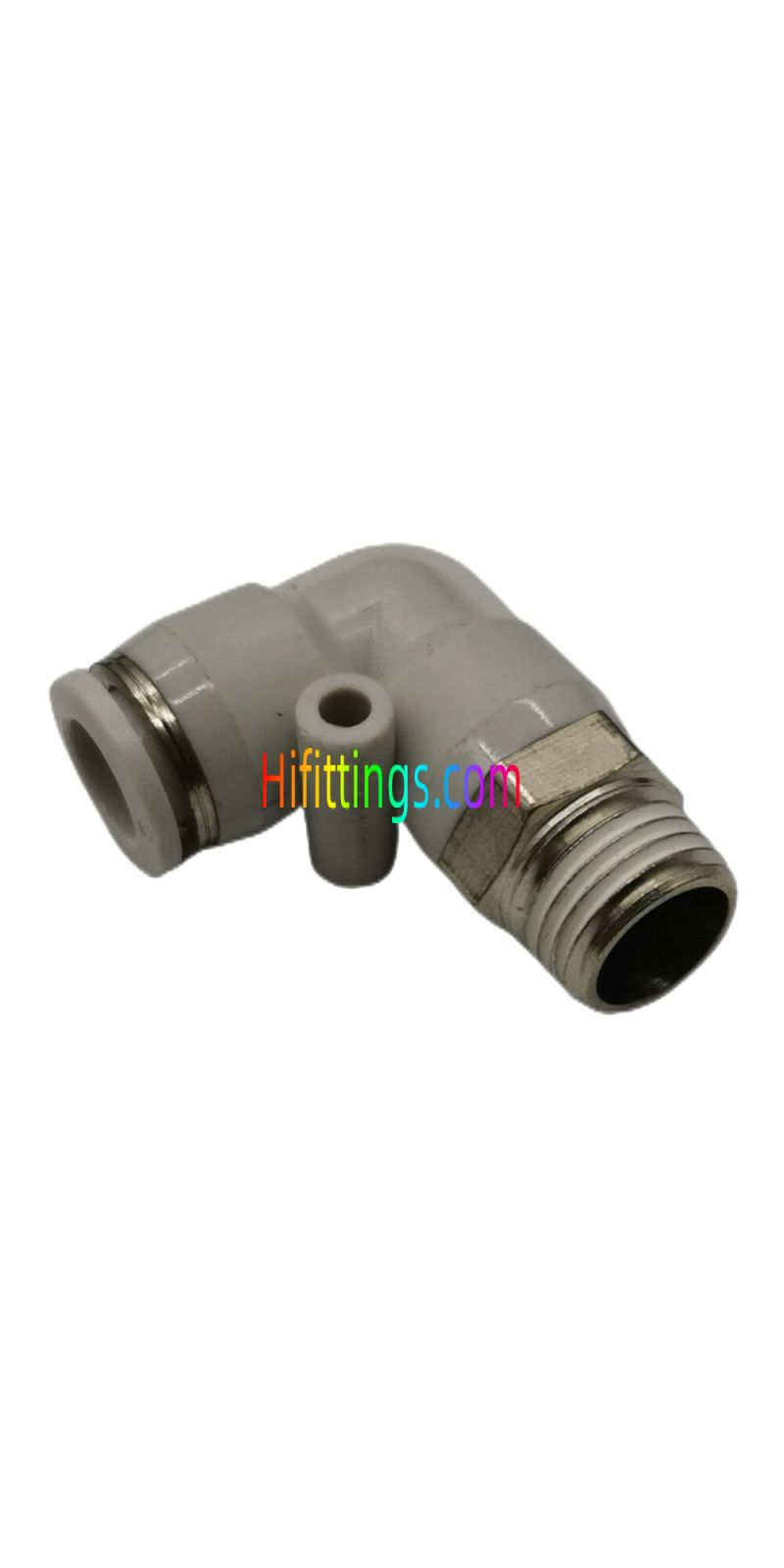

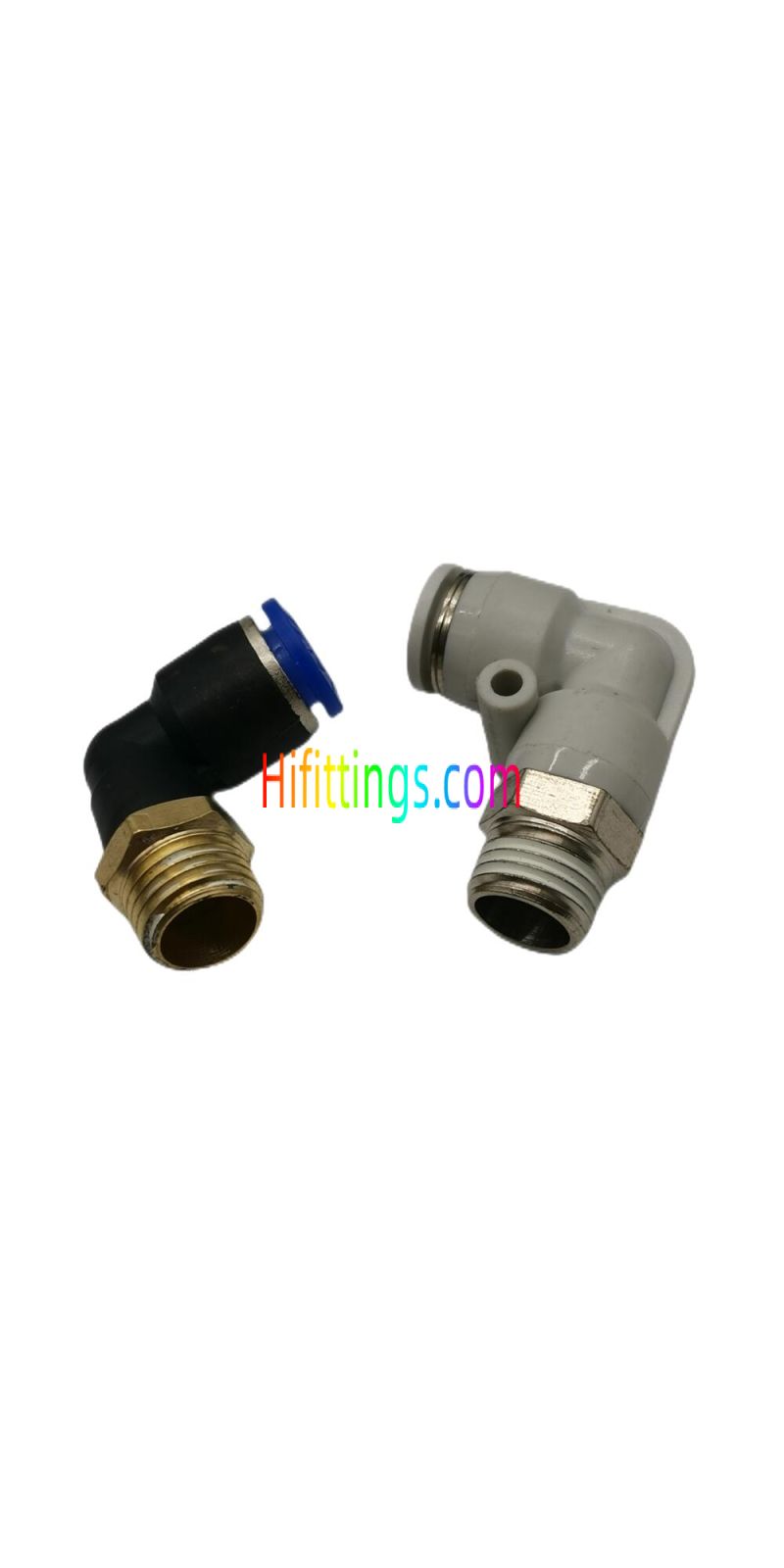

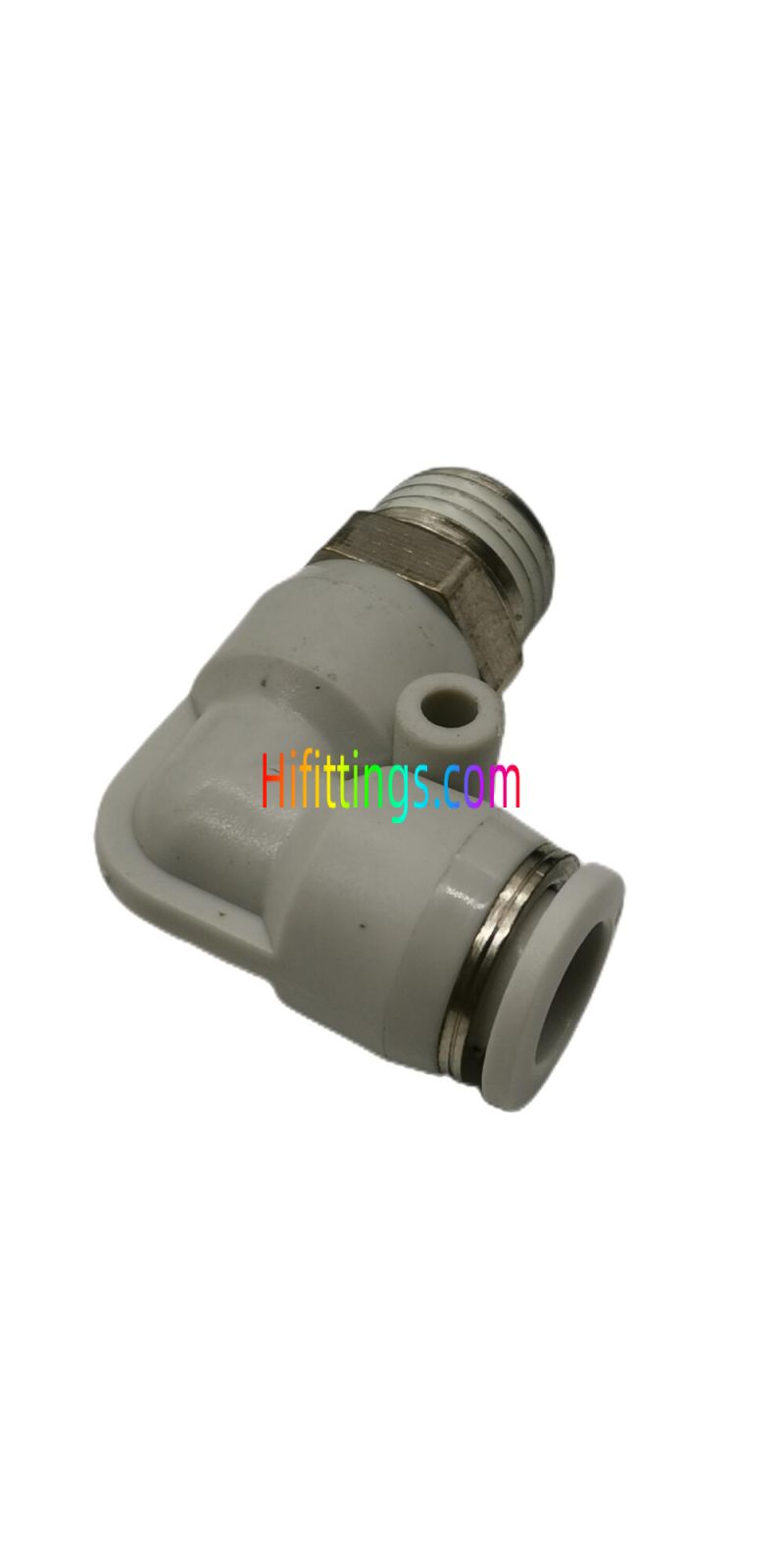

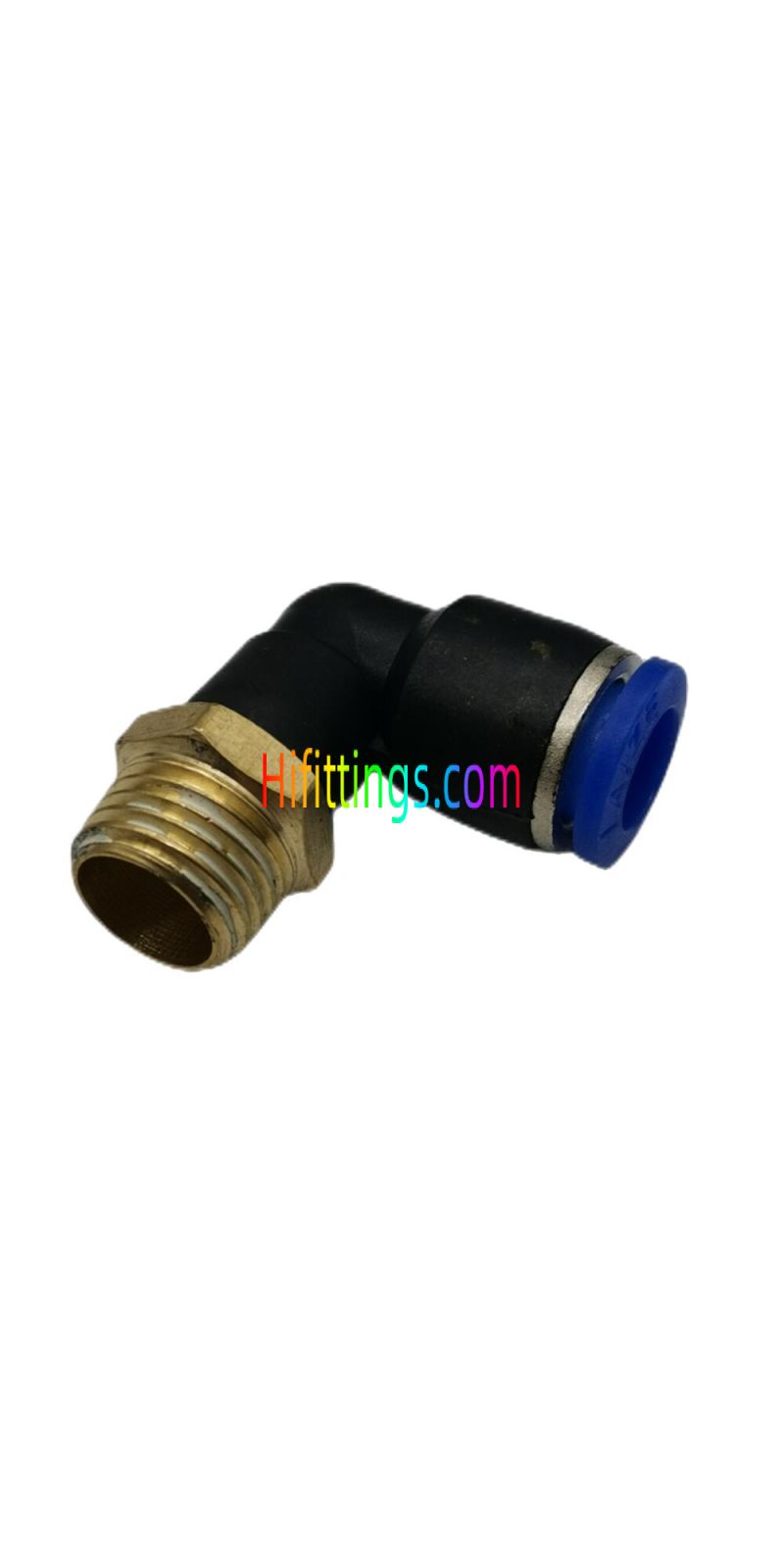

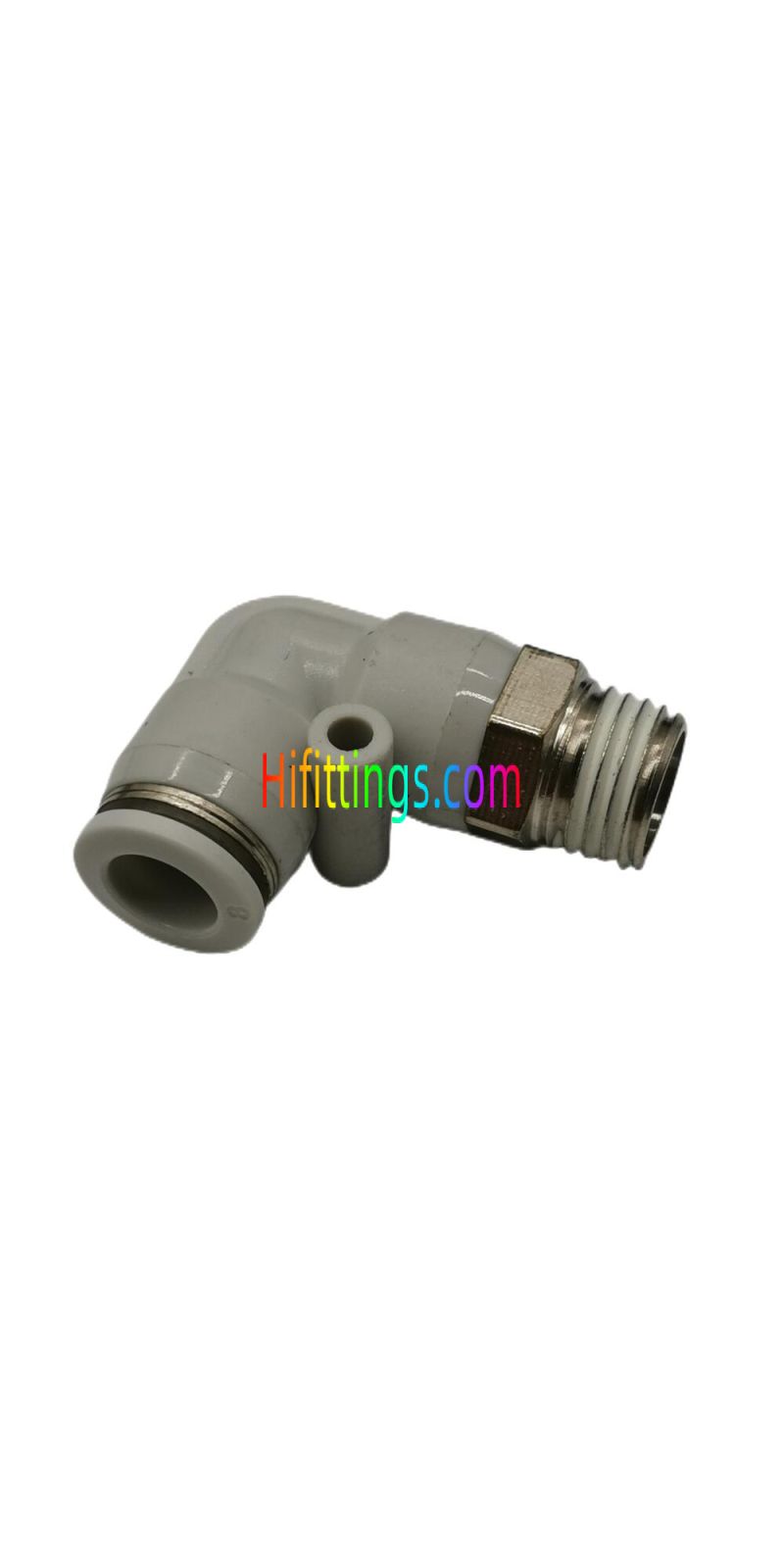

Winkel-Außengewinde Pneumatische Steckverschraubung PL
31
Auf Lager
Nur noch %1 verfügbar
SKU
PL
Guarantee safe & secure checkout
Male Elbow Pneumatic Push-In Fitting PL
| Item | φD | R | φP | L | K | EA | EB | H |
| PL4M5 | 4 | M5x0.8 | 9 | 3.5 | 14 | 17 | 15 | 8 |
| PL401 | PT1/8 | 9 | 7.5 | 14 | 17 | 18.5 | 10 | |
| PL402 | PT1/4 | 9 | 10 | 14 | 17 | 22.0 | 14 | |
| PL6M5 | M5x0.8 | 12.5 | 3.5 | 17 | 20 | 17.0 | 8 | |
| PL601 | PT1/8 | 12.5 | 7.5 | 17 | 20 | 20.5 | 10 | |
| PL602 | 6 | PT1/4 | 12.5 | 10 | 17 | 20 | 24.0 | 14 |
| PL603 | PT3/8 | 12.5 | 11 | 17 | 20 | 25.5 | 17 | |
| PL604 | PT1/2 | 12.5 | 14 | 17 | 20 | 30.0 | 21 | |
| PL801 | 8 | PT1/8 | 15 | 7.5 | 18.5 | 23 | 20.5 | 10 |
| PL802 | PT1/4 | 15 | 10 | 18.5 | 23 | 25.0 | 14 | |
| PL803 | PT3/8 | 15 | 11 | 18.5 | 23 | 26.5 | 17 | |
| PL804 | PT1/2 | 15 | 14 | 18.5 | 23 | 31.0 | 21 | |
| PL1001 | 10 | PT1/8 | 18 | 7.5 | 21 | 25.5 | 25.0 | 17 |
| PL1002 | PT1/4 | 18 | 10 | 21 | 25.5 | 27.0 | 17 | |
| PL1003 | PT3/8 | 18 | 11 | 21 | 25.5 | 28.0 | 17 | |
| PL1004 | PT1/2 | 18 | 14 | 21 | 25.5 | 32.5 | 21 | |
| PL1201 | 12 | PT1/8 | 21 | 7.5 | 23 | 28.5 | 26.5 | 17 |
| PL1202 | PT1/4 | 21 | 10 | 23 | 28.5 | 28.5 | 17 | |
| PL1203 | PT3/8 | 21 | 11 | 23 | 29.5 | 33 | 17 | |
| PL1204 | PT1/2 | 21 | 14 | 23 | 29.5 | 34 | 21 |
| Form | Elbow |
|---|---|
| Material | Plastic Polymer |
| Fitting Typ | Push-in |
| Gewindetyp | Male |
| Connection Type | BSPT, Metric |
| Brand Product | Safecan |
