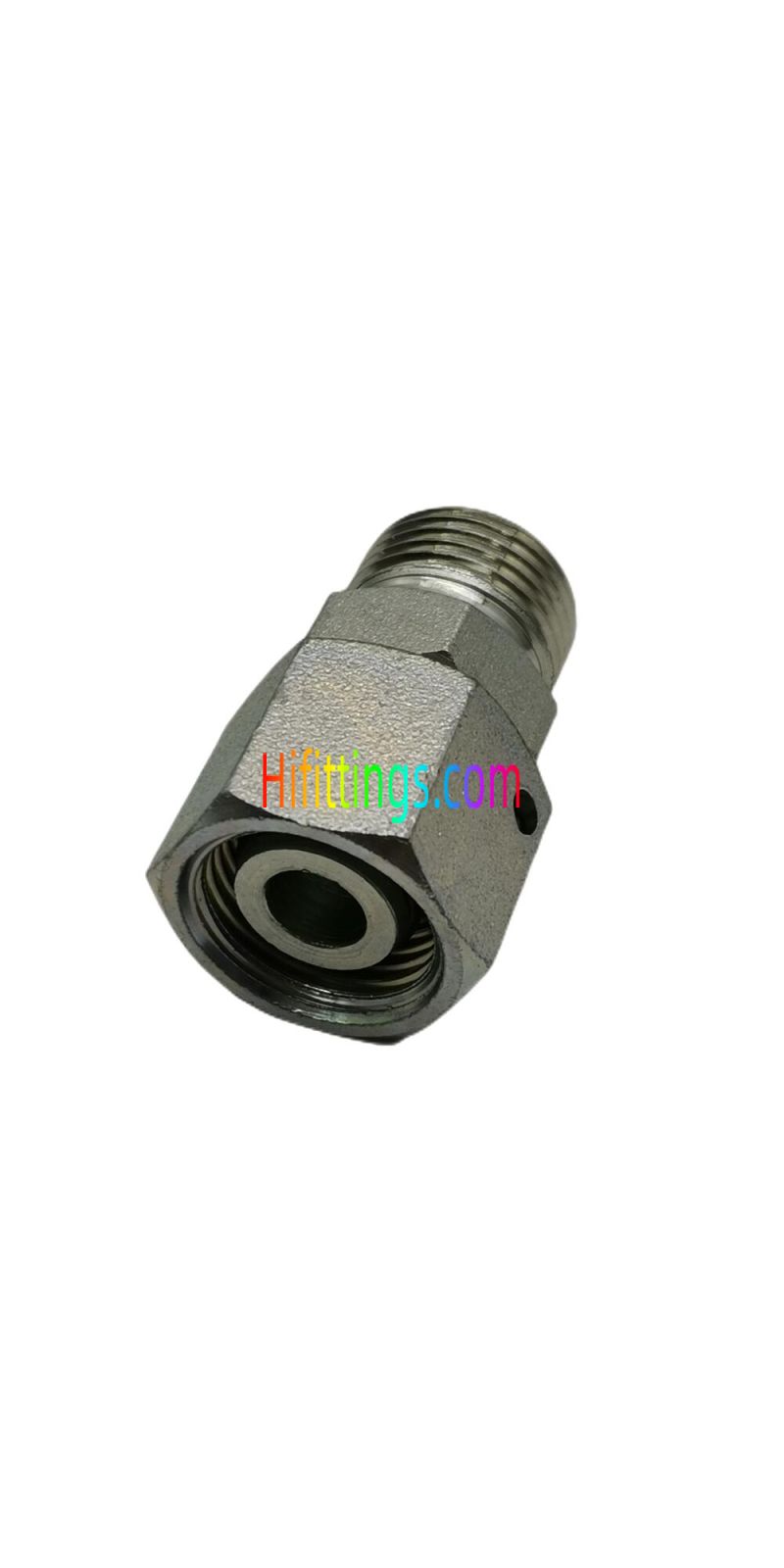

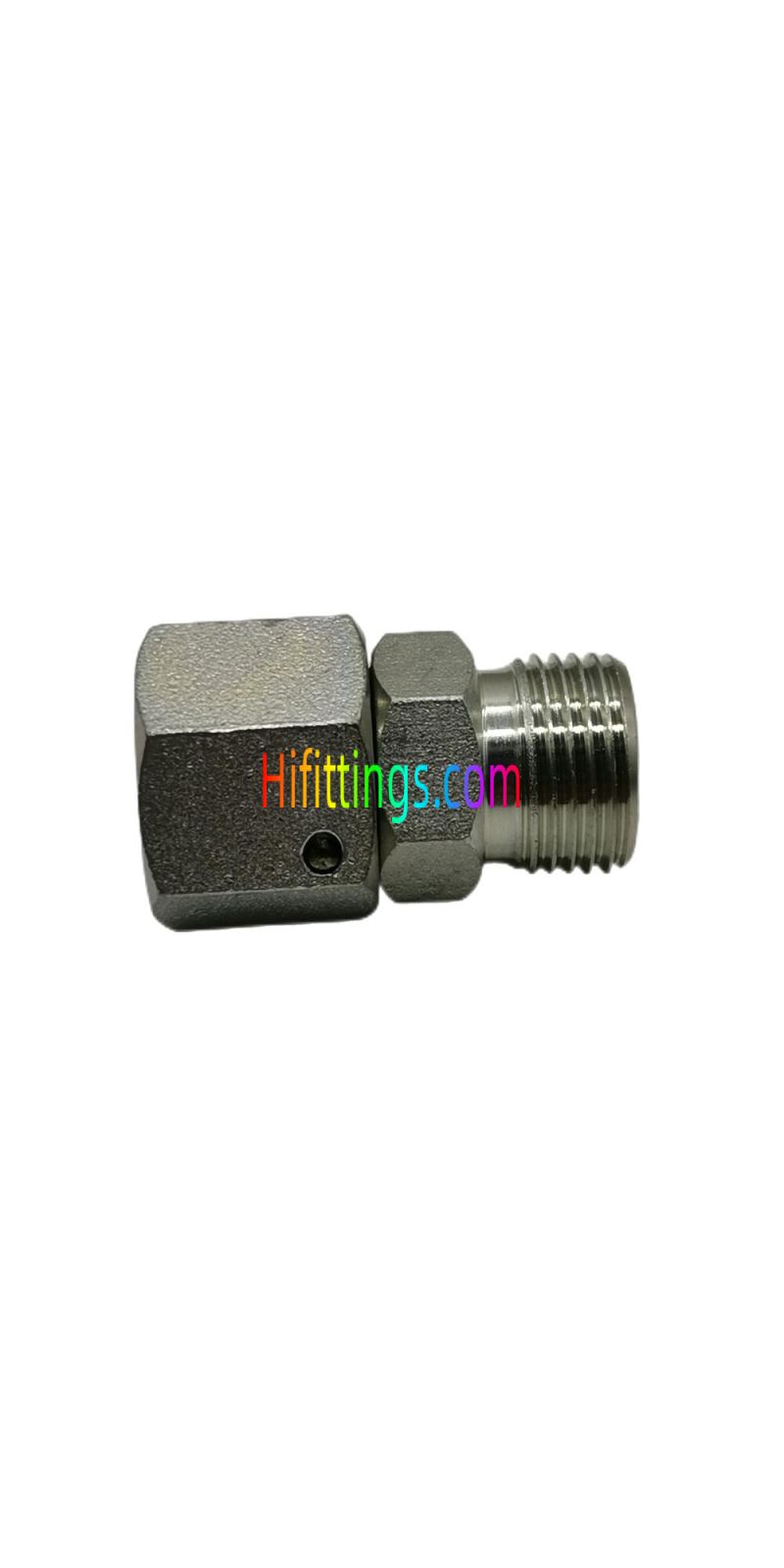

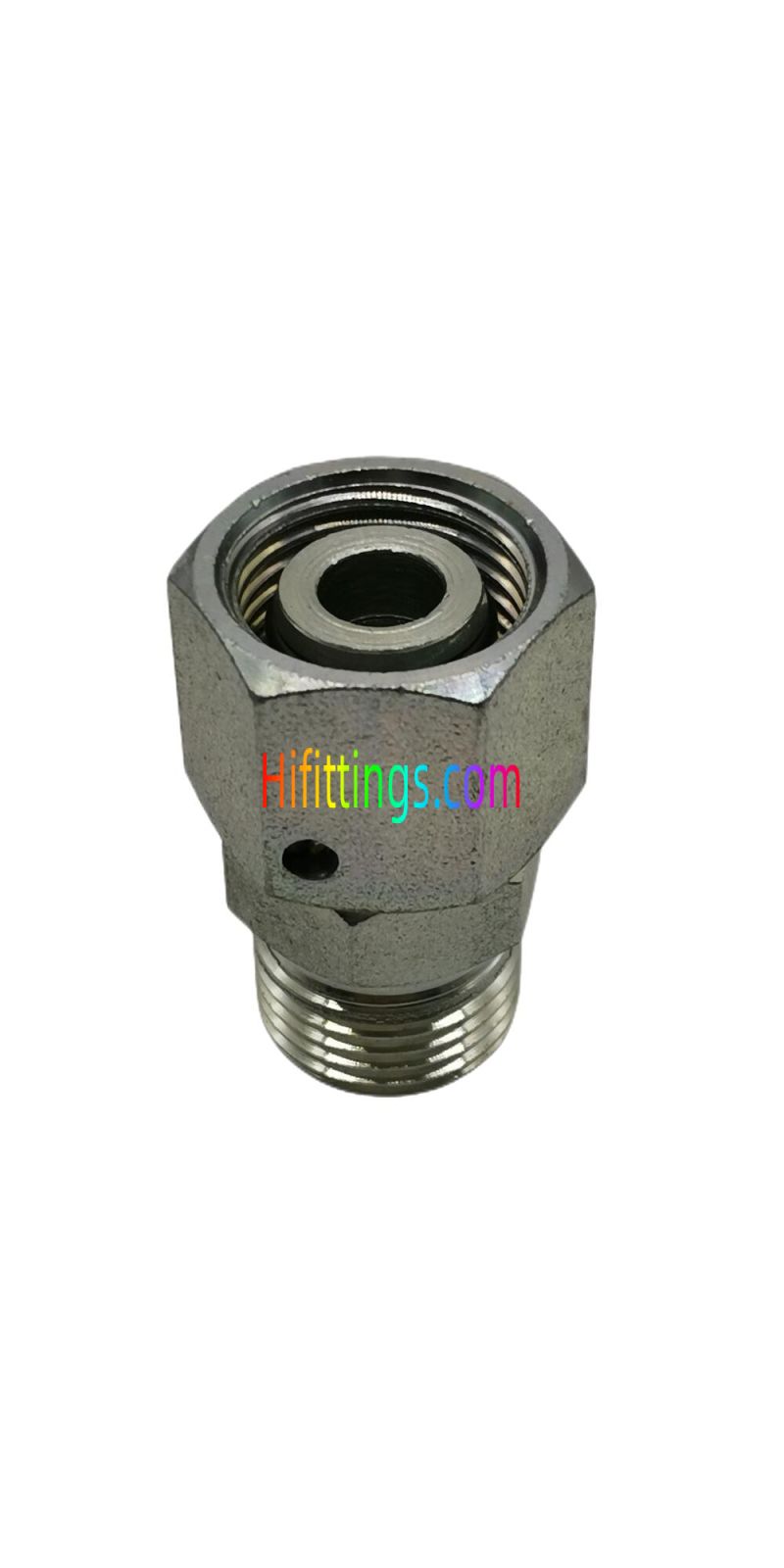

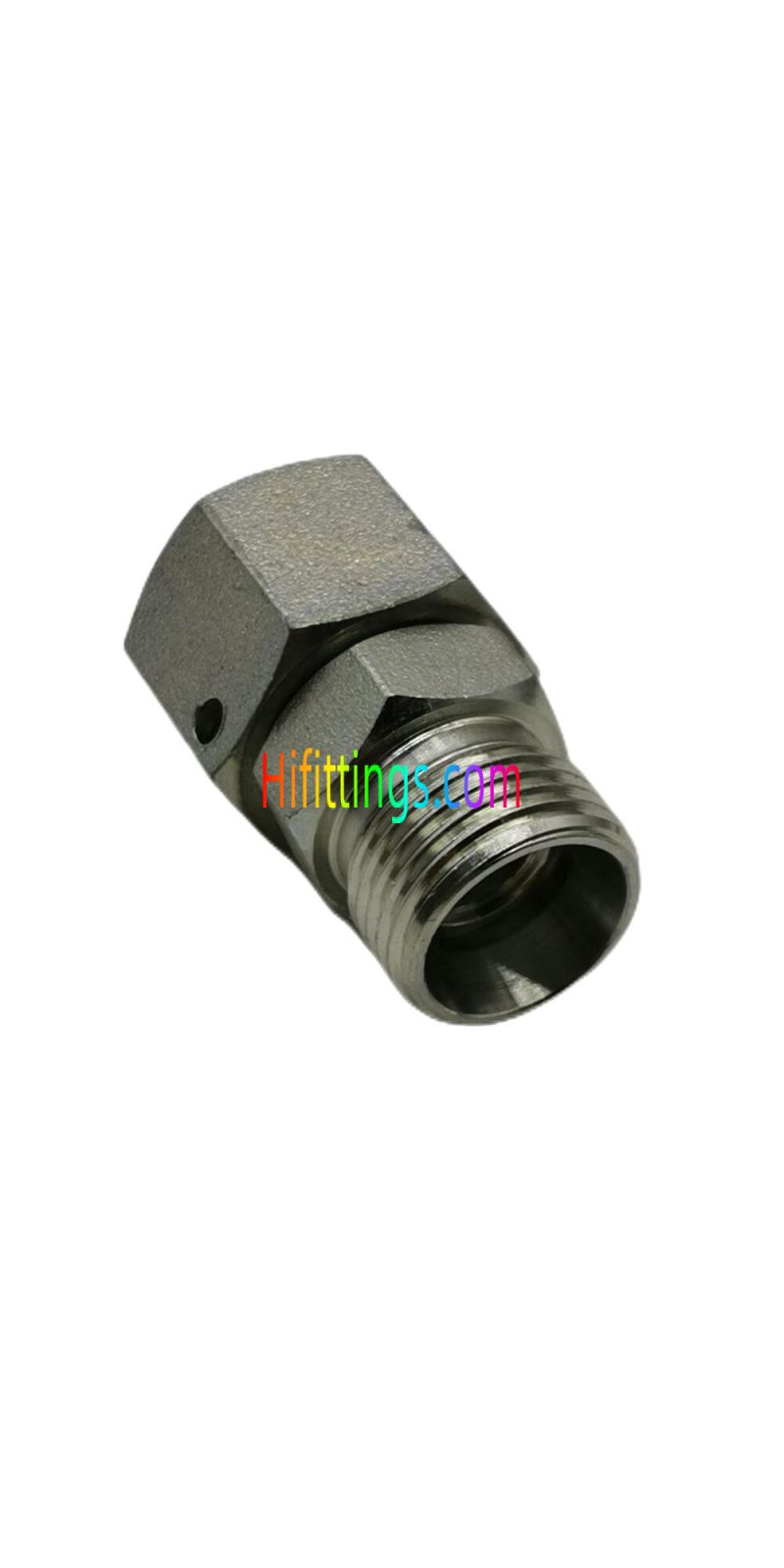

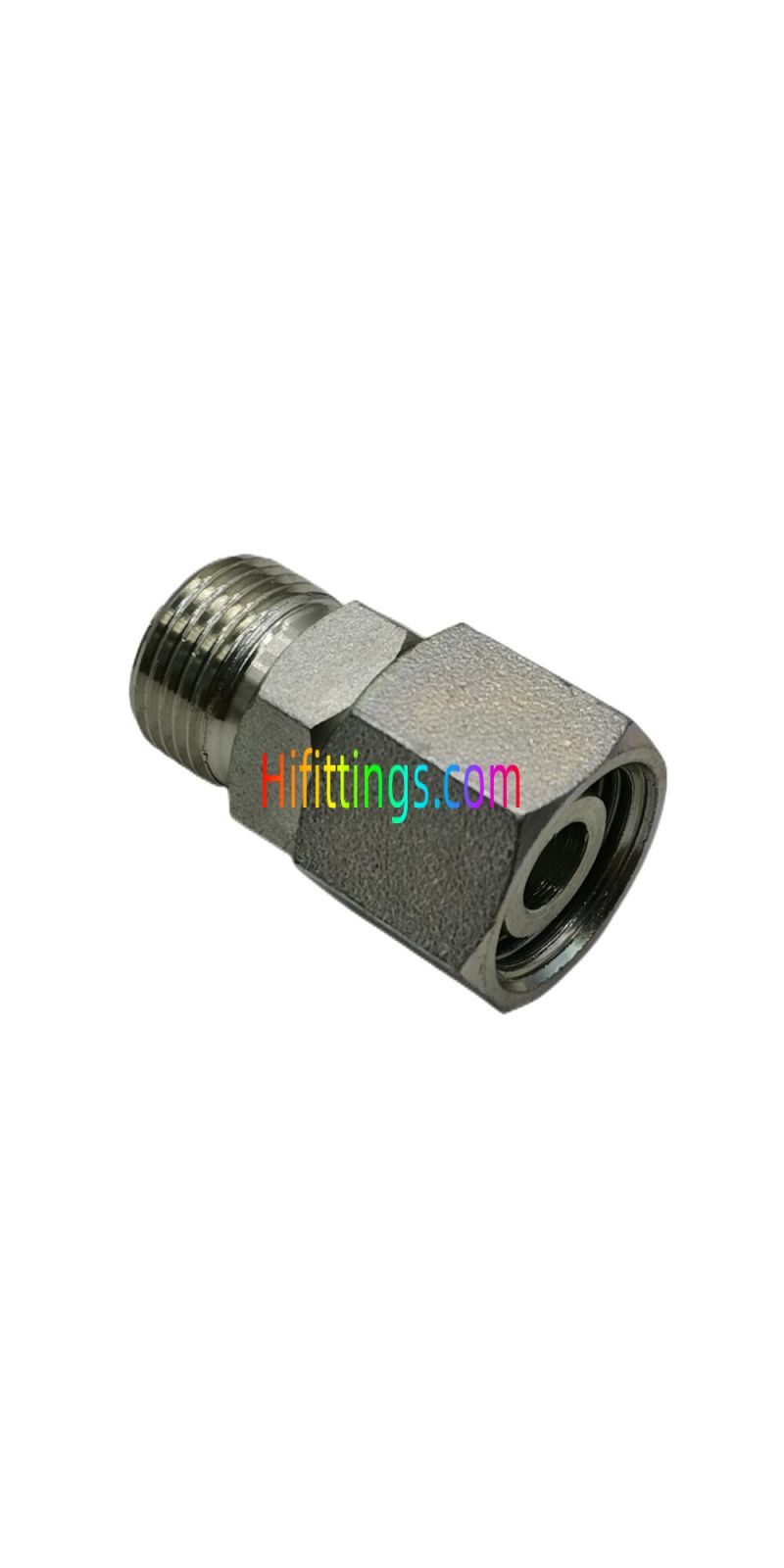

Metrisches Außengewinde Metrisches Innengewinde Reduzierstück Rohrverschraubungen mit Drehgelenk 2C

Part  NO.

E

F

D1

D2

11

L1

S1

S2

S3

Working Pressure  bar

2C-12-14

M12X1.5

M14X1.5

6

8

23.5

38

12

14

17

PN315

2C-12-16

M12X1.5

M16X1.5

6

10

25

40

14

14

19

PN315

2C-14-16

M14X1.5

M16X1.5

8

10

25

40

14

17

19

PN315

2C-12-18

M12X1.5

M18X1.5

6

12

25

40

17

14

22

PN315

2C-14-18

M14X1.5

M18X1.5

8

12

25

40

17

17

22

PN315

2C-16-18

M16X1.5

M18X1.5

10

12

26

41

17

19

22

PN315

2C-12-22

M12X1.5

M22X1.5

6

15

28.5

43

19

14

27

PN315

2C-14-22

M14X1.5

M22X1.5

8

15

28.5

43

19

17

27

PN315

2C-16-22

M16X1.5

M22X1.5

10

15

29.5

44

19

19

27

PN315

2C-18-22

M18X1.5

M22X1.5

12

15

29.5

44

19

22

27

PN315

2C-12-26

M12X1.5

M26X1.5

6

18

28

43

24

14

32

PN315

2C-14-26

M14X1.5

M26X1.5

8

18

28

43

24

17

32

PN315

2C-16-26

M16X1.5

M26X1.5

10

18

29

44

24

19

32

PN315

2C-18-26

M18X1.5

M26X1.5

12

18

29

44

24

22

32

PN315

2c-22-26

M22X1.5

M26X1.5

15

18

30

45

24

27

32

PN315

2C-12-30

M12X1.5

M30X2

6

22

32

47

27

14

36

PN160

2C-14-30

M14X1.5

M30X2

8

22

32

47

27

17

36

PN160

2C-16-30

M16X1.5

M30X2

10

22

33

48

27

19

36

PN160

2C-18-30

M18X1.5

M30X2

12

22

33

48

27

22

36

PN160

2C-22-30

M22X1.5

M30X2

15

22

34

49

27

27

36

PN160

2C-26-30

M26X1.5

M30X2

18

22

33.5

50

27

32

36

PN160

2C-12-36

M12X1.5

M36X2

6

28

34

49

36

14

41

PN160

2C-14-36

M14X1.5

M36X2

8

28

34

49

36

17

41

PN160

2C-16-36

M16X1.5

M36X2

10

28

35

50

36

19

41

PN160

2C-18-36

M18X1.5

M36X2 .

12

28

35

50

36、

22

41

PN160

2C-22-36

M22X1.5

M36X2

15

28

36

51

36

27

41

PN160

2C-26-36

M26X1.5

M36X2

18

28

35.5

52

36

32

41

PN160

2C-30-36

M30X2

M36X2

22

28

37.5

54

36

36

41

PN160

2C-12-45

M12X1.5

M45X2

6

35

37

52

41

14

50

PN160

2C-14-45

M14X1.5

M45X2

8

35

37

52

41

17

50

PN160

2C-16-45

M16X1.5

M45X2

10

35

38

53

41

19

50

PN160

2C-18-45

M18X1.5

M45X2

12

35

38

53

41

22

50

PN160

2C-22-45

M22X1.5

M45X2

15

35

39

54

41

27

50

PN160

2C-26-45

M26X1.5

M45X2

18

35

38.5

55

41

32

50

PN160

2C-30-45

M30X2

M45X2

22

35

40.5

57

41

36

50

PN160

2C-36-45

M36X2

M45X2

28

35

40.5

57

41

41

50

PN160

2C-12-52

M12X1.5

M52X2

6

42

40.5

55

50

14

60

PN160

2C-14-52

M14X1.5

M52X2

8

42

40.5

55

50

17

60

PN160

2C-16-52

M16X1.5

M52X2

10

42

41.5

56

50

19

60

PN160

2C-18-52

M18X1.5

M52X2

12

42

41.5

56

50

22

60

PN160

2C-22-52

M22X1.5

M52X2

15

42

42.5

58

50

27

60

PN160

2C-26-52

M26X1.5

M52X2

18

42

42

58

50

32

60

PN160

2C-30-52

M30X2

M52X2

22

42

44

60

50

36

60

PN160

2C-36-52

M36X2

M52X2

28

42

44

61

50

41

60

PN160

2C-45-52

M45X2

M52X2

35

42

43

65

50

50

60

PN160

Note: 1.  In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example 2C-30-52RN.   2. PN = Nominal Pressure
