Metrische O-Ring-Verschraubungen mit Außengewinde AE
27
Auf Lager
Nur noch %1 verfügbar
SKU
AE
Guarantee safe & secure checkout

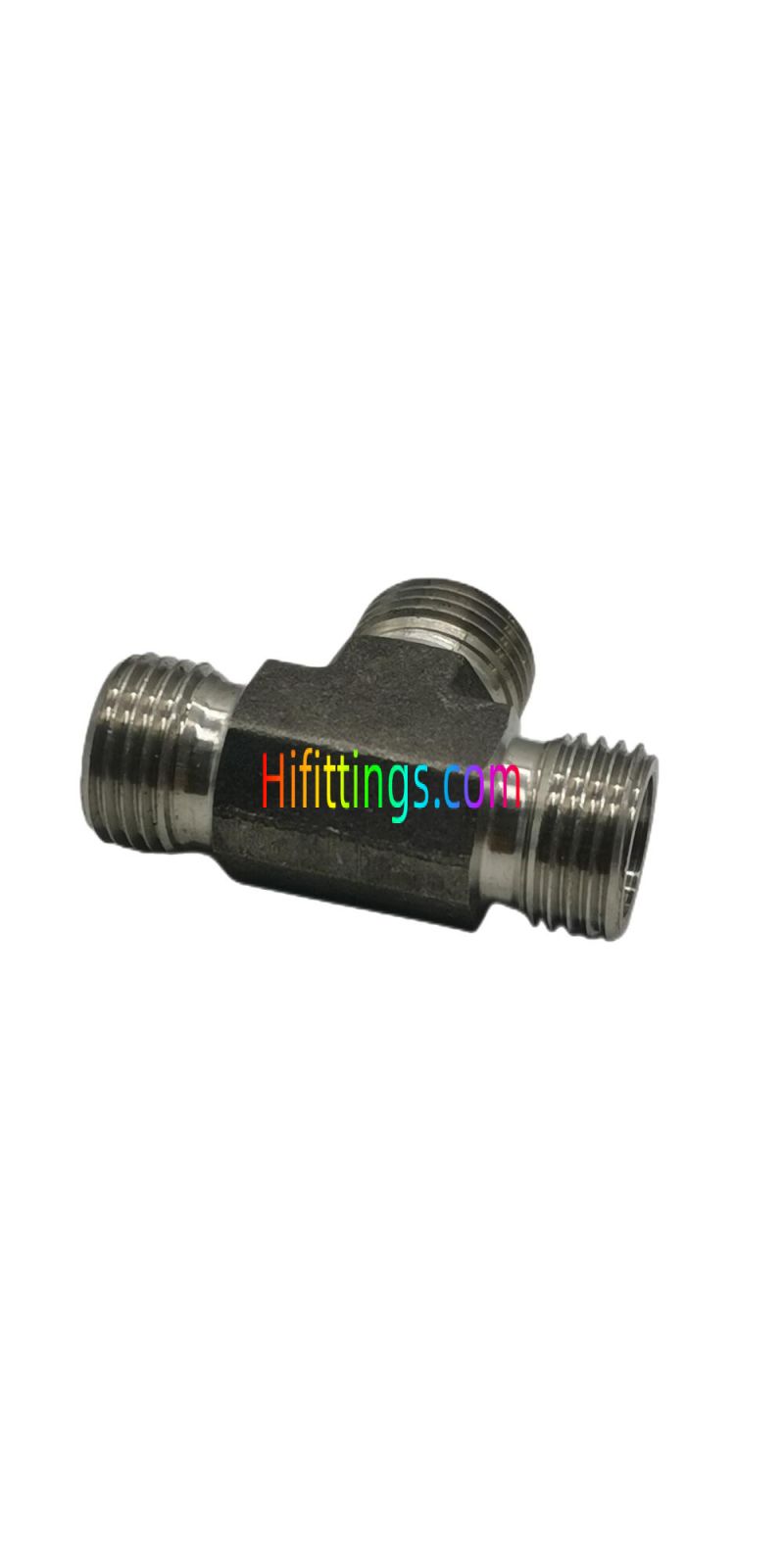

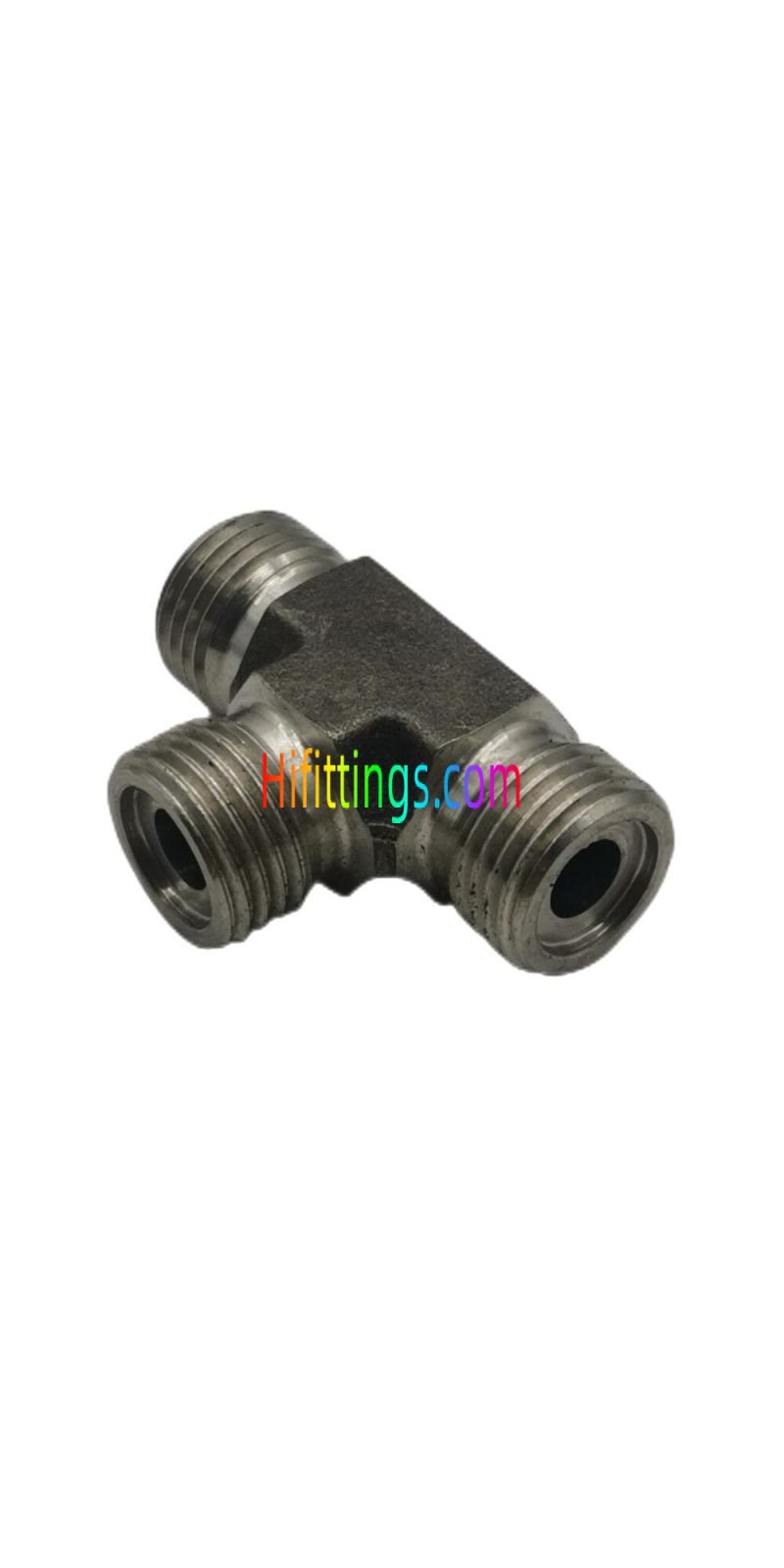

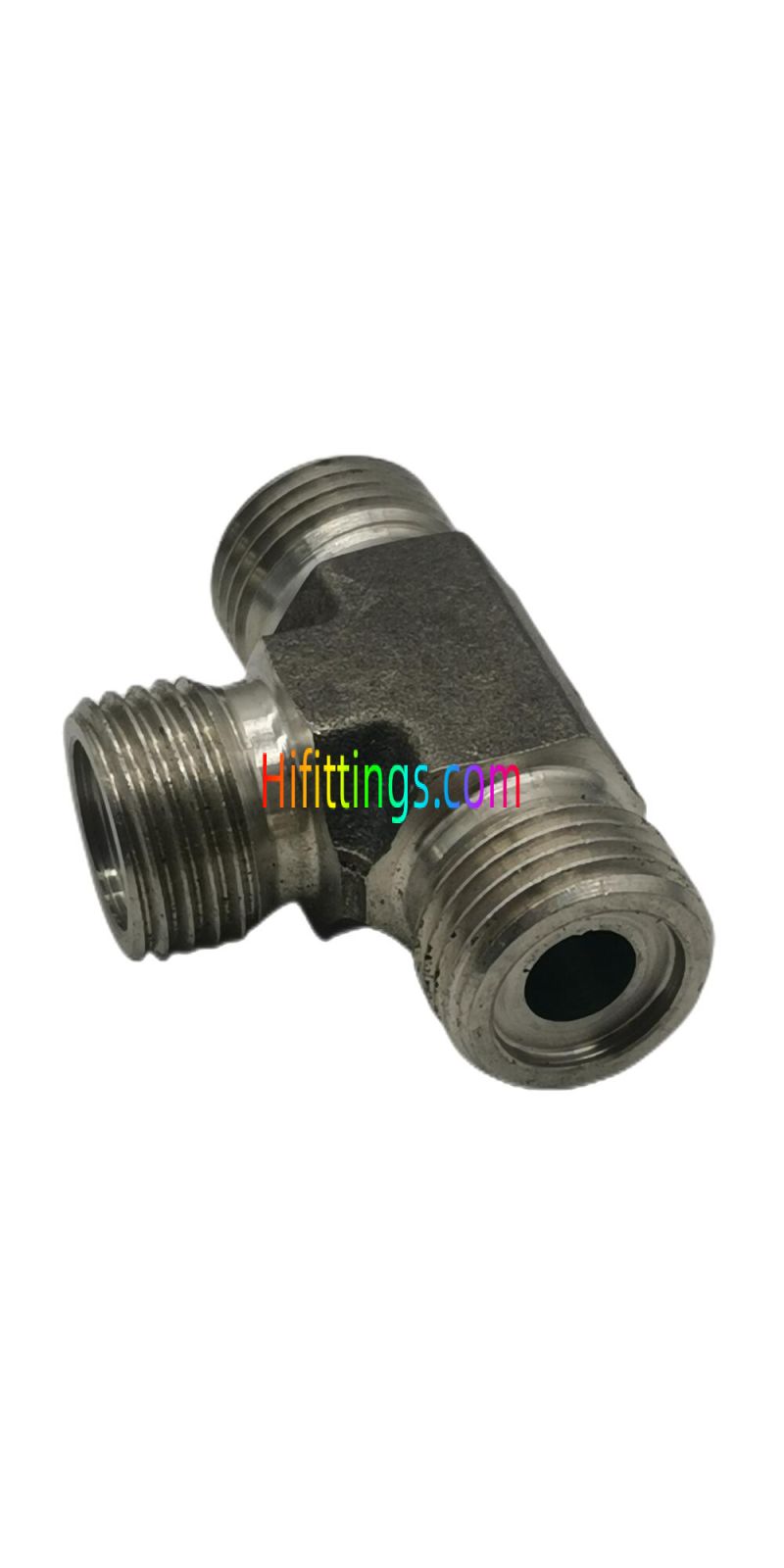

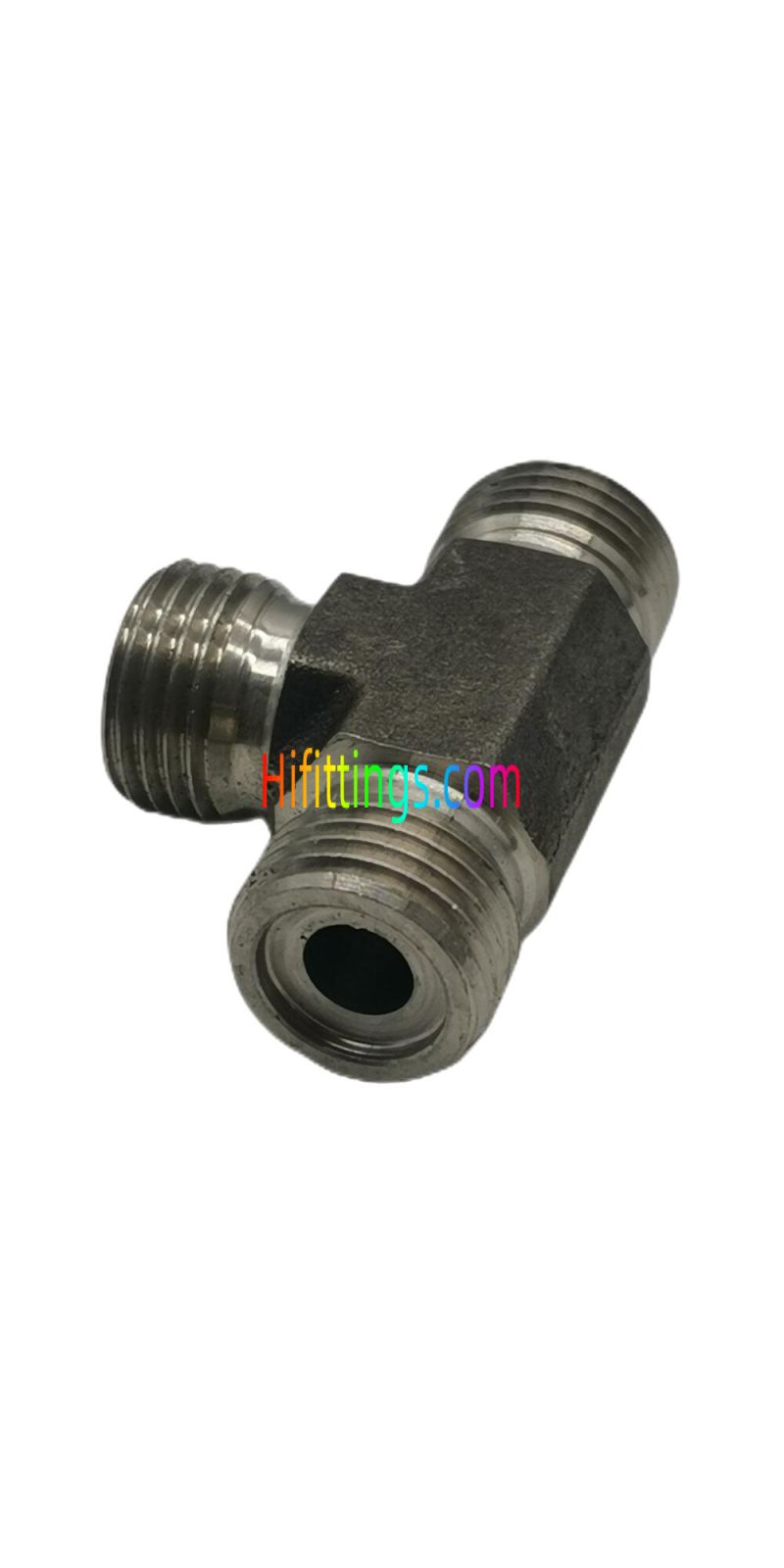

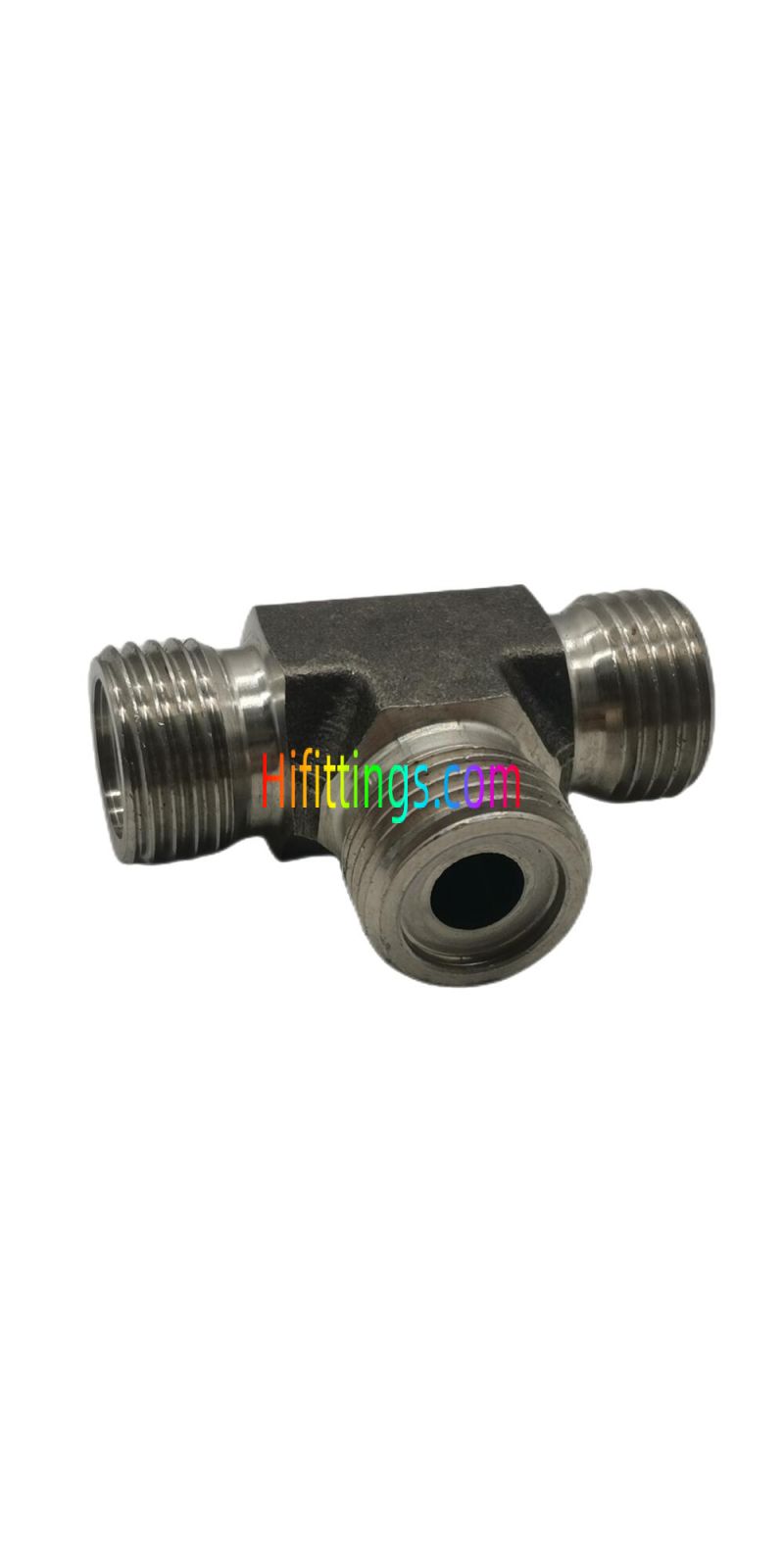

Metric Male O-Ring Face Seal Tee Hydraulic Adapter Pipe Fittings AE
|
Part NO. |
E,F,G |
O-Ring - E,F,G End |
A |
B |
C |
S1 |
Working Pressure bar |
|
AE-14 |
M14X1.5 |
10X1.9 |
22.5 |
22.5 |
22.5 |
14 |
PN630 |
|
AE-16 |
M16X1.5 |
11X1.9 |
24 |
24 |
24 |
17 |
PN630 |
|
AE-18 |
M18X1.5 |
13X1.9 |
26 |
26 |
26 |
19 |
PN630 |
|
AE-22 |
M22X1.5 |
16X2.4 |
29 |
29 |
29 |
22 |
PN630 |
|
AE-27 |
M27X1.5 |
20X2.4 |
32.5 |
32.5 |
32.5 |
27 |
PN400 |
|
AE-30 |
M30X1.5 |
24X2.4 |
35.5 |
35.5 |
35.5 |
30 |
PN400 |
|
AE-36 |
M36X2 |
30X3.1 |
42 |
42 |
42 |
36 |
PN400 |
|
AE-39 |
M39X2 |
32X3.1 |
47.5 |
47.5 |
47.5 |
41 |
PN250 |
|
AE-42 |
M42X2 |
35X3.1 |
49.5 |
49.5 |
49.5 |
41 |
PN250 |
|
AE-45 |
M45X2 |
38X3.1 |
52.5 |
52.5 |
52.5 |
46 |
PN250 |
|
AE-52 |
M52X2 |
40X3.1 |
57 |
57 |
57 |
50 |
PN250 |
|
Note: 1. The parameter of O-ring is ring outside diameter and ring width. 2. PN = Nominal Pressure |
|||||||
| Form | Tee |
|---|---|
| Gewindetyp | Male |
| Connection Type | Metric |
| Fitting Typ | Face Seal |
