ORFS O-Ring-Außengewinde BSP Außengewinde 1FG
21
Auf Lager
Nur noch %1 verfügbar
SKU
1FG
Guarantee safe & secure checkout

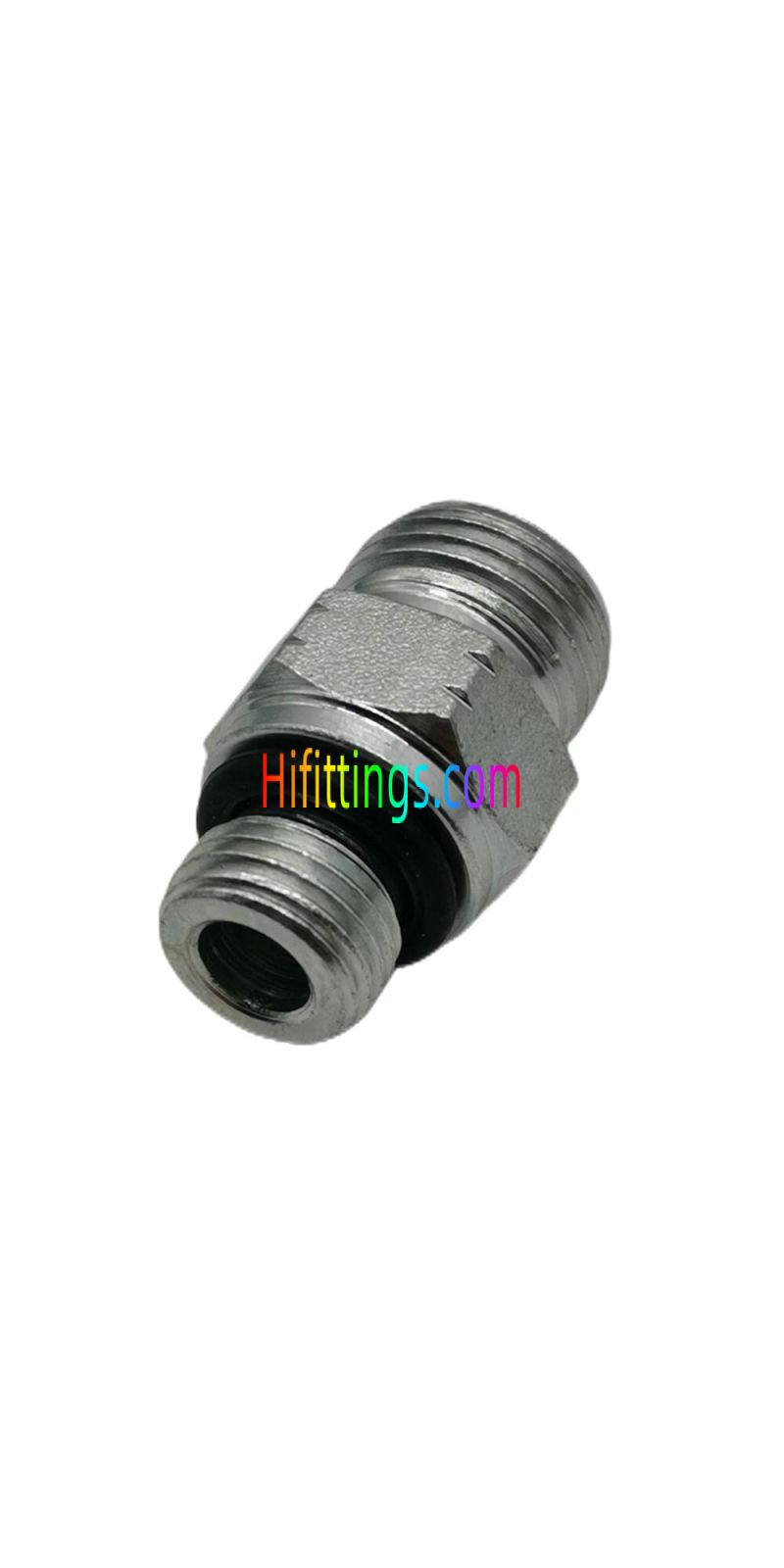

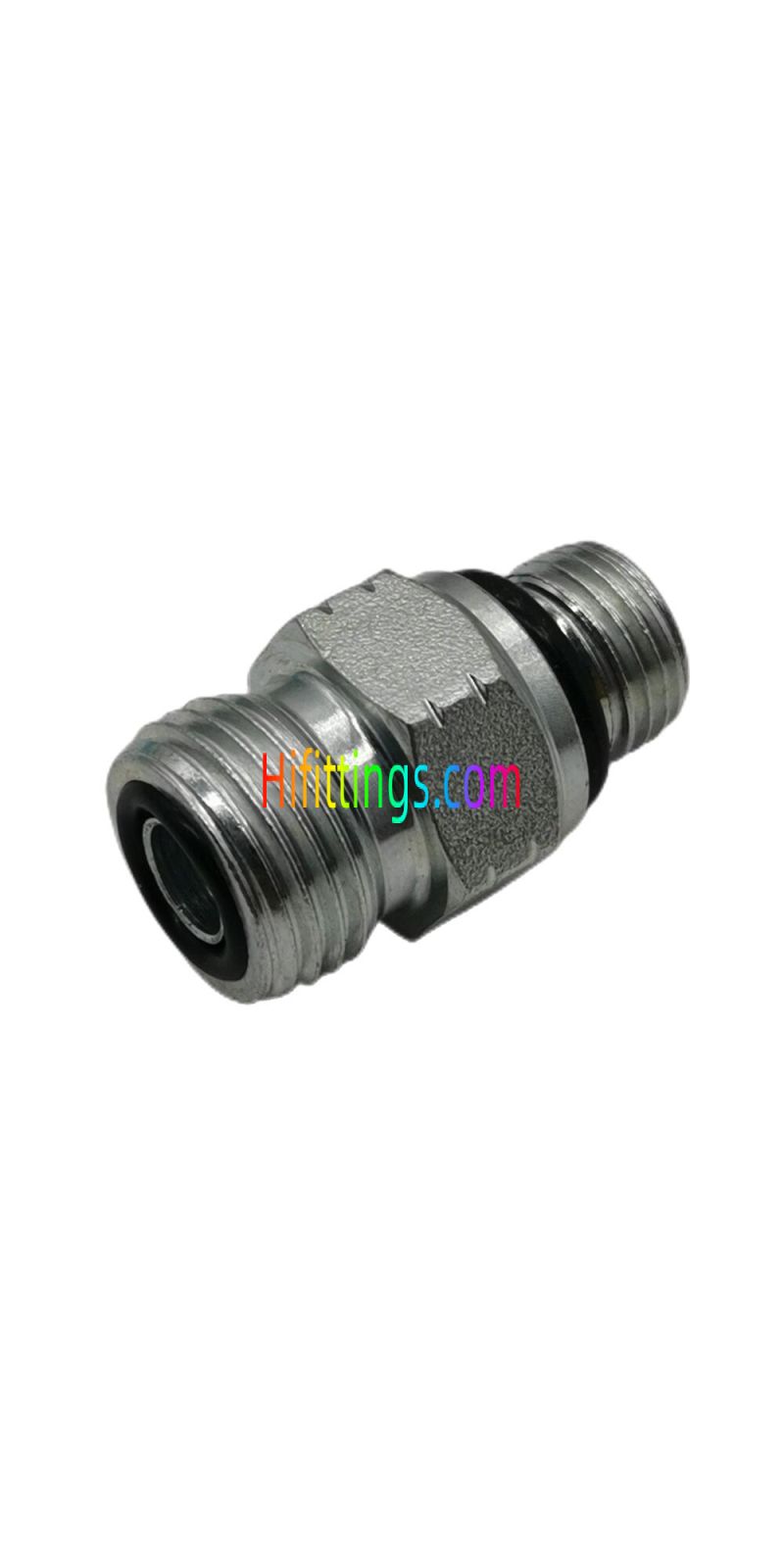

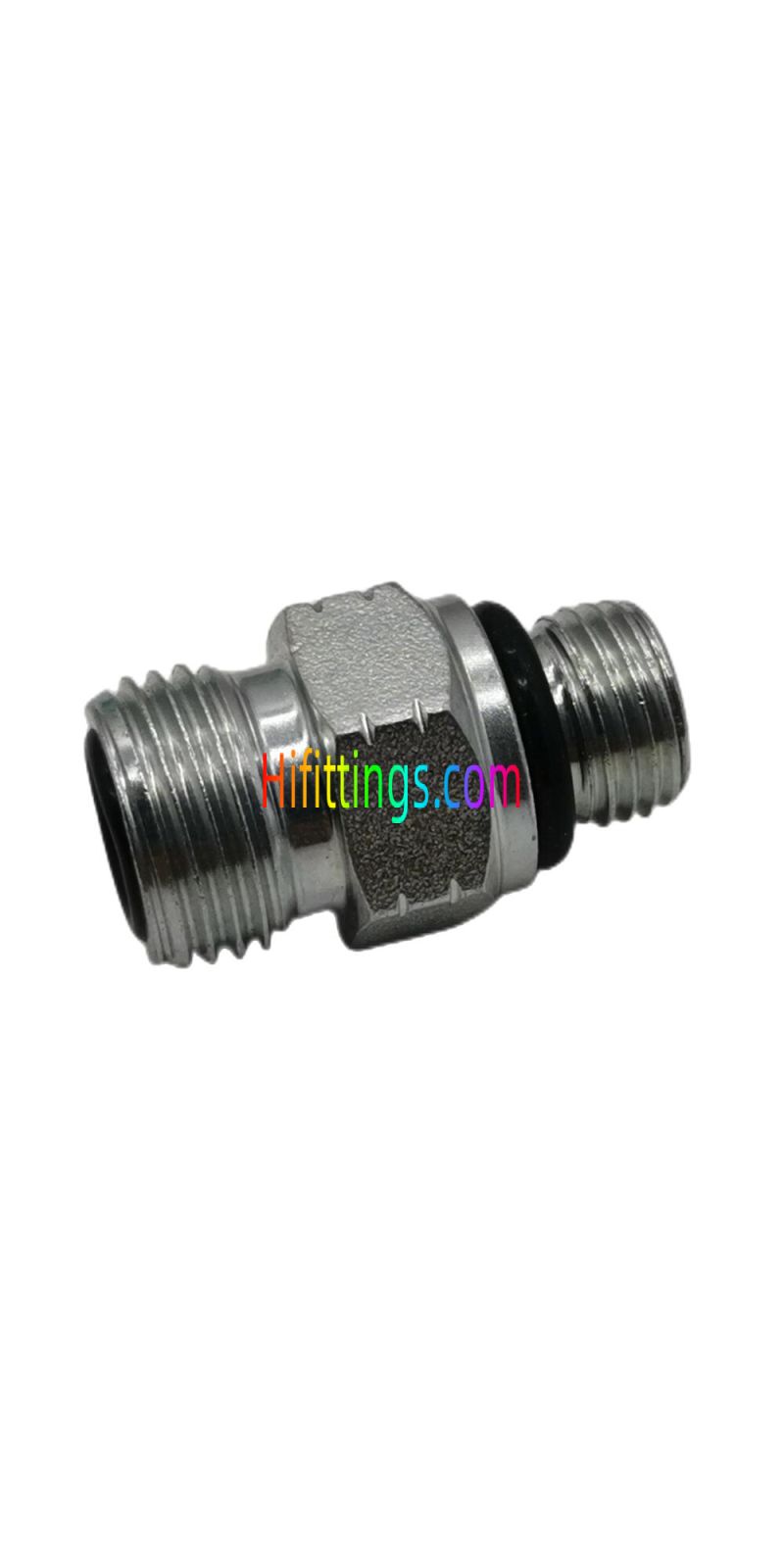

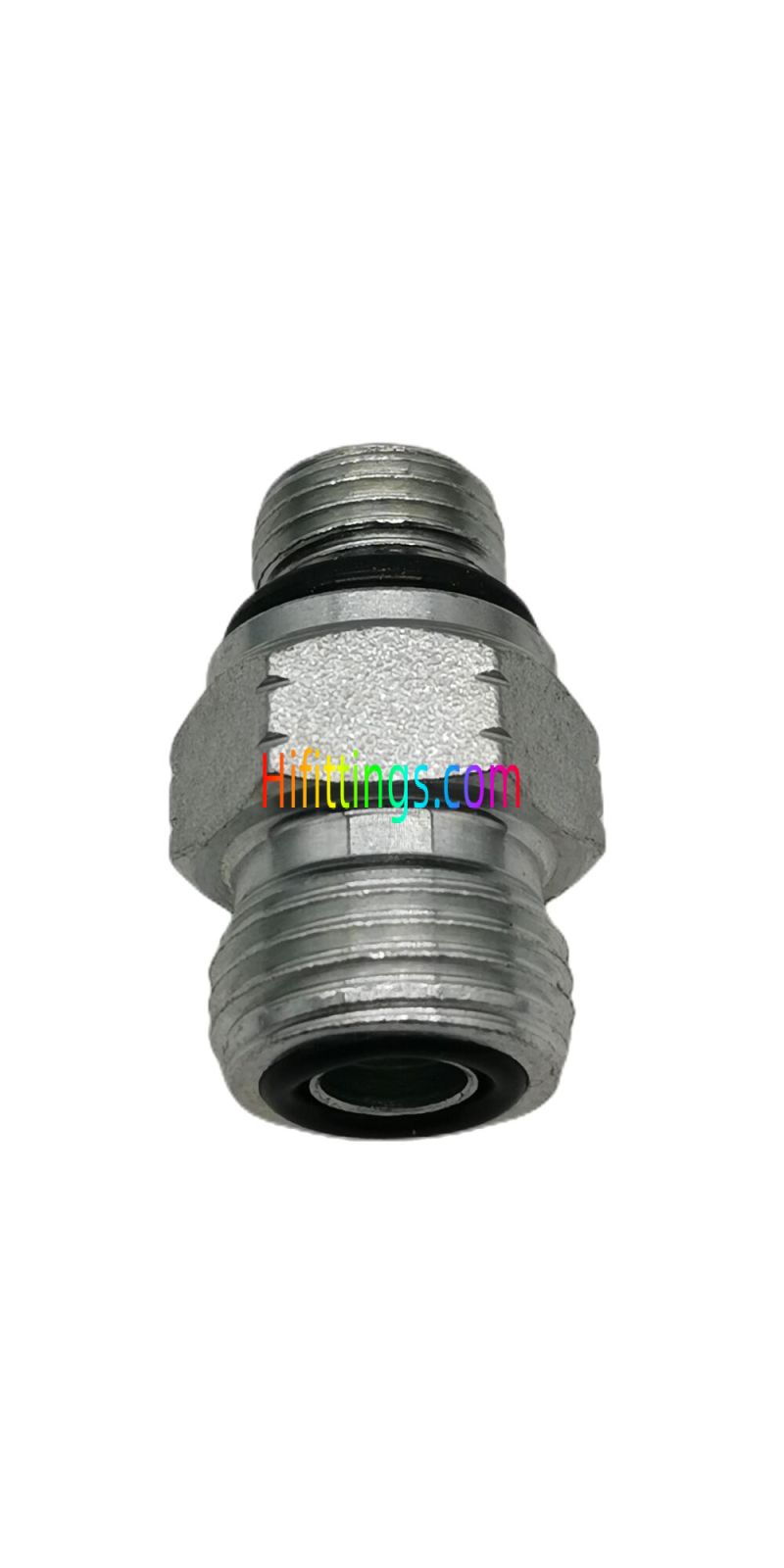

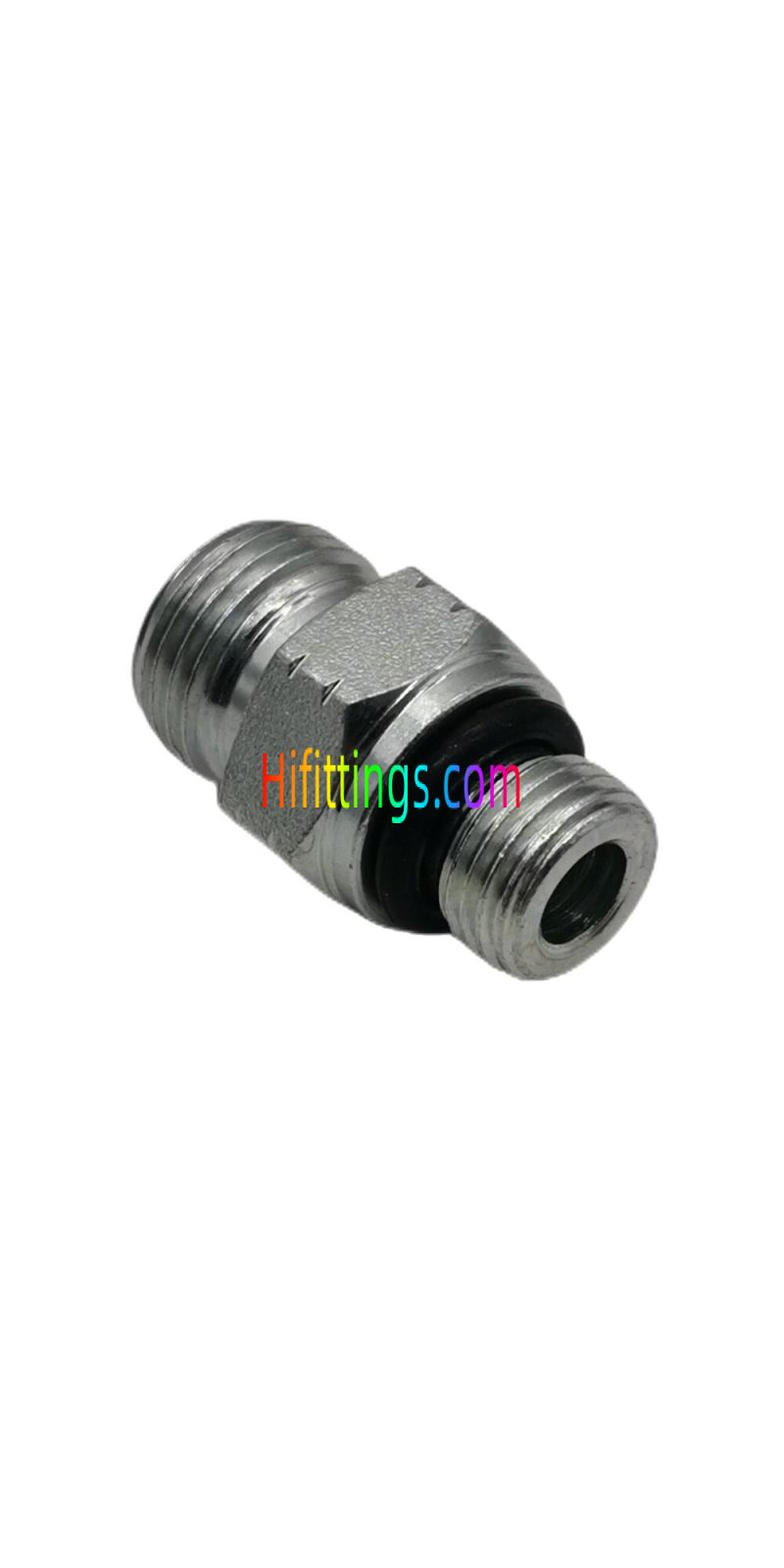

ORFS Male O-Ring / BSP Male O-Ring Hydraulic Adapter Pipe Fittings 1FG
|
Part NO. |
E |
F |
E End |
F End |
A |
B |
L |
S1 |
Working Pressure bar |
|
1FG-04-02 |
9/16"x18 |
G1/8"x28 |
11 |
11 |
10 |
9.5 |
27.5 |
17 |
PN400 |
|
1FG-04 |
9/16"X18 |
G1/4"X19 |
11 |
111 |
10 |
10 |
29 |
19 |
PN400 |
|
1FG-04-06 |
9/16"X18 |
G3/8"X19 |
11 |
113 |
10 |
11.5 |
31 |
22 |
PN315 |
|
1FG-06 |
11/16"X16 |
G3/8"X19 |
12 |
113 |
11.2 |
11.5 |
32.5 |
22 |
PN315 |
|
1FG-06-04 |
11/16'X16 |
G1/4"X19 |
12 |
111 |
11.2 |
10 |
31 |
19 |
PN315 |
|
1FG-06-08 |
11/16"X16 |
G1/2"X14 |
12 |
115 |
11.2 |
14 |
36.5 |
27 |
PN315 |
|
1FG-08 |
13/16"X16 |
G1/2"X14 |
14 |
115 |
13 |
14 |
38.5 |
27 |
PN315 |
|
1FG-08-06 |
13/16"X16 |
G3/8"X19 |
14 |
113 |
13 |
11.5 |
34.3 |
22 |
PN315 |
|
1FG-08-12 |
13/16"X16 |
G3/4"X14 |
14 |
119 |
13 |
15.5 |
42 |
32 |
PN200 |
|
1FG-10-08 |
1"x14 |
G1/2"x14 |
16 |
115 |
15.5 |
14 |
41 |
27 |
PN315 |
|
1FG-10-12 |
1"X14 |
G3/4"X14 |
16 |
119 |
15.5 |
15.5 |
44 |
32 |
PN200 |
|
1FG-12-08 |
1.3/16"X12 |
G1/2"X14 |
18 |
115 |
17 |
14 |
44 |
32 |
PN315 |
|
1FG-12 |
1.3/16"x12 |
G3/4"x14 |
18 |
119 |
17 |
15.5 |
45.6 |
32 |
PN200 |
|
1FG-12-16 |
1.3/16"X12 |
G1"X11 |
18 |
217 |
17 |
18 |
48 |
41 |
PN200 |
|
1FG-16-12 |
1.7/16"X12 |
G3/4"x14 |
21 |
119 |
17.5 |
15.5 |
48 |
38 |
PN200 |
|
1FG-16 |
1.7/16"X12 |
G1"X11 |
21 |
217 |
17.5 |
18 |
49.5 |
41 |
PN200 |
|
1FG-20 |
1.11/16"X12 |
G1.1/4"X11 |
25 |
222 |
17.5 |
20 |
55.5 |
50 |
PN200 |
|
1FG-20-16 |
1.11/16"X12 |
G1"X11 |
25 |
217 |
17.5 |
18 |
51.5 |
46 |
PN200 |
|
1FG-24 |
2"x12 |
G1.1/2"x11 |
29 |
224 |
17.5 |
21.5 |
57 |
55 |
PN200 |
| Form | Straight |
|---|---|
| Fitting Typ | Face Seal |
| Gewindetyp | Male |
| Connection Type | BSP, ORFS |
