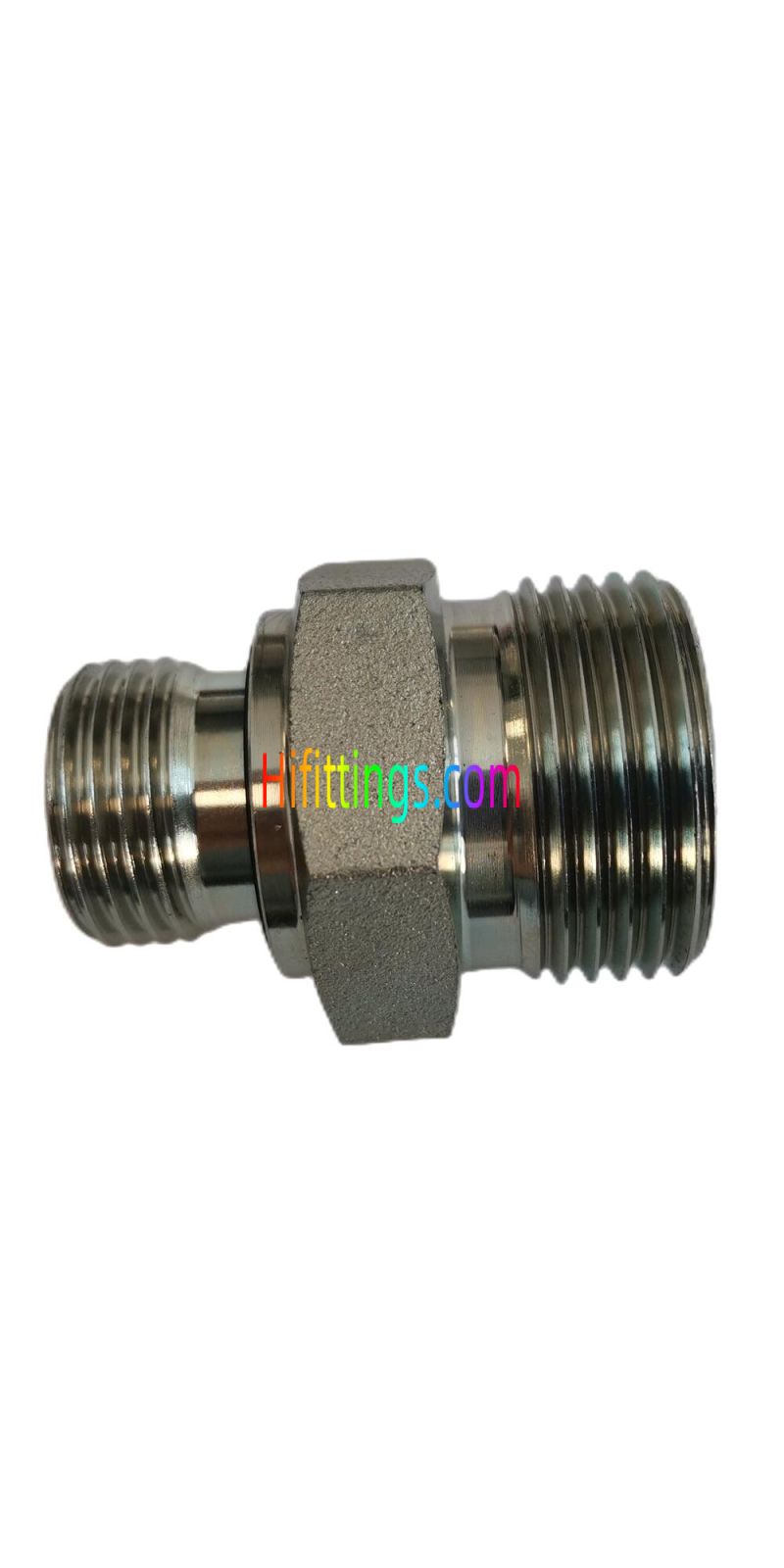

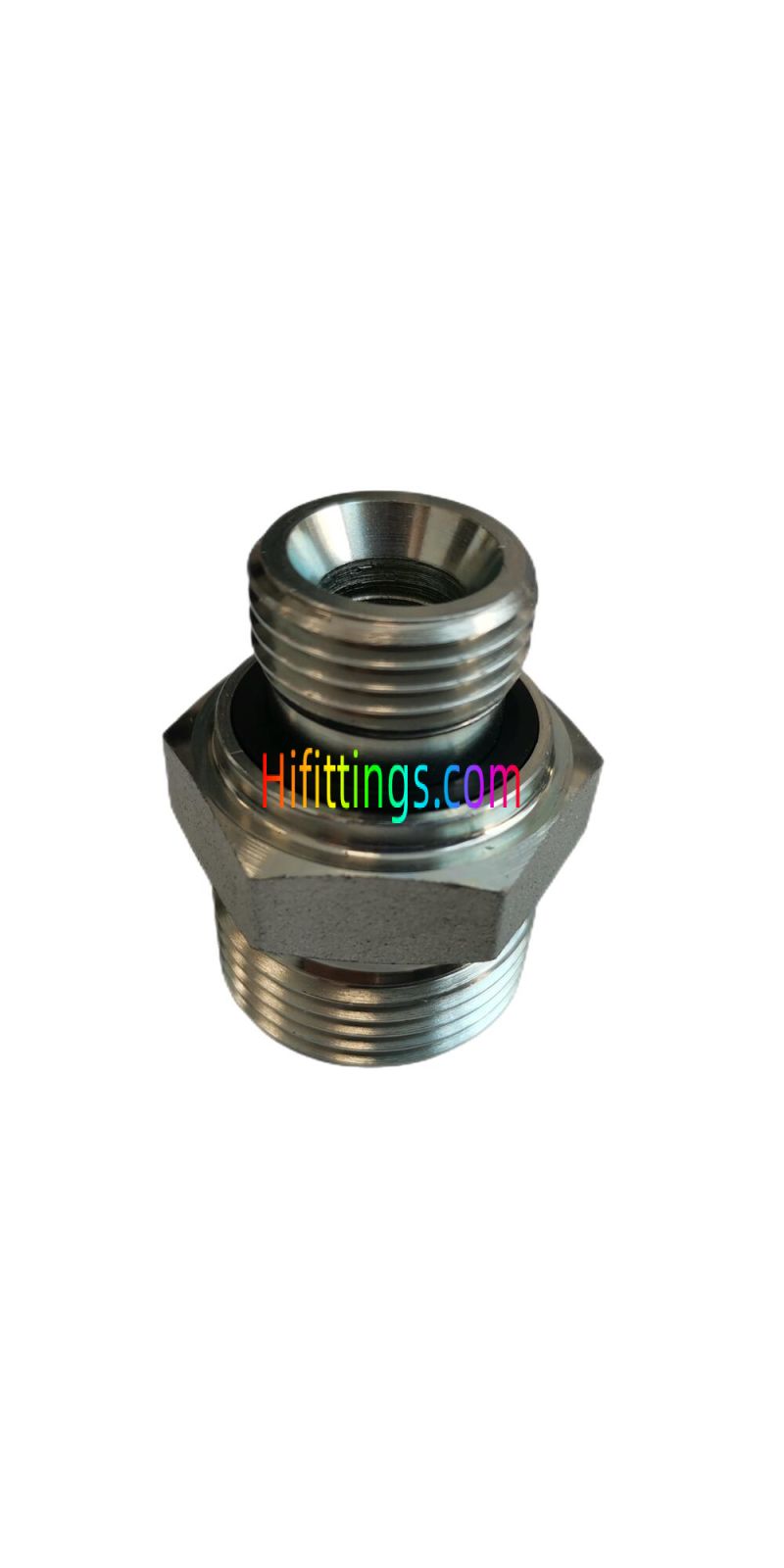

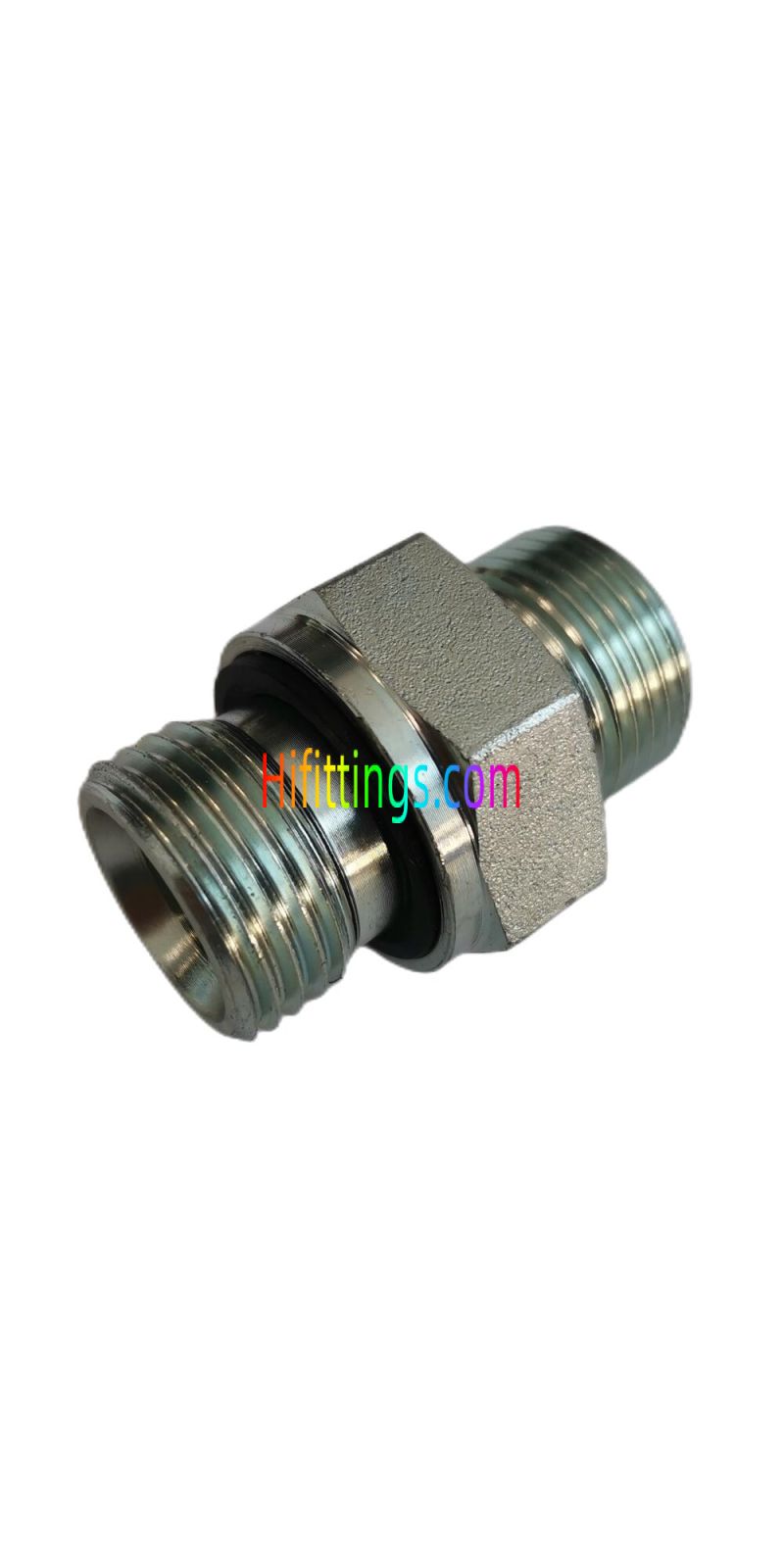

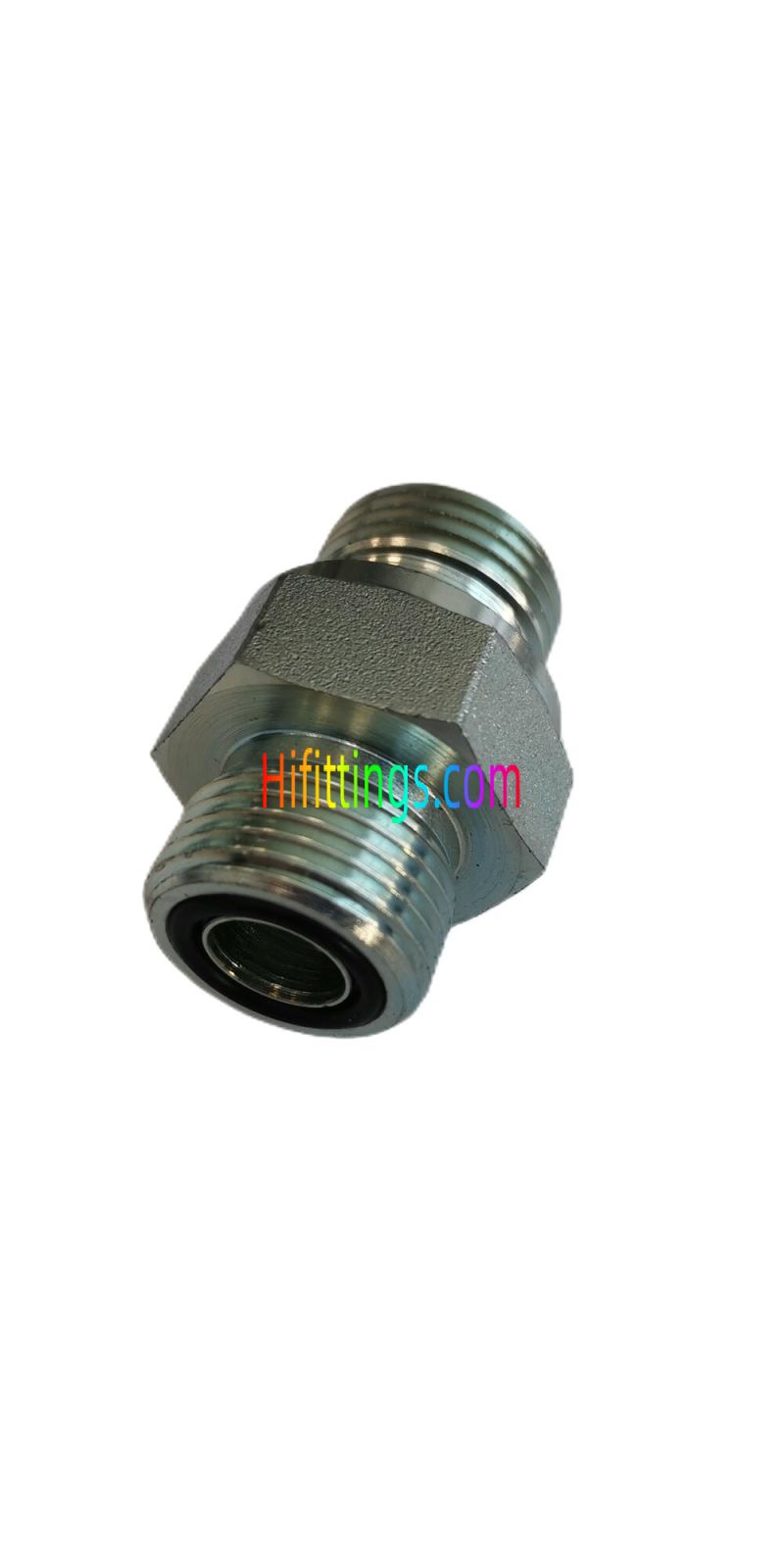

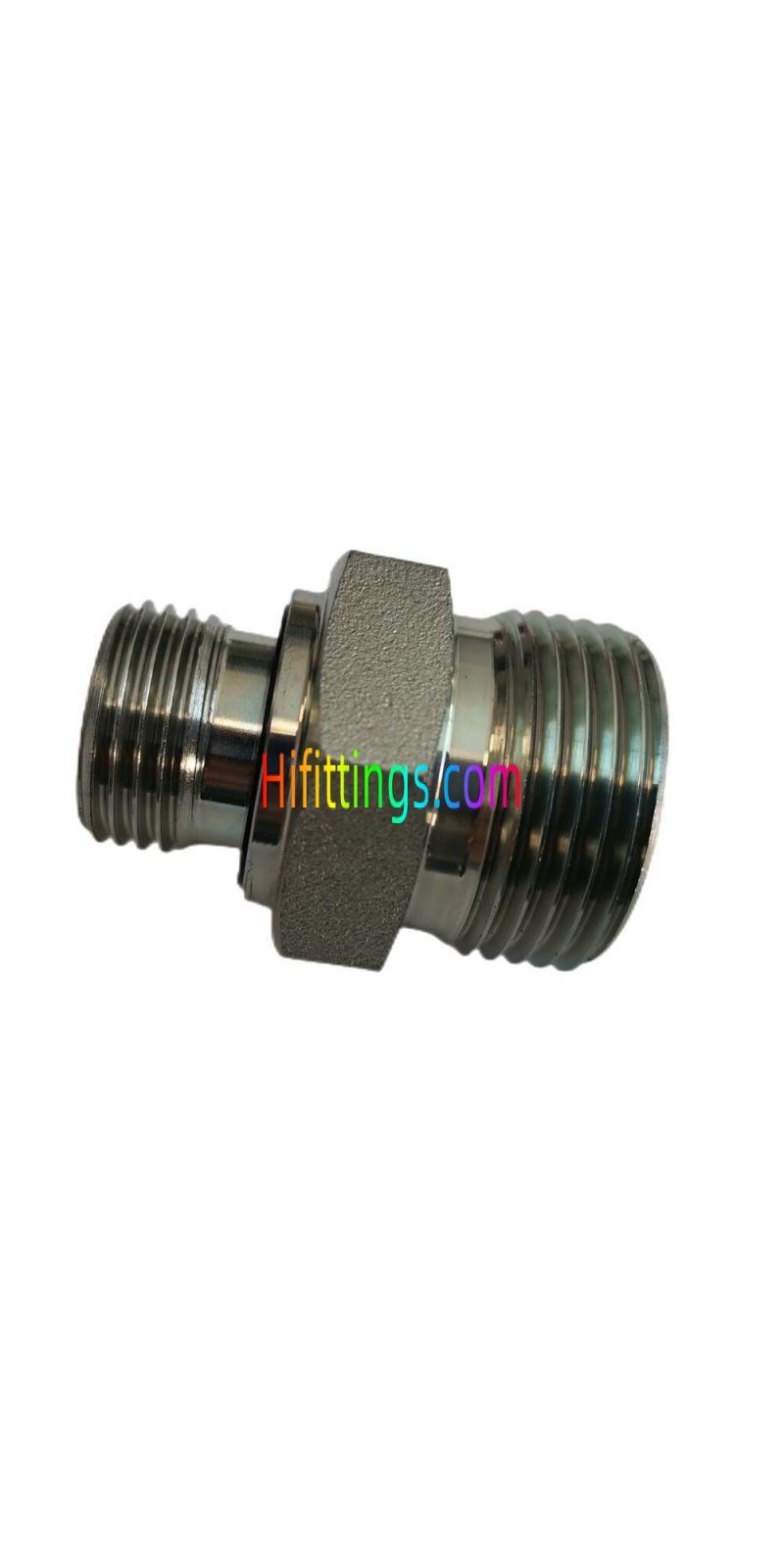

ORFS O-Ring-Außengewinde SAE O-Ring-Verschraubungen 1FO
36
Auf Lager
Nur noch %1 verfügbar
SKU
1FO
Guarantee safe & secure checkout
ORFS Male O-Ring / SAE O-Ring Boss S-Series ISO 11926-2 Hydraulic Adapter Pipe Fittings 1FO
|
Part NO. |
E |
F |
E End |
F End |
A |
B |
L |
S1 |
Working Pressure bar |
|
1FO-04 |
9/16"X18 |
7/16"X20 |
11 |
904 |
9.8 |
11 |
28.7 |
17 |
PN630 |
|
1FO-04-05 |
9/16"X18 |
1/2"X20 |
11 |
905 |
9.8 |
11 |
28.7 |
17 |
PN630 |
|
1FO-04-06 |
9/16"X18 |
9/16"X18 |
11 |
906 |
9.8 |
12 |
29.5 |
17 |
PN630 |
|
1FO-04-08 |
9/16"X18 |
3/4"X16 |
11 |
908 |
9.8 |
14 |
33.5 |
22 |
PN630 |
|
1FO-06-04 |
11/16"X16 |
7/16"X20 |
12 |
904 |
11.2 |
11 |
31 |
19 |
PN630 |
|
1FO-06-05 |
11/16"X16 |
1/2"X20 |
12 |
905 |
11.2 |
11 |
30.9 |
19 |
PN630 |
|
1FO-06 |
11/16"X16 |
9/16"X18 |
12 |
906 |
11.2 |
12 |
31.9 |
19 |
PN630 |
|
1FO-06-08 |
11/16"X16 |
3/4"X16 |
12 |
908 |
11.2 |
14 |
35 |
22 |
PN630 |
|
1FO-06-10 |
11/16"X16 |
7/8"X14 |
12 |
910 |
11.2 |
16 |
38.5 |
27 |
PN630 |
|
1FO-08-06 |
13/16"X16 |
9/16"X18 |
14 |
906 |
128 |
12 |
34.5 |
22 |
PN630 |
|
1FO-08 |
13/16"X16 |
3/4"X16 |
14 |
908 |
12.8 |
14 |
36.6 |
22 |
PN630 |
|
1FO-08-10 |
13/16"X16 |
7/8"X14 |
14 |
910 |
12.8 |
16 |
40.5 |
27 |
PN630 |
|
1FO-08-12 |
13/16"X16 |
1.1/16"X12 |
14 |
912 |
12.8 |
18.5 |
44.5 |
32 |
PN400 |
|
1FO-10 |
1"X14 |
7/8"X14 |
16 |
910 |
15.5 |
16 |
43.1 |
27 |
PN400 |
|
1FO-10-08 |
1"X14 |
3/4"X16 |
16 |
908 |
15.5 |
14 |
41 |
27 |
PN400 |
|
1FO-10-12 |
1"X14 |
1.1/16"X12 |
16 |
912 |
15.5 |
18.5 |
47 |
32 |
PN400 |
|
1FO-12-10 |
1.3/16"X12 |
7/8"X14 |
18 |
910 |
17 |
16 |
46 |
32 |
PN400 |
|
1FO-12 |
1.3/16"X12 |
1.1/16"X12 |
18 |
912 |
17 |
18.5 |
48.6 |
32 |
PN400 |
|
1FO-12-16 |
1.3/16"X12 |
1.5/16"X12 |
18 |
916 |
17 |
18.5 |
49.8 |
38 |
PN400 |
|
1FO-16-12 |
1.7/16"X12 |
1.1/16"X12 |
21 |
912 |
17.5 |
18.5 |
50 |
38 |
PN400 |
|
1FO-16 |
1.7/16"X12 |
1.5/16"X12 |
21 |
916 |
17.5 |
18.5 |
50.3 |
38 |
PN400 |
|
1FO-16-20 |
1.7/16"X12 |
1.5/8"X12 |
21 |
920 |
17.5 |
18.5 |
52 |
50 |
PN250 |
|
1FO-20-16 |
1.11/16"X12 |
1.5/16X12 |
25 |
916 |
17.5 |
18.5 |
52 |
46 |
PN250 |
|
1FO-20 |
1.11/16"X12 |
1.5/8"X12 |
25 |
920 |
V.5 |
18.5 |
52.3 |
50 |
PN250 |
|
1FO-24-20 |
2"X12 |
1.5/8"X12 |
29 |
920 |
17.5. |
18.5 |
54 |
55 |
PN250 |
|
1FO-24 |
2"X12 |
1.7/8"X12 |
29 |
924 |
17.5 |
18.5 |
54.1 |
55 |
PN250 |
|
Note: 1.: F end is connected with ISO 11926-1port. 2. PN = Nominal Pressure |
|||||||||
| Form | Straight |
|---|---|
| Fitting Typ | Face Seal |
| Gewindetyp | Male |
| Connection Type | ORFS, UNF |
