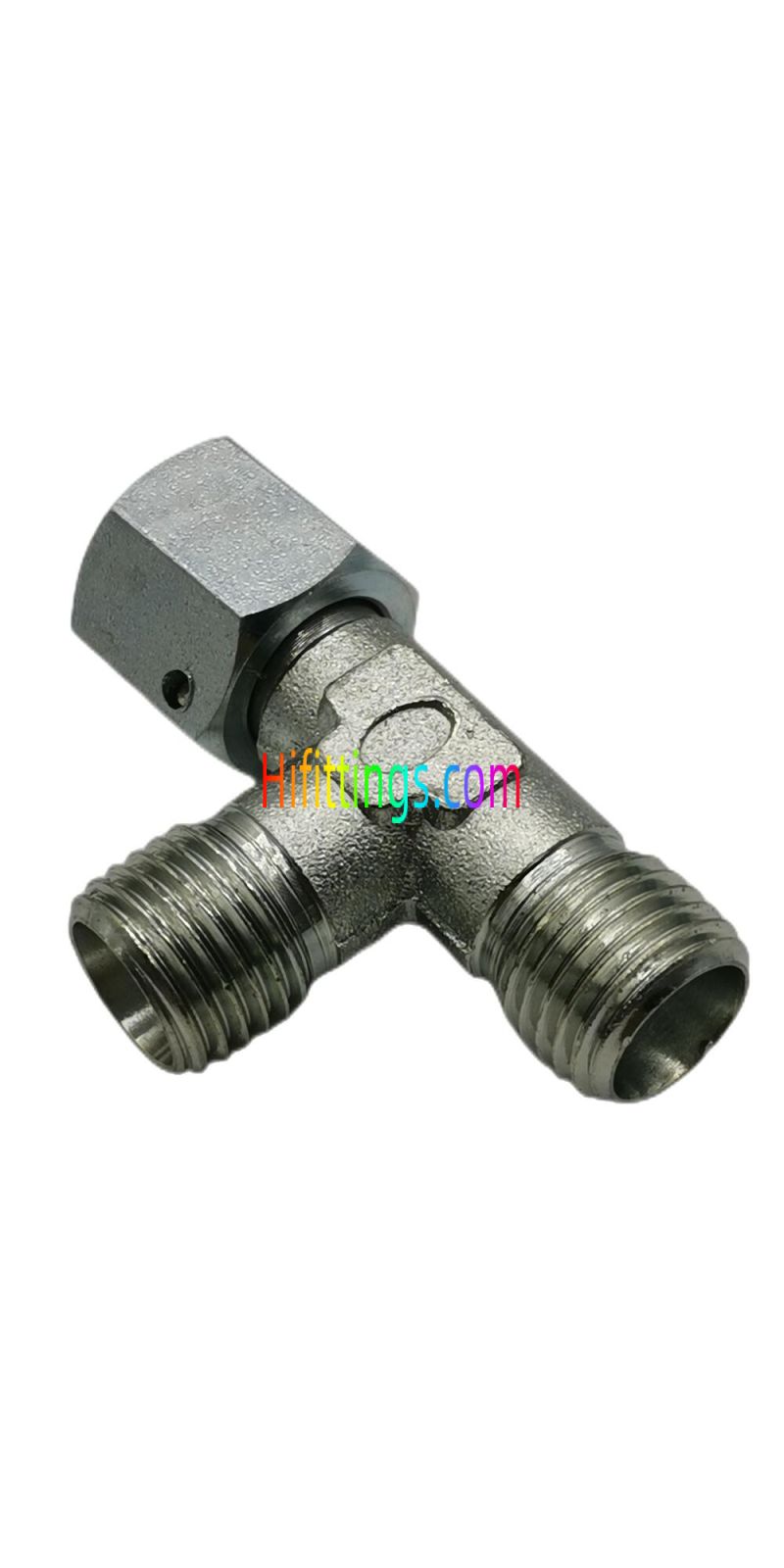

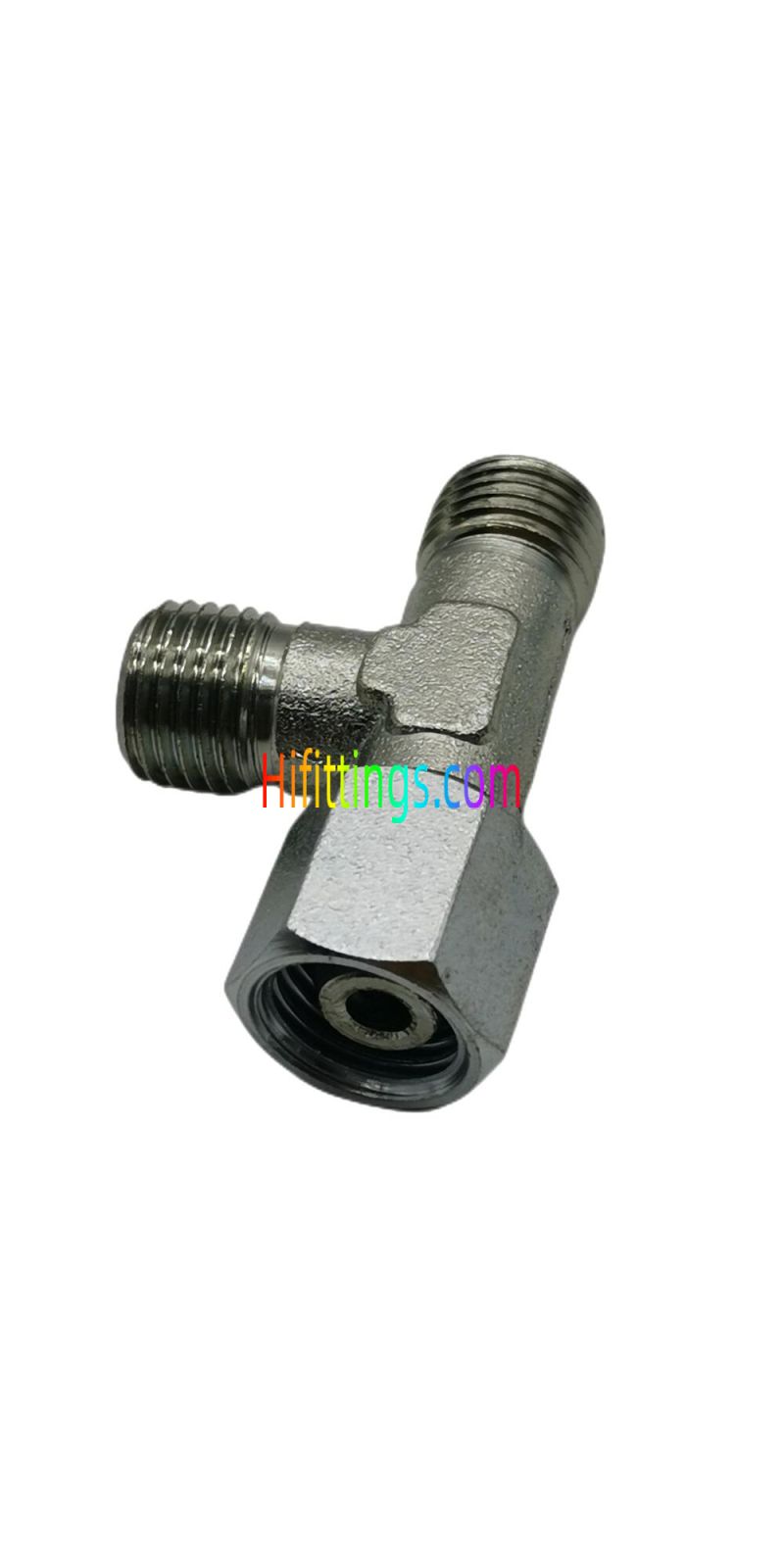

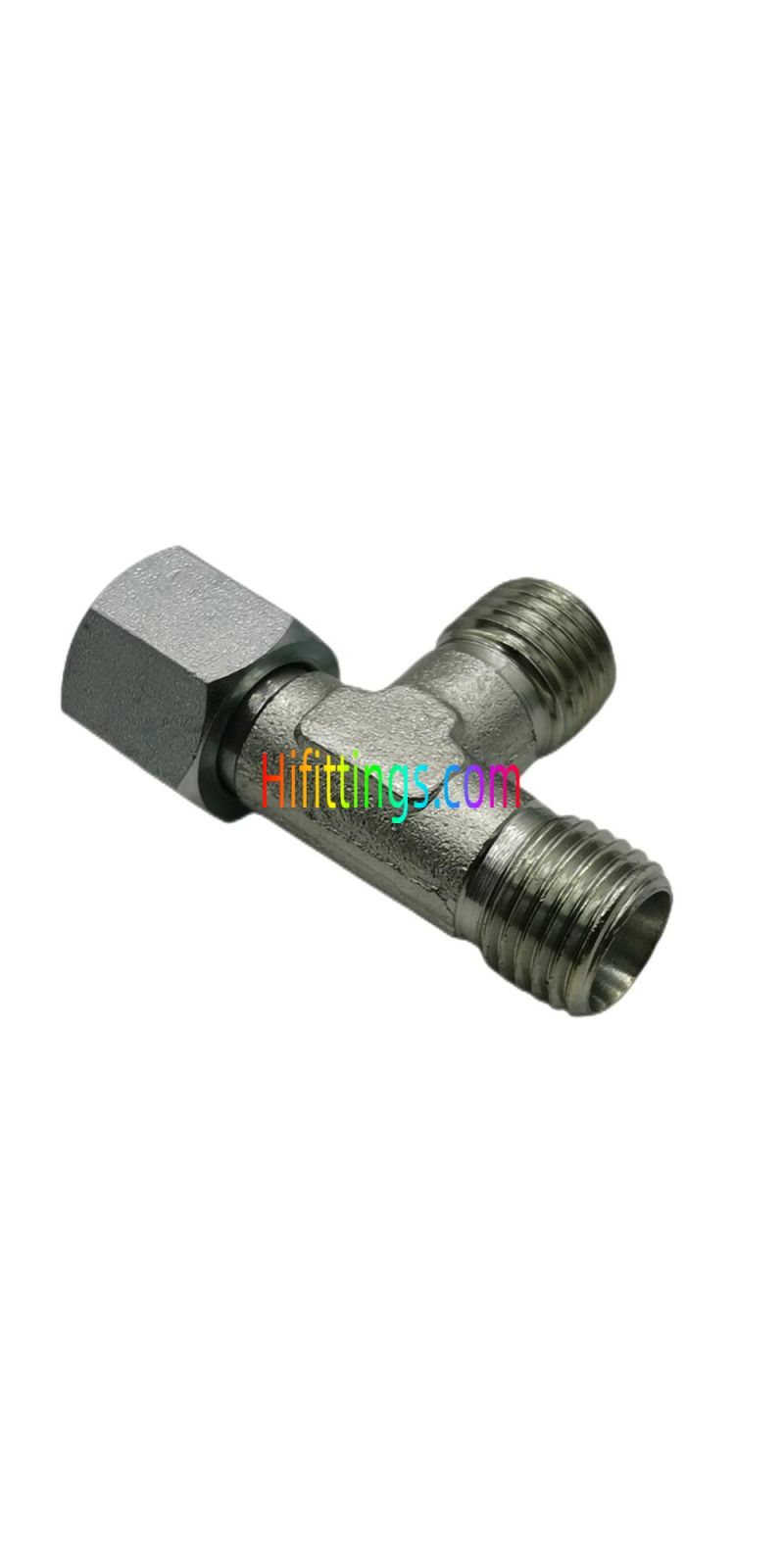

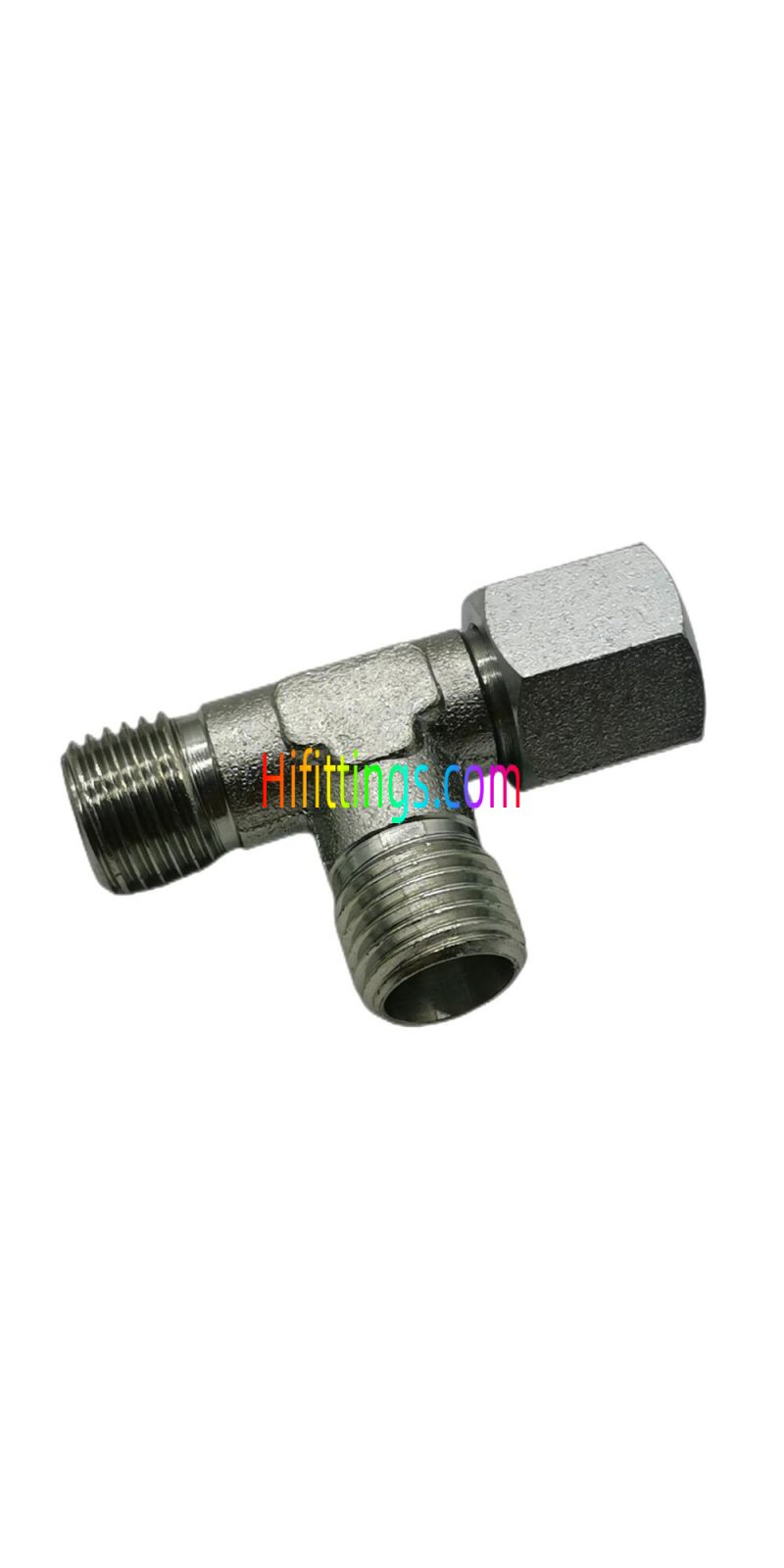

Run Tee Hydraulic Adapter Pipe Fittings With Swivel Nut CC/CD
|
Part NO. |
E,F |
G |
D1,D2 |
D3 |
11,l2 |
L1,L2 |
L3 |
S1 |
S2,S3 |
S4 |
Working Pressure bar |
|
CC-12 |
M12X1.5 |
M12X1.5 |
6 |
6 |
12 |
27 |
26 |
12 |
14 |
14 |
PN315 |
|
CC-14 |
M14X1.5 |
M14X1.5 |
8 |
8 |
14 |
29 |
27.5 |
12 |
17 |
17 |
PN315 |
|
CC-16 |
M16X1.5 |
M16X1.5 |
10 |
10 |
15 |
30 |
29 |
14 |
19 |
19 |
PN315 |
|
CC-18 |
M18X1.5 |
M18X1.5 |
12 |
12 |
17 |
32 |
29.5 |
17 |
22 |
22 |
PN315 |
|
CC-22 |
M22X1.5 |
M22X1.5 |
15 |
15 |
21 |
36 |
32.5 |
19 |
27 |
27 |
PN315 |
|
CC-26 |
M26X1.5 |
M26X1.5 |
18 |
18 |
23.5 |
40 |
35.5 |
24 |
32 |
32 |
PN315 |
|
CC-30 |
M30X2 |
M30X2 |
22 |
22 |
27.5 |
44 |
38.5 |
27 |
36 |
36 |
PN160 |
|
CC-36 |
M36X2 |
M36X2 |
28 |
28 |
30.5 |
47 |
41.5 |
36 |
41 |
41 |
PN160 |
|
CC-45 |
M45X2 |
M45X2 |
35 |
35 |
34.5 |
56 |
51 |
41 |
50 |
50 |
PN160 |
|
CC-52 |
M52X2 |
M52X2 |
42 |
42 |
40 |
63 |
56 |
50 |
60 |
60 |
PN160 |
|
CD-14 |
M14X1.5 |
M14X1.5 |
6 |
6 |
16 |
31 |
27 |
12 |
17 |
17 |
PN630 |
|
CD-16 |
M16X1.5 |
M16X1.5 |
8 |
8 |
17 |
32 |
27.5 |
14 |
19 |
19 |
PN630 |
|
CD-18 |
M18X1.5 |
M18X1.5 |
10 |
10 |
17.5 |
34 |
30 |
17 |
22 |
22 |
PN630 |
|
CD-20 |
M20X1.5 |
M20X1.5 |
12 |
12 |
21.5 |
38 |
31 |
17 |
24 |
24 |
PN630 |
|
CD-22 |
M22X1.5 |
M22X1.5 |
14 |
14 |
22 |
40 |
35 |
19 |
27 |
27 |
PN630 |
|
CD-24 |
M24X1.5 |
M24X1.5 |
16 |
16 |
24.5 |
43 |
36.5 |
24 |
30 |
30 |
PN400 |
|
CD-30 |
M30X2 |
M30X2 |
20 |
20 |
26.5 |
48 |
44.5 |
27 |
36 |
36 |
PN400 |
|
CD-36 |
M36X2 |
M36X2 |
25 |
25 |
30 |
54 |
50 |
36 |
46 |
46 |
PN400 |
|
CD-42 |
M42X2 |
M42X2 |
30 |
30 |
35.5 |
62 |
55 |
41 |
50 |
50 |
PN400 |
|
CD-52 |
M52X2 |
M52X2 |
38 |
38 |
41 |
72 |
63 |
50 |
60 |
60 |
PN315 |
|

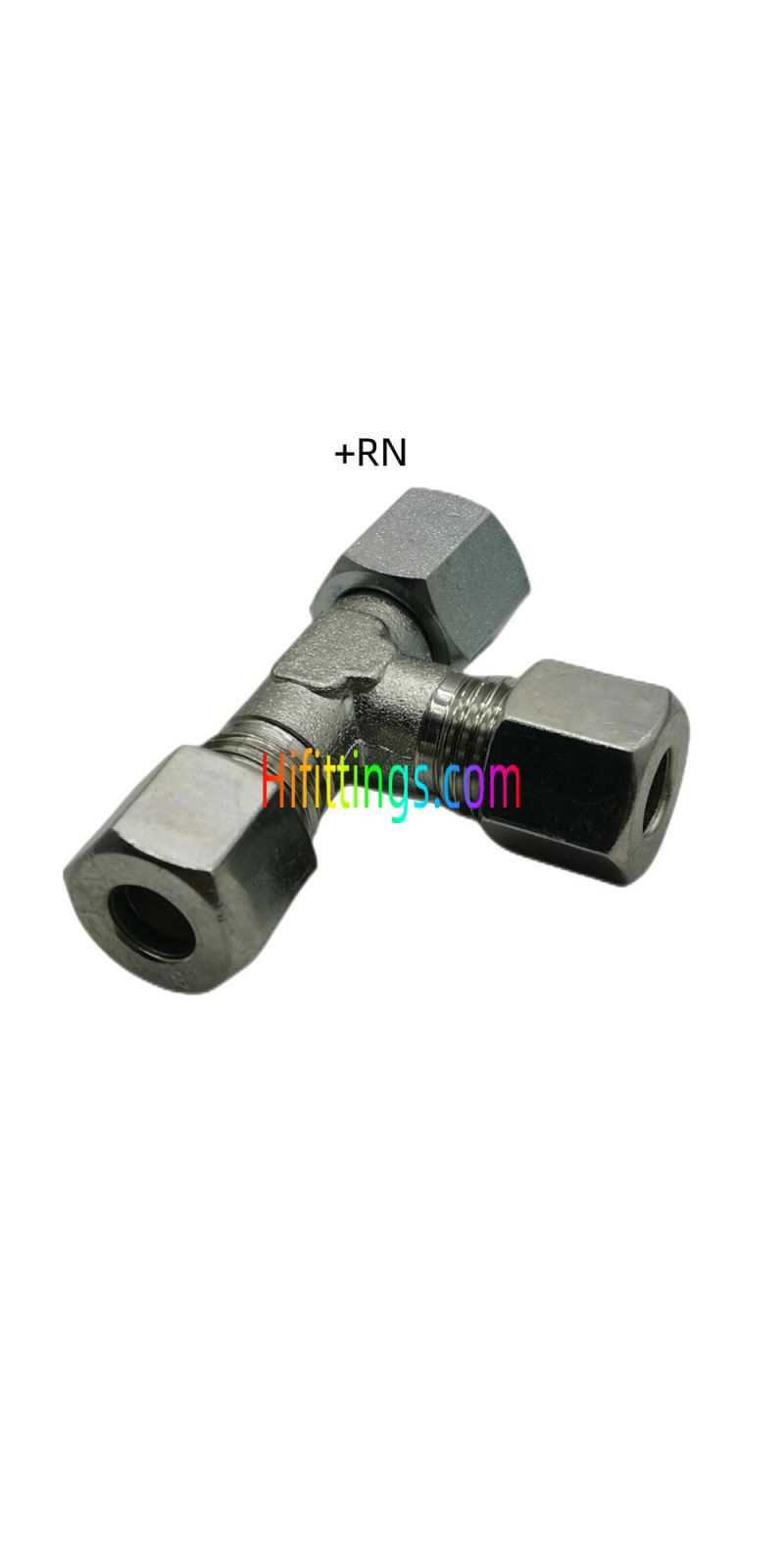

Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example CC-30RN. 2. PN = Nominal Pressure |
|||||||||||
| Form | Tee |
|---|---|
| Gewindetyp | Male-Female |
| Connection Type | Metric |
| Fitting Typ | Bite Type |
