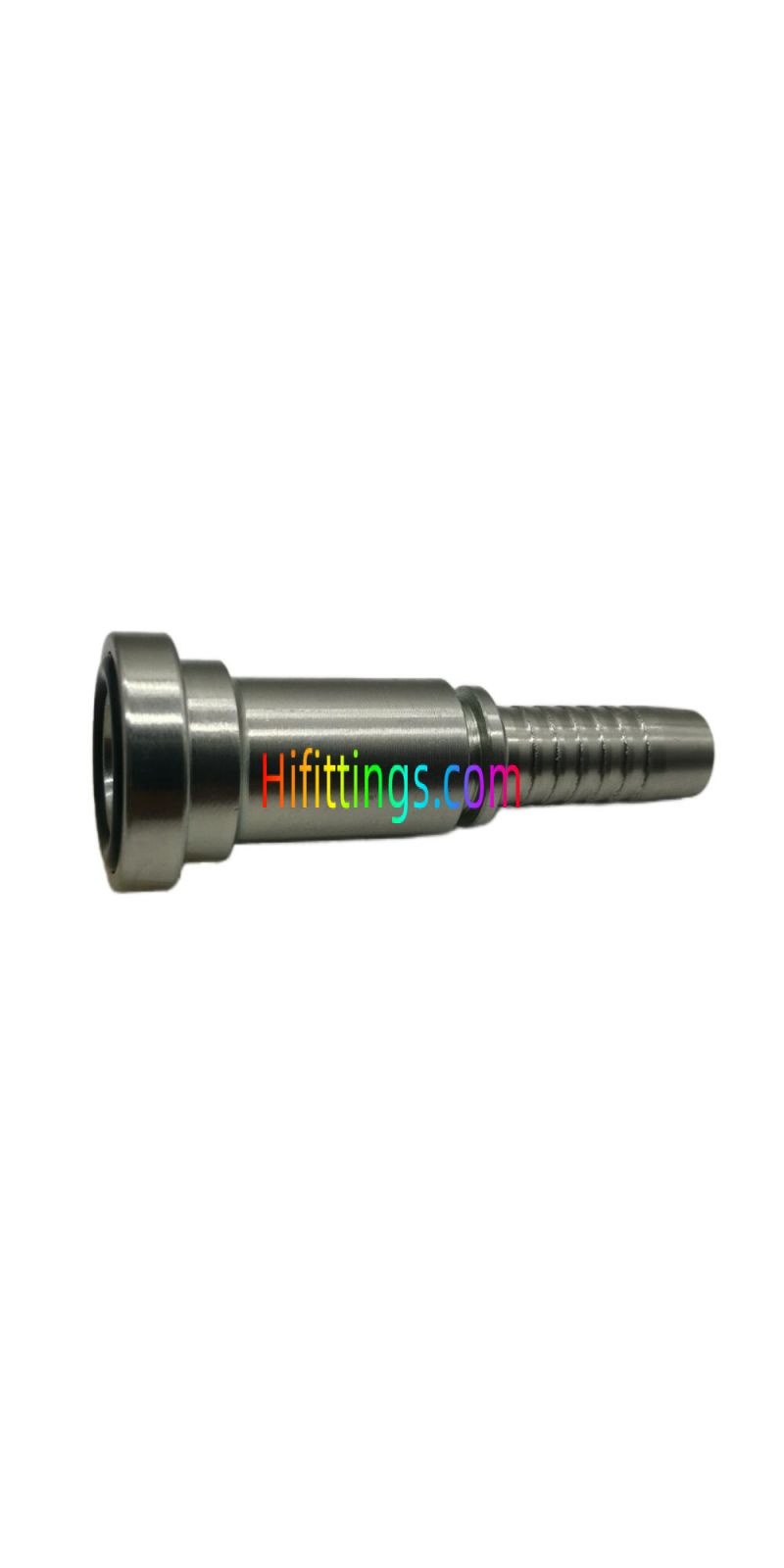

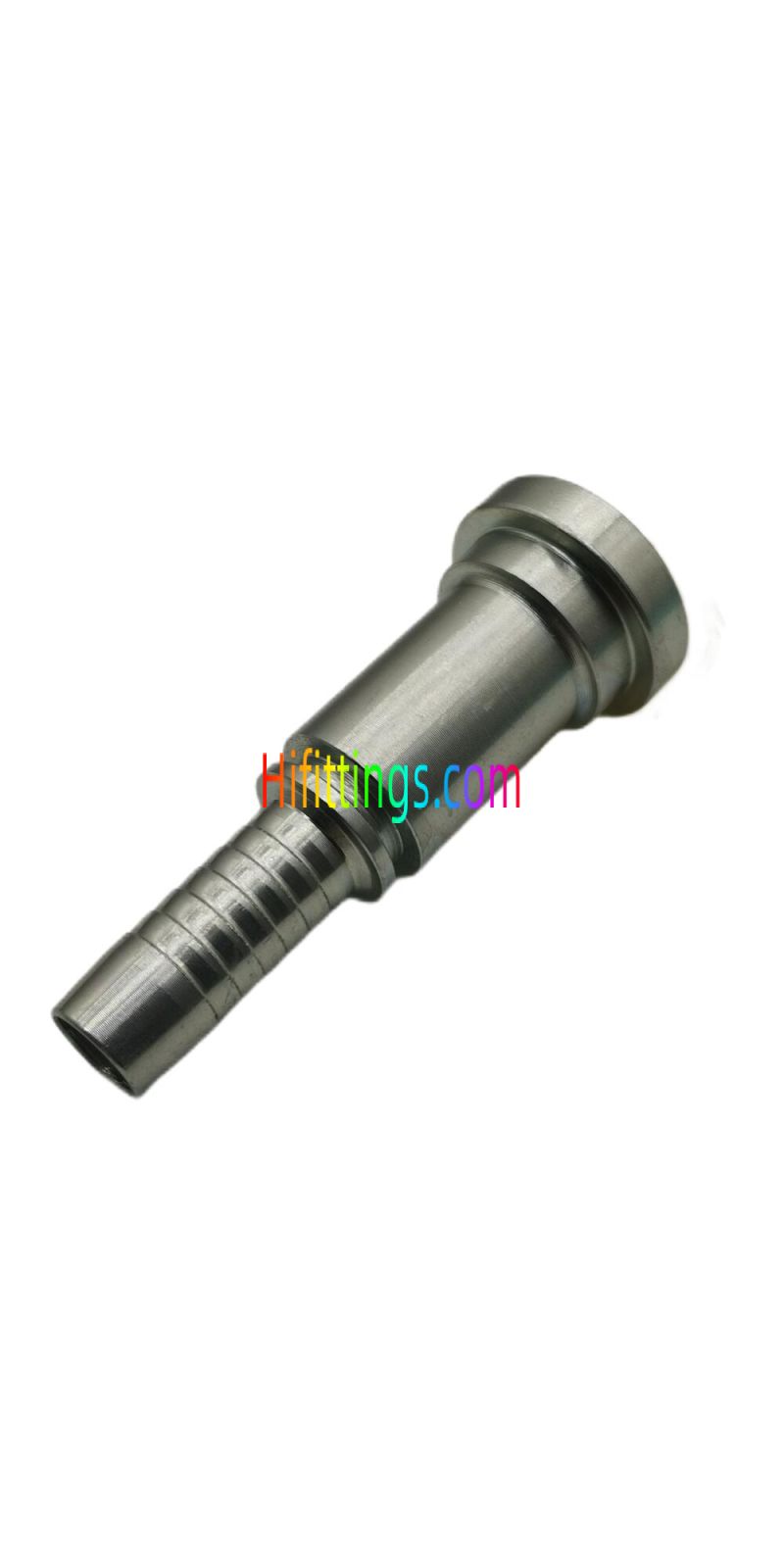

SAE Flange Head 6000 PSI Code 62 Swaged Hose Fitting 87611
45
Auf Lager
Nur noch %1 verfügbar
SKU
87611
Guarantee safe & secure checkout
|
Part NO. |
Flange Size |
Hose Bore - DN |
Hose Bore - Dash |
A |
C |
D |
L |
|
87611-08-08 |
1/2" |
12 |
8 |
47 |
31.7 |
24 |
7.75 |
|
87611-12-10 |
3/4" |
16 |
10 |
50.5 |
41.3 |
32 |
8.76 |
|
87611-12-12 |
1" |
20 |
12 |
51 |
41.3 |
32 |
8.76 |
|
87611-16-12 |
1" |
20 |
12 |
56 |
47.6 |
38 |
9.53 |
|
87611-16-16 |
1" |
25 |
16 |
57 |
47.6 |
38 |
9.53 |
|
87611-16-20 |
1" |
32 |
20 |
61 |
47.6 |
38 |
9.53 |
|
87611-20-16 |
1.1/4" |
25 |
16 |
65 |
54 |
44 |
10.29 |
|
87611-20-20 |
1.1/4" |
32 |
20 |
66 |
54 |
44 |
10.29 |
|
87611-24-20 |
1.1/2" |
32 |
20 |
75 |
63.5 |
51 |
12.57 |
|
87611-24-24 |
1.1/2" |
40 |
24 |
75 |
63.5 |
51 |
12.57 |
|
87611-32-24 |
2" |
40 |
24 |
85 |
79.4 |
67 |
12.57 |
|
87611-32-32 |
2" |
50 |
32 |
85 |
79.4 |
67 |
12.57 |
|
Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is87612-xx-xx |
|||||||
| Form | Straight |
|---|---|
| Fitting Typ | Flange |
| Gewindetyp | - |
| Connection Type | Flange |
