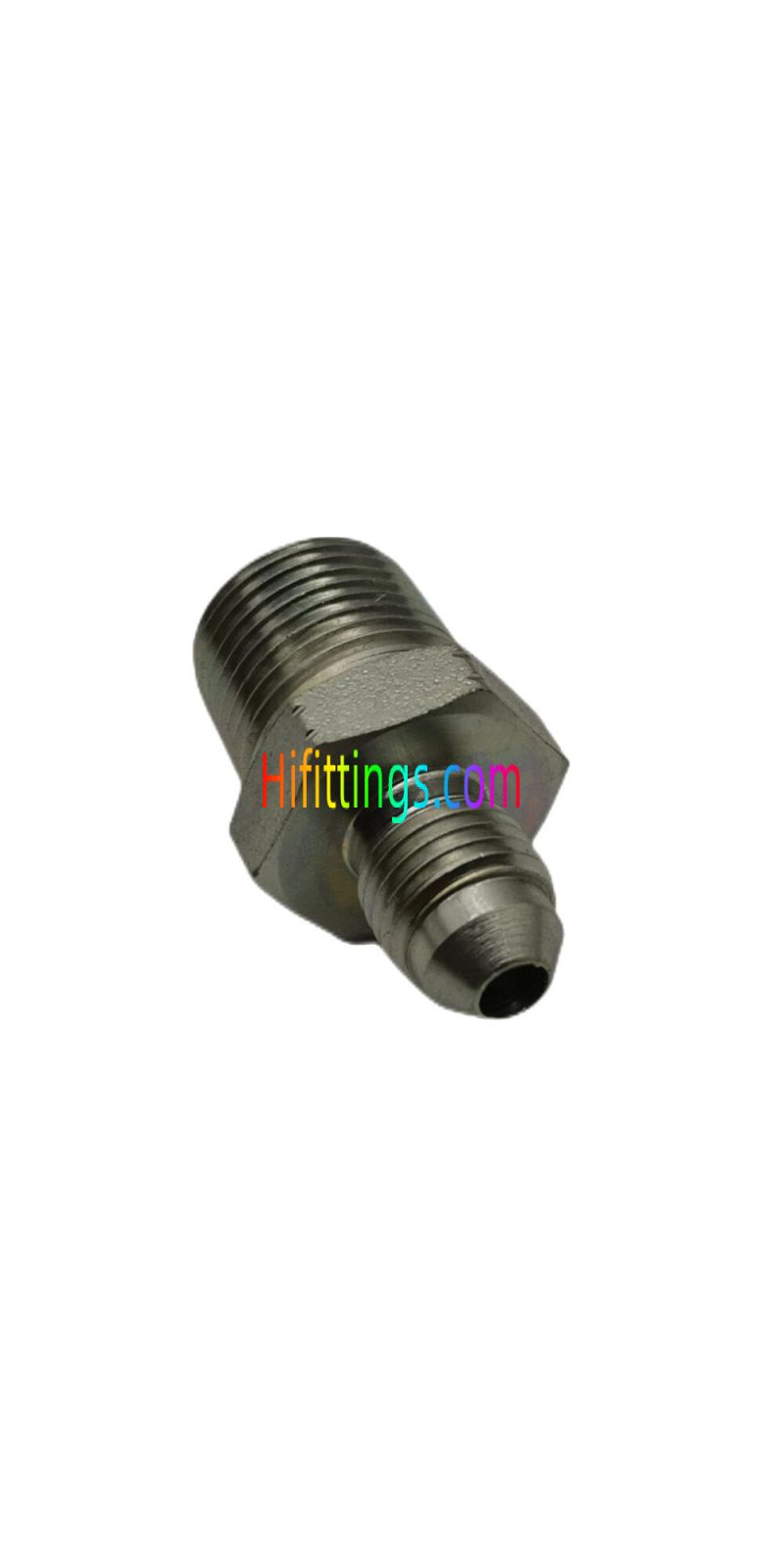

Gerader BSP-Außengewinde 60° Sitz JIC-Außengewinde 74° Konusverschraubung 1BJ
45
Auf Lager
Nur noch %1 verfügbar
SKU
1BJ
Guarantee safe & secure checkout
BSP Male Double Use For 60° Seat Or Bonded Seal / JIC Male 74° Cone Fittings 1BJ
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
Working Pressure bar |
|
1BJ-02-04 |
G1/8"X28 |
7/16"X20 |
10 |
14 |
30 |
14 |
|
|
1BJ-02-05 |
G1/8"X28 |
1/2"X20 |
10 |
14 |
30 |
14 |
|
|
1BJ-02-06 |
G1/8"X28 |
9/16"X18 |
10 |
14.1 |
30 |
17 |
|
|
1BJ-04 |
G1/4"X19 |
7/16"X20 |
12 |
14 |
32 |
19 |
|
|
1BJ-04-05 |
G1/4"X19 |
1/2"X20 |
12 |
14 |
32 |
19 |
|
|
1BJ-04-06 |
G1/4"X19 |
9/16"X18 |
12 |
14.1 |
32 |
19 |
|
|
1BJ-04-08 |
G1/4"X19 |
3/4"X16 |
12 |
16.7 |
36.5 |
22 |
|
|
1BJ-04-10 |
G1/4"X19 |
7/8"X14 |
12 |
19.3 |
39 |
24 |
|
|
1BJ-06 |
G3/8"X19 |
9/16"X18 |
13.5 |
14.1 |
35.5 |
22 |
|
|
1BJ-06-04 |
G3/8"X19 |
7/16"X20 |
13.5 |
14 |
35.5 |
22 |
|
|
1BJ-06-05 |
G3/8"X19 |
1/2"X20 |
13.5 |
14 |
35.5 |
22 |
|
|
1BJ-06-08 |
G3/8"X19 |
3/4"X16 |
13.5 |
16.7 |
38.5 |
22 |
|
|
1BJ-06-10 |
G3/8"X19 |
7/8"X14 |
13.5 |
19.3 |
41 |
24 |
|
|
1BJ-06-12 |
G3/8"X19 |
1.1/16"X12 |
13.5 |
21.9 |
45 |
30 |
|
|
1BJ-08 |
G1/2"X14 |
3/4"X16 |
16 |
16.7 |
43 |
27 |
|
|
1BJ-08-04 |
G1/2"X14 |
7/16"X20 |
16 |
14 |
40 |
27 |
|
|
1BJ-08-05 |
G1/2"X14 |
1/2"X20 |
16 |
14 |
40 |
27 |
|
|
1BJ-08-06 |
G1/2"X14 |
9/16"X18 |
16 |
14.1 |
40 |
27 |
|
|
1BJ-08-10 |
G1/2"X14 |
7/8"X14 |
16 |
19.3 |
45.5 |
27 |
|
|
1BJ-08-12 |
G1/2"X14 |
1.1/16"X12 |
16 |
21.9 |
48 |
30 |
|
|
1BJ-08-14 |
G1/2"X14 |
1.3/16"X12 |
16 |
22.6 |
49.5 |
32 |
|
|
1BJ-08-16 |
G1/2"X14 |
1.5/16"X12 |
16 |
23.1 |
50 |
36 |
|
|
1BJ-1O |
G5/8"X14 |
7/8"X14 |
17.5 |
19.3 |
47 |
30 |
|
|
1BJ-10-08 |
G5/8"X14 |
3/4"X16 |
17.5 |
16.7 |
44 |
30 |
|
|
1BJ-10-12 |
G5/8"X14 |
1.1/16"X12 |
17.5 |
21.9 |
49.5 |
30 |
|
|
1BJ-10-16 |
G5/8"X14 |
1.5/16"X12 |
17.5 |
23.1 |
51.5 |
36 |
|
|
1BJ-12 |
G3/4"X14 |
1.1/16"X12 |
18.5 |
21.9 |
51.5 |
32 |
|
|
1BJ-12-06 |
G3/4"X14 |
9/16"X18 |
18.5 |
14.1 |
43.5 |
32 |
|
|
1BJ-12-08 |
G3/4"X14 |
3/4"X16 |
18.5 |
16.7 |
46.5 |
32 |
|
|
1BJ-12-10 |
G3/4"X14 |
7/8"X14 |
18.5 |
19.3 |
49 |
32 |
|
|
1BJ-12-14 |
G3/4"X14 |
1.3/16"X12 |
18.5 |
22.6 |
52 |
32 |
|
|
1BJ-12-16 |
G3/4"X14 |
1.5/16"X12 |
18.5 |
23.1 |
52.5 |
34 |
|
|
1BJ-12-20 |
G3/4"X14 |
1.5/8"X12 |
18.5 |
24.3 |
55.5 |
46 |
|
|
1BJ-16 |
G1"X11 |
1.5/16"X12 |
20.5 |
23.1 |
57 |
41 |
|
|
1BJ-16-08 |
G1"X11 |
3/4"X16 |
20.5 |
16.7 |
50 |
41 |
|
|
1BJ-16-10 |
G1"X11 |
7/8"X14 |
20.5 |
19.3 |
53 |
41 |
|
|
1BJ-16-12 |
G1"X11 |
1.1/16"X12 |
20.5 |
21.9 |
55.5 |
41 |
|
|
1BJ-16-14 |
G1"X11 |
1.3/16"X12 |
20.5 |
22.6 |
56 |
41 |
|
|
1BJ-16-20 |
G1"X11 |
1.5/8"X12 |
20.5 |
24.3 |
58 |
46 |
|
|
1BJ-20 |
G1.1/4"X11 |
1.5/8"X12 |
20.5 |
24.3 |
62 |
50 |
|
|
1BJ-20-12 |
G1.1/4"X11 |
1.1/16"X12 |
20.5 |
21.9 |
57.5 |
50 |
|
|
1BJ-20-16 |
G1.1/4"X11 |
1.5/16"X12 |
20.5 |
23.1 |
60.5 |
50 |
|
|
1BJ-20-24 |
G1.1/4"X11 |
1.7/8"X12 |
20.5 |
27.5 |
63 |
50 |
|
|
1BJ-24-16 |
G 1.12X11 |
1.5/16"X12 |
23 |
23.1 |
61 |
55 |
|
|
1BJ-24-20 |
G1.1/2"X11 |
1.5/8"X12 |
23 |
24.3 |
62.5 |
55 |
|
|
1BJ-24 |
G1.1/2"X11 |
1.7/8"X12 |
23 |
27.5 |
67.5 |
55 |
|
|
1BJ-24-32 |
G1.1/2"X11 |
2.1/2"X12 |
23 |
33.9 |
74 |
65 |
|
|
1BJ-32 |
G2"X11 |
2.1/2"X12 |
25.5 |
33.9 |
77.5 |
70 |
|
|
1BJ-32-24 |
G2"X11 |
1.7/8"X12 |
25.5 |
27.5 |
70 |
70 |
|
|
Note:Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube.the nut NB200 and sleeve NB300 is suitable for inch tube. 2. PN = Nominal Pressure |
|||||||
| Form | Straight |
|---|---|
| Fitting Typ | Cone |
| Gewindetyp | Male |
| Connection Type | BSP, JIC |
