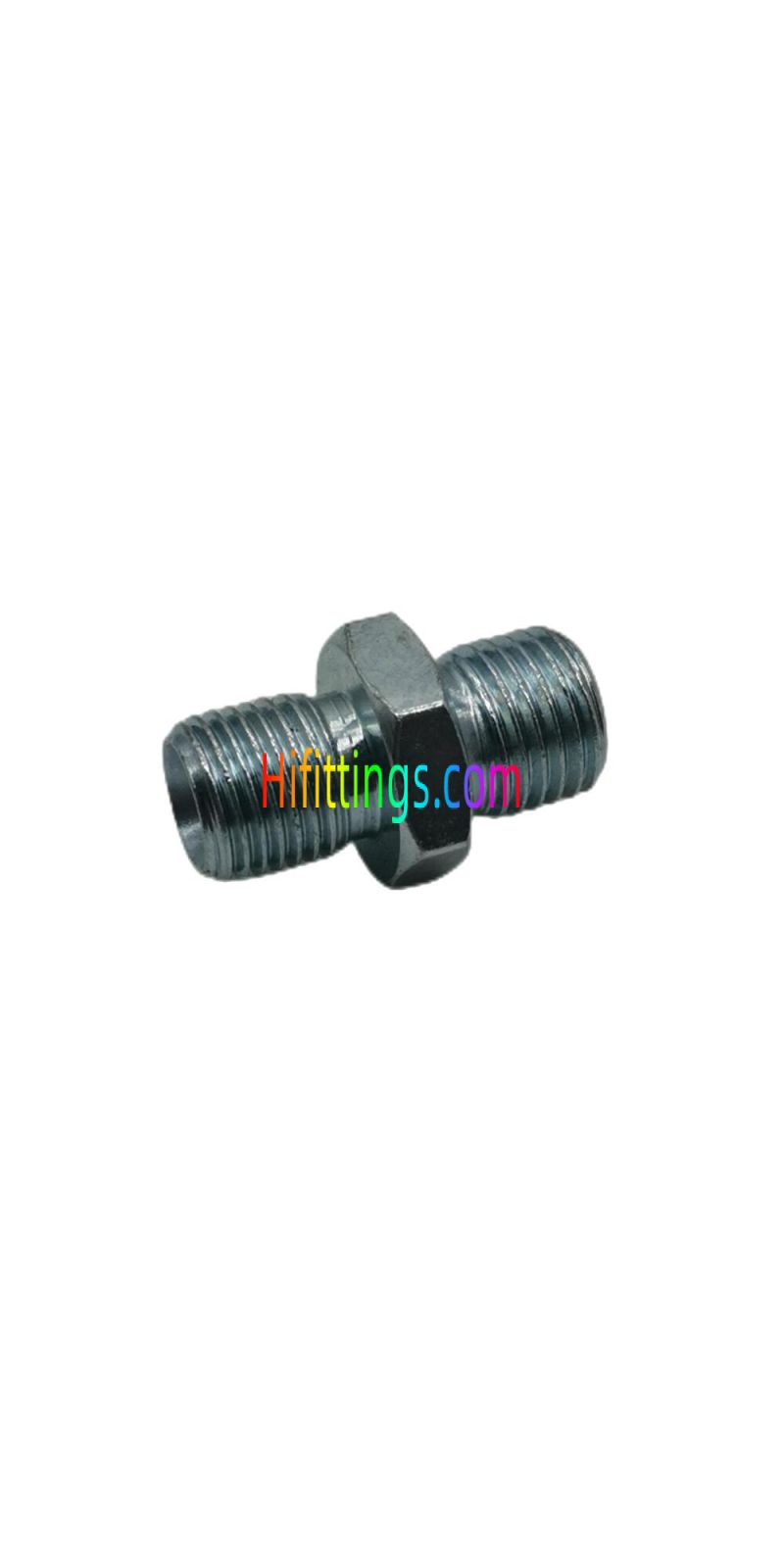

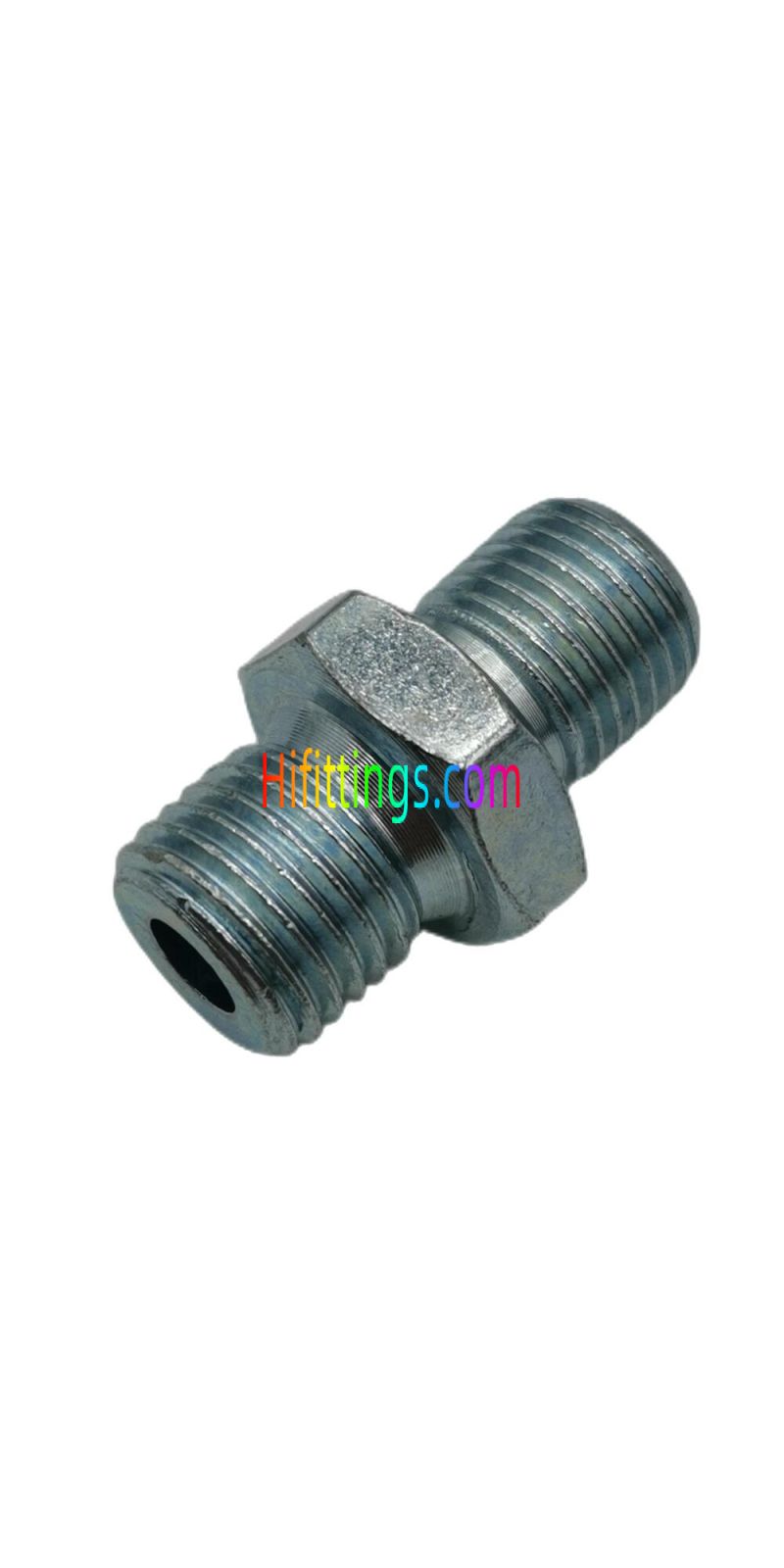

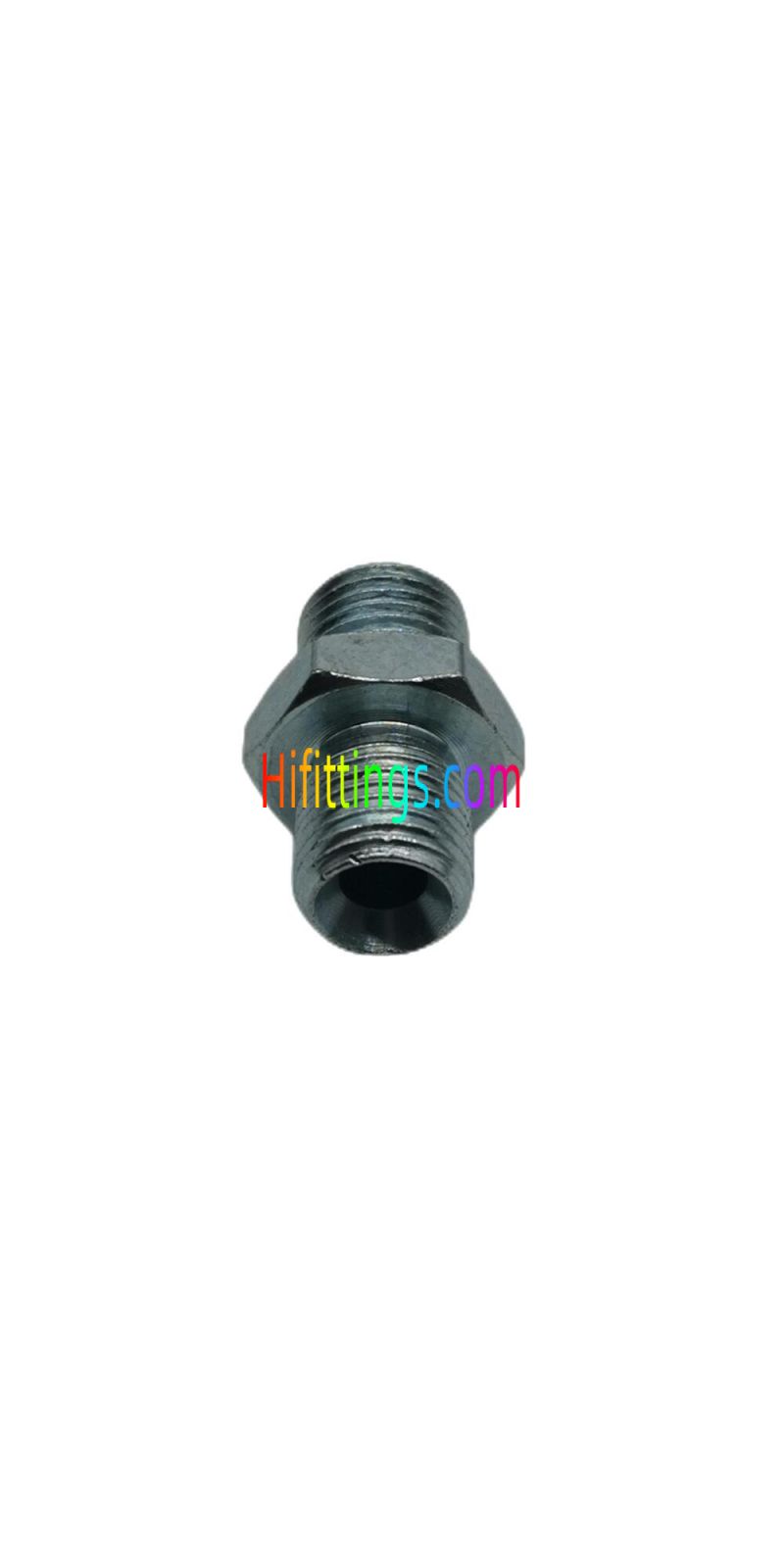

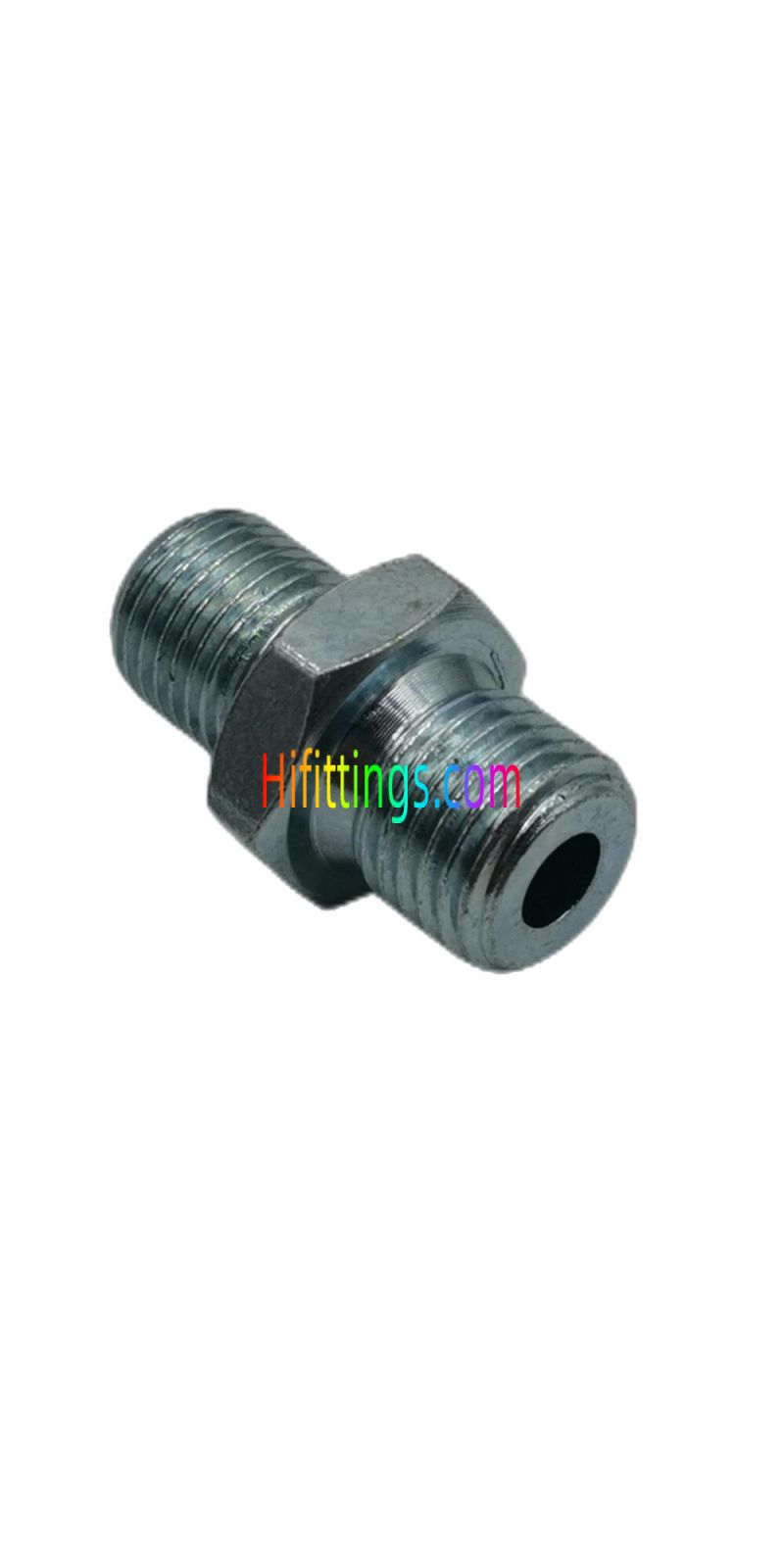

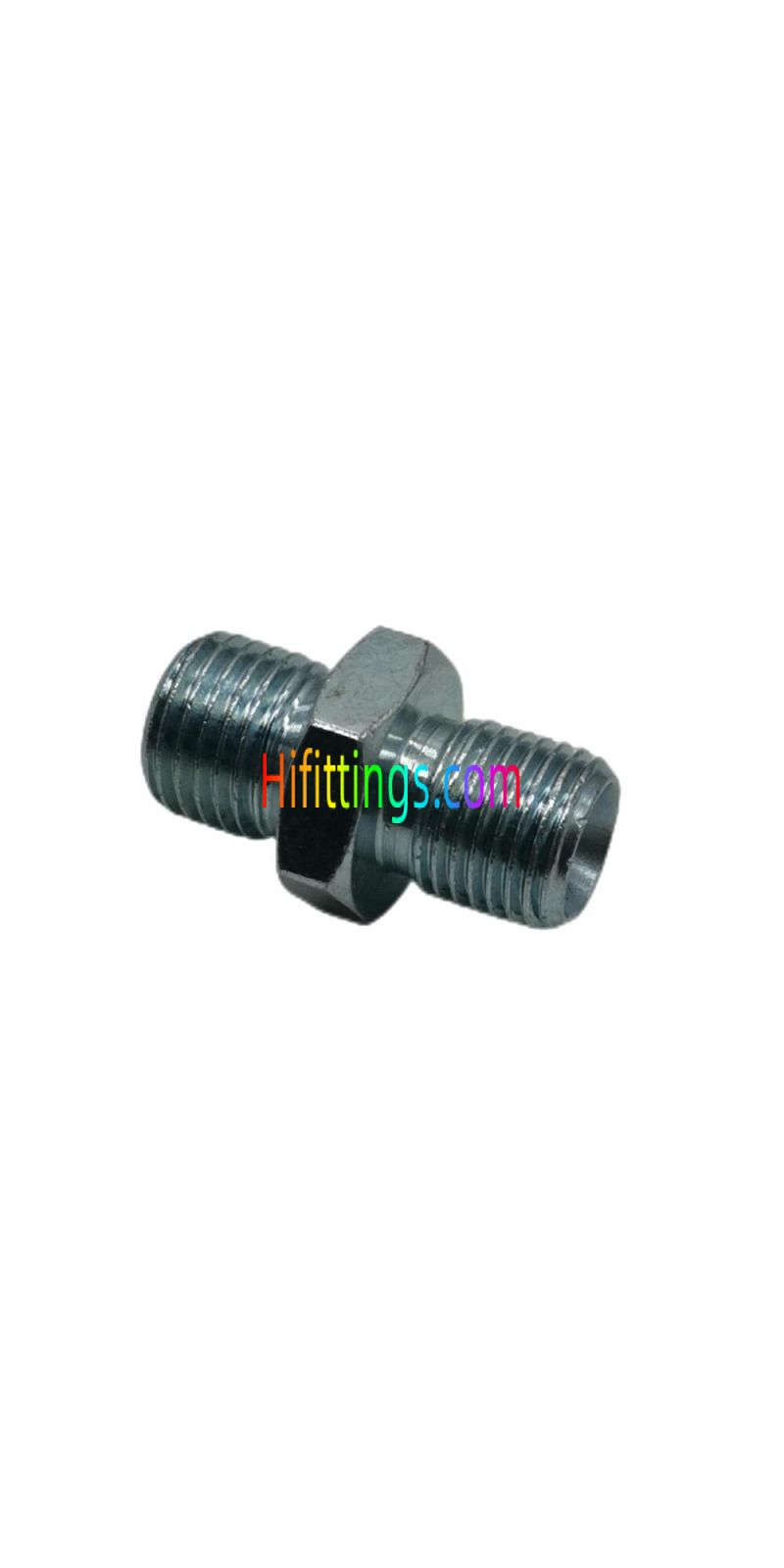

Gerader BSP-Außengewinde 60° Sitz Metrischer Außengewinde 60° Sitz Verschraubung
47
Auf Lager
Nur noch %1 verfügbar
SKU
1BM
Guarantee safe & secure checkout
BSP Male Double Use For 60° Seat Or Bonded Seal / Metric Male Double Use For 60° Seat Or Bonded Seal Hydraulic Adapter Fittings 1BM
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
Working Pressure bar |
|
1BM-02-10 |
G1/8"X28 |
M10X1 |
10 |
8 |
25 |
14 |
PN345 |
|
1BM-02-12 |
G1/8"X28 |
M12X1.5 |
10 |
10 |
27 |
17 |
PN345 |
|
1BM-04-12 |
G1/4"X19 |
M12X1.5 |
12 |
10 |
29 |
19 |
PN345 |
|
1BM-04-14 |
G1/4"X19 |
M14X1.5 |
12 |
11 |
30 |
19 |
PN345 |
|
1BM-04-16 |
G1/4"X19 |
M16X1.5 |
12 |
12 |
33 |
22 |
PN345 |
|
1BM-04-18 |
G1/4"X19 |
M18X1.5 |
12 |
12 |
33 |
24 |
PN345 |
|
1BM-06-10 |
G3/8"X19 |
M10X1 |
13.5 |
8 |
29.5 |
22 |
PN345 |
|
1BM-06-12 |
G3/8"X19 |
M12X1.5 |
13.5 |
10 |
31.5 |
22 |
PN345 |
|
1BM-06-14 |
G3/8"X19 |
M14X1.5 |
13.5 |
11 |
32.5 |
22 |
PN345 |
|
1BM-06-16 |
G3/8"X19 |
M16X1.5 |
13.5 |
12 |
33.5 |
22 |
PN345 |
|
1BM-06-18 |
G3/8"X19 |
M18X1.5 |
13.5 |
12 |
34.5 |
24 |
PN345 |
|
1BM-06-20 |
G3/8"X19 |
M20X1.5 |
13.5 |
14 |
38.5 |
27 |
PN345 |
|
1BM-06-22 |
G3/8"X19 |
M22X1.5 |
13.5 |
14 |
38.5 |
27 |
PN345 |
|
1BM-08-14 |
G1/2"X14 |
M14X1.5 |
16 |
11 |
38 |
27 |
PN345 |
|
1BM-08-16 |
G1/2"X14 |
M16X1.5 |
16 |
12 |
39 |
27 |
PN345 |
|
1BM-08-18 |
G1/2"X14 |
M18X1.5 |
16 |
12 |
39 |
27 |
PN345 |
|
1BM-08-20 |
G1/2"X14 |
M20X1.5 |
16 |
14 |
41 |
27 |
PN345 |
|
1BM-08-22 |
G1/2"X14 |
M22X1.5 |
16 |
14 |
41 |
27 |
PN345 |
|
1BM-08-24 |
G1/2"X14 |
M24X1.5 |
16 |
14 |
41 |
30 |
PN345 |
|
1BM-08-26 |
G1/2"X14 |
M26X1.5 |
16 |
16 |
44 |
32 |
PN345 |
|
1BM-08-27D |
G1/2"X14 |
M27X1.5 |
16 |
16 |
44 |
32 |
PN345 |
|
1BM-08-30 |
G1/2"X14 |
M30X1.5 |
16 |
18 |
45 |
36 |
PN345 |
|
1BM-10-22 |
G5/8"X14 |
M22X1.5 |
17.5 |
14 |
42.5 |
30 |
PN275 |
|
1BM-10-26 |
G5/8"X14 |
M26X1.5 |
17.5 |
16 |
45.5 |
32 |
PN275 |
|
1BM-12-18 |
G3/4"X14 |
M18X1.5 |
18.5 |
12 |
42.5 |
32 |
PN275 |
|
1BM-12-20 |
G3/4"X14 |
M20X1.5 |
18.5 |
14 |
44.5 |
32 |
PN275 |
|
1BM-12-22 |
G3/4"X14 |
M22X1.5 |
18.5 |
14 |
44.5 |
32 |
PN275 |
|
1BM-12-24 |
G3/4"X14 |
M24X1.5 |
18.5 |
14 |
44.5 |
32 |
PN275 |
|
1BM-12-26 |
G3/4"X14 |
M26X1.5 |
18.5 |
16 |
46.5 |
32 |
PN275 |
|
1BM-12-27 |
G3/4"X14 |
M27X2 |
18.5 |
16 |
46.5 |
32 |
PN275 |
|
1BM-12-27D |
G3/4"X14 |
M27X1.5 |
18.5 |
16 |
46.5 |
32 |
PN275 |
|
1BM-12-30 |
G3/4"X14 |
M30X2 |
18.5 |
18 |
47.5 |
36 |
PN275 |
|
1BM-12-30D |
G3/4"X14 |
M30X1.5 |
18.5 |
18 |
47.5 |
36 |
PN275 |
|
1BM-16-14 |
G1"X11 |
M14X1.5 |
20.5 |
11 |
45.5 |
41 |
PN205 |
|
1BM-16-22 |
G1"X11 |
M22X1.5 |
20.5 |
14 |
48.5 |
41 |
PN205 |
|
1BM-16-26 |
G1"X11 |
M26X1.5 |
20.5 |
16 |
50.5 |
41 |
PN205 |
|
1BM-16-30 |
G1"X11 |
M30X2 |
20.5 |
18 |
53 |
41 |
PN205 |
|
1BM-16-30D |
G1"X11 |
M30X1.5 |
20.5 |
18 |
53 |
41 |
PN205 |
| Form | Straight |
|---|---|
| Fitting Typ | Cone |
| Gewindetyp | Male |
| Connection Type | BSP, Metric |
