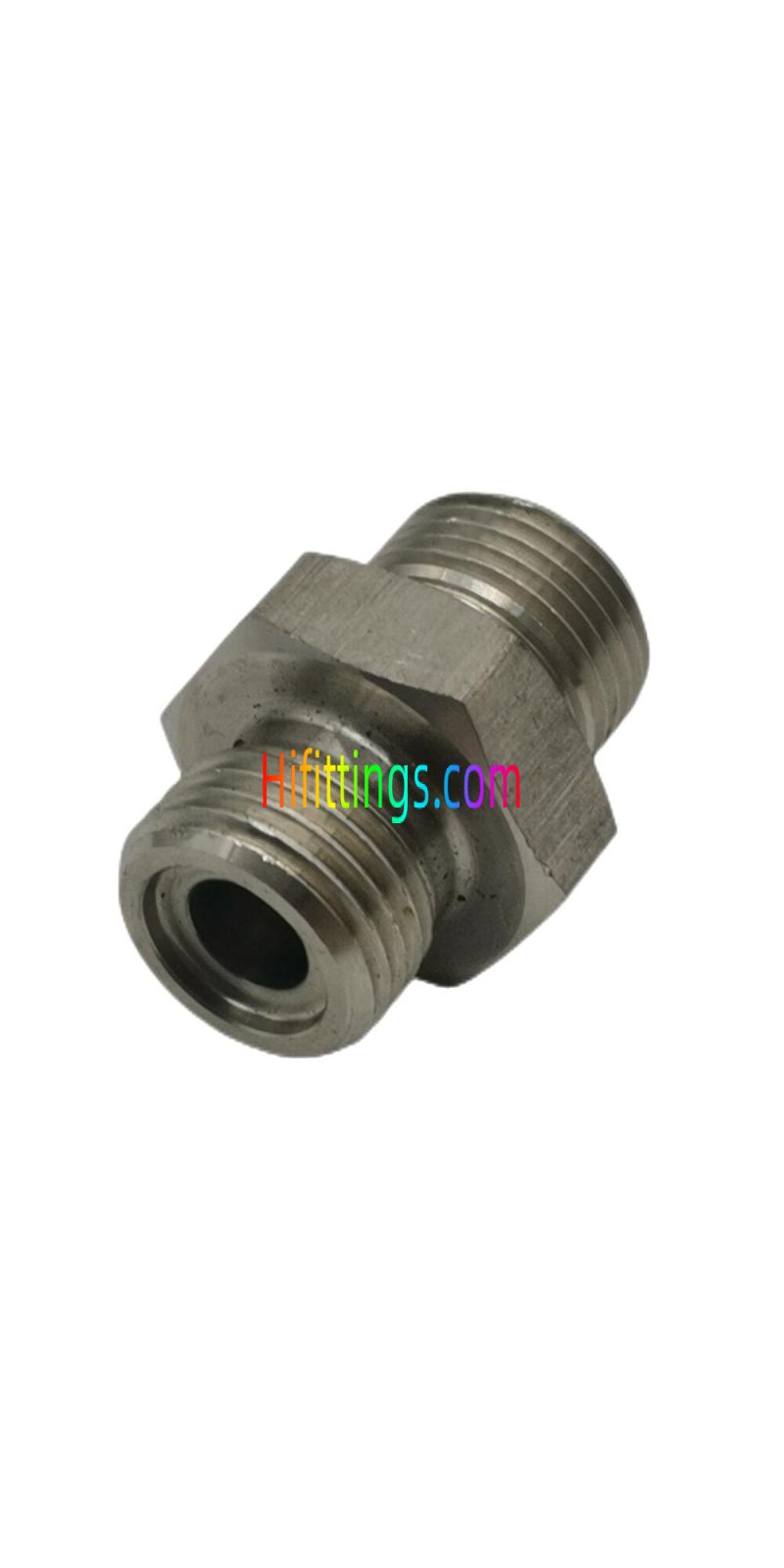

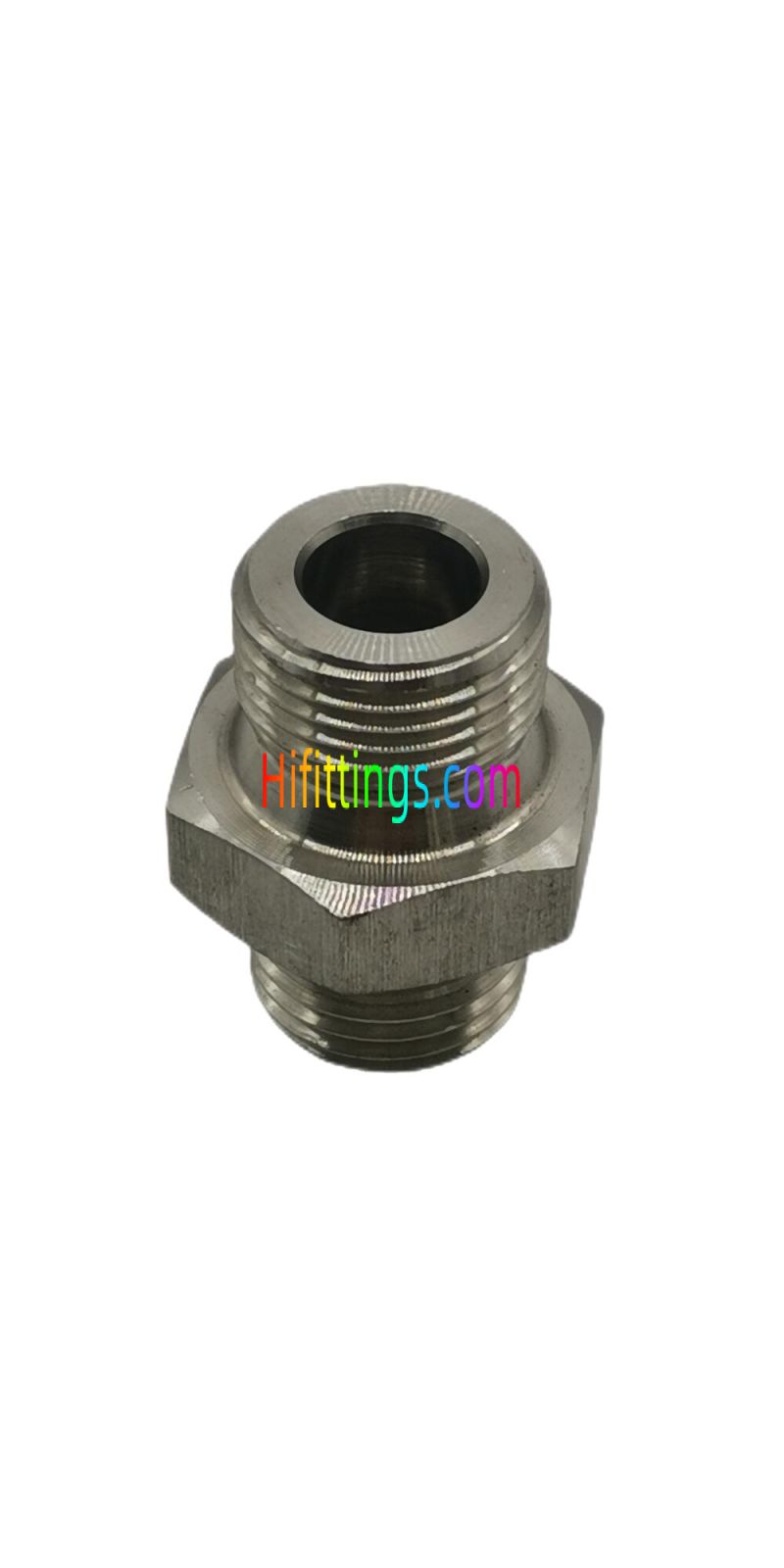

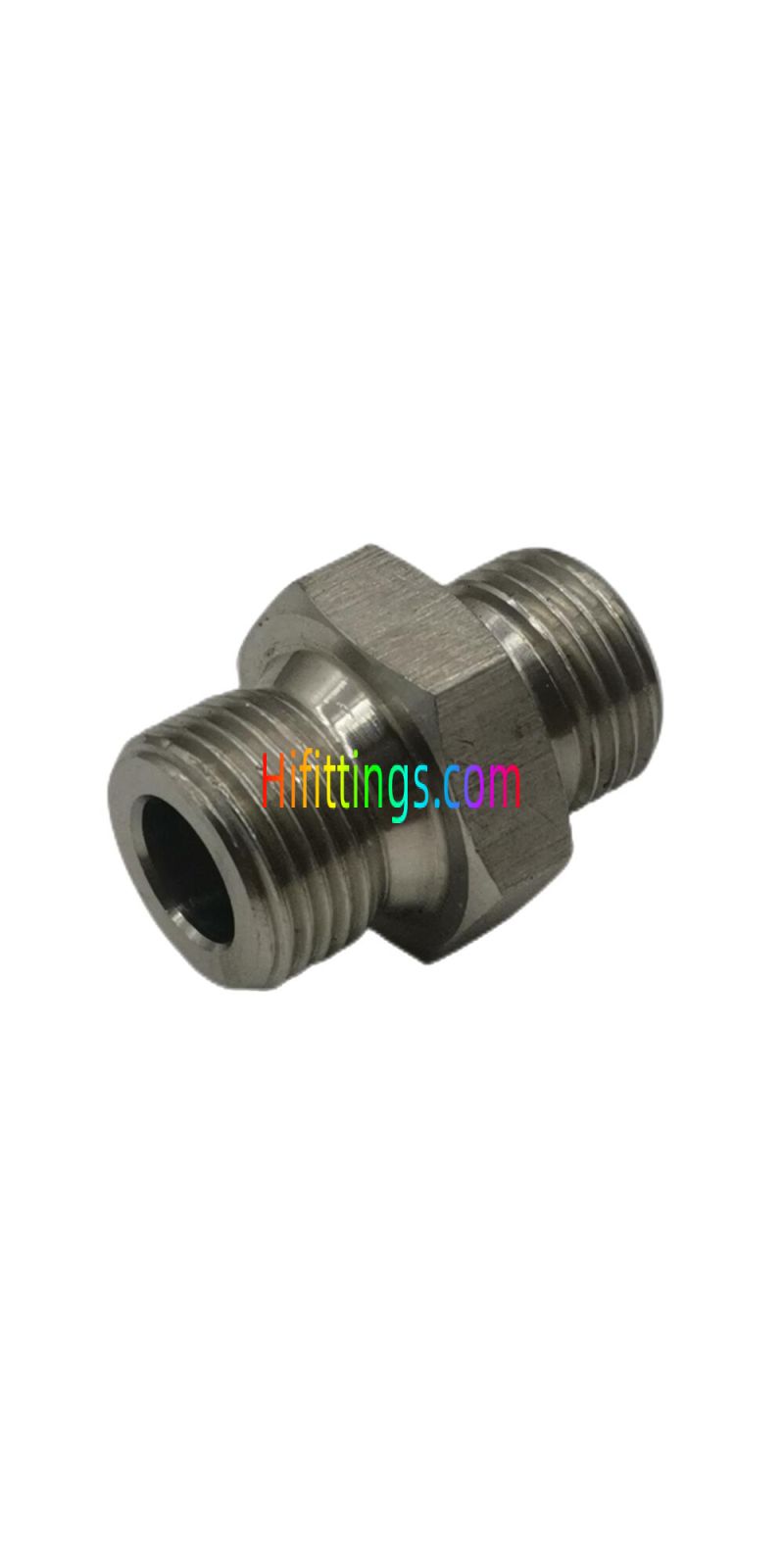

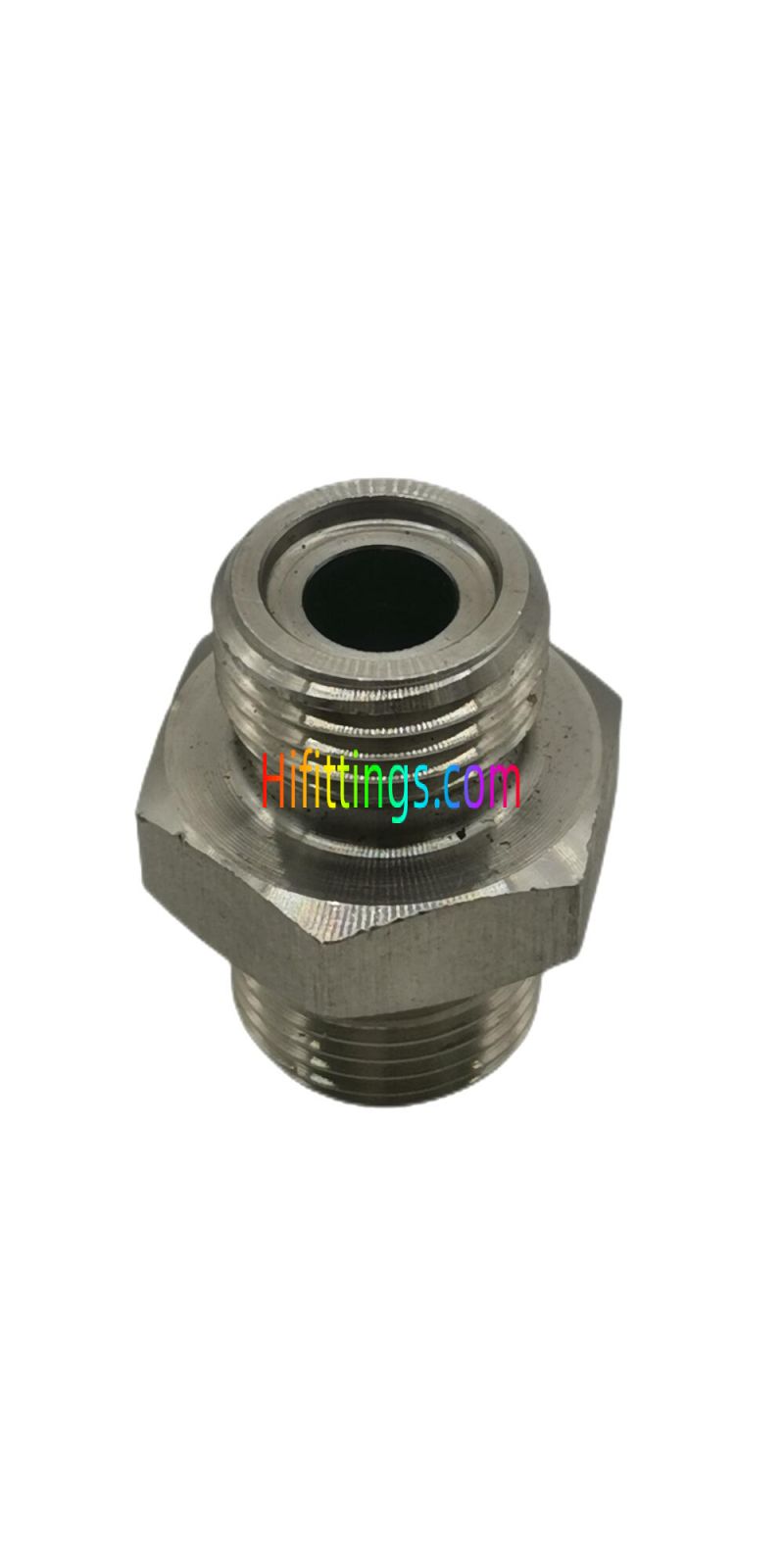

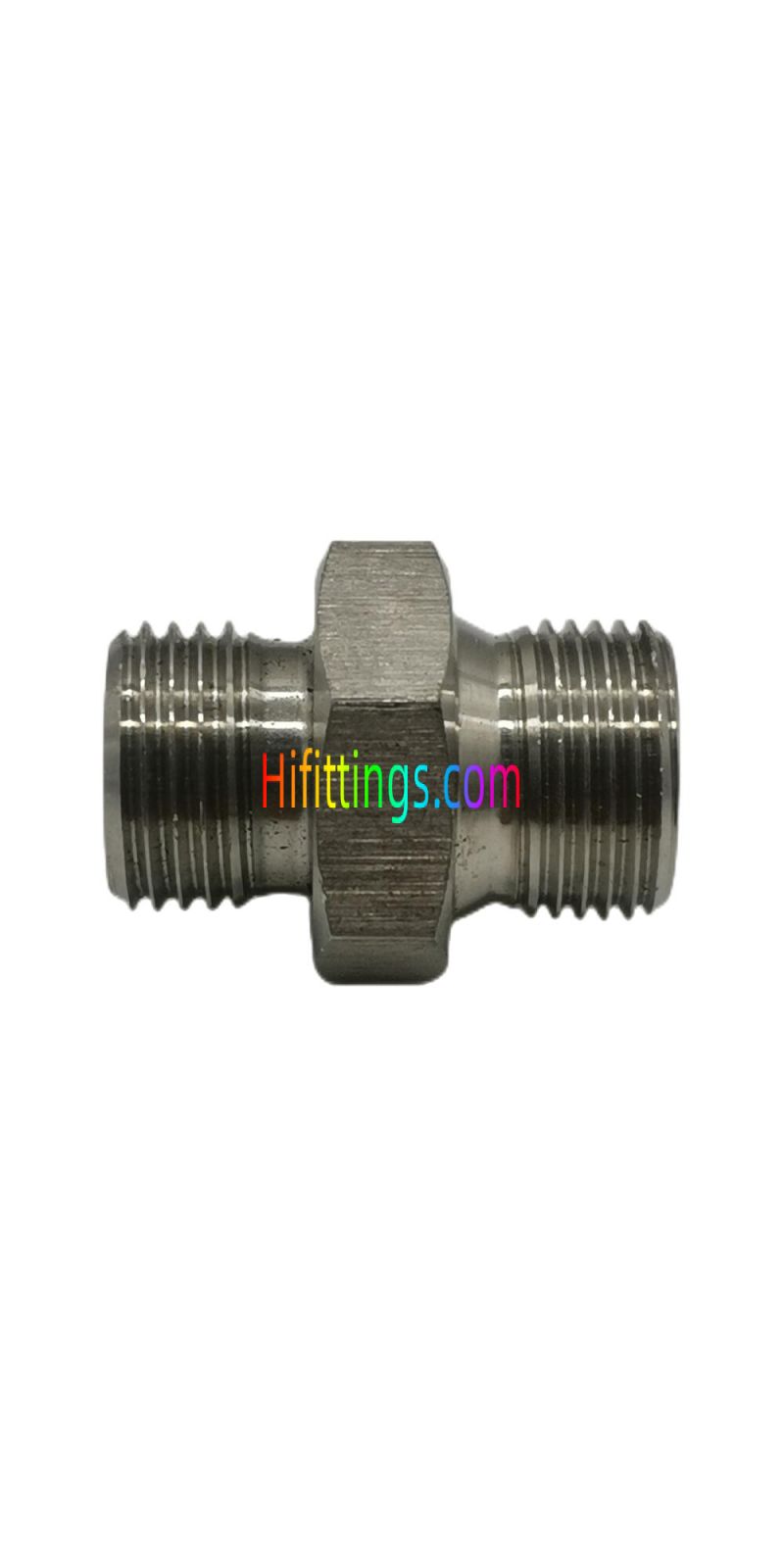

Metric Male O-Ring /BSP Male DIN 3852-2 Type A Hydraulic Adapter Pipe Fittings 1EZ
|
Part NO. |
E |
F |
Seal - E End |
Seal- F End |
A |
B |
L |
S1 |
Working Pressure bar |
|
1EZ-14-04 |
M14X1.5 |
G1/4"X19 |
10X1.9 |
ZHD-14 |
11 |
12 |
29 |
19 |
PN400 |
|
1EZ-16-04 |
M16X1.5 |
G1/4"X19 |
11X1.9 |
ZHD-14 |
11 |
12 |
29 |
19 |
PN400 |
|
1EZ-16-06 |
M16X1.5 |
G3/8"X19 |
11X1.9 |
ZHD-18 |
11 |
12 |
31 |
22 |
PN400 |
|
1EZ-18-06 |
M18X1.5 |
G3/8"X19 |
13X1.9 |
ZHD-18 |
11 |
12 |
31 |
22 |
PN400 |
|
1EZ-18-08 |
M18X1.5 |
G1/2"X14 |
13X1.9 |
ZHD-22 |
11 |
14 |
35 |
30 |
PN400 |
|
1EZ-22-08 |
M22X1.5 |
G1/2"X14 |
16X2.4 |
ZHD-22 |
12 |
14 |
35 |
27 |
PN400 |
|
1EZ-27-08 |
M27X1.5 |
G1/2"X14 |
20X2.4 |
ZHD-22 |
13 |
14 |
37 |
30 |
PN400 |
|
1EZ-27-12 |
M27X1.5 |
G3/4"X14 |
20X2.4 |
ZHD-27 |
13 |
16 |
40 |
32 |
PN400 |
|
1EZ-30-12 |
M30X1.5 |
G3/4"X14 |
24X2.4 |
ZHD-27 |
14 |
16 |
41 |
32 |
PN400 |
|
1EZ-30-16 |
M30X1.5 |
G1"X11 |
24X2.4 |
ZHD-33 |
14 |
18 |
48 |
41 |
PN400 |
|
1EZ-36-16 |
M36X2 |
G1"X11 |
30X3.1 |
ZHD-33 |
16 |
18 |
50 |
41 |
PN400 |
|
Note: 1. The parameter of E end O-ring is ring outside diameter and ring width. 2. PN = Nominal Pressure |
|||||||||
| Form | Straight |
|---|---|
| Gewindetyp | Male |
| Connection Type | BSP, Metric |
| Fitting Typ | Face Seal |
