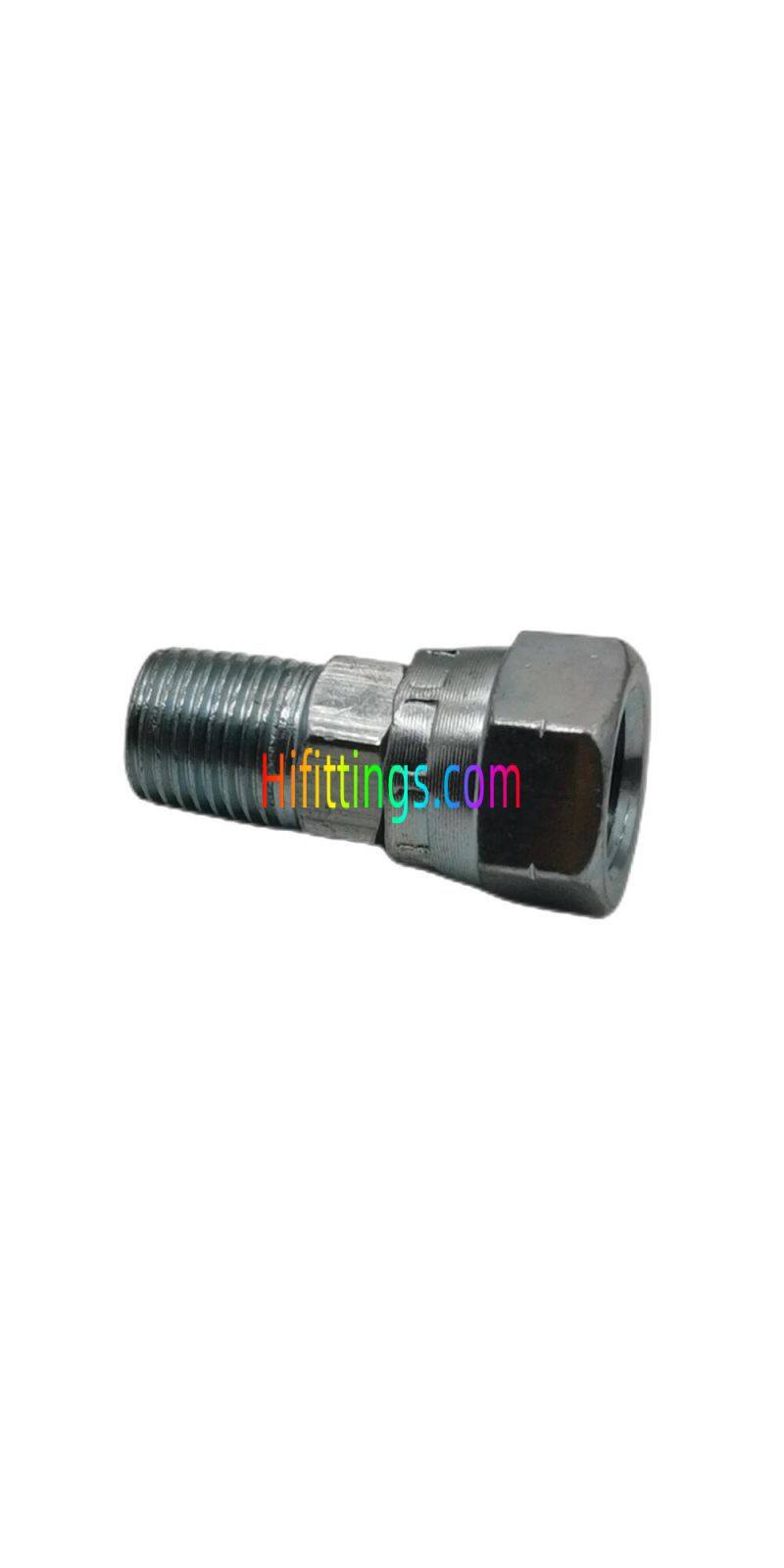

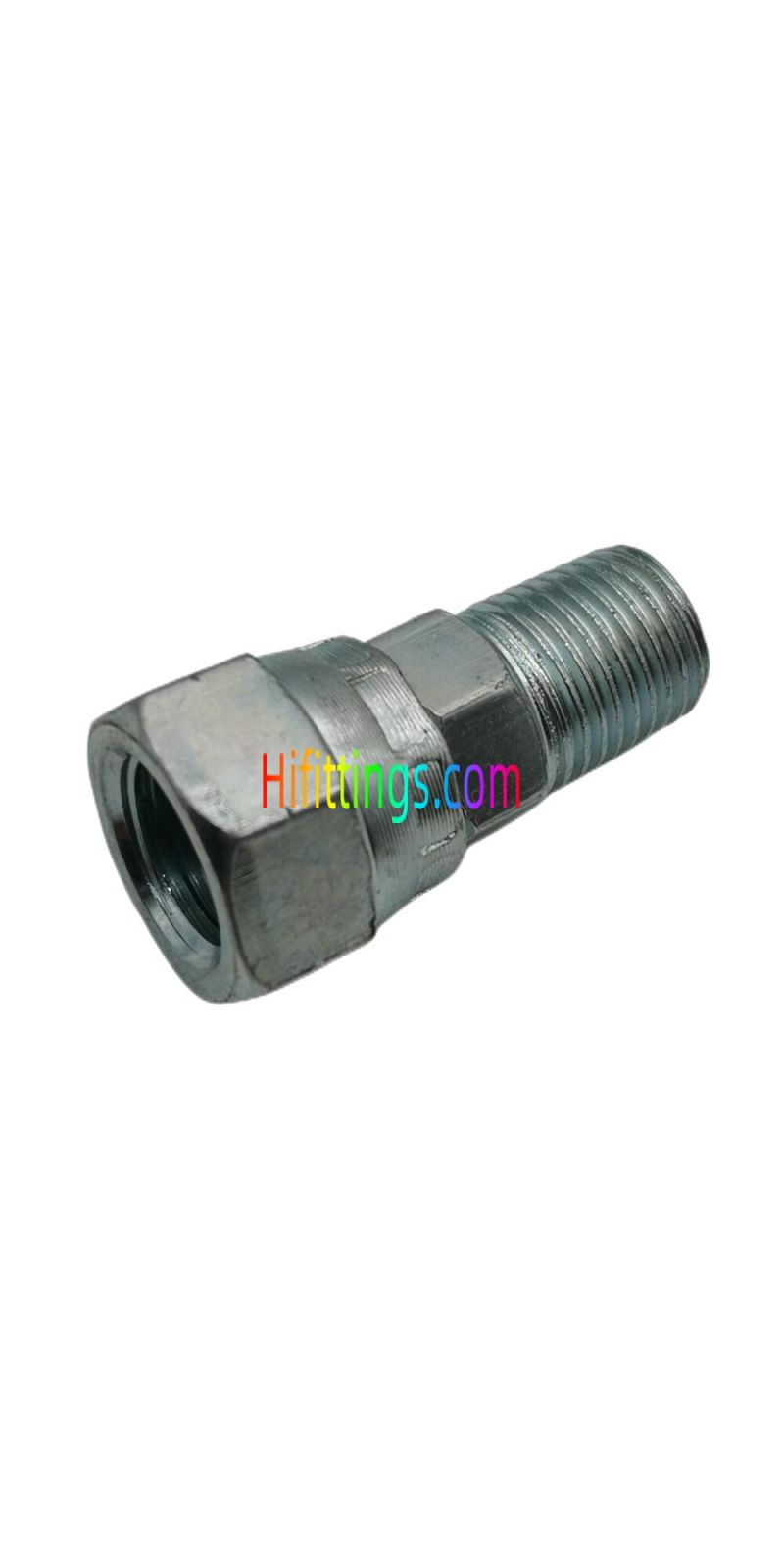

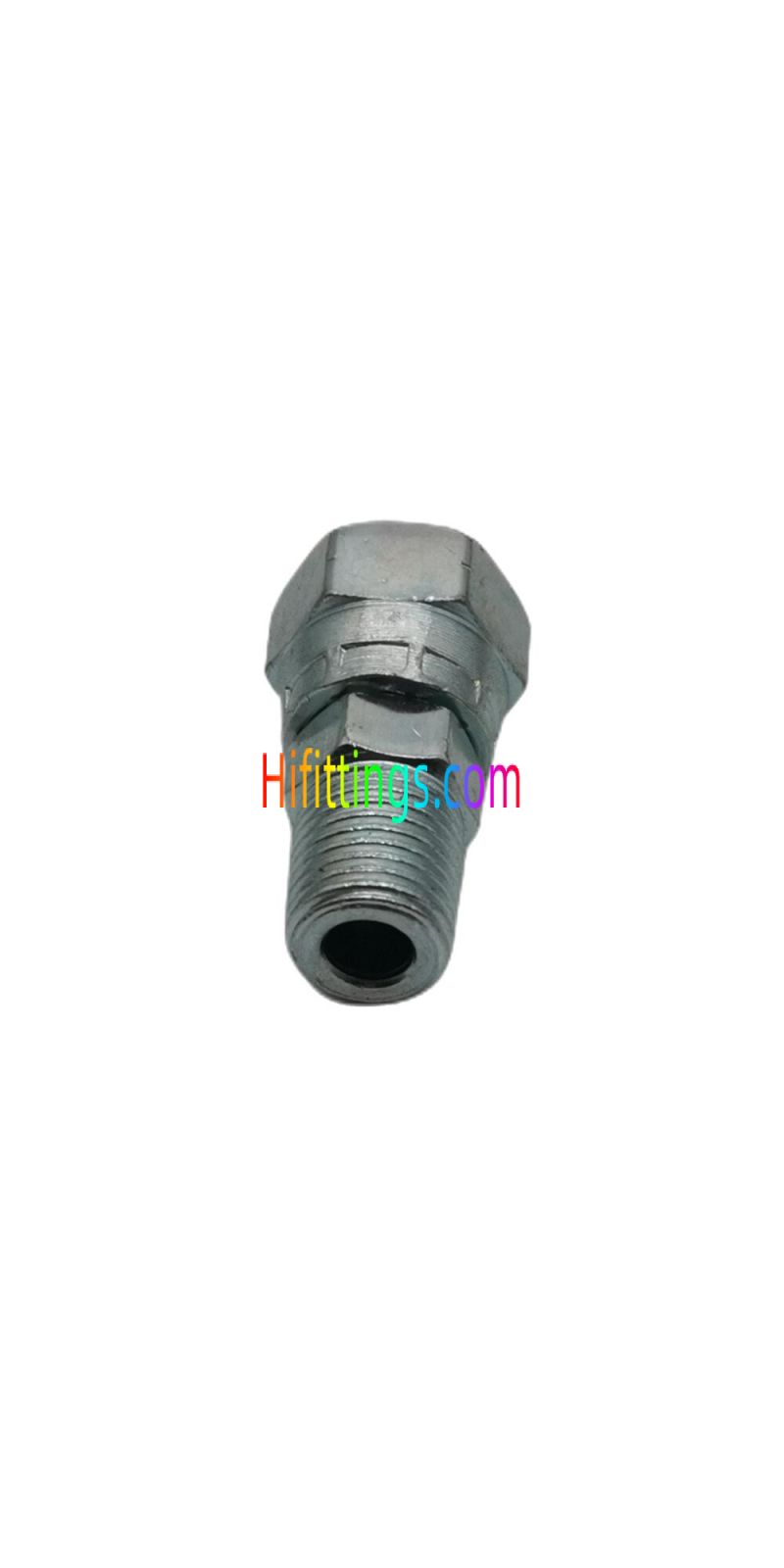

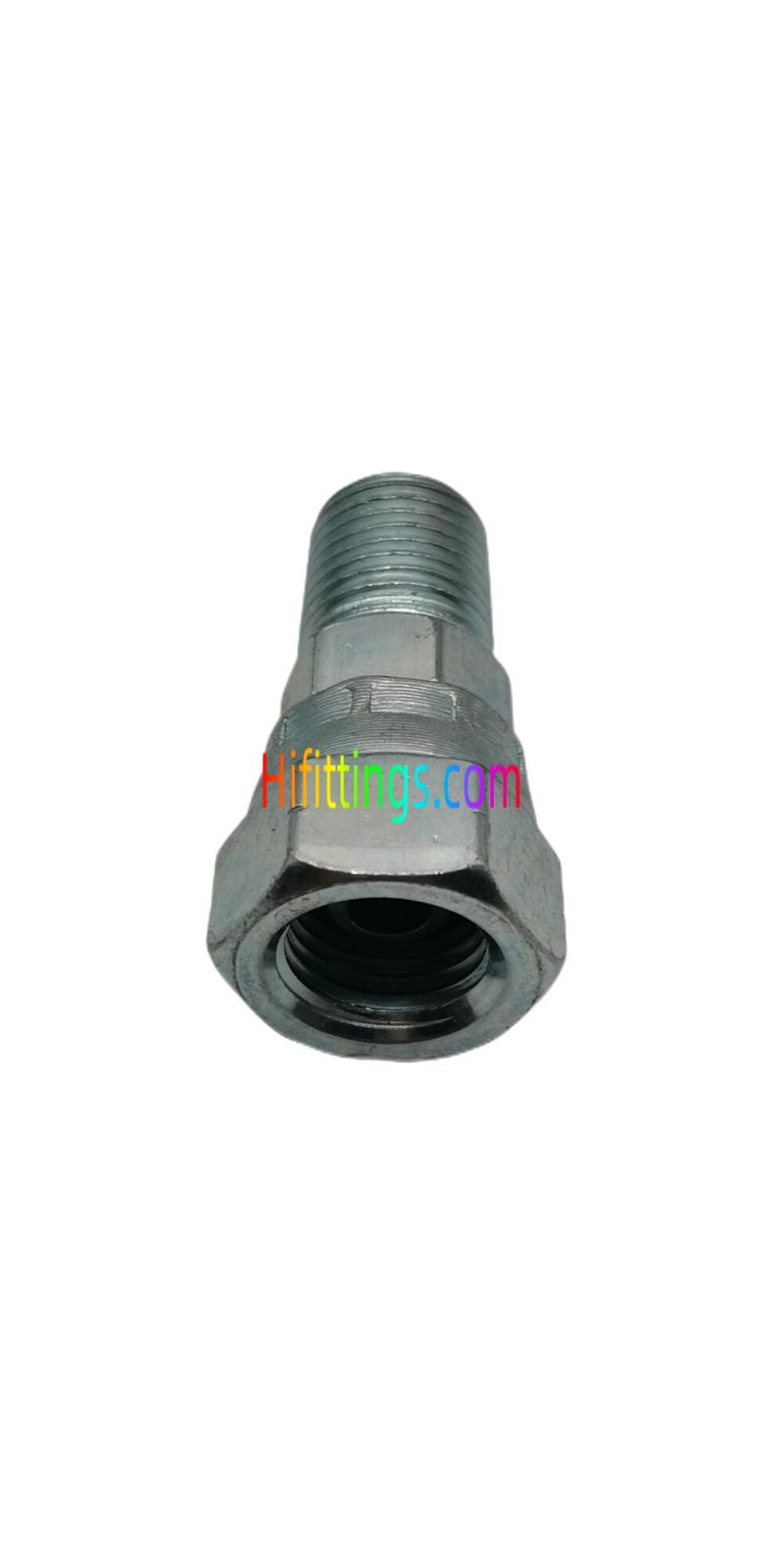

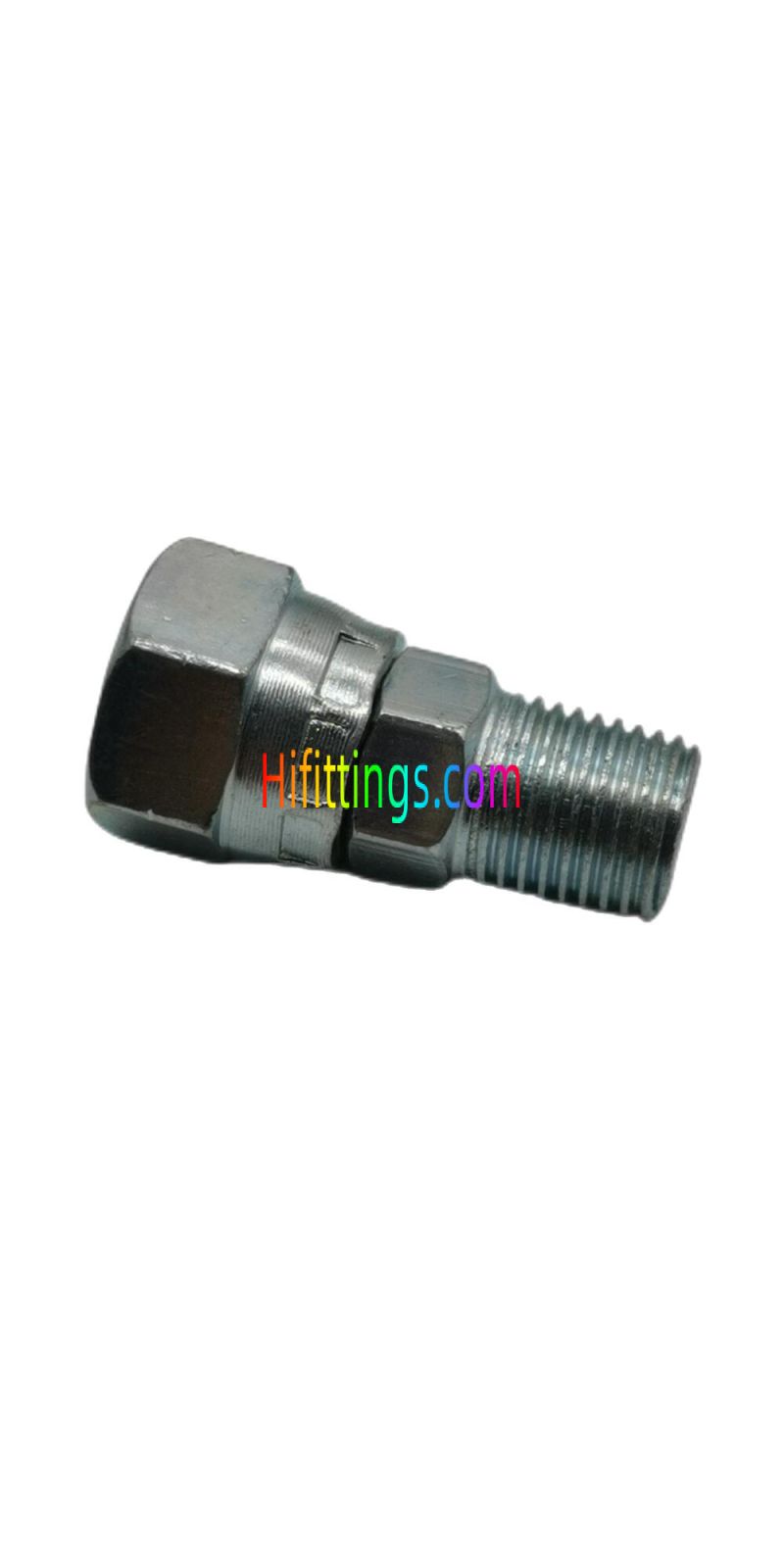

Gerade BSPT-Außengewinde BSP-Innengewinde 60° Konusverschraubung 2TB-SP
30
Auf Lager
Nur noch %1 verfügbar
SKU
2TB-SP
Guarantee safe & secure checkout
BSPT Male /BSP Female 60° Cone Fittings 2TB-SP
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
S2 |
Working Pressure bar |
|
2TB-02SP |
R1/8"X28 |
G1/8"X28 |
10 |
5.5 |
25 |
12 |
14 |
PN345 |
|
2TB-04SP |
R1/4"X19 |
G1/4"X19 |
14.5 |
5.5 |
31.5 |
17 |
19 |
PN345 |
|
2TB-06SP |
R3/8"X19 |
G3/8"X19 |
15 |
6.3 |
33 |
19 |
22 |
PN345 |
|
2TB-06-04SP |
R3/8"X19 |
G1/4"X19 |
15 |
5.5 |
32 |
19 |
19 |
PN345 |
|
2TB-06-08SP |
R3/8"X19 |
G1/2"X14 |
15 |
7.5 |
35 |
19 |
27 |
PN345 |
|
2TB-08SP |
R1/2"X14 |
G1/2"X14 |
20 |
7.5 |
42 |
22 |
27 |
PN345 |
|
2TB-08-06SP |
R1/2"X14 |
G3/8"X19 |
20 |
6.3 |
40 |
22 |
22 |
PN345 |
|
2TB-08-12SP |
R1/2"X14 |
G3/4"X14 |
20 |
10.9 |
45 |
27 |
32 |
PN345 |
|
2TB-12SP |
R3/4"X14 |
G3/4"X14 |
20 |
10.9 |
45 |
30 |
32 |
PN275 |
|
2TB-12-08SP |
R3/4"X14 |
G1/2"X14 |
20 |
7.5 |
44 |
30 |
27 |
PN275 |
|
2TB-12-16SP |
R3/4"X14 |
G1"X11 |
20 |
11.7 |
47 |
32 |
41 |
PN275 |
|
2TB-16SP |
R1"X11 |
G1"X11 |
25.5 |
11.7 |
52.5 |
36 |
41 |
PN205 |
|
2TB-16-12SP |
R1"X11 |
G3/4"X14 |
25.5 |
10.9 |
51.5 |
36 |
32 |
PN205 |
|
2TB-20-16SP |
R1.1/4"X11 |
G1"X11 |
26.5 |
11.7 |
55.5 |
46 |
41 |
PN170 |
|
2TB-20SP |
R1.1/4"X11 |
G1.1/4"X11 |
26.5 |
11 |
59 |
46 |
50 |
PN170 |
|
2TB-24SP |
R1.1/2"X11 |
G1.1/2"X11 |
26.5 |
13 |
61.5 |
50 |
55 |
PN105 |
|
2TB-32SP |
R2"X11 |
G2"X11 |
30 |
16 |
68 |
65 |
70 |
PN105 |
| Form | Straight |
|---|---|
| Fitting Typ | Cone |
| Gewindetyp | Male-Female |
| Connection Type | BSP, BSPT |
