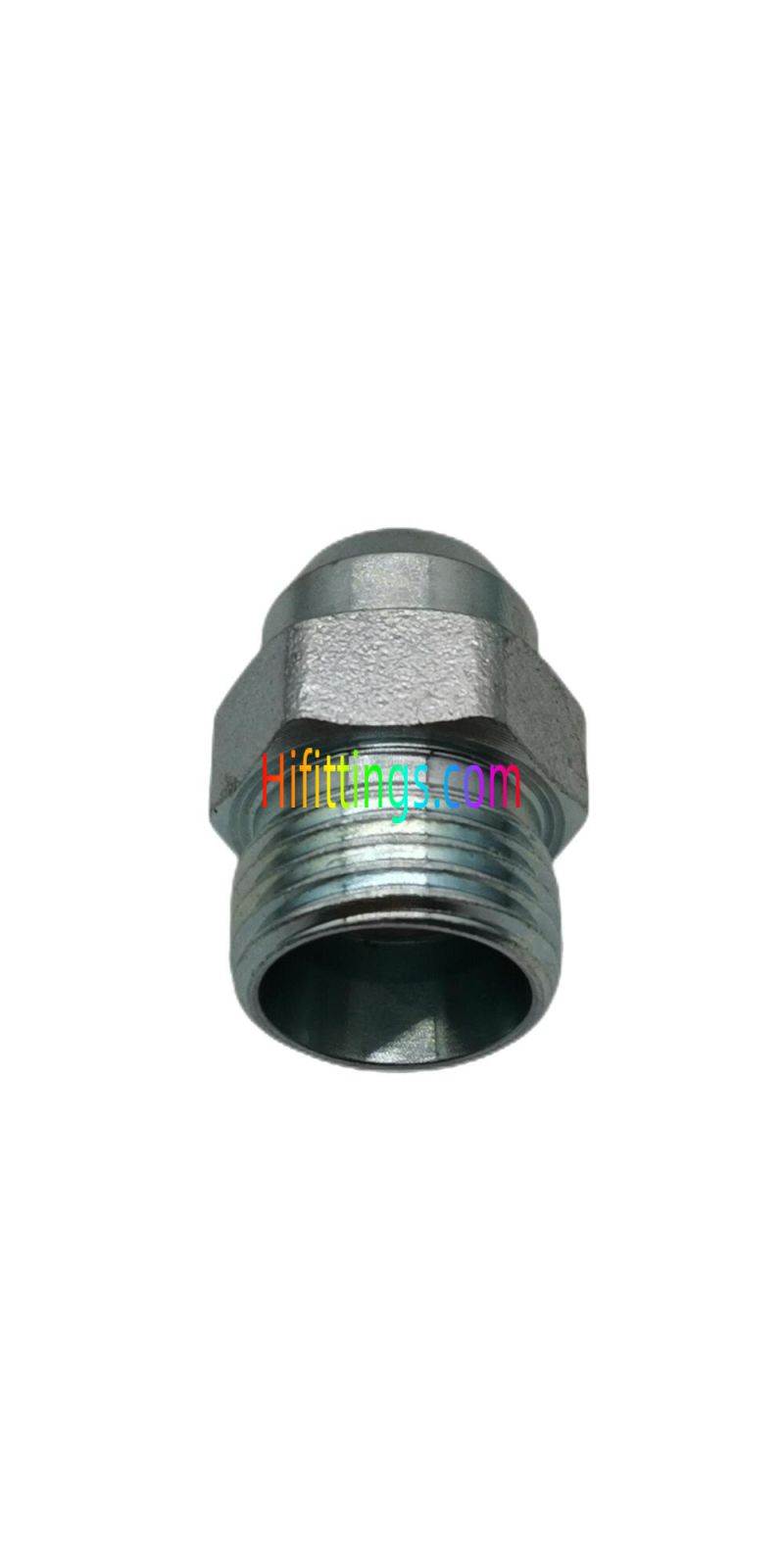

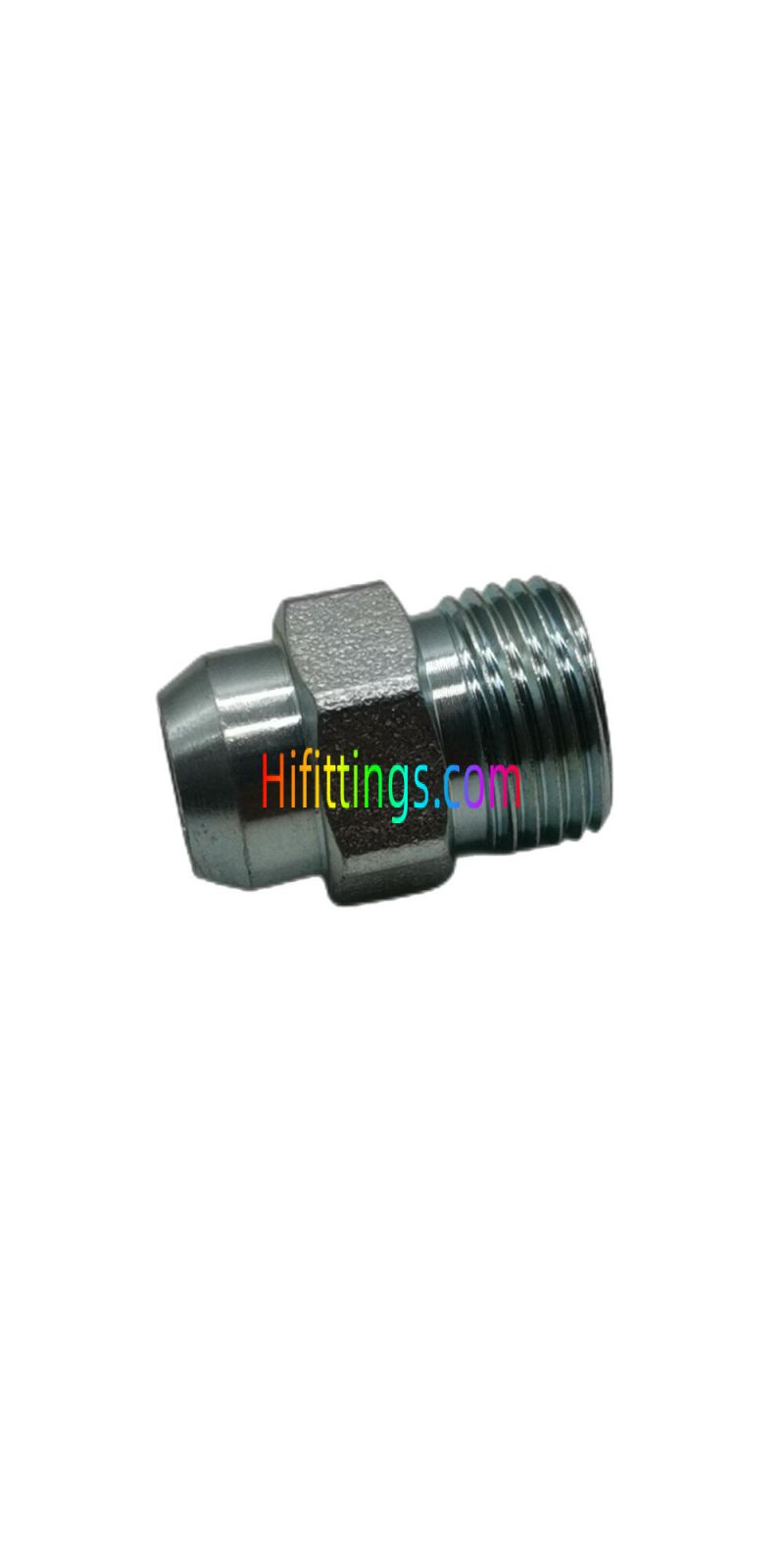

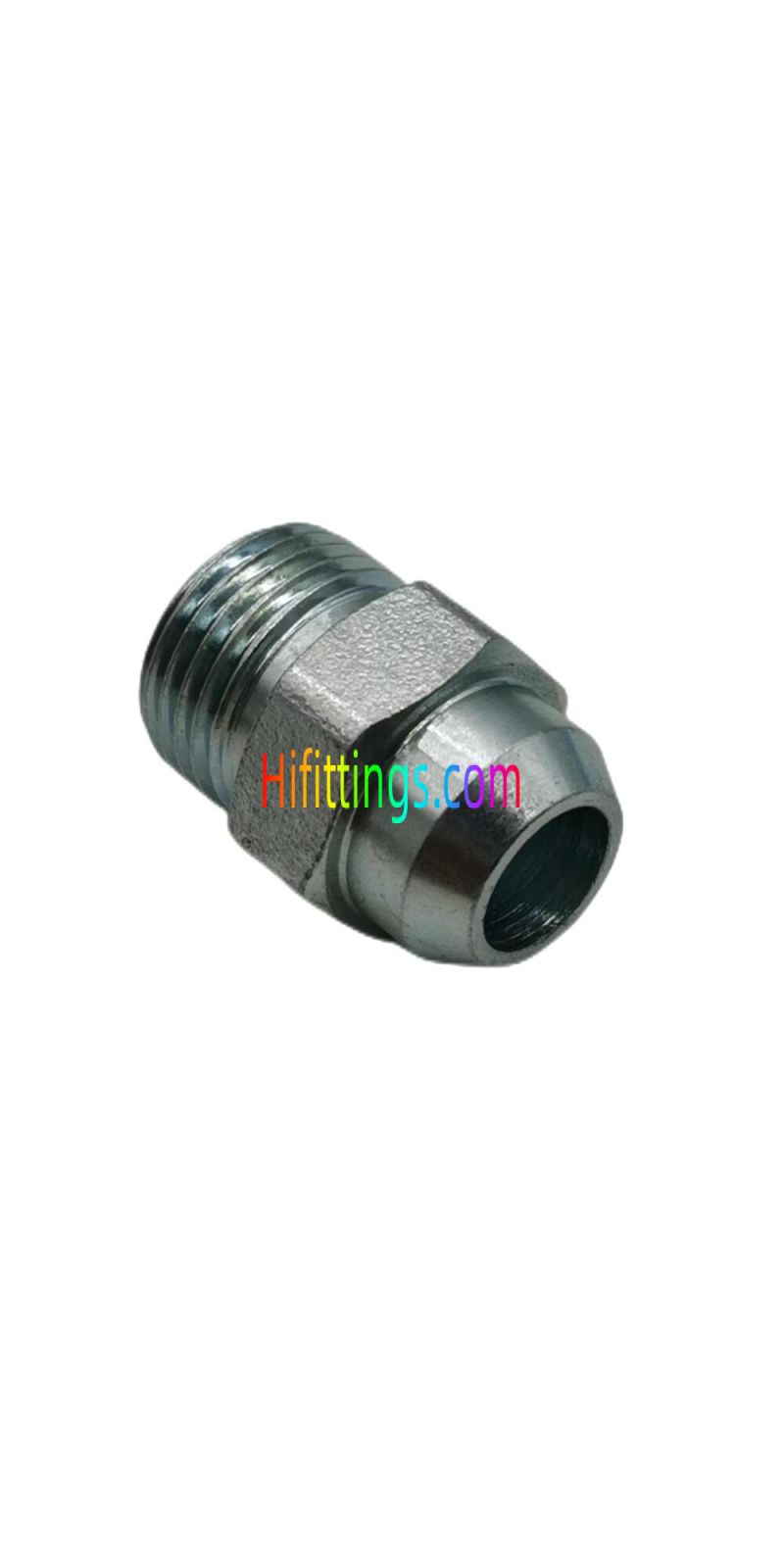

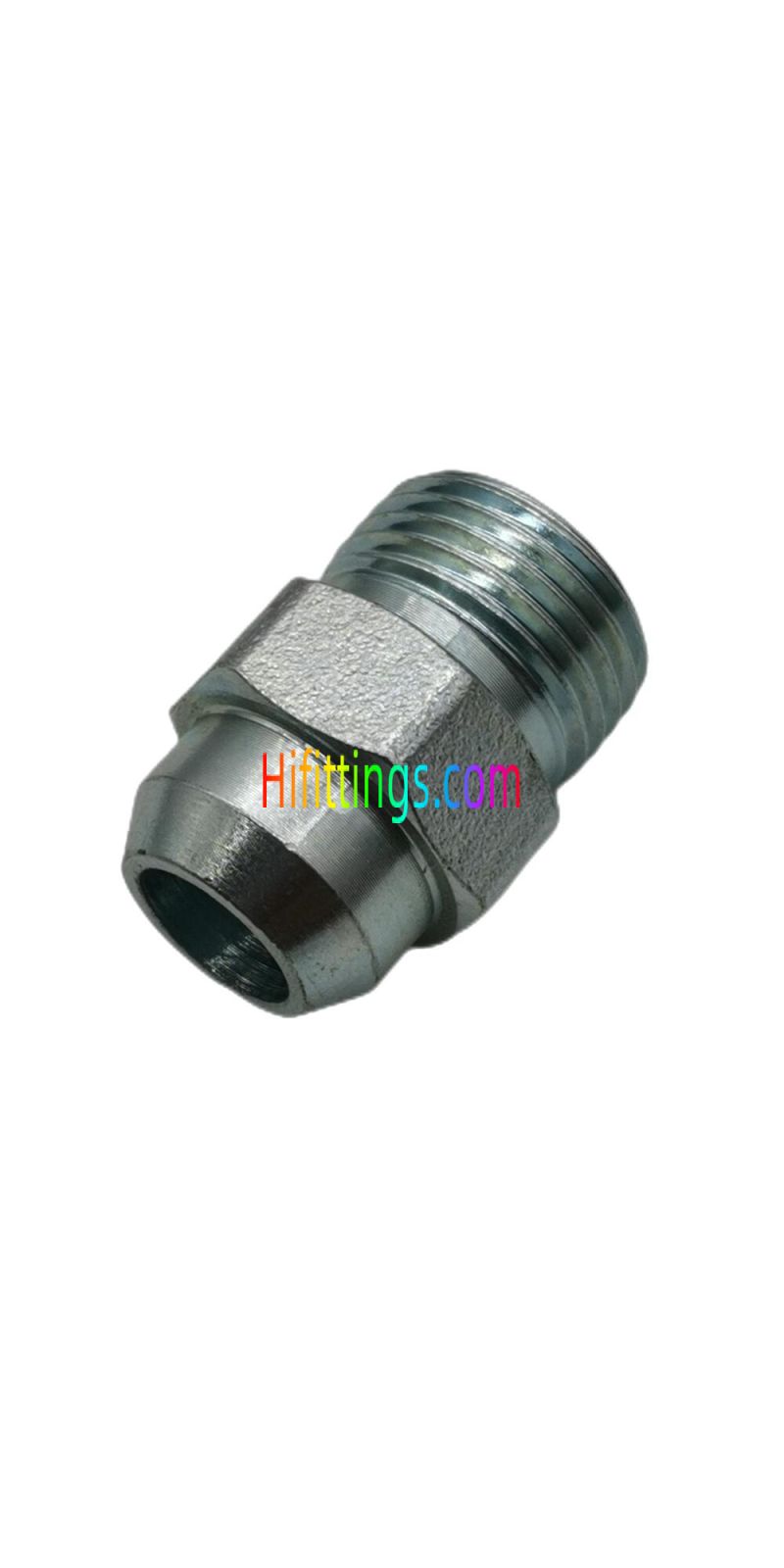

Gerade metrische Bissverschraubungen mit Außengewinde zum Schweißen 1CW/1DW
44
Auf Lager
Nur noch %1 verfügbar
SKU
1CW
Guarantee safe & secure checkout
Straight Metric Male Bite Type Weld Tube Fittings 1CW/1DW
|
Part NO. |
E |
D1 |
D2 |
B |
D |
11 |
L1 |
S1 |
S2 |
Working Pressure bar |
|
1 CW-12-06 |
M12x1.5 |
6 |
6 |
7 |
10 |
7 |
22 |
12 |
14 |
PN315 |
|
1 CW-14-08 |
M 14x1.5 |
8 |
8 |
8 |
12 |
8 |
23 |
14 |
17 |
PN315 |
|
1 CW-16-10 |
M16x1.5 |
10 |
10 |
8 |
14 |
9 |
24 |
17 |
19 |
PN315 |
|
1 CW-18-12 |
M18x1.5 |
12 |
12 |
8 |
16 |
10 |
25 |
19 |
22 |
PN315 |
|
1 CW-22-15 |
M22x1.5 |
15 |
15 |
10 |
19 |
11 |
26 |
22 |
27 |
PN315 |
|
1 CW-26-18 |
M26X1.5 |
18 |
18 |
10 |
22 |
11.5 |
28 |
27 |
32 |
PN315 |
|
1 CW-26-22 |
M26X1.5 |
18 |
22 |
10 |
27 |
13.5 |
28 |
27 |
32 |
PN160 |
|
1 CW-30-22 |
M30x2 |
22 |
22 |
12 |
27 |
13.5 |
30 |
32 |
36 |
PN160 |
|
1 CW-30-25 |
M30x2 |
22 |
25 |
12 |
31 |
13.5 |
30 |
32 |
36 |
PN160 |
|
1 CW-36-28 |
M36x2 |
28 |
28 |
12 |
32 |
16.5 |
33 |
38 |
41 |
PN160 |
|
1 CW-45-35 |
M45X2 |
35 |
35 |
14 |
40 |
14.5 |
36 |
46 |
50 |
PN160 |
|
1 CW-52-42 |
M52X2 |
42 |
42 |
16 |
46 |
16 |
39 |
55 |
60 |
PN160 |
|
1DW-14-06 |
M 14x1.5 |
6 |
6 |
7 |
11 |
11 |
26 |
14 |
17 |
PN630 |
|
1DW-16-08 |
M 16x1.5 |
8 |
8 |
8 |
13 |
13 |
28 |
17 |
19 |
PN630 |
|
1DW-18-10 |
M 18x1.5 |
10 |
10 |
8 |
15 |
12.5 |
29 |
19 |
22 |
PN630 |
|
1DW-20-12 |
M20X1.5 |
12 |
12 |
10 |
17 |
14.5 |
31 |
22 |
24 |
PN630 |
|
1DW-22-14 |
M22x1.5 |
14 |
14 |
10 |
19 |
16 |
34 |
24 |
27 |
PN630 |
|
1DW-24-16 |
M24x1.5 |
16 |
16 |
10 |
21 |
15.5 |
34 |
27 |
30 |
PN400 |
|
1DW-30-20 |
M30x2 |
20 |
20 |
12 |
26 |
17.5 |
39 |
32 |
36 |
PN400 |
|
1DW-36-25 |
M36x2 |
25 |
25 |
12 |
31 |
20 |
44 |
41 |
46 |
PN400 |
|
1DW-42-30 |
M42x2 |
30 |
30 |
14 |
36 |
20.5 |
47 |
46 |
50 |
PN400 |
|
1DW-52-38 |
M52X2 |
38 |
38 |
16 |
44 |
23 |
54 |
55 |
60 |
PN315 |
|

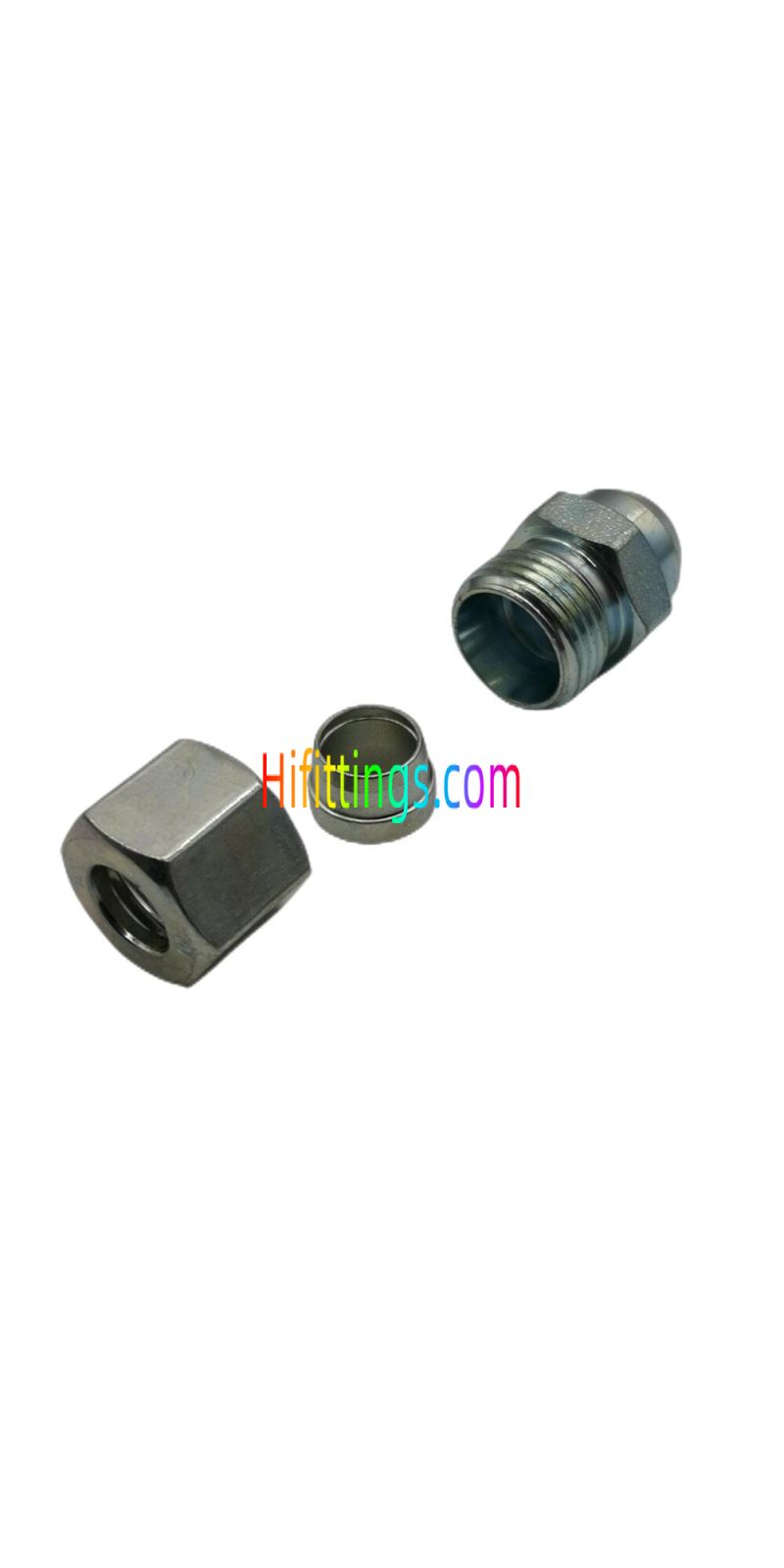

Note: 1.In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO., for example 1DW-20-12RN. 2. PN = Nominal Pressure |
||||||||||
| Form | Straight |
|---|---|
| Gewindetyp | Male |
| Connection Type | Metric, Weld |
| Fitting Typ | Bite Type, Weld |
