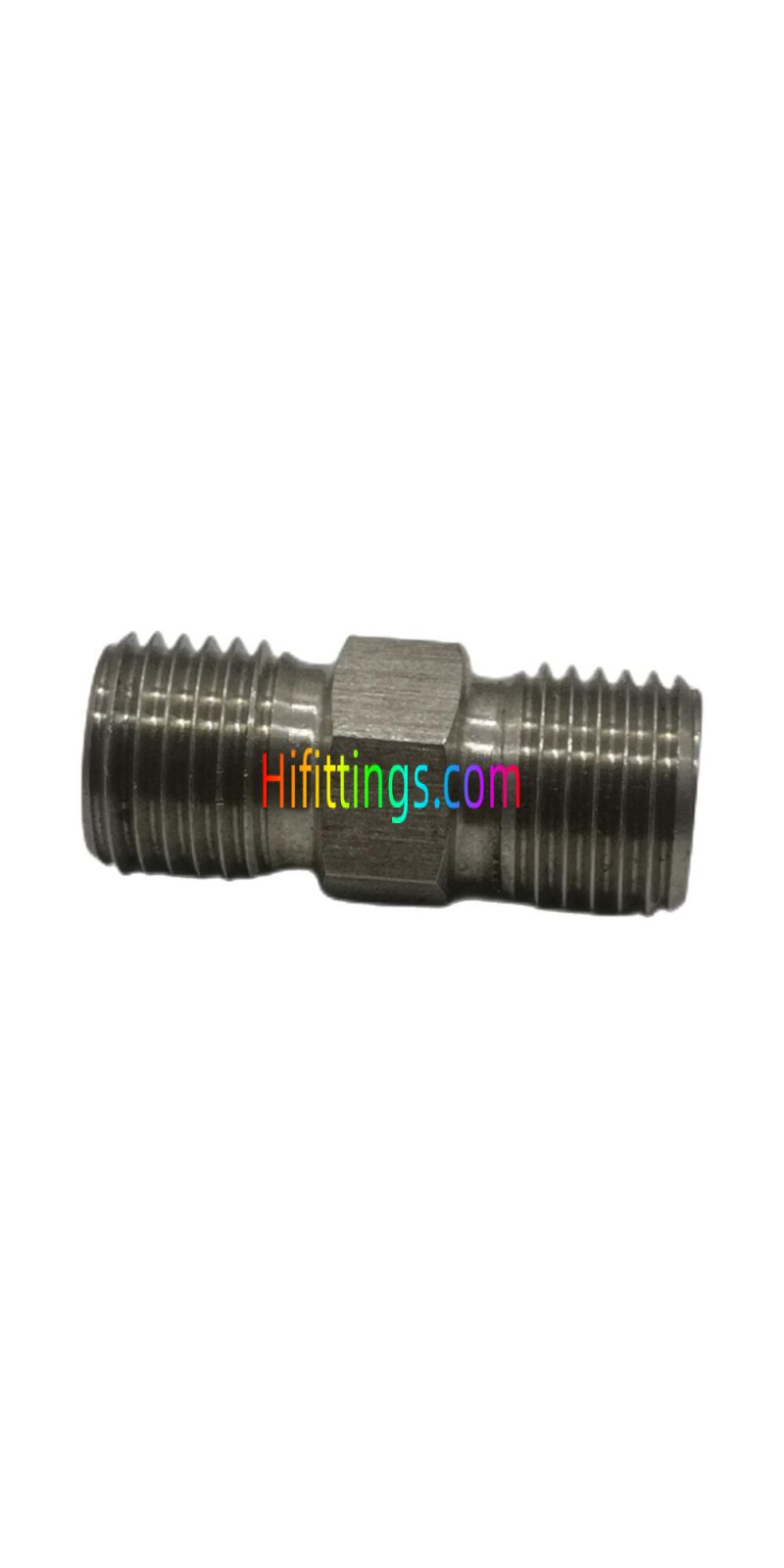

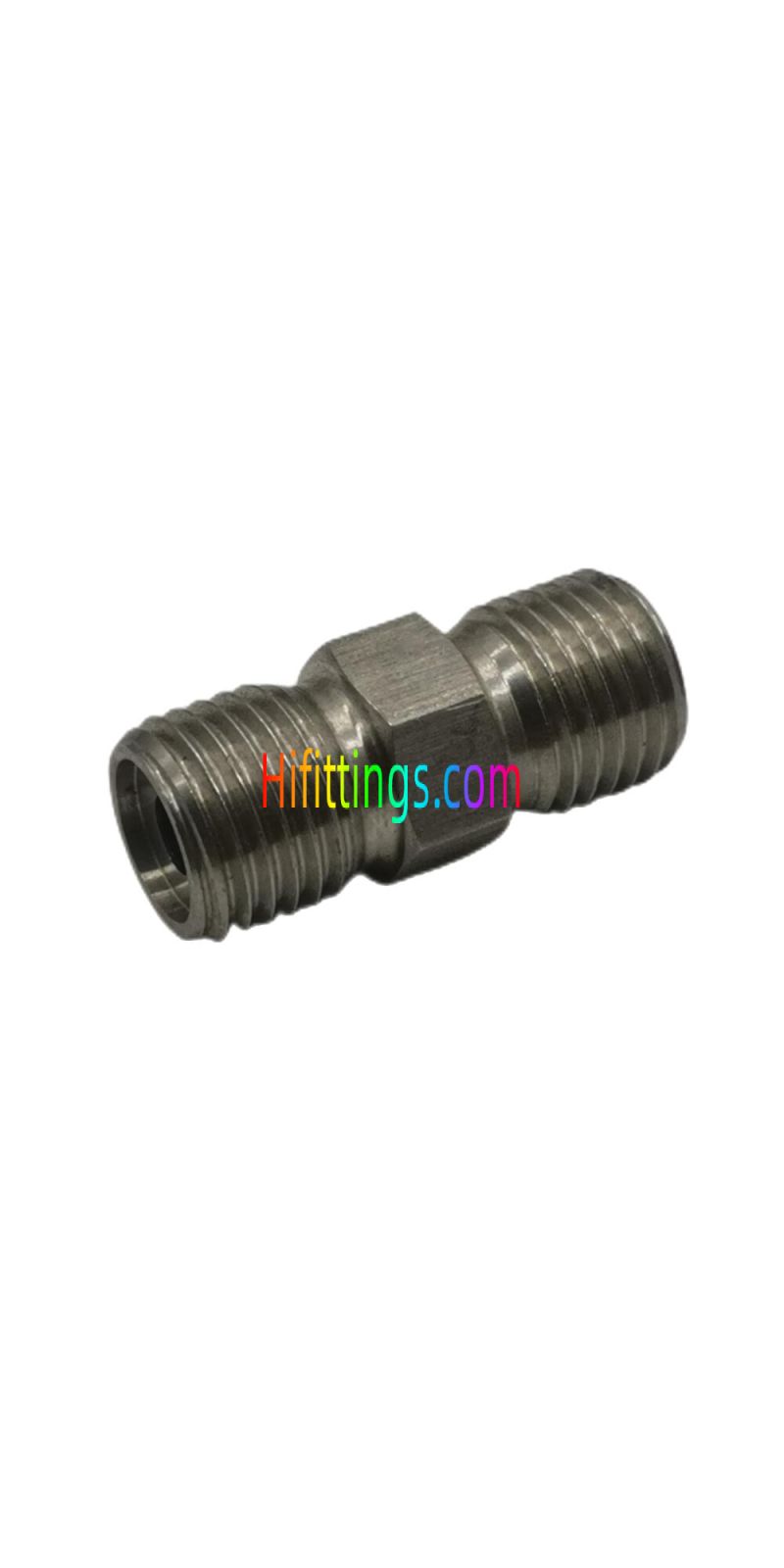

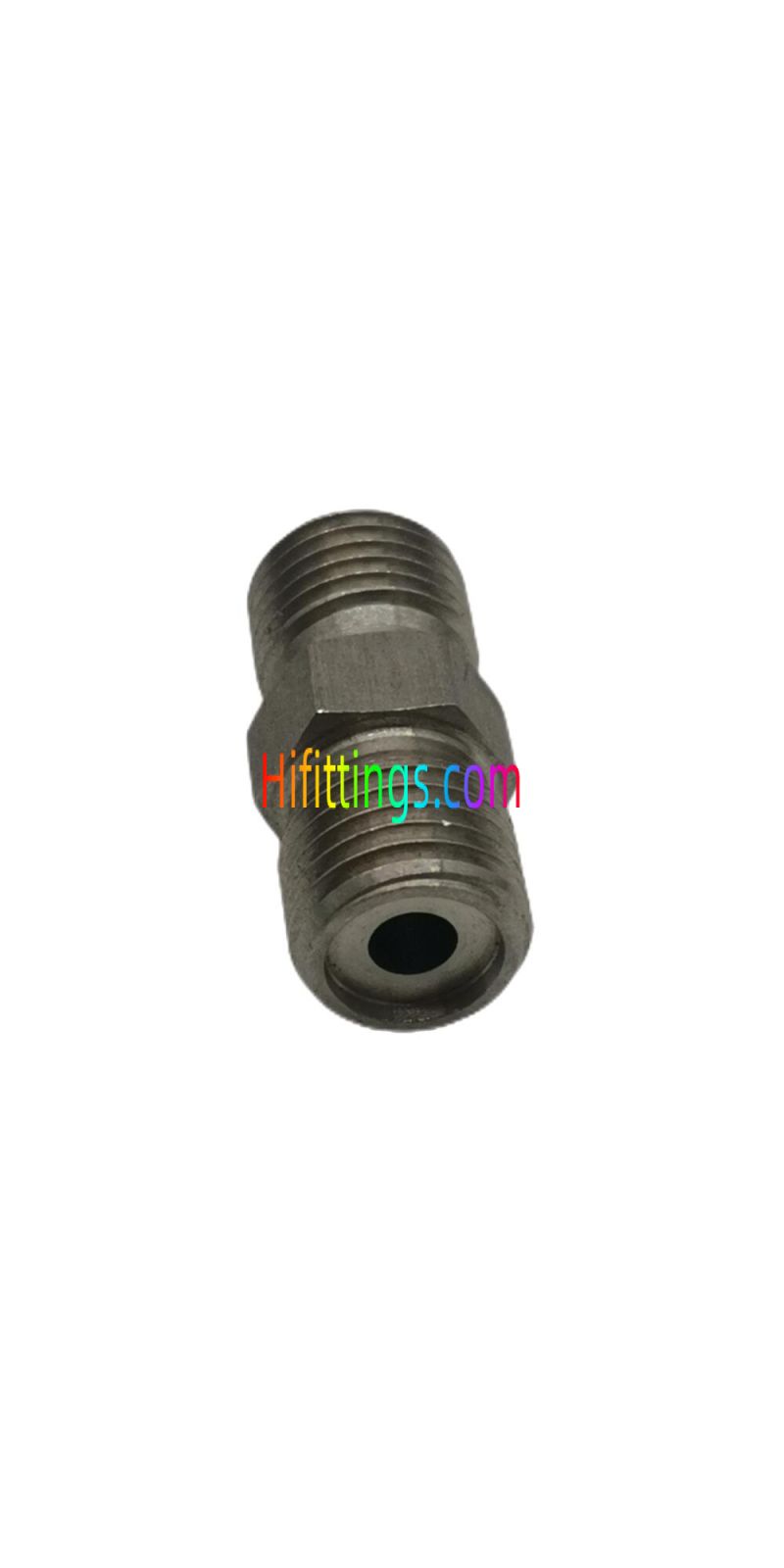

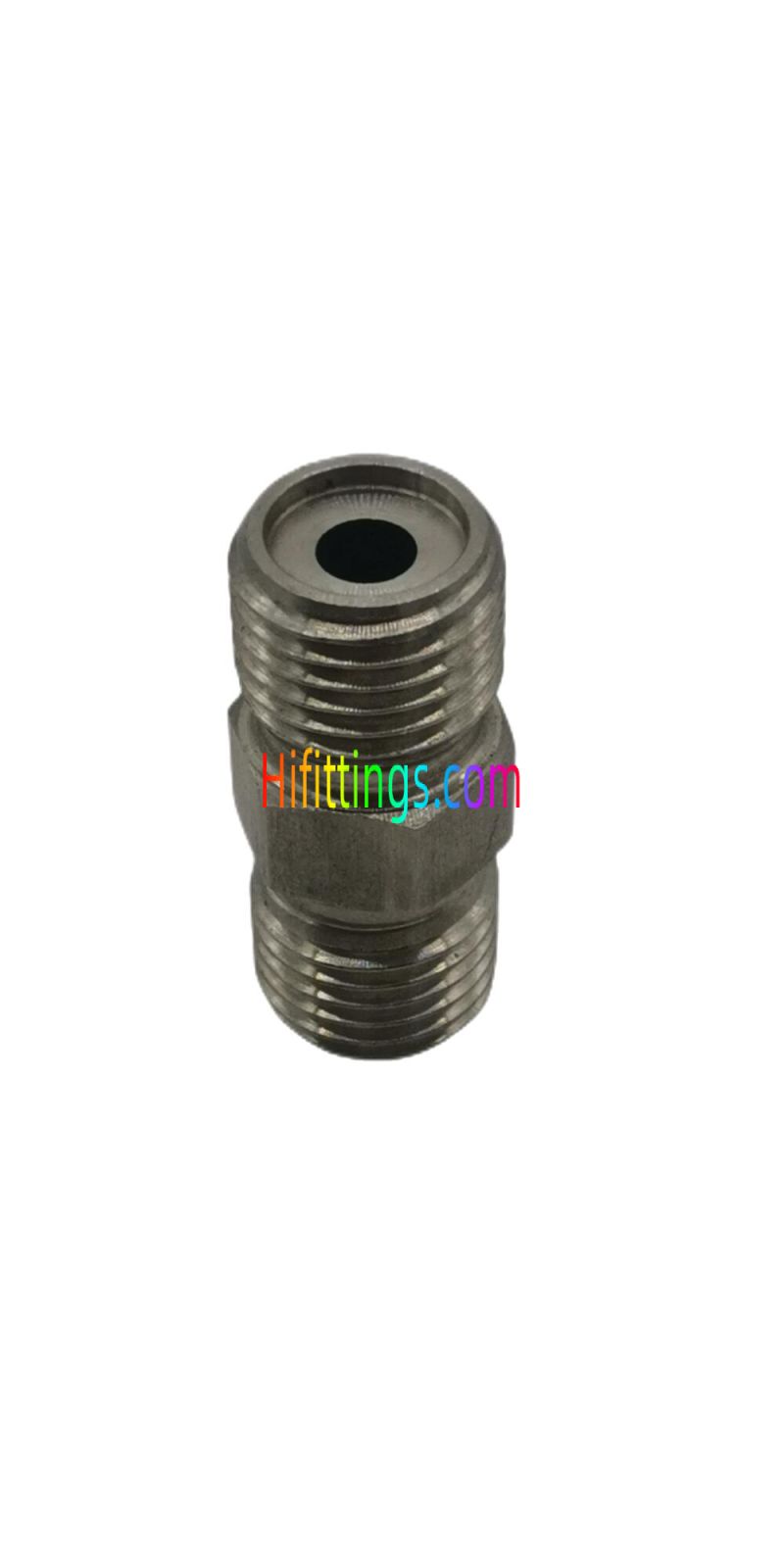

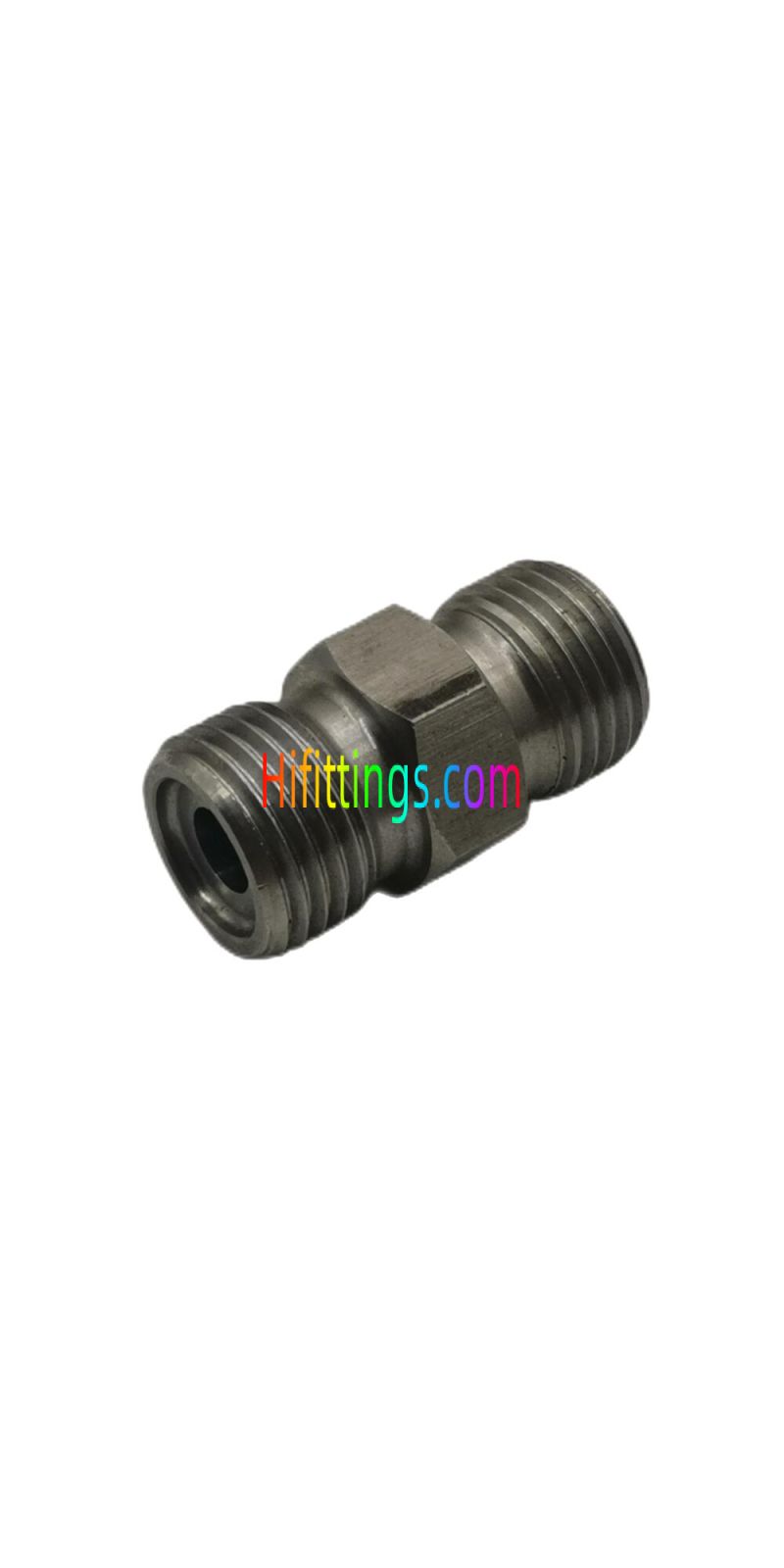

Gerade metrische O-Ring-Verschraubungen mit Außengewinde 1E
32
Auf Lager
Nur noch %1 verfügbar
SKU
1E
Guarantee safe & secure checkout
Straight Metric Male O-Ring Face Seal Fittings 1E
|
Part NO. |
E | F |
O-Ring - E End |
O-Ring - F End |
A | B | L | S1 |
Working Pressure Bar |
|
IE-12 |
M12X1.25 |
M12X1.25 |
8X1.9 |
8X1.9 |
11 |
11 |
28 |
14 |
PN630 |
|
IE-14 |
M14X1.5 |
M14X1.5 |
10X1.9 |
10X1.9 |
11 |
11 |
28 |
17 |
PN630 |
|
IE-16 |
M16X1.5 |
M16X1.5 |
11X1.9 |
11X1.9 |
11 |
11 |
28 |
17 |
PN630 |
|
IE-18 |
M18X1.5 |
M18X1.5 |
13X1.9 |
13X1.9 |
11 |
11 |
28 |
19 |
PN630 |
|
IE-22 |
M22X1.5 |
M22X1.5 |
16X2.4 |
16X2.4 |
12 |
12 |
32 |
24 |
PN630 |
|
IE-27 |
M27X1.5 |
M27X1.5 |
20X2.4 |
20X2.4 |
13 |
13 |
36 |
30 |
PN400 |
|
IE-30 |
M30X1.5 |
M30X1.5 |
24X2.4 |
24X2.4 |
14 |
14 |
39 |
32 |
PN400 |
|
IE-36 |
M36X2 |
M36X2 |
30X3.1 |
30X3.1 |
16 |
16 |
45.5 |
41 |
PN400 |
|
IE-39 |
M39X2 |
M39X2 |
32X3.1 |
32X3.1 |
18 |
18 |
49 |
41 |
PN250 |
|
IE-42 |
M42X2 |
M42X2 |
35X3.1 |
35X3.1 |
20 |
20 |
53 |
46 |
PN250 |
|
IE-45 |
M45X2 |
M45X2 |
38X3.1 |
38X3.1 |
20 |
20 |
53 |
46 |
PN250 |
|
IE-52 |
M52X2 |
M52X2 |
40X3.1 |
40X3.1 |
22 |
22 |
59 |
55 |
PN250 |
|
IE-60 |
M60X2 |
M60X2 |
45X3.1 |
45X3.1 |
24 |
24 |
65 |
65 |
PN250 |
|
IE-64 |
M64X2 |
M64X2 |
50X3.1 |
50X3.1 |
27 |
27 |
71 |
70 |
PN250 |
|
Note: 1. The parameter of O-ring is ring outside diameter and ring width. 2. PN = Nominal Pressure |
|||||||||
| Form | Straight |
|---|---|
| Gewindetyp | Male |
| Connection Type | Metric |
| Fitting Typ | Face Seal |
