Rohrverschraubungen mit geradem metrischem Außengewinde mit Biss 1CH/1DH
46
Auf Lager
Nur noch %1 verfügbar
SKU
1CH
Guarantee safe & secure checkout

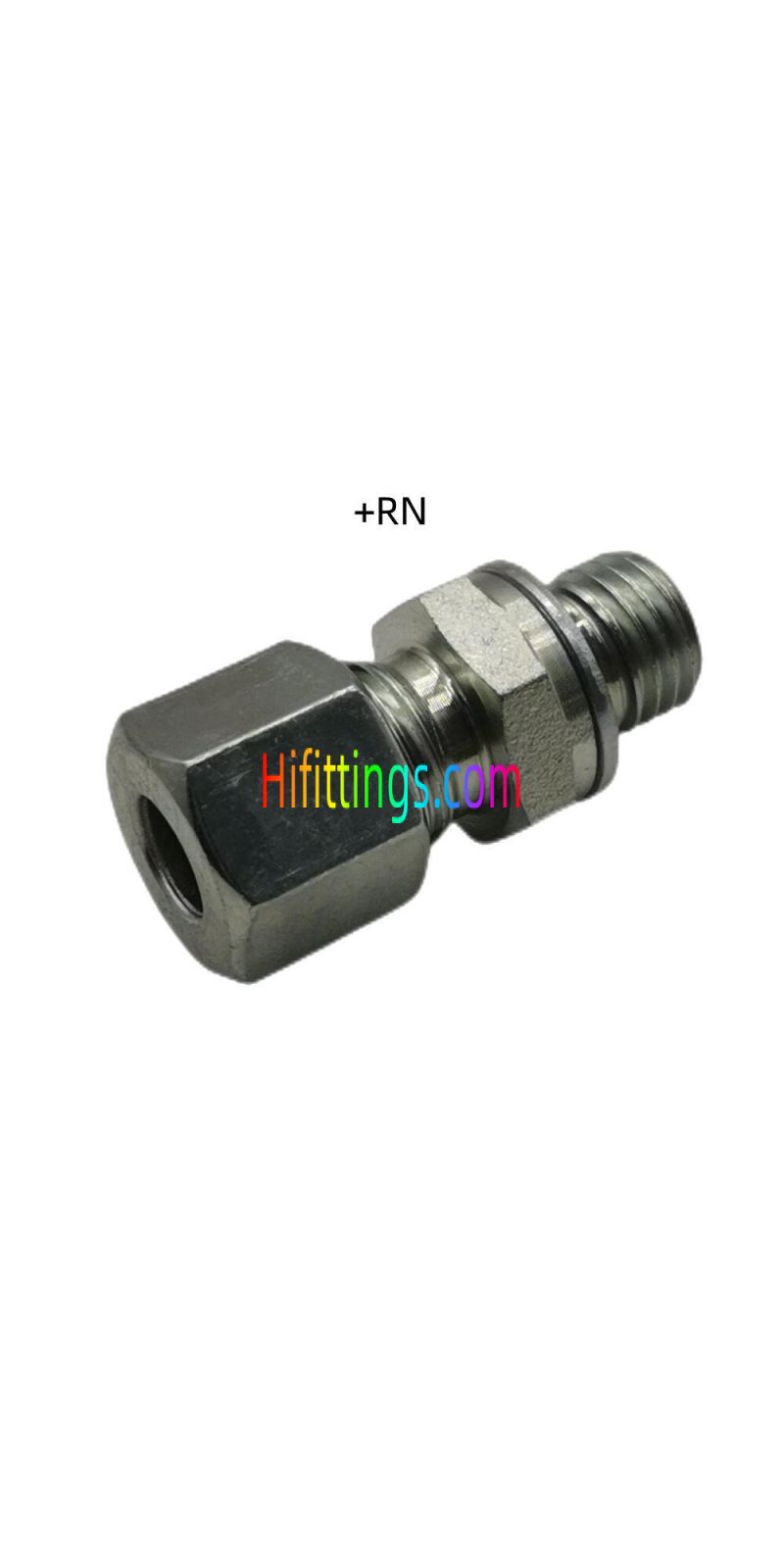

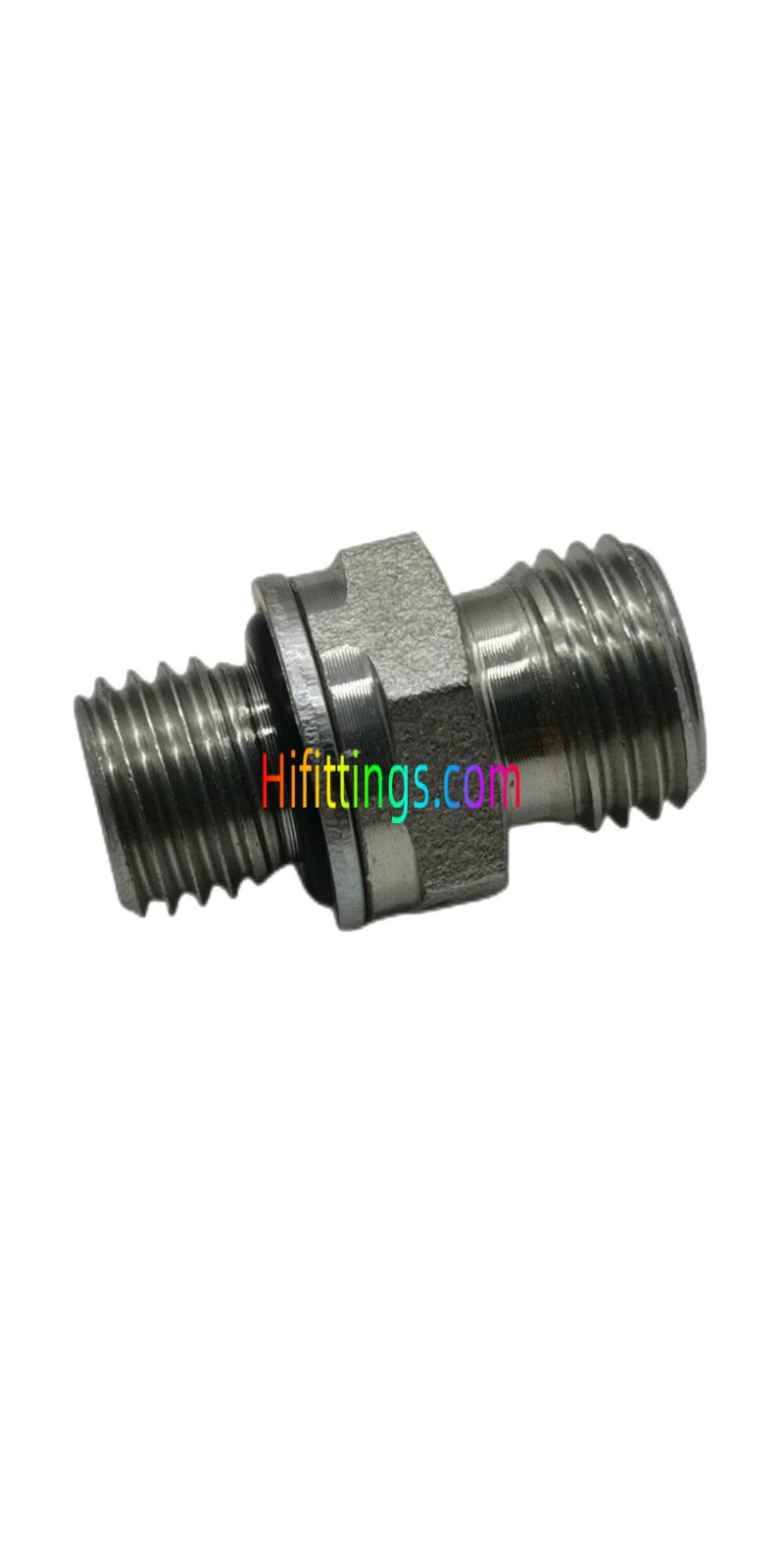

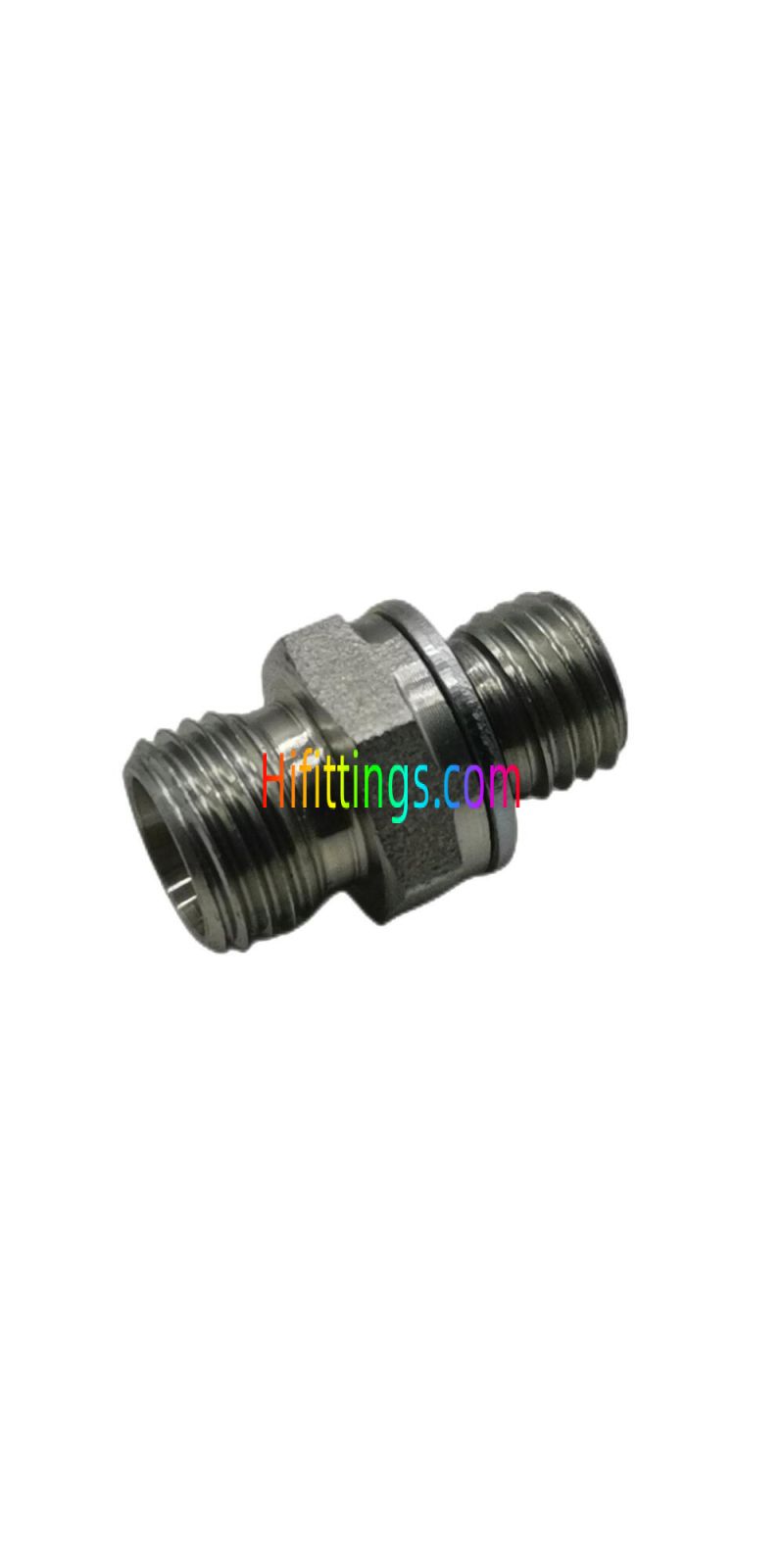

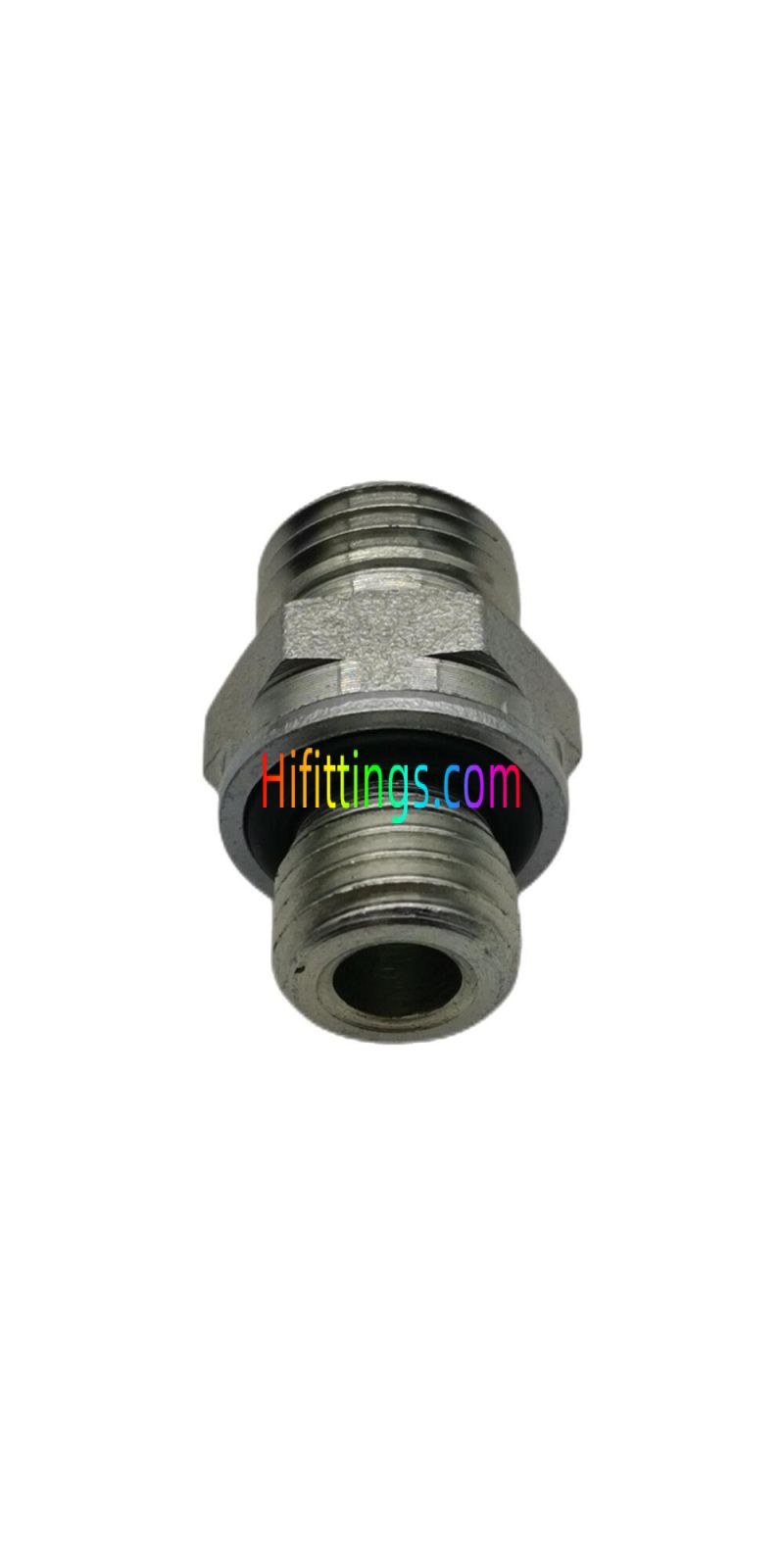

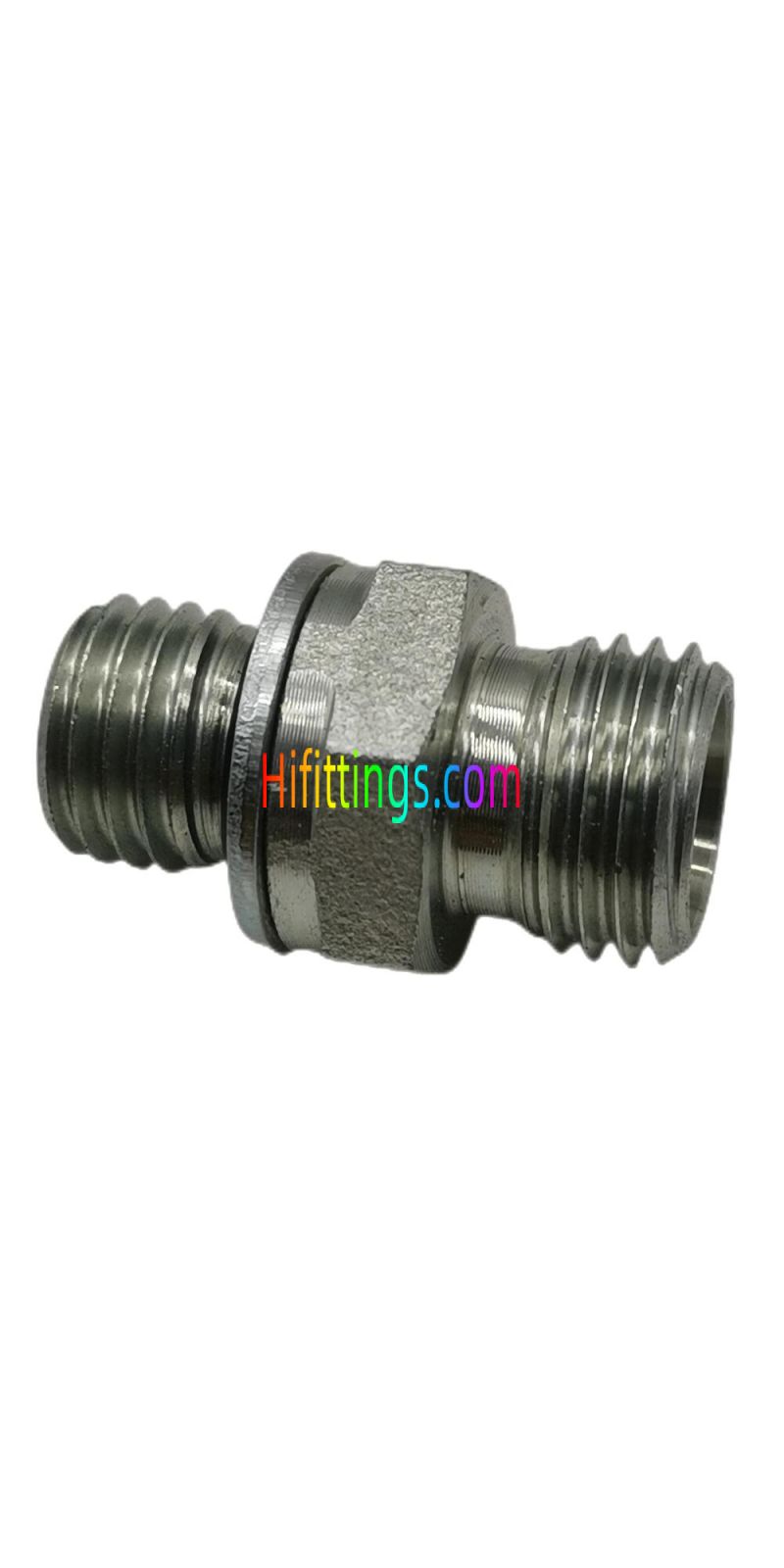

Straight Metric Male Stud End Bite Type Tube Fittings 1CH/1DH
|
Part NO. |
E |
F |
D1 |
O-Ring |
B |
11 |
L1 |
S1 |
S2 |
Working Pressure bar |
|
1CH-12-10 |
M12X1.5 |
M10X1 |
6 |
8.1X1.6 |
8.5 |
9.5 |
23 |
14 |
14 |
PN315 |
|
1CH-14 |
M14X1.5 |
M14X1.5 |
8 |
11.3X2.4 |
11 |
10 |
25 |
19 |
17 |
PN315 |
|
1CH-14-12 |
M14X1.5 |
M12X1.5 |
8 |
9.3X2.4 |
11 |
10 |
25 |
17 |
17 |
PN315 |
|
1CH-16-14 |
M16X1.5 |
M14X1.5 |
10 |
11.3X2.4 |
11 |
13 |
26 |
19 |
19 |
PN315 |
|
1CH-18-14 |
M18X1.5 |
M14X1.5 |
12 |
11.3X2.4 |
11 |
11 |
25.5 |
19 |
22 |
PN315 |
|
1CH-14-18 |
M14X1.5 |
M18X1.5 |
8 |
15.3X2.4 |
12.5 |
11.5 |
26.5 |
24 |
17 |
PN315 |
|
1CH-16 |
M16X1.5 |
M16X1.5 |
10 |
13.3X2.4 |
11.5 |
13 |
28 |
22 |
19 |
PN315 |
|
1CH-16-18 |
M16X1.5 |
M18X1.5 |
10 |
15.3X2.4 |
12.5 |
12.5 |
28 |
24 |
19 |
PN315 |
|
1CH-18-16 |
M18X1.5 |
M16X1.5 |
12 |
13.3X2.4 |
11.5 |
12 |
27 |
22 |
22 |
PN315 |
|
1CH-22-16 |
M22X1.5 |
M16X1.5 |
12 |
13.3X2.4 |
11.5 |
13.5 |
29.5 |
24 |
27 |
PN315 |
|
1CH-22-18 |
M22X1.5 |
M18X1.5 |
15 |
15.3X2.4 |
12.5 |
13.5 |
29 |
24 |
27 |
PN315 |
|
1CH-16-22 |
M16X1.5 |
M22X1.5 |
10 |
19.3X2.4 |
13 |
14 |
29.5 |
27 |
19 |
PN315 |
|
1CH-22-20 |
M22X1.5 |
M20X1.5 |
15 |
17.3X2.4 |
12 |
15 |
30.5 |
27 |
27 |
PN315 |
|
1CH-22 |
M22X1.5 |
M22X1.5 |
12 |
19.3X2.4 |
13 |
15 |
31 |
27 |
27 |
PN315 |
|
1CH-26-22 |
M26X1.5 |
M22X1.5 |
18 |
19.3X2.4 |
13 |
14.5 |
31 |
27 |
32 |
PN315 |
|
1CH-26 |
M26X1.5 |
M26X1.5 |
18 |
23.5X3.0 |
13.5 |
13.5 |
31 |
32 |
32 |
PN315 |
|
1CH-26-27 |
M26X1.5 |
M27X2 |
18 |
23.5X3.0 |
16 |
14.5 |
32 |
32 |
32 |
PN315 |
|
1CH-26-33 |
M26X1.5 |
M33X2 |
18 |
29.5X3.0 |
16 |
15.5 |
33 |
41 |
32 |
PN315 |
|
1CH-30-22 |
M30X2 |
M22X1.5 |
22 |
19.3X2.4 |
13 |
17.5 |
33 |
32 |
41 |
PN160 |
|
1CH-30-27 |
M30X2 |
M27X2 |
22 |
23.5X3.0 |
16 |
16.5 |
33 |
32 |
36 |
PN160 |
|
1CH-30 |
M30X2 |
M30X2 |
22 |
26.5X3.0 |
16 |
17.5 |
33 |
36 |
36 |
PN160 |
|
1CH-36-27 |
M36X2 |
M27X2 |
28 |
23.5X3.0 |
16 |
17.5 |
34 |
41 |
41 |
PN160 |
|
1CH-36-33 |
M36X2 |
M33X2 |
28 |
29.5X3.0 |
16 |
17.5 |
34 |
41 |
41 |
PN160 |
|
1CH-36-42 |
M36X2 |
M42X2 |
28 |
38.5X3.0 |
16 |
18.5 |
35 |
50 |
41 |
PN160 |
|
1CH-45-33 |
M45X2 |
M33X2 |
35 |
29.5X3.0 |
16 |
17.5 |
37 |
46 |
50 |
PN160 |
|
1CH-45-42 |
M45X2 |
M42X2 |
35 |
38.5X3.0 |
16 |
17.5 |
37 |
50 |
50 |
PN160 |
|
1CH-52-48 |
M52X2 |
M48X2 |
42 |
44.5X3.0 |
17.5 |
19 |
42 |
55 |
60 |
PN160 |
|
1DH-14 |
M14X1.5 |
M14X1.5 |
6 |
11.3X2.4 |
11 |
15 |
28 |
19 |
17 |
PN630 |
|
1DH-14-12 |
M14X1.5 |
M12X1.5 |
6 |
9.3X2.4 |
11 |
13 |
28 |
17 |
17 |
PN630 |
|
1DH-16-14 |
M16X1.5 |
M14X1.5 |
8 |
11.3X2.4 |
11 |
15 |
30 |
19 |
19 |
PN630 |
|
1DH-18-16 |
M18X1.5 |
M16X1.5 |
10 |
13.3X2.4 |
11.5 |
15 |
31 |
22 |
22 |
PN630 |
|
1DH-20-14 |
M20X1.5 |
M14X1.5 |
12 |
11.3X2.4 |
11 |
15 |
31 |
22 |
24 |
PN630 |
|
1DH-20-16 |
M20X1.5 |
M16X1.5 |
12 |
13.3X2.4 |
11.5 |
15 |
31 |
22 |
24 |
PN630 |
|
1DH-20-18 |
M20X1.5 |
M18X1.5 |
12 |
15.3X2.4 |
12.5 |
17 |
33 |
24 |
24 |
PN630 |
|
1DH-20-22 |
M20X1.5 |
M22X1.5 |
12 |
19.3X2.4 |
13 |
17.5 |
35 |
27 |
30 |
PN630 |
|
1DH-24-22 |
M24X1.5 |
M22X1.5 |
16 |
19.3X2.4 |
13 |
18.5 |
37 |
27 |
30 |
PN400 |
|
1DH-30 |
M30X2 |
M30X2 |
20 |
26.5X3.0 |
16 |
20.5 |
42 |
36 |
36 |
PN400 |
|
1DH-30-27 |
M30X2 |
M27X2 |
20 |
23.5X3.0 |
16 |
20.5 |
42 |
32 |
36 |
PN400 |
|
1DH-30-33 |
M30X2 |
M33X2 |
20 |
29.5X3.0 |
16 |
22.5 |
42 |
41 |
36 |
PN400 |
|
1DH-36-27 |
M36X2 |
M27X2 |
25 |
23.5X3.0 |
16 |
23 |
47 |
41 |
46 |
PN400 |
|
1DH-36-33 |
M36X2 |
M33X2 |
25 |
29.5X3.0 |
16 |
23 |
47 |
41 |
46 |
PN400 |
|
1DH-42 |
M42X2 |
M42X2 |
30 |
38.5X3.0 |
16 |
23.5 |
50 |
50 |
50 |
PN400 |
|
1DH-42-48 |
M42X2 |
M48X2 |
30 |
44.5X3.0 |
17.5 |
26.5 |
52 |
55 |
50 |
PN400 |
|
Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example 1DH-20-18RN. 2. PN = Nominal Pressure |
||||||||||
| Form | Straight |
|---|---|
| Gewindetyp | Male |
| Connection Type | Metric |
| Fitting Typ | Bite Type |
Schreiben Sie eine Bewertung
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price. We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
