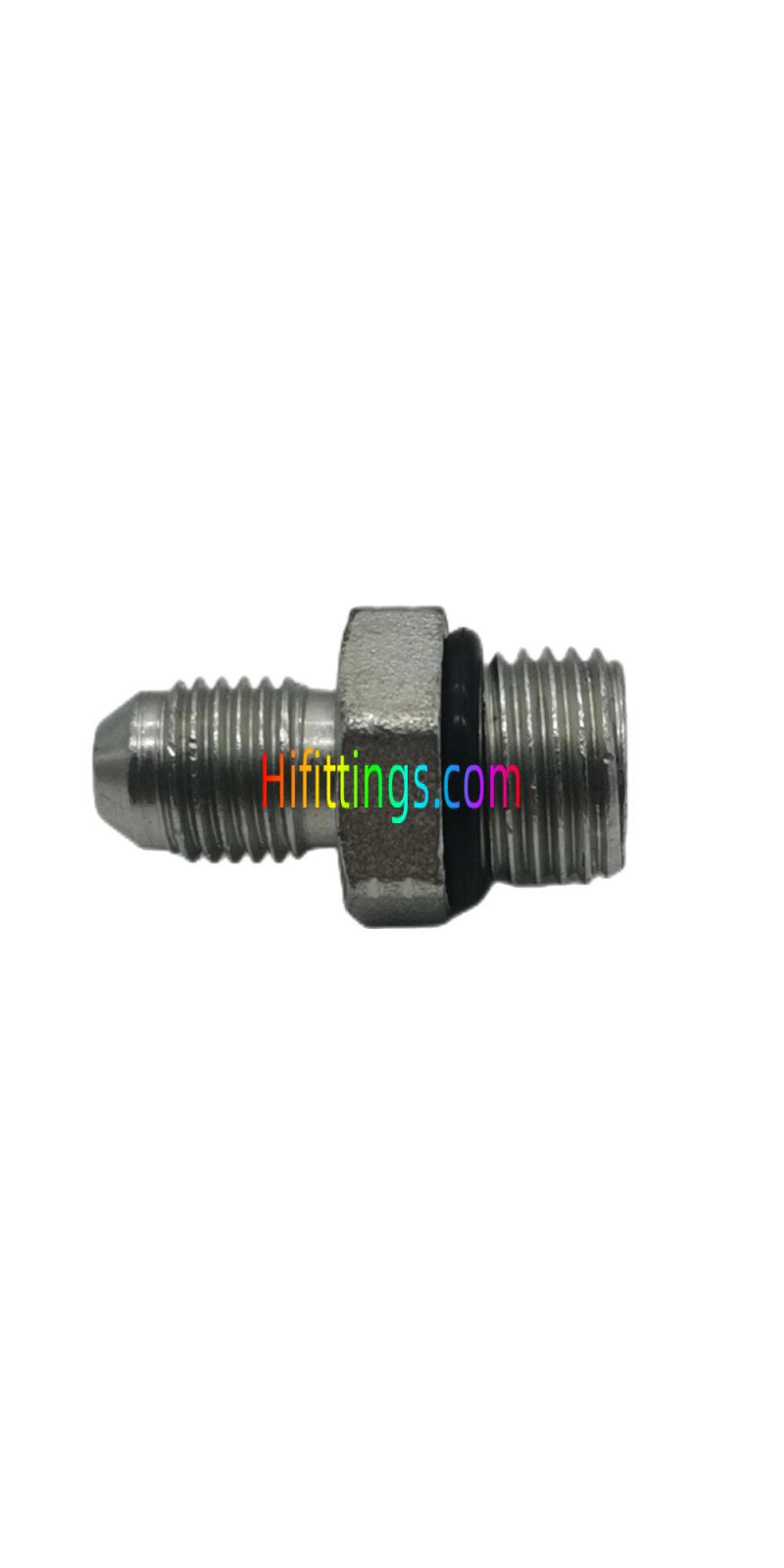

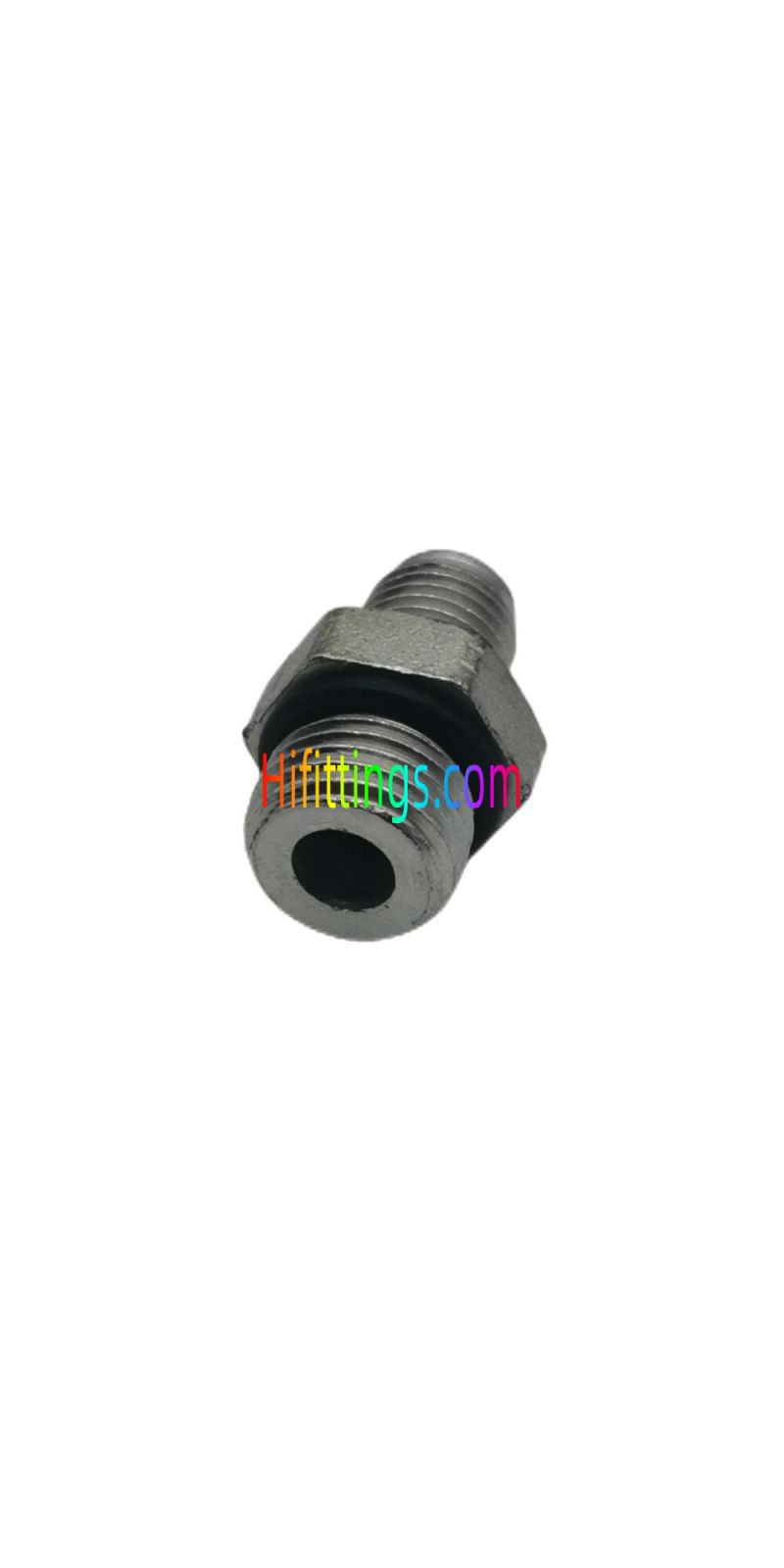

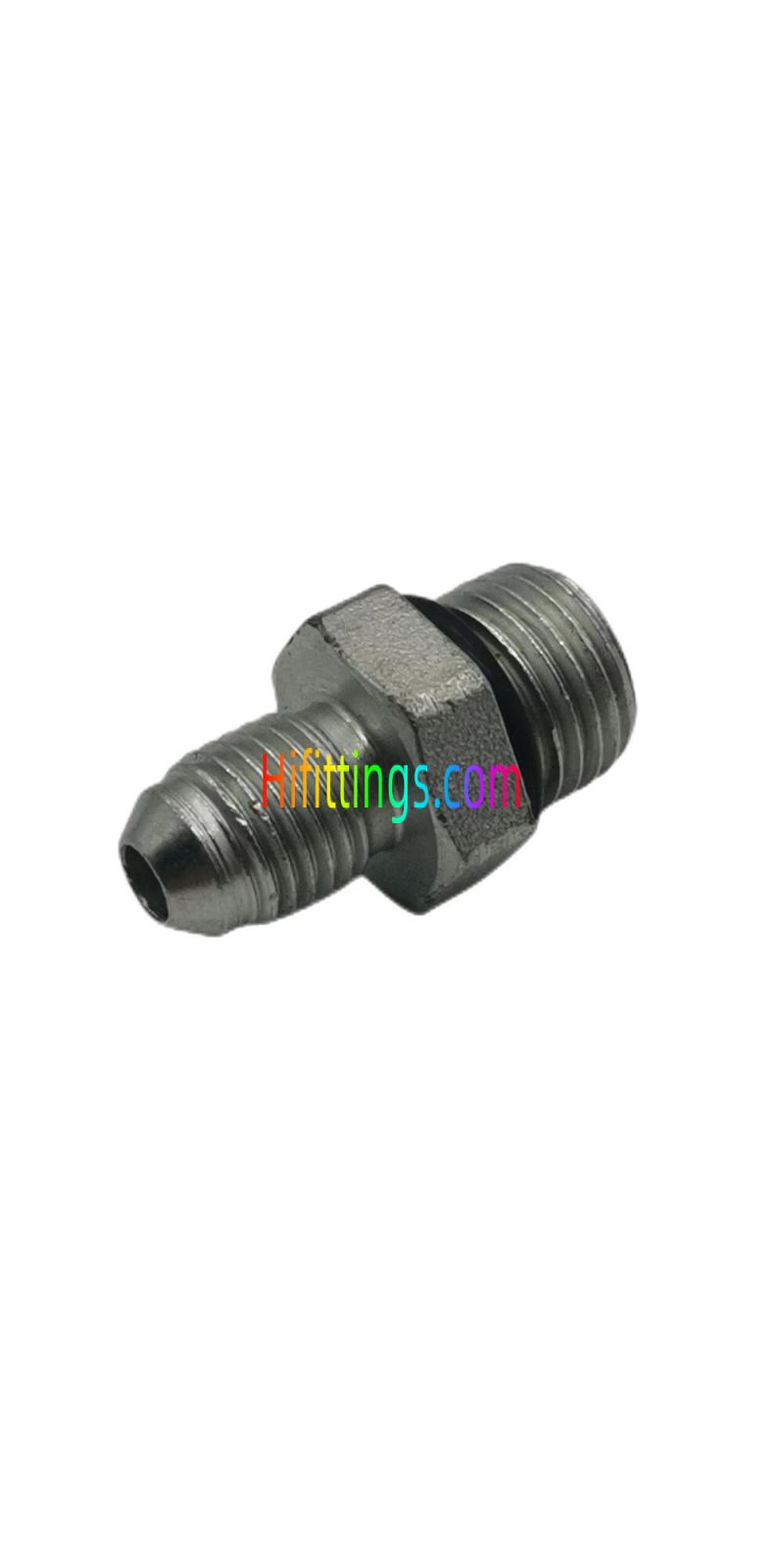

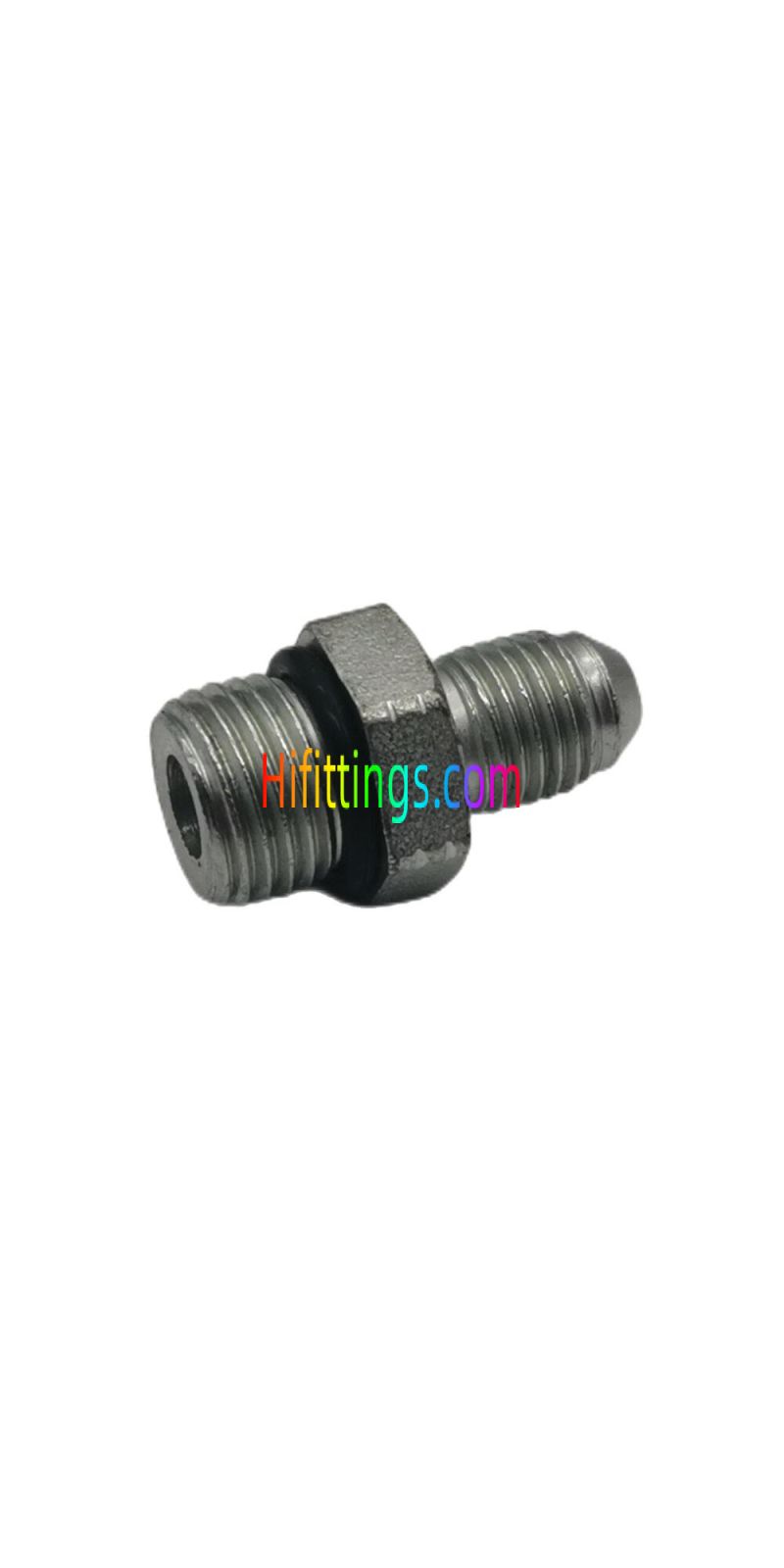

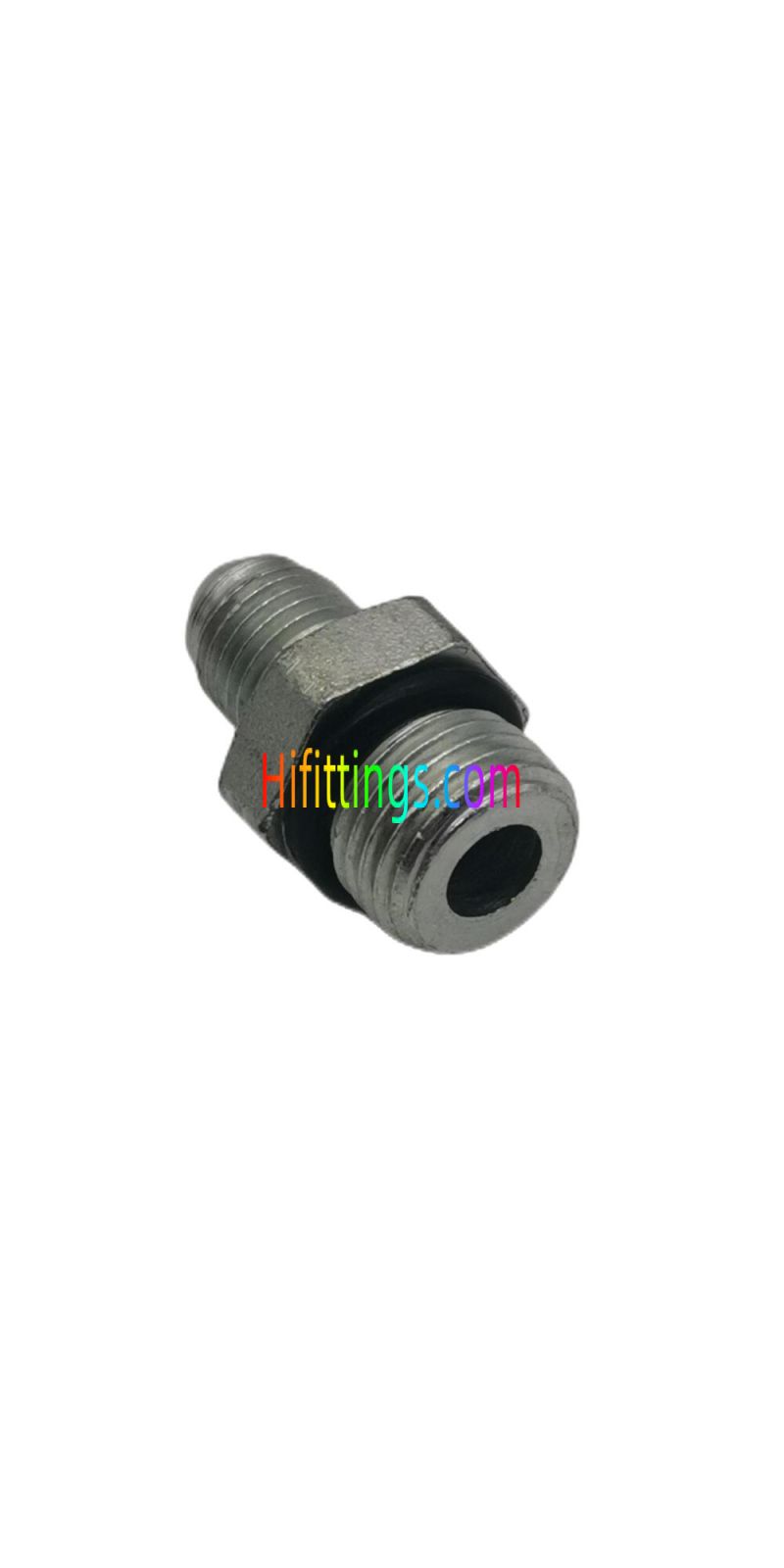

Gerade SAE O-Ring JIC Außengewinde mit 74° Konus Bördelung Rohrverschraubung 1JO
43
Auf Lager
Nur noch %1 verfügbar
SKU
1JO
Guarantee safe & secure checkout
JIC Male 74° Cone / SAE O-Ring Boss L-Series ISO 11926-3
|
Part NO. |
E |
F |
F End |
A |
B |
L |
S1 |
Working Pressure bar |
|
1JO-04-02 |
7/16"X20 |
5/16"X24 |
902 |
14 |
7.54 |
27.5 |
14 |
PN345 |
|
1JO-04-03 |
7/16"X20 |
3/8"X24 |
903 |
14 |
7.54 |
27.5 |
14 |
PN345 |
|
1JO-04 |
7/16"X20 |
7/16"X20 |
904 |
14 |
9.14 |
29 |
14 |
PN345 |
|
1JO-04-05 |
7/16"X20 |
1/2"X20 |
905 |
14 |
9.14 |
29 |
17 |
PN345 |
|
1JO-04-06 |
7/16"X20 |
9/16"X18 |
906 |
14 |
9.93 |
30 |
17 |
PN345 |
|
1JO-04-08 |
7/16"X20 |
3/4"X16 |
908 |
14 |
11.13 |
33 |
22 |
PN310 |
|
1JO-05 |
1/2"X20 |
1/2"X20 |
905 |
14 |
9.14 |
29 |
17 |
PN345 |
|
1JO-05-04 |
1/2"X20 |
7/16"X20 |
904 |
14 |
9.14 |
29 |
14 |
PN345 |
|
1JO-05-06 |
1/2"X20 |
9/16"X18 |
906 |
14 |
9.93 |
30 |
17 |
PN345 |
|
1JO-05-08 |
1/2"X20 |
3/4"X16 |
908 |
14 |
11.13 |
33 |
22 |
PN310 |
|
1JO-06 |
9/16"X18 |
9/16"X18 |
906 |
14.1 |
9.93 |
30 |
17 |
PN345 |
|
1JO-06-04 |
9/16"X18 |
7/16"X20 |
904 |
14.1 |
9.14 |
29 |
17 |
PN345 |
|
1JO-06-05 |
9/16"X18 |
1/2"X20 |
905 |
14.1 |
9.14 |
29.5 |
17 |
PN345 |
|
1JO-06-08 |
9/16"X18 |
3/4"X16 |
908 |
14.1 |
11.13 |
33 |
22 |
PN310 |
|
1JO-06-10 |
9/16"X18 |
7/8"X14 |
910 |
14.1 |
12.7 |
37 |
27 |
PN240 |
|
1JO-06-12 |
9/16"X18 |
1.1/16"X12 |
912 |
14.1 |
15.09 |
40 |
32 |
PN240 |
|
1JO-08 |
3/4"X16 |
3/4"X16 |
908 |
16.7 |
11.13 |
36 |
22 |
PN310 |
|
1JO-08-04 |
3/4"X16 |
7/16"X20 |
904 |
16.7 |
9.14 |
34 |
22 |
PN310 |
|
1JO-08-06 |
3/4"X16 |
9/16"X18 |
906 |
16.7 |
9.93 |
35 |
22 |
PN310 |
|
1JO-08-10 |
3/4"X16 |
7/8"X14 |
910 |
16.7 |
12.7 |
40 |
27 |
PN240 |
|
1JO-08-12 |
3/4"X16 |
1.1/16"X12 |
912 |
16.7 |
15.09 |
43 |
32 |
PN240 |
|
1JO-08-14 |
3/4"X16 |
1.3/16"X12 |
914 |
16.7 |
15.09 |
43 |
36 |
PN210 |
|
1JO-10 |
7/8"X14 |
7/8"X14 |
910 |
19.3 |
12.7 |
42.5 |
27 |
PN240 |
|
1JO-10-08 |
7/8"X14 |
3/4"X16 |
908 |
19.3 |
11.13 |
39 |
24 |
PN240 |
|
1JO-10-12 |
7/8"X14 |
1.1/16"X12 |
912 |
19.3 |
15.09 |
45.5 |
32 |
PN240 |
|
1JO-10-14 |
7/8"X14 |
1.3/16"X12 |
914 |
19.3 |
15.09 |
45.5 |
36 |
PN210 |
|
1JO-12 |
1.1/16"X12 |
1.1/16"X12 |
912 |
21.9 |
15.09 |
48 |
32 |
PN240 |
|
1JO-12-08 |
1.1/16"X12 |
3/4"X16 |
908 |
21.9 |
11.13 |
43 |
30 |
PN240 |
|
1JO-12-10 |
1.1/16"X12 |
7/8"X14 |
910 |
21.9 |
12.7 |
45 |
30 |
PN240 |
|
1JO-12-14 |
1.1/16"X12 |
1.3/16"X12 |
914 |
21.9 |
15.09 |
48 |
36 |
PN210 |
|
1JO-12-16 |
1.1/16"X12 |
1.5/16"X12 |
916 |
21.9 |
15.09 |
48 |
38 |
PN210 |
|
1JO-14 |
1.3/16"X12 |
1.3/16"X12 |
914 |
22.6 |
15.09 |
48.5 |
36 |
PN210 |
|
1JO-14-12 |
1.3/16"X12 |
1.1/16"X12 |
912 |
22.6 |
15.09 |
48.5 |
32 |
PN210 |
|
1JO-14-16 |
1.3/16"X12 |
1.5/16"X12 |
916 |
22.6 |
15.09 |
50.5 |
38 |
PN210 |
|
1JO-16 |
1.5/16"X12 |
1.5/16"X12 |
916 |
23.1 |
15.09 |
49 |
38 |
PN210 |
|
1JO-16-12 |
1.5/16"X12 |
1.1/16"X12 |
912 |
23.1 |
15.09 |
49 |
36 |
PN210 |
|
1JO-16-14 |
1.5/16"X12 |
1.3/16"X12 |
914 |
23.1 |
15.09 |
49 |
36 |
PN210 |
|
1JO-16-20 |
1.5/16"X12 |
1.5/8"X12 |
920 |
23.1 |
15.09 |
53 |
50 |
PN170 |
|
1JO-20 |
1.5/8"X12 |
1.5/8"X12 |
920 |
24.3 |
15.09 |
54.5 |
50 |
PN170 |
|
1JO-20-16 |
1.5/8"X12 |
1.5/16"X12 |
916 |
24.3 |
15.09 |
52.5 |
46 |
PN170 |
|
1JO-20-24 |
1.5/8"X12 |
1.7/8"X12 |
924 |
24.3 |
15.09 |
54.5 |
55 |
PN140 |
|
1JO-24 |
1.7/8"X12 |
1.7/8"X12 |
924 |
27.5 |
15.09 |
57.5 |
55 |
PN140 |
|
1JO-24-20 |
1.7/8"X12 |
1.5/8X12 |
920 |
27.5 |
15.09 |
57.5 |
50 |
PN140 |
|
1JO-24-32 |
1.7/8"X12 |
2.1/2"X12 |
932 |
27.5 |
15.09 |
59.5 |
70 |
PN105 |
|
1JO-32 |
2.1/2"X12 |
2.1/2"X12 |
932 |
33.9 |
15.09 |
66 |
70 |
PN105 |
|
Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.PN = Nominal Pressure |
||||||||
| Form | Straight |
|---|---|
| Fitting Typ | Cone Flared |
| Gewindetyp | Male |
| Connection Type | JIC, UNF |
